- UPS system
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone line
- USB Communication Cable
- Serial interface Cable (RS-232)
- 8 x M5 x 7L black flat head screws
- 12 x M5 x 12L black pan head screws
- 6 x M5 x 6L silver pan head screws
- 8 x Plastic washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads, Software Download Card
Trusted & Verified

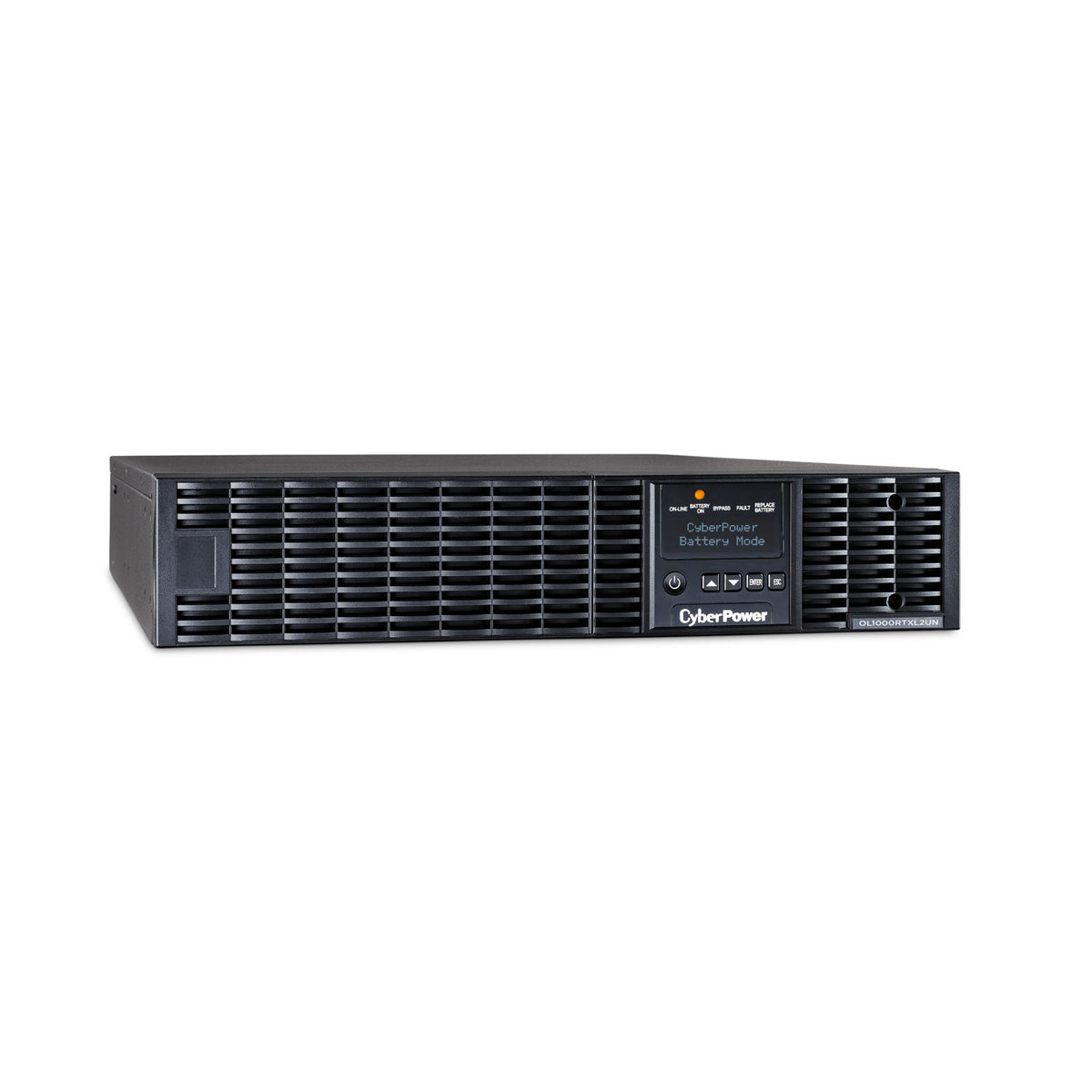

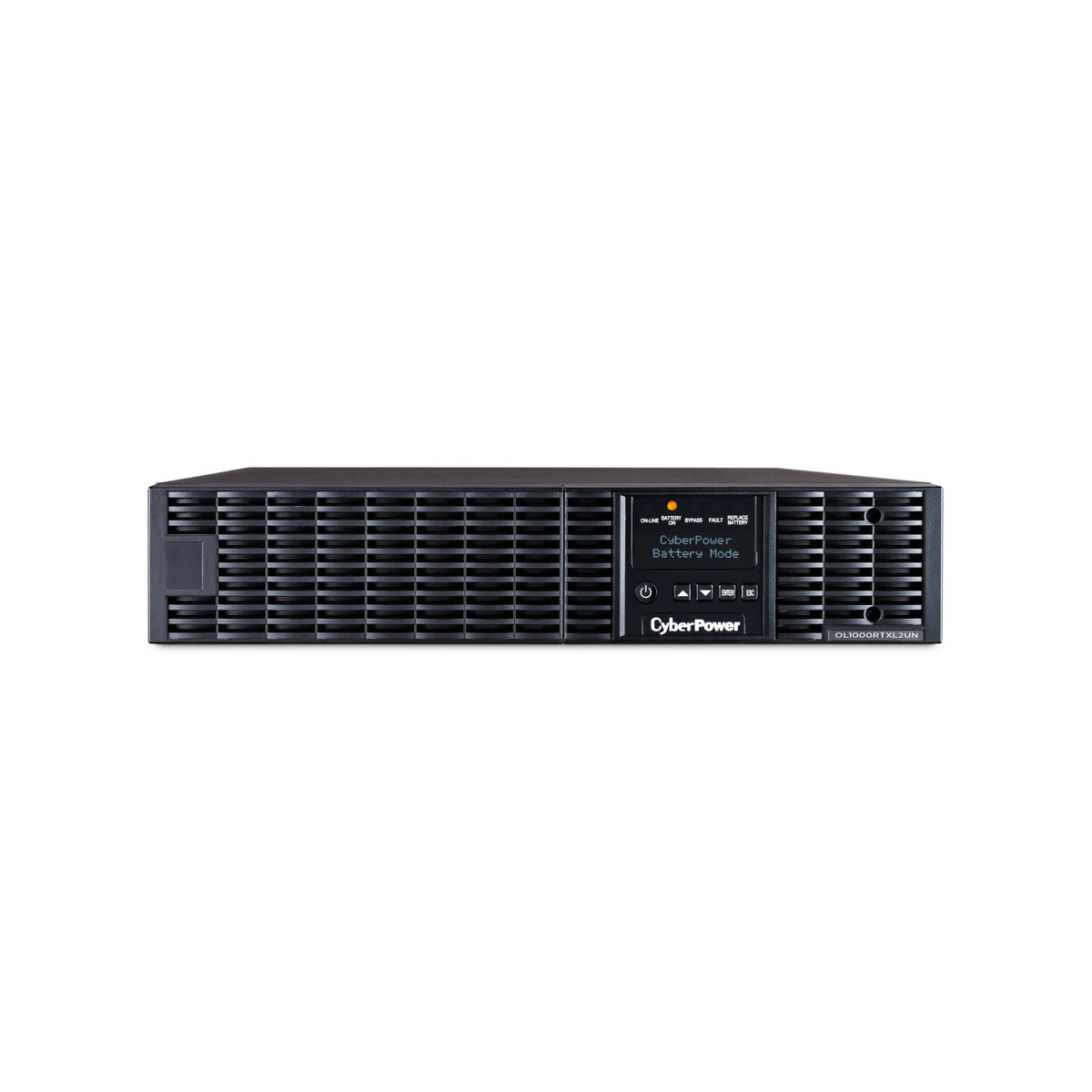

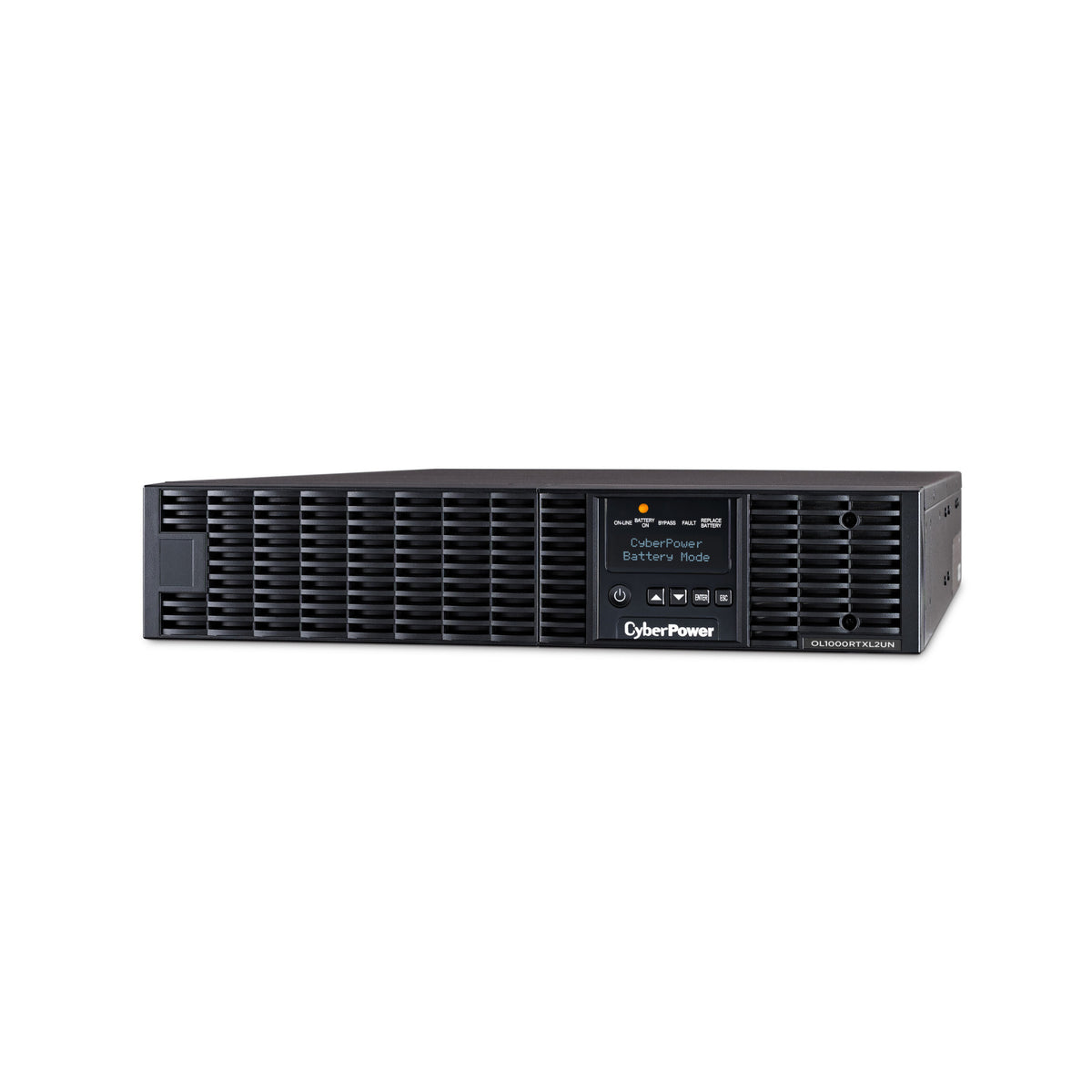

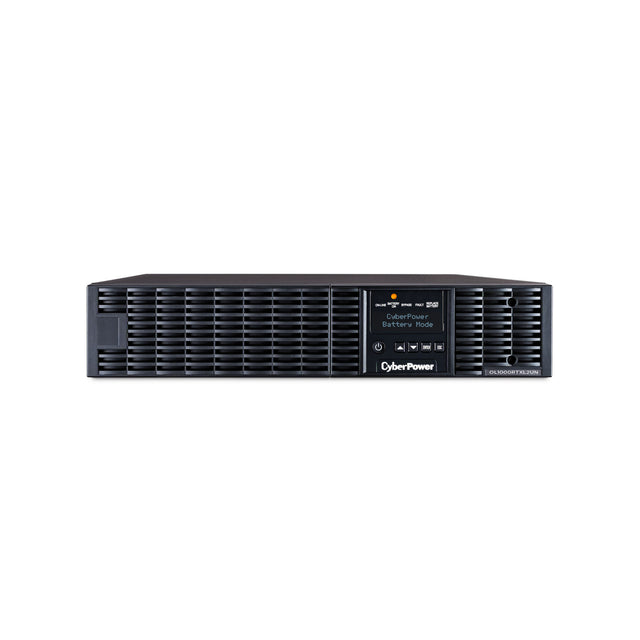

CyberPower OL1000RTXL2UN 1000VA/900W Smart App Online Rack/Tower UPS with Network Management Card
- 1000 VA and 900 W capacity for sensitive connected electronics
- Online double conversion topology provides zero millisecond transfer time
- Sine wave output supports equipment with Active PFC

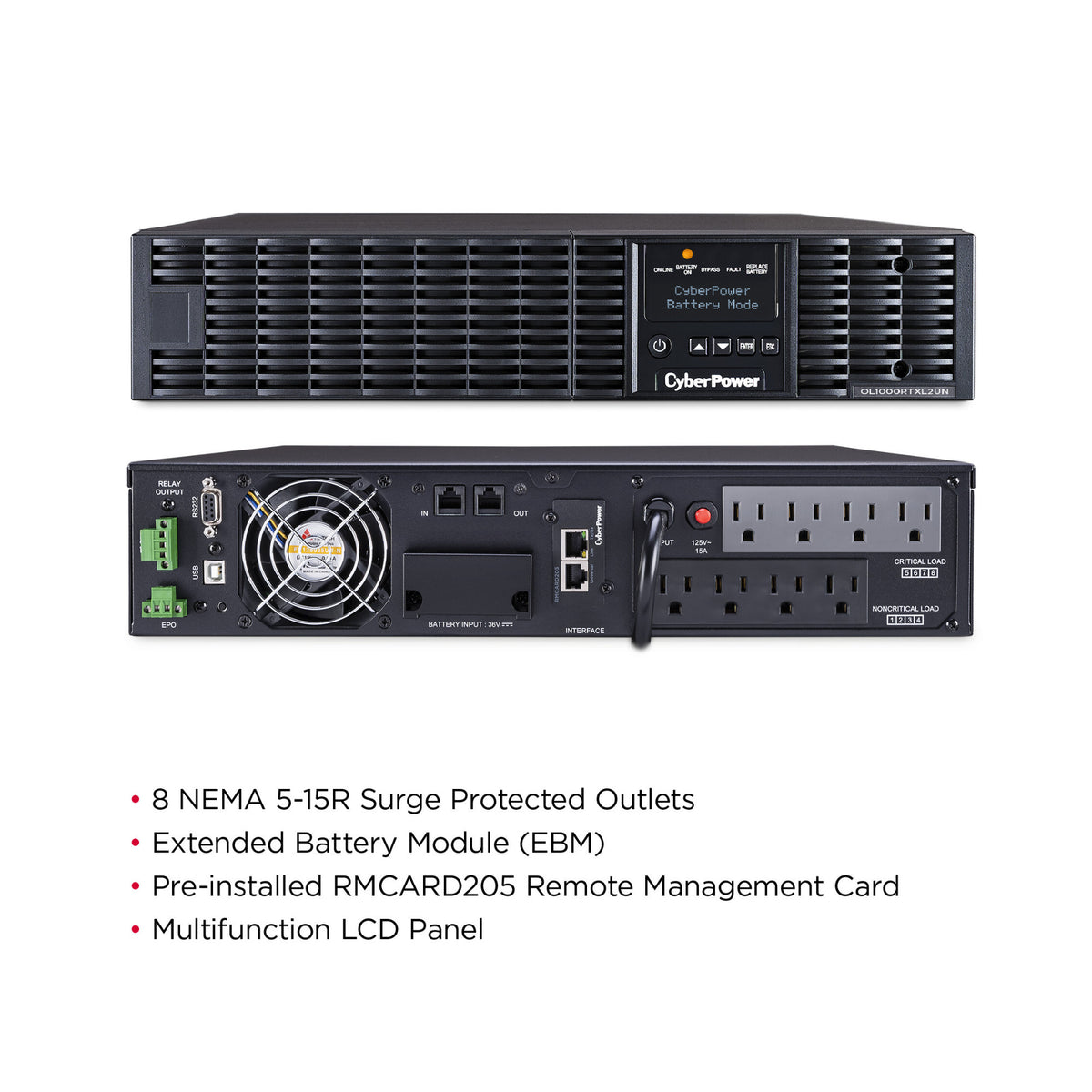

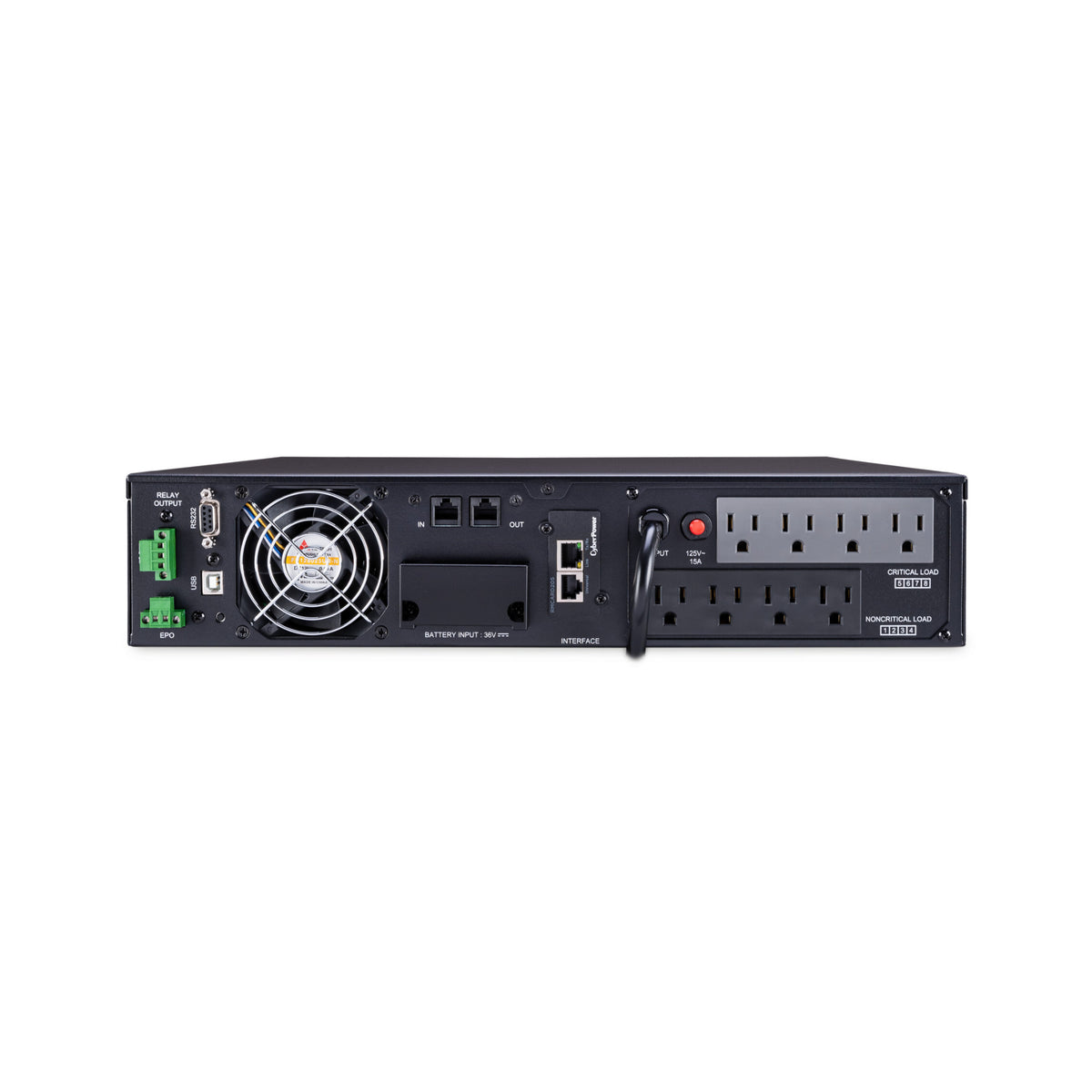

- 8 NEMA 5-15R outlets provide connections for critical equipment
- 8 minute full load runtime and 21 minute half load runtime
- Preinstalled RMCARD205 enables remote network management

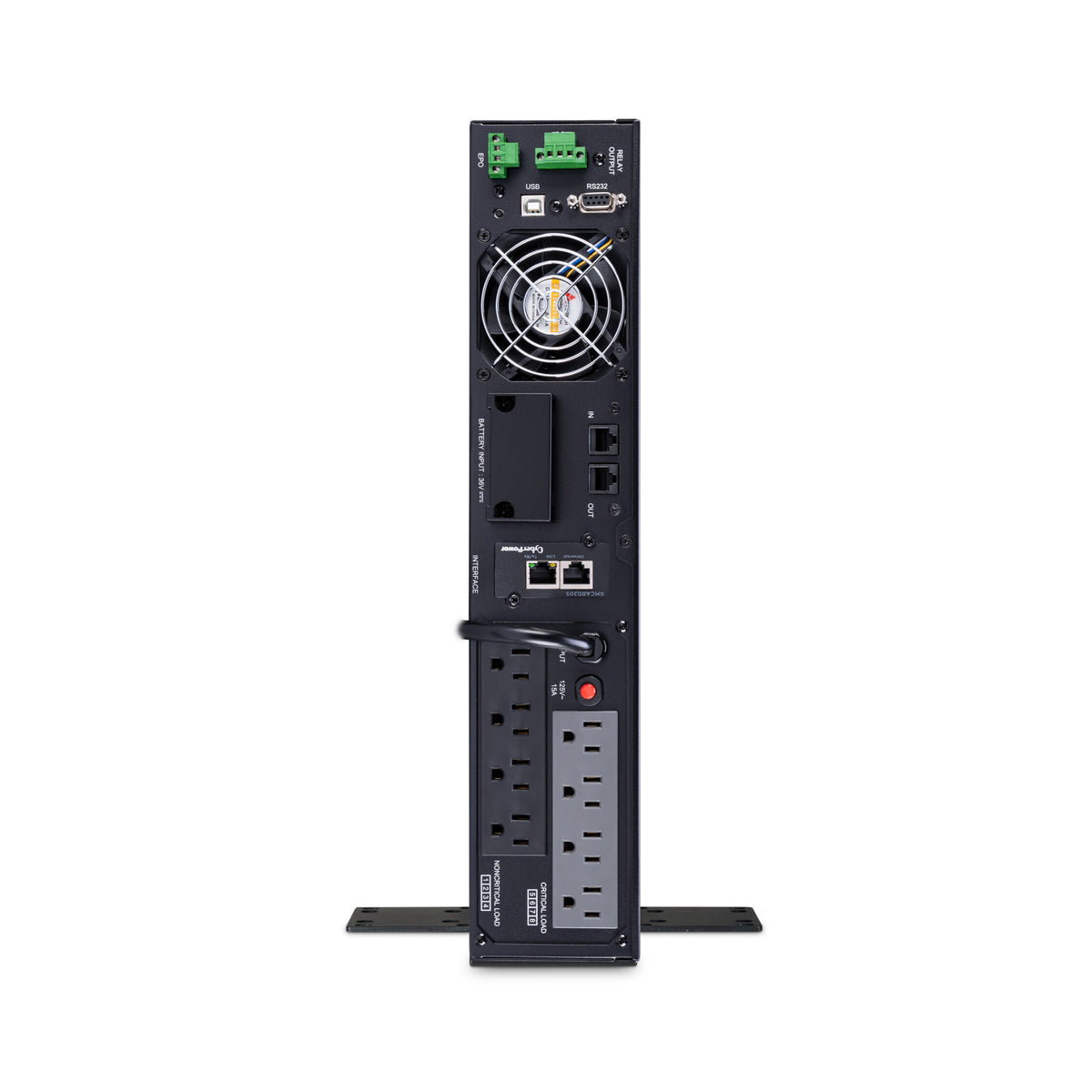

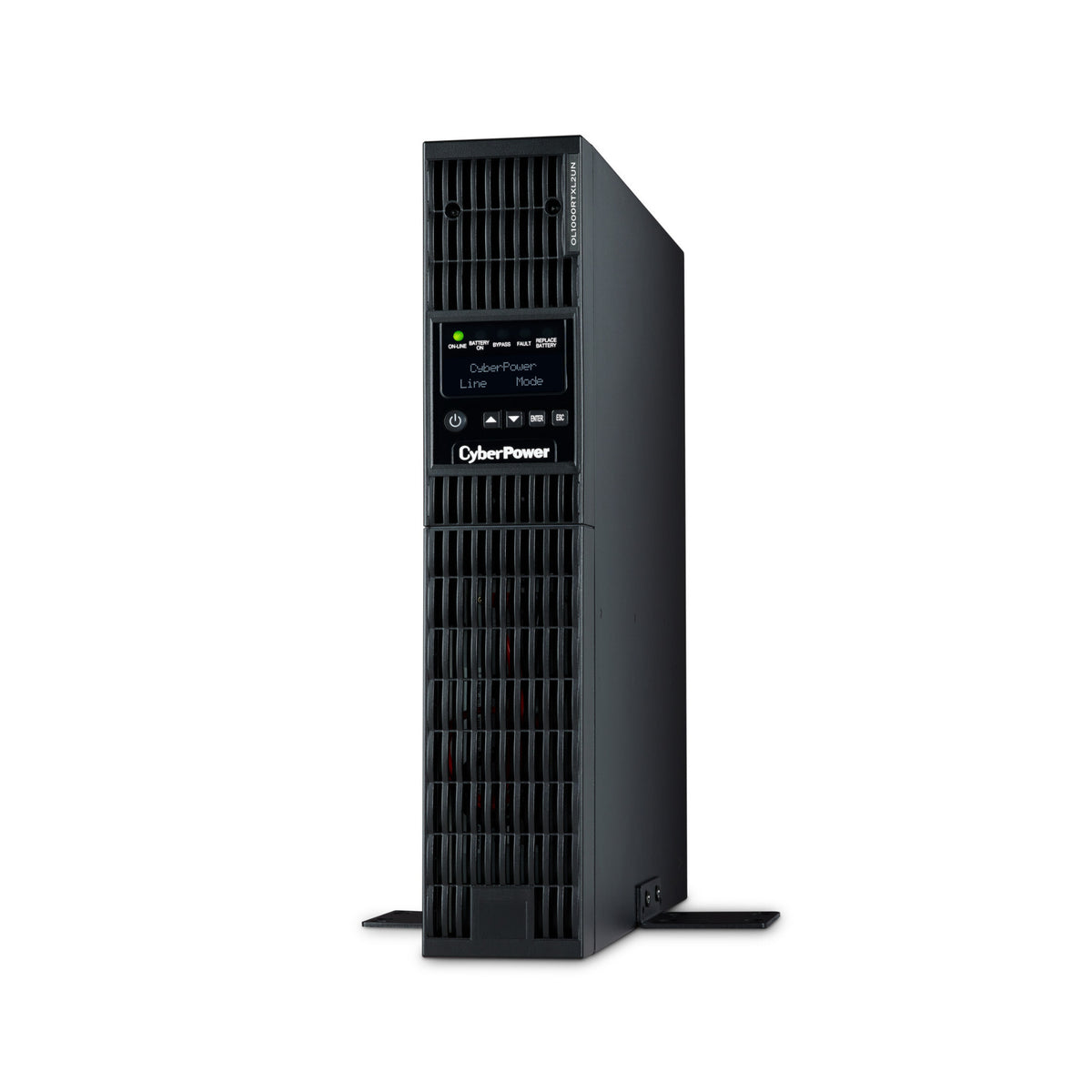

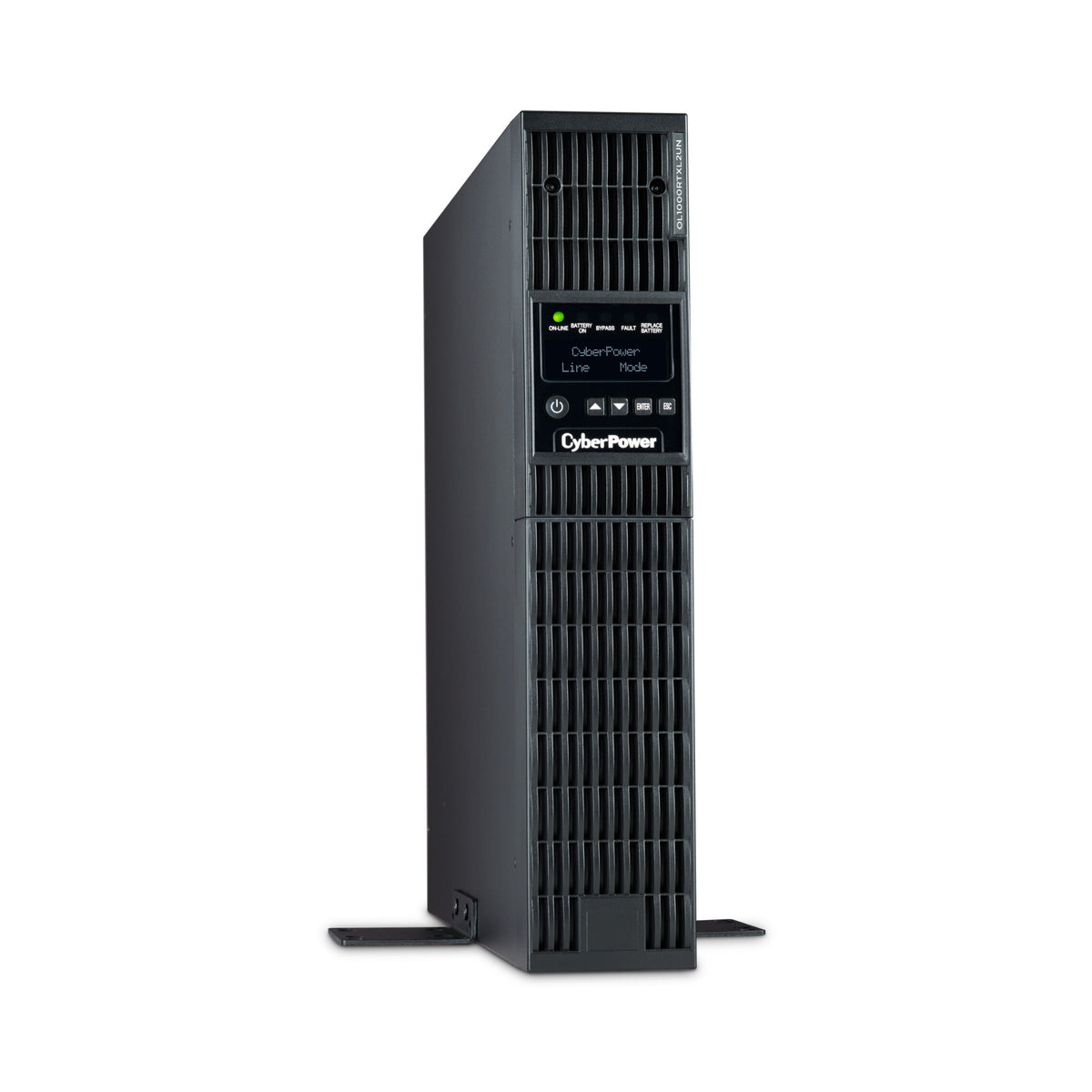

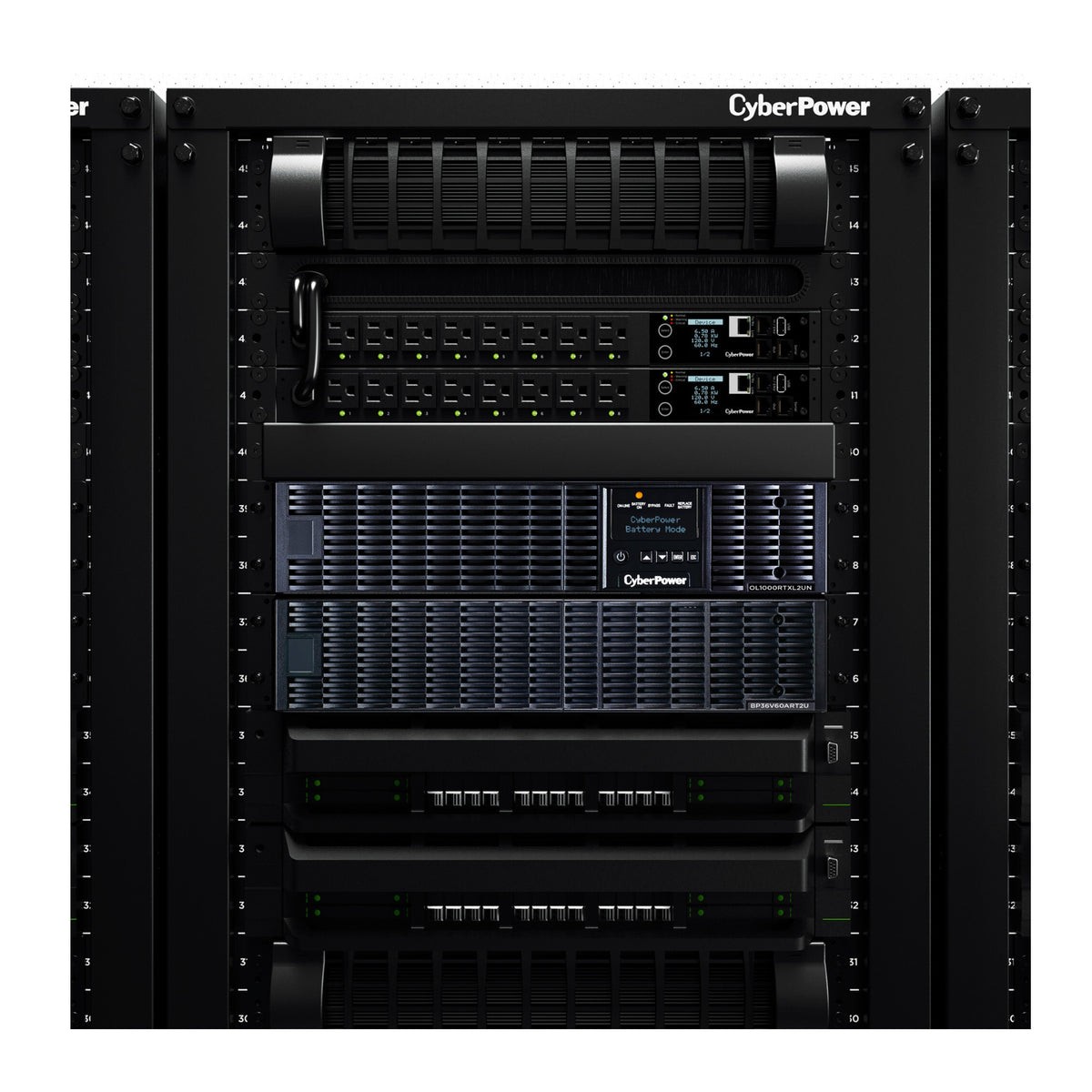

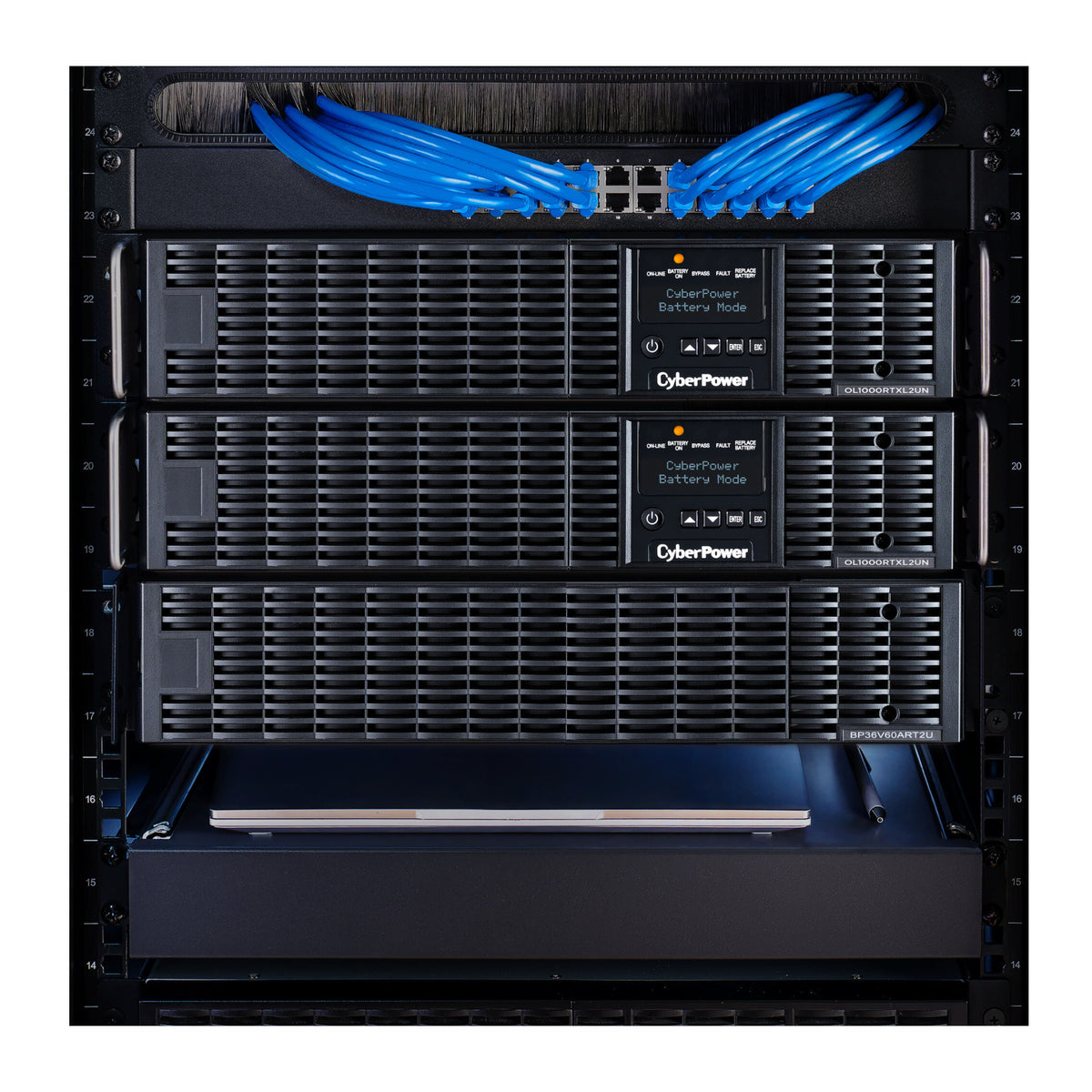

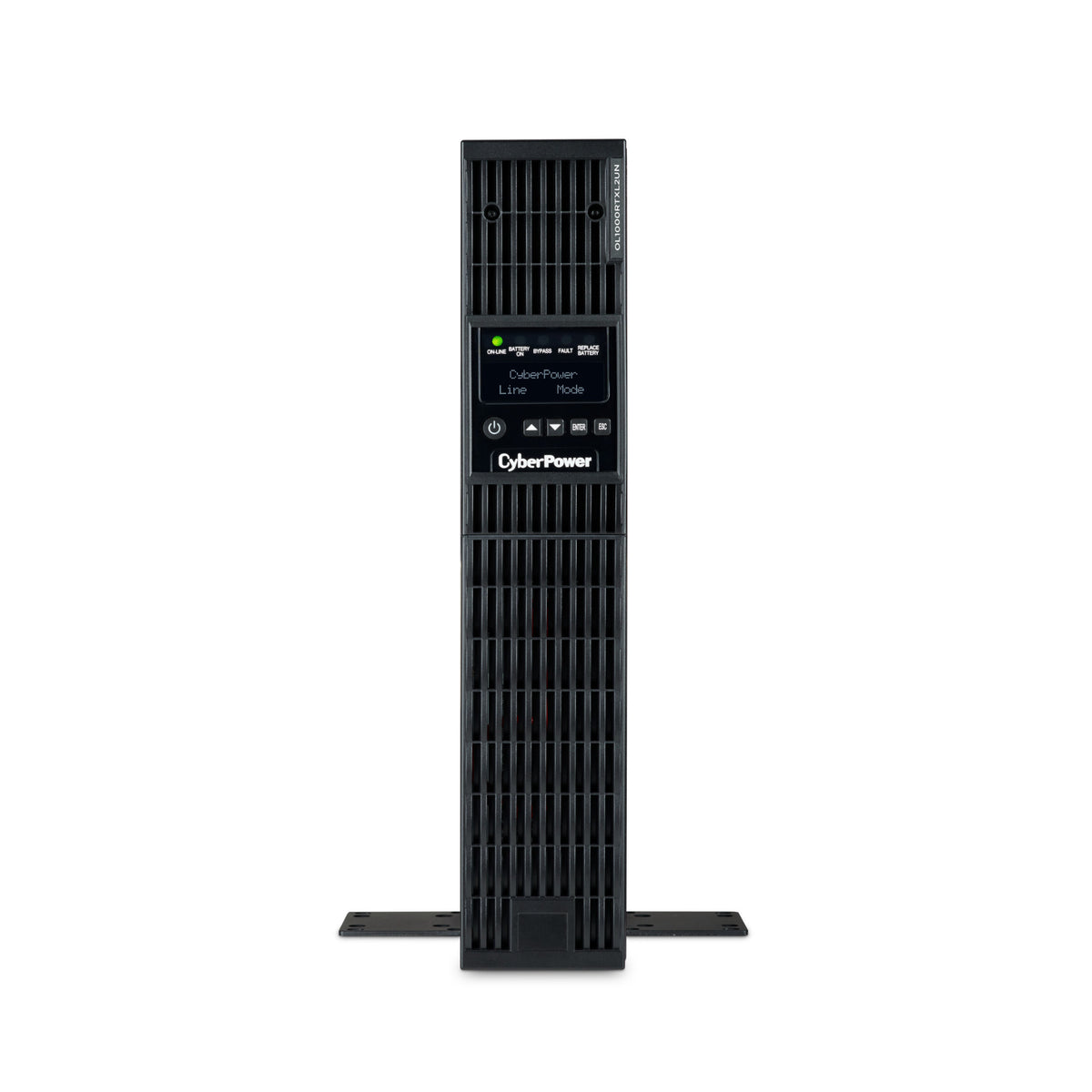

- Rack or tower 2U metal chassis supports flexible installation
- Supports up to 10 compatible extended battery modules
- Fast Charge Technology restores 0 to 90 percent charge in 4 hours
- Hot swappable batteries support replacement without equipment shutdown
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode.
The OL1000RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
Continuous Online Power with Zero Millisecond Transfer Time
The CyberPower OL1000RTXL2UN Smart App Online UPS supplies 1000 VA and 900 W of regulated backup power for servers, network hardware, lab systems, storage devices, and other sensitive electronics. Online double conversion continuously conditions incoming utility power and delivers sine wave output with zero millisecond transfer time when power fails. Eight NEMA 5-15R outlets support connected equipment, while the 2U rack and tower form factor fits data closets, equipment racks, and vertical installations.
Remote Monitoring and Flexible Control
A factory installed RMCARD205 supports browser, command line, and network management system access. PowerPanel Business Edition software adds centralized monitoring and automated shutdown capabilities. The removable multifunction LCD displays operating status and configuration settings, and it can be positioned up to 10 feet from the UPS with a separately obtained DB26 cable. USB, serial, relay, and emergency power off connections support integration with Windows, Linux, and VMware environments.
Expandable Runtime and Battery Care
The internal battery system provides approximately 21 minutes at half load and 8 minutes at full load under CyberPower test conditions. Up to 10 compatible extended battery modules can be added for longer runtime. Fast Charge Technology restores batteries from 0 percent to 90 percent within 4 hours, even with connected battery modules. Smart Battery Management uses a three cycle charging process, while hot swappable, user replaceable batteries help reduce interruption during maintenance.
Generator compatibility, selectable 50 Hz or 60 Hz converter operation, critical and noncritical load banks, data line surge protection, EMI and RFI filtering, audible alarms, status LEDs, and ECO Mode provide added control for demanding installations. ECO Mode supports 94 percent operating efficiency, helping reduce electrical and cooling demand.
General
| Energy Saving | ECO Mode Efficiency More Than 94 Percent |
| Energy Star Certified | Yes |
| UPS Topology | Online Double Conversion |
Battery:
| Battery Quantity | 3 |
| Battery Size | 12 V, 9 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Extended Battery Module | BP36V60ART2U |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X3L |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 8 Minutes |
| Runtime at Half Load | 21 Minutes |
| Smart Battery Management Mode | Yes |
| Typical Recharge Time | 4 Hours (0% to 90% charged) |
| User Replaceable Battery | Yes |
Input:
| Circuit Breaker | 15 A |
| Cold Start | Yes |
| Cord Length | 10 Feet, 3.0 m |
| Input Frequency Range | 40 Hz to 70 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Power Factor | 0.99 |
| Input Voltage Range | |
|
|
| Nominal Input Voltage | 100 VAC to 125 VAC |
Output:
| Bypass | Internal Bypass (Automatic and Manual) |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | ±10%, ±15% (Configurable) |
| Harmonic Distortion | |
|
|
| Nominal Output Voltage | 100 VAC to 125 VAC |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
| On Battery Voltage | 100/110/115/120/125 VAC ± 2% (configurable) |
| On Battery Waveform | Sine Wave |
| Outlet Type | 8 x NEMA 5-15R |
| Outlets Total | 8 |
| Output Power Factor | 0.9 |
| Overload Protection |
|
| Short Circuit Protection | UPS Output Cut Off Immediately or Input Fuse and Circuit Breaker Protection |
| Typical Transfer Time | 0 Milliseconds |
| USB Charge Port | No |
| Capacity | 1000 VA |
| Output Power | 900 W |
Surge Protection and Filtering:
| EMI and RFI Filtration | Yes |
| Phone and Network Protection | 1-In / 1-Out (Combo) |
| Surge Suppression | 1780 J |
Management and Communications:
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Dry Contacts | Yes |
| Emergency Power Off Port | Yes |
| Expansion Slot | Yes, RMCARD205 Preinstalled |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On White, Line Mode Green, Battery Mode Yellow, Bypass Mode Yellow, Fault Red, Replace Battery Red |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | Yes, Requires a Separately Obtained DB26 Cable |
| Rotatable LCD Control Panel Option | Yes |
| Serial Port | 1 Serial |
| Software | PowerPanel Business Edition |
| Upgradeable Firmware | Yes |
Physical:
| Color | Black |
| Form Factor | Rack and Tower |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
Dimensions:
| Physical Dimensions (WxHxD) (cm) | 43.18 x 8.89 x 42.93 (cm) |

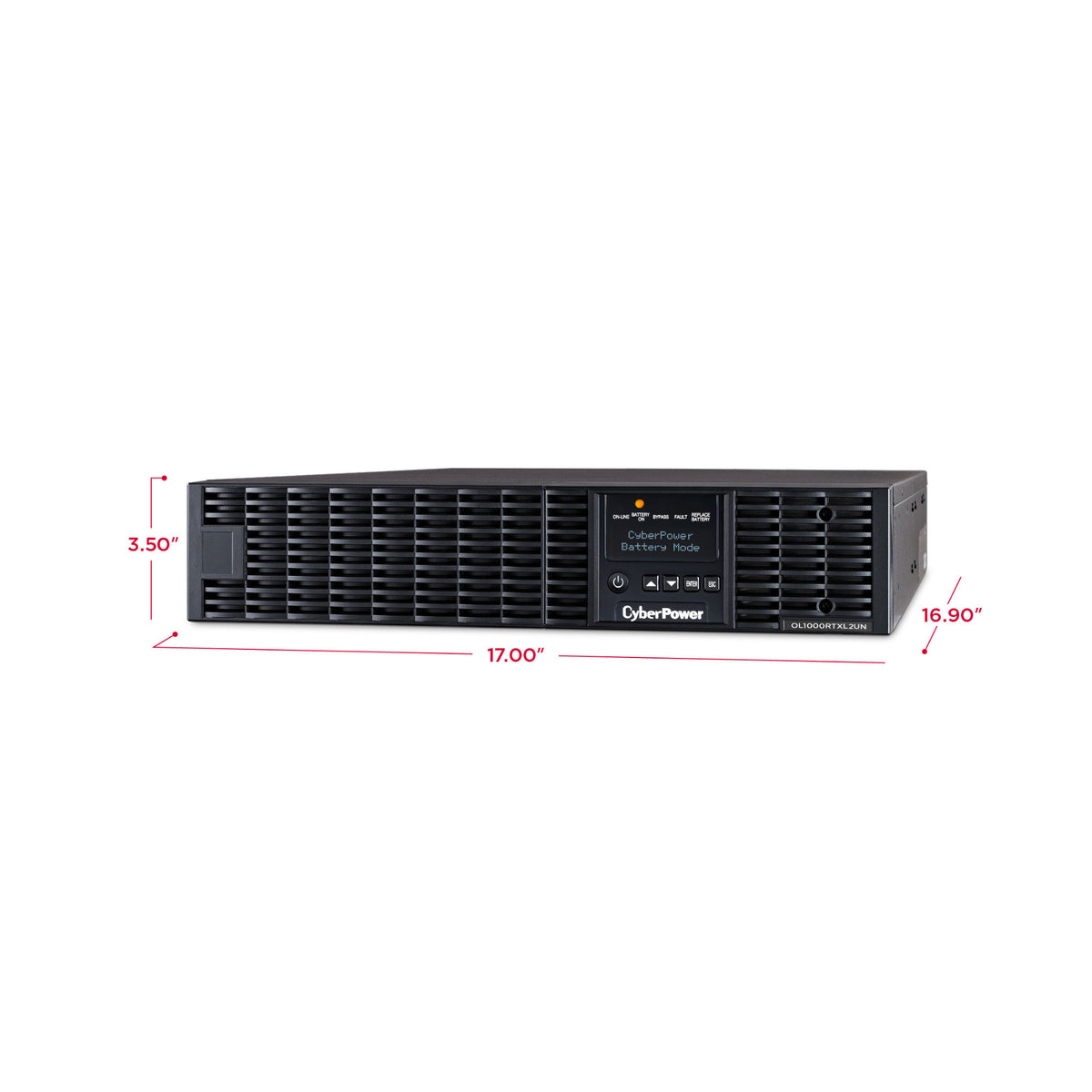

| Physical Dimensions (WxHxD) (in) | 17 x 3.5 x 16.9 (in) |
| Physical Dimensions (WxHxD) (mm) | 432 x 89 x 429 (mm) |
| Physical Weight | 39.6 lb, 17.96 kg |
Shipping Dimensions:
| Shipping Dimensions (WxHxD) (cm) | 54.61 x 23.55 x 57.15 |
| Shipping Dimensions (WxHxD) (in) | 21.5 x 9.27 x 22.5 |
| Shipping Dimensions (WxHxD) (mm) | 546.1 x 235.46 x 571.5 |
| Shipping Weight | 53.5 lb, 24.26 kg |
Environmental:
| Audible Noise at 1 m | 38 dBA to 55 dBA (0 to 100% load) |
| ECO Mode Thermal Dissipation | 108 BTU per Hour |
| Online Thermal Dissipation | 274 BTU per Hour |
| Operating Elevation | 0 – 10000 ft (0 – 3048 m) |
| Operating Relative Humidity | 0 – 90 % (non-condensing) |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 – 50000 ft (0 – 15239 m) |
| Storage Relative Humidity | 0 – 95% (non-condensing) |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
Certifications:
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Electromagnetic Compatibility | FCC Part 15 Class B |
| Safety Standard | CSA C22.2 No. 107.3 |
