- UPS system
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone line
- USB Communication Cable
- Serial interface Cable (RS-232)
- 8 x M5 x 7L black flat head screws
- 12 x M5 x 12L black pan head screws
- 6 x M5 x 6L silver pan head screws
- 8 x Plastic washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Software Download Card
Trusted & Verified
SKU: OL1500RTXL2U

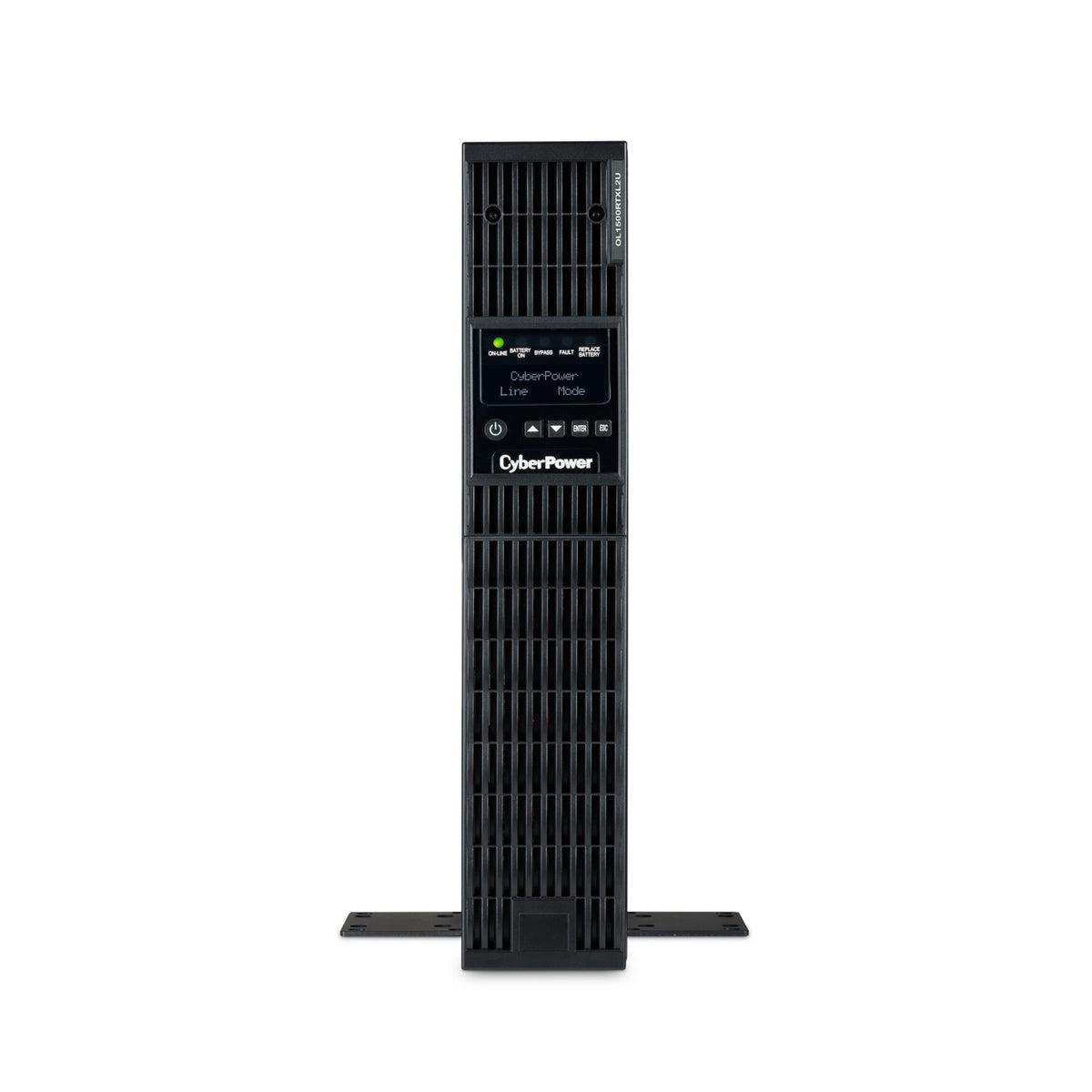

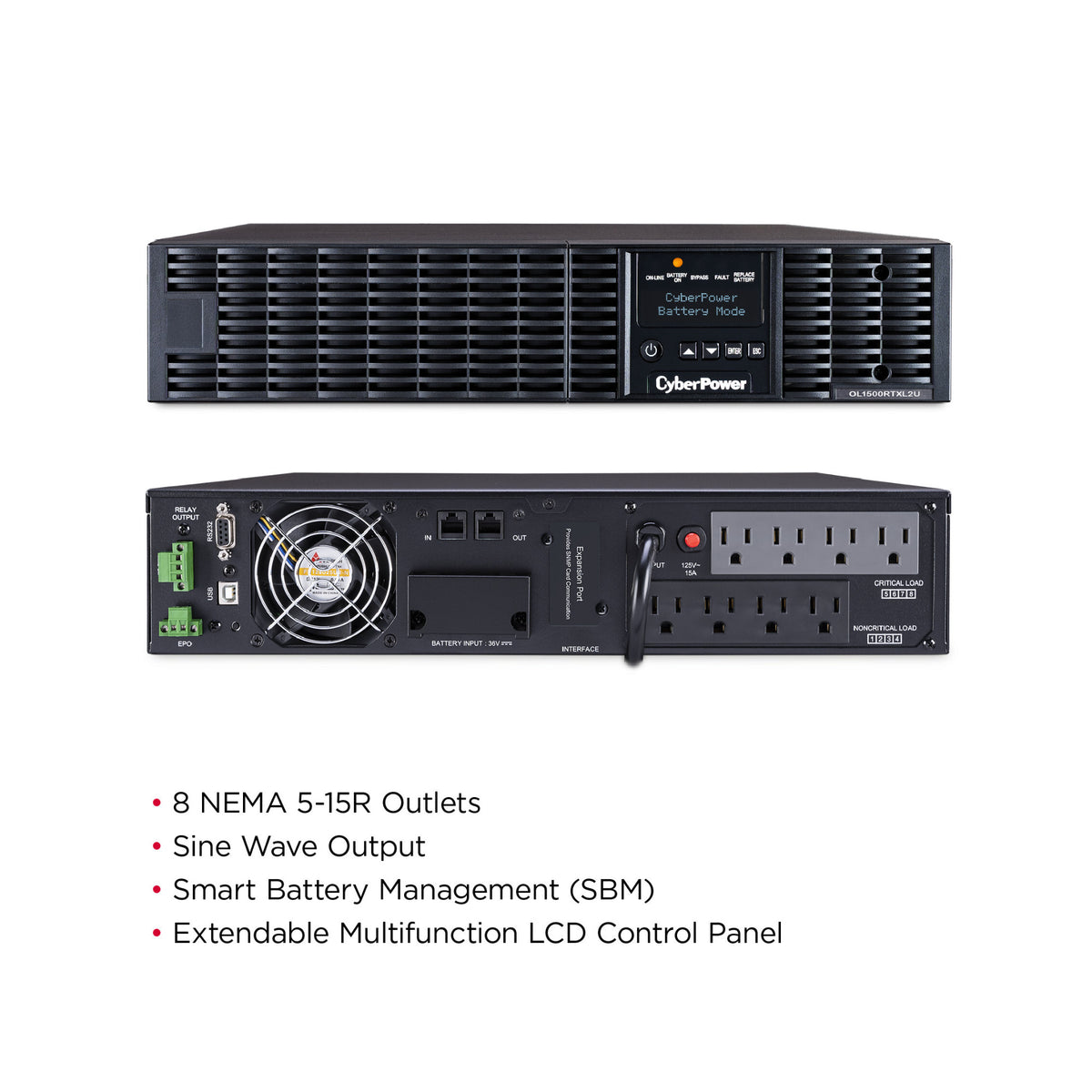

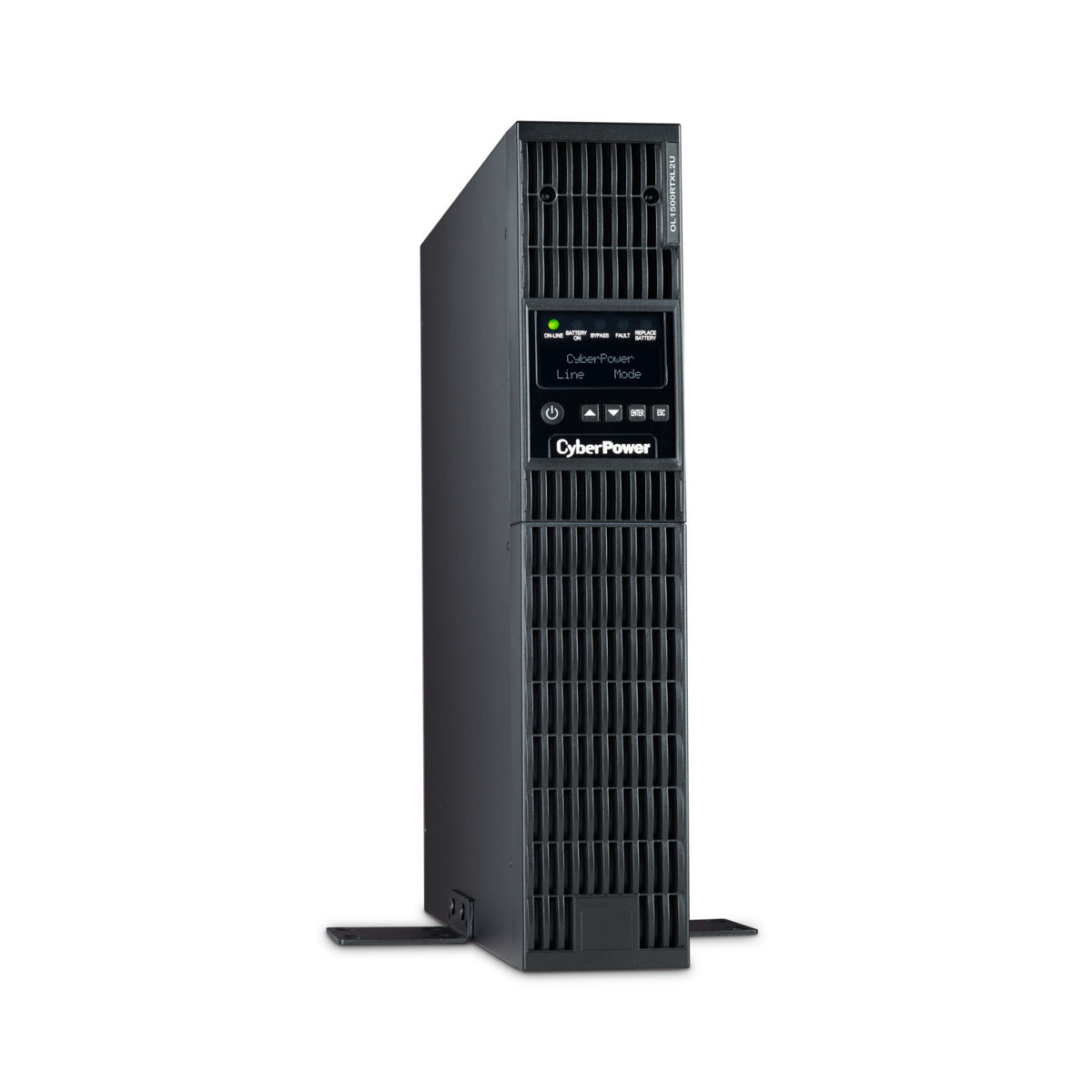

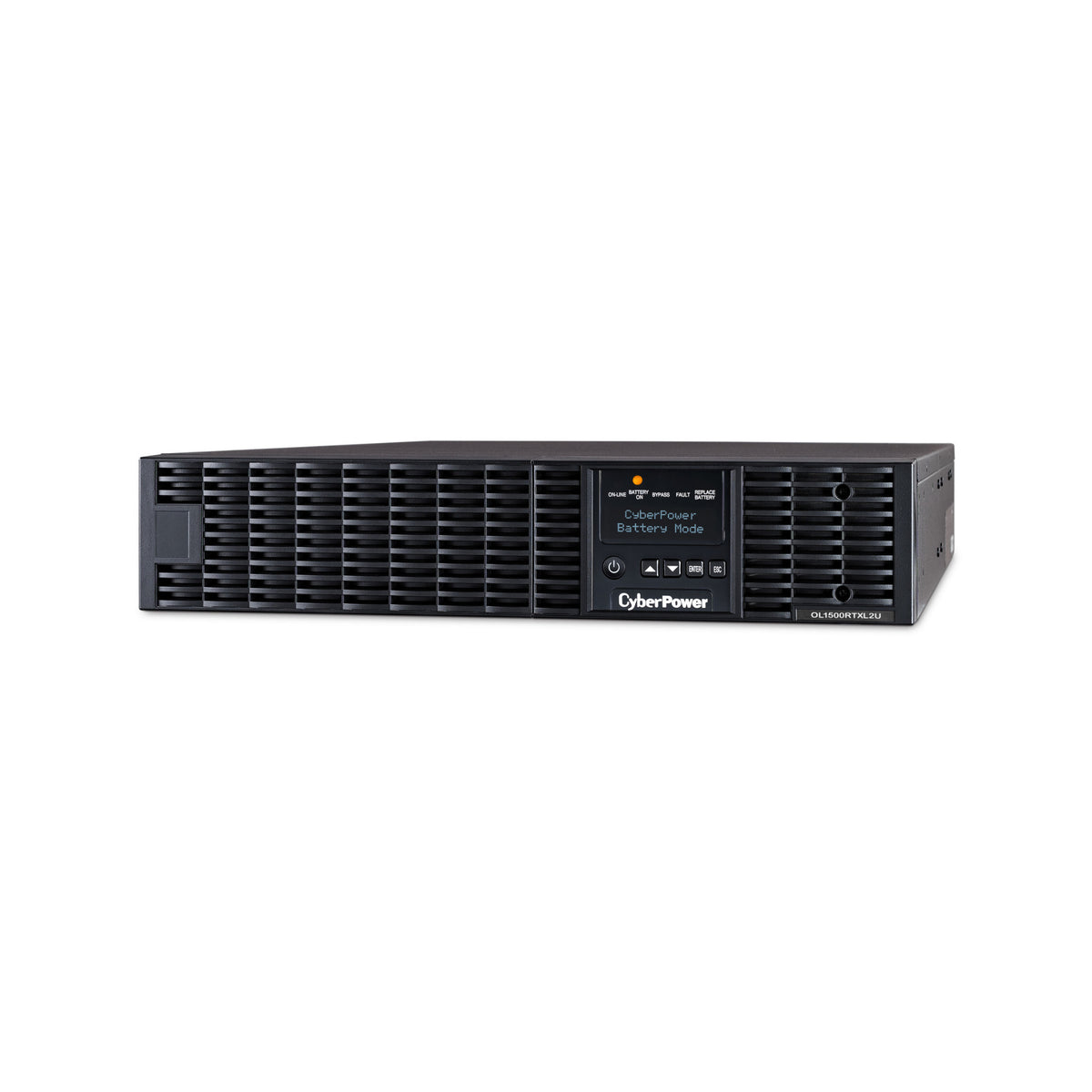

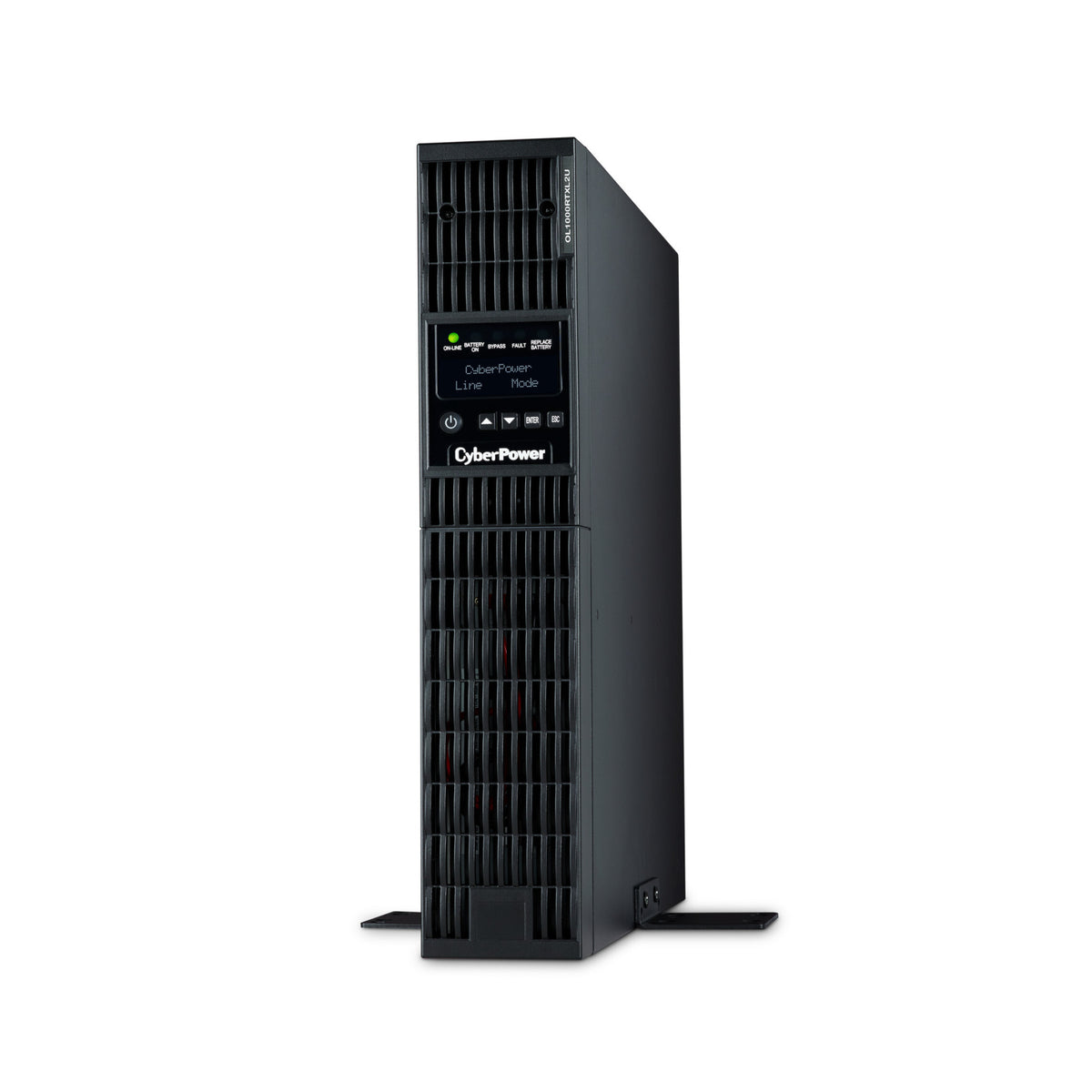

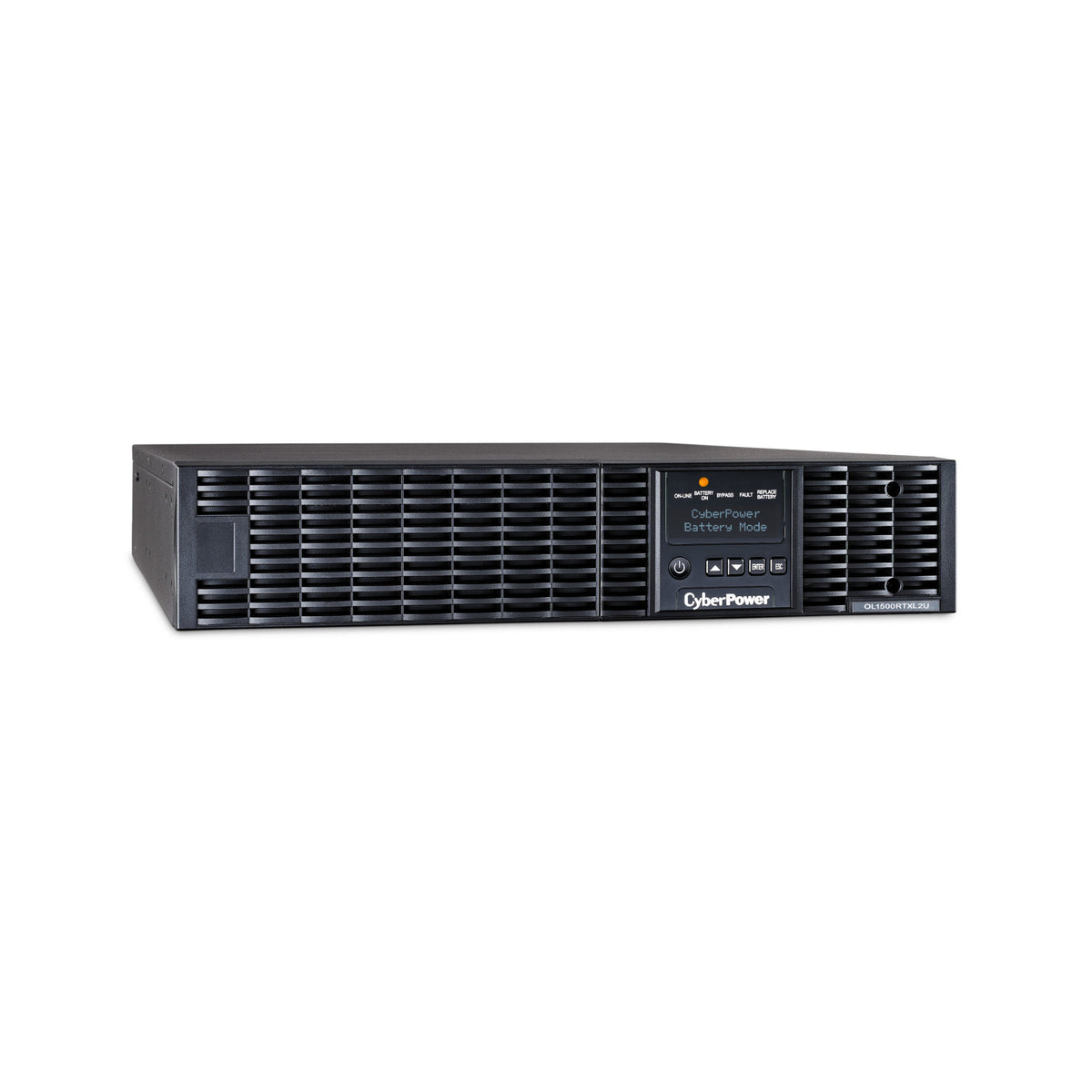

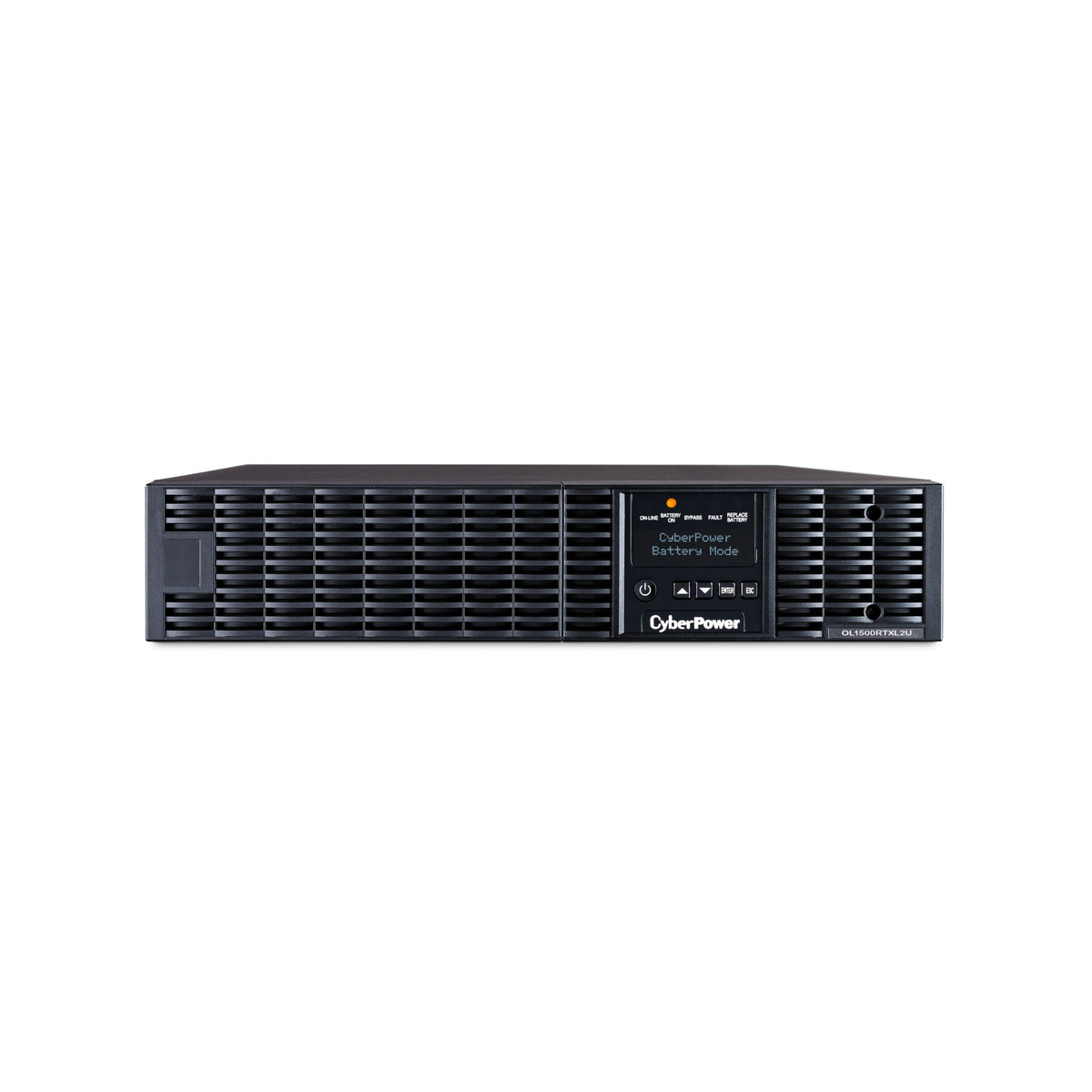

CyberPower OL1500RTXL2U Smart App Online Rack/Tower UPS System
- 1500VA / 1350W capacity
- Double-conversion online UPS
- Pure sine wave output
- Zero transfer time
- Rack or tower installation
- Supports up to 10 Extended Battery Modules
- Fast Charge Technology
- Smart Battery Management
- GreenPower UPS ECO Mode
- Up to 95% operating efficiency
- Hot-swappable batteries
- Extendable LCD control panel
- PowerPanel Business Edition software
- Optional RMCARD205 remote management
- USB and serial connectivity
- Generator compatible
- Converter mode (50Hz/60Hz)
- Critical and non-critical load management
- Emergency Power Off (EPO)
- Upgradeable firmware
- EMI/RFI noise filtering
- Telephone and Ethernet surge protection
- Audible alarms
- LED status indicators
- Resettable circuit breaker
- Enterprise server and network protection
Prevent business interruptions and safeguard mission-critical enterprise network equipment.
The CyberPower OL1500RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode. The OL1500RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
Double-Conversion Topology
Provides consistent, clean, and nearly perfect power regardless of incoming utility conditions by converting AC to DC for continuous regulation; delivers zero millisecond transfer time to battery power during outages and is designed for high-end system components, corporate servers, lab equipment, and other sensitive electronic devices.
Sine Wave Output with Generator and Converter Flexibility
Keeps sensitive Active PFC equipment operating without interruption by preventing shutdowns caused by simulated sine wave gaps; supports generator compatibility with stable, distortion-free output and includes converter mode with selectable 50Hz or 60Hz output via the LCD control panel.
Scalable Runtime with Advanced Battery Management
Extends backup runtime by supporting up to 10 Extended Battery Modules (EBMs); Fast Charge Technology restores 0–90% capacity within approximately 4 hours regardless of EBM count; Smart Battery Management (SBM) improves battery lifespan through a three-cycle charging process and reduces heat; includes hot-swappable batteries and critical/non-critical load management for optimized power distribution.
Intelligent Monitoring, Control, and Connectivity
PowerPanel Business Edition software enables remote monitoring and automated shutdown of connected systems; optional RMCARD205 provides web browser, CLI, and NMS-based remote management plus firmware upgrades; LCD control panel displays UPS status and configuration settings up to 10 ft away and supports IP setup when RMCARD205 is installed; includes USB and serial connectivity for Windows, Linux, and VMware environments.
Complete Power Protection
Includes EMI/RFI filtering, data line surge protection for Ethernet and telephone lines, resettable circuit breaker, audible alarms for battery, overload, and fault conditions, LED status indicators (Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery), Emergency Power Off (EPO) support, rack/tower versatility, GreenPower UPS ECO Mode for up to 95% efficiency, and field-upgradeable firmware via RMCARD205.
General
| Online Double Conversion UPS Topology | |
| Energy Star Certified | Yes |
| ECO Mode Efficiency | >95% |
Battery
| Battery Quantity | 3 |
| Battery Type | Sealed Lead-Acid Battery |
| Battery Size | 12 V / 9 Ah |
| Hot Swappable | Yes |
| User Replaceable Battery | Yes |
| Replacement Battery Cartridge | RB1290X3L |
| Replacement Cartridge Quantity | 1 |
| Extended Battery Module | BP36V60ART2U |
| Smart Battery Management (SBM) Mode | Yes |
| Typical Recharge Time | 4 hours (0% to 90%) |
| Runtime at Full Load | 4 minutes |
| Runtime at Half Load | 12.5 minutes |
Input
| Nominal Input Voltage | 100 – 125 VAC |
| Input Frequency Range | 40 Hz – 70 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Power Factor | 0.99 |
| Cold Start | Yes |
| Cord Length | 10 ft (3.0 m) |
| Circuit Breaker | 15 A |
| Input Voltage Range |
|
Output
| Capacity | 1500 VA / 1350 W |
| Output Power Factor | 0.9 |

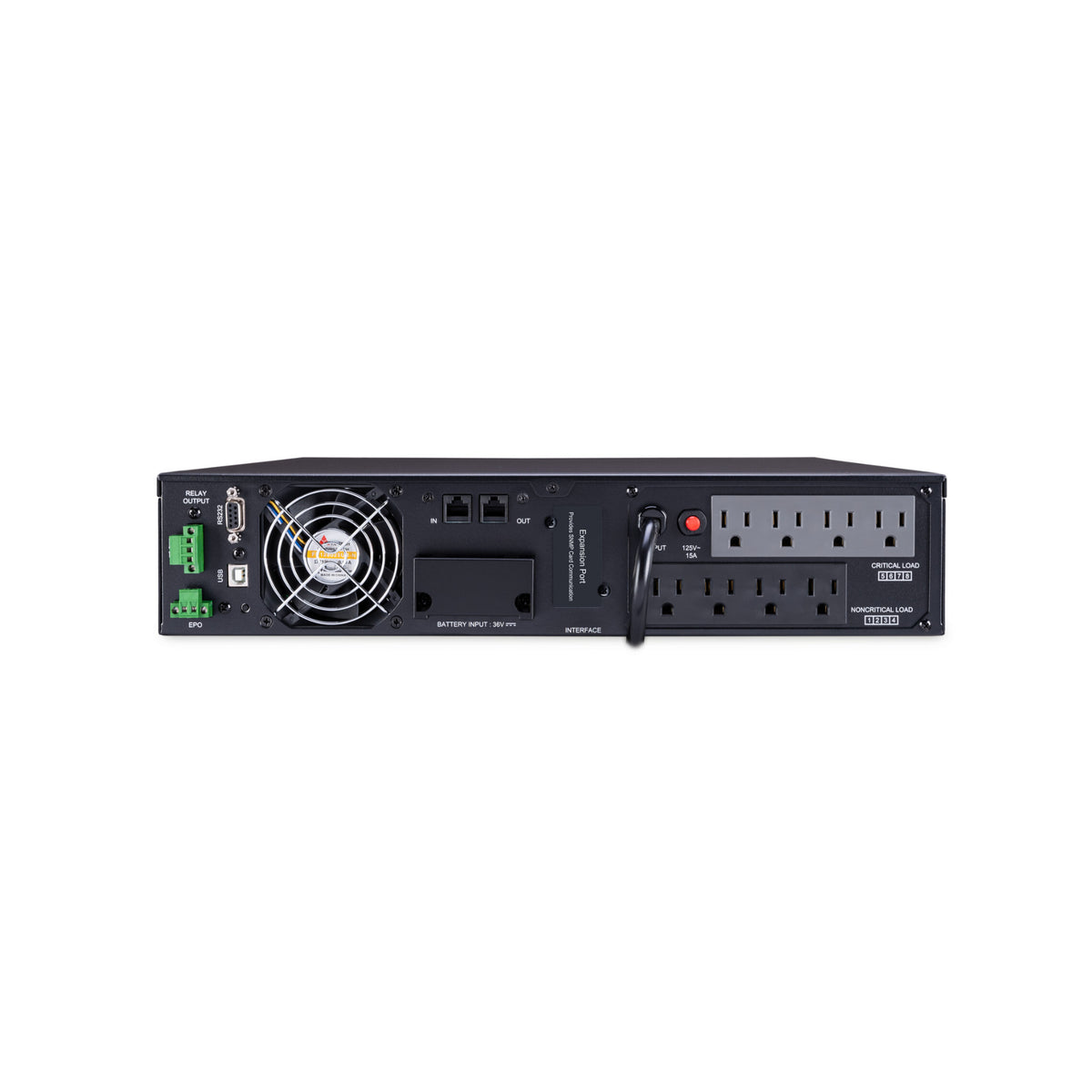

| Outlets | 8 × NEMA 5-15R |
| Total Outlets | 8 |
| Waveform (On AC) | Sine Wave |
| Waveform (On Battery) | Sine Wave |
| Battery Frequency | 50/60 Hz ± 0.25 Hz (auto-sensing or configurable) |
| Battery Voltage | 100/110/115/120/125 VAC ± 2% (configurable) |
| Crest Factor | 3:1 |
| Harmonic Distortion | <3% (linear load), <5% (non-linear load) |
| Bypass | Internal (Automatic and Manual) |
| Typical Transfer Time | 0 ms |
| ECO Mode Voltage Regulation | ±10%, ±15% (configurable) |
| Overload Protection |
|
| Short Circuit Protection | Immediate cut-off / fuse or breaker protection |
| USB Charge Port | No |
Surge Protection & Filtering
| EMI/RFI Filtering | Yes |
| Phone/Network Protection | RJ11/RJ45 (1-in / 1-out combo) |
| Surge Suppression | 1780 Joules |
Management & Communications
| LCD Display | Multifunction LCD |
| LED Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
| Audible Alarms | Battery mode, low battery, overload, UPS fault |
| Emergency Power Off (EPO) | Yes |
| Dry Contacts | Yes |
| Expansion Slot | Yes (RMCARD205 or RELAYIO500 optional) |
| HID-Compliant USB Port | Yes |
| Serial Port | 1 |
| Software | PowerPanel Business Edition (free download) |
| Firmware Upgradeable | Yes |
| Management Cable | USB cable included |
| Rotatable LCD Panel | Yes |
| Removable LCD Panel | Yes (DB26 cable not included) |
Physical
| Form Factor | Rack / Tower |
| Rack Height | 2U |
| Color | Black |
| Material | Metal |
| Mounting Hardware | Included |

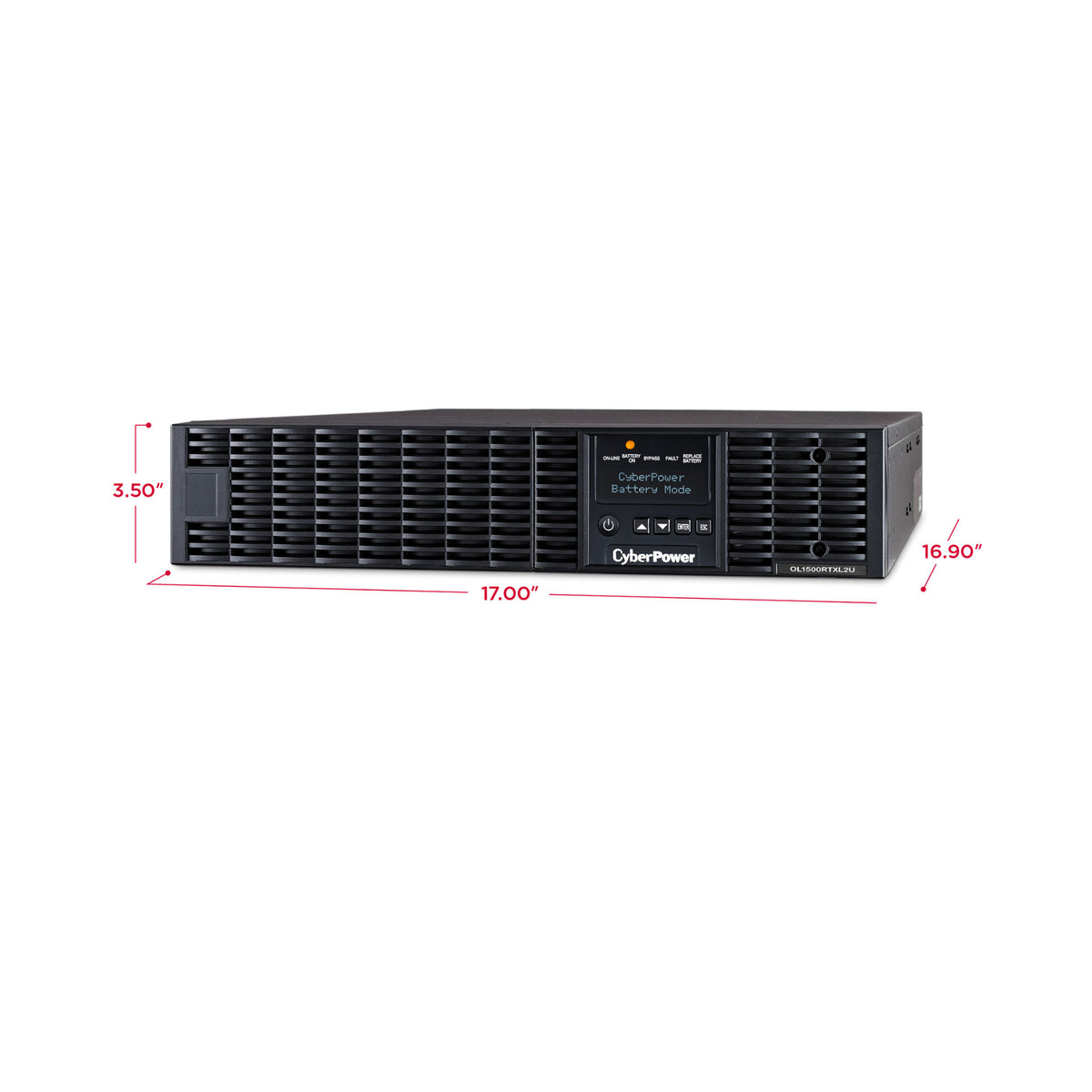

| Dimensions (WxHxD) |
|
Shipping
| Shipping Weight | 55 lb / 24.94 kg |
| Shipping Dimensions |
|
Environmental
| Operating Temperature | 32–104 °F (0–40 °C) |
| Storage Temperature | -4–113 °F (-20–45 °C) |
| Operating Humidity | 0–90% (non-condensing) |
| Storage Humidity | 0–95% (non-condensing) |
| Operating Elevation | 0–10,000 ft (0–3,048 m) |
| Storage Elevation | 0–50,000 ft (0–15,239 m) |
| Audible Noise | 38–55 dBA |
| ECO Mode Thermal Dissipation | 207 BTU/hr |
| Online Thermal Dissipation | 478 BTU/hr |
