- UPS System
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears (double as tower stands)
- USB communication cable, serial interface cable
- 8 x M5 x 8L flat head screws
- 4 x M5 x 12L pan head screws
- 14 x M5 x 6L pan head screws
- 2 x M5 x 10L guide screws
- 8 x Plastic Washers
- 12 x screw hole dust covers
- 12 x rubber feet, Software Download Card
Trusted & Verified

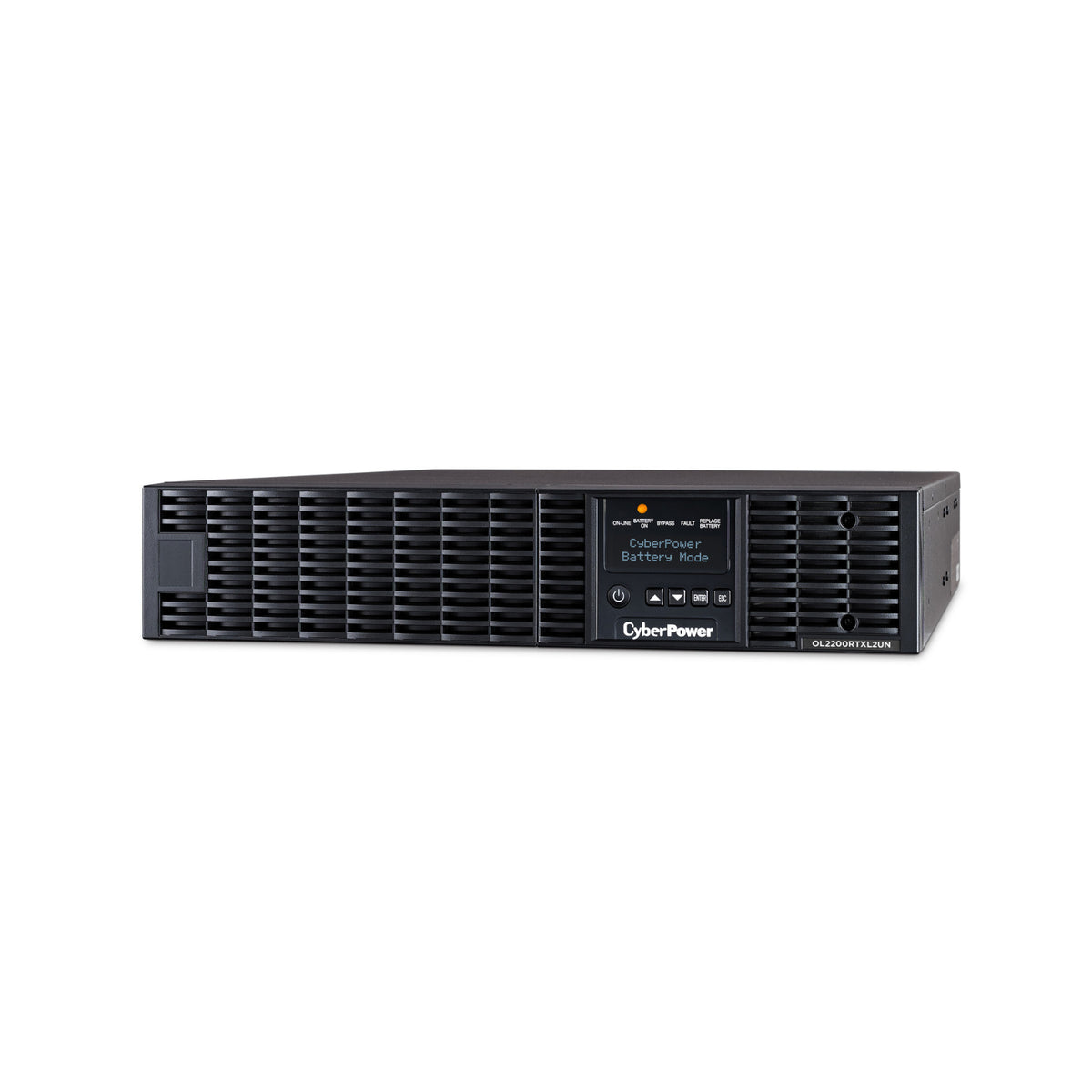

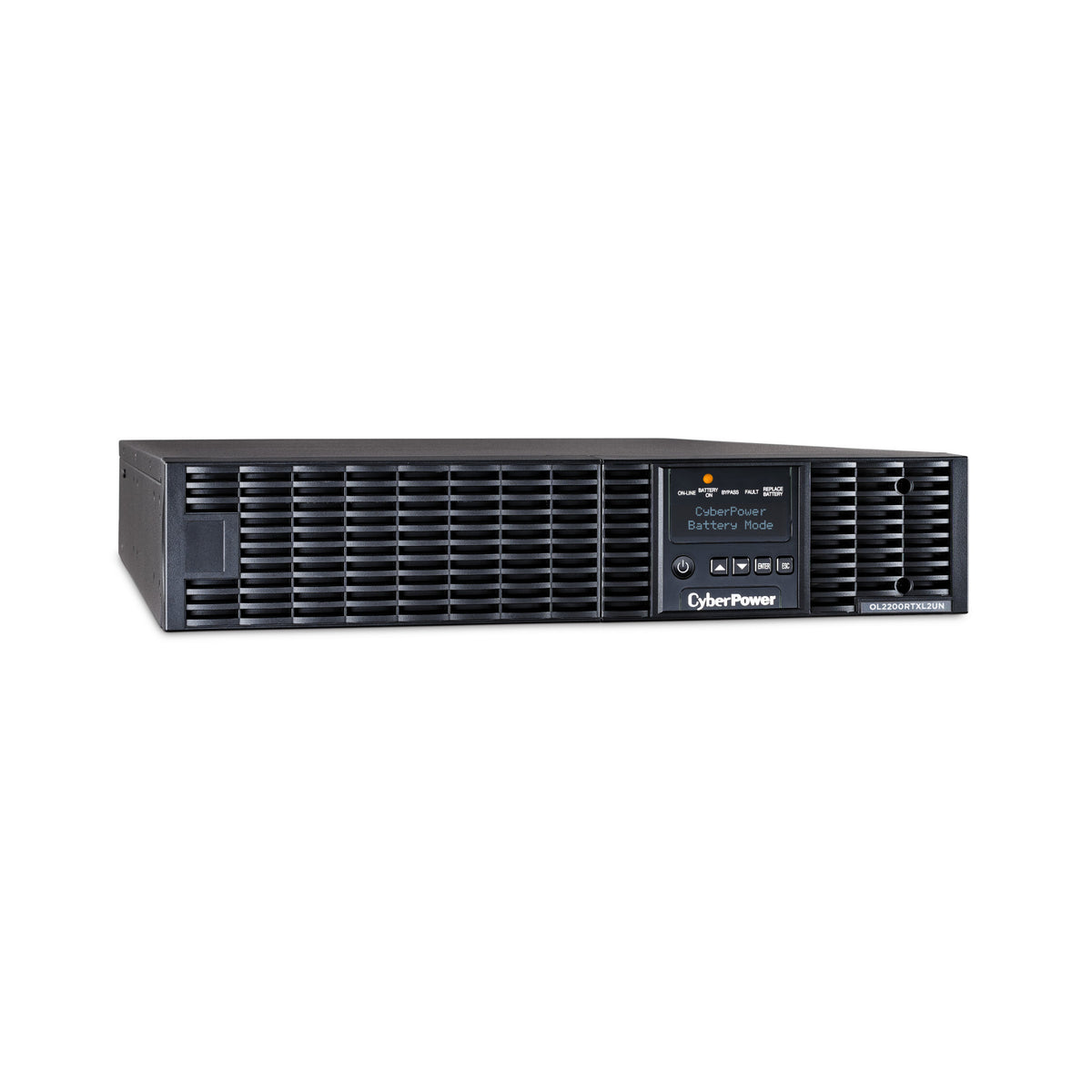

CyberPower 2200VA/1800W Smart App Online Rack/Tower UPS with Network Card
- 2200 VA and 1800 W output for servers, storage, networking, and lab equipment
- Online double conversion topology delivers continuous power conditioning
- Zero millisecond transfer helps connected devices remain active during outages
- Sine wave output supports sensitive electronics and Active PFC power supplies
- Up to 8 minutes runtime at full load and 21 minutes at half load
- Preinstalled RMCARD205 enables remote browser, CLI, and NMS management
- 7 outlets include separate critical and noncritical load banks

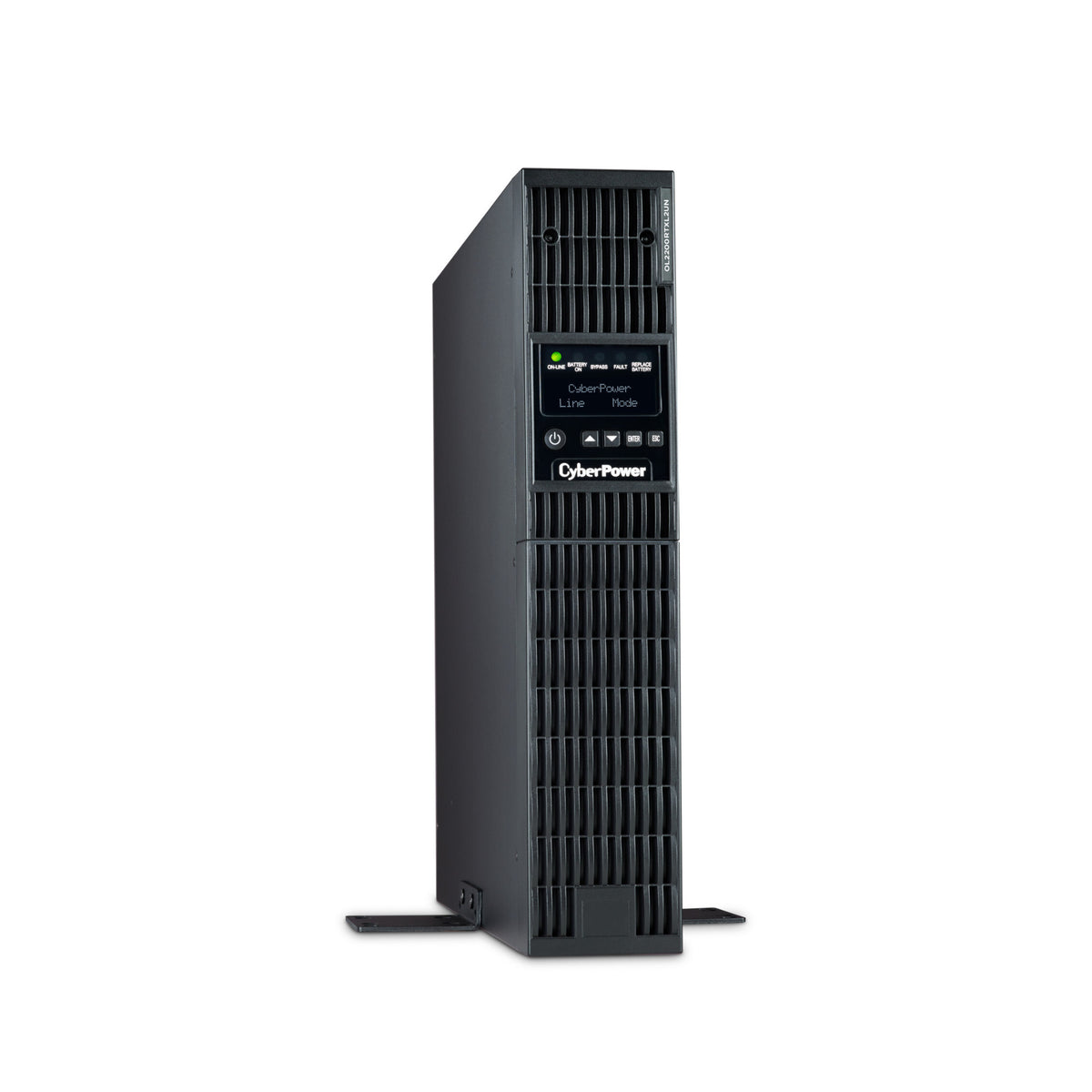

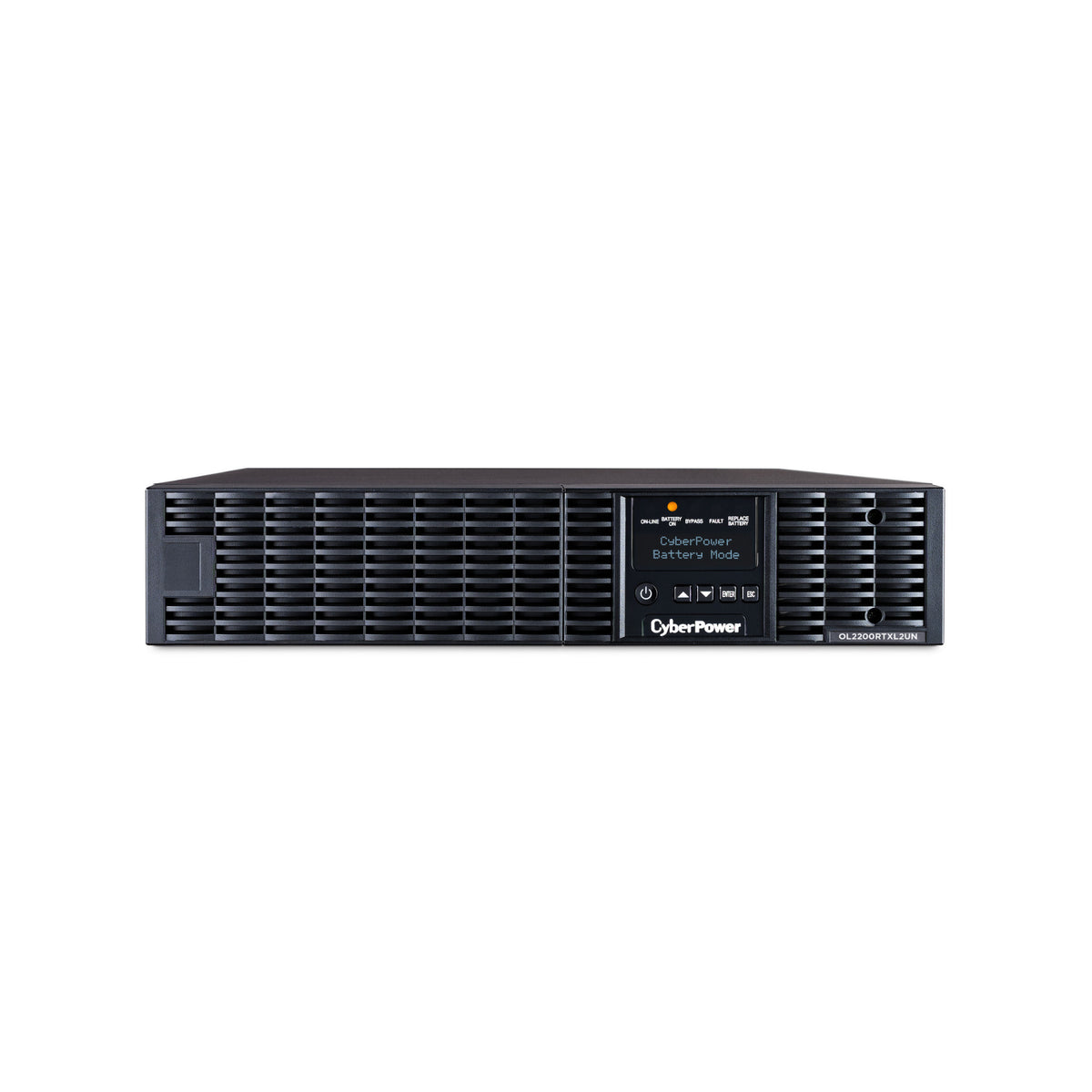

- 2U metal chassis supports rack or tower installation
Prevent business interruptions and safeguard mission-critical enterprise network equipment with the CyberPower OL2200RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode. It offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
Remote Oversight and Flexible Control

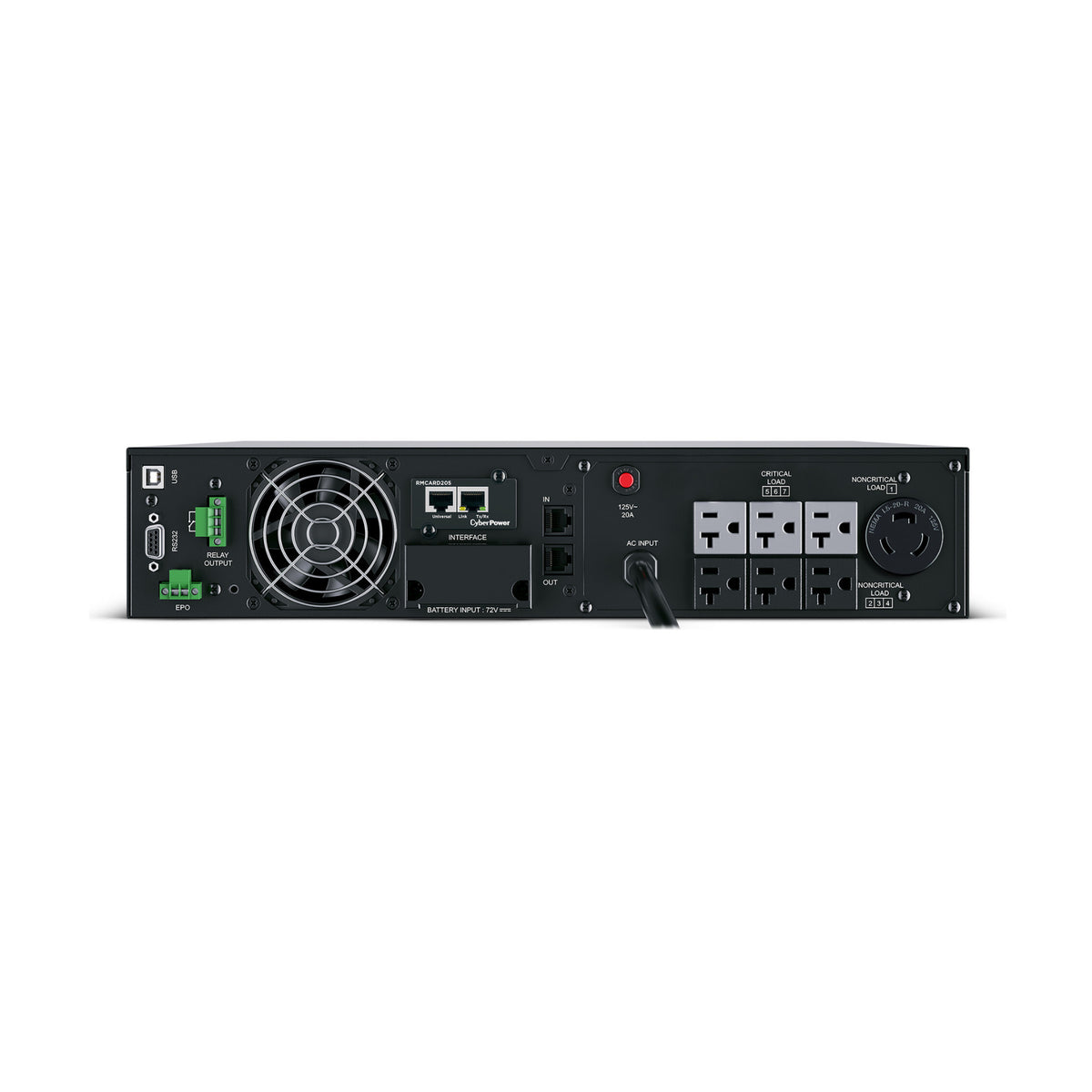

A preinstalled RMCARD205 enables remote monitoring and configuration through a web browser, command line interface, or network management system. PowerPanel Business software adds centralized monitoring and automated shutdown tools. The removable, rotatable multifunction LCD shows operating data and settings, while USB, serial, dry contact, and emergency power off connections support integration into managed environments.
Runtime, Efficiency, and Serviceability

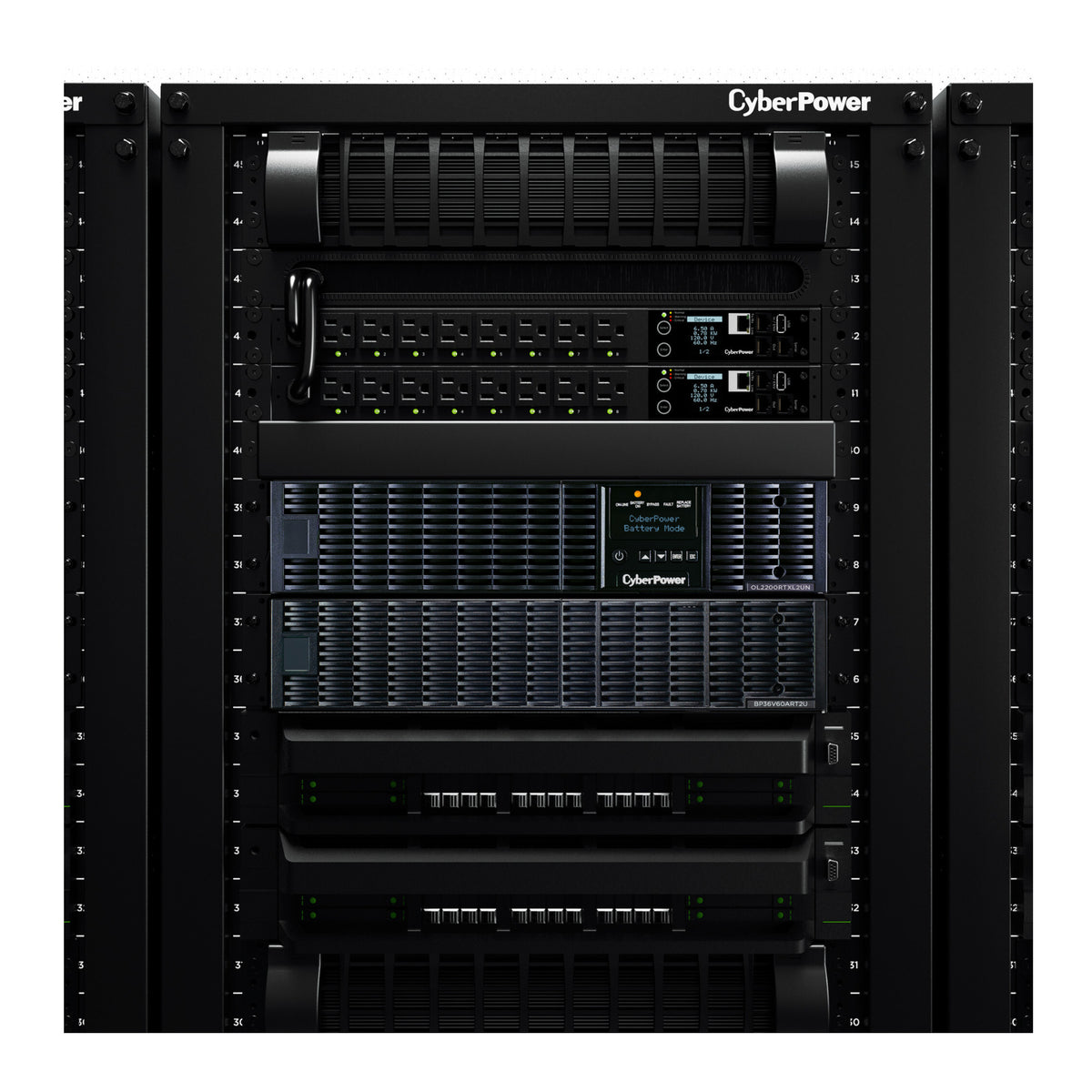

Six hot swappable, user replaceable batteries provide up to 8 minutes at full load or 21 minutes at half load. Fast Charge Technology restores the batteries from 0% to 90% in 4 hours, and Smart Battery Management uses a three cycle charging process to reduce excess heat. Up to 10 BP72V60ART2U extended battery modules can be added for longer runtime. ECO Mode reaches greater than 95% efficiency to reduce electrical and cooling demand.

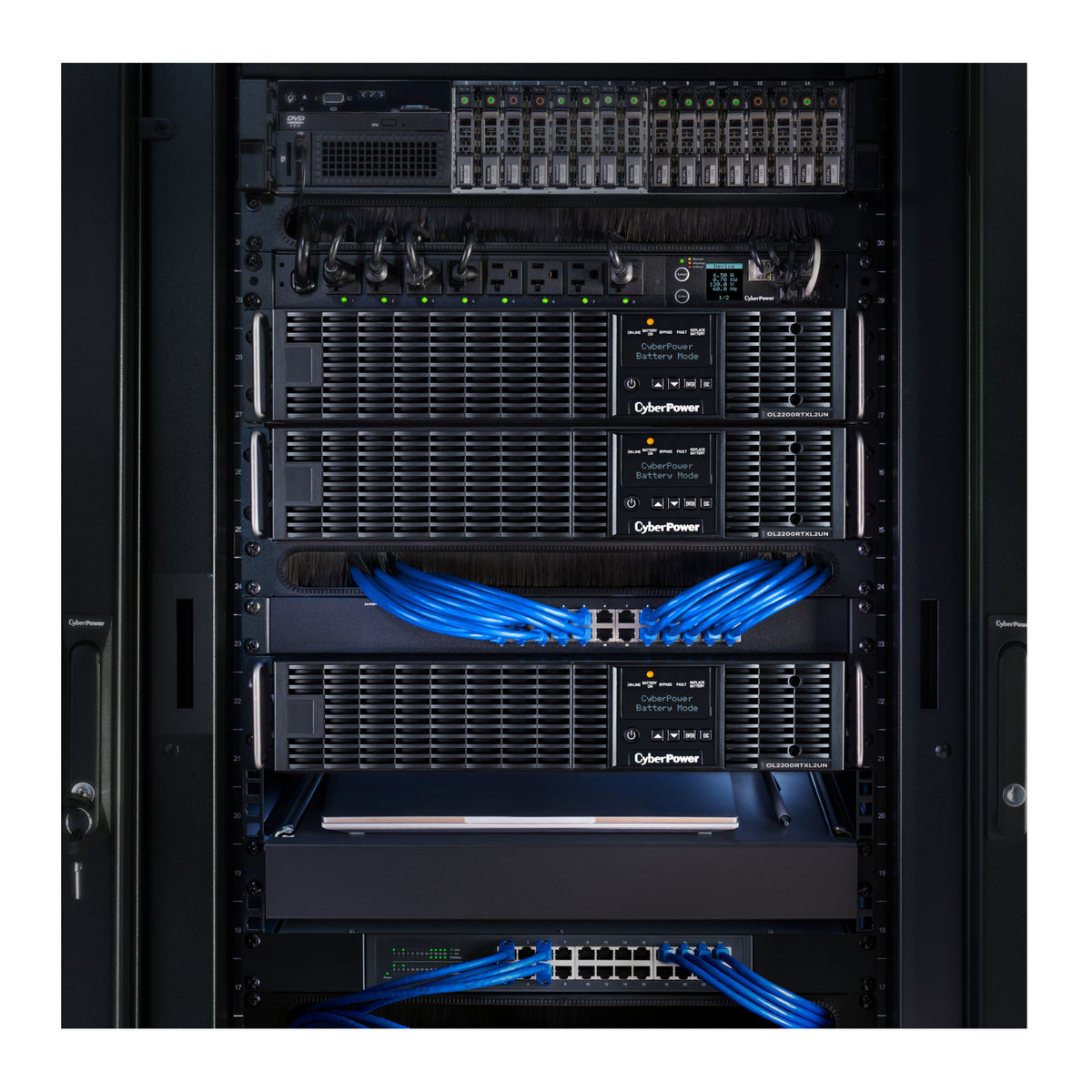

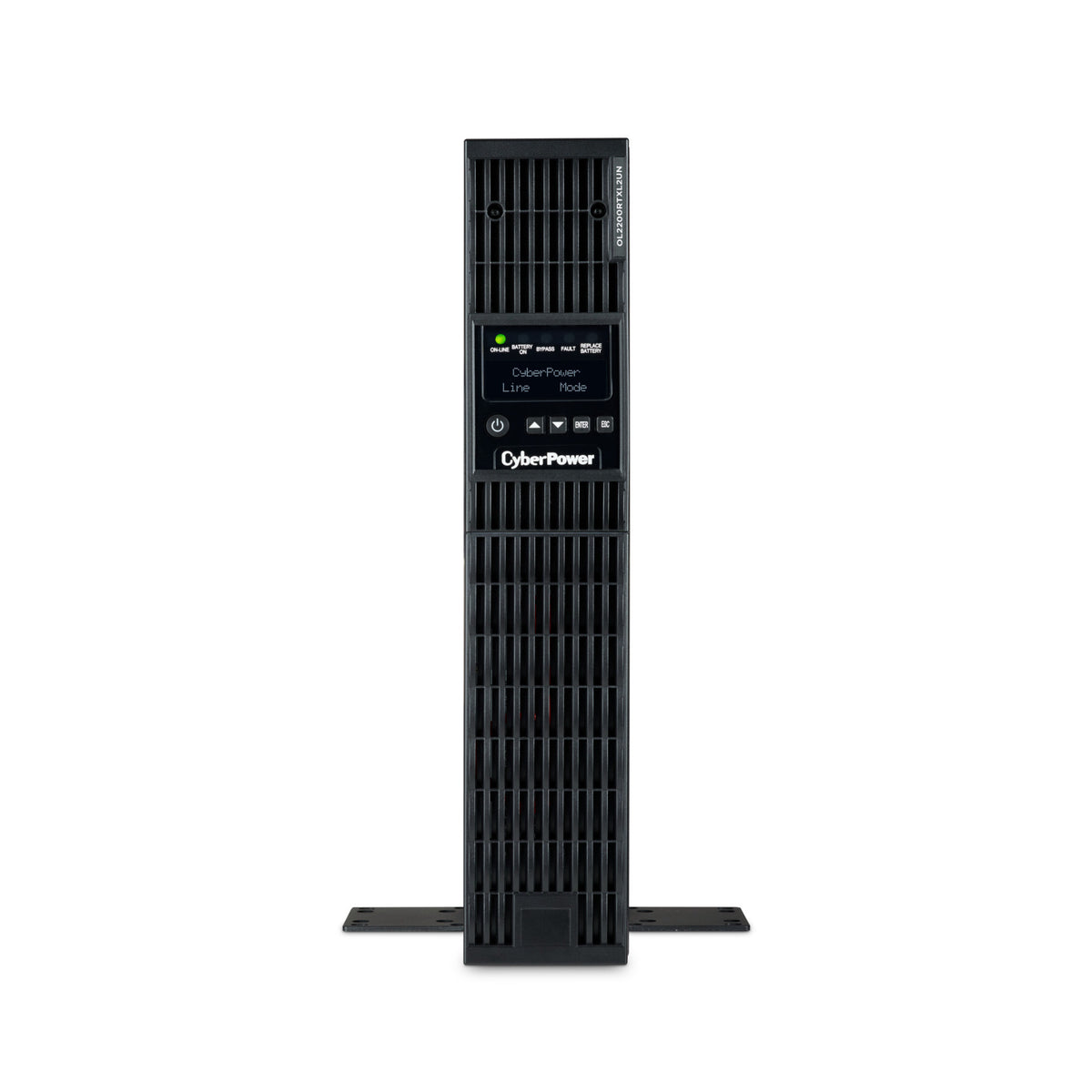

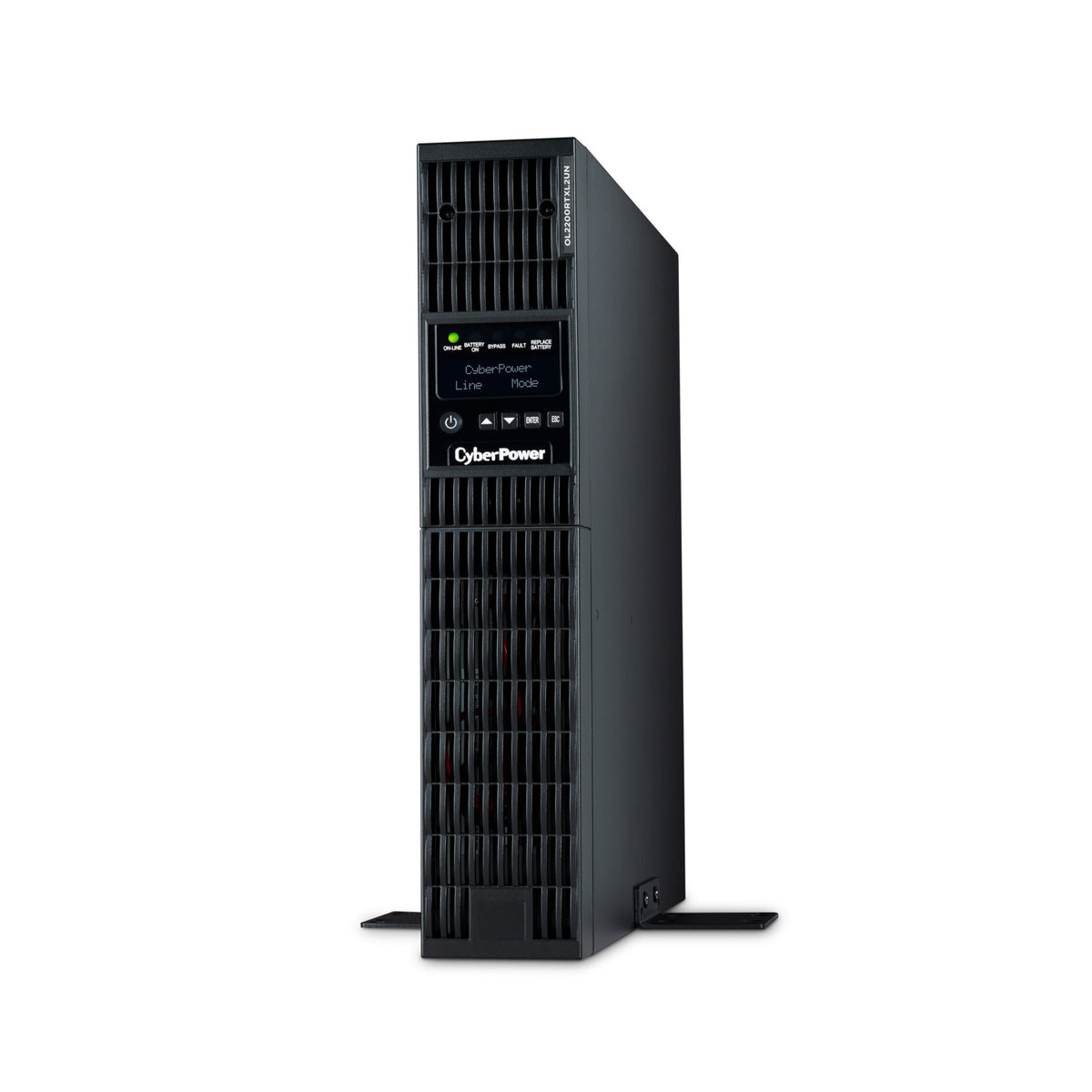

The metal 2U chassis installs horizontally in a rack or vertically as a tower. 7 outlets, critical and noncritical load banks, generator compatibility, internal bypass, configurable output voltage, and a 20 A circuit breaker make this UPS a practical power platform for server rooms, edge closets, storage systems, and communications equipment.
Power and Topology:
| Energy Saving | ECO Mode Efficiency Greater Than 95% |
| Energy Star Certified | Yes |
| UPS Topology | Online Double Conversion |
Battery:
| Battery Quantity | 6 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Extended Battery Module | BP72V60ART2U |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X6A |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 8 minutes |
| Runtime at Half Load | 21 minutes |
| Smart Battery Management Mode | Yes |
| Typical Recharge Time | 4 hours from 0% to 90% charged |
| User Replaceable Battery | Yes |
Input:
| Circuit Breaker | 20 A |
| Cold Start | Yes |
| Cord Length | 10 feet (3.0 meters) |
| Input Frequency Range | 40 Hz to 70 Hz |
| Input Plug Type | NEMA 5-20P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC to 69 VAC for 0% to 60% load; 70 VAC to 79 VAC for 0% to 70% load; 80 VAC to 89 VAC for 0% to 80% load; 90 VAC to 95 VAC for 0% to 90% load; 96 VAC to 150 VAC for 0% to 100% load |
| Nominal Input Voltage | 100 VAC to 125 VAC |
Output:
| Bypass | Internal Bypass, Automatic and Manual |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | Plus or minus 10% or 15%, configurable |
| Harmonic Distortion | Less than 3% at linear load; less than 5% at nonlinear load |
| Nominal Output Voltage | 100 VAC to 125 VAC |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25Hz (auto-sensing or configurable) |
| On Battery Voltage | 100, 110, 115, 120, or 125 VAC ± 2%, configurable |
| On Battery Waveform | Sine Wave |

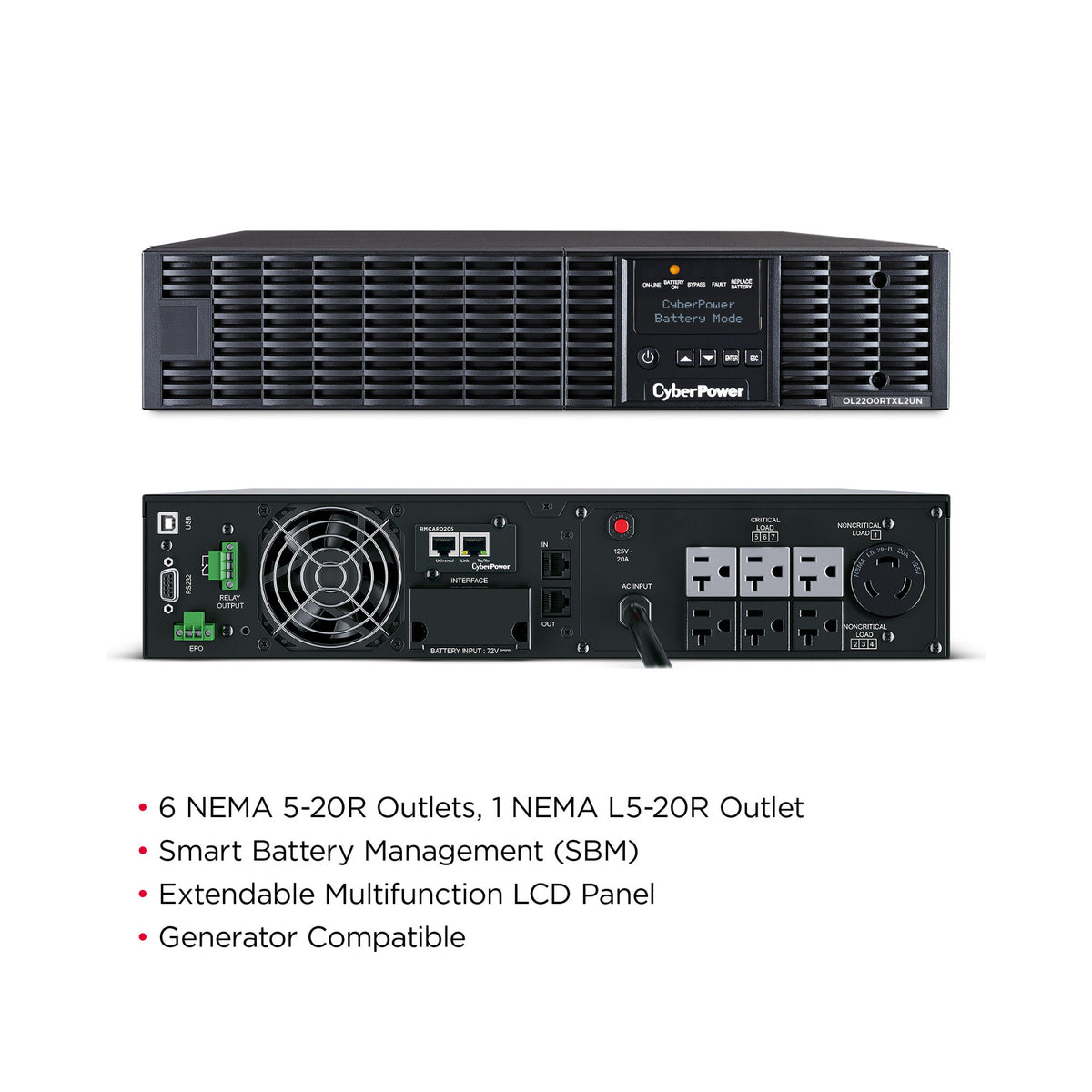

| Outlet Type | 6 x NEMA 5-20R and 1 x NEMA L5-20R |
| Outlets Total | 7 |
| Output Power Factor | 0.8 |
| Overload Protection | Line mode at 105% to 125% load for 1 minute; line mode at 126% to 150% load for 10 seconds; battery mode at 105% to 130% load for 10 seconds; battery mode at 131% to 150% load for 2 seconds |
| Short Circuit Protection | UPS output cuts off immediately or input fuse and circuit breaker protection activates |
| Typical Transfer Time | 0 milliseconds |
| USB Charge Port | No |
| Capacity | 2200 VA |
| VA by Input Type | 2,200 VA (2.2 kVA) at 120 or 125 V input; 1,980 VA (2.0 kVA) at 110 or 115 V input; 1,760 VA (1.8 kVA) at 100 V input |
| Power Capacity | 1800 W |
| Watts by Input Type | 1,800 W (1.8 kW) at 120 or 125 V input; 1,620 W (1.6 kW) at 110 or 115 V input; 1,440 W (1.4 kW) at 100 V input |
Surge Protection and Filtering:
| EMI/RFI Filtration | Yes |
| Phone and Network Protection | RJ11/RJ45 combo with 1 input and 1 output |
| Surge Suppression | 1335 J |
Management and Communications:
| Audible Alarms | Battery Mode, Low Battery, Overload, and UPS Fault |
| Dry Contacts | Yes |
| Emergency Power Off Port | Yes |
| Expansion Slot | Yes, RMCARD205 preinstalled |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, White; Line Mode, Green; Battery Mode, Yellow; Bypass Mode, Yellow; Fault, Red; Replace Battery, Red |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | Yes, requires DB26 cable, not included |
| Rotatable LCD Control Panel Option | Yes |
| Serial Port Quantity | 1 |
| Software | PowerPanel Business |
| Upgradeable Firmware | Yes |
Physical:
| Color | Black |
| Form Factor | Rack or Tower |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |

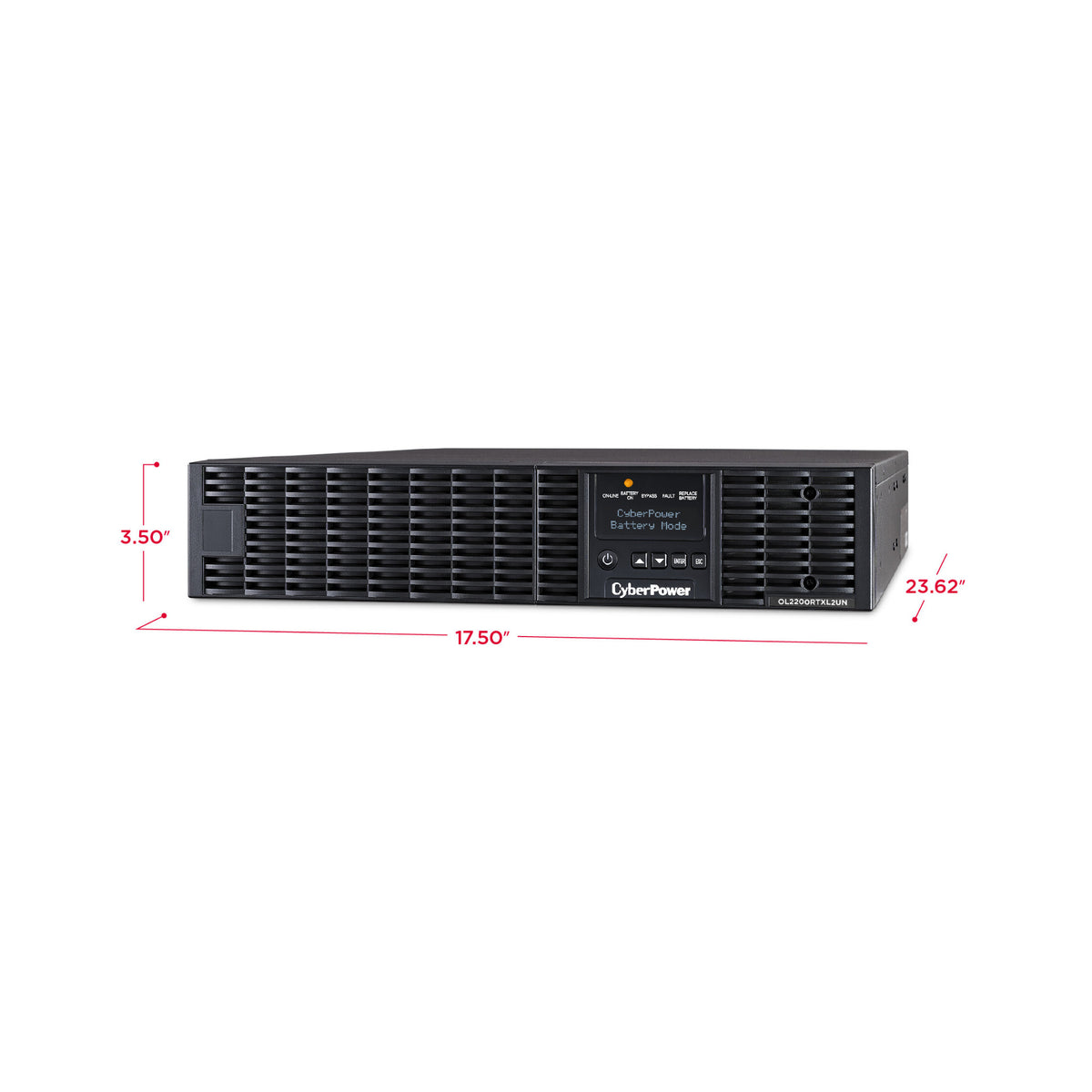

Dimensions:
| Physical Dimensions, Width x Height x Depth | 43.18 x 8.89 x 59.99 centimeters |
| Physical Dimensions, Width x Height x Depth | 17 x 3.5 x 23.62 inches |
| Physical Dimensions, Width x Height x Depth | 432 x 89 x 600 millimeters |
| Physical Weight | 30.93 kilograms / 68.2 pounds |
Shipping Dimensions:
| Shipping Weight | 39.49 kilograms / 87.08 pounds |
| Shipping Dimensions, Width x Height x Depth | 57.15 x 22.86 x 87.63 centimeters |
| Shipping Dimensions, Width x Height x Depth | 22.5 x 9.0 x 34.5 inches |
| Shipping Dimensions, Width x Height x Depth | 571.5 x 228.6 x 876.3 millimeters |
Environmental:
| Audible Noise at 1 Meter | 38 dBA to 55 dBA at 0% to 100% load |
| ECO Mode Thermal Dissipation | 249 BTU per hour |
| Online Thermal Dissipation | 541 BTU per hour |
| Operating Elevation | 0 to 10,000 feet (0 to 3,048 meters) |
| Operating Relative Humidity | 0% to 90%, noncondensing |
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Elevation | 0 to 50,000 feet (0 to 15,239 meters) |
| Storage Relative Humidity | 0% to 95%, noncondensing |
| Storage Temperature | -4 – 113 °F (-20 – 45 °C) |
Certifications:
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Safety | FCC Part 15 Class A |
| Safety | CSA C22.2 No. 107.3 |
