- UPS System
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets
- Phone Line
- USB Communication Cable
- Serial Interface Cable (RS-232)
- 8 x M5 x 7L Black Flat Head Screws
- 12 x M5 x 12L Black Pan Head Screws
- 6 x M5 x 6L Silver Pan Head Screws
- 8 x Plastic Washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads
- Software Download Card
Trusted & Verified

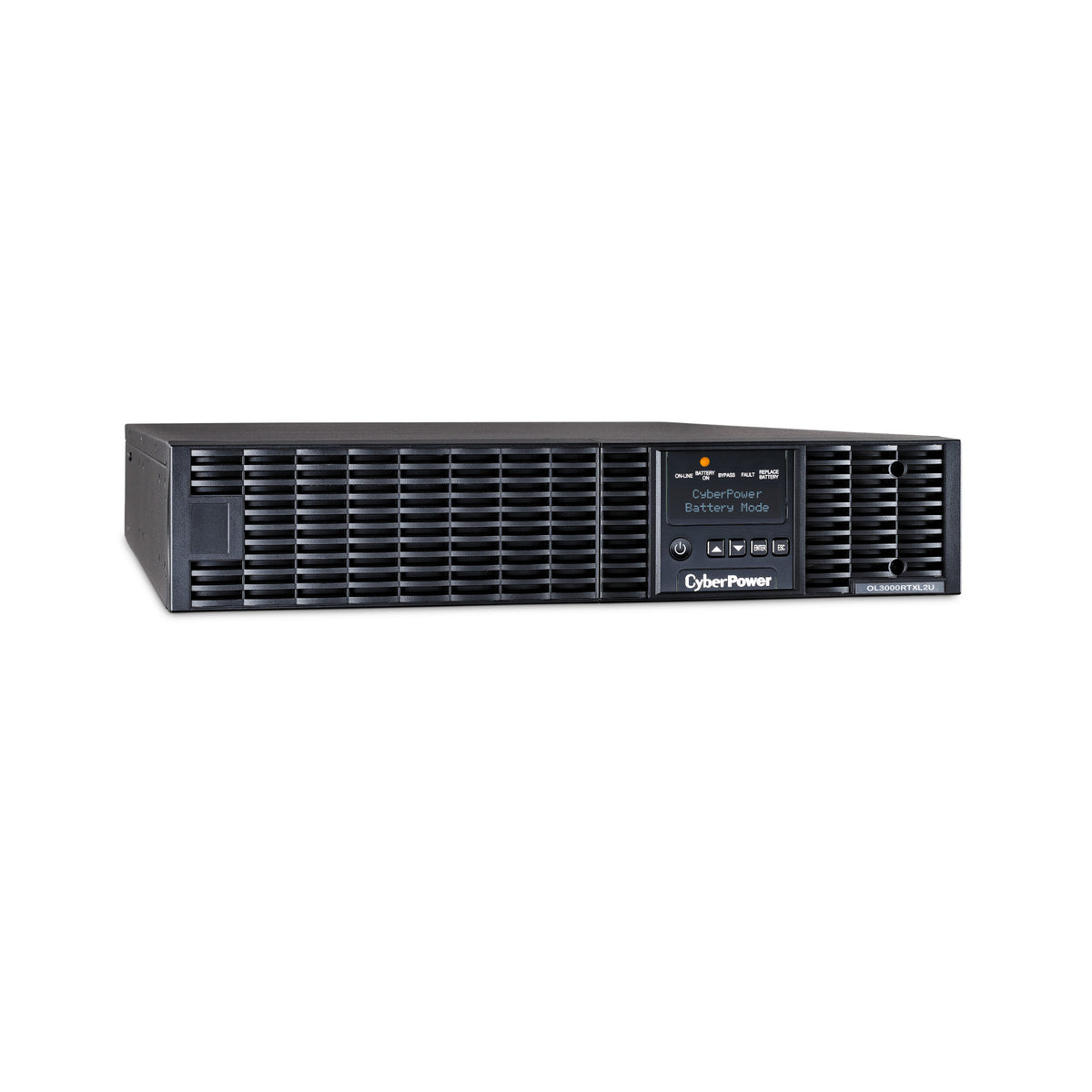

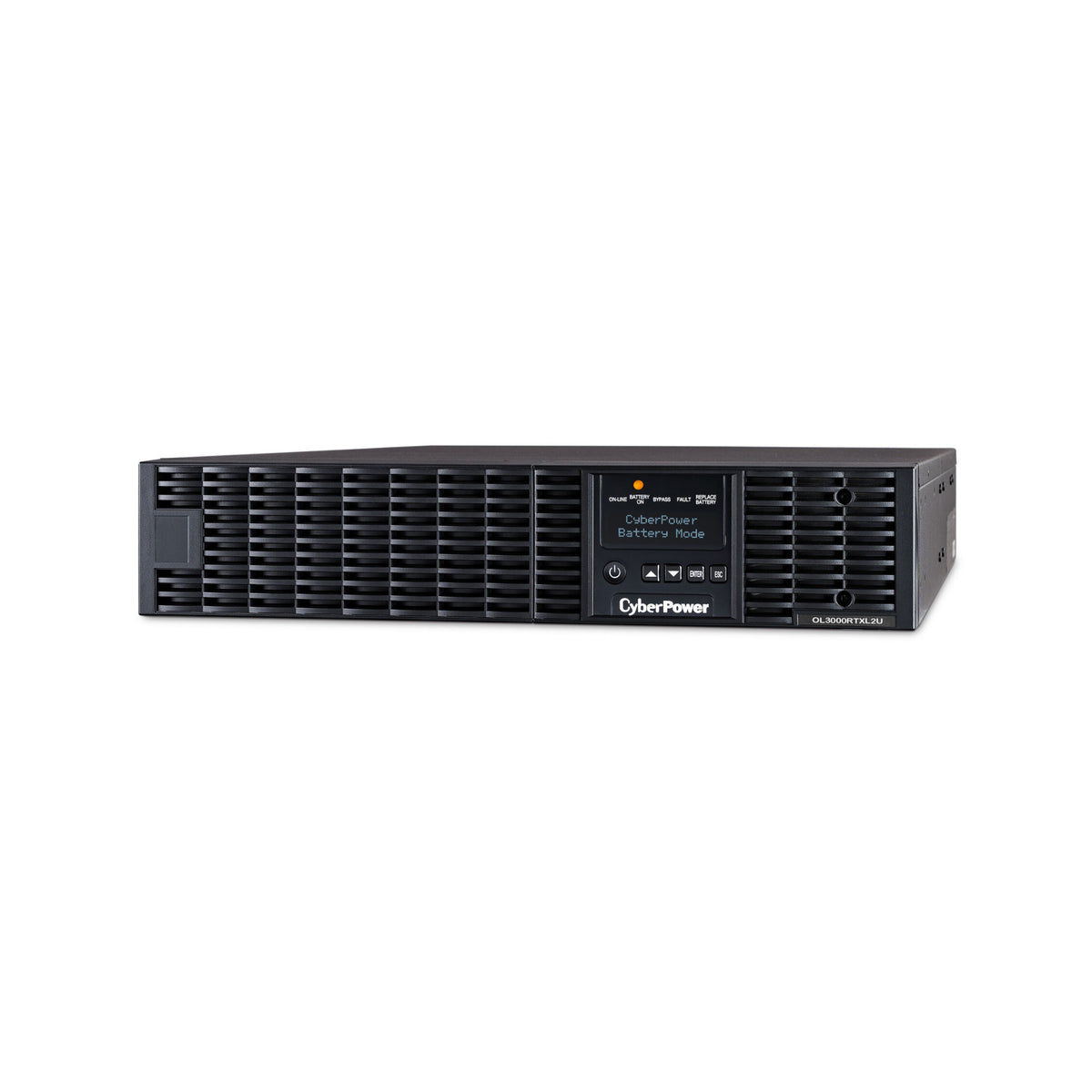

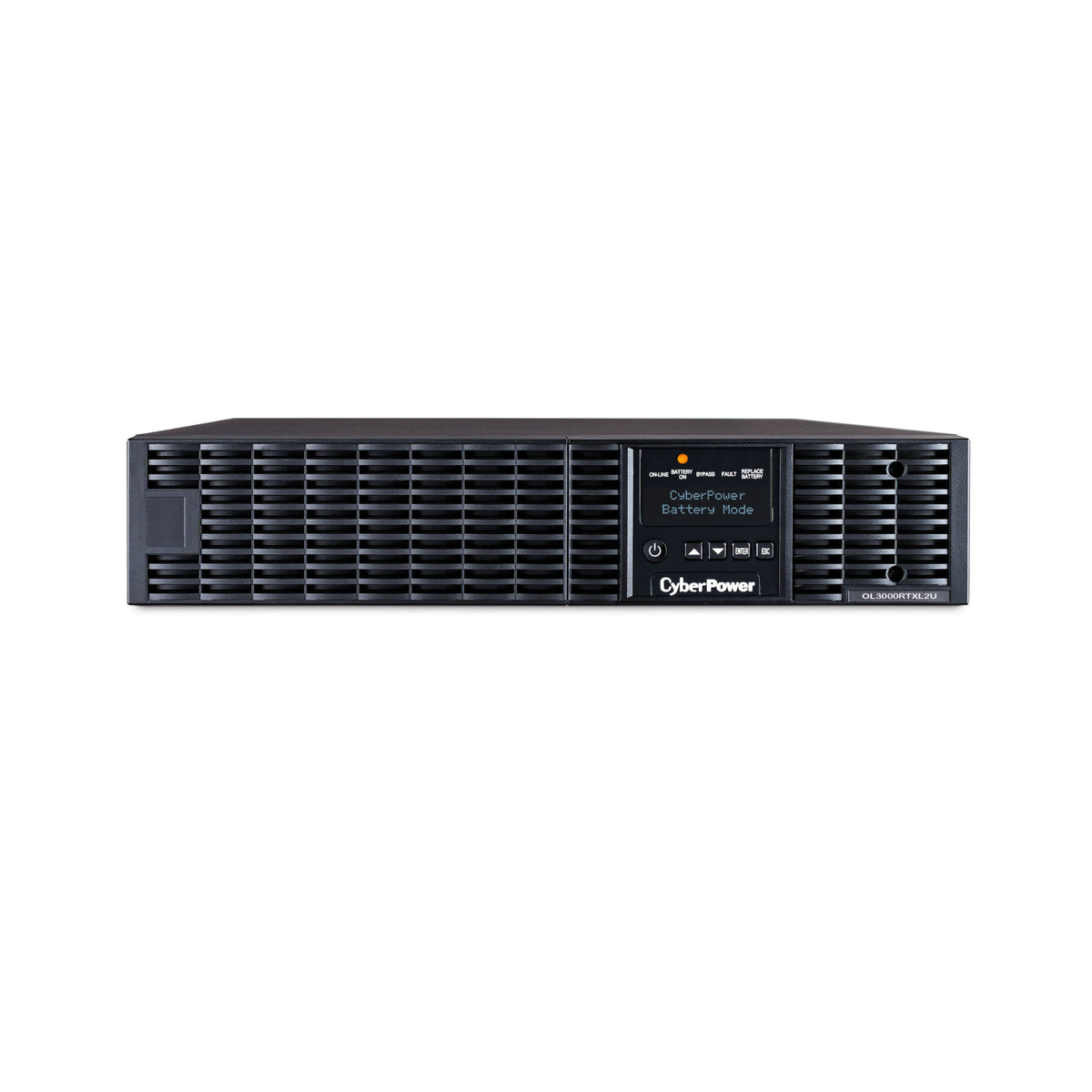

CyberPower OL3000RTXL2U Smart App Online Rack/Tower UPS 3000VA/2700W 100-125V Sine Wave 2U LCD
- Double conversion topology delivers clean sine wave power with zero transfer time
- Supports sensitive servers, network equipment, storage devices, and PBX systems
- Expandable runtime support accommodates up to 10 Extended Battery Modules
- Fast Charge Technology restores battery capacity from 0 to 90 percent within 4 hours
- Smart Battery Management uses a three cycle charging process to manage battery charging

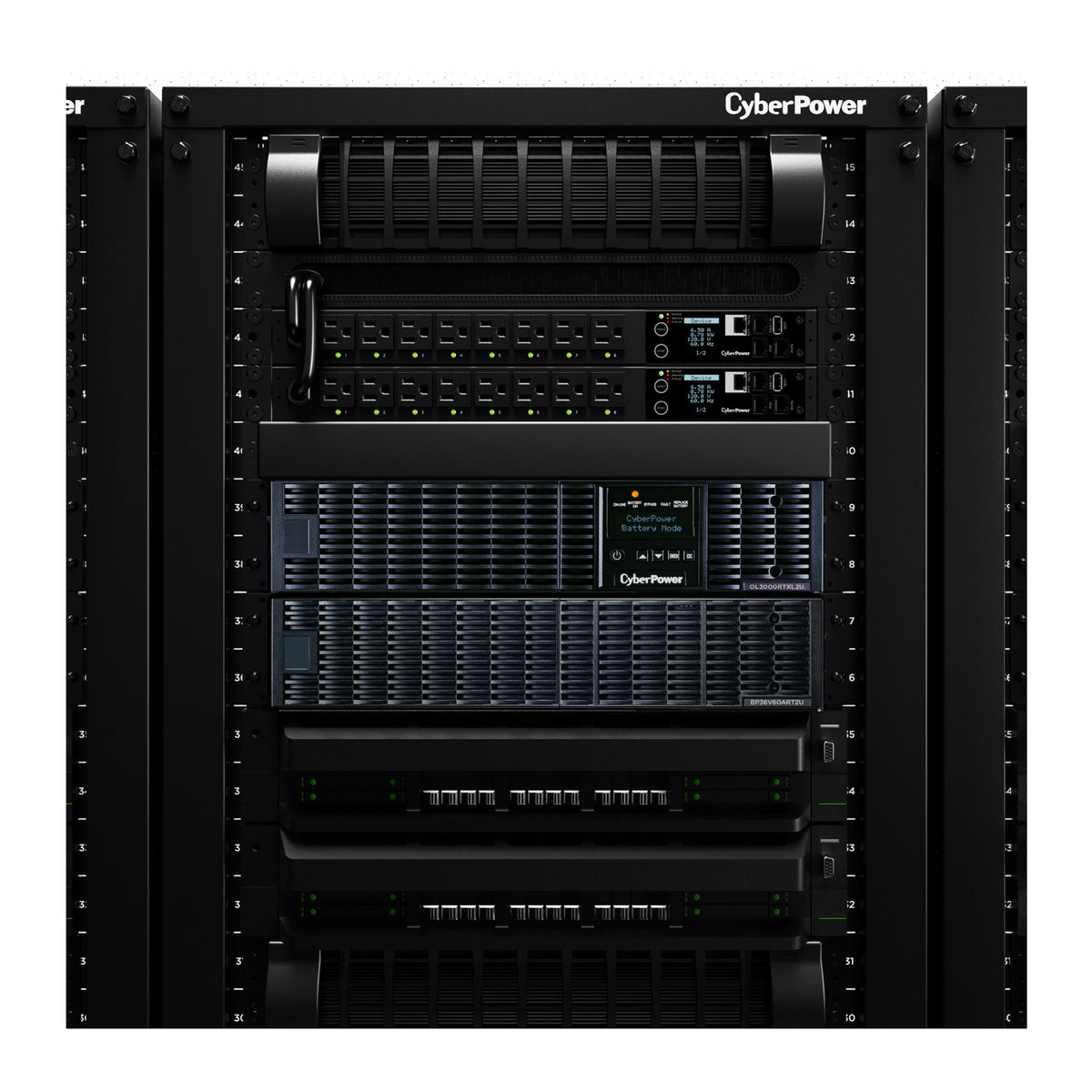

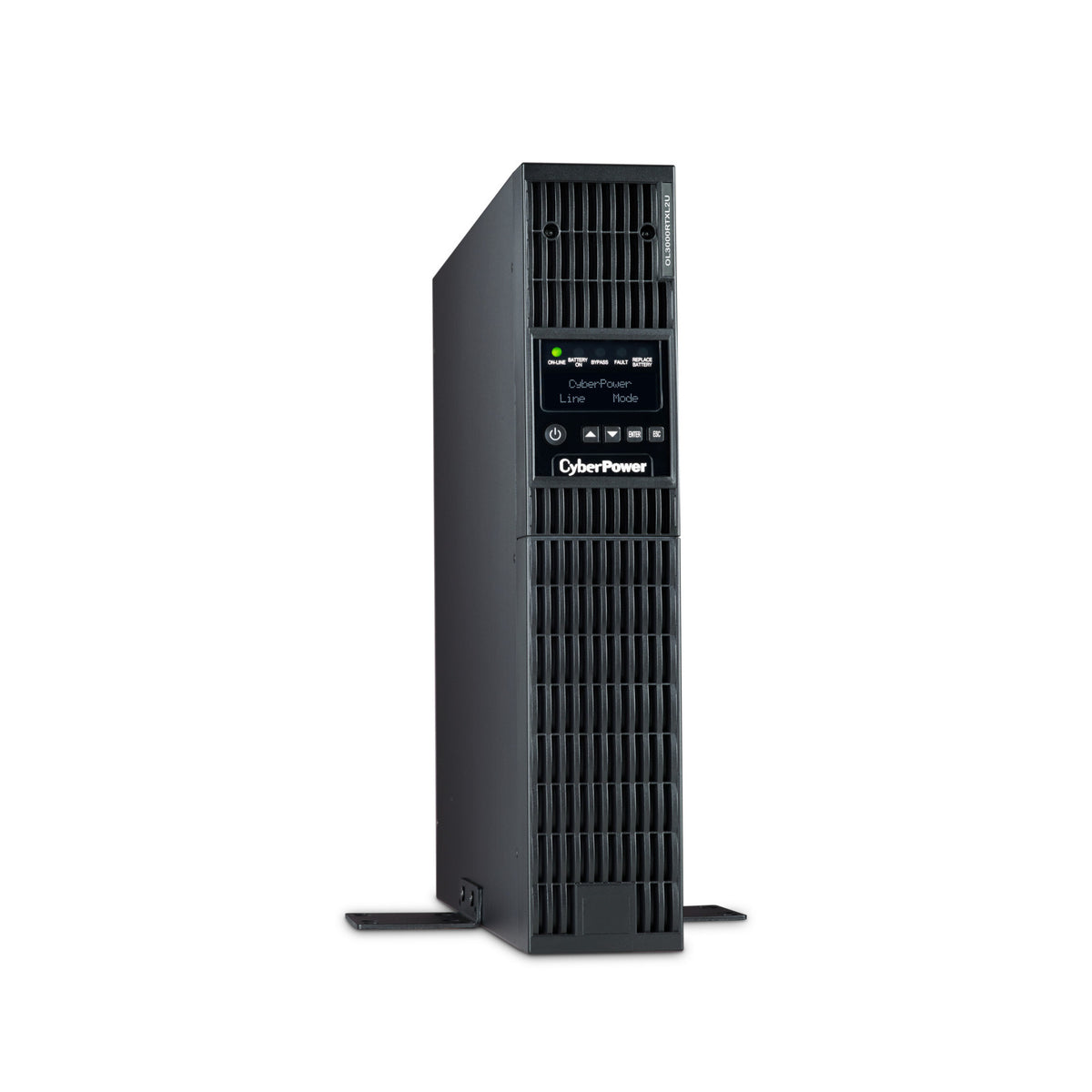

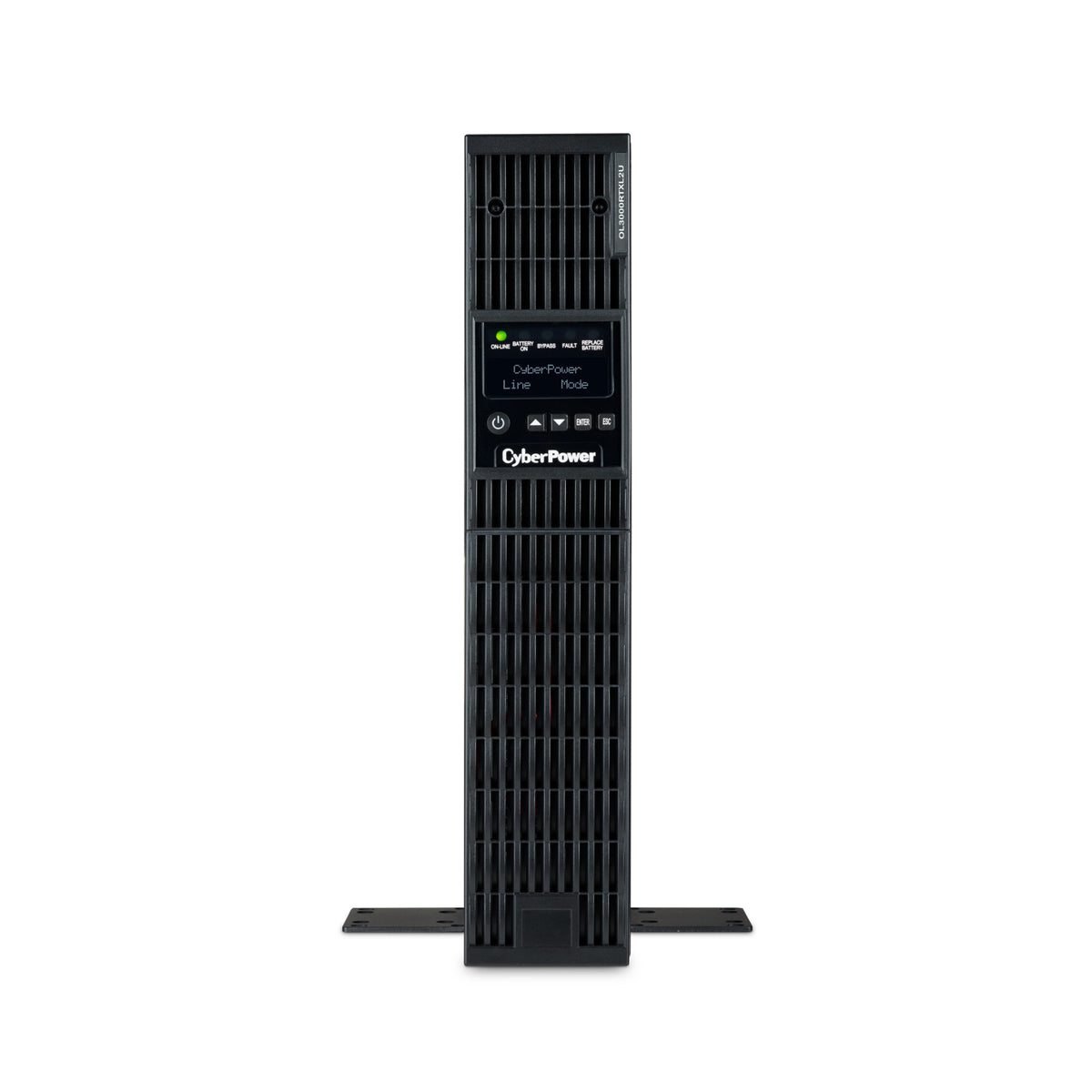

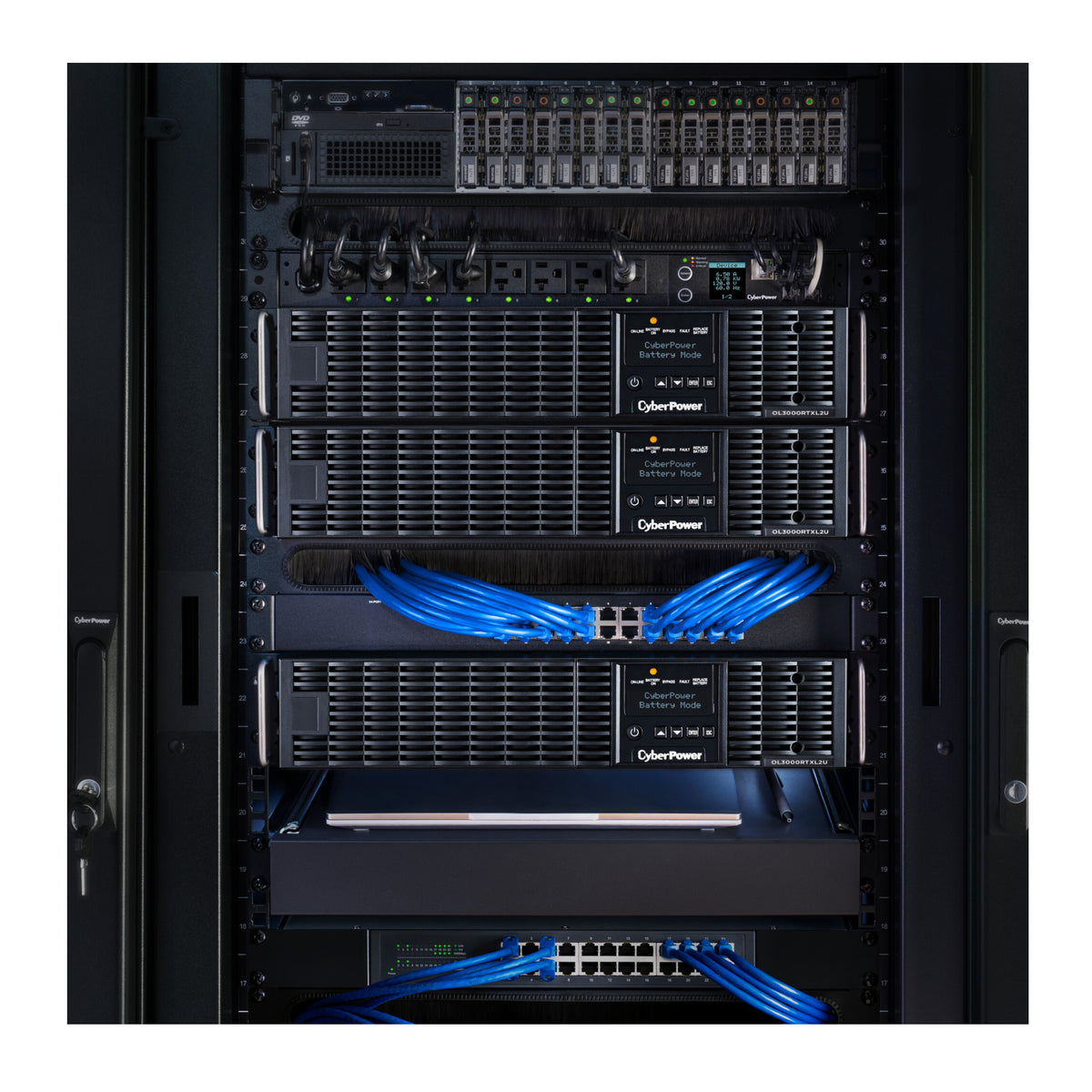

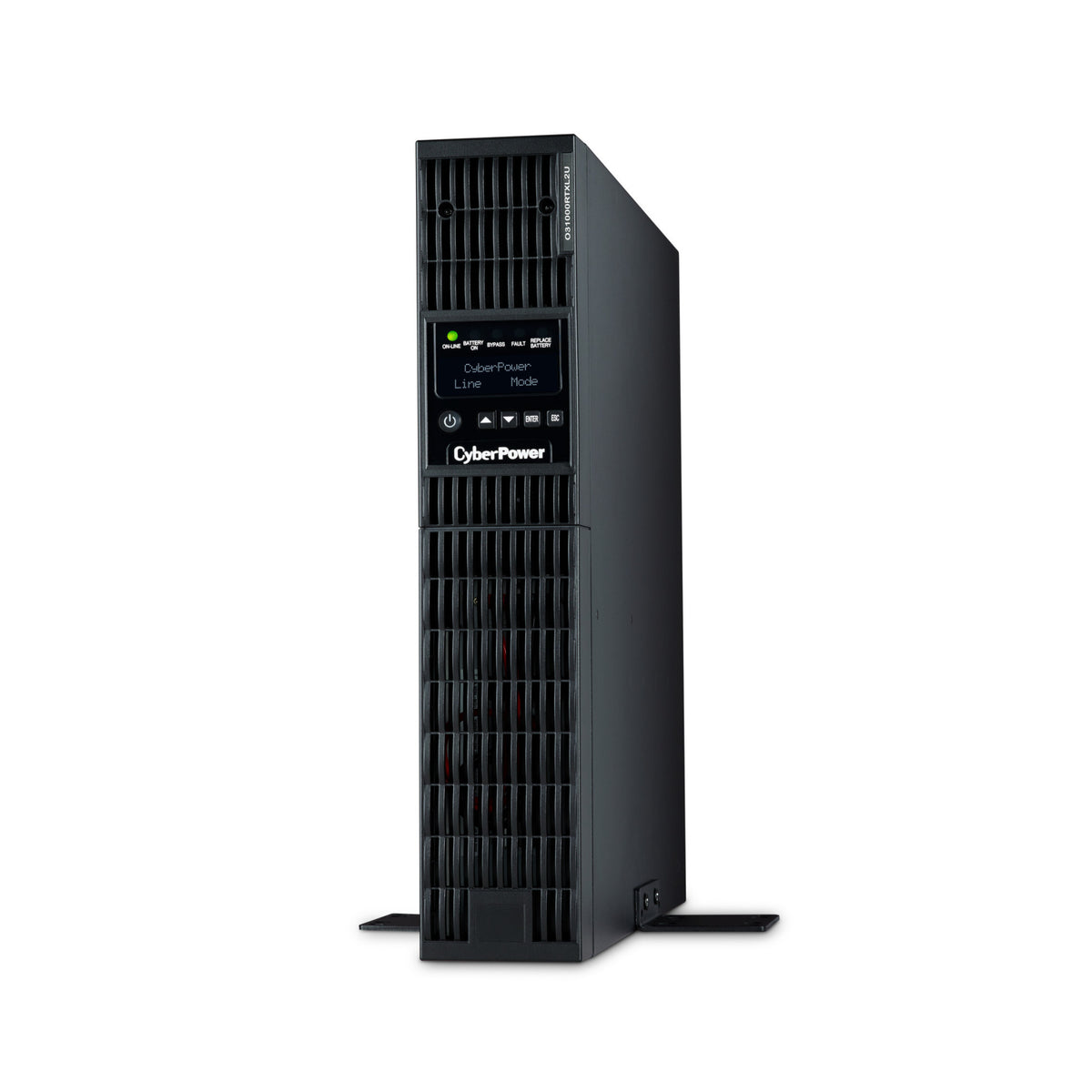

- Rack or tower installation supports flexible enterprise deployment
- Extendable LCD control panel provides convenient status viewing and configuration
- Generator compatibility supports stable sine wave output from generator input
- PowerPanel Business Edition enables remote monitoring and automated shutdown
- ECO Mode improves UPS efficiency up to 95 percent
The CyberPower OL3000RTXL2U Smart App Online UPS helps protect mission critical servers, network equipment, storage devices, PBX systems, and other sensitive electronics from power interruptions and unstable utility power. Its double conversion topology continuously converts incoming power and delivers clean sine wave output with zero transfer time to battery power when utility service is lost.
Clean Power for Sensitive Equipment
Sine wave output supports equipment with Active PFC power supplies and helps prevent unnecessary shutdowns associated with gaps from simulated sine wave output. Generator compatibility provides stable output when operating from generator input, while Converter Mode lets users select 50Hz or 60Hz output through the LCD control panel to match connected equipment.
Expandable Runtime and Smarter Battery Charging
The OL3000RTXL2U supports up to 10 Extended Battery Modules for applications that require longer backup runtime. Fast Charge Technology restores battery capacity from 0 to 90 percent within 4 hours regardless of the number of connected battery modules. Smart Battery Management uses a three cycle charging process to reduce excessive heat during charging, while hot swappable batteries help keep connected equipment operating during battery replacement.
Flexible Monitoring and Installation
Rack or tower installation supports a range of enterprise environments. The extendable LCD control panel displays UPS status and allows operating adjustments from up to 10 feet away when used with the required cable. PowerPanel Business Edition supports remote monitoring and automated shutdown, while the optional RMCARD205 adds browser, command line, and network management capabilities. ECO Mode can improve UPS efficiency up to 95 percent to help reduce electrical and cooling demands.
General
| Energy Saving | ECO Mode Efficiency greater than 95% |
| UPS Topology | Online Double Conversion |
Battery:
| Battery Quantity | 6 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Extended Battery Module | BP72V60ART2U |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X6A |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 4 minutes |
| Runtime at Half Load | 12.5 minutes |
| Smart Battery Management Mode | Yes |
| Typical Recharge Time | 4 hours, 0% to 90% charged |
| User Replaceable Battery | Yes |
Input:
| Circuit Breaker | 30 A |
| Cold Start | Yes |
| Cord Length | 10 feet (3.0 m) |
| Input Frequency Range | 40 Hz to 70 Hz |
| Input Plug Type | NEMA L5-30P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC to 69 VAC for 0% to 60% load; 70 VAC to 79 VAC for 0% to 70% load; 80 VAC to 89 VAC for 0% to 80% load; 90 VAC to 95 VAC for 0% to 90% load |
| Nominal Input Voltage | 100 VAC to 125 VAC |
Output:
| Bypass | Internal Bypass, Automatic and Manual |
| Crest Factor | 3:1 |
| Harmonic Distortion | Less than 3% at Linear Load; Less than 5% at Non Linear Load |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.25 Hz, Auto Sensing or Configurable |
| On Battery Voltage | 100/110/115/120/125 VAC ± 2%, Configurable |
| On Battery Waveform | Sine Wave |

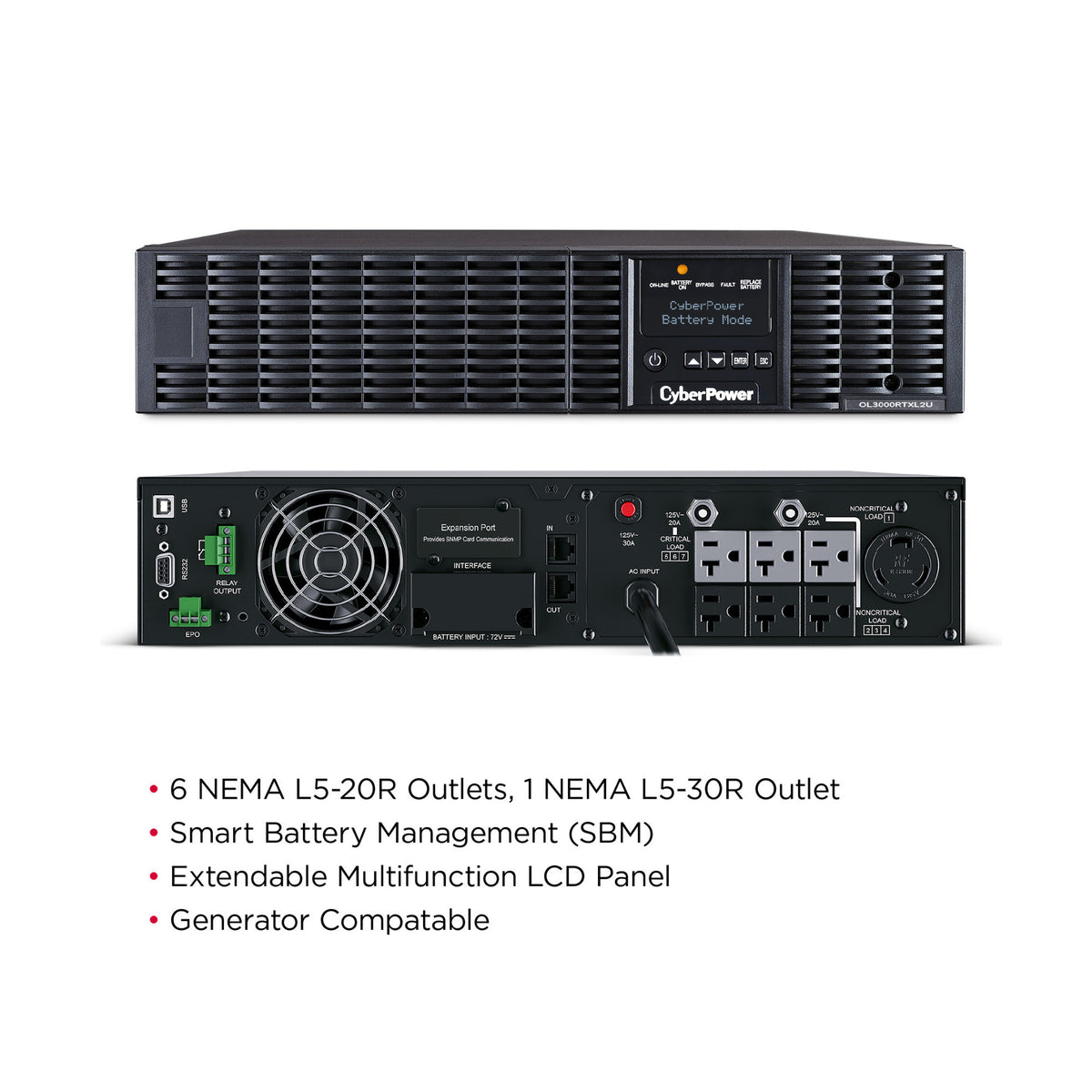

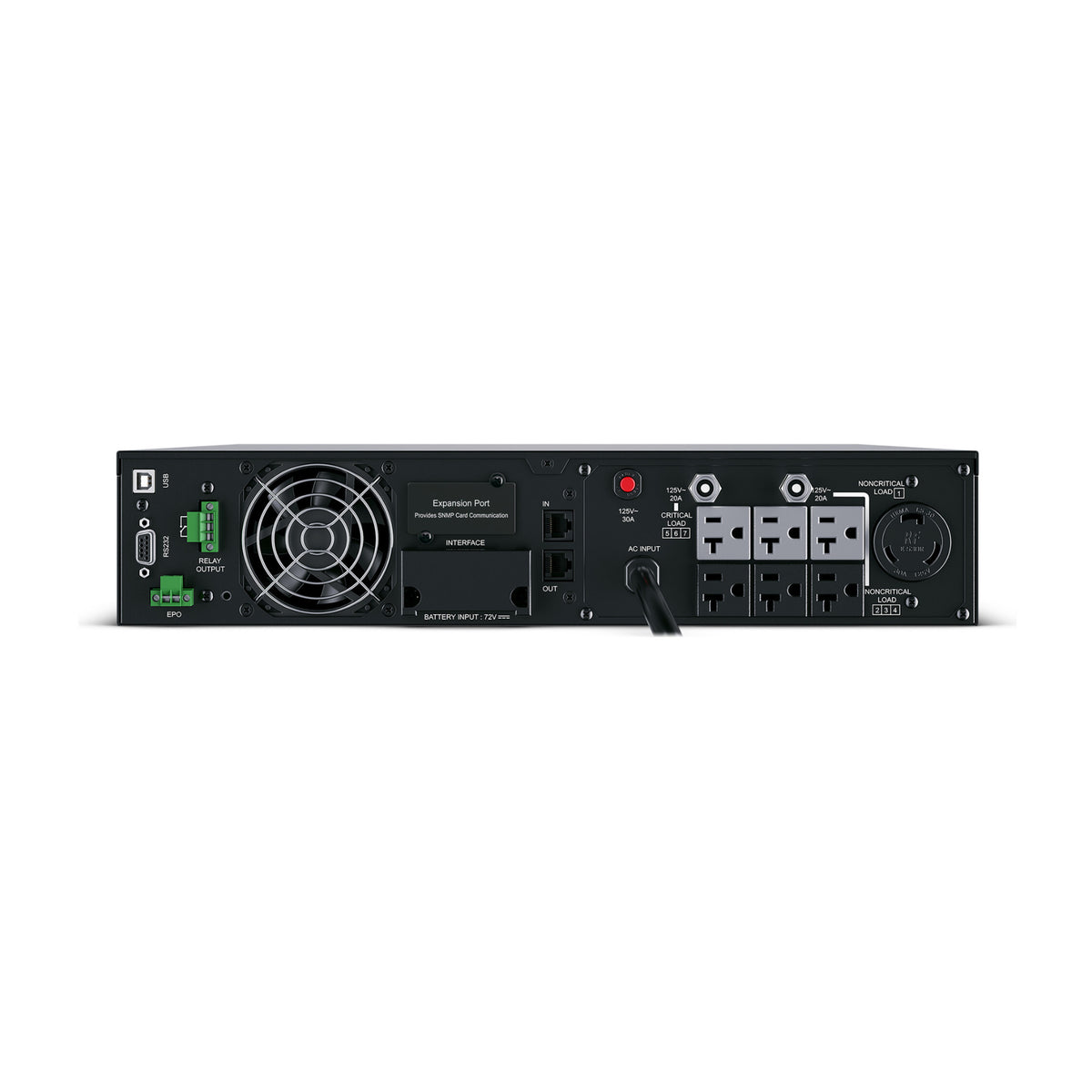

| Outlet Type | 6 x NEMA 5-20R; 1 x NEMA L5-30R |
| Total Outlets | 7 |
| Output Power Factor | 0.9 |
| Overload Protection, Line Mode | 105% to 125% Load for 1 minute; 126% to 150% Load for 10 seconds |
| Overload Protection, Battery Mode | 105% to 130% Load for 10 seconds; 131% to 150% Load for 2 seconds |
| Typical Transfer Time | 0 ms |
| USB Charge Port | No |
| Capacity | 3000 VA |
| VA by Input Type | 3000 VA (3.0 kVA) at 120 V and 125 V input; 2700 VA (2.7 kVA) at 115 V and 110 V input; 2400 VA (2.4 kVA) at 100 V input |
| Power Capacity | 2700 W |
| Watts by Input Type | 2700 W (2.7 kW) at 120 V and 125 V input; 2430 W (2.4 kW) at 115 V and 110 V input; 2160 W (2.2 kW) at 100 V input |
Surge Protection and Filtering:
| EMI/RFI Filtration | Yes |
| Phone / Network Protection RJ11/RJ45 | 1 In / 1 Out Combo |
| Surge Suppression | 1335 J |
Management and Communications:
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault |
| Dry Contacts | Yes |
| Emergency Power Off Port | Yes |
| Expansion Slot | Yes, with optional RMCARD205 or RELAYIO500 |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, Line Mode, Battery Mode, Bypass Mode, Fault, Replace Battery |
| Management Cable | USB Cable |
| Removable LCD Control Panel Option | Yes, requires DB26 cable, not included |
| Rotatable LCD Control Panel Option | Yes |
| Serial Port | 1 Serial |
| Software | PowerPanel Business |
Physical:
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |

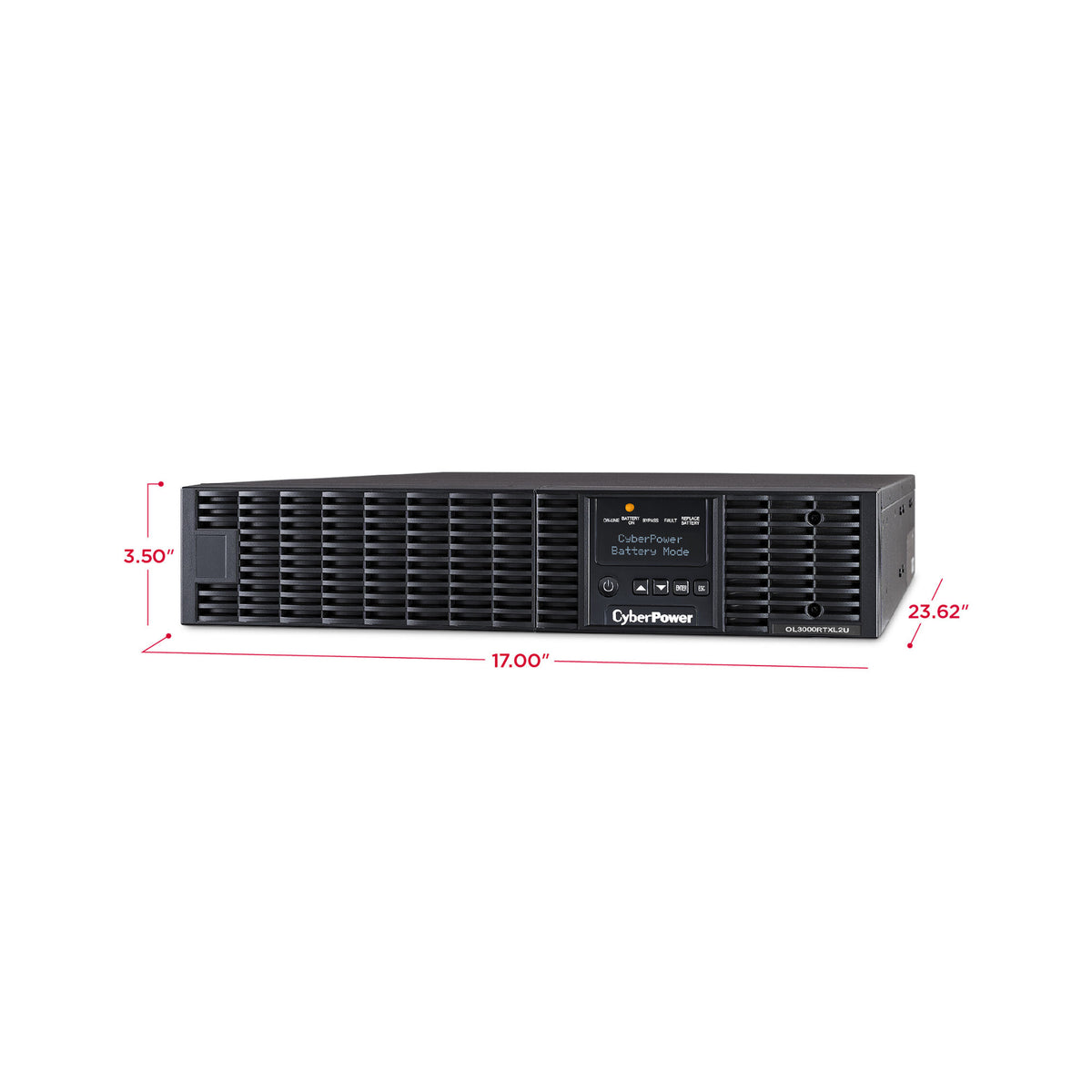

| Physical Dimensions | 17 x 3.5 x 23.62 inches (43.18 x 8.89 x 59.99 cm) |
| Physical Weight | 68.2 lb (30.93 kg) |
Shipping:
| Shipping Weight | 87.08 lb (39.49 kg) |
| Shipping Dimensions | 22.5 x 9.0 x 34.5 inches (57.15 x 22.86 x 87.63 cm) |
Environmental:
| ECO Mode Thermal Dissipation | 465 BTU/hr |
| Online Thermal Dissipation | 889 BTU/hr |
| Operating Elevation | 0 to 10000 feet (0 to 3048 m) |
| Operating Relative Humidity | 0% to 90%, Non Condensing |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Storage Elevation | 0 to 50000 feet (0 to 15239 m) |
| Storage Relative Humidity | 0% to 95%, Non Condensing |
| Storage Temperature | -4 to 113 °F (-20 to 45 °C) |
Certifications:
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Compliance | FCC Part 15 Class A |
| Safety Standard | CSA C22.2 No. 107.3 |
