- UPS system
- User Manual
- Registration Card
- 2 x Rackmount Rails
- 2 x Rackmount Ears
- 2 x Hanging Brackets, phone line
- USB Communication Cable
- Serial interface Cable (RS-232)
- 8 x M5 x 7L black flat head screws
- 12 x M5 x 12L black pan head screws
- 6 x M5 x 6L silver pan head screws
- 8 x plastic washers
- 12 x Screw Hole Dust Covers
- 12 x Rubber Pads, Software Download Card
Trusted & Verified

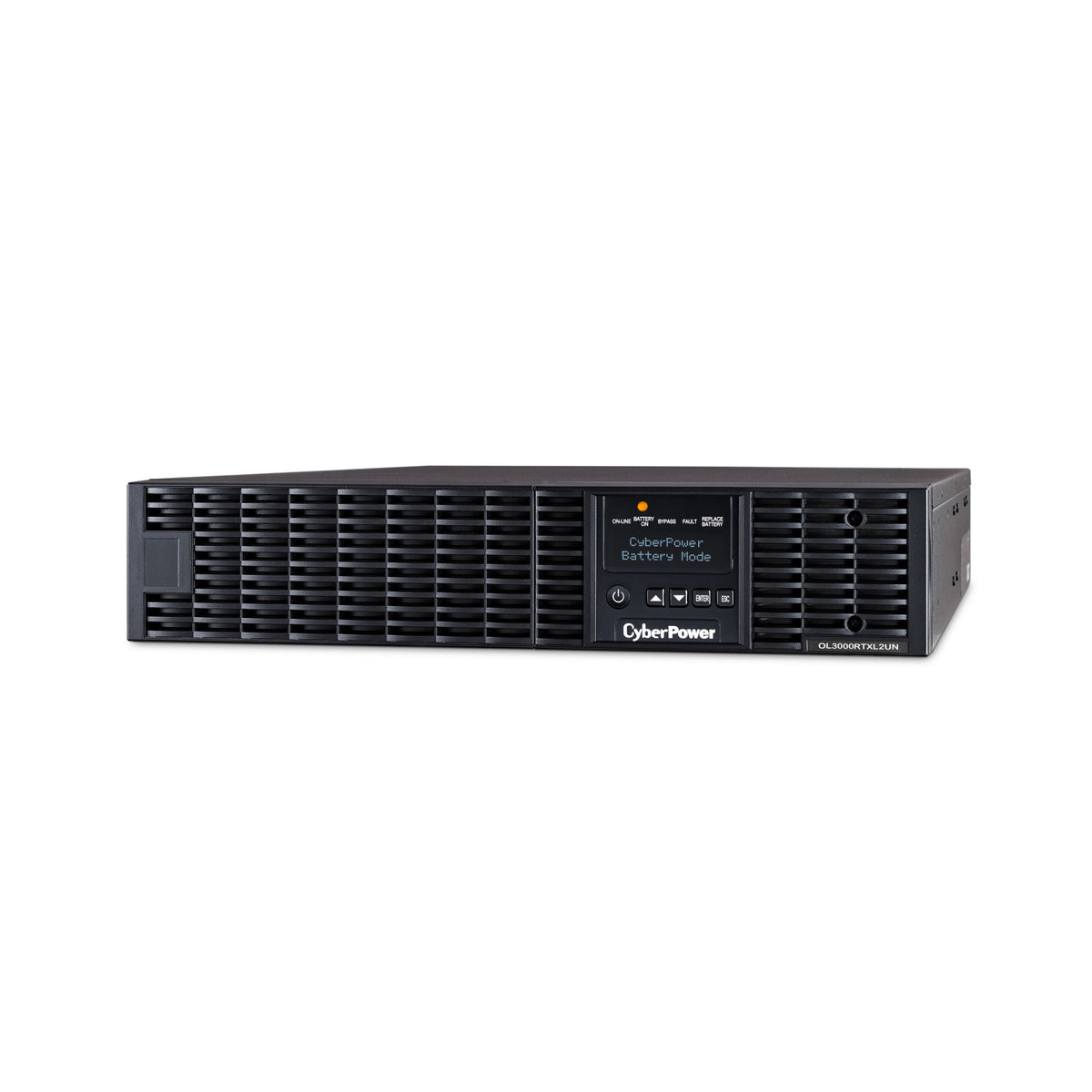

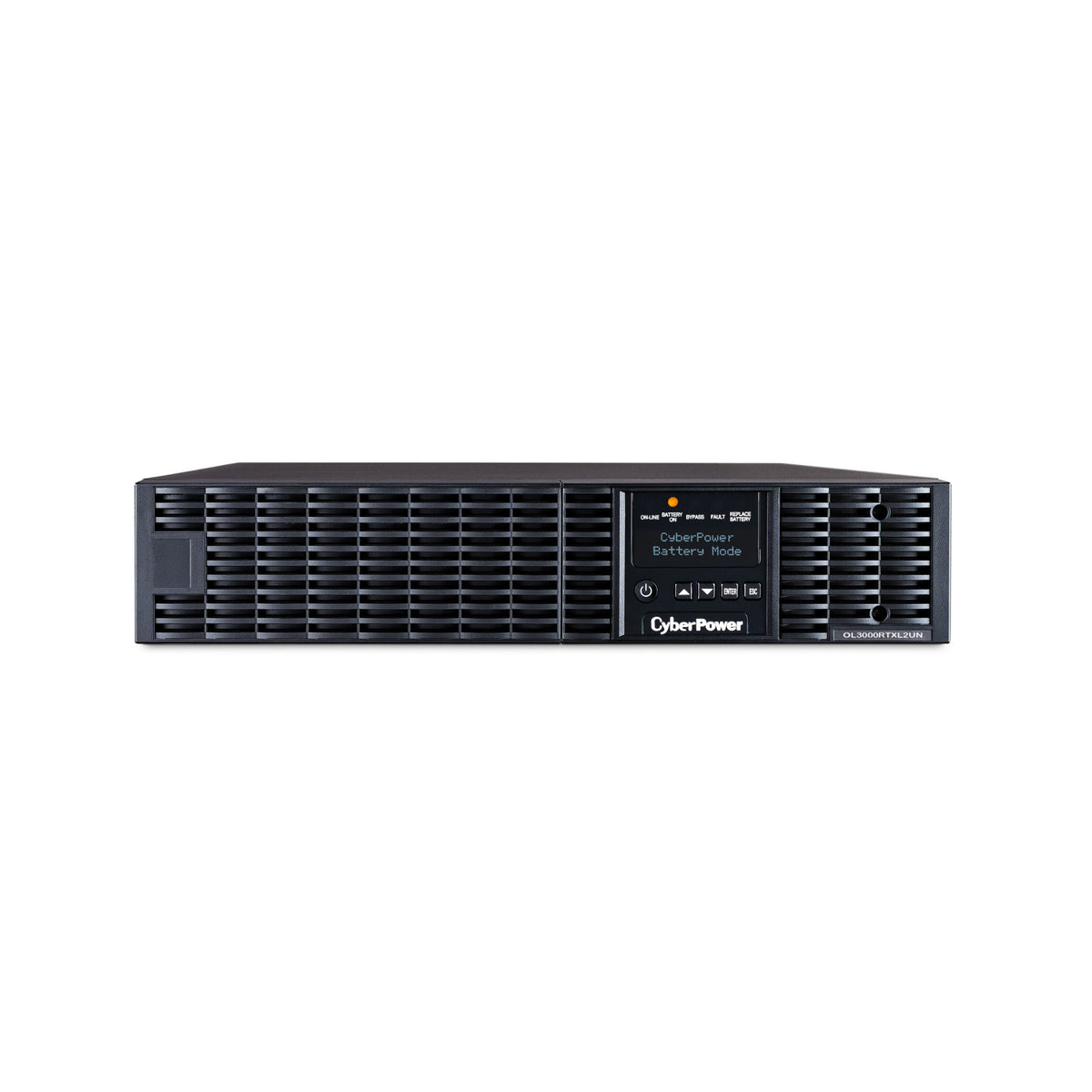

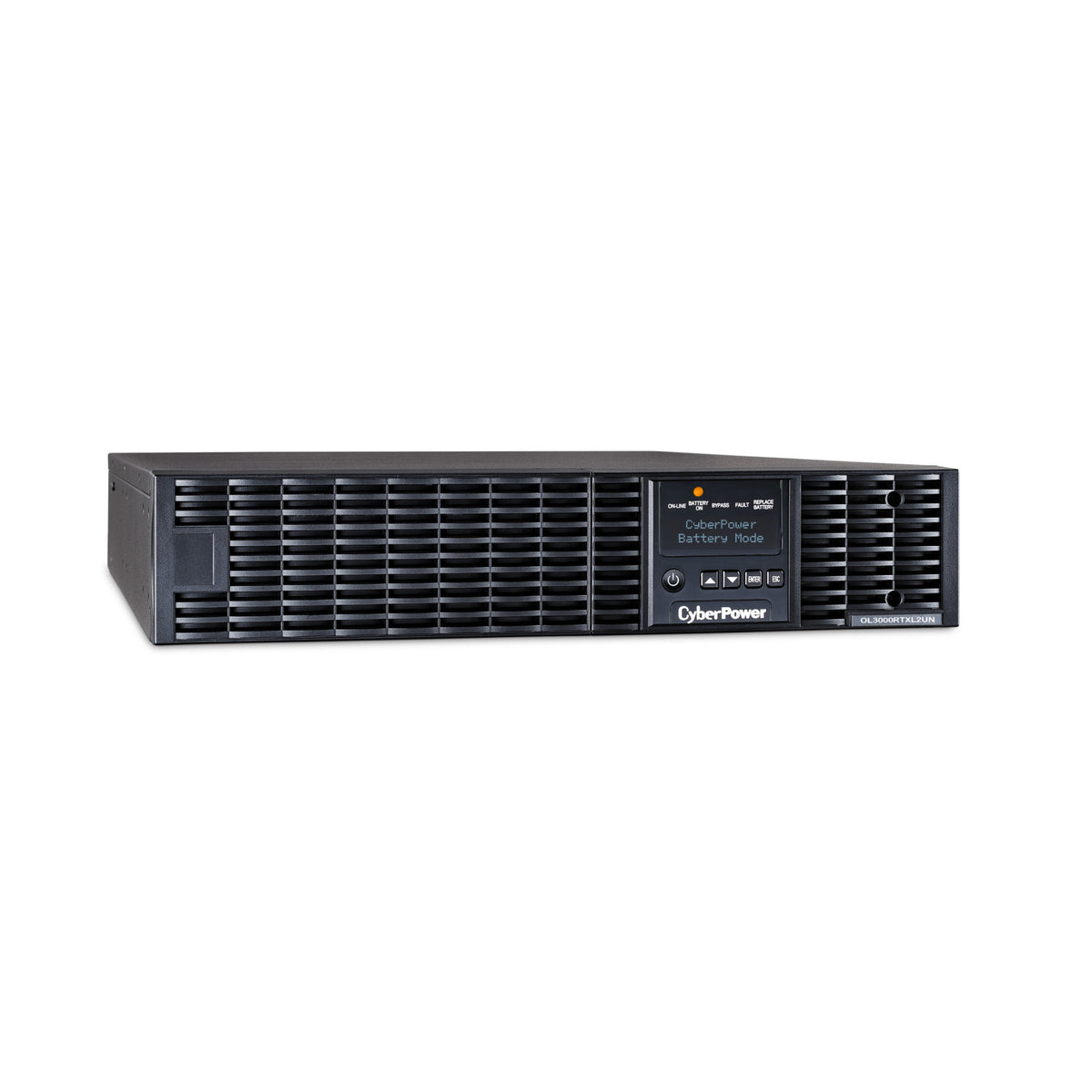

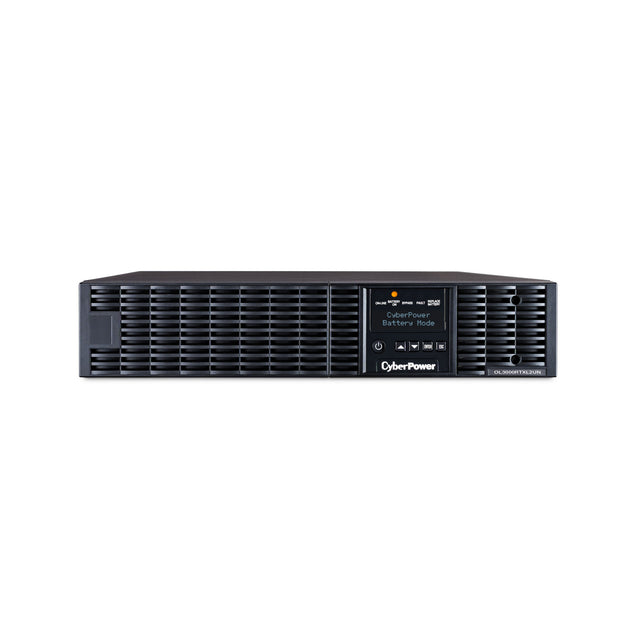

CyberPower 3000VA/2700W Smart App Online Rack/Tower UPS with Network Card
- 3000 VA and 2700 W output supports servers, storage, telecom, and other sensitive electronics
- Online double conversion delivers continuous power conditioning with 0 millisecond transfer time
- Sine wave output supports equipment with Active PFC power supplies

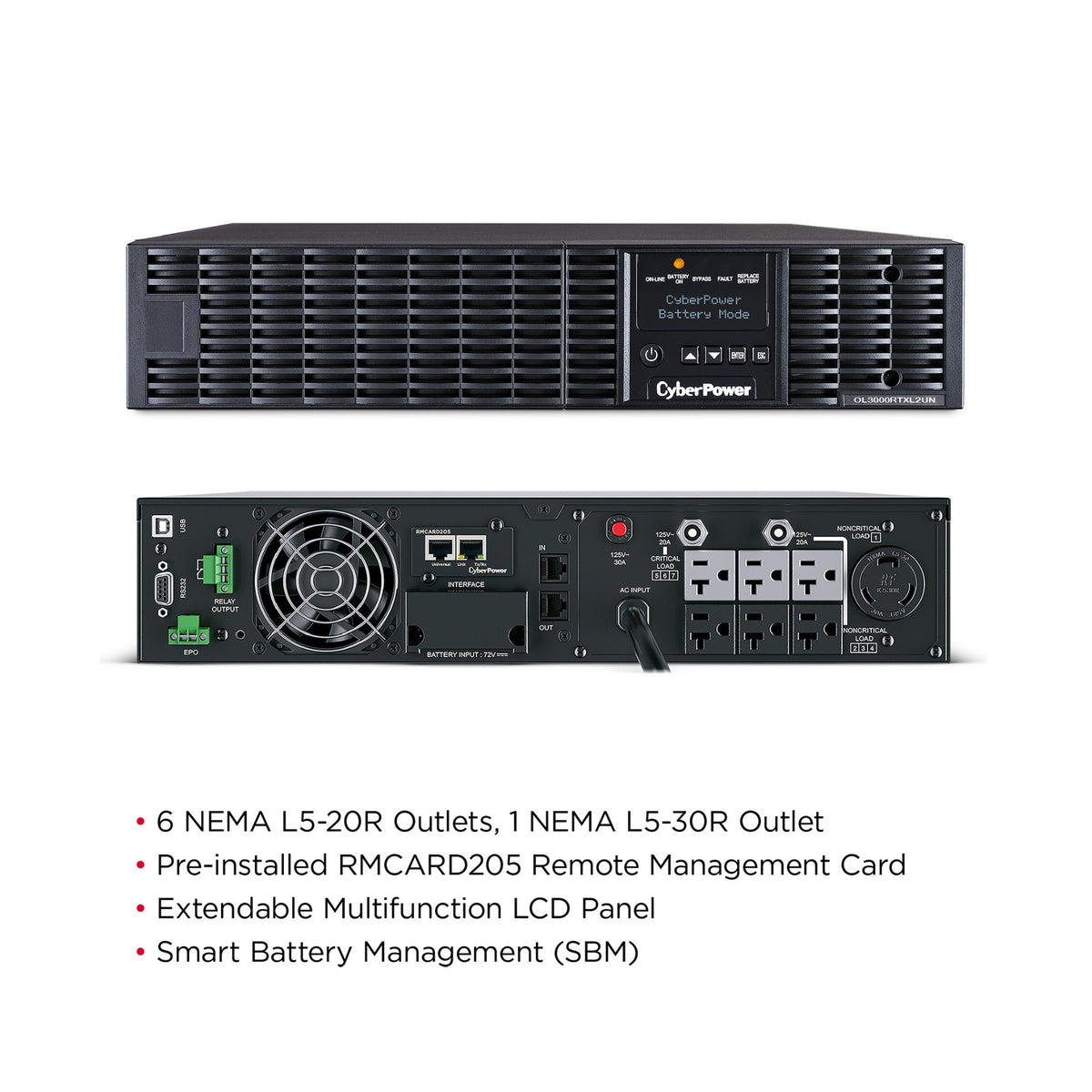

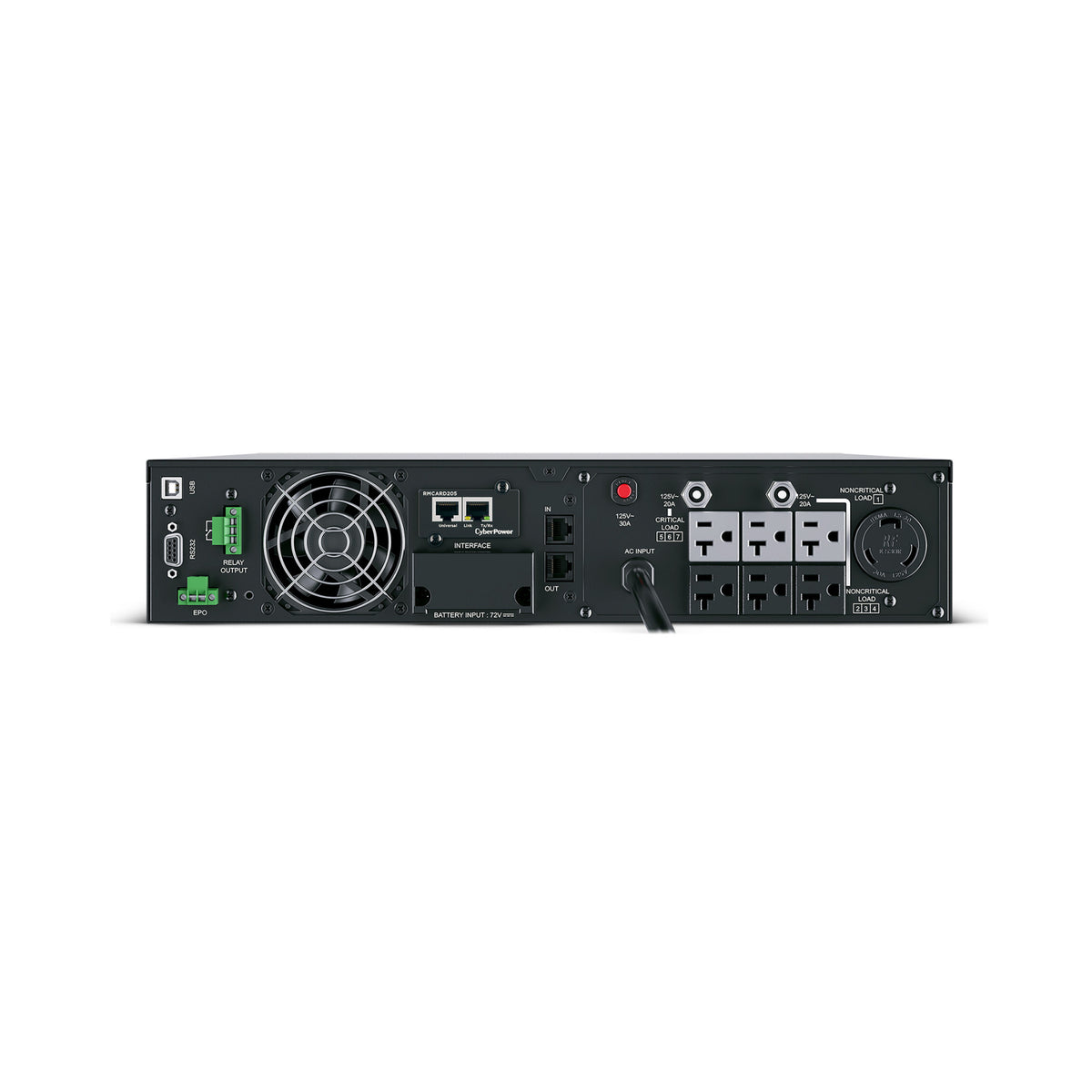

- 7 outlets include 6 NEMA 5-20R receptacles and 1 NEMA L5-30R receptacle
- Preinstalled RMCARD205 enables browser, command line, and network management
- Provides 4 minutes runtime at full load and 12.5 minutes at half load
- Supports up to 10 BP72V60ART2U battery modules for extended runtime

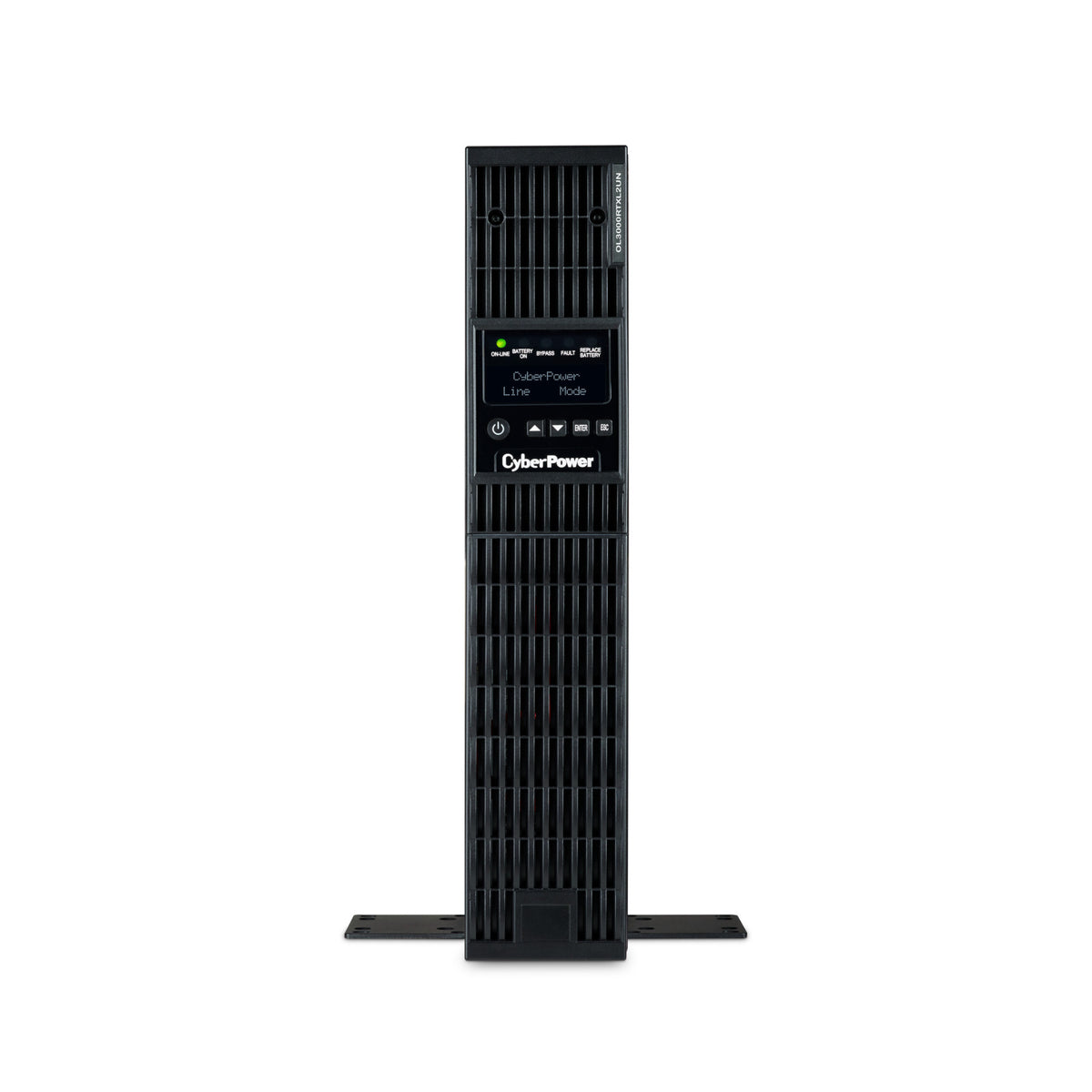

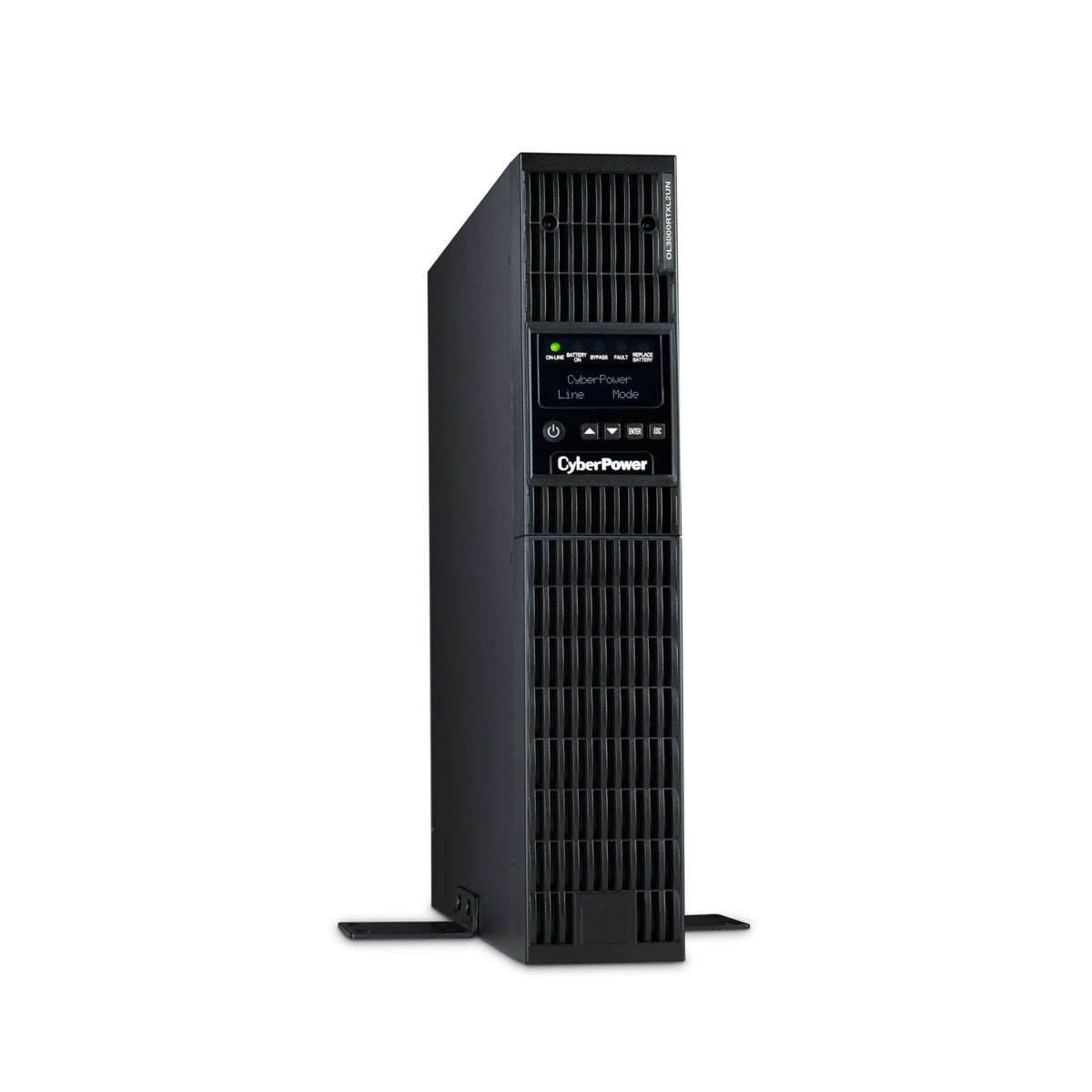

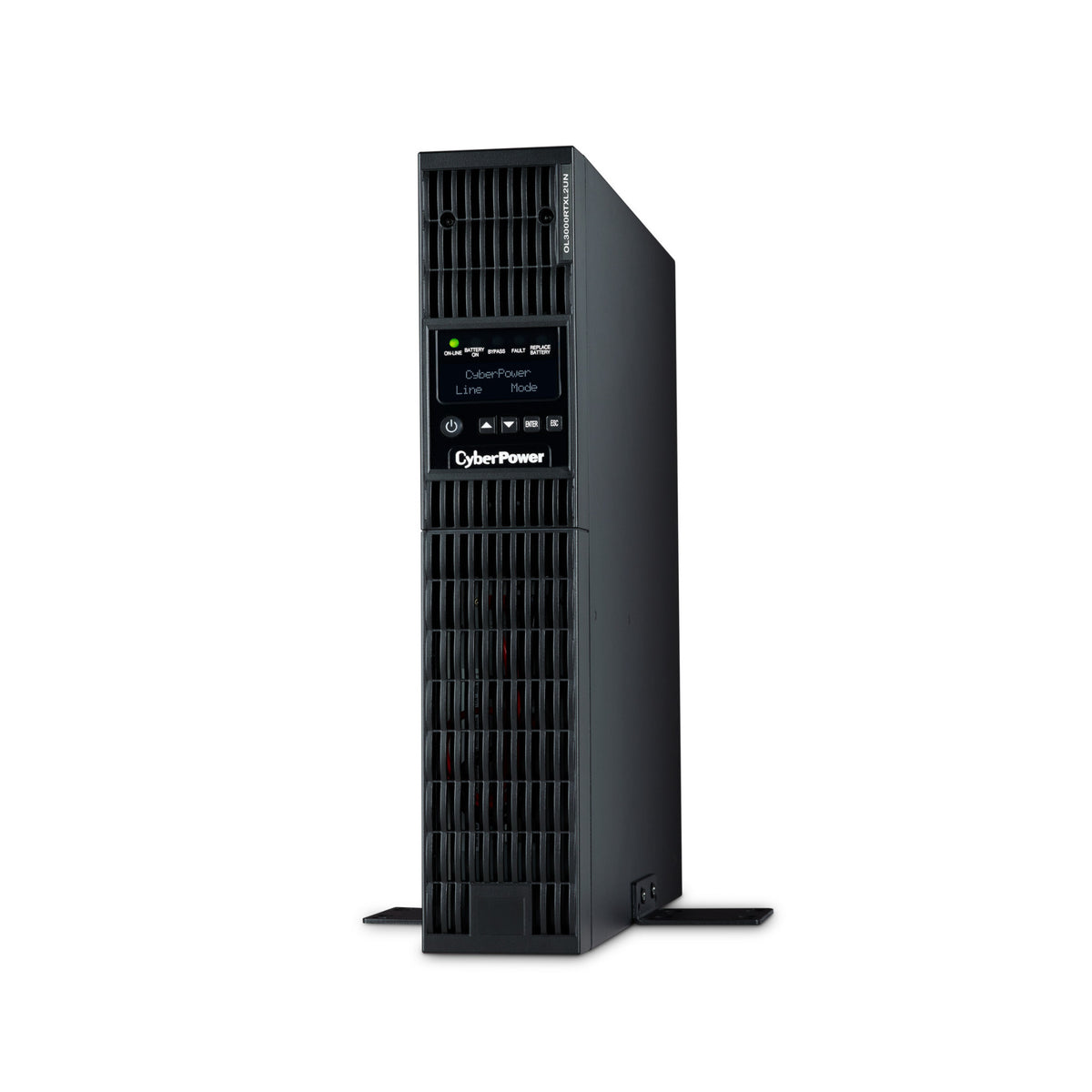

- 2U metal chassis supports rack or tower installation with a removable LCD
Prevent business interruptions and safeguard mission-critical enterprise network equipment with the CyberPower OL3000RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS ECO Mode. It offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.
Clean Power with Flexible Output
7 outlets support mixed equipment connections through 6 NEMA 5-20R receptacles and 1 NEMA L5-30R receptacle. Configurable 100, 110, 115, 120, or 125 VAC output and selectable 50 or 60 Hz operation help match connected systems. Generator compatibility, internal automatic and manual bypass, EMI and RFI filtration, data line surge protection, and separate critical and noncritical load banks add control for demanding installations.
Remote Management and Expandable Runtime
The preinstalled RMCARD205 enables browser, command line, or network management system access. PowerPanel Business software supports monitoring and coordinated shutdown control through USB, serial, and network connections. The removable and rotatable multifunction LCD provides local status and configuration access. Runtime is rated at 4 minutes at full load and 12.5 minutes at half load, while support for up to 10 BP72V60ART2U battery modules allows runtime expansion.

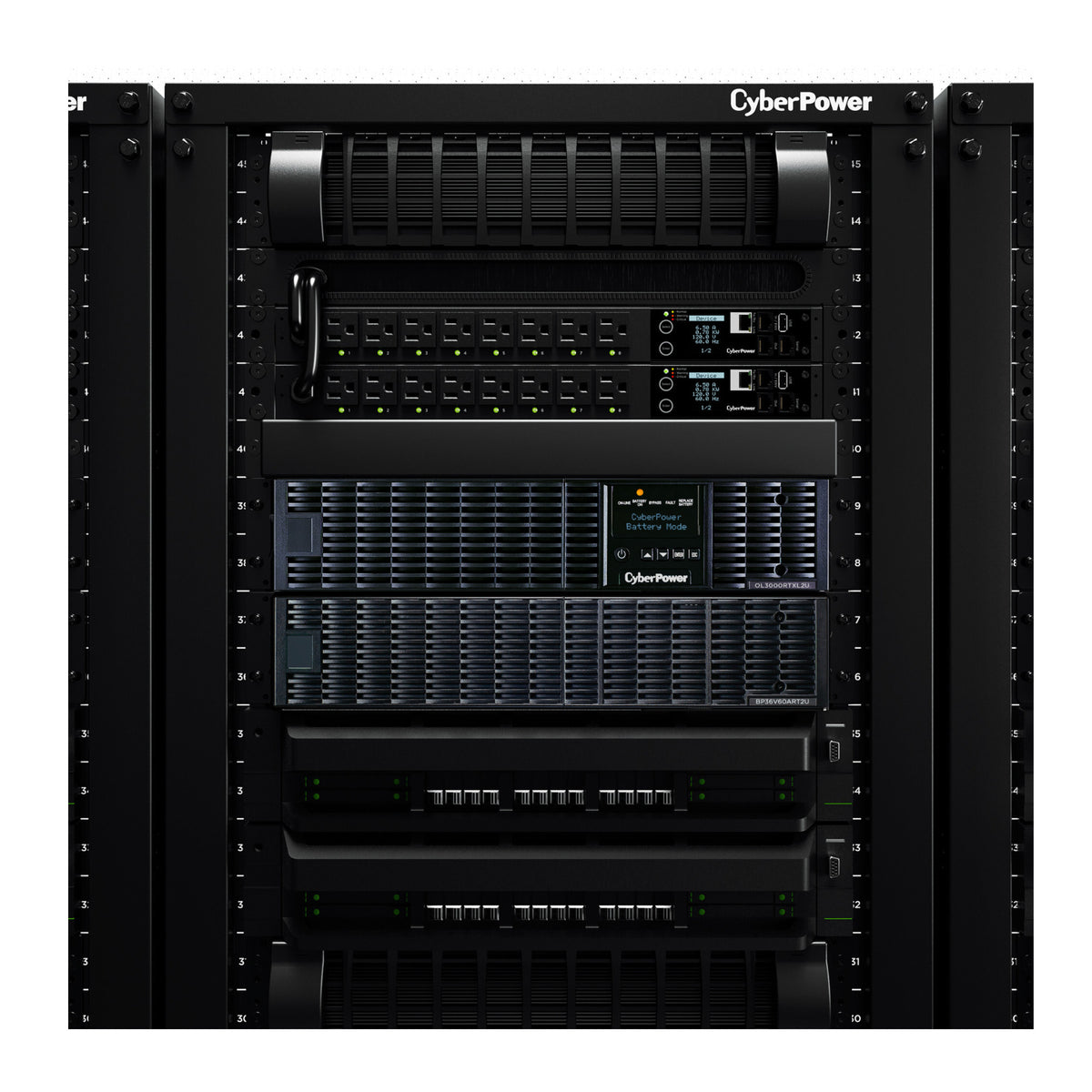

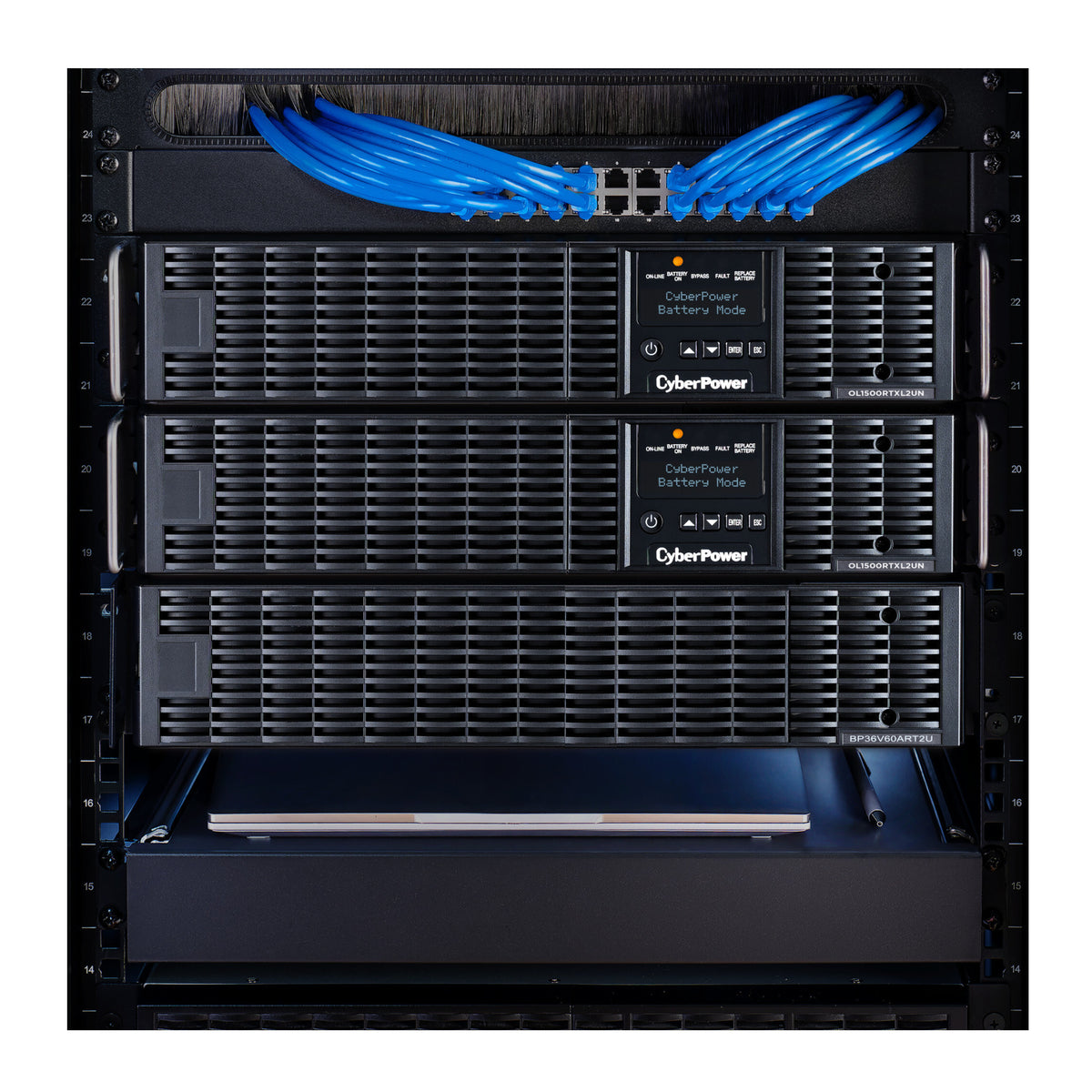

The 2U metal chassis installs in a rack or tower orientation. Hot swappable, user replaceable batteries support service without shutting down connected equipment. Smart Battery Management uses a three cycle charging process, Fast Charge Technology restores 0 to 90 percent capacity in 4 hours, and ECO Mode reaches more than 95 percent efficiency.
General:
| Energy Saving | ECO Mode efficiency above 95 percent |
| Energy Star Certified | Yes |
| UPS Topology | Online double conversion |
Battery:
| Battery Quantity | 6 |
| Battery Size | 12 V, 9 Ah |
| Battery Type | Sealed lead acid battery |
| Extended Battery Module | BP72V60ART2U |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X6A |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 4 minutes |
| Runtime at Half Load | 12.5 minutes |
| Smart Battery Management Mode | Yes |
| Typical Recharge Time | 4 hours from 0 to 90 percent charged |
| User Replaceable Battery | Yes |
Input:
| Circuit Breaker | 30 A |
| Cold Start | Yes |
| Cord Length | 10 feet, 3.0 meters |
| Input Frequency Range | 40 Hz to 70 Hz |
| Input Plug Type | NEMA L5-30P |
| Input Power Factor | 0.99 |
| Input Voltage Range | 60 VAC to 69 VAC for 0 to 60 percent load |
| Input Voltage Range | 70 VAC to 79 VAC for 0 to 70 percent load |
| Input Voltage Range | 80 VAC to 89 VAC for 0 to 80 percent load |
| Input Voltage Range | 90 VAC to 95 VAC for 0 to 90 percent load |
| Input Voltage Range | 96 VAC to 150 VAC for 0 to 100 percent load |
| Nominal Input Voltage | 100 VAC to 125 VAC |
Output:
| Bypass | Internal bypass, automatic and manual |
| Crest Factor | 3:1 |
| ECO Mode Voltage Regulation | Plus or minus 10 percent or 15 percent, configurable |
| Harmonic Distortion | Less than 3 percent at linear load; less than 5 percent at nonlinear load |
| Nominal Output Voltage | 100 VAC to 125 VAC |
| On AC Waveform | Sine wave |
| On Battery Frequency | 50 or 60 Hz, plus or minus 0.25 Hz, auto sensing or configurable |
| On Battery Voltage | 100, 110, 115, 120, or 125 VAC, plus or minus 2 percent, configurable |
| On Battery Waveform | Sine wave |
| Outlet Type | 6 NEMA 5-20R outlets and 1 NEMA L5-30R outlet |
| Total Outlets | 7 |
| Output Power Factor | 0.9 |
| Overload Protection, Line Mode | 105 percent to 125 percent load for 1 minute |
| Overload Protection, Line Mode | 126 percent to 150 percent load for 10 seconds |
| Overload Protection, Battery Mode | 105 percent to 130 percent load for 10 seconds |
| Overload Protection, Battery Mode | 131 percent to 150 percent load for 2 seconds |
| Short Circuit Protection | UPS output cuts off immediately or input fuse and circuit breaker protection |
| Typical Transfer Time | 0 milliseconds |
| USB Charge Port | No |
| Capacity | 3000 VA |
| Capacity by Input Type | 3000 VA, 3.0 kVA, at 120 V or 125 V input |
| Capacity by Input Type | 2700 VA, 2.7 kVA, at 110 V or 115 V input |
| Capacity by Input Type | 2400 VA, 2.4 kVA, at 100 V input |
| Output Power | 2700 W |
| Output Power by Input Type | 2700 W, 2.7 kW, at 120 V or 125 V input |
| Output Power by Input Type | 2430 W, 2.4 kW, at 110 V or 115 V input |
| Output Power by Input Type | 2160 W, 2.2 kW, at 100 V input |
Surge Protection and Filtering:
| EMI and RFI Filtration | Yes |
| Phone and Network Protection | 1 input and 1 output combination RJ11 and RJ45 port |
| Surge Suppression | 1335 J |
Management and Communications:
| Audible Alarms | Battery mode, low battery, overload, and UPS fault |
| Dry Contacts | Yes |
| Emergency Power Off Port | Yes |
| Expansion Slot | Yes, RMCARD205 preinstalled |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power on white, line mode green, battery mode yellow, bypass mode yellow, fault red, and replace battery red |
| Management Cable | USB cable |
| Removable LCD Control Panel Option | Yes, requires DB26 cable, not included |
| Rotatable LCD Control Panel Option | Yes |
| Serial Port | 1 |
| Software | PowerPanel Business, free download |
| Upgradeable Firmware | Yes |
Physical:
| Color | Black |
| Form Factor | Rack or tower |
| Material | Metal |
| Mounting Hardware | Yes |
| Rack Height | 2U |
Dimensions:

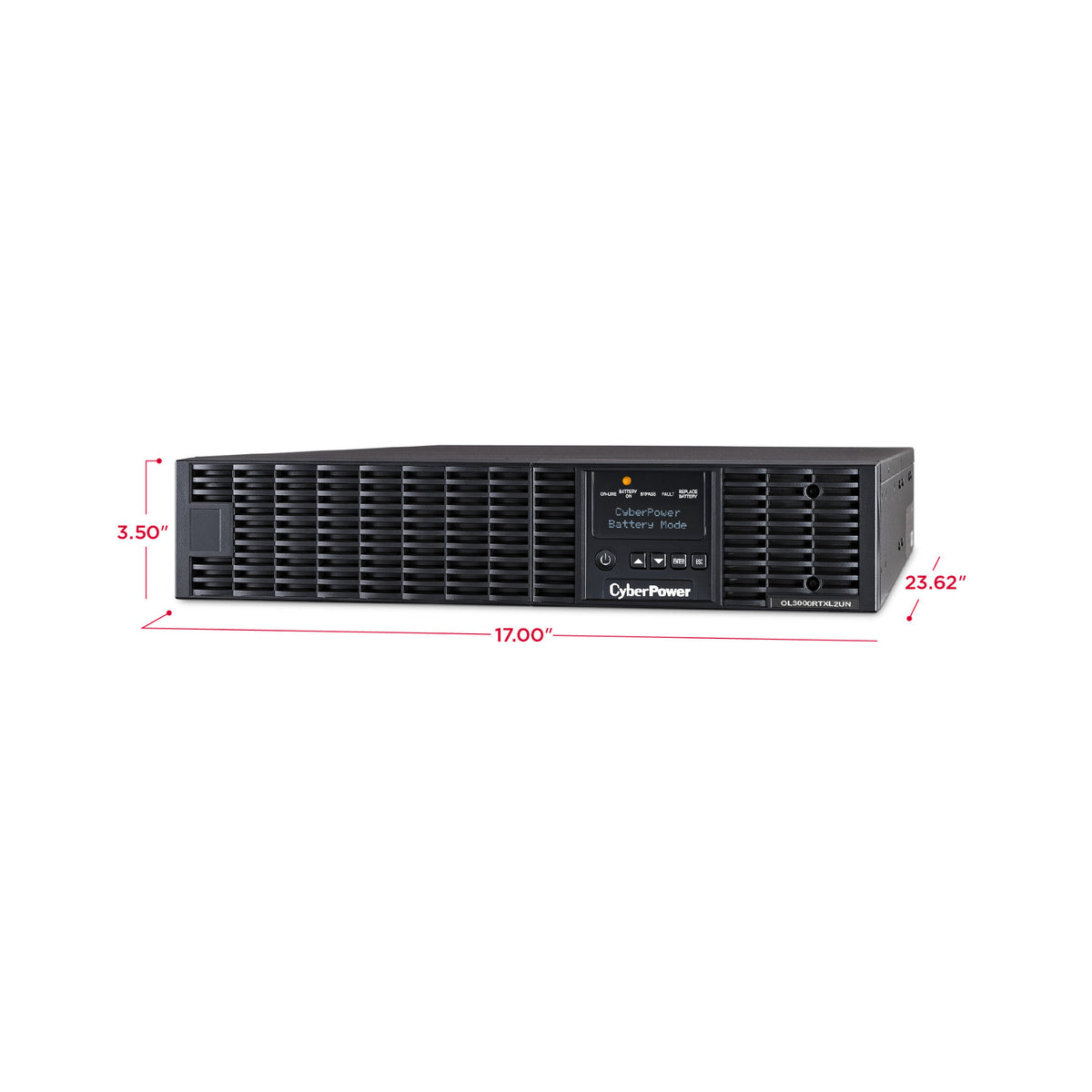

| Physical Dimensions, Width x Height x Depth | 43.18 x 8.89 x 59.99 centimeters |
| Physical Dimensions, Width x Height x Depth | 17 x 3.5 x 23.62 inches |
| Physical Dimensions, Width x Height x Depth | 432 x 89 x 600 millimeters |
| Physical Weight | 30.93 kilograms / 68.2 pounds |
Shipping Dimensions:
| Shipping Weight | 39.49 kilograms |
| Shipping Weight | 87.08 pounds |
| Shipping Dimensions, Width x Height x Depth | 57.15 x 22.86 x 88.9 centimeters |
| Shipping Dimensions, Width x Height x Depth | 22.5 x 9.0 x 35.0 inches |
| Shipping Dimensions, Width x Height x Depth | 571.5 x 228.6 x 889.0 millimeters |
Environmental:
| Audible Noise at 1 Meter | 38 dBA to 55 dBA at 0 to 100 percent load |
| ECO Mode Thermal Dissipation | 364 BTU per hour |
| Online Thermal Dissipation | 889 BTU per hour |
| Operating Elevation | 0 to 10000 feet, 0 to 3048 meters |
| Operating Relative Humidity | 0 to 90 percent, noncondensing |
| Operating Temperature | 32 to 104 degrees Fahrenheit, 0 to 40 degrees Celsius |
| Storage Elevation | 0 to 50000 feet, 0 to 15239 meters |
| Storage Relative Humidity | 0 to 95 percent, noncondensing |
| Storage Temperature | Minus 4 to 113 degrees Fahrenheit, minus 20 to 45 degrees Celsius |
Certifications:
| Environmental | RoHS compliant |
| Safety | UL1778 |
| Safety | FCC Part 15 Class A |
| Safety | CSA C22.2 No. 107.3 |
