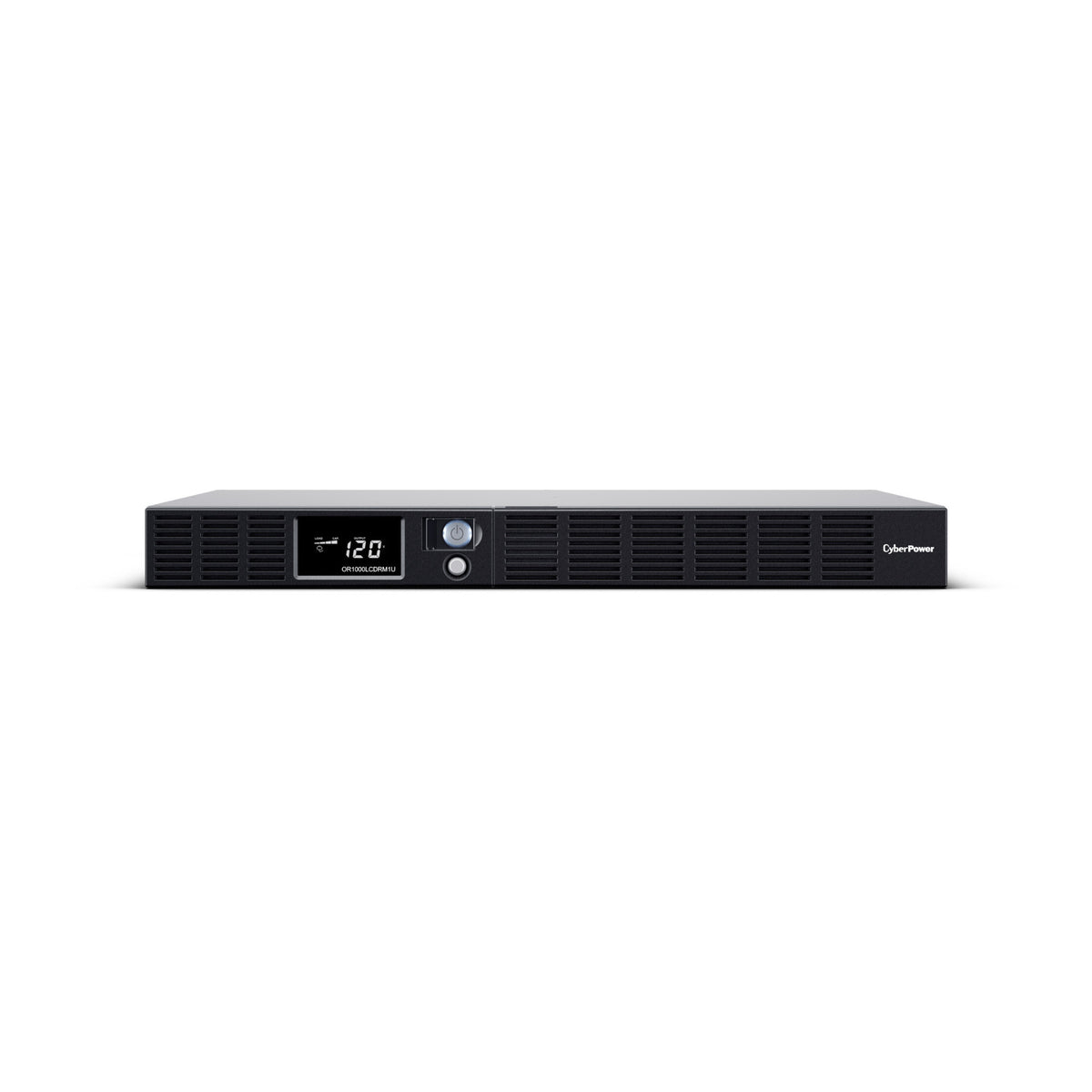

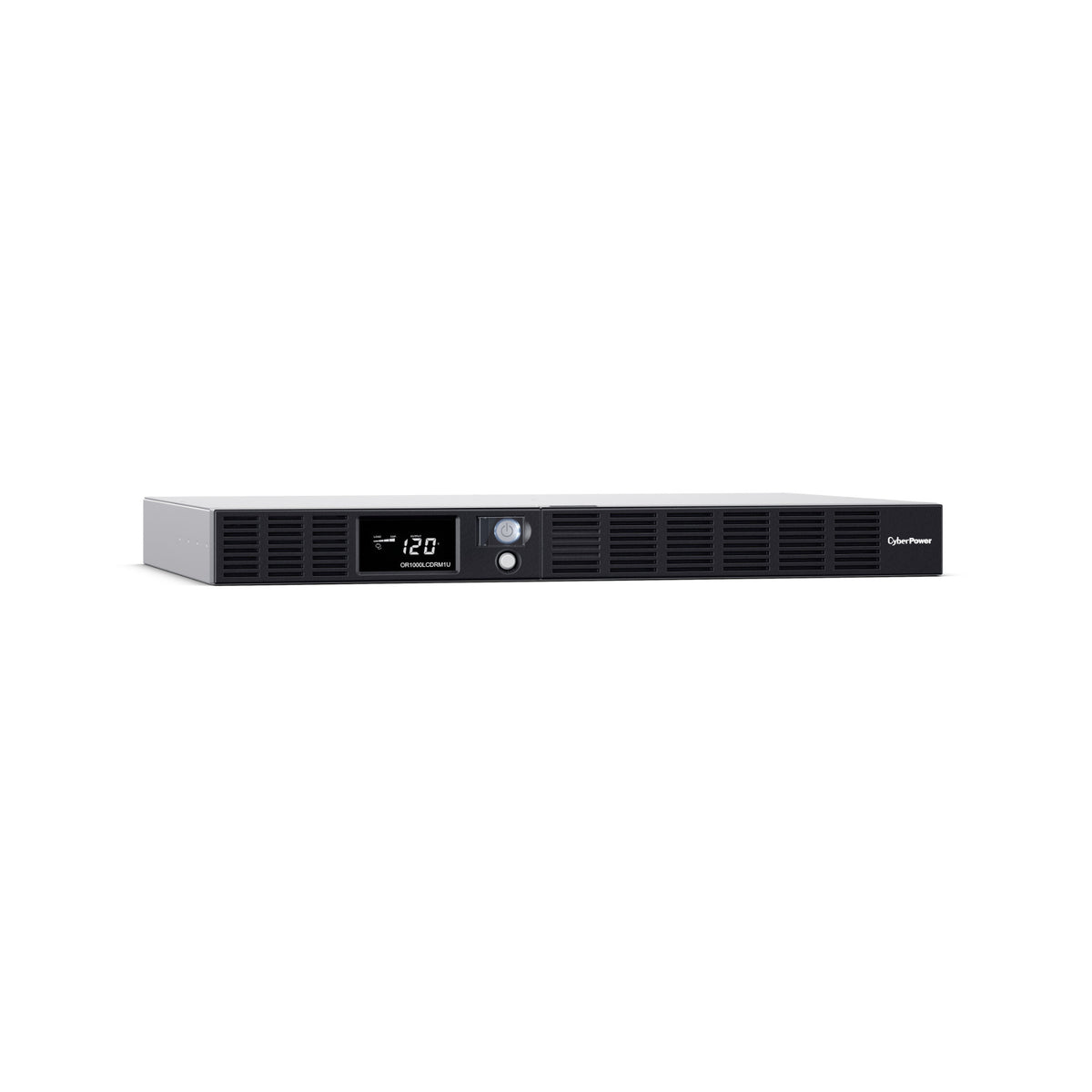

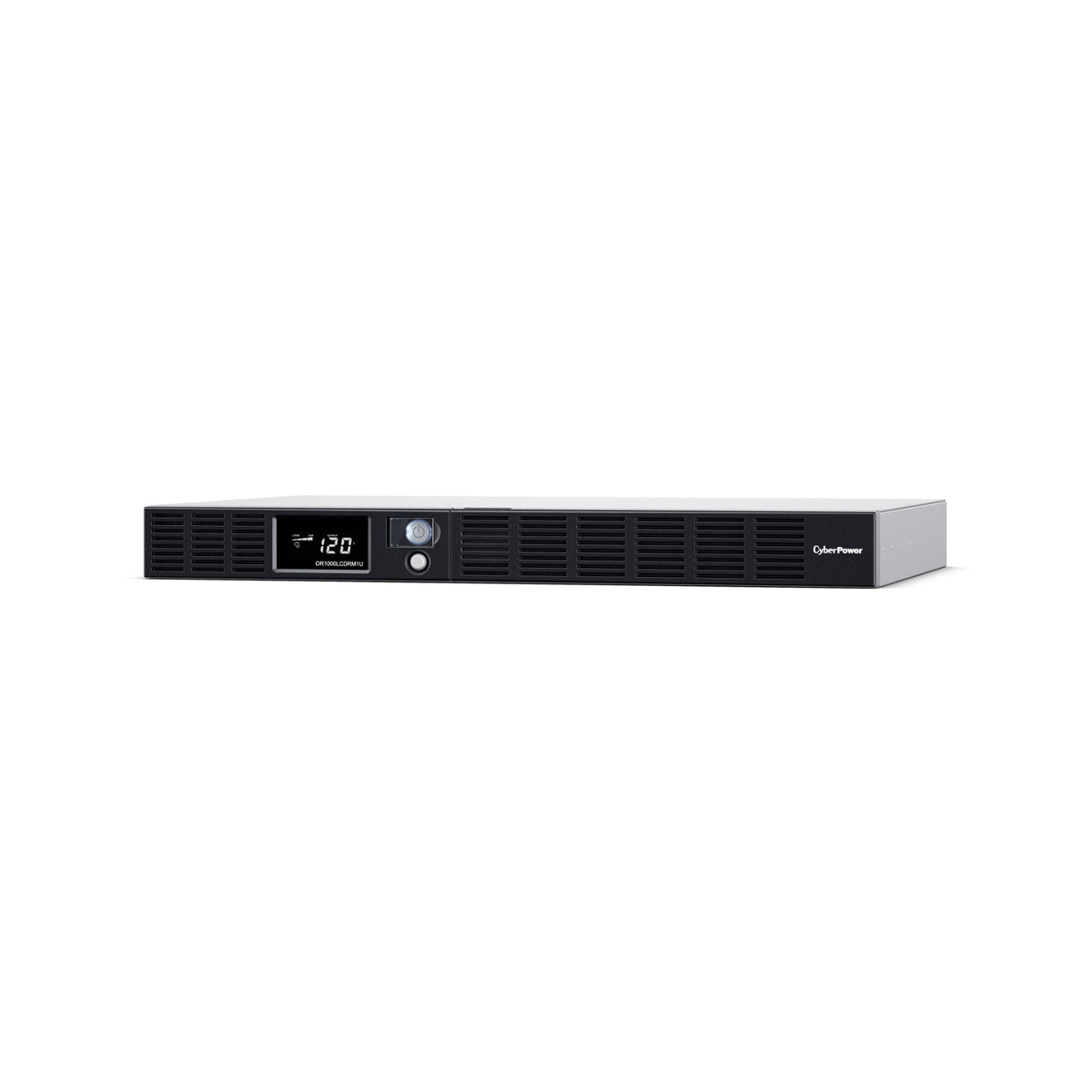

CyberPower OR1000LCDRM1U Smart App LCD UPS Battery Backup and Surge Protector
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
CyberPower OR1000LCDRM1U Smart App LCD UPS Battery Backup and Surge...
A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.
This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system.
Battery Backup
Supplies power long enough for equipment to properly shut down when utility power fails. Helps prevent loss of data and minimizes the component stress caused by a hard shutdown.
Surge Protection
Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
Automatic Voltage Regulation (AVR)
AVR increases the AC power and maintains a safe voltage level without switching to battery mode and conserving battery life.
Multifunction LCD Screen
Displays immediate, detailed information on the UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime.
Data Line Protection
Prevents power surges that travel through Ethernet lines from causing damage to electronics.
PowerPanel Business
Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Resources tab.
Simulated Sine Wave Output
Provides a manufactured waveform output to supply cost-effective battery backup power for equipment that does not require sine wave output.
ENERGY STAR
This model is an ENERGY STAR certified Uninterruptible Power Supply (UPS) system. ENERGY STAR is the trusted, government-backed symbol for energy-efficient products and practices that help save money and protect the environment.
GreenPower UPS Bypass Design
A patented design that allows utility power to bypass the UPS transformer, when AC power is stable, which reduces energy consumption, noise, and heat buildup.
General
| Energy Saving | GreenPower UPS Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
Battery
| Battery Quantity | 4 |
| Battery Size | 6 V / 7 Ah |
| Battery Type | Sealed Lead-Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB0670X4 |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 3 min |
| Runtime at Half Load | 13 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
Input
| Adjustable Voltage Range | 88 – 144 VAC |
| Circuit Breaker | 15 A |
| Cord Length | 10 ft (3.0 m) |
| Input Frequency Range | 57 Hz – 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 90 VAC – 140 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle – 45° Offset |
Output
| Automatic Voltage Regulation | Single Boost |
| On AC WaveForm | Sine Wave |
| On Battery Frequency | 60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 10% |
| On Battery Waveform | Simulated Sine Wave |

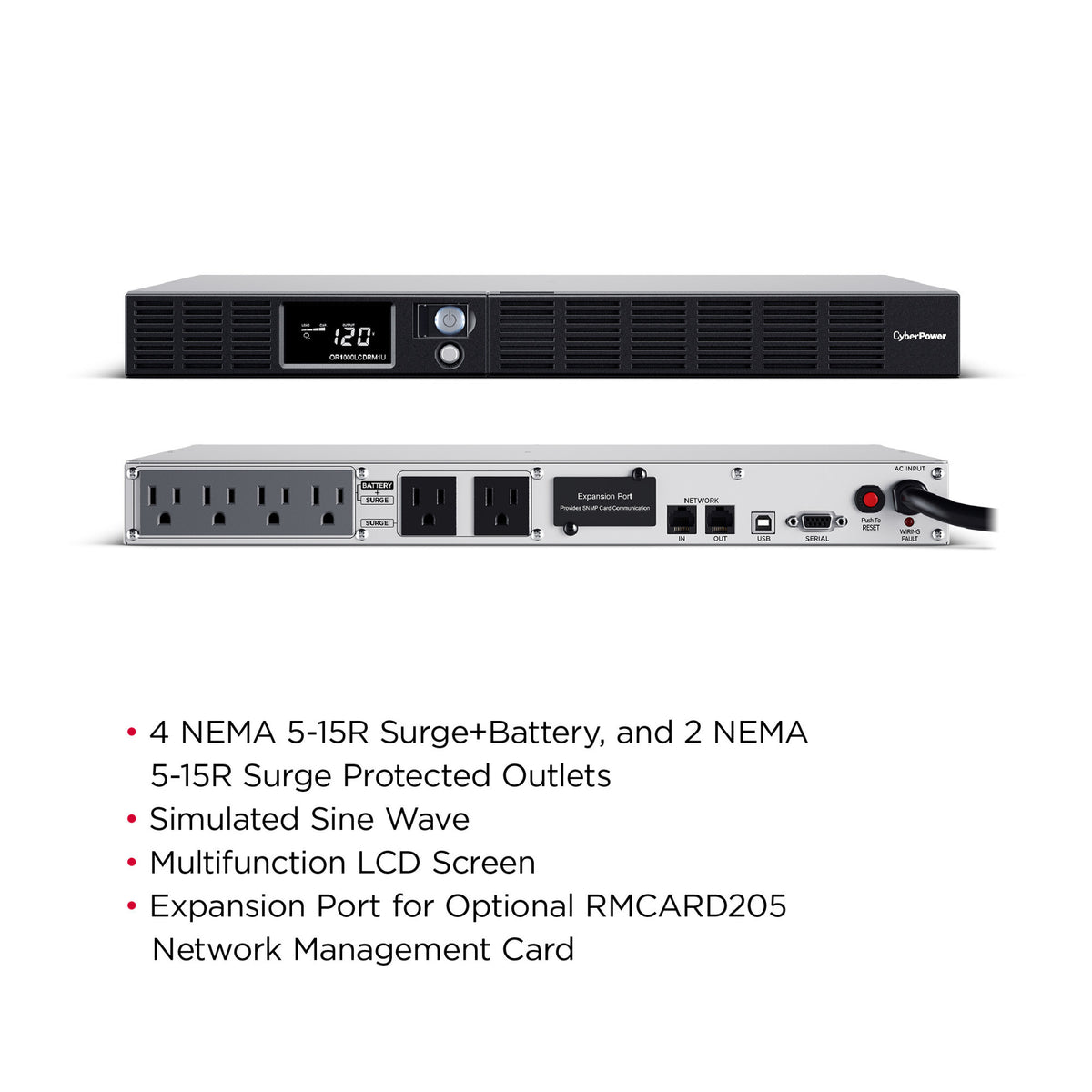

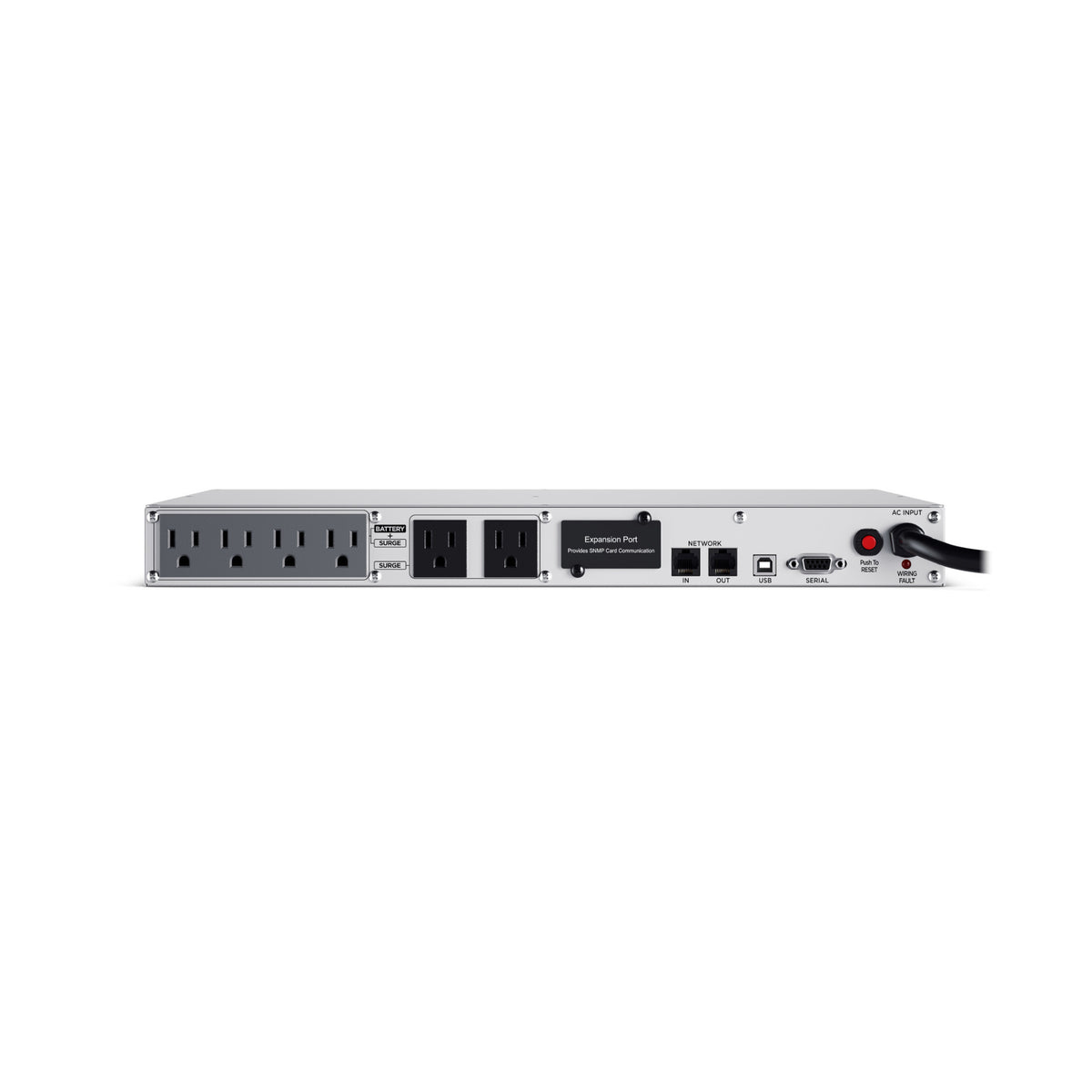

| Outlet Type | 6 – NEMA 5-15R |
| Outlets – Battery & Surge Protected | 4 |
| Outlets – Surge-Only Protected | 2 |
| Outlets – Total | 6 |
| Output Power Factor | 0.6 |
| Overload Protection | Internal Circuitry Limiting |
| Circuit Breaker Protected | Yes |
| Typical Transfer Time | 8 ms |
| USB Charge Port | No |
| VA | 1000 VA |
| Watts | 600 W |
Surge Protection & Filtering
| EMI/RFI Filtration | Yes |
| Network Protection RJ45 | 1-in / 1-Out (10/100/1000) |
| Surge Suppression (Joules) | 1150 J |
Management & Communications
| Audible Alarms | Battery Mode, Low Battery, Overload, Fault |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, Wiring Fault |
| Management Cable | USB Cable |
| SNMP / HTTP Remote Monitoring | Yes – with optional RMCARD205 |
| Serial Port | 1 Dry Contact |
| Software (Free Download) | PowerPanel Business |
Physical
| Form Factor | Rackmount |
| Material of Construction | Metal |
| Rack Height | 1U |
Dimensions

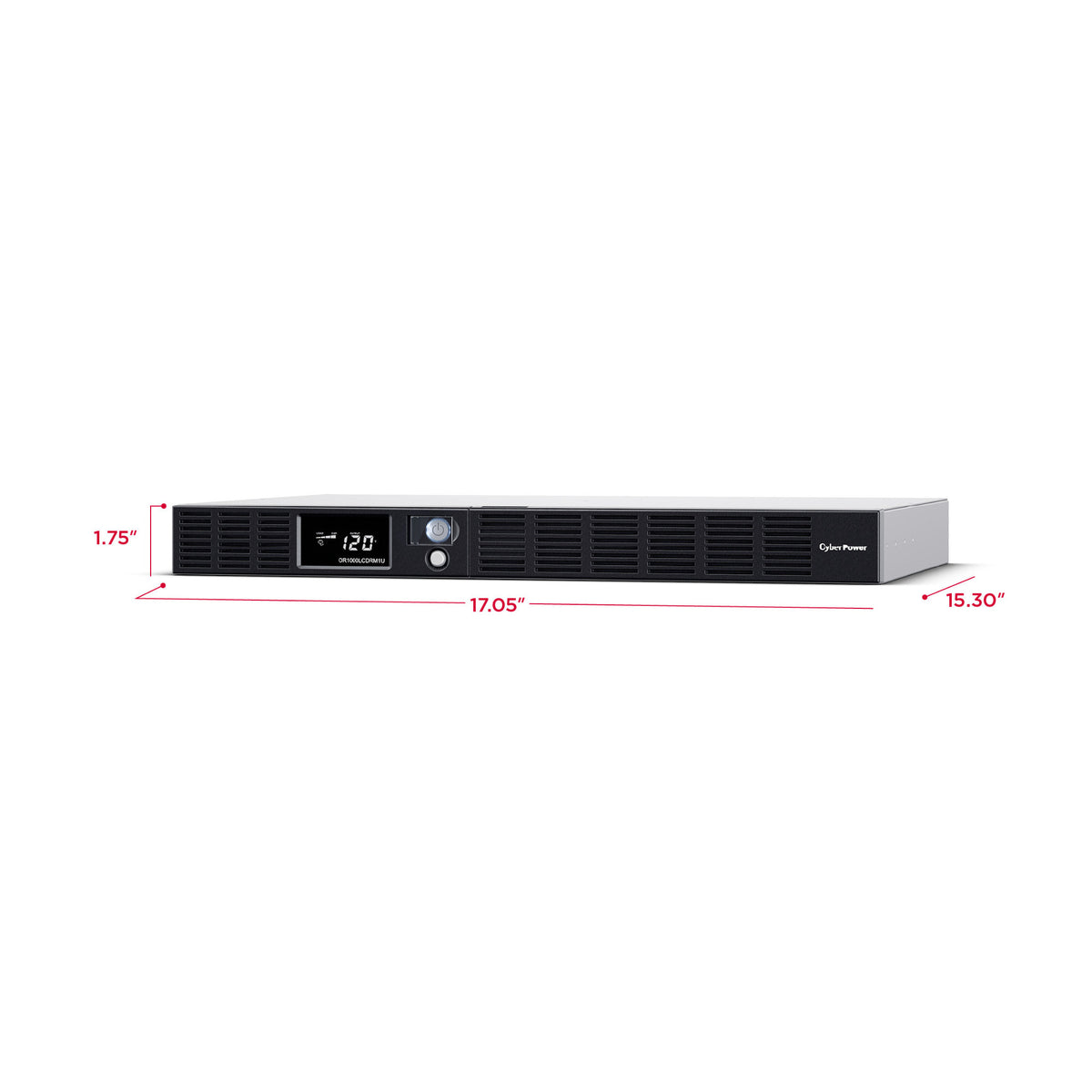

| Physical Dimensions – (WxHxD) (cm) | 43.31 x 4.45 x 38.86 |
| Physical Dimensions – (WxHxD) (in) | 17.05 x 1.75 x 15.30 |
| Physical Dimensions – (WxHxD) (mm) | 433 x 44 x 389 |
| Physical Weight (kg) | 13.7 |
| Physical Weight (lb) | 30.2 |
Dimensions – Shipping
| Shipping – Weight (kg) | 17.24 |
| Shipping – Weight (lb) | 38 |
| Shipping Dimensions – (WxHxD) (cm) | 51.44 x 15.88 x 53.98 |
| Shipping Dimensions – (WxHxD) (in) | 20.25 x 6.25 x 21.25 |
| Shipping Dimensions – (WxHxD) (mm) | 514.35 x 158.75 x 539.75 |
