CyberPower Smart App Intelligent LCD UPS Battery Backup and Surge P...

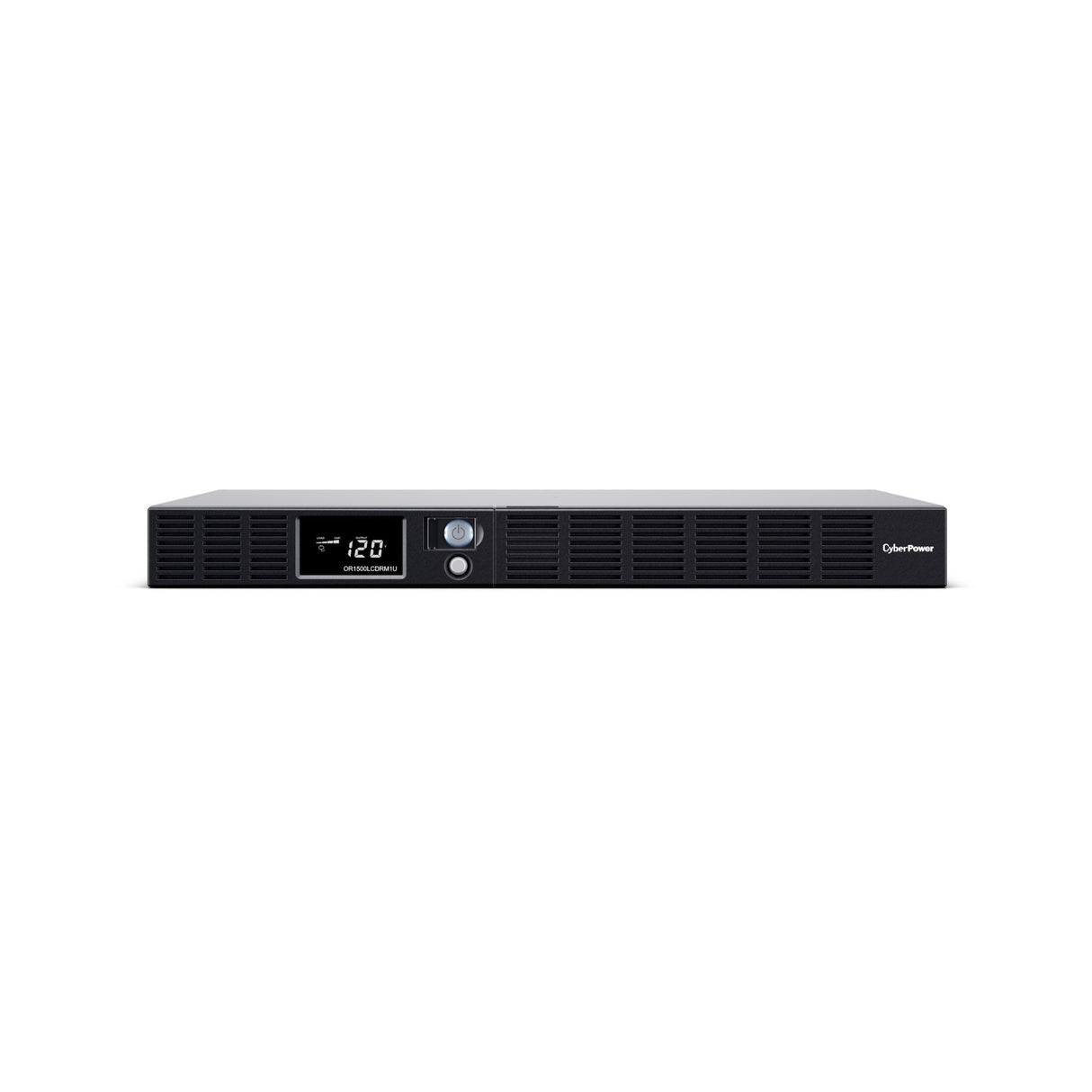

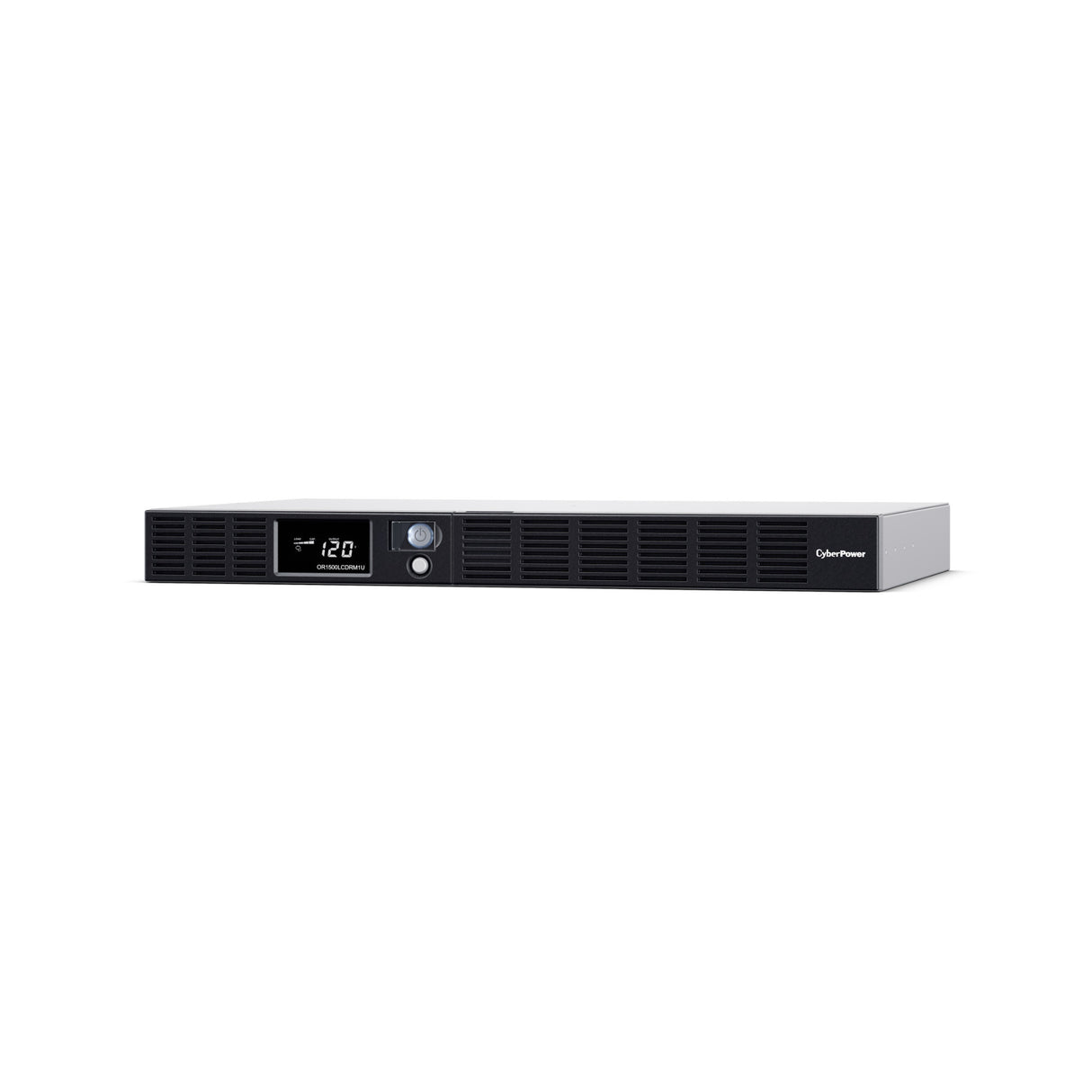

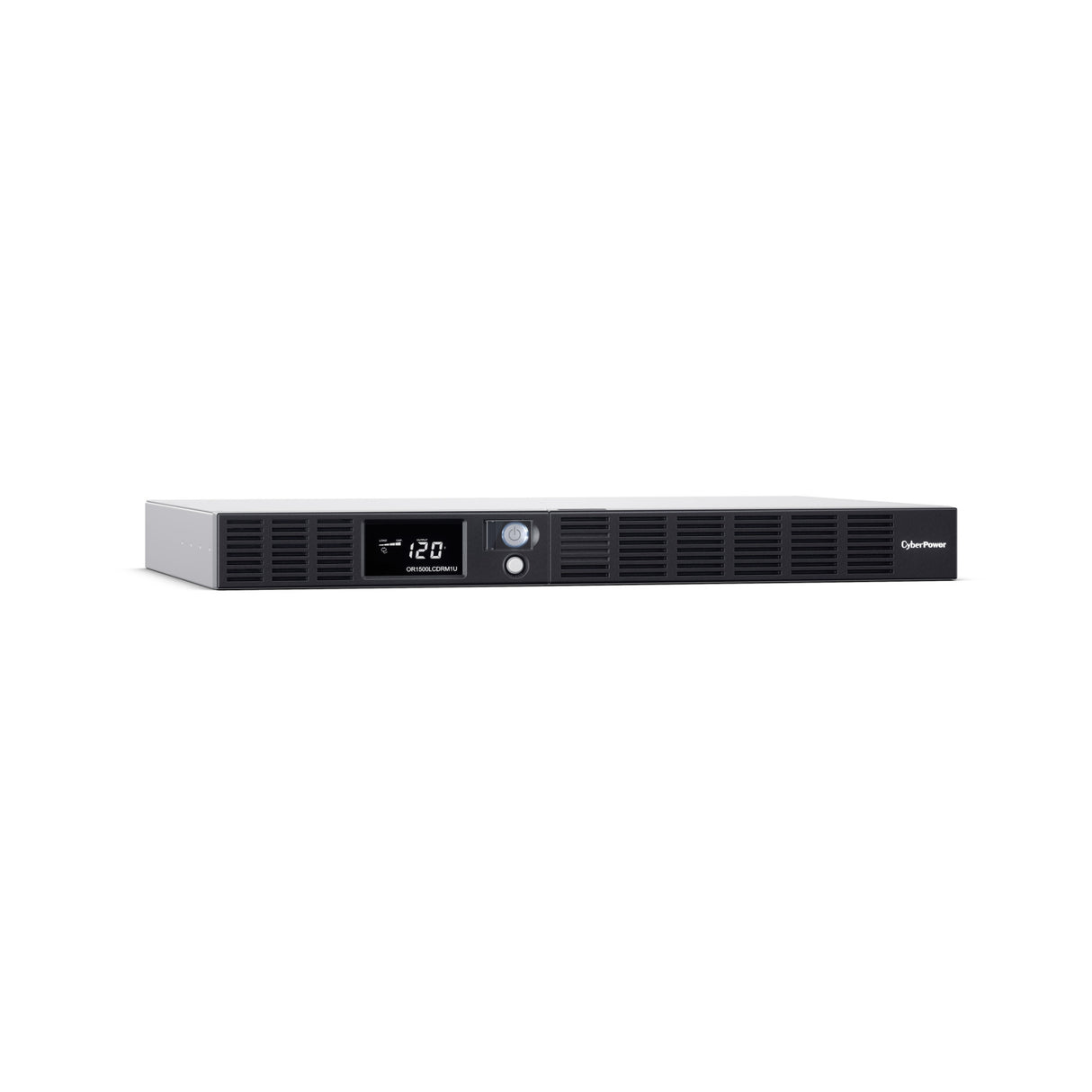

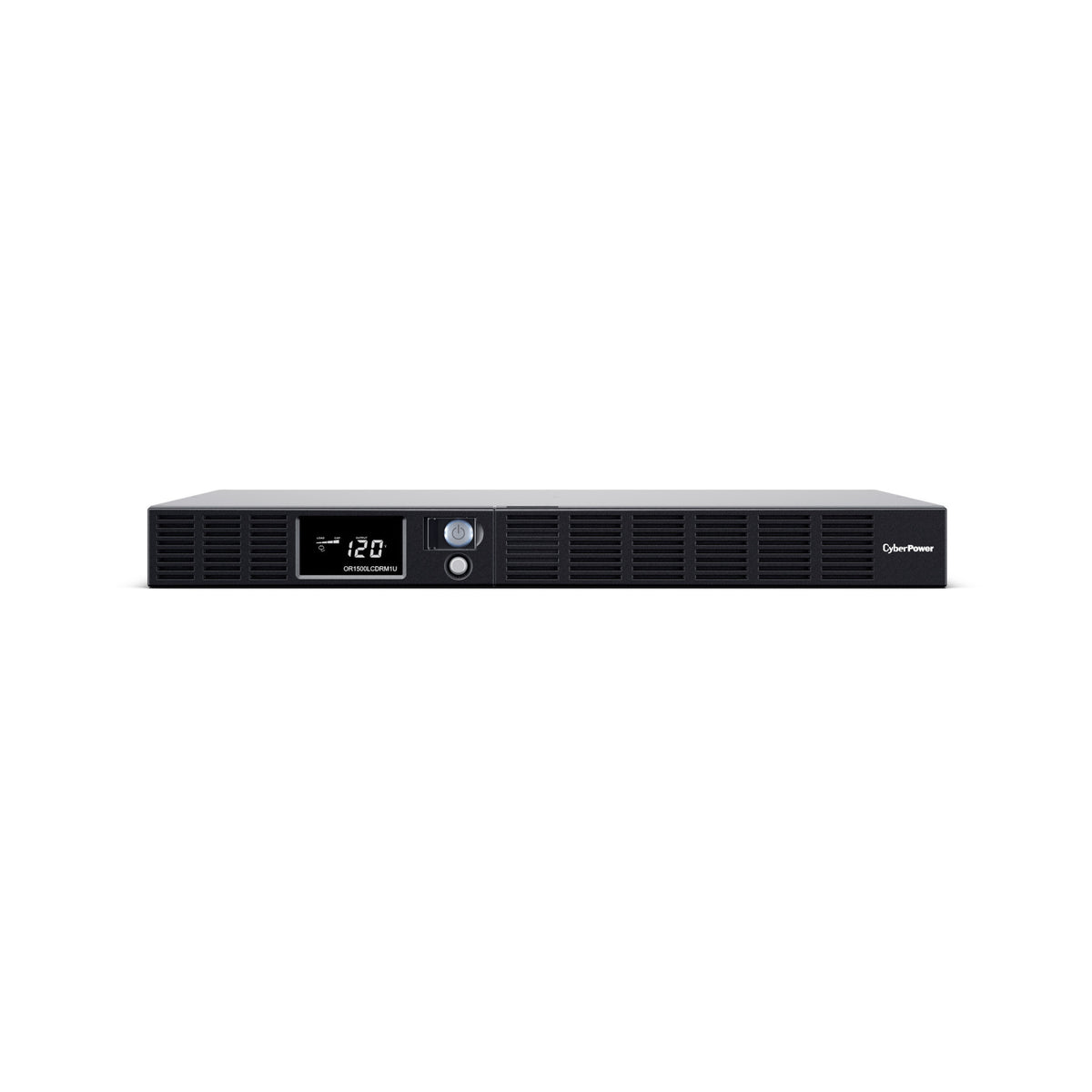

The CyberPower OR1500LCDRM1U is a 1U rackmount, line-interactive UPS that delivers reliable battery backup and surge protection for servers, network devices, workstations, and telecom equipment. With a 1500 VA / 900 W capacity and simulated sine wave output, it provides stable power for business-critical systems.
Automatic Voltage Regulation (AVR) corrects minor voltage fluctuations without switching to battery power, extending battery life and ensuring consistent operation. A multifunction LCDs real-time power and battery status, while GreenPower UPS Bypass Technology improves energy efficiency by reducing heat and power consumption.
Battery Backup
Provides temporary power during outages, allowing connected equipment to shut down properly and helping prevent data loss and hardware stress.
Surge Protection
Shields connected devices from power spikes and surges by diverting excess voltage away from sensitive electronics.
Automatic Voltage Regulation (AVR)
Maintains safe voltage levels by boosting low voltage conditions without using battery power, extending battery lifespan.
Multifunction LCD Screen
Displays detailed, real-time information on battery status, load capacity, input/output voltage, and system alerts.
Simulated Sine Wave Output
Delivers a cost-effective waveform suitable for equipment that does not require pure sine wave output.
Data Line Protection (RJ45)
Protects network-connected equipment from surges traveling through Ethernet lines.
GreenPower UPS Bypass Technology
Improves energy efficiency by bypassing the transformer when utility power is stable, reducing heat and power loss.
Hot-Swappable, User-Replaceable Batteries
Allows battery replacement without powering down connected equipment, minimizing downtime.
Remote Management Ready
Supports the optional RMCARD205 network management card for monitoring and control via a web browser or network management systems.
Power Management Software
Includes free PowerPanel Business software for UPS monitoring, configuration, and automated shutdown.
Rackmount Design
1U metal rackmount form factor designed for efficient installation in standard server racks.
General
| Energy Saving Technology | GreenPower UPS Bypass |
| ENERGY STAR Certified | Yes |
| UPS Topology | Line Interactive |
Battery
| Quantity | 4 |
| Size | 6 V / 9 Ah |
| Type | Sealed Lead‑Acid |
| Hot Swappable | Yes |
| User Replaceable | Yes |
| Replacement Battery Cartridge | RB0690X4 (qty 1) |

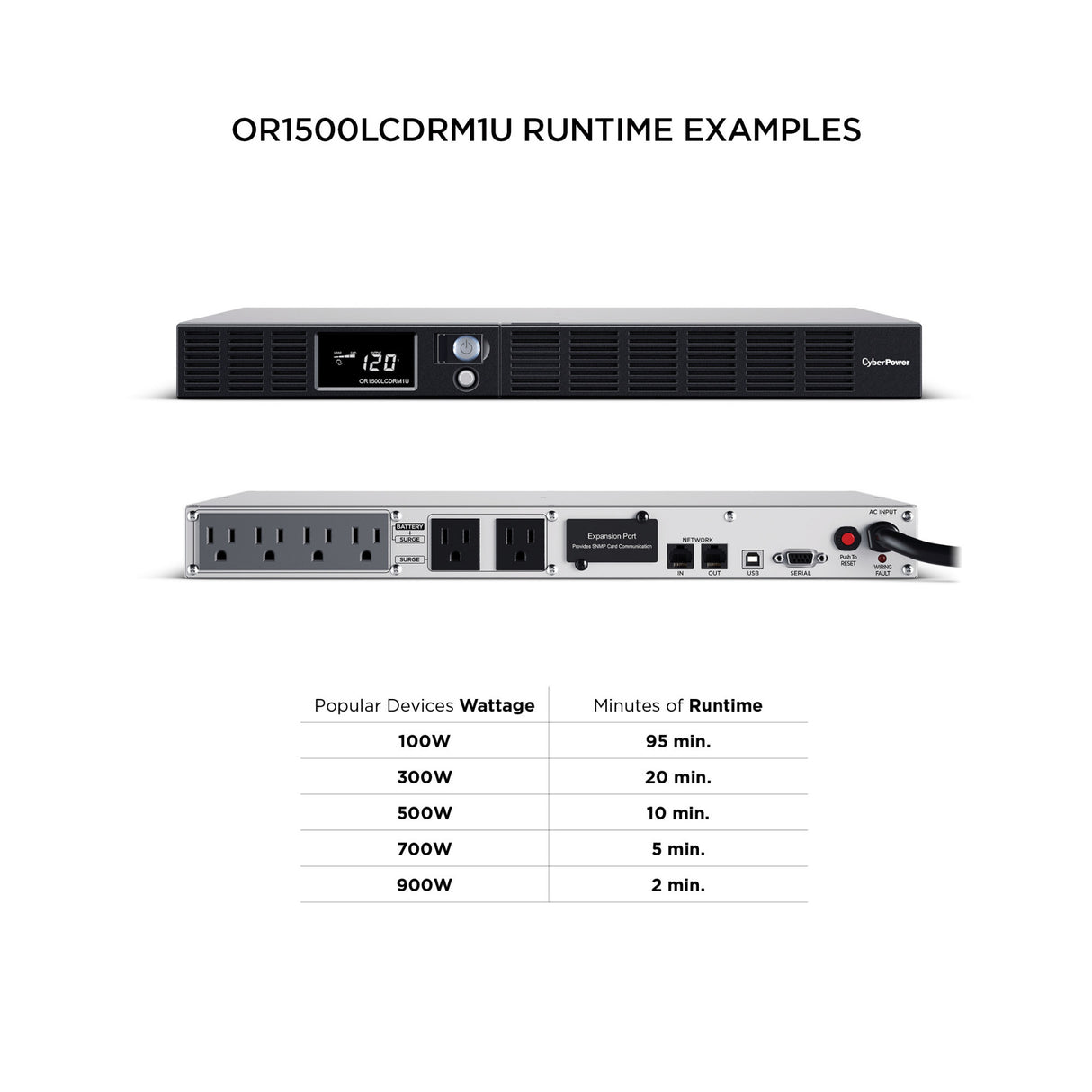

| Runtime at Full Load | ~2 min |
| Runtime at Half Load | ~11 min |
| Typical Recharge Time | 8 hours |
Input
| Nominal Voltage | 120 VAC |
| Adjustable Voltage Range | 88 – 144 VAC |
| Input Voltage Range | 90 VAC – 140 VAC |
| Input Frequency Range | 57 – 63 Hz |
| Circuit Breaker | 15 A |
| Input Plug Type | NEMA 5‑15P (Right Angle – 45° Offset) |
| Cord Length | 10 ft (3.0 m) |
Output
| Output Power | 1500 VA / 900 W |
| Output Voltage | 120 VAC ± 10% |
| Output Frequency (Battery) | 60 Hz ± 1% |
| Output Waveform (Battery) | Simulated Sine Wave |
| Automatic Voltage Regulation (AVR) | Yes (Single Boost) |
| Typical Transfer Time | 8 ms |

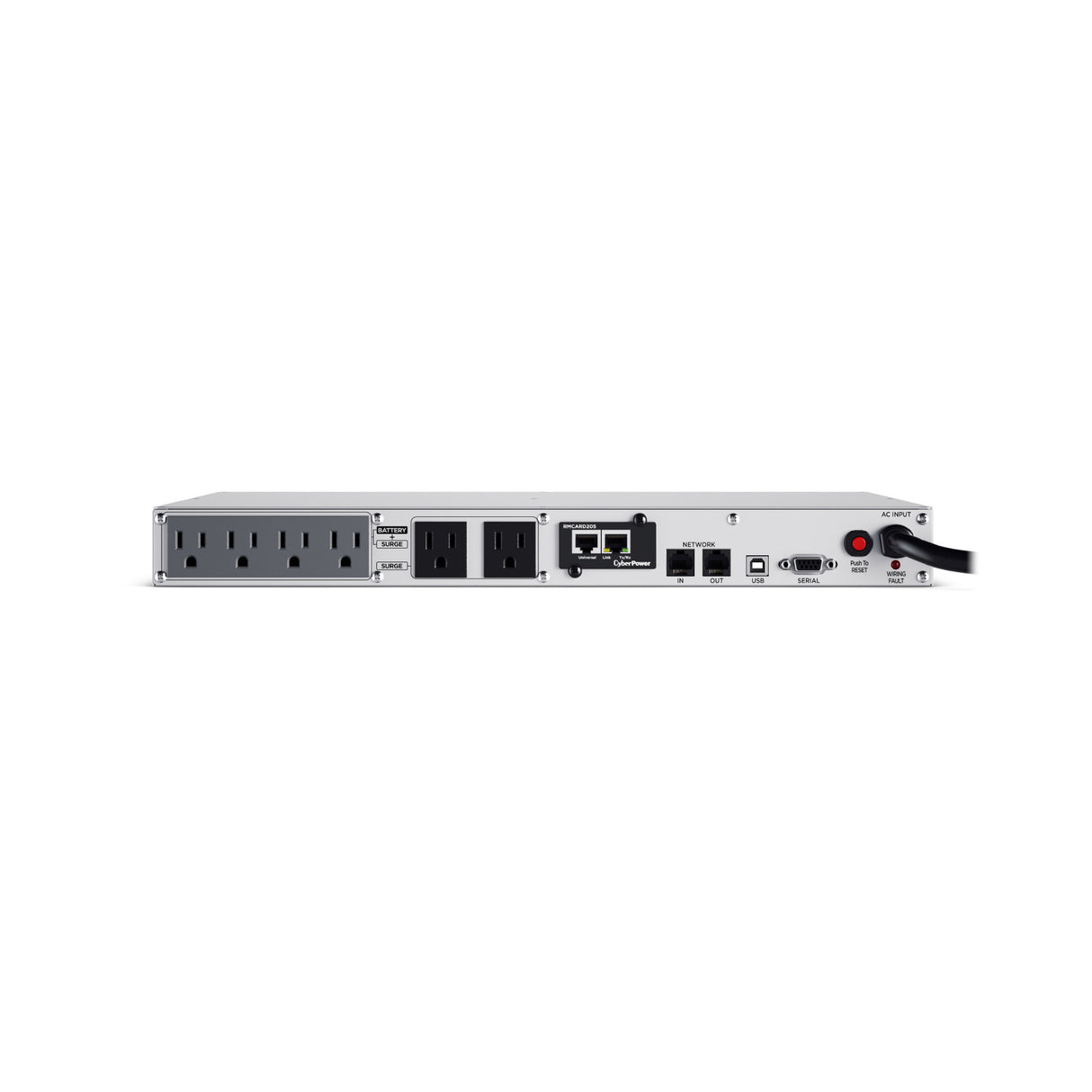

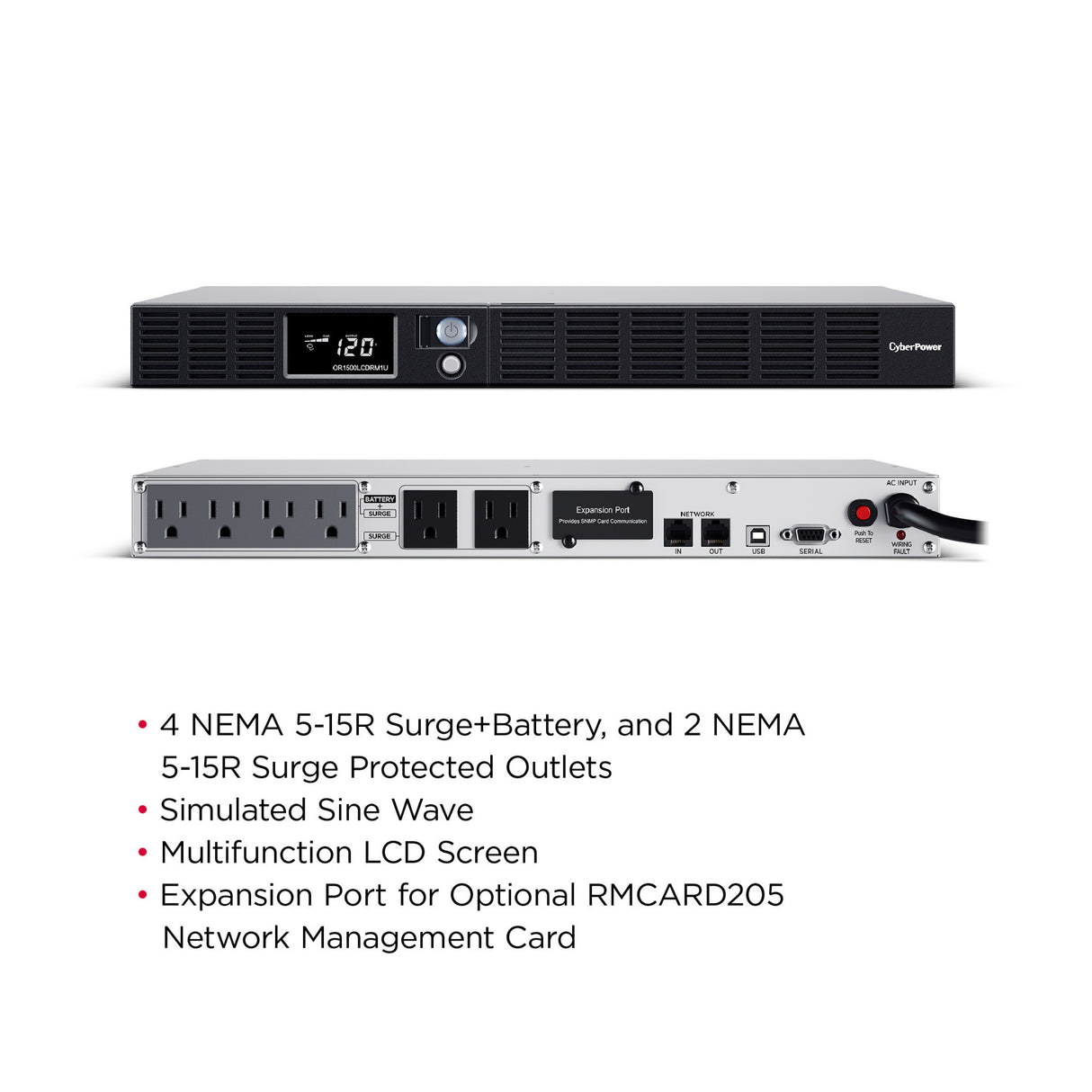

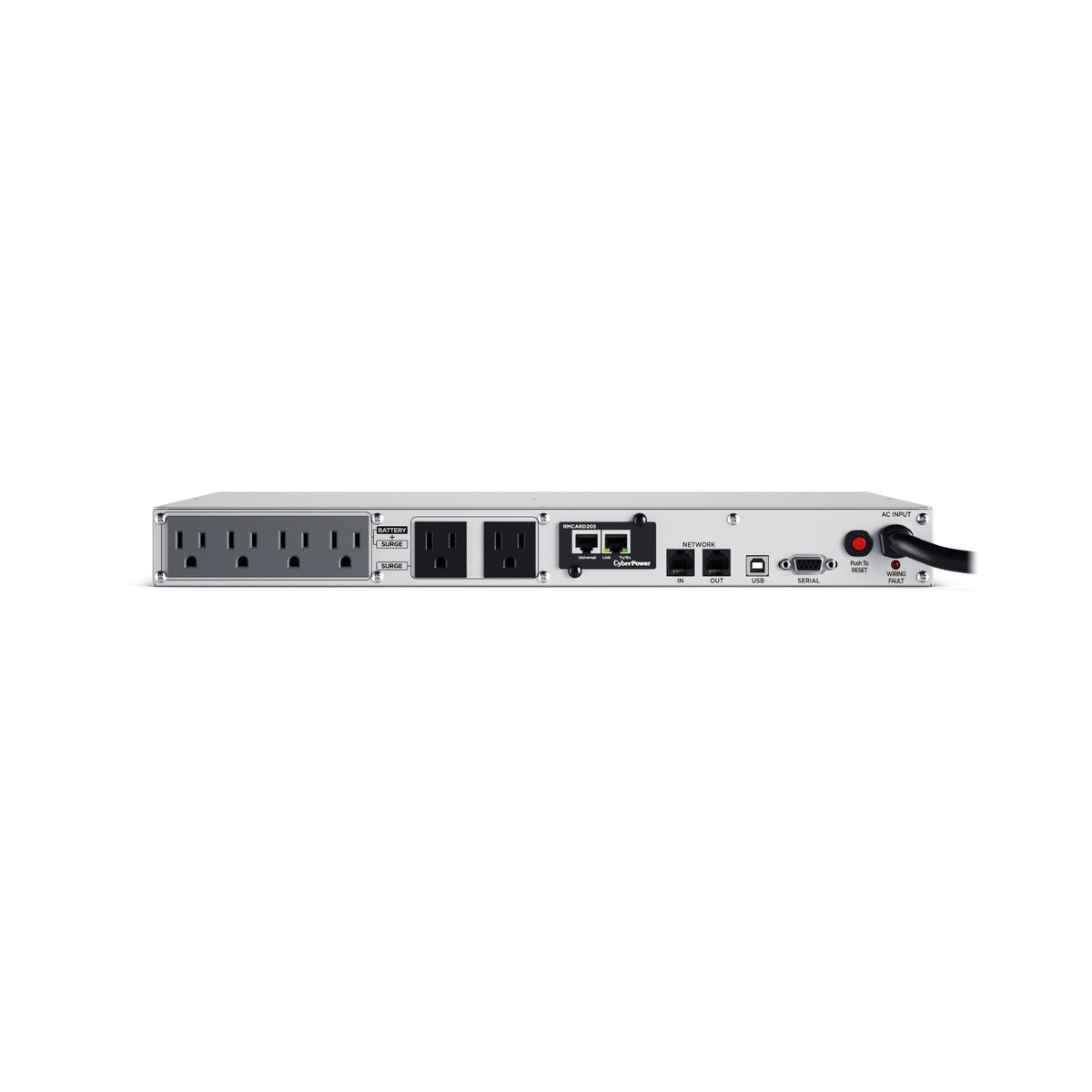

| Outlets – Battery & Surge Protected | 4 × NEMA 5‑15R |
| Outlets – Surge‑Only Protected | 2 × NEMA 5‑15R |
| Total Outlets | 6 |
| Output Power Factor | 0.6 |
| USB Charge Port | No |
Protection and Filtering
| Surge Suppression | 1150 Joules |
| EMI/RFI Filtration | Yes |
| Network Protection (RJ45) | 1‑in / 1‑out (10/100/1000) |
Management and Communications
| HID‑Compliant USB Port | Yes |
| LCD Display | Multifunction |
| LED Indicators | Power On, Wiring Fault |
| Audible Alarms | Battery Mode, Low Battery, Overload, Fault |
| Remote Monitoring | Yes (with optional RMCARD205) |
| Serial Port | 1 Dry Contact |
| Software | PowerPanel Business (free download) |
Physical
| Form Factor | Rackmount (1U) |
| Color | Black |
| Material | Metal |

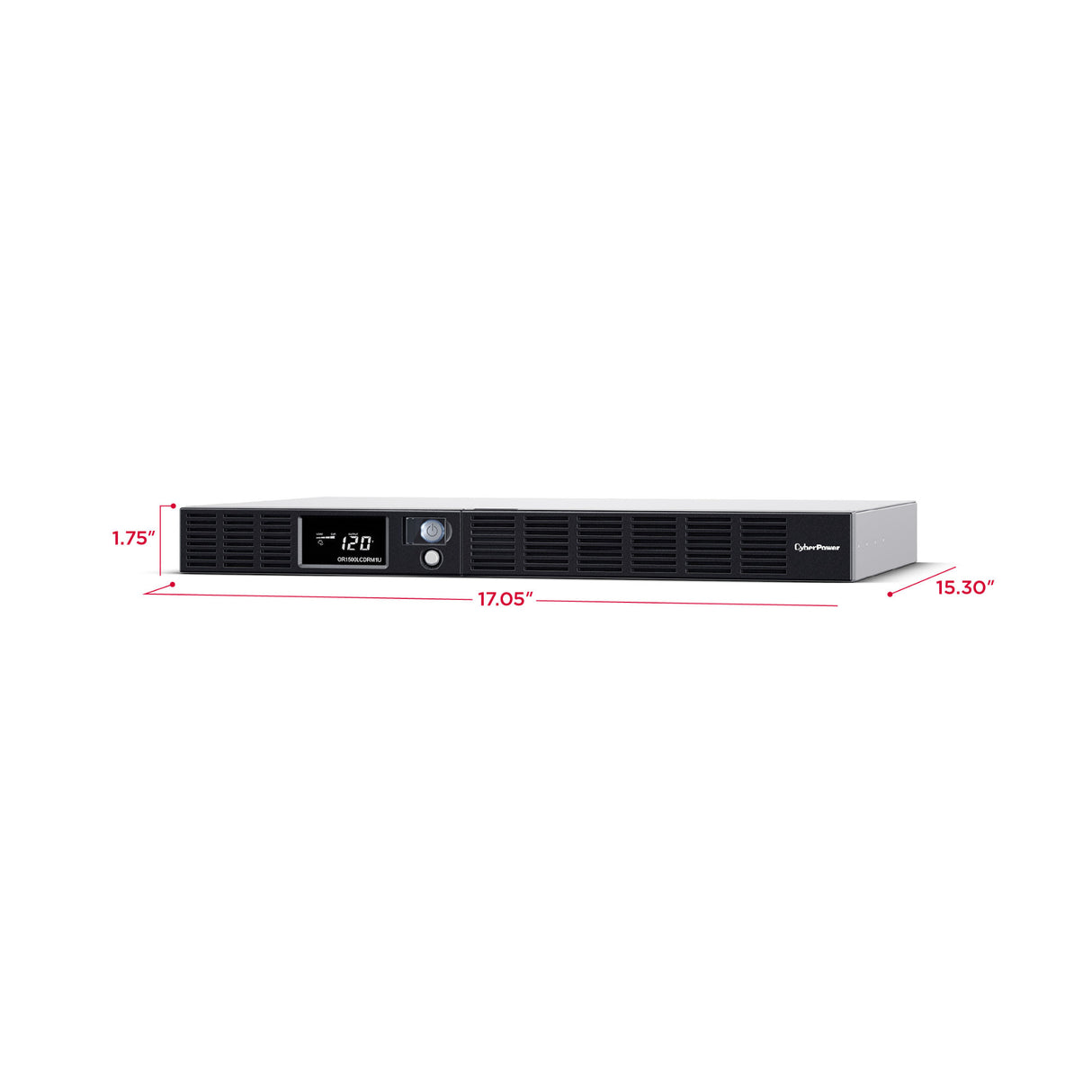

| Dimensions (WxHxD) | 433 × 44 × 389 mm (17.05 × 1.75 × 15.3 in) |
| Weight | 14.97 kg (33 lb) |
Shipping
| Shipping Dimensions (WxHxD) | 546.1 × 158.75 × 603.25 mm (21.5 × 6.25 × 23.75 in) |
| Shipping Weight | 16.6 kg (36.6 lb) |
Environmental
| Operating Temperature | 32 – 104 °F (0 – 40 °C) |
| Storage Temperature | 5 – 113 °F (‑15 – 45 °C) |
| Operating Relative Humidity | 0 – 95 % (non‑condensing) |
| Operating Elevation | 0 – 10,000 ft (0 – 3048 m) |
| Storage Elevation | 0 – 50,000 ft (0 – 15,239 m) |
Certifications
| Safety | UL1778, cUL 107.1, FCC DOC Class B |
| Environmental | RoHS Compliant |
