- UPS Unit
- User Manual
- Rack Mount Brackets
- Stands
- Telephone Cable
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
Trusted & Verified
CyberPower OR2200LCDRT2U Smart App LCD 2000VA/1320W Line Interactive Rack Tower UPS
- Line interactive UPS provides battery backup and surge protection for connected equipment
- Automatic Voltage Regulation corrects minor power fluctuations without switching to battery power

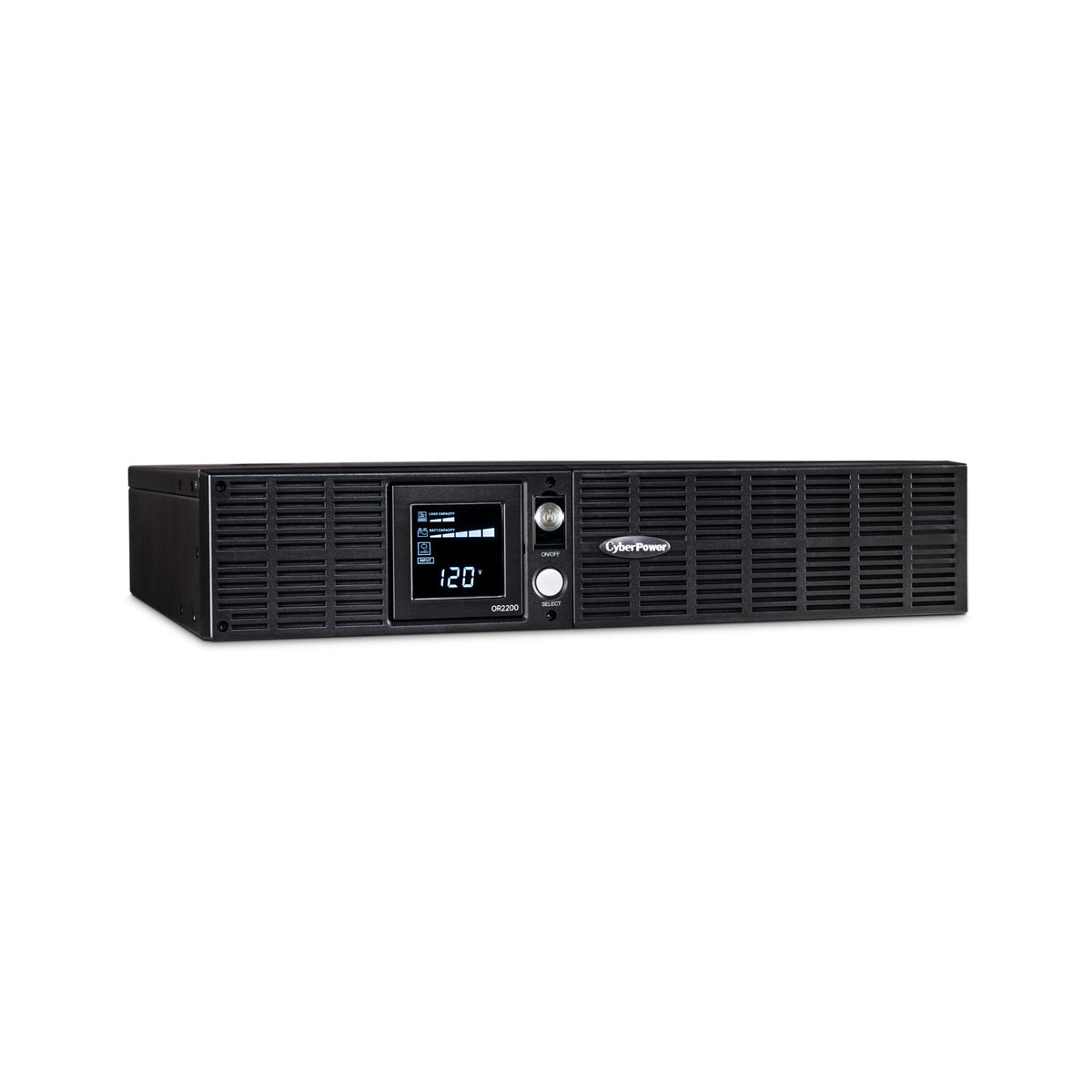

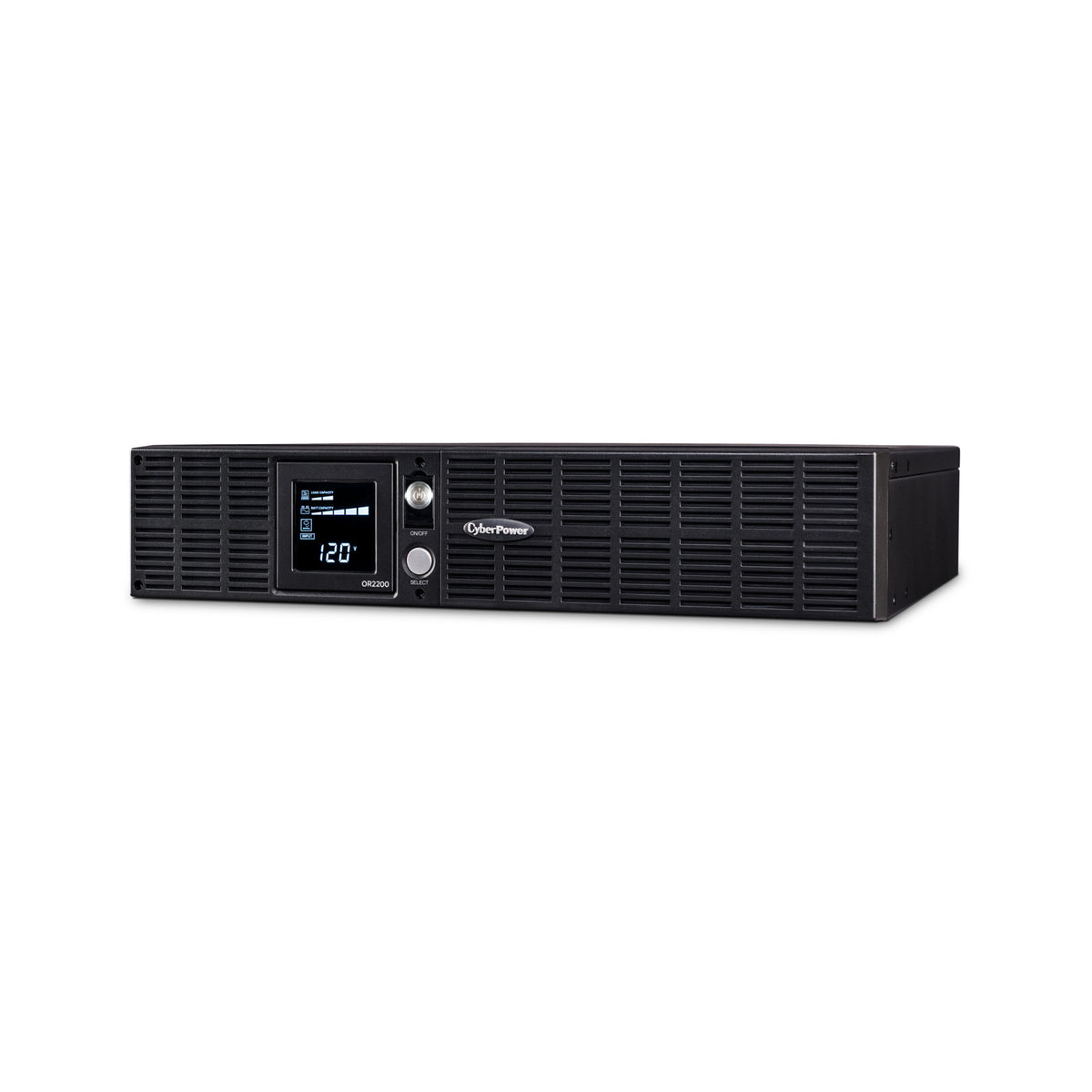

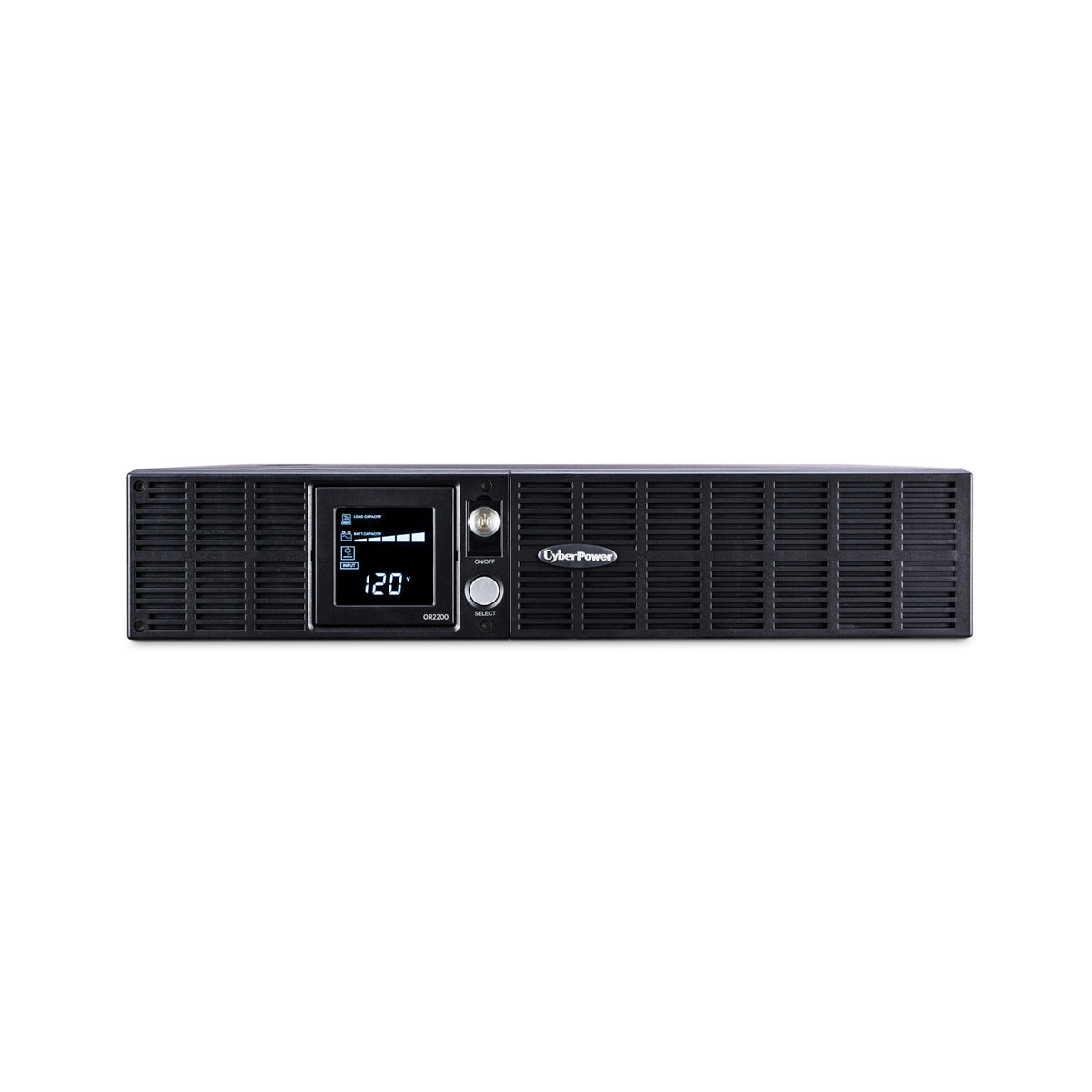

- Rotatable multifunction LCD panel displays detailed UPS battery and power conditions

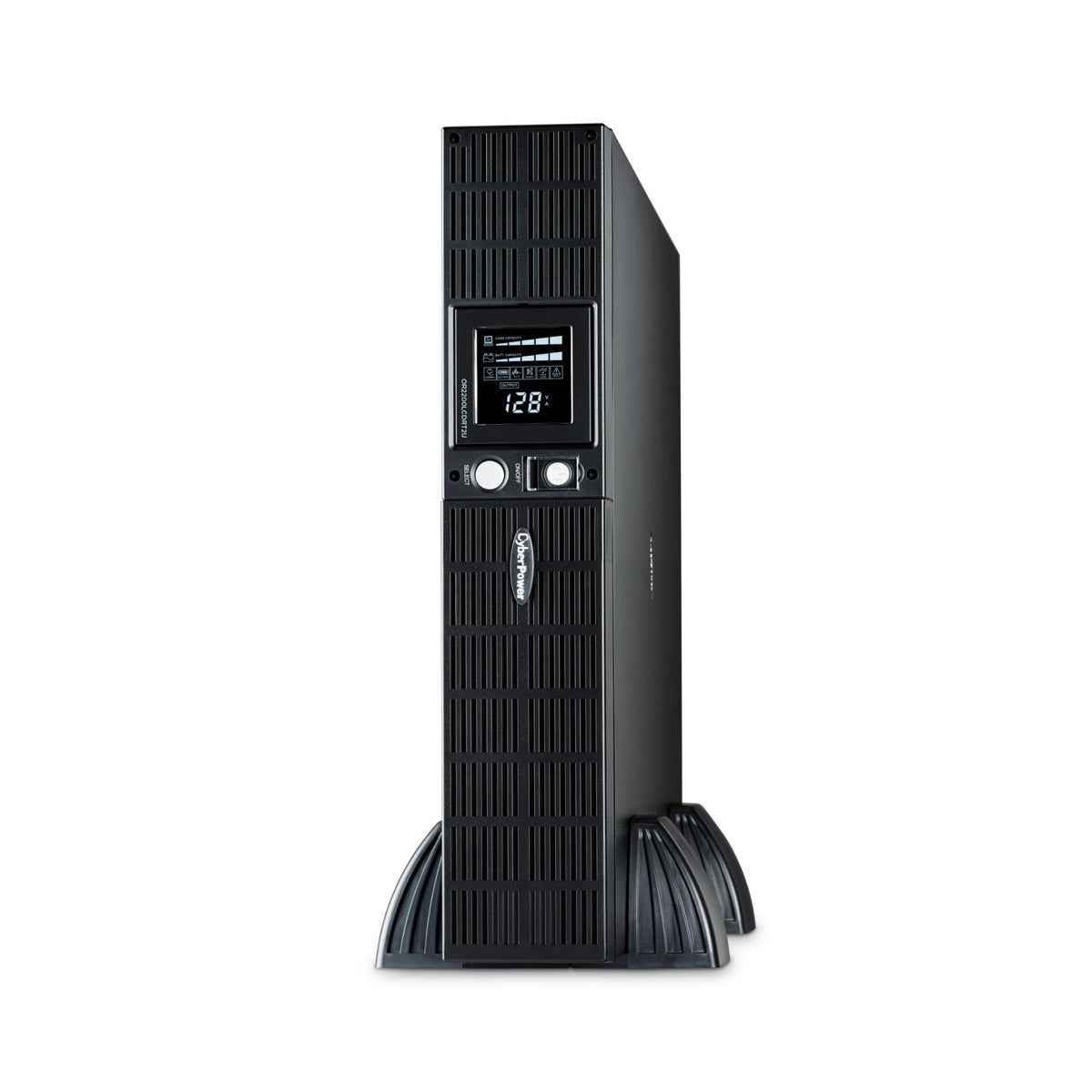

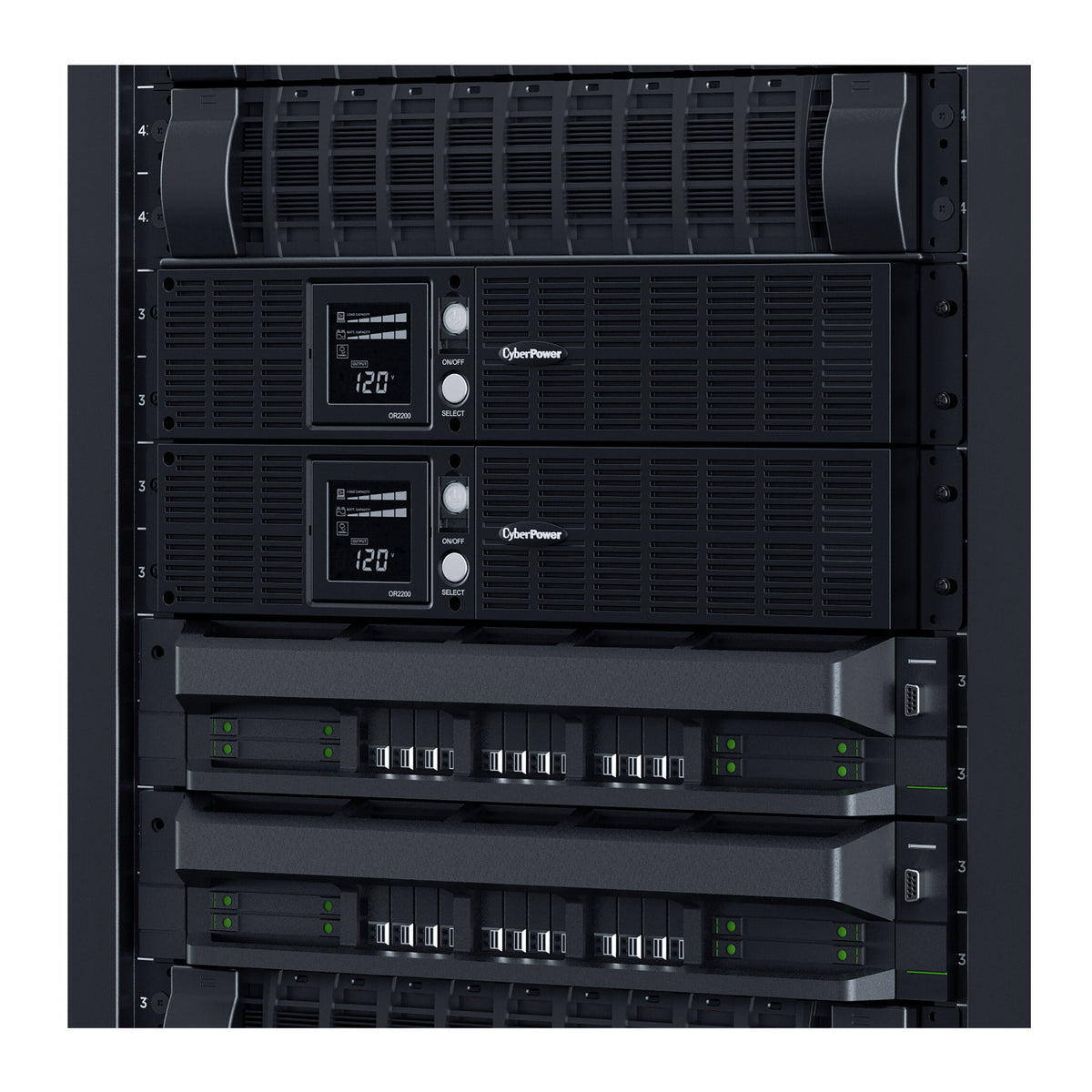

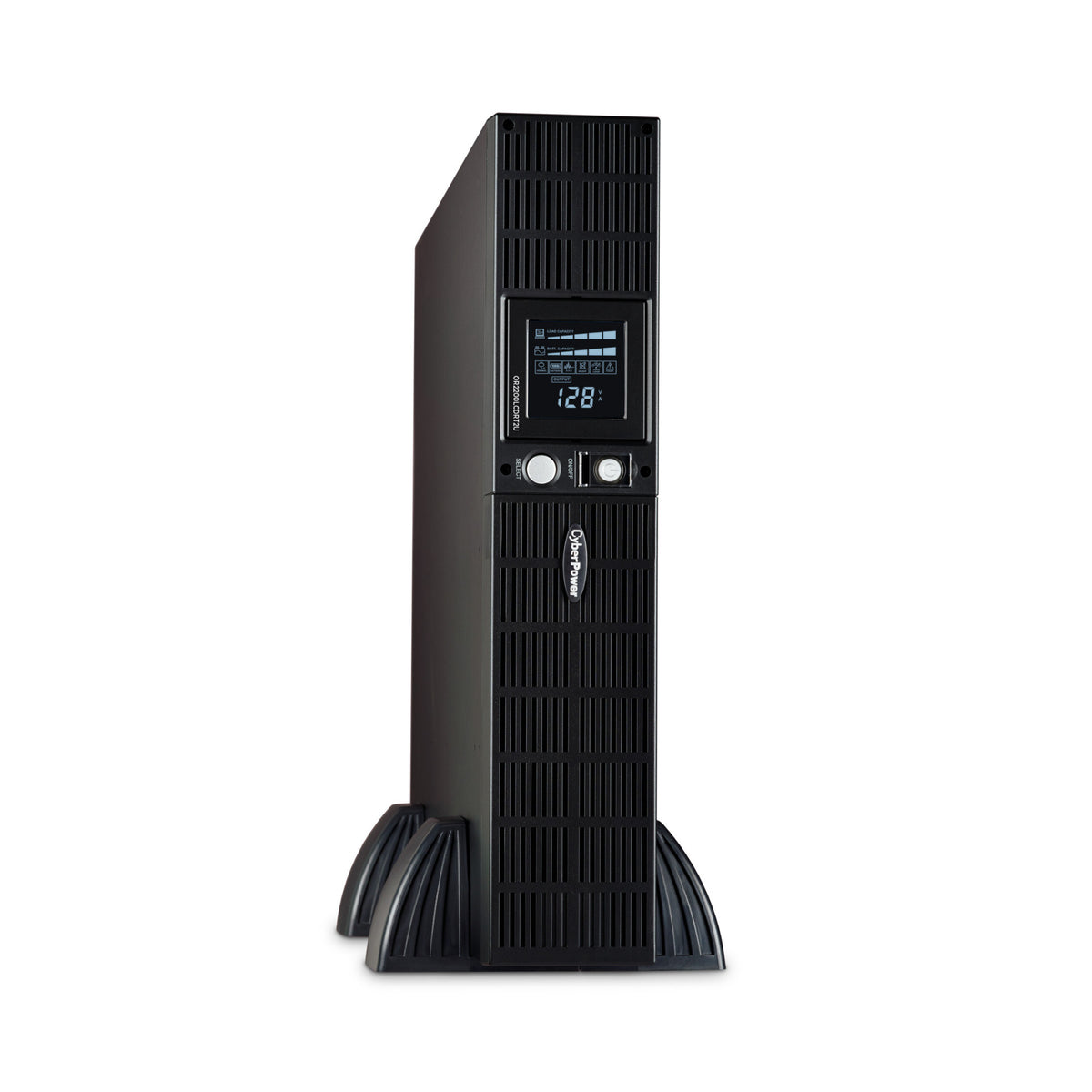

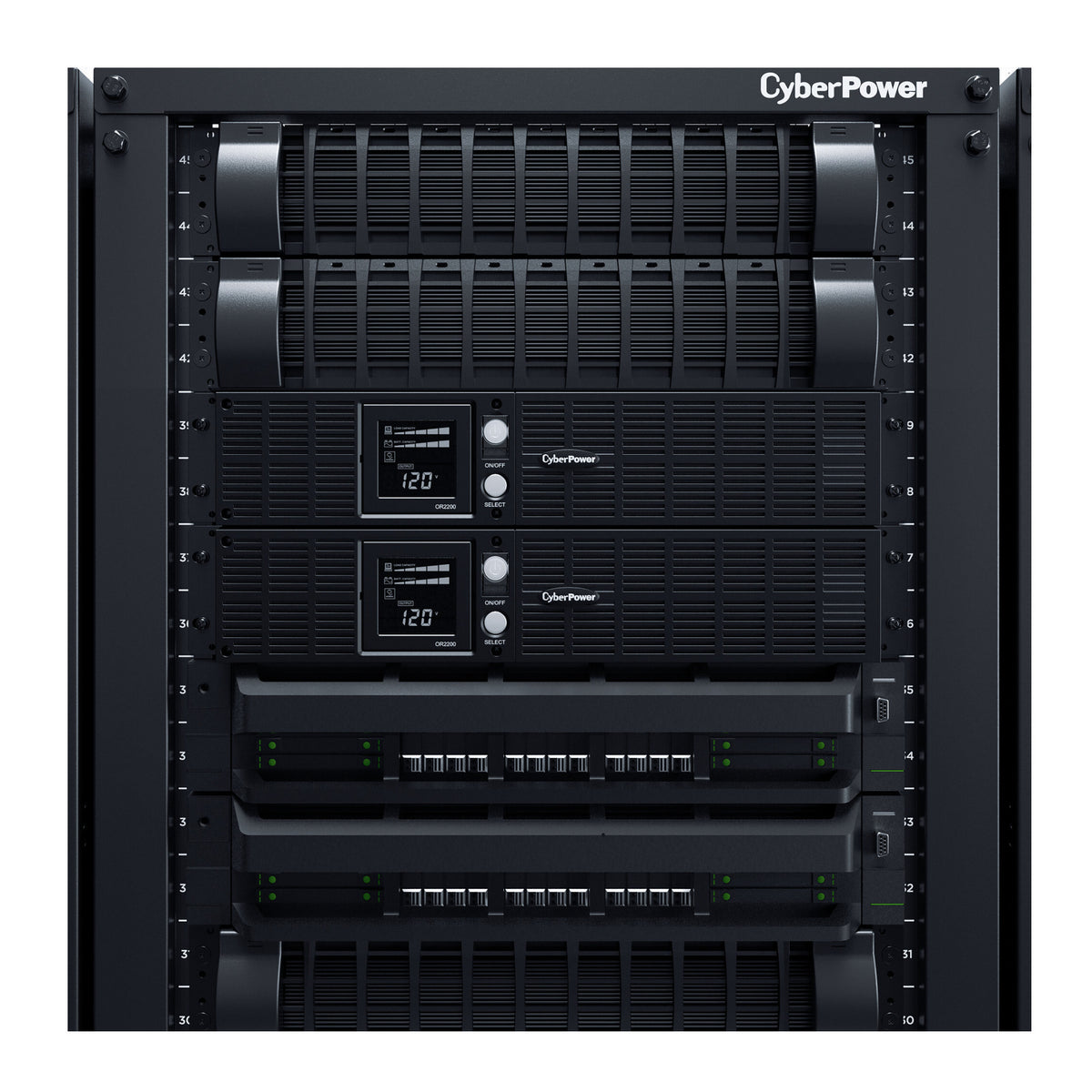

- Rack and tower versatility supports horizontal rack or vertical tower installation
- Simulated sine wave output provides battery backup power for compatible equipment
- Data line protection covers telephone, coaxial, and Ethernet lines
- EMI/RFI noise filter helps maintain clean power for connected equipment
- Audible alarms provide notification for battery power, low battery, and overload conditions
- Durable metal housing protects internal components from impact and abrasions
- PowerPanel Business Software supports UPS monitoring and remote management
The CyberPower Smart App LCD OR2200LCDRT2U is a rack or tower convertible UPS with line interactive topology. It provides battery backup using simulated sine wave output and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. This model requires a 20A outlet.
Battery Backup and Automatic Voltage Regulation
Battery backup supplies power long enough for connected equipment to properly shut down when utility power fails, helping prevent loss of data and minimizing component stress caused by a hard shutdown. Automatic Voltage Regulation increases AC power and maintains a safe voltage level without switching to battery mode, conserving battery life. AVR is essential in areas where power fluctuations occur frequently.
Rotatable LCD Panel and Power Protection
The rotatable multifunction LCD panel displays immediate, detailed information on UPS battery and power conditions, alerting users to potential problems before they can affect critical equipment and cause downtime. The panel is easily readable whether the UPS is rack mounted or standing as a tower. Data line protection helps prevent power surges traveling through telephone, coaxial, and Ethernet lines from causing damage to electronics. An EMI/RFI noise filter maintains clean power for connected equipment by filtering electromagnetic and radio frequency interference.
Flexible Installation and Power Management
Rack and tower versatility allows horizontal rack or vertical tower installation, while durable metal housing protects internal components from impact or abrasions. Audible alarms provide notification of events such as battery operation, low battery, or overload conditions. PowerPanel Business Software provides IT professionals with tools for monitoring and managing the UPS and backup power, including remote management functionality. GreenPower UPS Bypass Design allows utility power to bypass the UPS transformer when AC power is stable, reducing energy consumption, noise, and heat buildup.
General
| Energy Saving | GreenPower UPS Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
Battery
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Replacement Battery Cartridge | RB1290X4L |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 5 min |
| Runtime at Half Load | 13 min |
| Typical Recharge Time | 8 Hours |
| User Replaceable Battery | Yes |
Input
| Circuit Breaker | 20 A |
| Cord Length | 10 feet (3.0 m) |
| Input Frequency Range | 47 Hz to 63 Hz |
| Input Plug Type | NEMA 5-20P |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle, 45 Degree Offset |
Output
| Automatic Voltage Regulation | Single Boost |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 1% |
| On Battery Voltage | 120 VAC ± 10% |
| On Battery Waveform | Simulated Sine Wave |

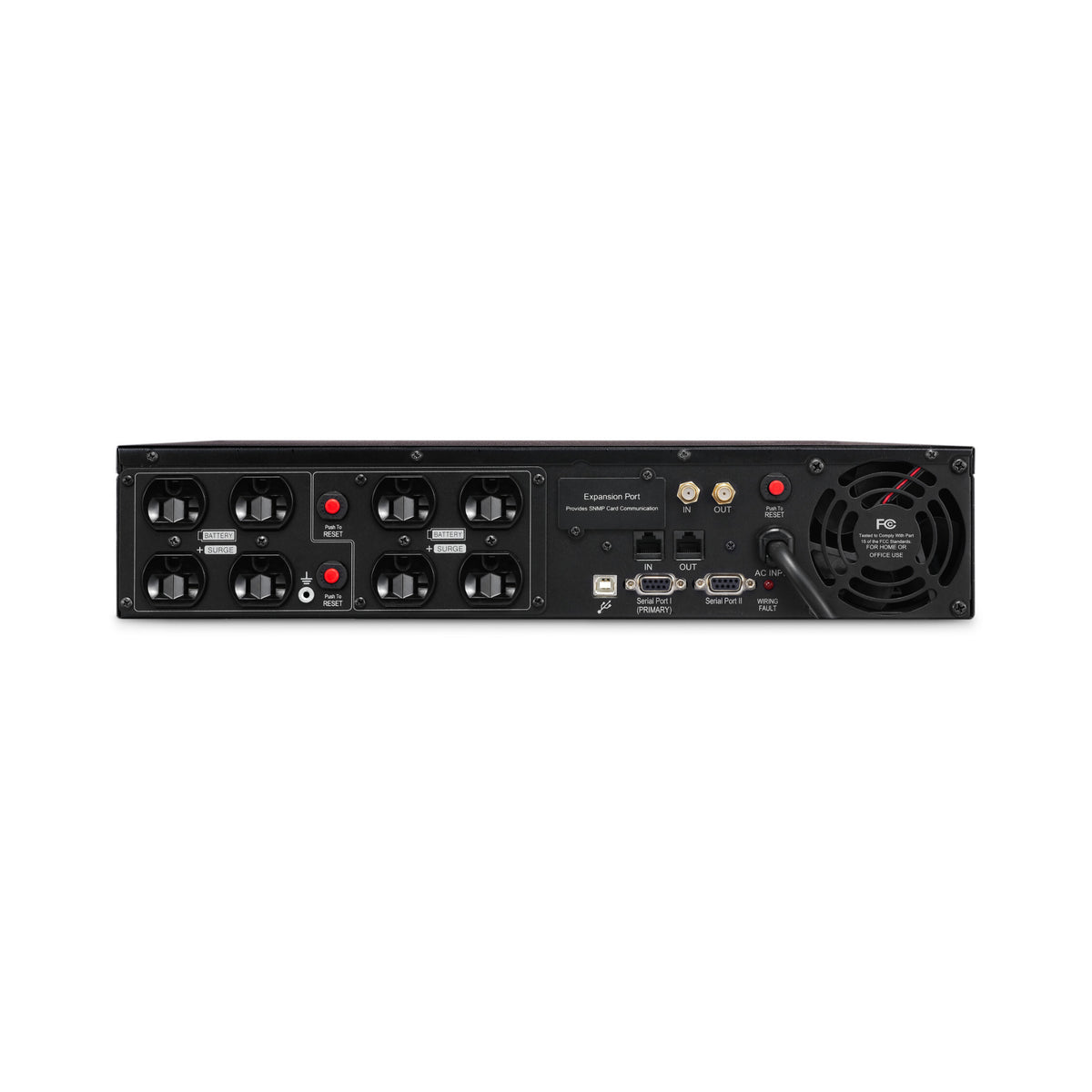

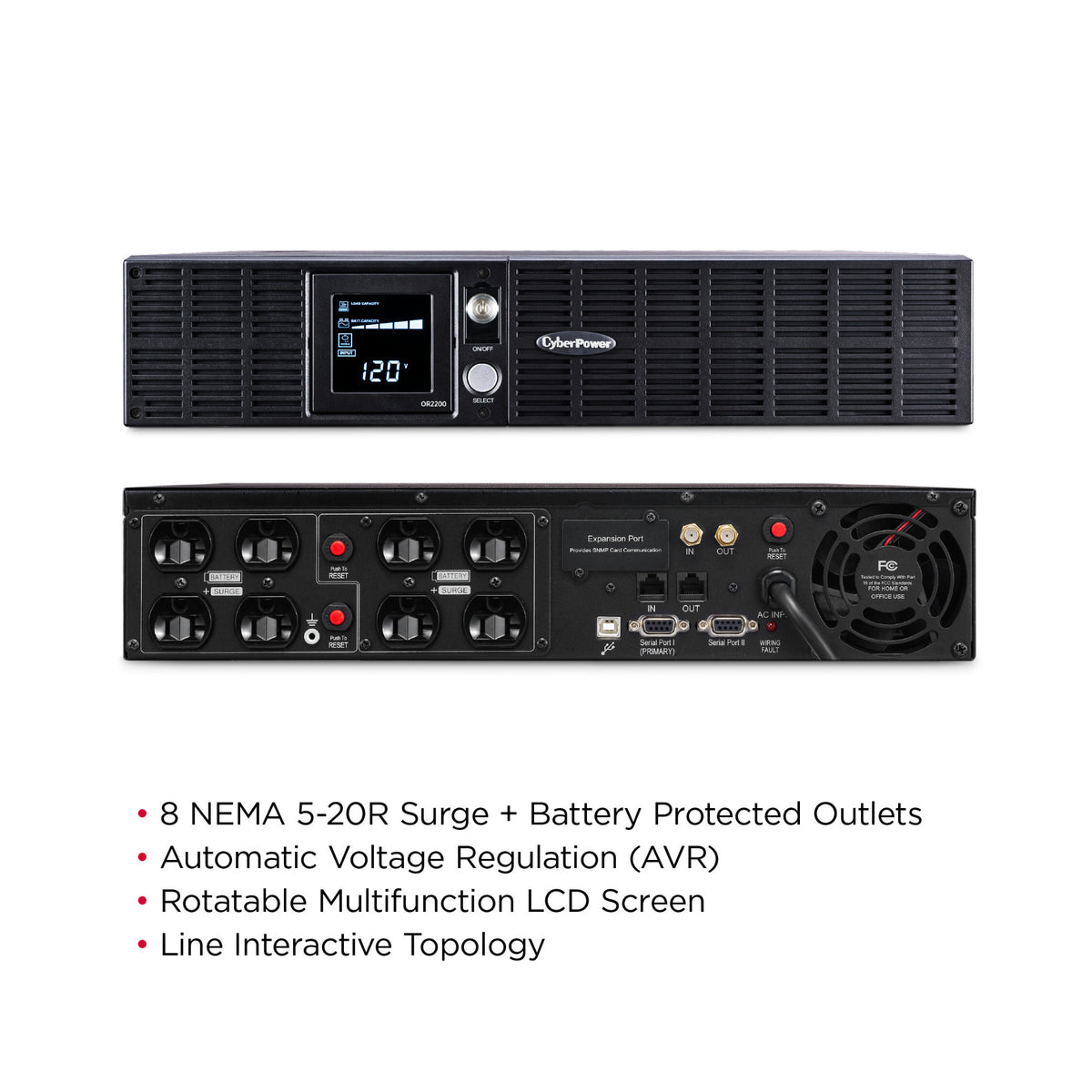

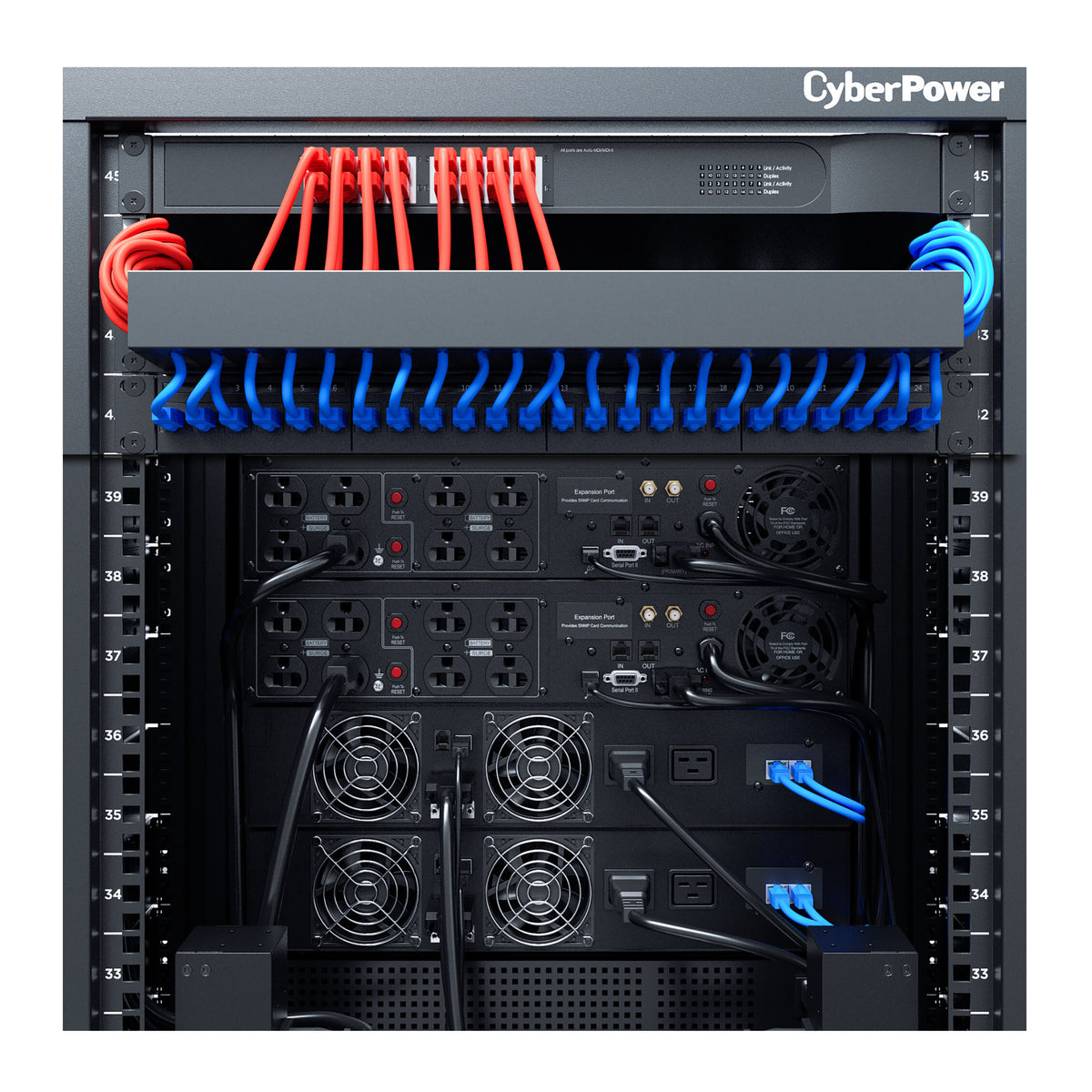

| Outlet Type | 8 NEMA 5-20R |
| Outlets, Battery and Surge Protected | 8 |
| Outlets, Total | 8 |
| Output Power Factor | 0.7 |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker Protected |
| Typical Transfer Time | 10 ms |
| USB Charge Port | No |
| VA | 2000 VA |
| Watts | 1320 W |
Surge Protection and Filtering
| EMI/RFI Filtration | Yes |
| Phone / Network Protection RJ11/RJ45 | 1 In / 1 Out Combo |
| Surge Suppression | 1840 J |
Management and Communications
| Audible Alarms | Battery Mode, Low Battery, Overload, Fault, Battery Missing |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| Management Cable | USB Cable, Serial Cable, Phone Line |
| SNMP / HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Serial Port | 1 Serial, 1 Dry Contact |
| Software | PowerPanel Business |
Physical
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
Dimensions
| Physical Dimensions, W x H x D | 43.82 x 8.89 x 40.01 cm |

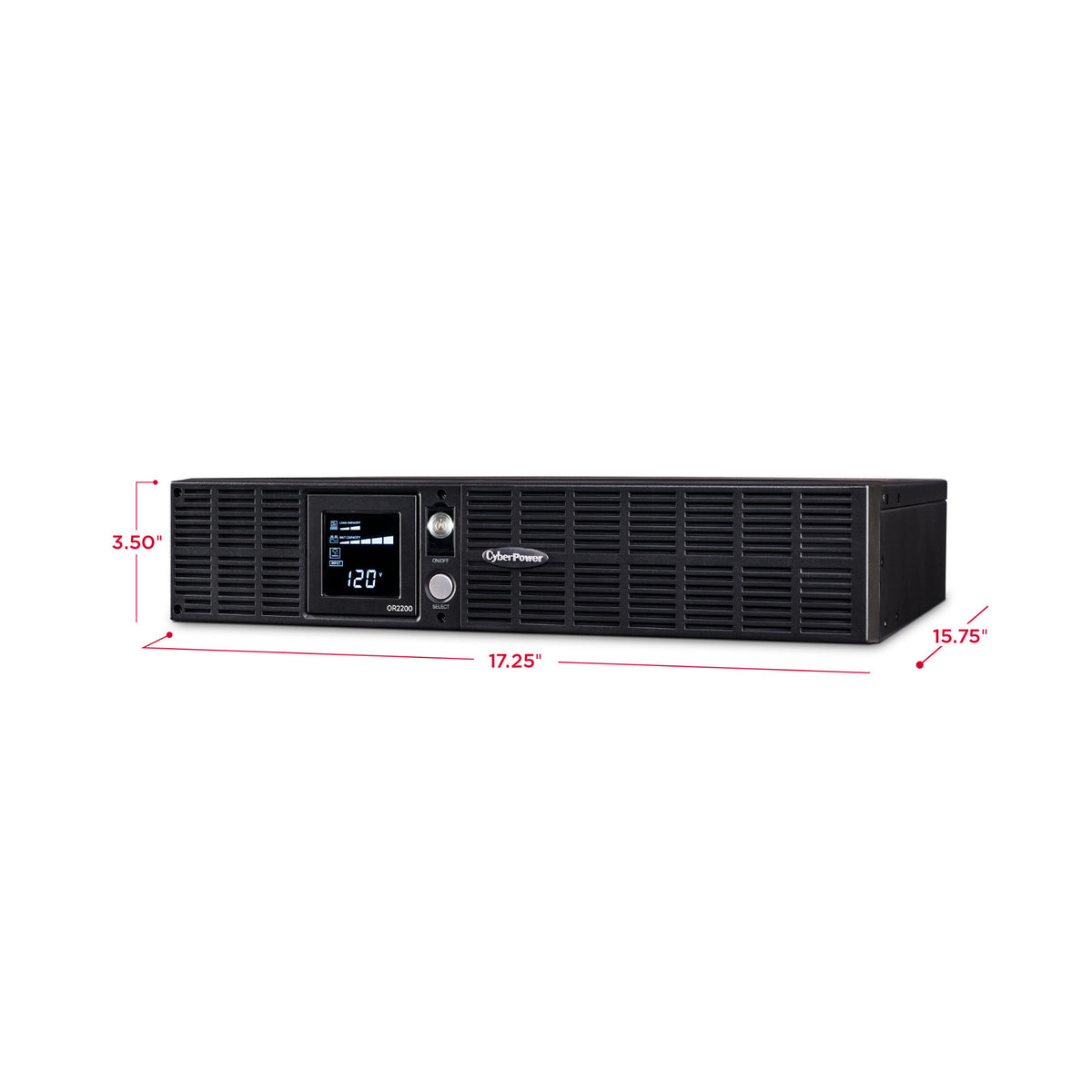

| Physical Dimensions, W x H x D | 17.25 x 3.5 x 15.75 in |
| Physical Dimensions, W x H x D | 438 x 89 x 400 mm |
| Physical Weight | 23.9 kg |
| Physical Weight | 52.7 lb |
Shipping Dimensions
| Shipping Weight | 28.12 kg |
| Shipping Weight | 62.0 lb |
| Shipping Dimensions, W x H x D | 52.07 x 29.85 x 54.61 cm |
| Shipping Dimensions, W x H x D | 20.5 x 11.75 x 21.5 in |
| Shipping Dimensions, W x H x D | 520.7 x 298.45 x 546.1 mm |
Environmental
| Operating Relative Humidity | 0 to 95% non condensing |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Storage Temperature | 5 to 113 °F (15 to 45 °C below zero) |
Certifications
| Environmental | RoHS Compliant |
| Safety | UL1778 |
