- 1 x CyberPower PDU41002 1U Power Distribution Unit
- 2 x Short Mounting Brackets
- 2 x Long Mounting Brackets
- 10 x Flat Head M4 Screws
- 8 x Bracket Mounting Screws
- 1 x Cord Retention Tray
- 10 x Cable Ties
- 6 x M3 Cord Retention Tray Mounting Screws
- 12 x M5 Screws
- 6 x Washers
- 1 x RJ45/DB9 Serial Port Connection Cable
- 1 x User Manual
- 1 x Registration Card
- 1 x Software CD
Trusted & Verified
CyberPower PDU41002 20A 8-Outlet 1U Switched Power Distribution Unit with Durable Metal Construction

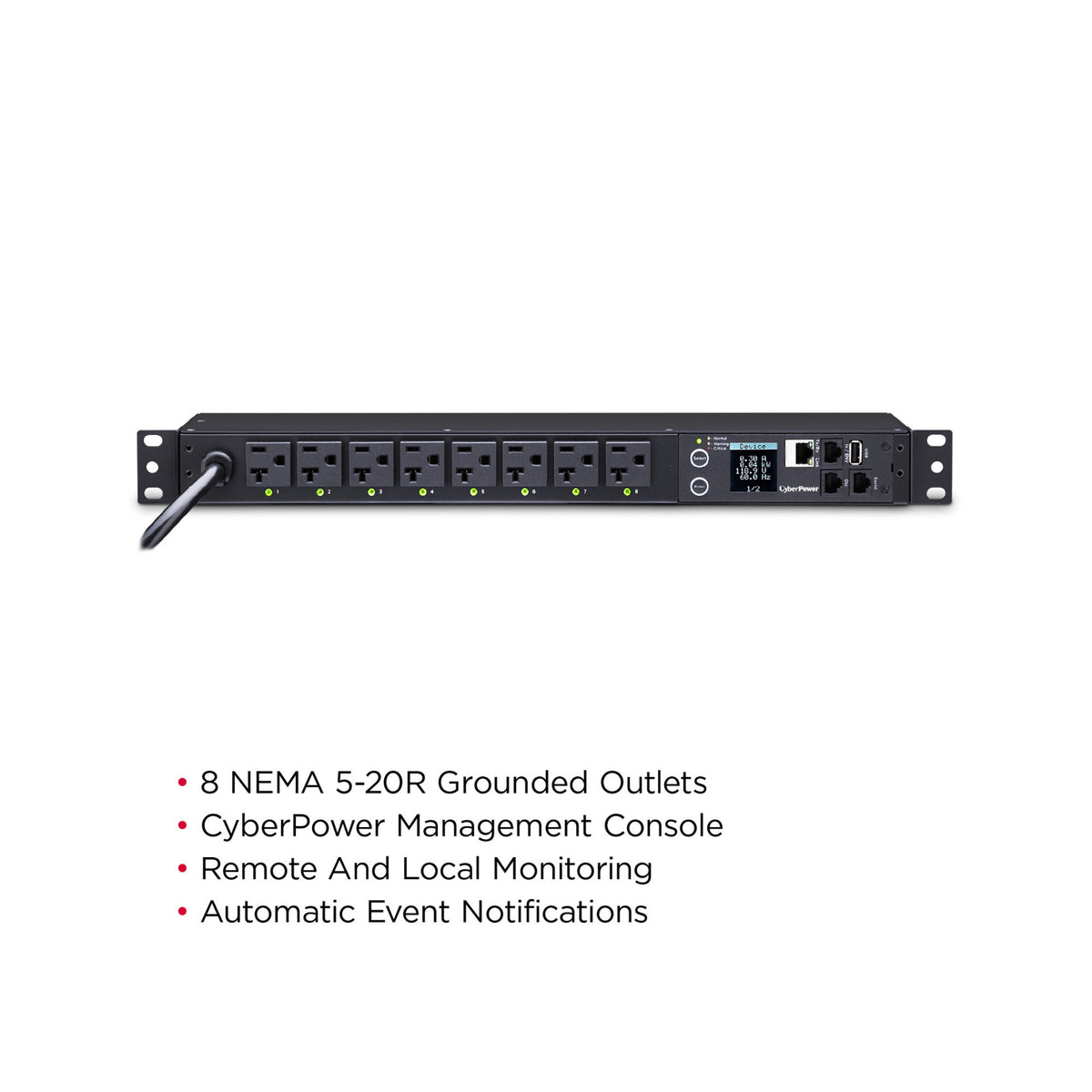

- 8 NEMA 5-20R Outlets
- Remote and Local Outlet Management
- Scheduled Startup and Shutdown Sequencing
- Remote Restart for Unresponsive Equipment
- Email, SMS, and SNMP trap notifications
- Multi-function LCD
- Modular Cascading through an RJ45 Connection
- Flexible rack, wall, vertical, and surface mounting
- Included Cord Retention Hardware
- Durable 1U Metal Construction
- 3-Year Manufacturer Limited Warranty

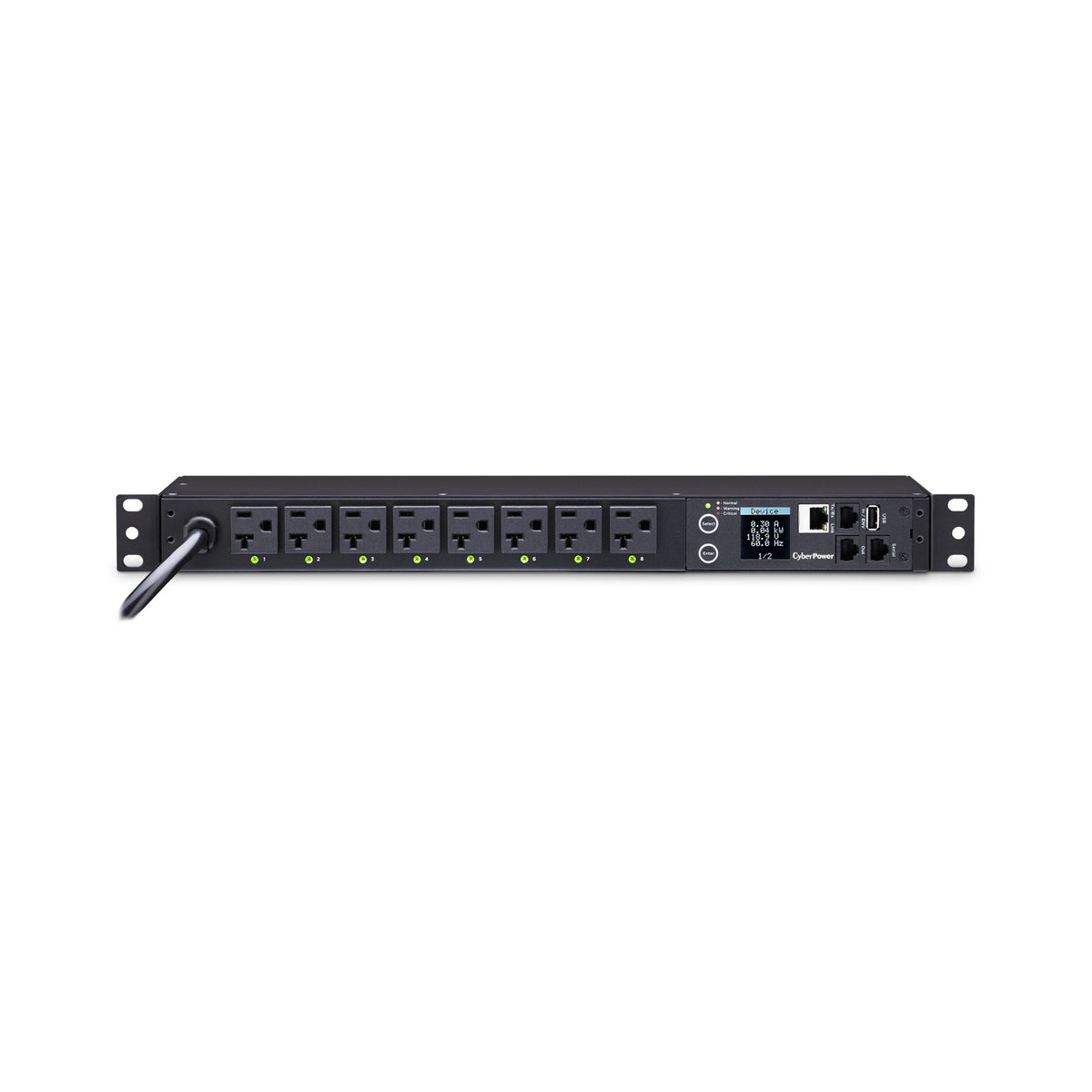

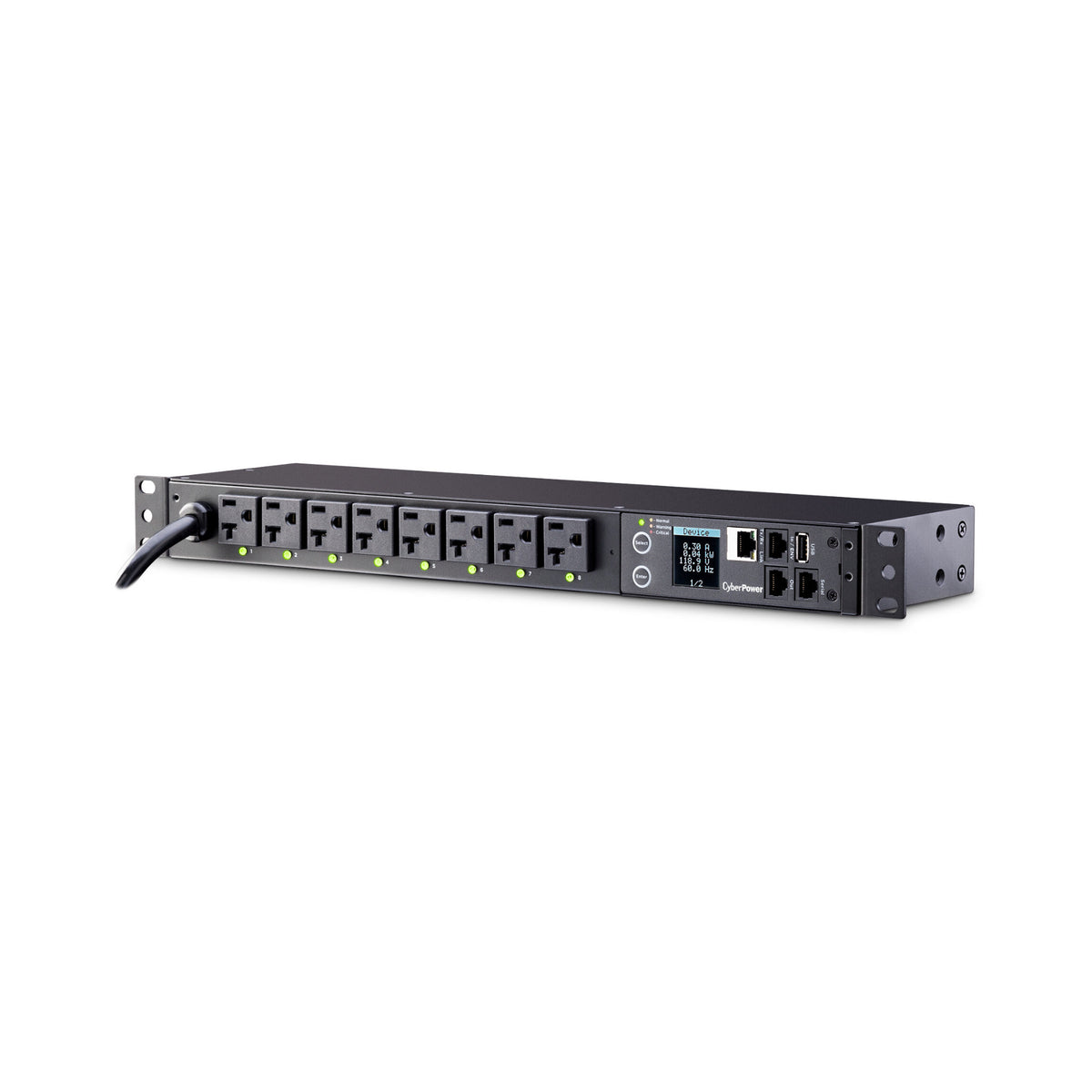

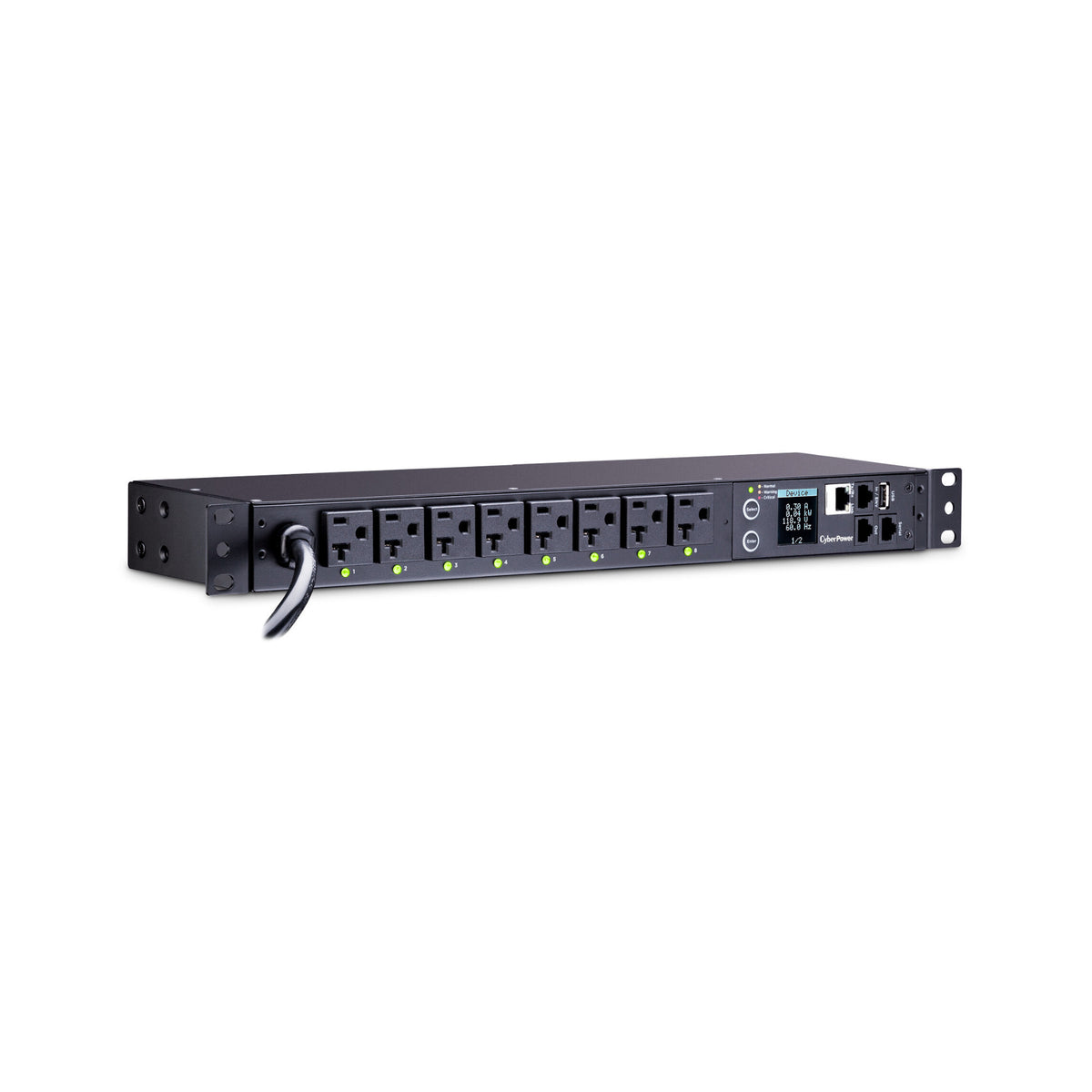

Manage power for servers, networking hardware, telecommunications systems, and other compatible equipment with the CyberPower PDU41002. This switched power distribution unit supplies 100 to 120 VAC power through 8 front mounted NEMA 5-20R receptacles in a compact 1U metal housing.
Individual and Group Power Control
Manage each receptacle separately or operate multiple connections together. Administrators can turn connected devices on or off, restart unresponsive equipment, schedule operating times, sequence startup, perform load shedding, and disable unused receptacles. Control is available locally through the LCD or remotely through the built in management console and network interface.
Monitoring and Event Notifications
The multi-function LCD displays amperage, voltage, power usage, IP address, and other system information. Automatic email, SMS, and SNMP trap notifications provide updates for configured power events. Upgradable firmware supports ongoing system maintenance.

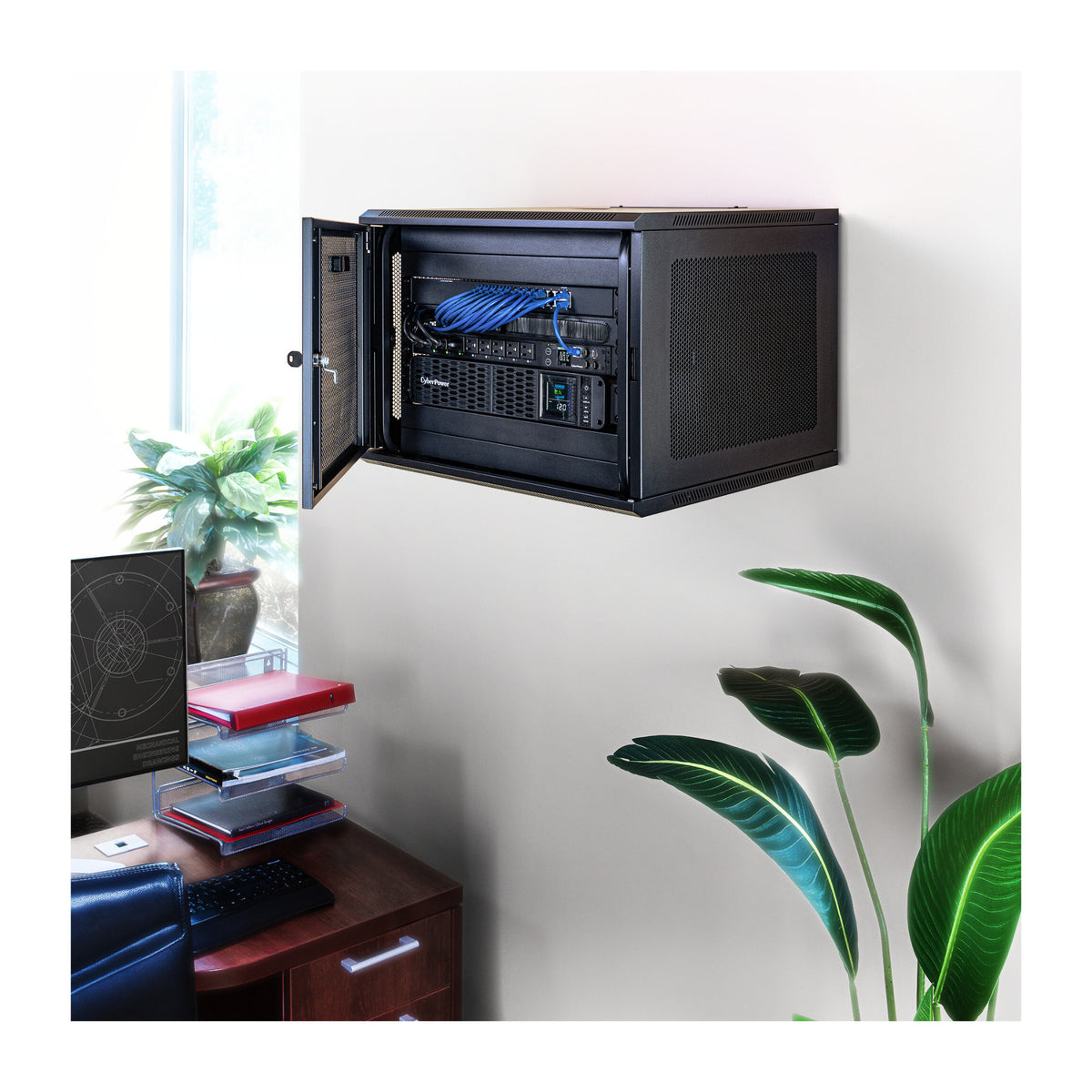

Flexible Equipment Installation
Configurable brackets support horizontal or vertical rack installation, wall mounting, under counter placement, and other surface configurations. The included cord retention tray and cable ties help organize connected cords and reduce accidental disconnection. A switch free design helps prevent unintended shutdowns.
General
| Brand | CyberPower |
| Model | PDU41002 |
| Product Type | Switched Power Distribution Unit |
| Style | Horizontal Rackmount and Wall Mount |
| Rack Height | 1U |
| Phase | Single Phase |
| Color | Black |
| Construction Material | Metal |
Input
| Maximum Input Current | 20 A |
| Derated Input Current | 16 A |
| Input Frequency Range | 50 to 60 Hz |
| Input Plug | NEMA L5 20P |
| Included Input Adapter | NEMA 5 20P |
| Plug Style | Straight |
| Power Cord Length | 12 ft |
Output
| Nominal Output Voltage | 100 to 120 VAC |
| Total Receptacles | 8 |
| Front Receptacles | 8 |
| Rear Receptacles | 0 |
| Receptacle Type | NEMA 5-20R |
| Receptacle Banks | 1 |
| Electrical Distribution | Unfiltered Pass Through |
| Overload Protection | None |
| USB Charging Port | No |
Receptacle Management
| Individual Receptacle Switching | Supported |
| Group Receptacle Switching | Supported |
| Local Power Control | Supported |
| Remote Power Control | Supported |
| Scheduled Operation | Supported |
| Remote Equipment Restart | Supported |
| Startup Sequencing | Supported |
| Load Shedding | Supported |
| Unused Receptacle Lockout | Supported |
Display and Indicators
| Display Type | Multifunction LCD |
| Meter Readout | Power Control Display |
| Displayed Information | Amperage, Voltage, Power Usage, IP Address, and System Information |
| LED Indicators | Transmit and Receive |
| LED Indicator | Network Link |
| Status Indicators | Normal, Warning, and Critical |
Management and Communication
| Hardware Connection Port | RJ45 |
| Environmental Sensor Support | Optional through RJ45 |
| Modular Cascading | Supported through RJ45 |
| Firmware | Upgradeable |
| Automatic Notifications | Email, SMS, and SNMP Trap |
| Management Interface | CyberPower Management Console |
| Browser Management | Supported |
Supported Network Protocols
| Network Protocols | IPv4 and IPv6, TCP and UDP, SNMP v1 and SNMP v3, HTTP and Secure HTTP, NTP and DNS, Telnet and Secure Shell, DHCP and SMTP, FTP, SSL and TLS, LDAP and Secure LDAP, RADIUS, Syslog, Command Line Interface, Windows Active Directory |
Mounting
| Adjustable Mounting Brackets | 1 Set |
| Horizontal Rack Installation | Supported |
| Vertical Rack Installation | Supported |
| Wall Mounting | Supported |
| Under Counter Mounting | Supported |
| Other Surface Mounting | Supported |
| Cord Retention Tray | Included |
| External Site Ground Pin | Yes |

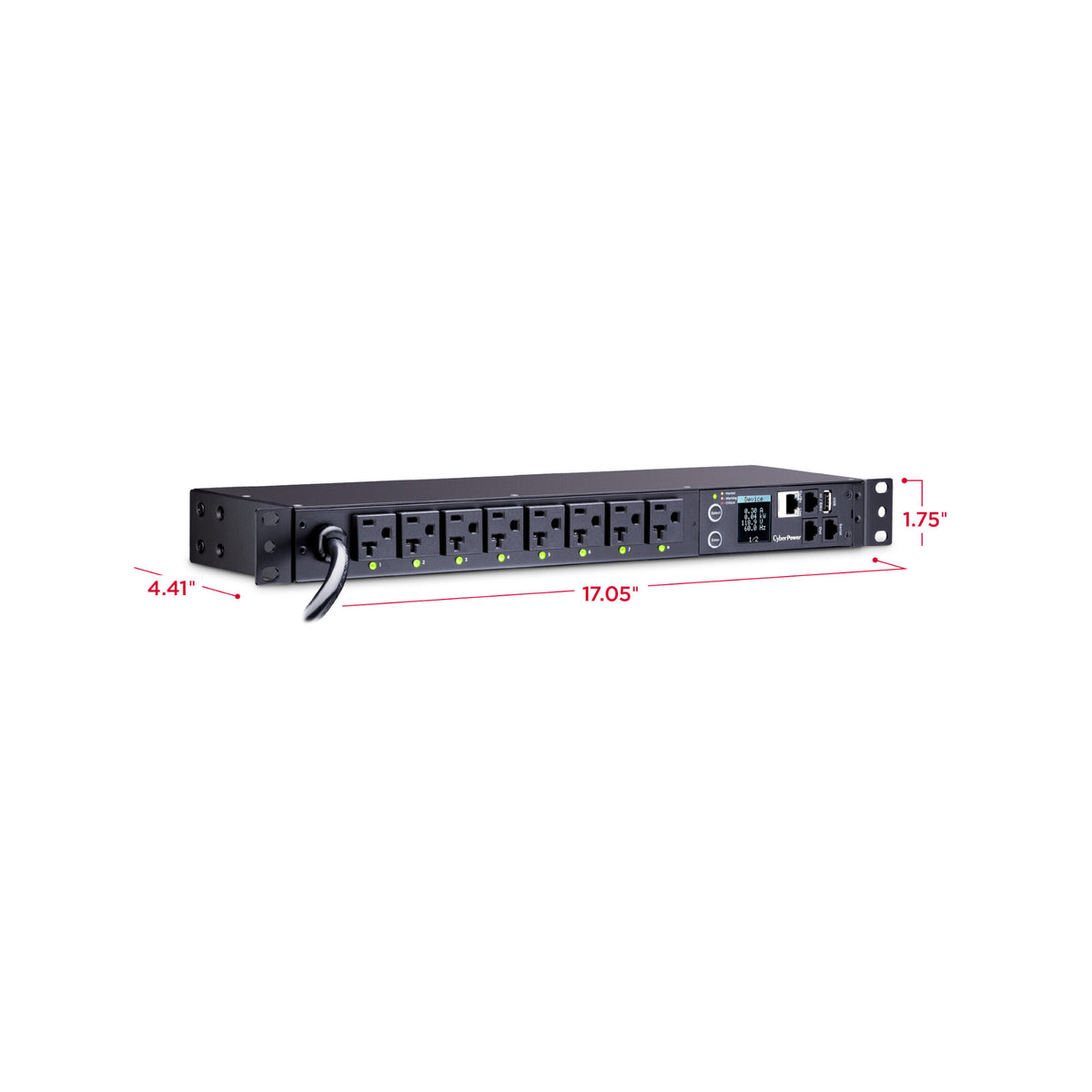

Dimensions and Weight
| Width | 17.05 inches |
| Height | 1.75 inches |
| Depth | 4.41 inches |
| Product Weight | 7.3 Pounds |
Shipping Dimensions and Weight
| Shipping Width | 19.5 inches |
| Shipping Height | 2.63 inches |
| Shipping Depth | 9.88 inches |
| Shipping Weight | 9.2 Pounds |
Environmental Requirements
| Operating Temperature | 0 to 60 Degrees C |
| Storage Temperature | -15 to 65 Degrees C |
| Operating Humidity | 0 to 95%, Non-condensing |
| Operating Elevation | 0 to 11,483 ft |
| Storage Elevation | 0 to 49,213 ft |
Warranty
| Manufacturer Warranty | 3-Year Limited Warranty |
