- 1 x CyberPower PDU41003 Power Distribution Unit
- 2 x Mounting Brackets
- 2 x Cord Retention Trays
- 24 x Cable Ties
- 1 x RJ45 to DB9 Serial Connection Cable
- 12 x M4 x 8 Mounting Bracket Screws
- 6 x M5 x 12 Rack Mounting Screws with Washers
- 12 x M3 x 6 Cord Retention Tray Screws
- 1 x User Manual
- 1 x Product Registration Card
- 1 x Software Download Card
Trusted & Verified

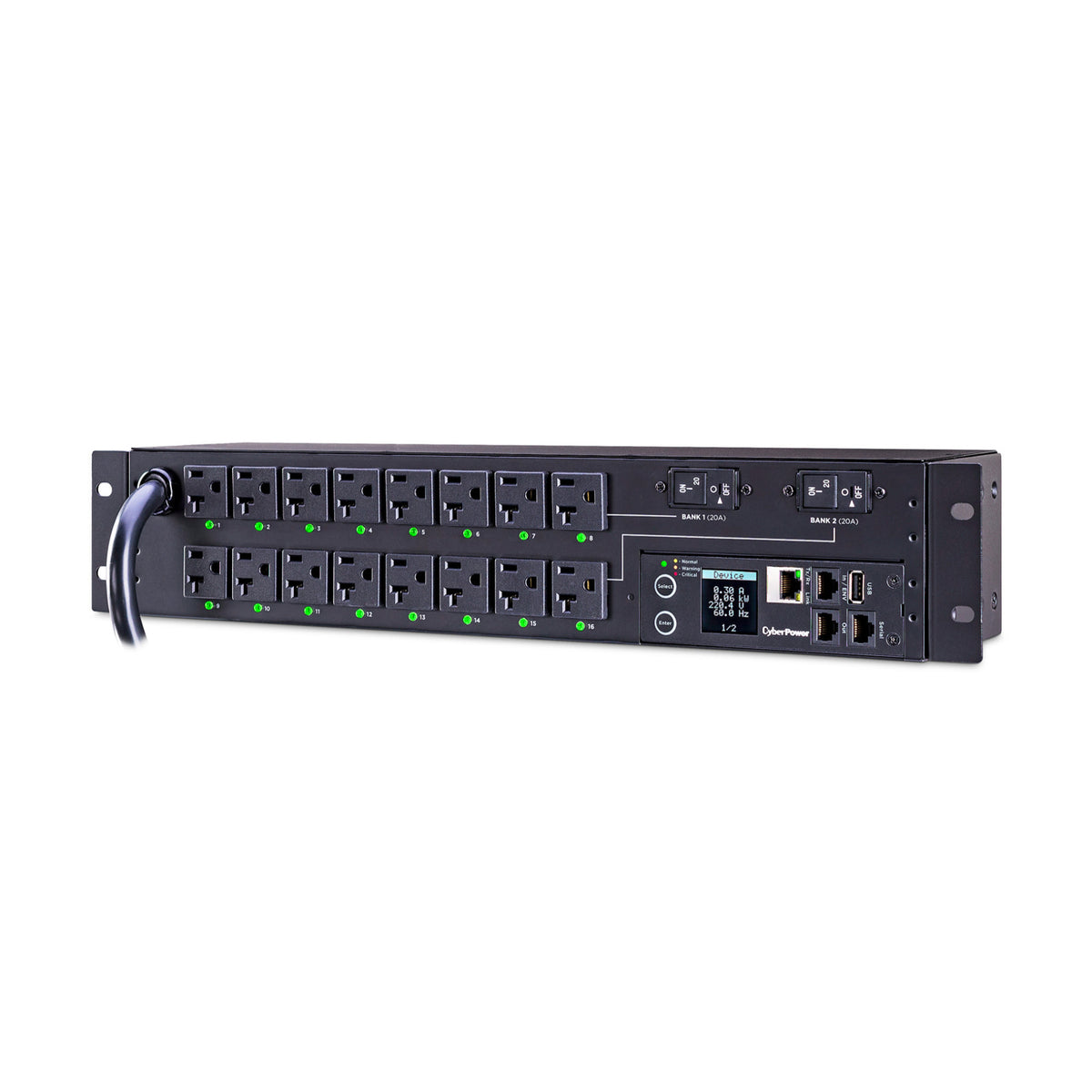

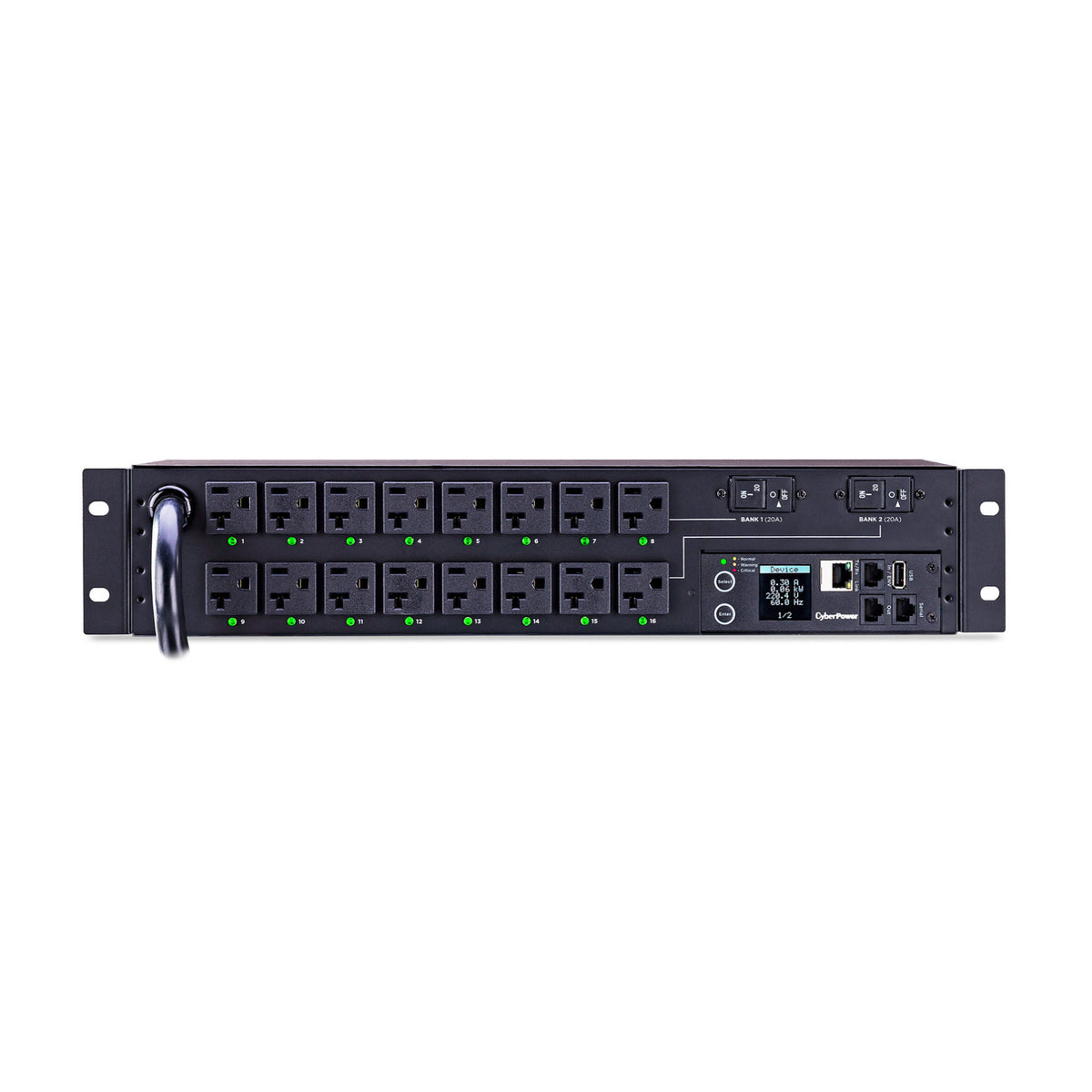

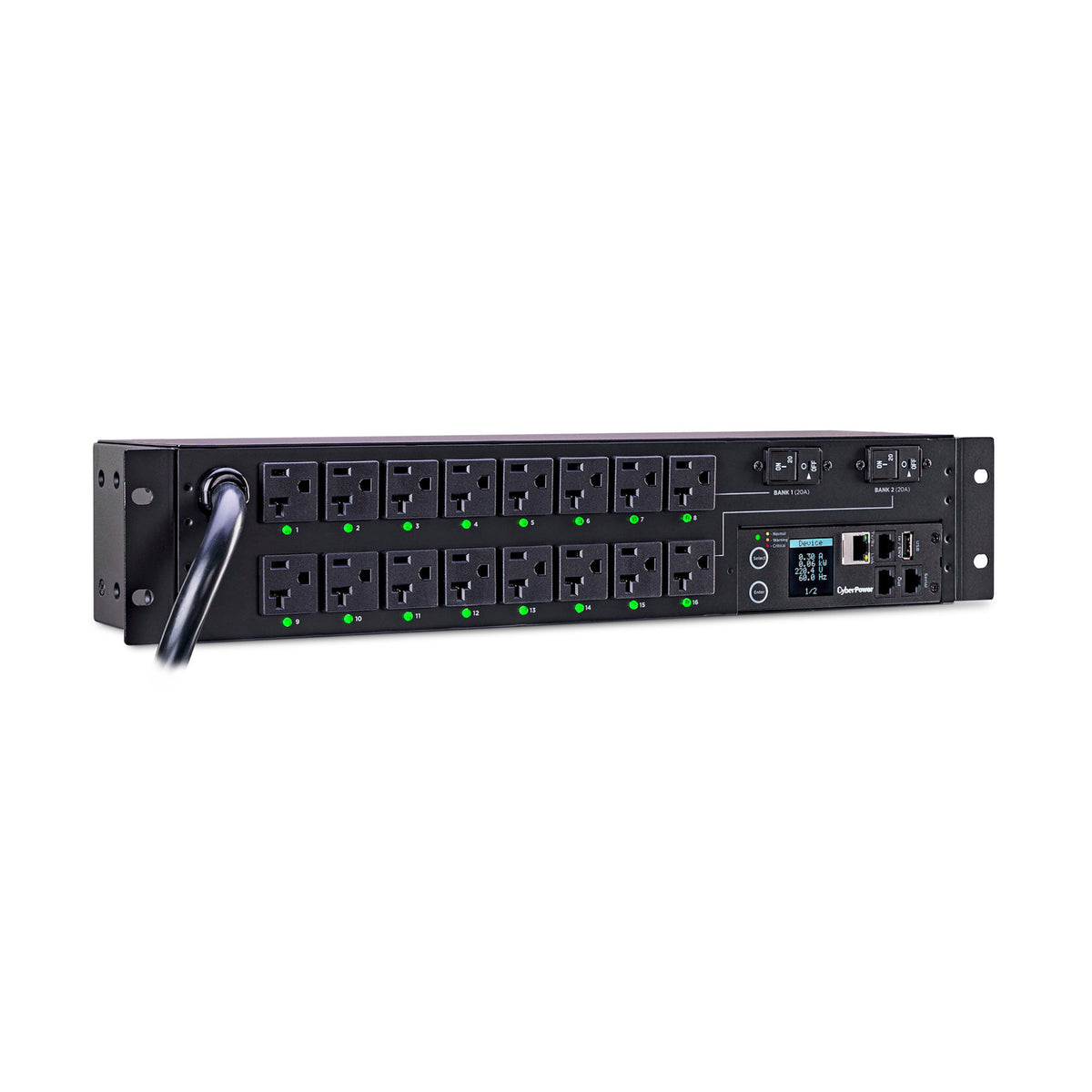

CyberPower PDU41003 16-Outlet 2U Switched Rackmount Power Distribution Unit with Metal Housing
- Overload Protection
- Real-time Local/Remote Monitoring and Switching
- Industrial-grade Metal Housing
- 16 x NEMA 5-20R Outlets
- Digital Real-time Load Display
- Rotable, Hot-swappable LCD Design
- Controllable Receptacles with Power Sequencing
- Support Environmental Sensor
- PowerPanel Management Software
- LED Status Indicator
- Cord Retention Tray
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
Manage rack power and reduce unnecessary trips to the server room with the CyberPower PDU41003 Switched Power Distribution Unit. Built for IT infrastructure and network equipment, this 2U rackmount PDU distributes power through sixteen NEMA 5-20R outlets while giving administrators individual outlet control. Connected devices can be restarted remotely, powered on or off, and managed in defined sequences to simplify equipment maintenance and recovery.
Remote Outlet Control and Power Sequencing
Control each of the 16 switched outlets individually or together through the network or the local Power Control Display. Remote switching lets administrators reboot unresponsive equipment without manually disconnecting power cables. Scheduled switching and power sequencing also help coordinate the startup and shutdown of connected servers, switches, and other compatible devices.
Real Time Monitoring and Network Management
An integrated Ethernet connection and configurable color LCD provide visibility into electrical loads and operating conditions. Monitor voltage, frequency, current, and power consumption locally or remotely. CyberPower PowerPanel management software supports centralized administration, while SNMP, secure network protocols, and optional environmental sensor connectivity help integrate the PDU into existing IT monitoring workflows.
Rack Integration and Equipment Protection
The PDU41003 supports 100 to 120V single phase power through a NEMA L5-30P input connection, with a 24A derated current rating and two outlet banks protected by 20A circuit breakers. Its metal housing, adjustable mounting brackets, cord retention accessories, and approximately 12 foot power cable simplify rack installation and cable organization. A hot swappable, rotatable LCD provides convenient viewing and maintenance.
Product Information
| Brand | CyberPower |
| Model | PDU41003 |
| Series | Switched PDU |
| Product Type | Network Managed Power Distribution Unit |
| Form Factor | 2U Rackmount |
| Mounting Orientation | Horizontal, with Additional Supported Mounting Configurations |
| Color | Black |
| Housing Material | Metal |
| Manufacturer Manufacturer Warranty | 3 Year Limited Warranty |
Input Power
| Nominal Input Voltage | 100 to 120V AC |
| Input Frequency | 50 or 60 Hz |
| Phase | Single Phase |
| Input Plug | NEMA L5-30P |
| Input Circuit Rating | 30A |
| Maximum Derated Input Current | 24A |
| Power Cord Length | 12 ft (3.65 Meters) |
Power Outputs
| Total Outlets | 16 |
| Outlet Type | NEMA 5-20R |
| Front Outlets | 16 |
| Rear Outlets | 0 |
| Individually Controllable Outlets | 16 |
| Number of Outlet Banks | 2 |
| Overcurrent Protection | 20A Circuit Breaker per Bank |
| Output Voltage | 100 to 120V AC |
| Remote Outlet Switching | Supported |
| Scheduled Outlet Switching | Supported |
| Power Sequencing | Supported |
Monitoring and Control
| Local Display | Configurable Color LCD |
| LCD Rotation | Supported |
| Hot Swappable LCD Module | Supported |
| Displayed Information | Input Voltage, Frequency, Current, Power Consumption, Network Status, Environmental Status, Serial Number, and Firmware Information |
| LED Indicators | PDU Status, Network Transmit and Receive, Link, and Outlet Status |
| Remote Management | Supported over Ethernet |
| Power Management Software | CyberPower PowerPanel Business and PowerPanel Enterprise |
| Environmental Sensor Support | Yes, Optional Accessory |
| Firmware Upgrade | Supported via USB |
Communication Interfaces
| Network Connection | RJ45 Ethernet |
| Serial Connection | RJ45 Serial Port |
| Environmental Sensor and Daisy Chain Input | RJ45 |
| Daisy Chain Output | RJ45 |
| USB Type-A Port | Yes |
| Supported Network Protocols | IPv4, IPv6, SNMPv1, SNMPv3, HTTP, HTTPS, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, and Syslog |
| Supported Authentication Systems | RADIUS, LDAP, LDAPS, and Windows Active Directory |
Physical Specifications
| Installed Rack Height | 2U |
| Width | 433 mm |
| Height | 88 mm |
| Depth | 112 mm |
| Weight | 4.4 kg |
| Adjustable Mounting Brackets | Supported |
| Cord Retention Tray | Supported |
| External Site Ground Pin | Yes |
Environmental Specifications
| Operating Temperature | 0 to 45 Degrees Celsius |
| Operating Relative Humidity | 0 to 95 Percent, Noncondensing |
