- 1 x CyberPower PDU44001 Switched ATS Power Distribution Unit
- 1 x RJ45 to DB9 Serial Port Connection Cable
- 2 x Mounting Brackets
- 1 x Cord Retention Tray
- 24 x M4 x 8 Bracket Mounting Screws
- 6 x M5 x 12 Rack Mounting Screws
- 6 x M3 x 6 Cord Retention Tray Mounting Screws
- 6 x Washers
- 18 x Cable Ties
- 1 x User Manual
Trusted & Verified

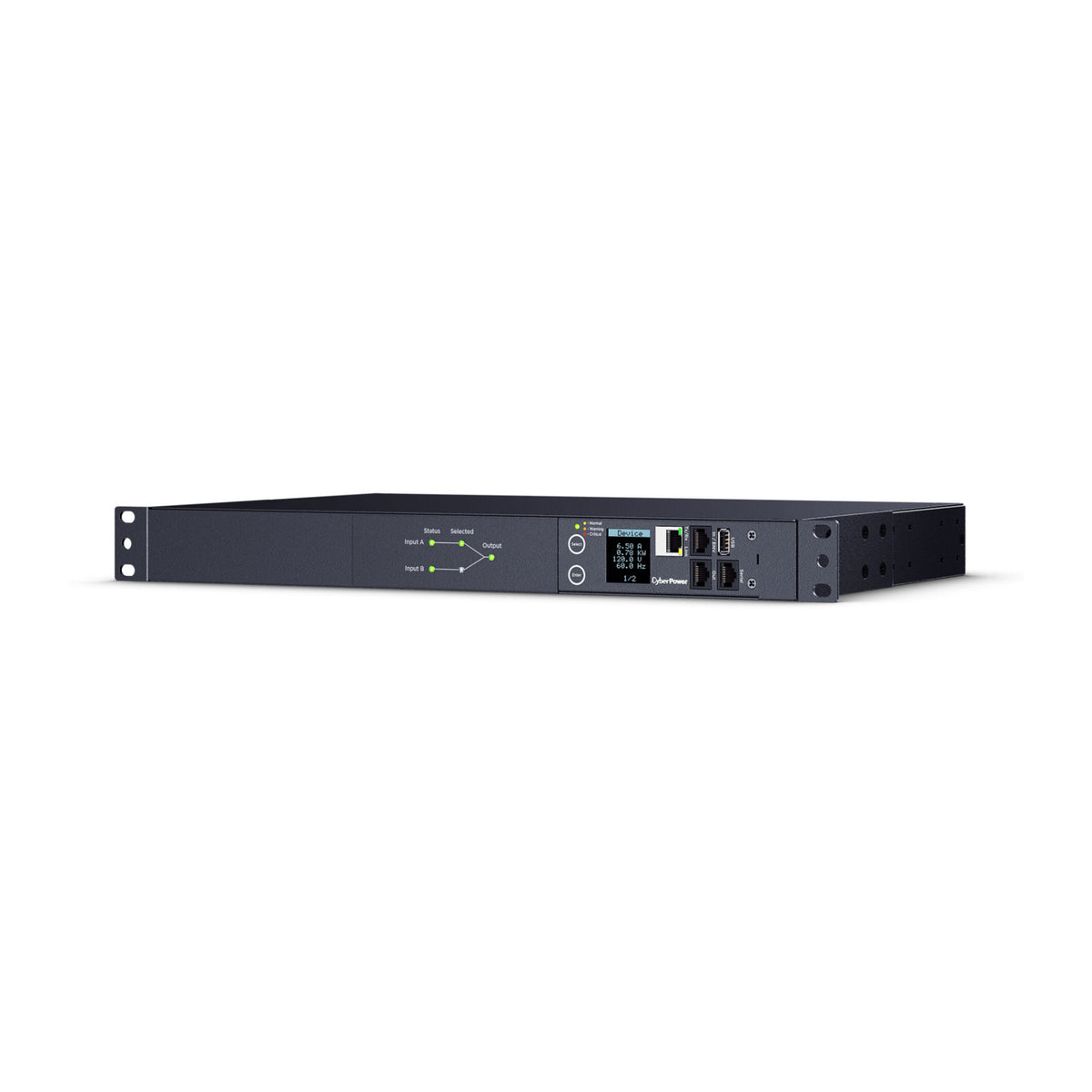

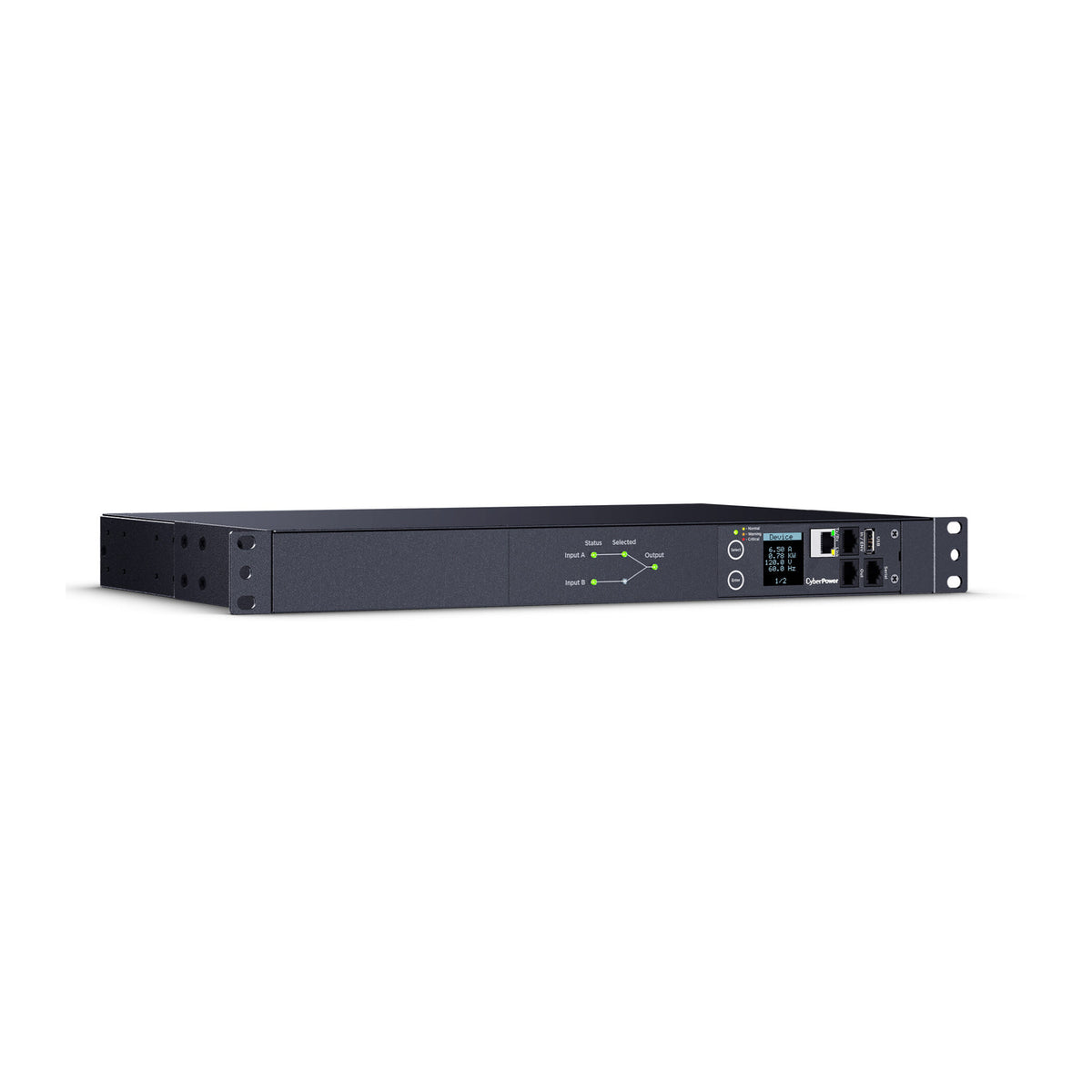

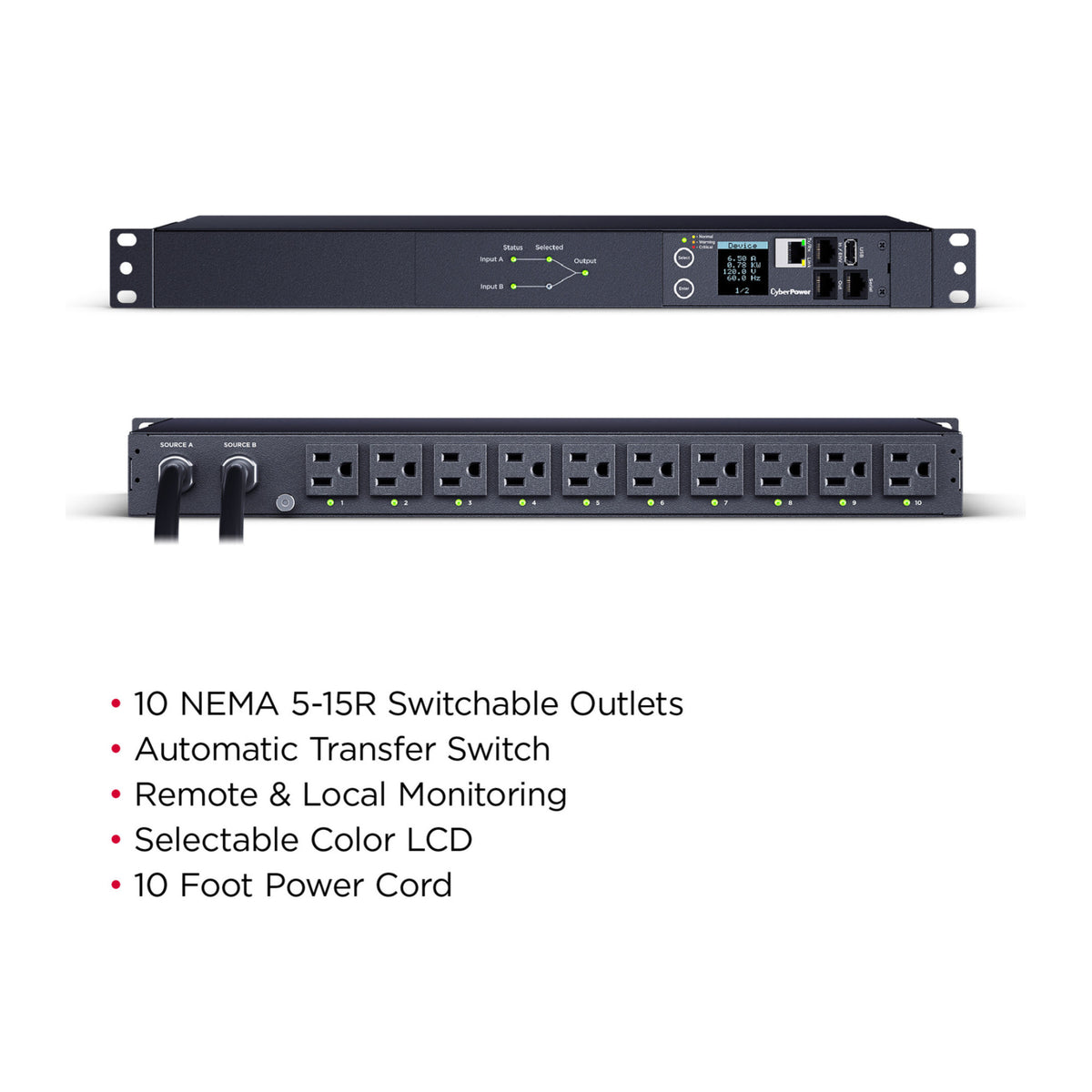

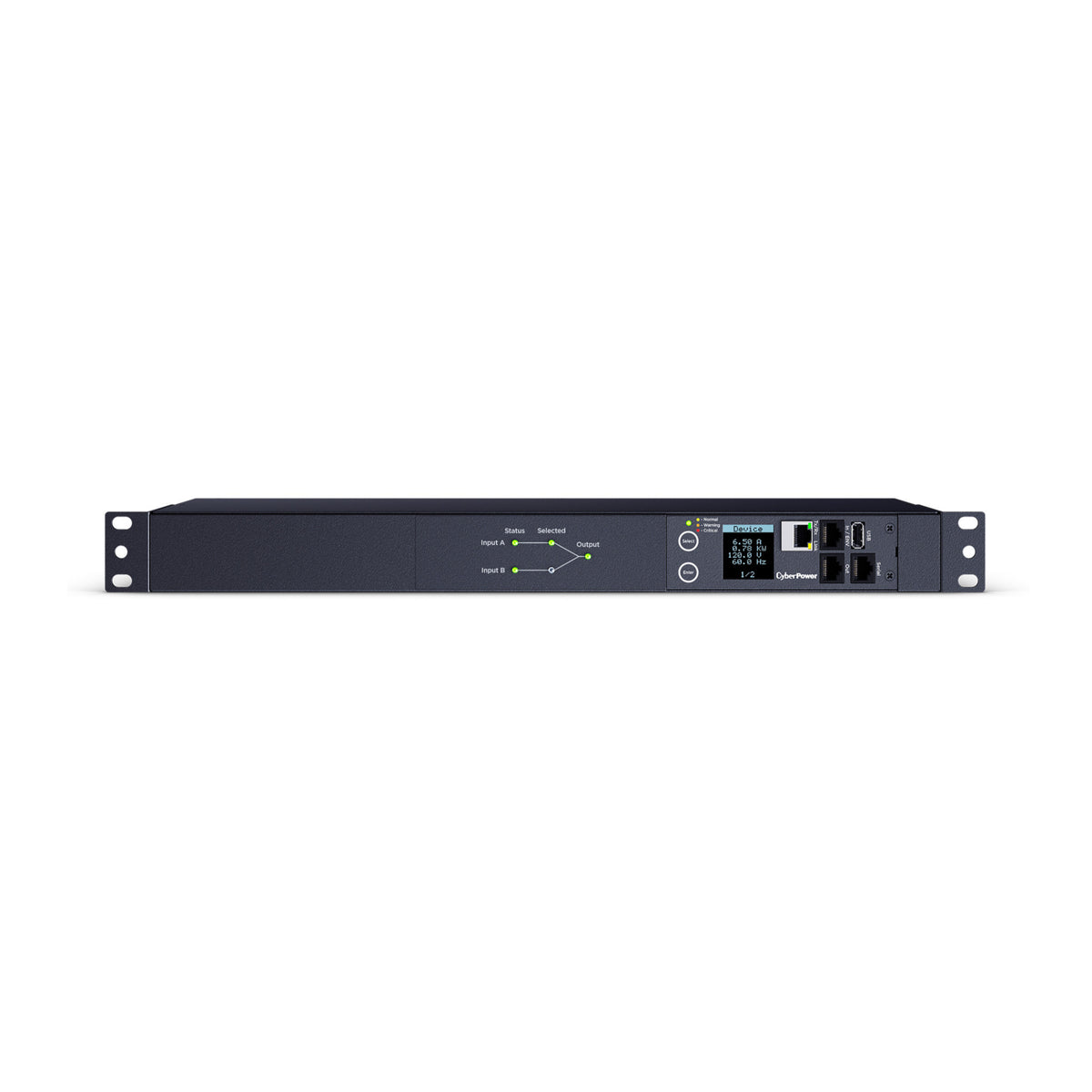

CyberPower PDU44001 1U Switched ATS Rackmount Power Distribution Unit with 10 Switchable Outlets
- Dual NEMA 5-15P Inputs
- 10 Switchable NEMA 5-15R Outlets
- Automatic Power Transfer under 10 ms
- Remote and Local Monitoring
- 100 to 120V AC Single Phase Operation
- 15A Maximum Input, derated to 12A
- Built-in Ethernet Connectivity
- Multi-function LCD Display
- Supports SNMP Monitoring
- Automated Power Event Notifications
Keep single-corded IT equipment connected to a redundant power source with the CyberPower PDU44001 Switched Automatic Transfer Switch Power Distribution Unit. Built for data centers, network closets, and telecom installations, this 1U rackmount PDU features two NEMA 5-15P power inputs and ten NEMA 5-15R outlets. When the selected primary source fails or moves outside acceptable voltage thresholds, the PDU automatically transfers the connected load to an available secondary source, helping reduce interruptions to critical equipment.
Automatic Power Source Switching
Connect the two input cords to separate compatible power sources and select the preferred primary input. With a total transfer time of less than 10 milliseconds under specified conditions, the PDU44001 switches to the alternate source when necessary and returns to the primary source after it stabilizes. This provides power source redundancy for servers, network switches, and other devices equipped with a single power cord.
Remote Outlet Control and Monitoring
Manage individual outlets through the built in network interface, enabling remote switching and equipment restarts without visiting the rack. The multi-function LCD and front panel indicators provide visibility into the selected power source and operating status. Ethernet connectivity, SNMP monitoring, and automated notifications support centralized administration and faster response to power events.
Compact Rack Installation
The PDU44001 provides 100 to 120V AC power distribution with a 15A maximum input rating, derated to 12A for continuous operation. Its durable metal housing fits a 1U rack space, while two 10 ft input cords, mounting hardware, and a cord retention system help organize installation. Designed for sine wave AC sources, this PDU supports redundant rack power distribution with a three year limited manufacturer warranty.
Product Information
| Brand | CyberPower |
| Model | PDU44001 |
| Series | Switched ATS |
| Product Type | Switched Automatic Transfer Switch Power Distribution Unit |
| Form Factor | 1U Rackmount |
| Color | Black |
| Housing Material | Metal |
| Recommended Applications | Data Centers, Network Closets, and Telecom Installations |
Input Power
| Nominal Input Voltage | 100 to 120V AC |
| Input Frequency | 50 or 60 Hz |
| Phase | Single Phase |
| Input Plug Type | 2 x NEMA 5-15P |
| Input Power Sources | 2, Primary and Secondary |
| Maximum Input Current | 15A |
| Derated Input Current | 12A |
| Input Cord Length | 10ft (3.0 Meters) |
| Plug Style | Straight |
| Compatible AC Sources | Sine Wave Only |

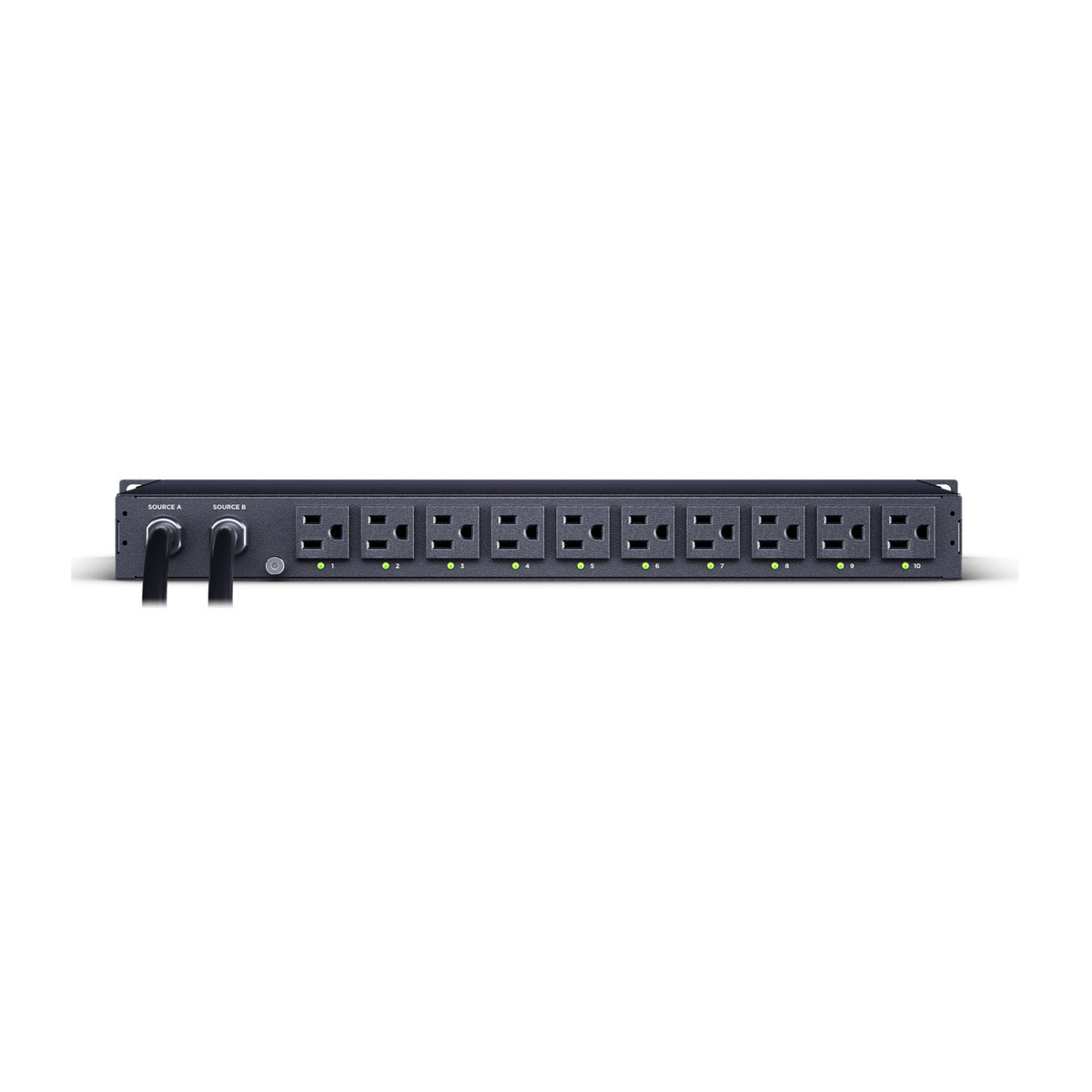

Power Outputs
| Total Outlets | 10 |
| Outlet Type | NEMA 5-15R |
| Outlet Banks | 1 |
| Nominal Output Voltage | 100 to 120V AC |
| Individual Outlet Switching | Yes |
| Remote Outlet Management | Yes |
| Overload Protection | None |
Automatic Transfer Switching
| Transfer Technology | Automatic Transfer Switch |
| Primary Source Selection | User Selectable |
| Automatic Transfer to Secondary Source | Yes |
| Automatic Return to Primary Source | Yes |
| Source Failure Detection Time | 2 to 3 ms |
| Power Source Transfer Time | 2 to 7 ms |
| Total Transfer Time | Less Than 10 ms |
| Input Source Status Monitoring | Yes |
Monitoring and Management
| Local Display | Multi-function LCD |
| LCD Background Color | Selectable |
| Built-in Web Management Interface | Yes |
| Remote Monitoring | Supported |
| Automated Notifications | Email, SMS Text, and SNMP Trap |
| LED Indicators | Source Status, Selected Source, Output, Operating Condition, Transmit and Receive, Network Link, and Outlet Status |
| Environmental Sensor Support | Optional, via RJ45 |
| Firmware Upgrades | Supported |
| Modular Cascading | Supported via RJ45 |
Communication Interfaces
| Network Port | RJ45 Ethernet |
| Serial Port | RJ45 |
| Supported Protocols | IPv4, IPv6, TCP/IP, UDP, SNMPv1, SNMPv3, HTTP, HTTPS, NTP, DNS, Telnet, DHCP, SMTP, FTP, SSH, SSL, TLS, Syslog, and CLI |
| Authentication and Directory Support | LDAP, LDAPS, RADIUS, and Windows Active Directory |

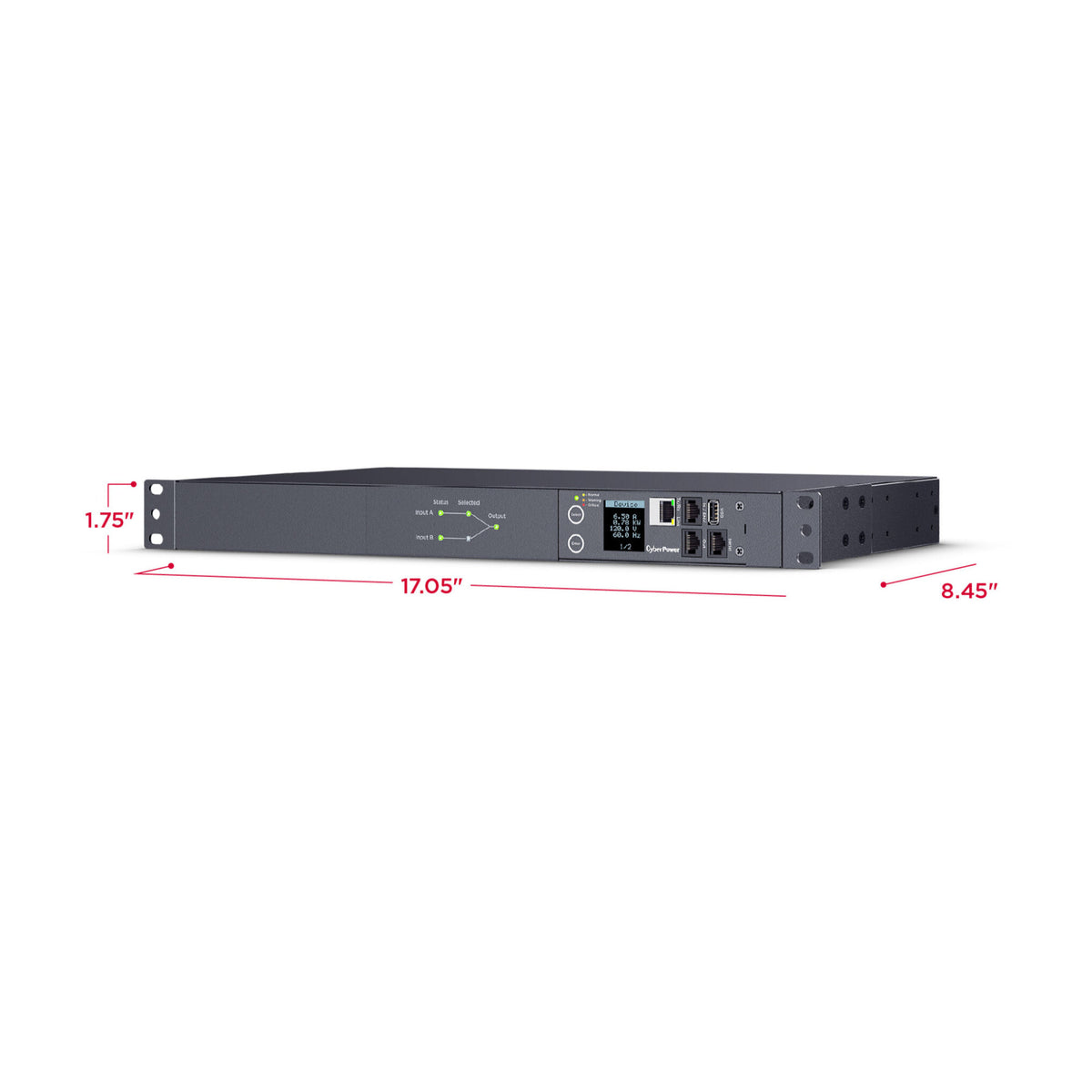

Physical Specifications
| Rack Height | 1U |
| Width | 17.05 Inches (433 mm) |
| Height | 1.75 Inches (44 mm) |
| Depth | 8.45 Inches (215 mm) |
| Weight | 10 Pounds (4.54 kg) |
| Cord Retention System | Yes |
| External Site Ground Pin | Yes |
Environmental Specifications
| Operating Temperature | 32 to 113 Degrees Fahrenheit (0 to 45 Degrees Celsius) |
| Storage Temperature | 5 to 131 Degrees Fahrenheit (-15 to 55 Degrees Celsius) |
| Operating Relative Humidity | 0 to 95 Percent, Noncondensing |
| Operating Elevation | 0 to 13,123 ft (0 to 4,000 Meters) |
| Storage Elevation | 0 to 49,213 ft (0 to 14,999 Meters) |
Compliance and Warranty
| Safety Certification | UL62368 via cTUVus |
| Additional Compliance | FCC Class A and ICES-003 Issue 7 |
| Environmental Compliance | RoHS |
| Manufacturer Warranty | 3 Year Limited Warranty |
