- 1 x CyberPower PDU44002 20A 1U Switched ATS Power Distribution Unit
- 2 x Mounting Brackets
- 24 x M4 Bracket Mounting Screws
- 12 x M5 Rack Mounting Screws
- 6 x Washers
- 1 x Cord Retention Tray
- 6 x M3 Cord Retention Tray Mounting Screws
- 18 x Cable Ties
- 1 x RJ45/DB9 Serial Port Connection Cable
- 1 x NEMA L5-20P to NEMA 5-20P Adapter
- 1 x User Manual
Trusted & Verified

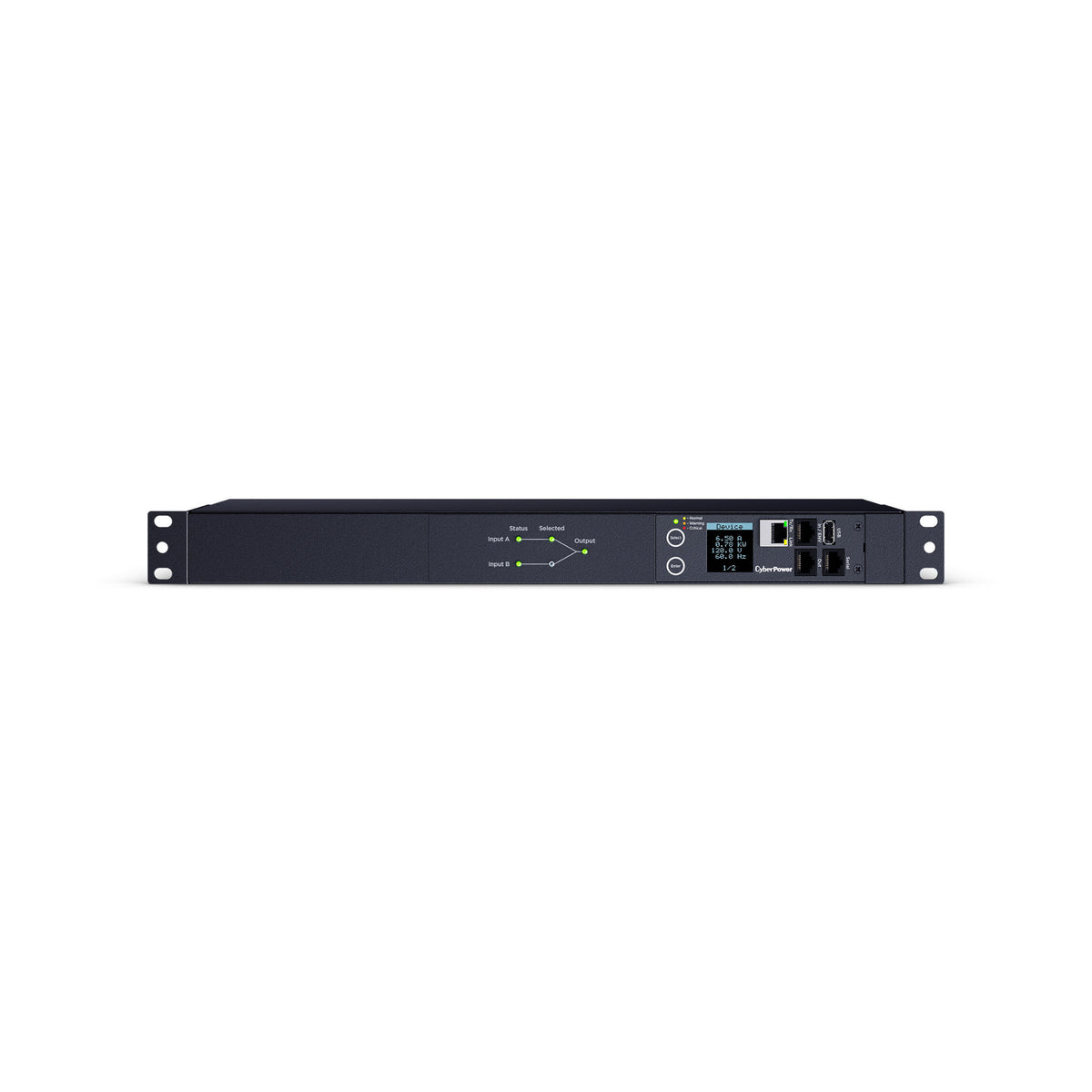

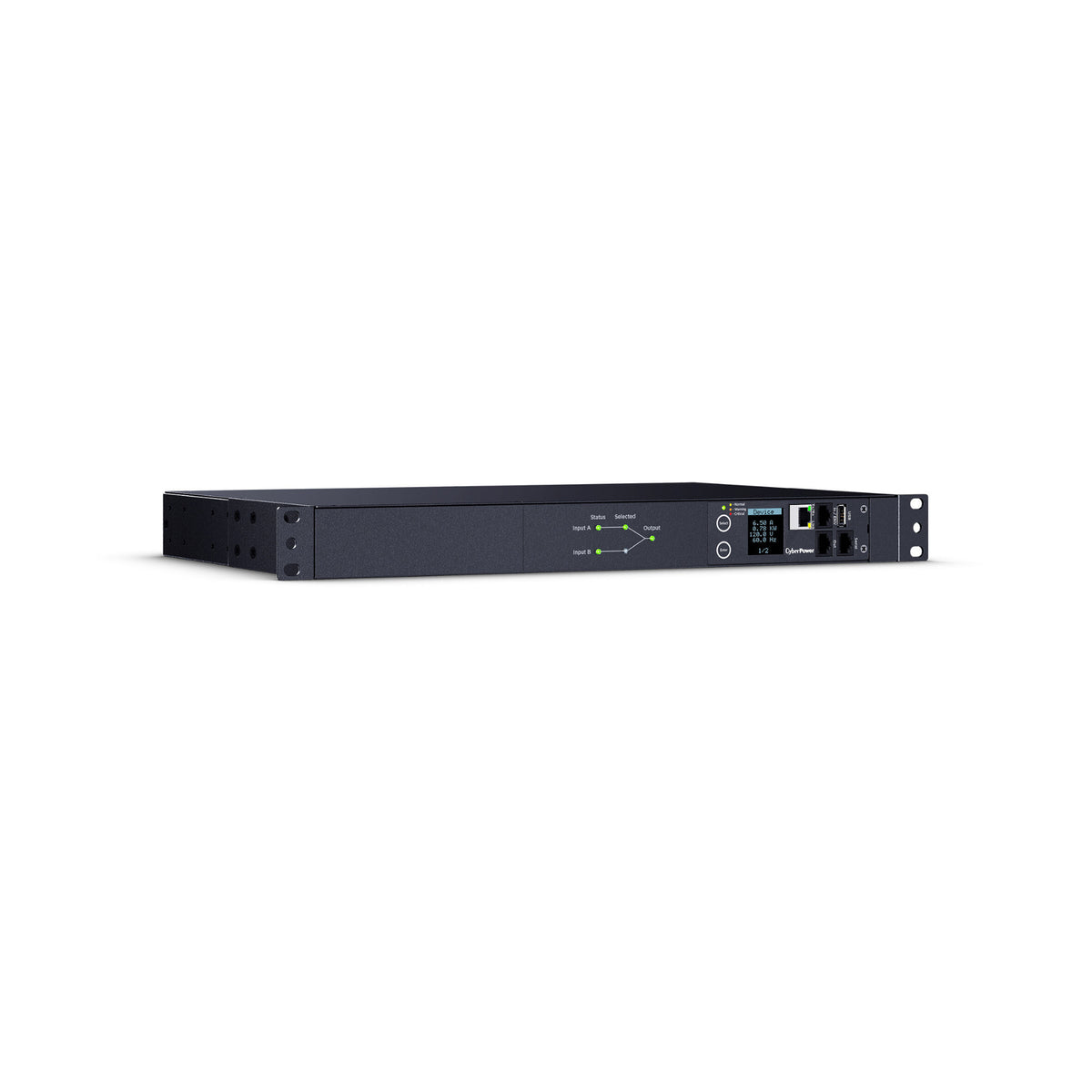

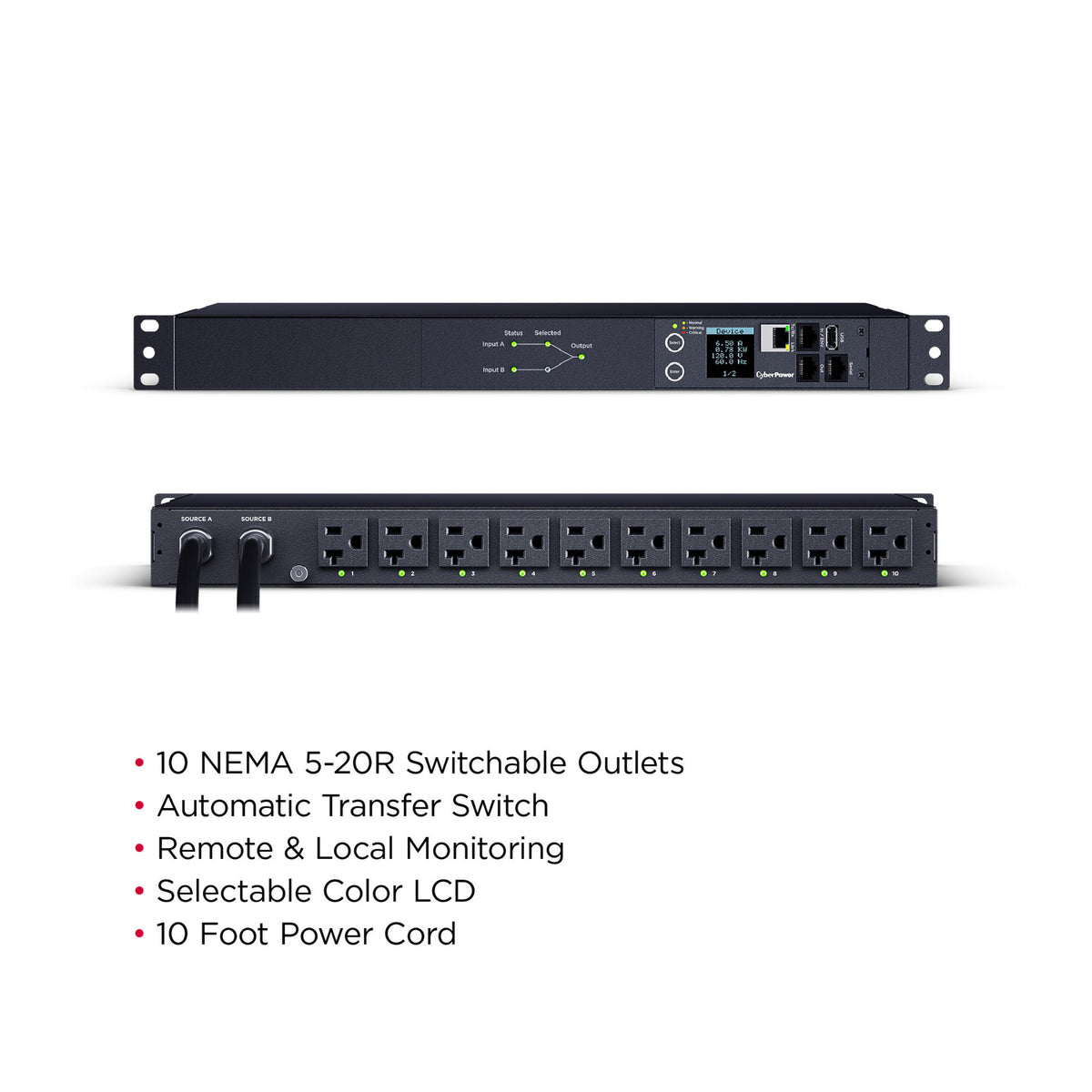

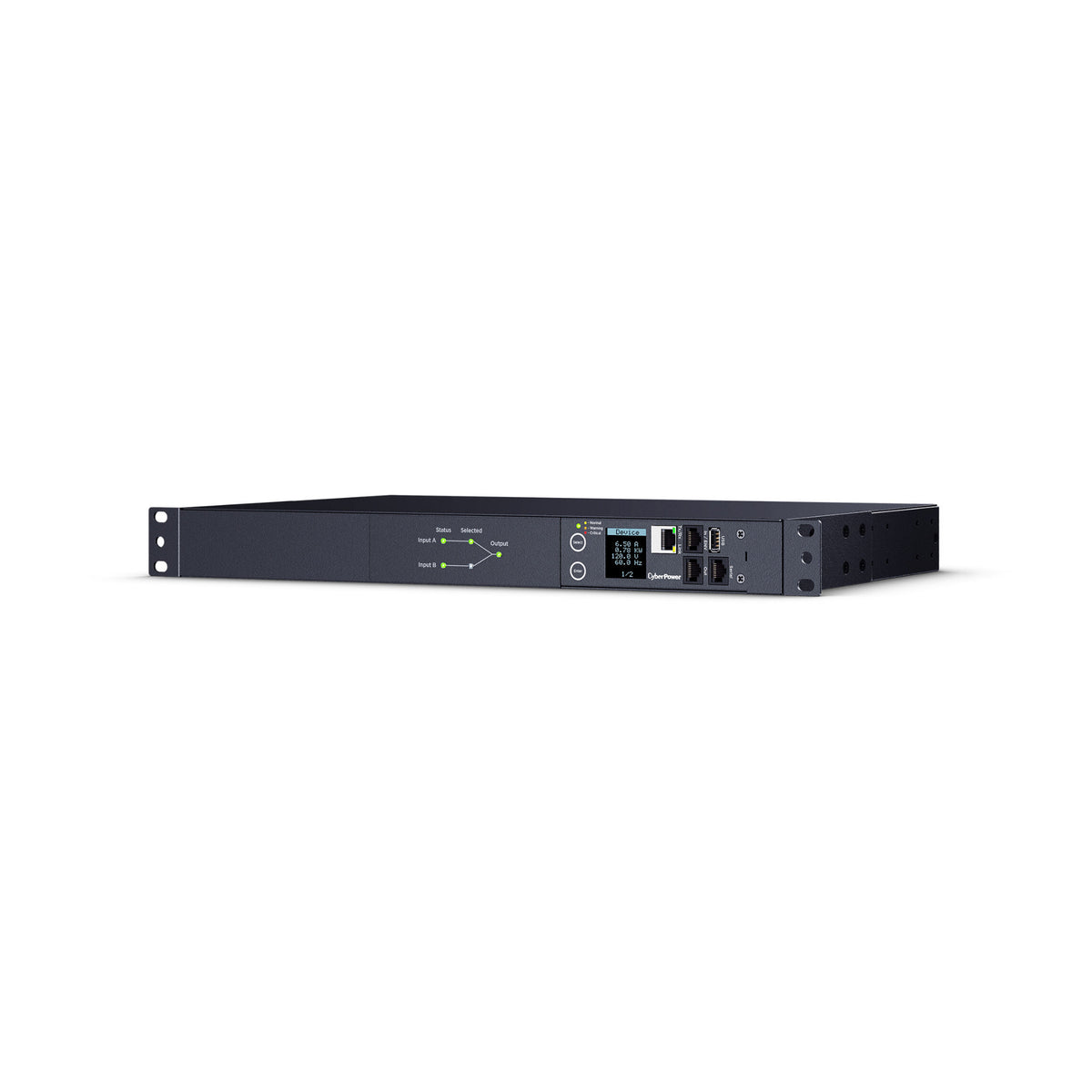

CyberPower PDU44002 20A 10-Outlet 1U Switched Power Distribution Unit with Automatic Transfer Switch
- Dual input Automatic Transfer Switching
- Power Redundancy for Single Corded Equipment
- 10 individually switchable receptacles
- Transfer time under 10 ms
- Local and Remote Power Management
- Selectable Color Multi-function LCD
- Automatic Event Notifications
- Daisy Chain Management for up to four PDUs
- Durable 1U Metal Rackmount Construction
- 3-Year Manufacturer Limited Warranty
Provide redundant power to single corded servers, network equipment, and telecommunications hardware with the CyberPower PDU44002. This 1U switched automatic transfer switch PDU distributes 100 to 120 VAC power through 10 NEMA 5-20R receptacles and supports a maximum 20A input derated to 16A.
Automatic Dual Source Transfer
Two NEMA L5-20P input cords connect to separate compatible sine wave power sources. Select either source as the preferred primary input. When that source fails or moves outside the configured voltage thresholds, the PDU transfers the connected load to the secondary source. It returns to the preferred source after stable incoming power is restored.
Managed Receptacle Control
Control individual receptacles or operate multiple connections together through the local interface or network management tools. Administrators can turn equipment on or off, remotely restart unresponsive devices, schedule operation, sequence startup, and disable unused connections.
Real Time Monitoring
The selectable color LCD displays current, input and output voltage, power consumption, source status, and hardware or firmware information. The display turns red during an alert. Email, SMS, and SNMP trap notifications provide immediate updates for configured power events.
Rack Installation and Expansion
The durable metal housing installs in one rack unit. Cord retention hardware helps organize connected equipment cables and reduce accidental disconnection. An optional environmental sensor supports remote temperature and humidity monitoring, while daisy chain capability allows management of up to four compatible PDUs through one IP address.
General
| Brand | CyberPower |
| Model | PDU44002 |
| Product Type | Switched Automatic Transfer Switch Power Distribution Unit |
| Style | Rackmount |
| Rack Height | 1U |
| Phase | Single Phase |
| Color | Black |
| Construction Material | Metal |
| Manufacturer Warranty | 3-Year Limited Warranty |
Automatic Transfer System
| Power Sources | 2 |
| Preferred Source Selection | Supported |
| Automatic Secondary Source Transfer | Supported |
| Automatic Return to Preferred Source | Supported |
| Source Failure Detection Time | 2 to 3 ms |
| Power Source Transfer Time | 2 to 7 ms |
| Total Transfer Time | Less Than 10 ms |
| Compatible Source Waveform | Sine Wave AC |
| Simulated Sine Wave Source Compatibility | No |
Input
| Maximum Input Current | 20 A |
| Derated Input Current | 16 A |
| Nominal Input Voltage | 100 to 120 VAC |
| Input Frequency Range | 50 to 60 Hz |
| Input Plugs | 2 x NEMA L5-20P |
| Included Adapter | NEMA L5-20P to NEMA 5-20P |
| Plug Style | Straight |
| Input Cord Length | 10 ft |
| Metric Input Cord Length | 3 m |

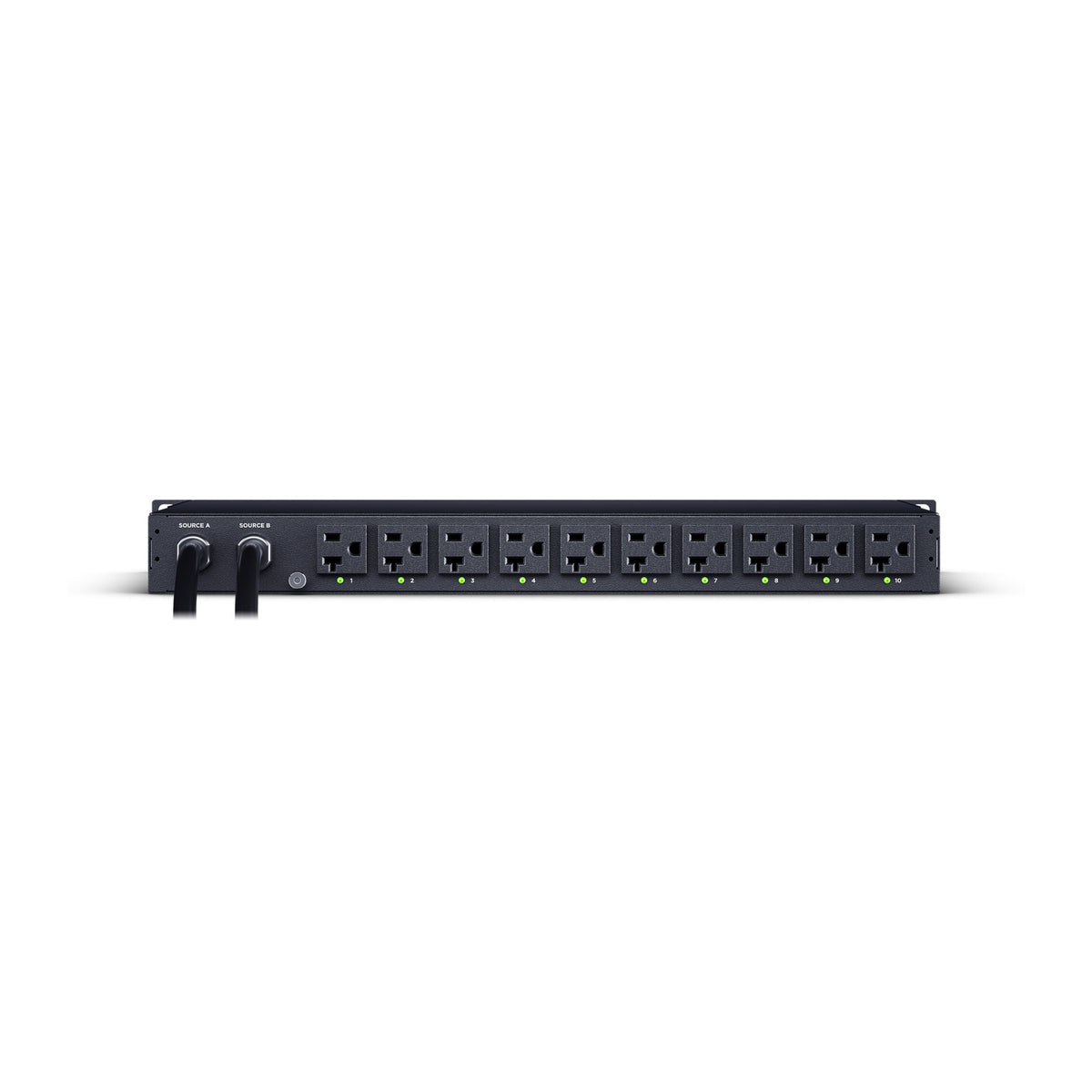

Output
| Nominal Output Voltage | 100 to 120 VAC |
| Total Receptacles | 10 |
| Receptacle Type | NEMA 5-20R |
| Receptacle Banks | 1 |
| Electrical Distribution | Unfiltered Pass Through |
| Overload Protection | None |
Receptacle Management
| Individual Receptacle Switching | Supported |
| Group Receptacle Switching | Supported |
| Local Power Control | Supported |
| Remote Power Control | Supported |
| Remote Equipment Restart | Supported |
| Scheduled Power Control | Supported |
| Power Sequencing | Supported |
| Unused Receptacle Lockout | Supported |
Display
| Display Type | Multifunction LCD |
| Background Color | User Selectable |
| Alert Display Color | Red |
| Displayed Current | Amperes |
| Displayed Voltage | Input and Output |
| Displayed Consumption | Kilowatts |
| Displayed System Information | Hardware and Firmware Versions |
| Indicators | Source Status, Selected Source, Output Status, Normal, Warning, and Critical Status, Transmit and Receive Activity, Network Link, Receptacle Status |
Management and Communication
| Network Connection | Ethernet RJ45 |
| Serial Connection | RJ45 |
| Remote Monitoring | Supported |
| Automatic Notifications | Email, SMS, and SNMP Trap |
| Firmware | Upgradeable |
| Environmental Sensor Support | Optional through RJ45 |
| Daisy Chain Management | Up to 4 Compatible PDUs |
| Shared Management Address | 1 IP Address |
Supported Network Protocols
| Network Protocols | Pv4 and IPv6, TCP and UDP, SNMP v1 and SNMP v3, HTTP and Secure HTTP, NTP and DNS, Telnet and Secure Shell, DHCP and SMTP, FTP, SSL and TLS, LDAP and Secure LDAP, RADIUS, Syslog, Command Line Interface, Windows Active Directory |
Mounting and Cable Management
| Mounting Style | Horizontal Rackmount |
| Mounting Brackets | Included |
| Cord Retention Tray | Included |
| Cord Organizers | Included |
| External Site Ground Pin | Yes |
| Power Switch | No |

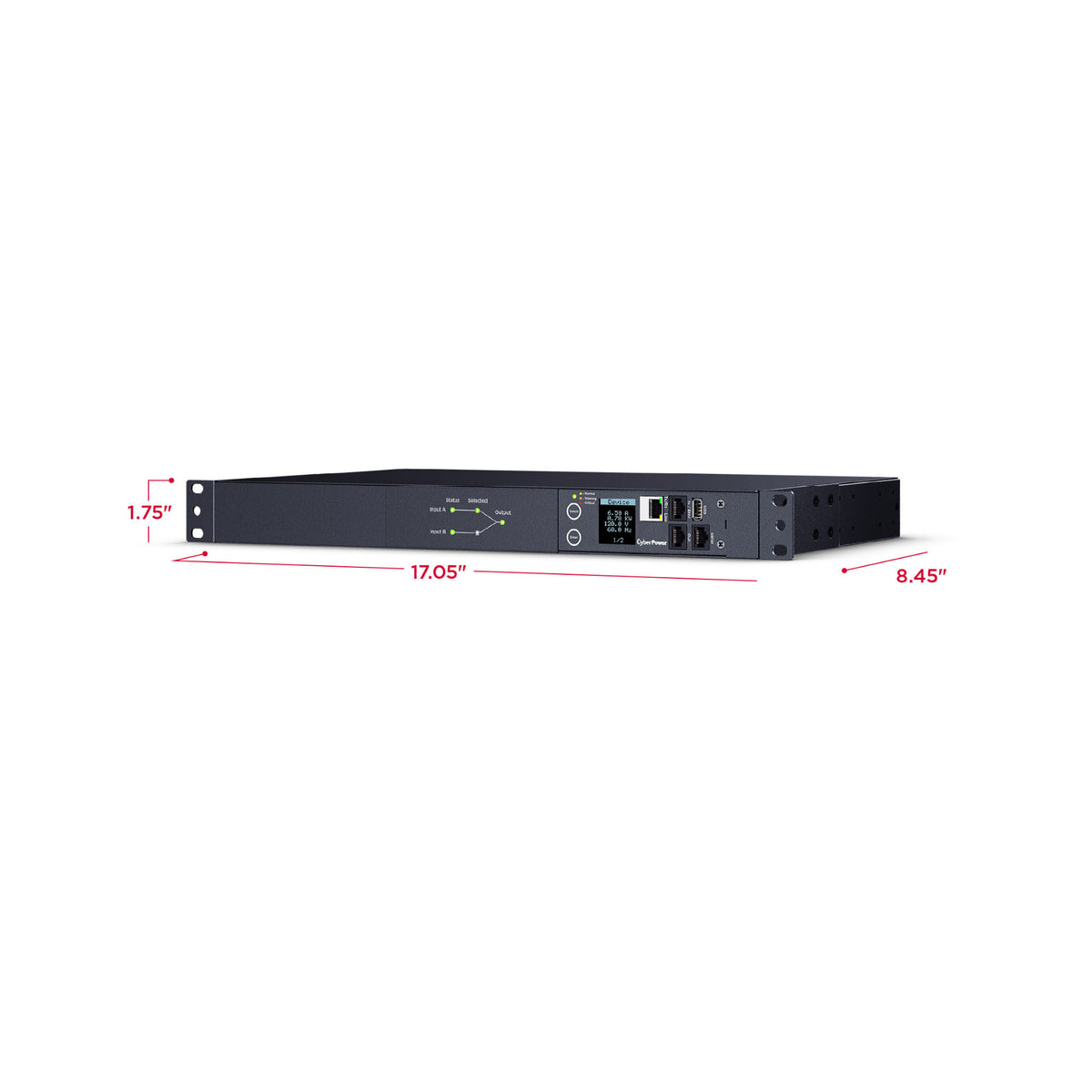

Dimensions and Weight
| Width | 17.05 inches |
| Height | 1.75 inches |
| Depth | 8.45 inches |
| Product Weight | 11.3 pounds |
Shipping Dimensions and Weight
| Shipping Width | 21.65 inches |
| Shipping Height | 4.9 inches |
| Shipping Depth | 15.67 inches |
| Shipping Weight | 15.5 Pounds |
Environmental Requirements
| Operating Temperature | 0 to 45 Degrees Celsius |
| Storage Temperature | Minus 15 to 55 Degrees Celsius |
| Operating Humidity | 0 to 95%, Non-condensing |
| Operating Elevation | 0 to 13,123 ft |
| Storage Elevation | 0 to 49,213 ft |
