- UPS System
- User Manual
- Emergency Power Off Cable
- PowerPanel Personal Edition Software CD
- Serial Interface Cable (DB-9)
- USB A+B Type Cable
- Warranty Registration Card
- Function Setup Guide
Trusted & Verified

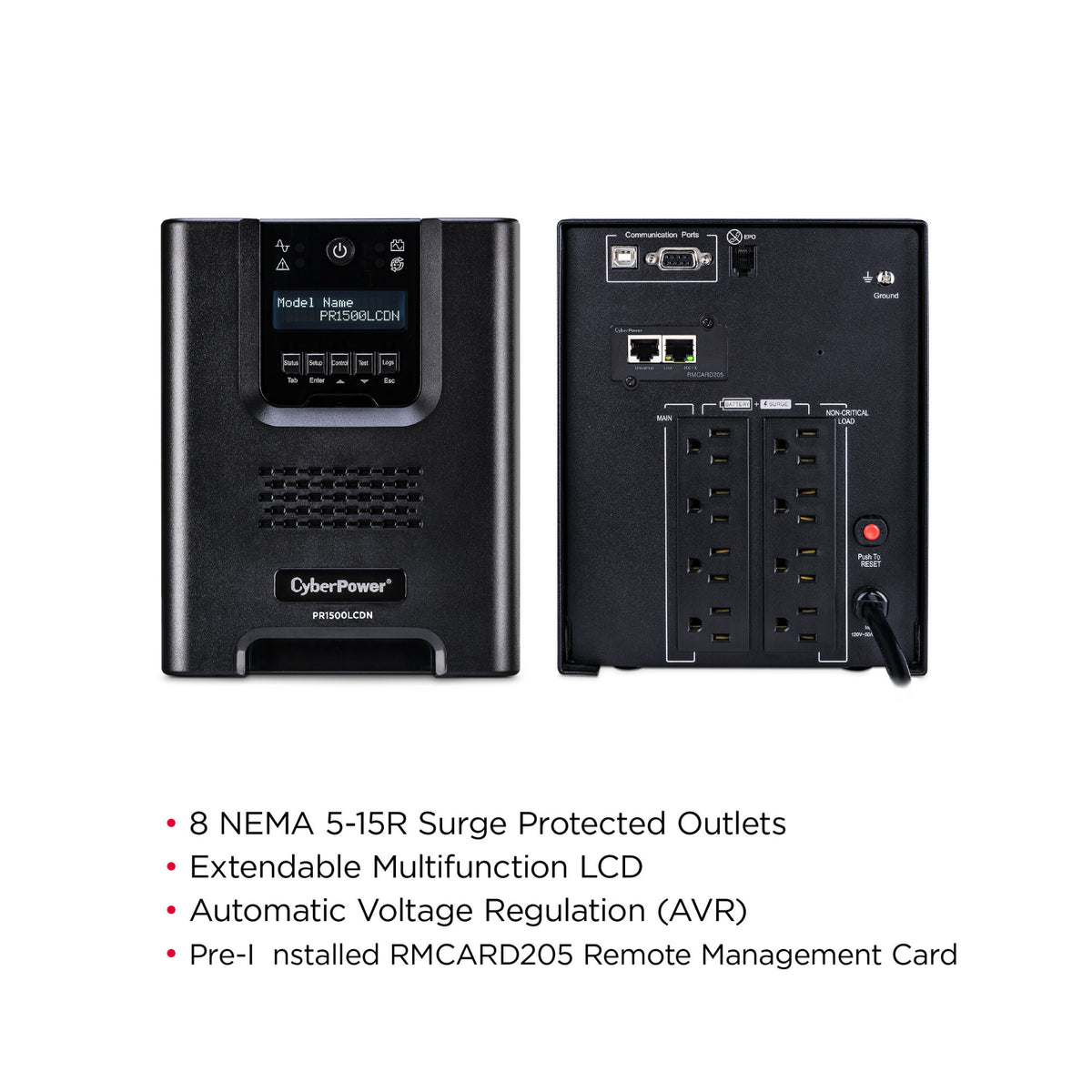

CyberPower PR1500LCDN 1500VA/1050W Sine Wave Mini Tower UPS with RMCARD205
- Mini tower UPS with line interactive topology and sine wave output
- Battery backup supplies power for proper equipment shutdown during utility power failure
- Automatic Voltage Regulation corrects minor power fluctuations without using battery power
- Surge protection diverts excess voltage away from sensitive electronic equipment
- Preinstalled RMCARD205 provides remote management and configuration

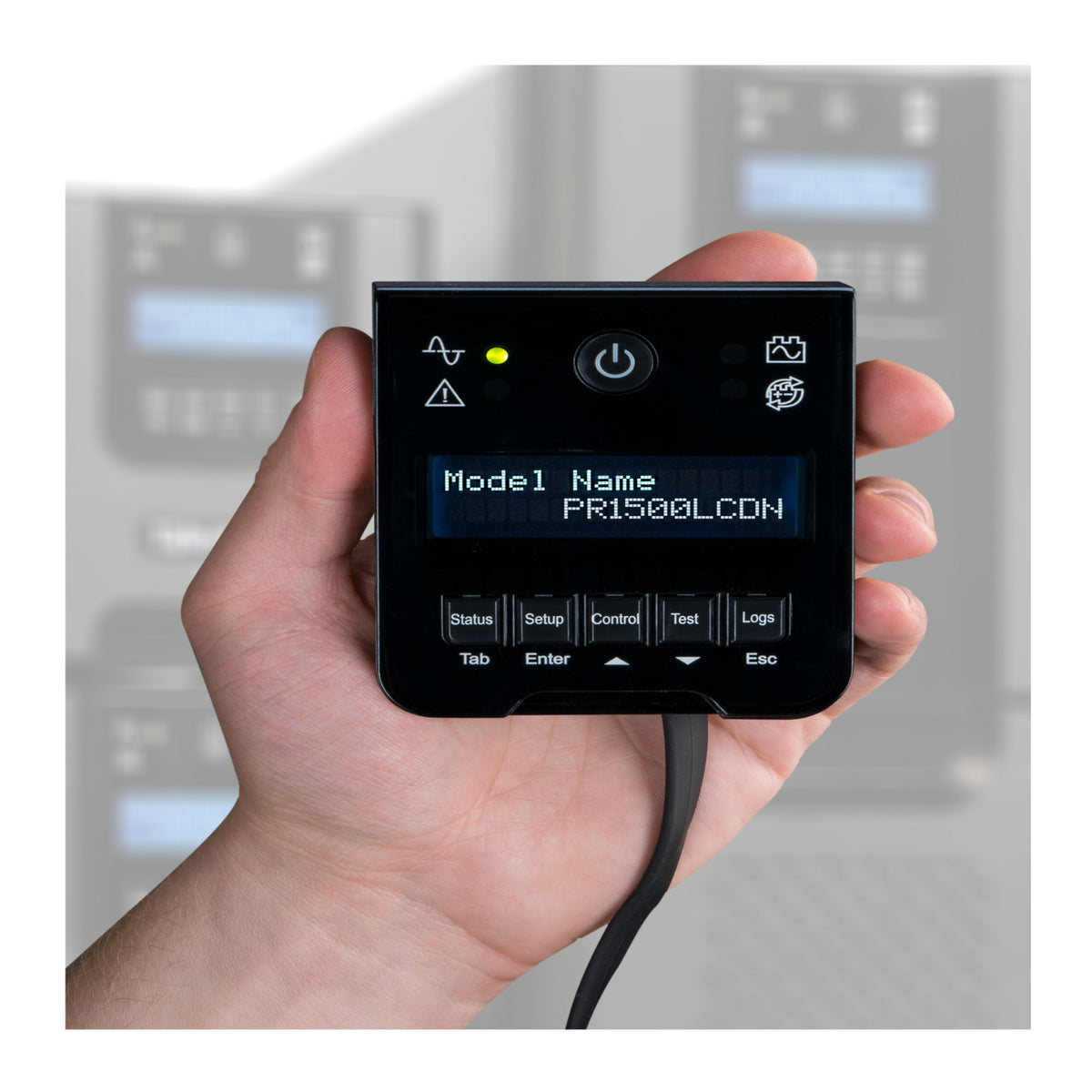

- Extendable LCD control panel can be relocated using the attached 4.5 feet cable
- PowerPanel Business Edition provides tools for monitoring and managing backup power
- GreenPower UPS Bypass Design reduces energy consumption, noise, and heat buildup
The CyberPower Smart App Sinewave PR1500LCDN is a mini tower UPS with line interactive topology, sine wave output, battery backup, surge protection, and a preinstalled SNMP card. It provides power protection for corporate servers, department servers, storage appliances, network devices, telecom installations, and systems requiring Active PFC power source compatibility.
Automatic Voltage Regulation
Automatic Voltage Regulation provides clean, consistent AC power by automatically increasing low voltage without using battery power when incoming utility power experiences minor fluctuations. This helps extend battery life and supports installations where power fluctuations occur frequently. Line interactive topology also regulates low voltages and over voltages without having to switch to battery power.
Remote Management and Control
The installed RMCARD205 remote management card provides remote management and configuration of the UPS through a standard Web browser or network management system. The extendable LCD control panel can be removed and relocated using the attached 4.5 feet cable, providing easier access to view status or change settings when the UPS is installed under a desk, at the bottom of a rack, in an IT closet, or on the floor.
PowerPanel Business Edition software provides IT professionals with tools for monitoring and managing the UPS and backup power. GreenPower UPS Bypass Design allows utility power to bypass the UPS transformer when AC power is stable, reducing energy consumption, noise, and heat buildup.
General
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| UPS Topology | Line Interactive |
Battery
| Battery Quantity | 2 |
| Battery Size | 12 V / 17 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB12170X2A |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 4.7 min |
| Runtime at Half Load | 15.1 min |
| Typical Recharge Time | 3 hours Quick Charge Mode, 8 hours Eco Mode |
| User Replaceable Battery | Yes |
Input
| Adjustable Voltage Range | 75 to 154 VAC |
| Circuit Breaker | 15 A |
| Cord Length | 6 feet (1.8 m) |
| Input Frequency Range | 47 Hz to 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage Range | 78 VAC to 149 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Straight |
Output
| Automatic Voltage Regulation | Double Boost, Single Buck |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50/60 Hz ± 0.1 Hz |
| On Battery Voltage | 120 VAC ± 5% |
| On Battery Waveform | Sine Wave |

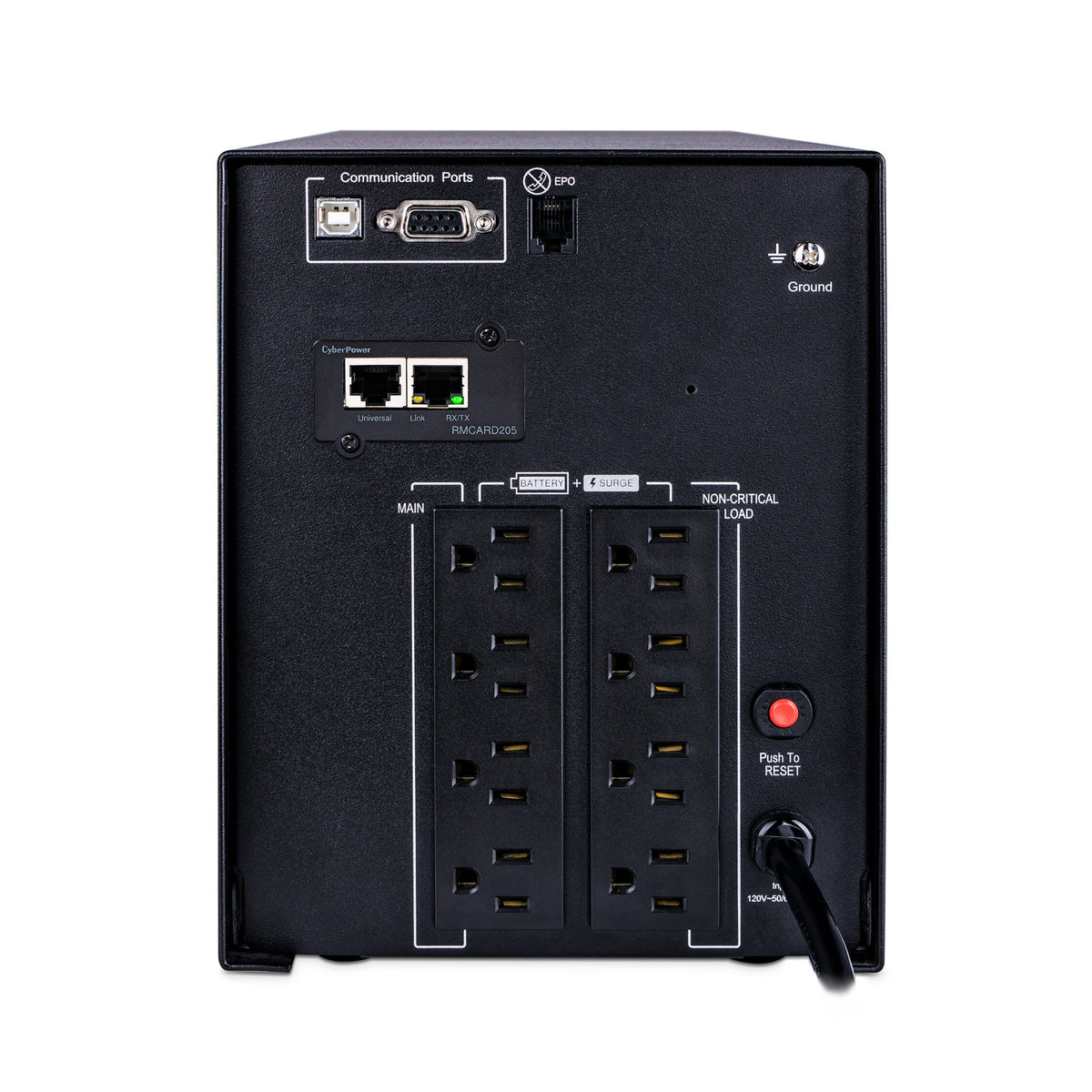

| Outlet Type | 8 NEMA 5-15R |
| Outlets Battery and Surge Protected | 8 |
| Outlets Critical Load | 4 |
| Outlets Total | 8 |
| Output Power Factor | 1 |
| Overload Protection | Internal Circuitry Limiting, Circuit Breaker Protected |
| Typical Transfer Time | 4 ms |
| USB Charge Port | No |
| VA | 1500 VA |
| Watts | 1500 W |
Surge Protection and Filtering
| EMI/RFI Filtration | Yes |
| Surge Suppression | 1030 J |
Management and Communications
| Audible Alarms | Battery Mode, Low Battery, Overload, UPS Fault, Replace Battery |
| Emergency Power Off Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, On Line, Battery Mode, Wiring Fault, Replace Battery |
| Management Cable | USB Cable, Serial Cable, EPO Cable |
| Removable LCD Control Panel Option | Yes, Standard with 4.5 feet Cable |
| SNMP / HTTP Remote Monitoring | Yes, RMCARD205 preinstalled |
| Serial Port | 1 Serial |
| Software | PowerPanel Business |
Physical
| Color | Black |
| Form Factor | Mini Tower |
| Material of Construction | Metal |
Dimensions
| Physical Dimensions WxHxD | 17.02 x 22.1 x 43.18 cm |

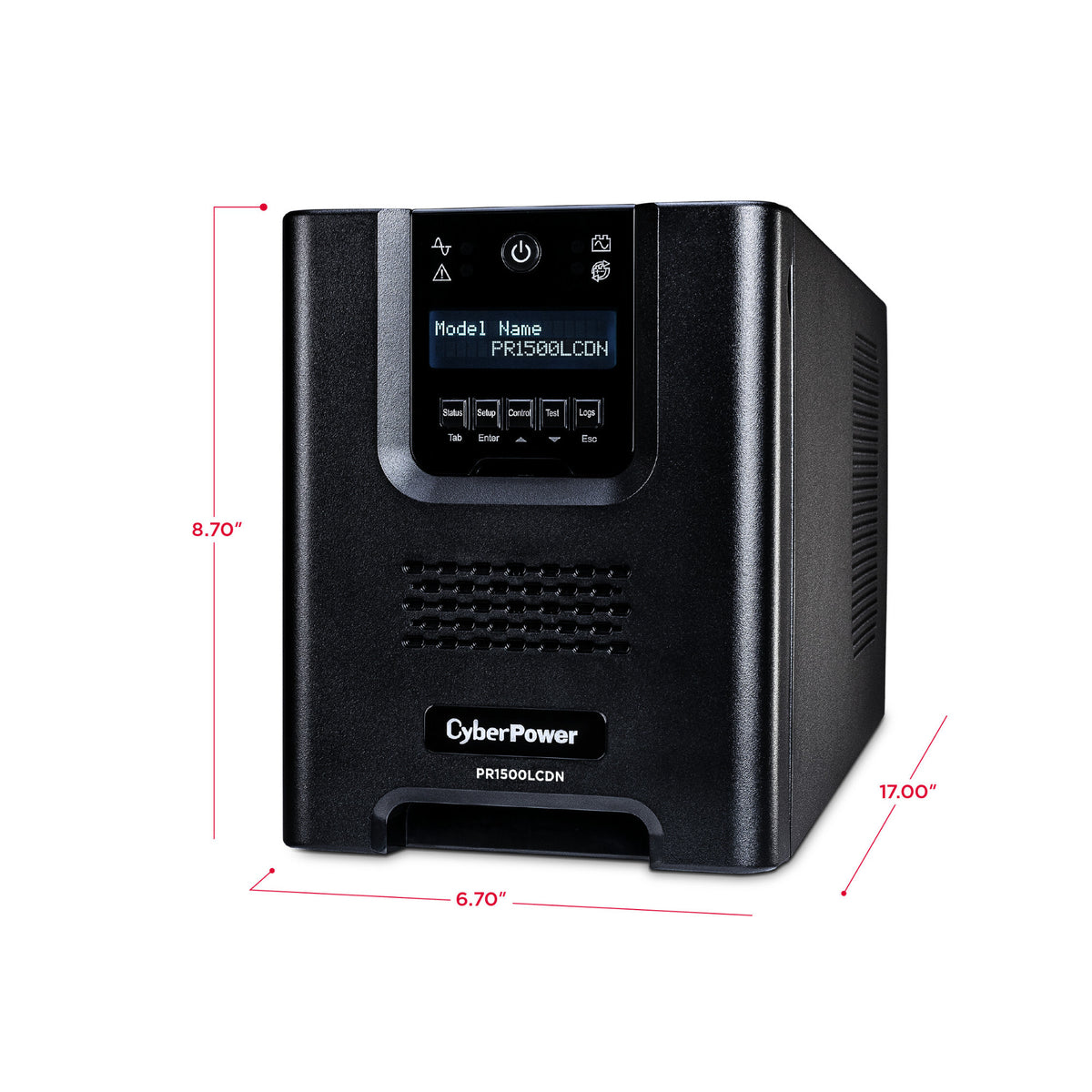

| Physical Dimensions WxHxD | 6.7 x 8.7 x 17 inch |
| Physical Dimensions WxHxD | 170 x 221 x 432 mm |
| Physical Weight | 24.49 kg |
| Physical Weight | 54 lb |
Shipping Dimensions
| Shipping Weight | 26.53 kg |
| Shipping Weight | 58.5 lb |
| Shipping Dimensions WxHxD | 31.75 x 36.2 x 57.79 cm |
| Shipping Dimensions WxHxD | 12.5 x 14.25 x 22.75 inch |
| Shipping Dimensions WxHxD | 317.5 x 361.95 x 577.85 mm |
Environmental
| Operating Elevation | 0 to 10000 feet (0 to 3048 m) |
| Operating Relative Humidity | 0 to 95% non condensing |
| Operating Temperature | 32 to 104 °F (0 to 40 °C) |
| Storage Elevation | 0 to 50000 feet (0 to 15239 m) |
| Storage Relative Humidity | 0 to 95% non condensing |
| Storage Temperature | 5 to 113 °F (-15 to 45 °C) |
Certifications
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Safety | cUL 107.3 |
| Safety | FCC DOC Class A |
