- 1 x CyberPower PR1500RT2UCN 1500VA-1500W 2U UPS
- 1 x Front Faceplate
- 2 x Post Rack Mounting Kit
- 1 x Tower Mounting Kit
- 1 x Gray Emergency Power Off Cable
- 1 x Serial Interface Cable
- 1 x USB Type-A to USB Type-B Cable
- 1 x User Manual
Trusted & Verified

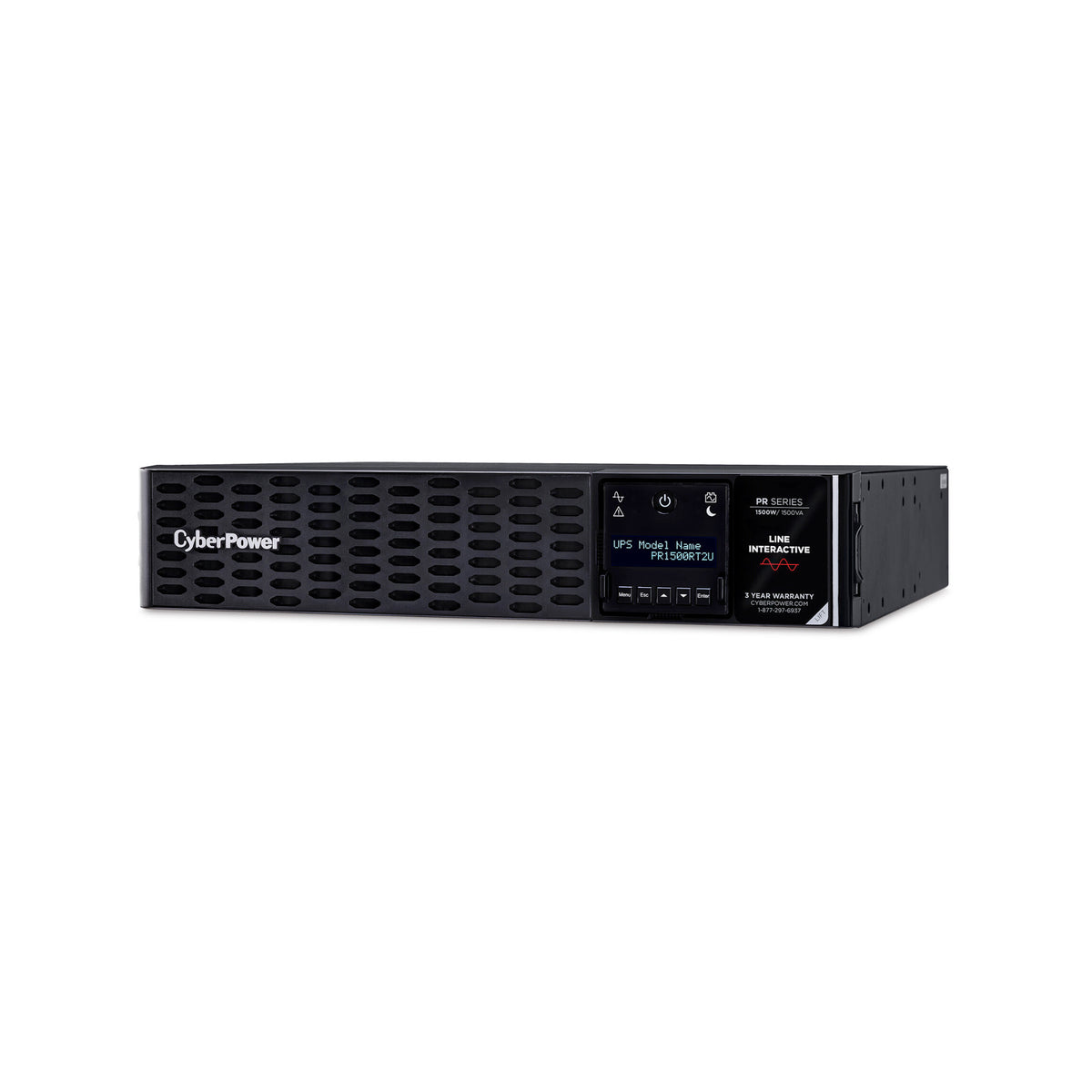

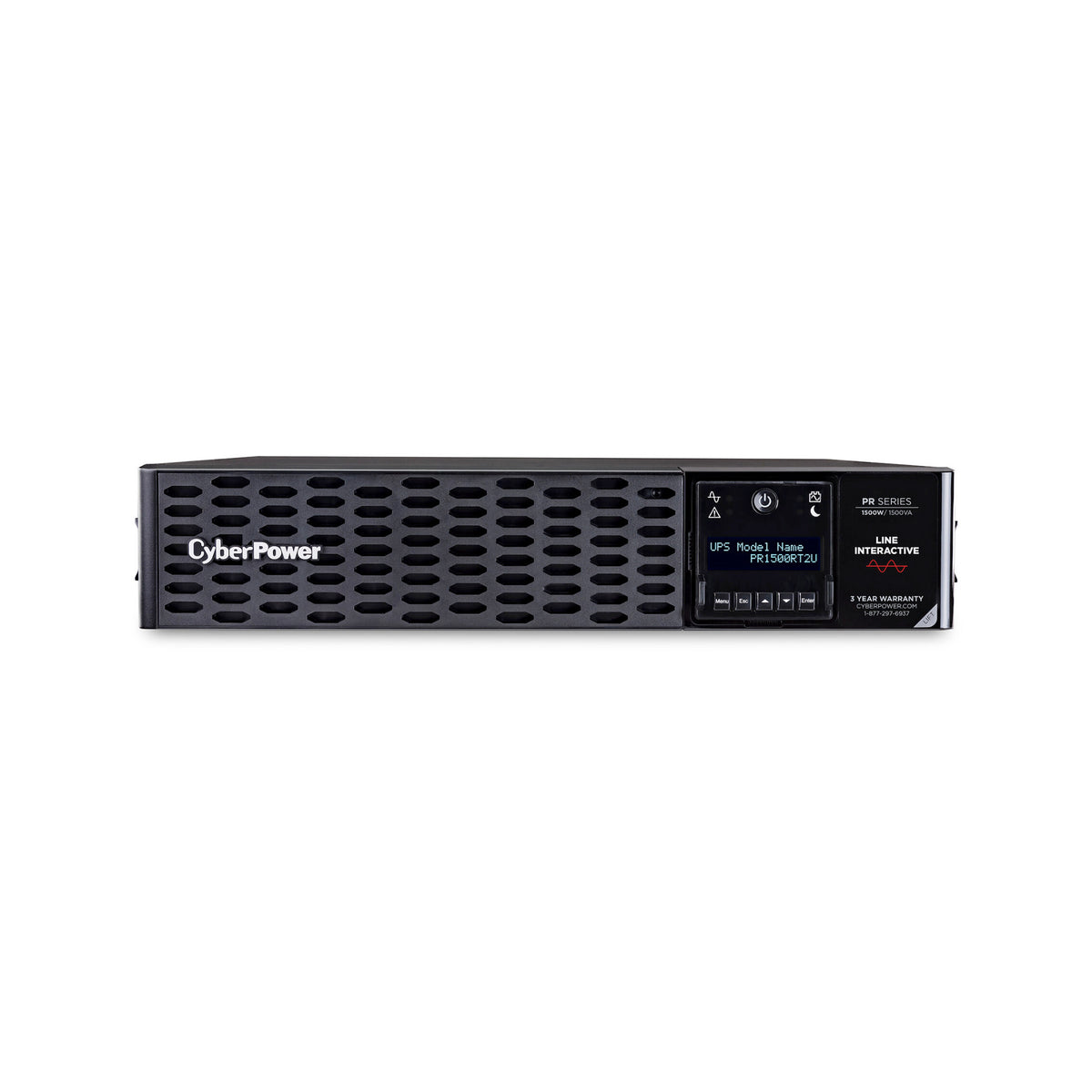

CyberPower PR1500RT2UCN 1500VA-1500W 2U Rack/Tower Convertible Sinewave UPS with RMCARD205
- 1500VA and 1500W Output Capacity
- Sinewave Battery Output
- Rack or Tower Convertible 2U Design
- Factory Installed RMCARD205 for Remote Control
- Built-in Cloud Monitoring
- 8 Battery and Surge-protected Outlets
- Rotatable and Tilting Multi-function LCD
- Automatic Voltage Regulation
- User Replaceable Batteries
- 3-Year Manufacturer Limited Warranty
- $400,000 Connected Equipment Manufacturer Guarantee
Protect compatible servers, storage systems, network equipment, and telecom hardware with the CyberPower PR1500RT2UCN Smart Sinewave UPS. Its 1500VA and 1500W capacity provides battery backup, surge protection, and sinewave output in a rack or tower convertible 2U chassis.
Automatic Voltage Regulation
The line interactive design uses double boost and single buck Automatic Voltage Regulation to correct minor incoming voltage fluctuations without switching to battery power. Battery equalization maintains consistent battery voltages, while fast charge technology restores the internal batteries to 90% capacity in approximately 3 hours under the stated conditions.
Remote Network Management
A factory installed RMCARD205 provides remote monitoring, configuration, and control through a standard web browser, command line interface, or compatible network management system. Built-in cloud monitoring supports remote access, while PowerPanel Business software provides additional UPS monitoring and management tools.

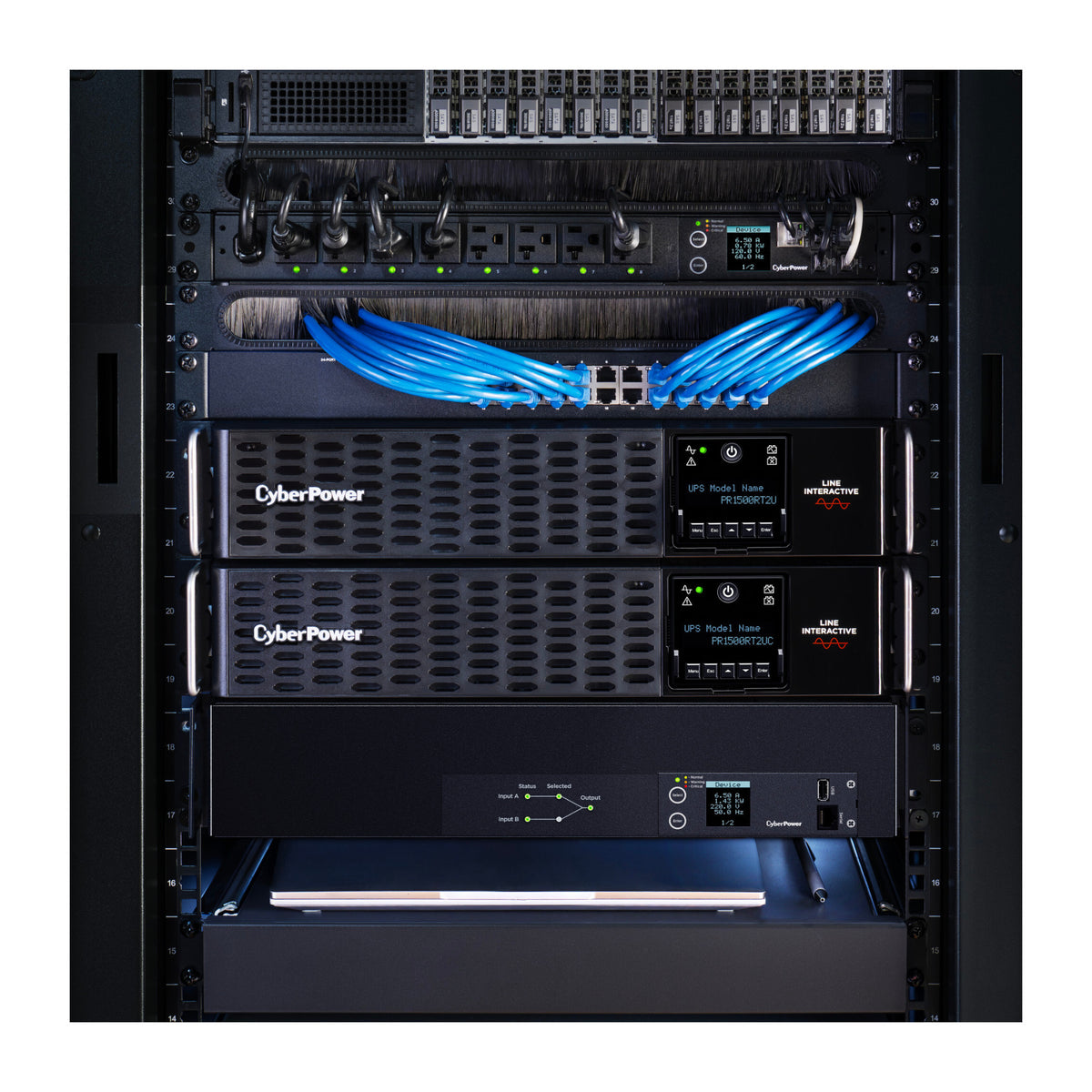

Flexible Rack or Tower Installation
The 2U metal chassis can be mounted horizontally in a rack or positioned vertically using the included tower hardware. 8 x NEMA 5-15R outlets provide battery backup and surge protection. The LCD panel tilts for low rack placement and rotates 90 degrees for tower use, with access to 47 status, setup, control, and testing settings.
Reliable Battery System
4 hot swappable sealed lead acid batteries provide approximately 18.2 minutes of runtime full load. A removable front faceplate and captive battery panel screws simplify battery access during maintenance.
General
| Brand | CyberPower |
| Series | Smart App Sinewave |
| Model | PR1500RT2UCN |
| Product Type | Uninterruptible Power Supply |
| Form Factor | Rack or Tower |
| Rack Height | 2U |
| Topology | Line Interactive |
| Color | Black |
| Construction Material | Metal |
| Active PFC Compatibility | Yes |
Output
| Output Capacity | 1500 VA |
| Output Power | 1500 W |
| Output Power Factor | 1 |
| On Battery Voltage | 100, 110, 120, or 125 VAC, +/- 5% |
| On Battery Frequency | 50 or 60 Hz, +/- 1% |
| On AC Waveform | Sine wave |
| On Battery Waveform | Sine Wave |
| Automatic Voltage Regulation | Double Boost and Single Buck |
| Typical Transfer Time | 6 ms |
| Maximum Transfer Time | 11 ms at Normal Sensitivity |

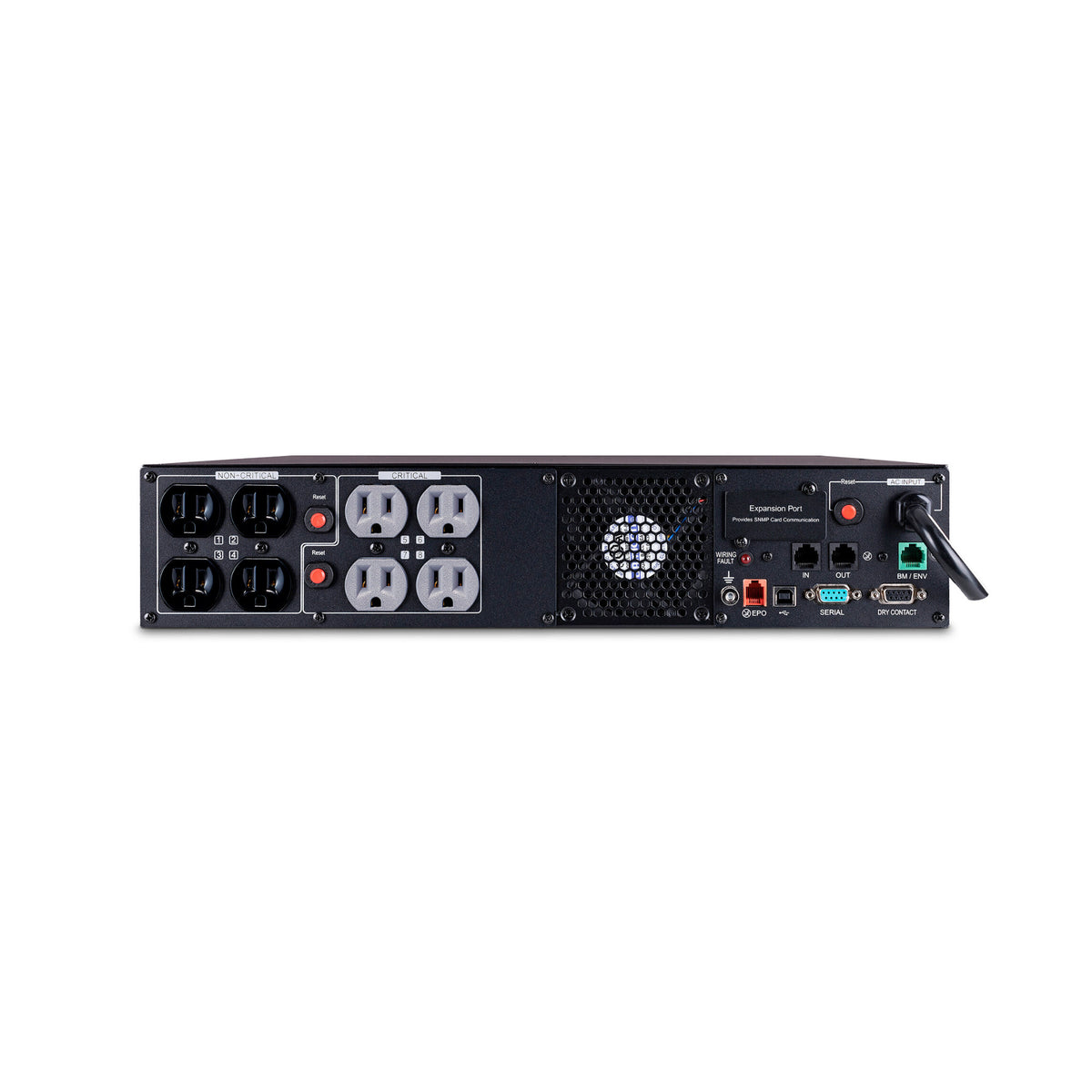

Outlets
| Total Outlets | 8 |
| Battery and Surge Protected Outlets | 8 |
| Critical Load Outlets | 4 |
| Outlet Type | NEMA 5-15R |
Input
| Nominal Input Voltage | 120 VAC |
| Input Voltage | 100 to 125 VAC |
| Input Voltage Range | 75 to 149 VAC |
| Adjustable Voltage Range | 70 to 155 VAC |
| Input Frequency Range | 47 to 63 Hz |
| Input Plug | NEMA 5-15P |
| Plug Style | Right Angle with 45 Degree Offset |
| Power Cord Length | 10ft |
| Circuit Breaker | 15 A |
Battery
| Battery Type | Sealed Lead Acid |
| Battery Quantity | 4 |
| Battery Rating | 12 V and 9 Ah Each |
| Runtime at Half Load | 18.2 Minutes |
| Runtime at Full Load | 6.5 Minutes |
| Typical Recharge Time | 3 Hours from 0 to 90 Percent |
| Hot Swappable Battery | Yes |
| User Replaceable Battery | Yes |
| Replacement Battery Cartridge | RB1290X4J |
Surge Protection and Filtering
| Surge Suppression | 2430 Joules |
| EMI and RFI Filtration | Yes |
| Energy Saving Technology | GreenPower UPS Bypass Technology |
Display and Indicators
| Display Type | Multifunction LCD |
| Display Movement | Tilting and 90 Degree Rotation |
| Available Settings and Functions | 47 |
| LED Indicators | Power On, Line Mode, Battery Mode, and Fault |
Alarms
| Battery Mode Alarm | Yes |
| Low Battery Alarm | Yes |
| Overload Alarm | Yes |
| Overcharge Alarm | Yes |
| Fault Alarm | Yes |
Management and Communication
| Network Management Card | RMCARD205 (Factory Installed) |
| Cloud Monitoring | Built-in |
| HID Compliant USB Port | Yes |
| Serial Port | 1 |
| Dry Contact Connection | 1 |
| Emergency Power Off Port | Yes |
| SNMP and HTTP Remote Monitoring | Yes |
| Management Software | PowerPanel Business |
Dimensions and Weight
| Width | 17.1 inches |
| Height | 3.4 inches |
| Depth | 16.2 inches |
| Product Weight | 55.8 Pounds |
Shipping Dimensions and Weight
| Shipping Width | 20.75 inches |
| Shipping Height | 10.75 inches |
| Shipping Depth | 22 inches |
| Shipping Weight | 64.4 Pounds |
Environmental Requirements
| AC Mode Thermal Dissipation | 75.1 BTU/hr |
| Operating Elevation | 0-10000 ft (0-3048 m) |
| Operating Relative Humidity | 0-95 % (non-condensing) |
| Operating Temperature | 32 to 104 degrees F (0 to 40 degrees C) |
| Storage Elevation | 0-50000 ft (0-15239 m) |
| Storage Temperature | 5 to 113 degrees F (-15 to 45 degrees C) |
