- UPS System
- Faceplate
- UPS User Manual
- 2 x Post Rack Mounting Kit
- 4 x Post Rail Rack Mounting Kit
- Tower Mounting Kit
- Emergency Power Off Cable (Gray)
- USB A+B Type Cable
- 3 Year Limited Warranty
Trusted & Verified

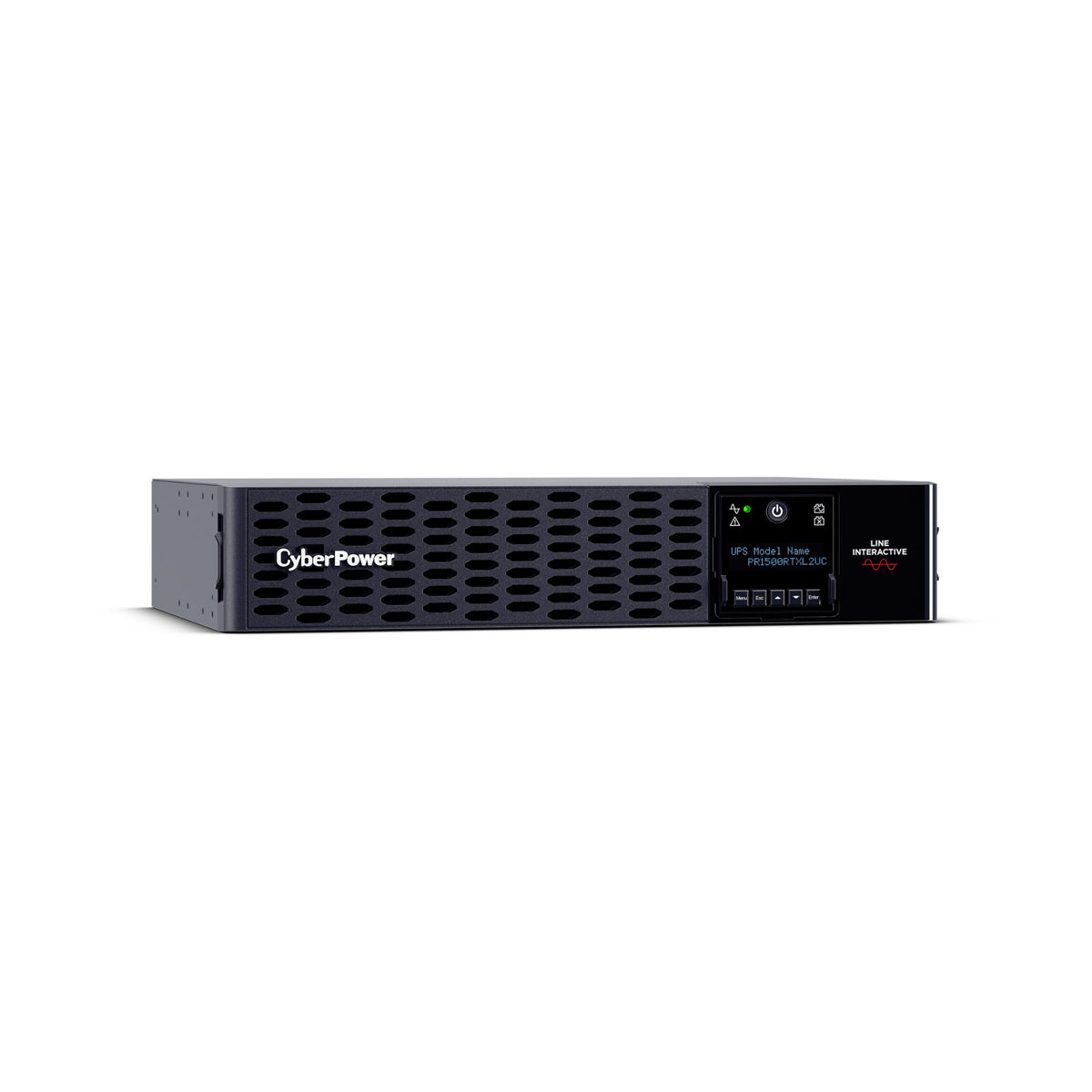

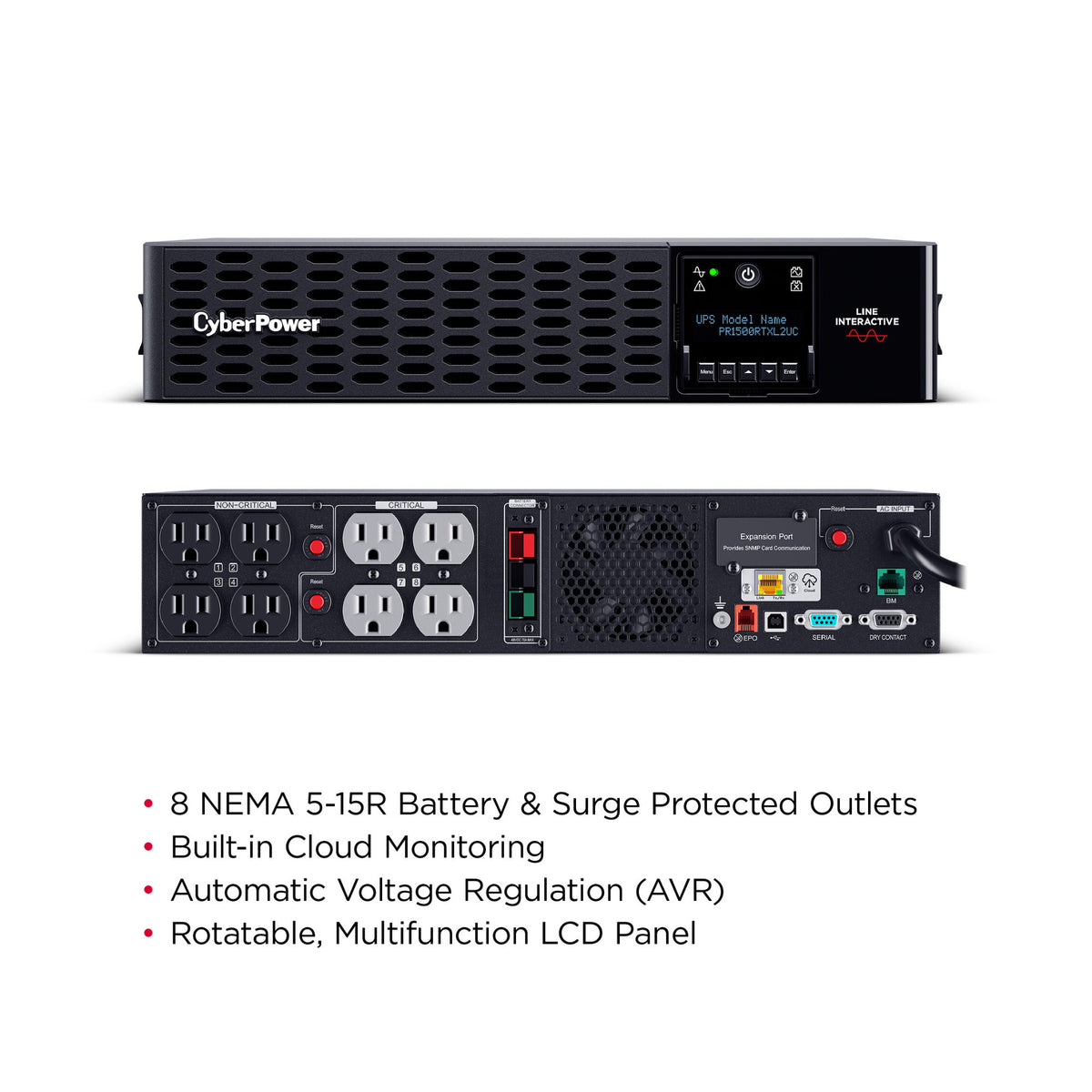

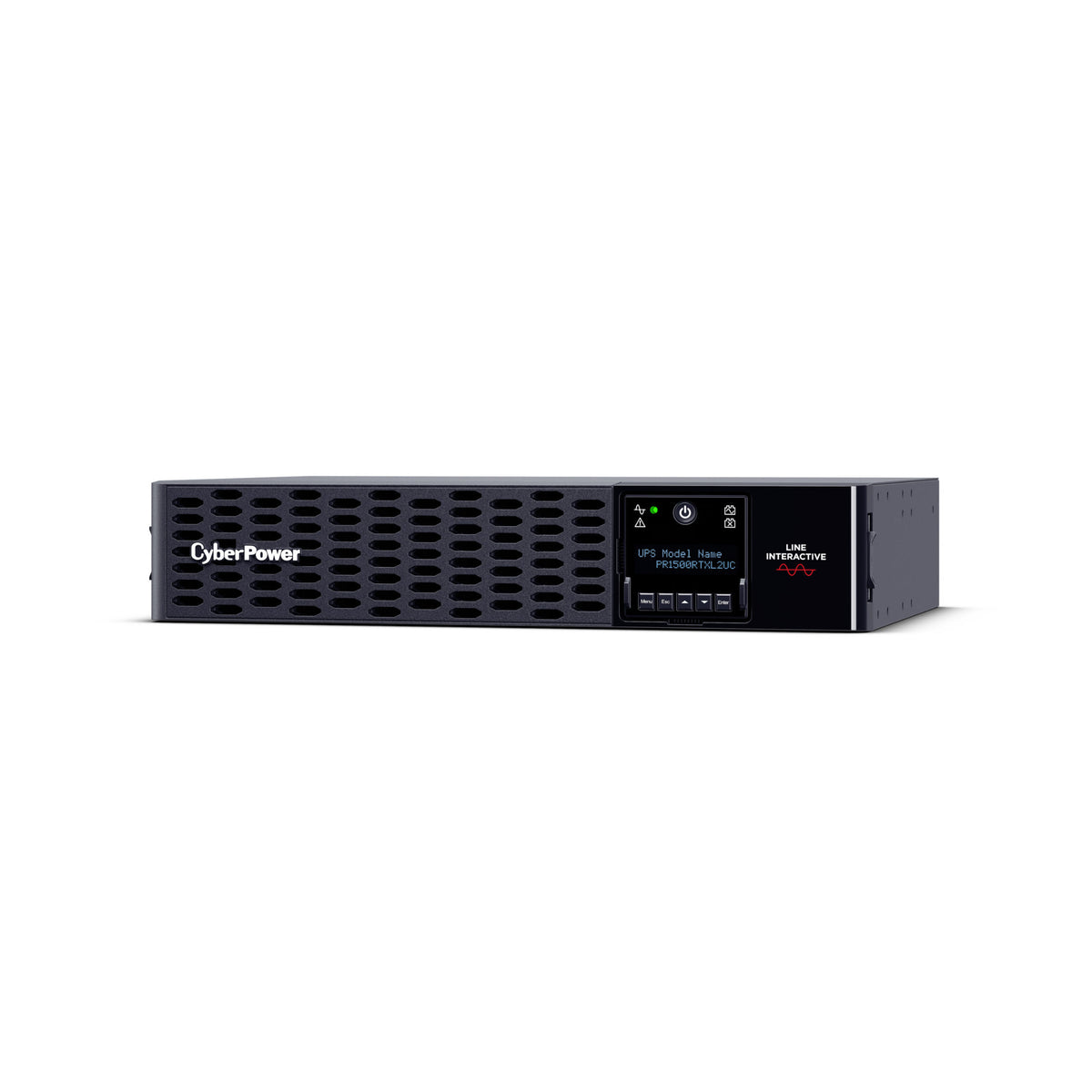

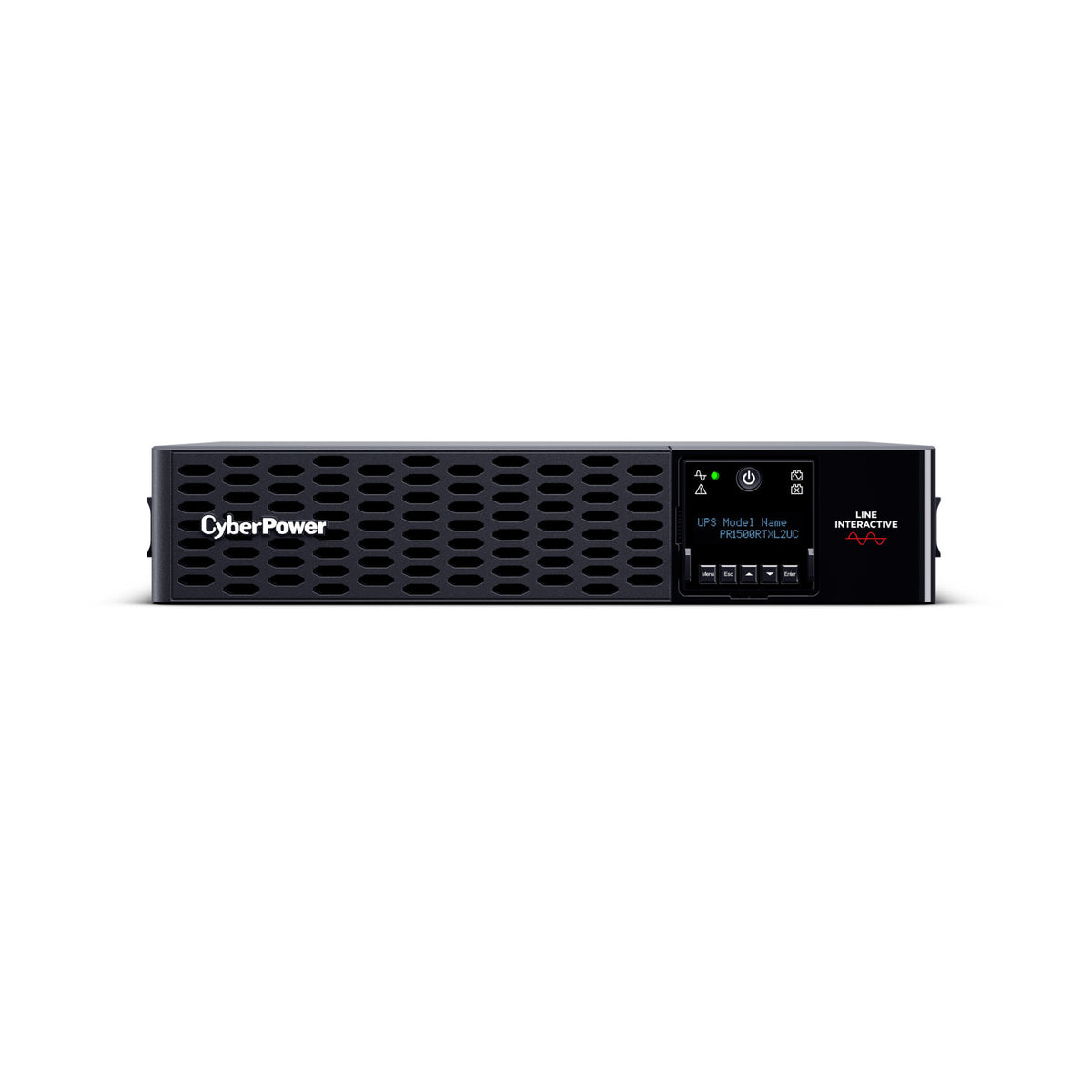

Cyberpower PR1500RTXL2UC 1500VA/1500W Smart App Sinewave LCD 2U Rack/Tower UPS
- 1500 VA and 1500 W capacity supports servers, storage, network, and telecom equipment
- Sine wave output supports sensitive electronics and Active PFC power supplies
- 17.9 minute half load runtime and 6.5 minute full load runtime
- 8 NEMA 5-15R outlets provide battery backup and surge protection
- Automatic Voltage Regulation corrects minor utility fluctuations without battery use
- 2U metal chassis supports rack or tower installation
- Rotatable multifunction LCD provides access to 47 settings
- Built in cloud monitoring supports remote oversight
- Accepts the BP48VP2U02 Extended Battery Module for expanded runtime
Protect servers, network devices, storage systems, telecom equipment, and other sensitive electronics with the CyberPower PR1500RTXL2UC Smart App Sinewave UPS. Its 1500 VA and 1500 W capacity delivers sine wave battery backup through 8 NEMA 5-15R outlets, helping connected equipment continue operating long enough for an orderly shutdown during a utility failure.
Voltage Regulation Without Unnecessary Battery Use
Line interactive topology and Automatic Voltage Regulation correct minor incoming voltage fluctuations without switching to battery power. Battery equalization technology maintains balanced battery voltages, while Fast Charge Technology restores the internal batteries to 90 percent charge in about 3 hours under typical conditions. Runtime is rated at 17.9 minutes at half load and 6.5 minutes at full load.
Flexible Rack or Tower Installation

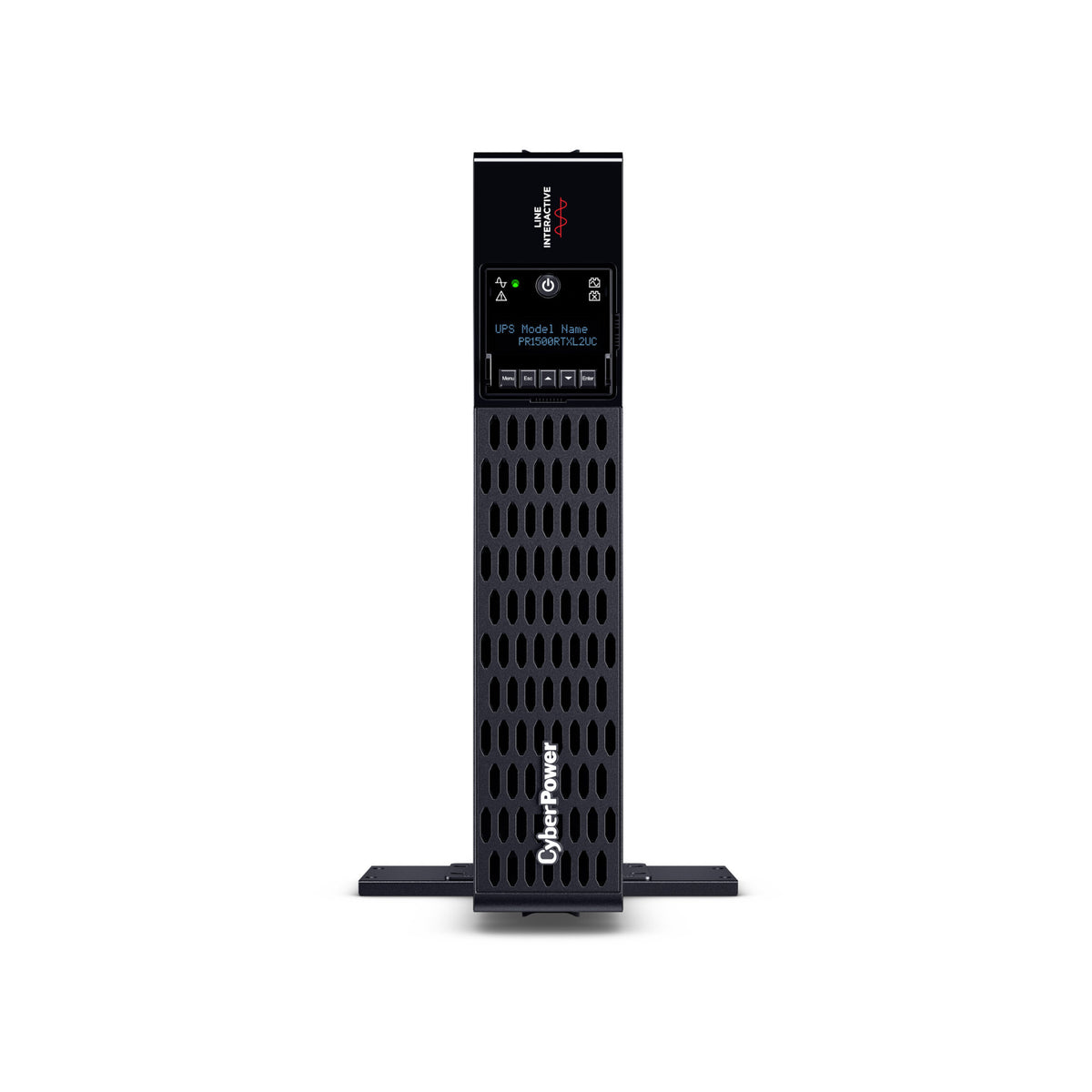

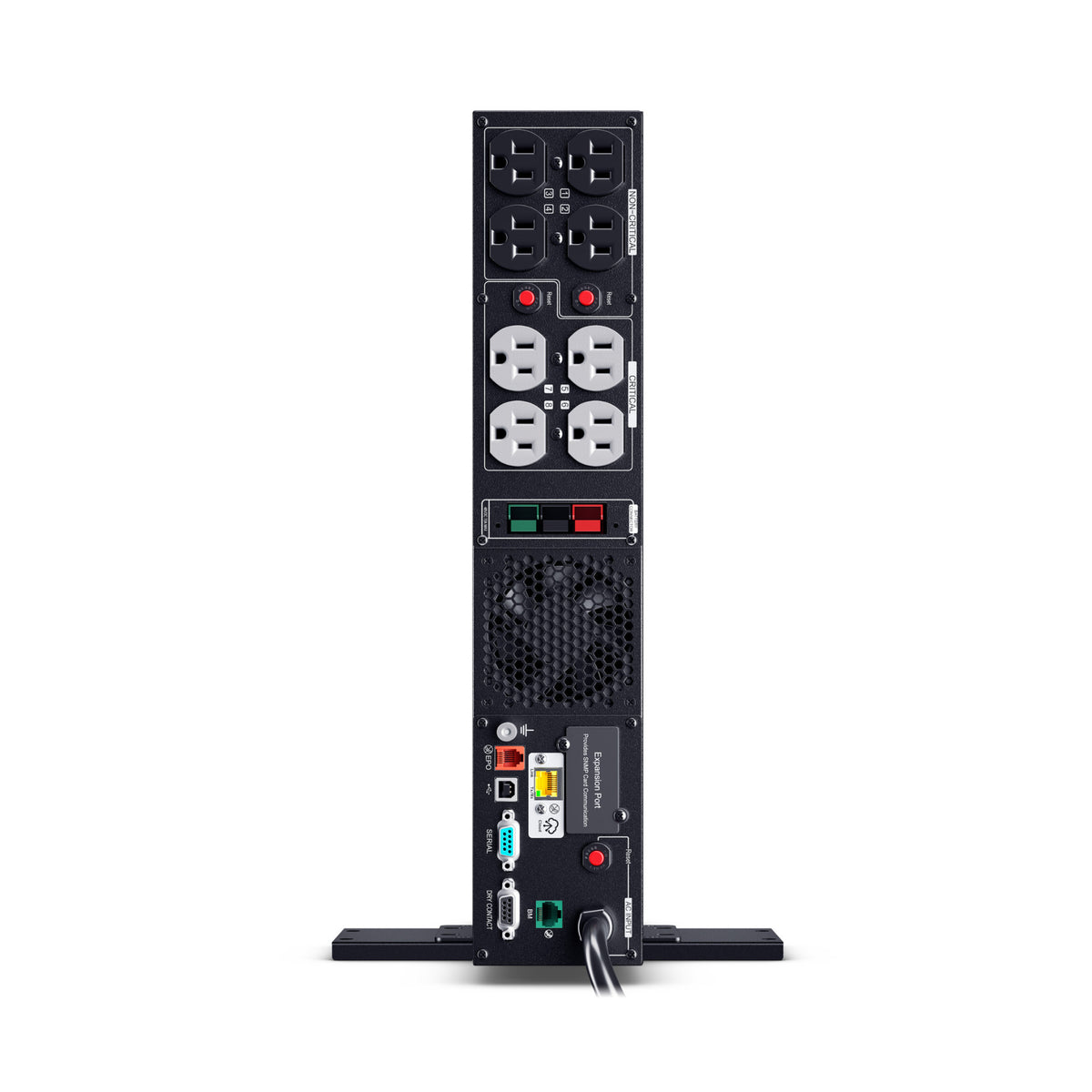

The 2U metal chassis supports horizontal rack installation or vertical tower placement. A rotatable multifunction LCD tilts for visibility and turns 90 degrees for tower use. It provides access to 47 settings for status, setup, control, and testing. The removable front faceplate, hand loosened captive screws, and color coded rear panel simplify installation and battery service.
Local and Remote Power Management
Built in cloud monitoring supports remote oversight through the Ethernet cloud port. USB, serial, dry contact relay, and Emergency Power Off connections support varied management environments. PowerPanel Business software adds monitoring and shutdown tools, while the optional RMCARD205 enables browser and network management system access. The UPS accepts the BP48VP2U02 Extended Battery Module for longer runtime during outages. It also combines 2430 joules of surge suppression, user replaceable hot swappable batteries, and rack or tower flexibility in one business focused power protection platform.
General:
| Active PFC Compatible | Yes |
| Energy Saving | GreenPower UPS Bypass Technology |
| Energy Star Certified | Yes |
| UPS Topology | Line Interactive |
Battery:
| Battery Quantity | 4 |
| Battery Size | 12 V / 9 Ah |
| Battery Type | Sealed Lead Acid Battery |
| Extended Battery Module | BP48VP2U02 |
| Hot Swappable | Yes |
| Replacement Battery Cartridge | RB1290X4J |
| Replacement Battery Cartridge Quantity | 1 |
| Runtime at Full Load | 6.5 minutes |
| Runtime at Half Load | 17.9 minutes |
| Typical Recharge Time | 3 hours from 0 percent to 90 percent charged |
| User Replaceable Battery | Yes |
Input:
| Circuit Breaker | 15 A |
| Cord Length | 10 feet (3.0 meters) |
| Input Frequency Range | 47 Hz to 63 Hz |
| Input Plug Type | NEMA 5-15P |
| Input Voltage | 100 VAC to 125 VAC |
| Input Voltage Range | 70 VAC to 155 VAC |
| Nominal Input Voltage | 120 VAC |
| Plug Style | Right Angle, 45 Degree Offset |
Output:
| Automatic Voltage Regulation | Double Boost and Single Buck |
| On AC Waveform | Sine Wave |
| On Battery Frequency | 50 Hz or 60 Hz, plus or minus 1 percent |
| On Battery Voltage | 100 VAC, 110 VAC, 120 VAC, or 125 VAC, plus or minus 5 percent |
| On Battery Waveform | Sine Wave |

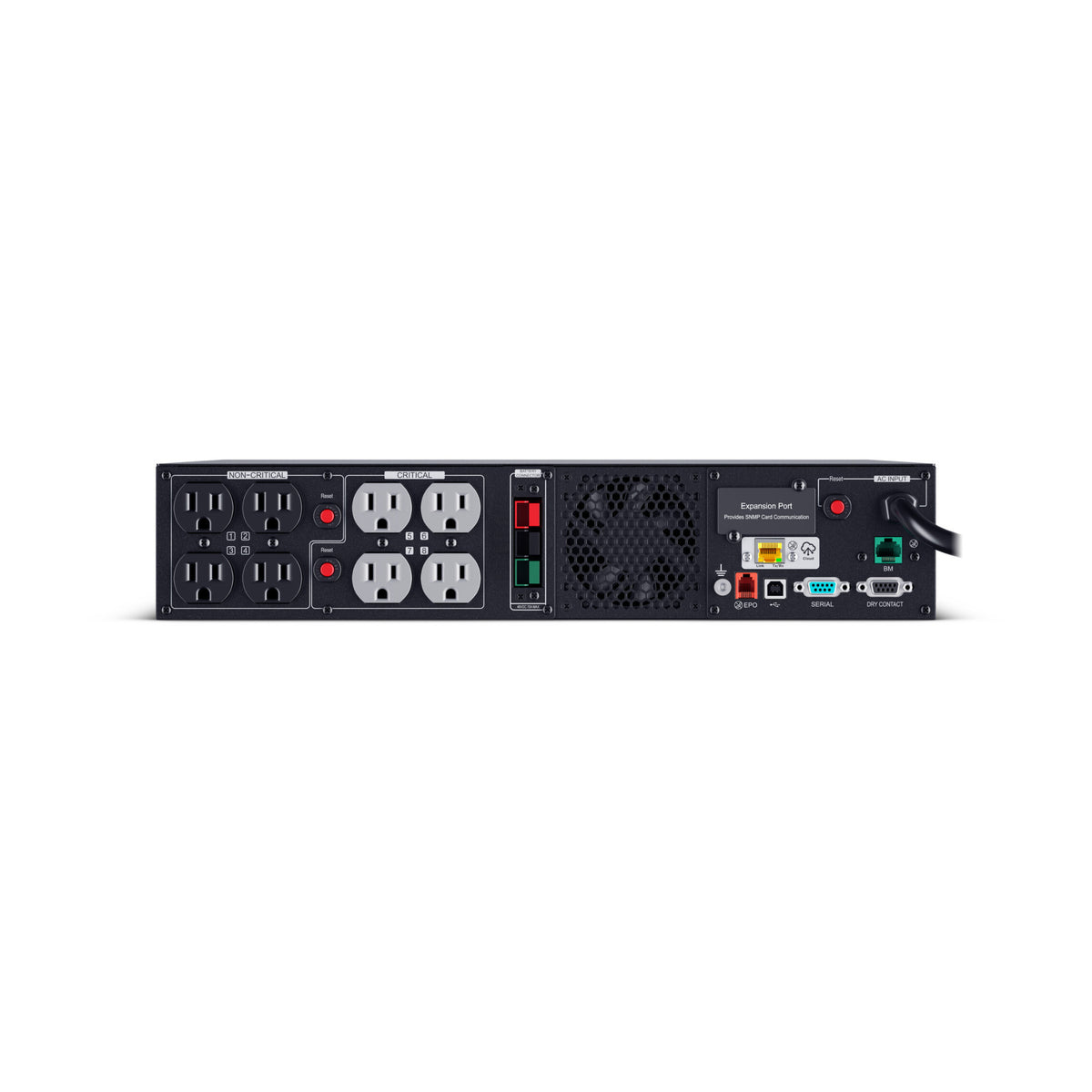

| Outlet Type | 8 x NEMA 5-15R |
| Outlets, Battery and Surge Protected | 8 |
| Outlets, Critical Load | 4 |
| Outlets, Total | 8 |
| Output Power Factor | 1 |
| Overload Protection on Battery | Internal Circuitry Limiting |
| Overload Protection on Utility | Circuit Breaker Protected |
| Typical Transfer Time | 6 milliseconds, maximum 11 milliseconds at normal sensitivity |
| USB Charge Port | No |
| Capacity | 1500 VA |
| Power | 1500 W |
Surge Protection and Filtering:
| EMI and RFI Filtration | Yes |
| Surge Suppression | 2430 J |
Management and Communications:
| Audible Alarms | Battery Mode, Low Battery, Overload, Overcharge, Fault |
| Emergency Power Off Port | Yes |
| HID Compliant USB Port | Yes |
| LCD | Multifunction LCD |
| LED Indicators | Power On, Line Mode, Battery Mode, Fault |
| Management Cables | USB Cable, Serial Cable, Emergency Power Off Cable |
| SNMP and HTTP Remote Monitoring | Yes, with optional RMCARD205 |
| Cloud Monitoring | Yes, with built in RJ45 Ethernet cloud port |
| Serial Ports | 1 Serial Port and 1 Dry Contact Port |
| Software | PowerPanel Business |
Physical:
| Color | Black |
| Form Factor | Rack / Tower |
| Material of Construction | Metal |
| Rack Height | 2U |
Dimensions:

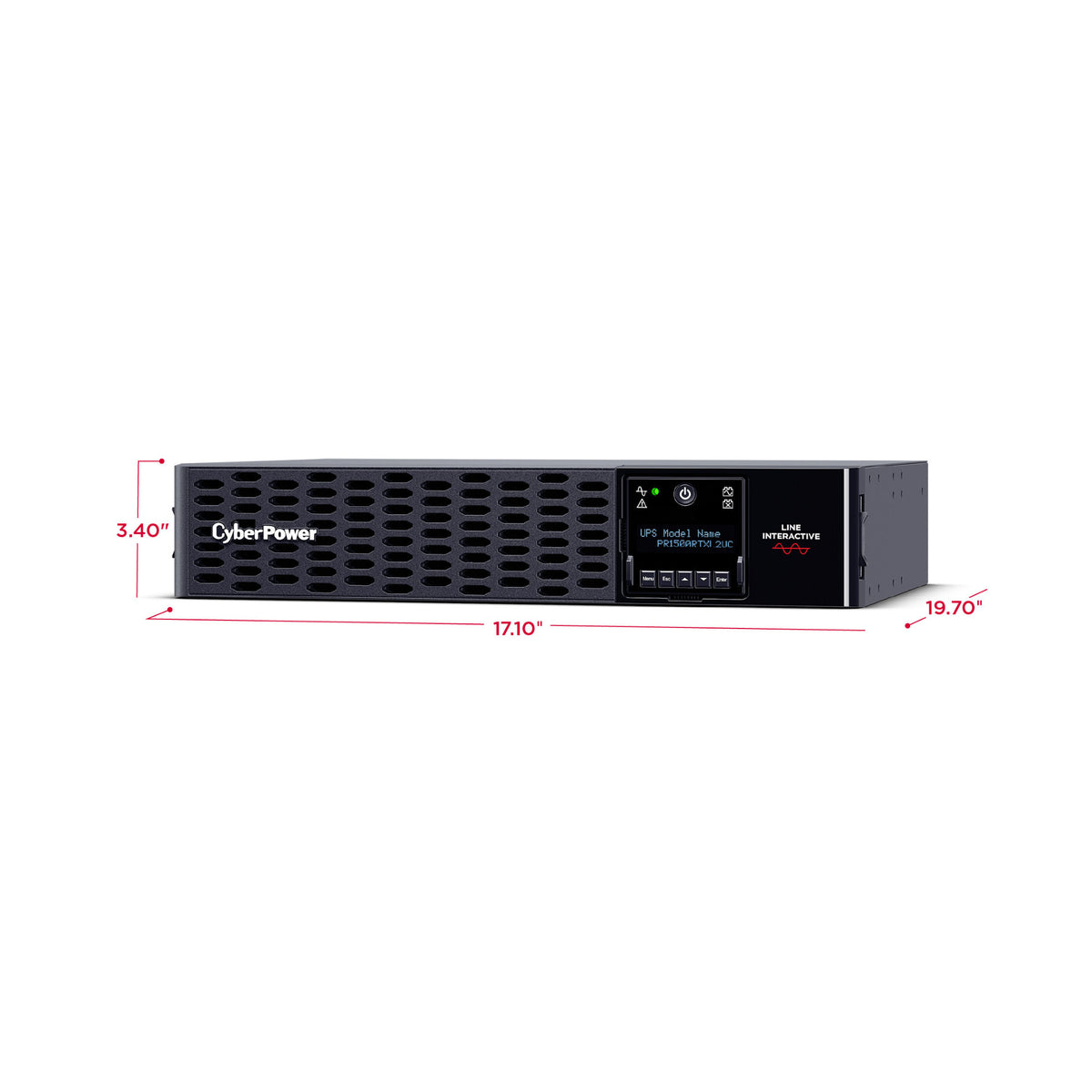

| Physical Dimensions, Width x Height x Depth | 43.43 x 8.64 x 50.04 centimeters |
| Physical Dimensions, Width x Height x Depth | 17.1 x 3.4 x 19.7 inches |
| Physical Dimensions, Width x Height x Depth | 434 x 86 x 500 millimeters |
| Physical Weight | 30.71 kilograms |
| Physical Weight | 67.7 pounds |
Shipping Dimensions:
| Shipping Weight | 37.19 kilograms |
| Shipping Weight | 82 pounds |
| Shipping Dimensions, Width x Height x Depth | 55.88 x 27.31 x 61.6 centimeters |
| Shipping Dimensions, Width x Height x Depth | 22.0 x 10.75 x 24.25 inches |
| Shipping Dimensions, Width x Height x Depth | 558.8 x 273.05 x 615.95 millimeters |
Environmental:
| AC Mode Thermal Dissipation | 96.7 BTU per hour |
| Operating Elevation | 0 feet to 9843 feet (0 meters to 3000 meters) |
| Operating Relative Humidity | 0 percent to 95 percent, noncondensing |
| Operating Temperature | 32 degrees Fahrenheit to 104 degrees Fahrenheit (0 degrees Celsius to 40 degrees Celsius) |
| Storage Elevation | 0 feet to 49213 feet (0 meters to 14999 meters) |
| Storage Temperature | 5 degrees Fahrenheit to 113 degrees Fahrenheit (minus 15 degrees Celsius to 45 degrees Celsius) |
Certifications:
| Environmental | RoHS Compliant |
| Safety | UL1778 |
| Safety | CSA C22.2 No. 107.3 |
| Safety | FCC Class B |
| Safety | VCCI |
| Safety | DOE Compliant |
Warranty
| Product Warranty | 3 Year Limited Warranty |
