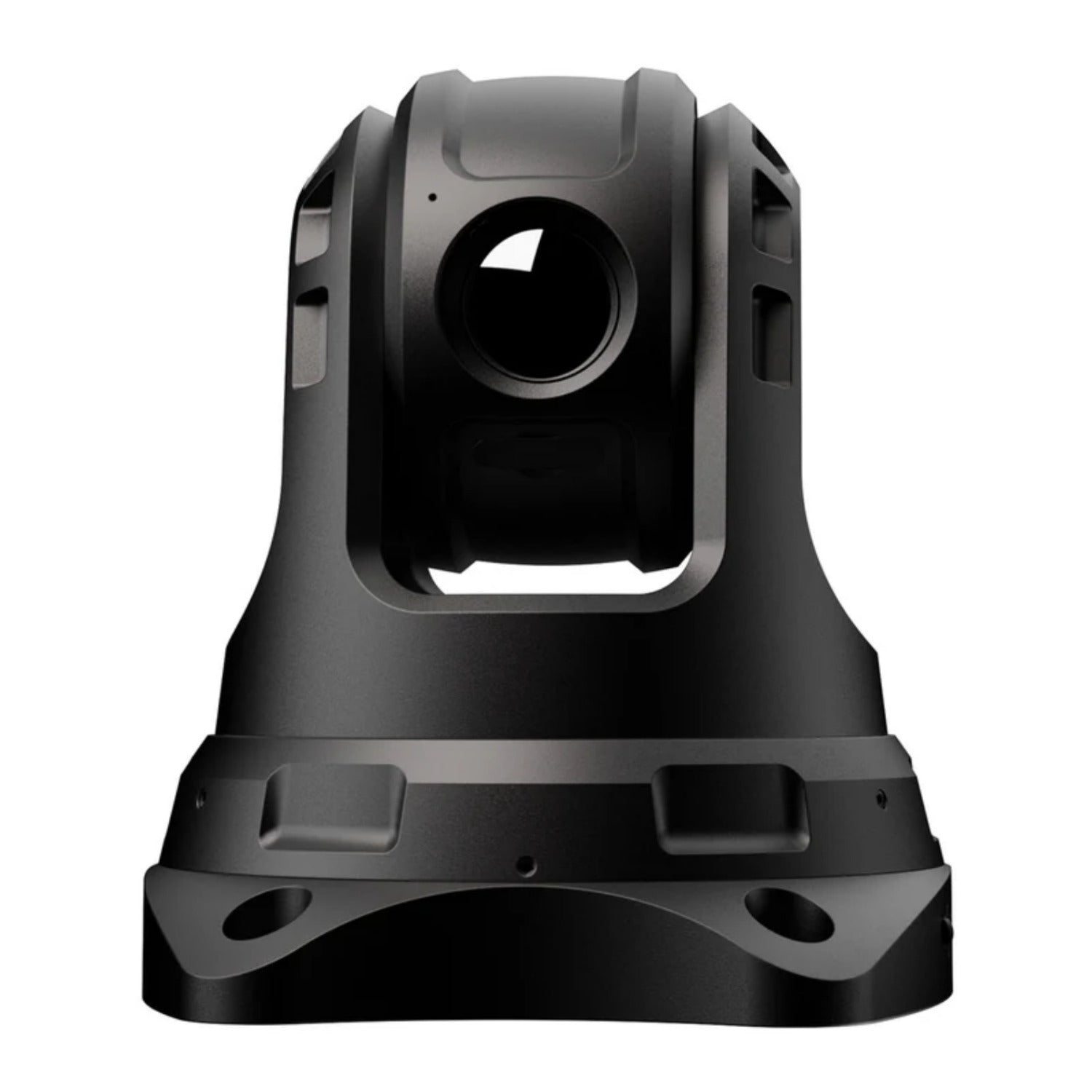

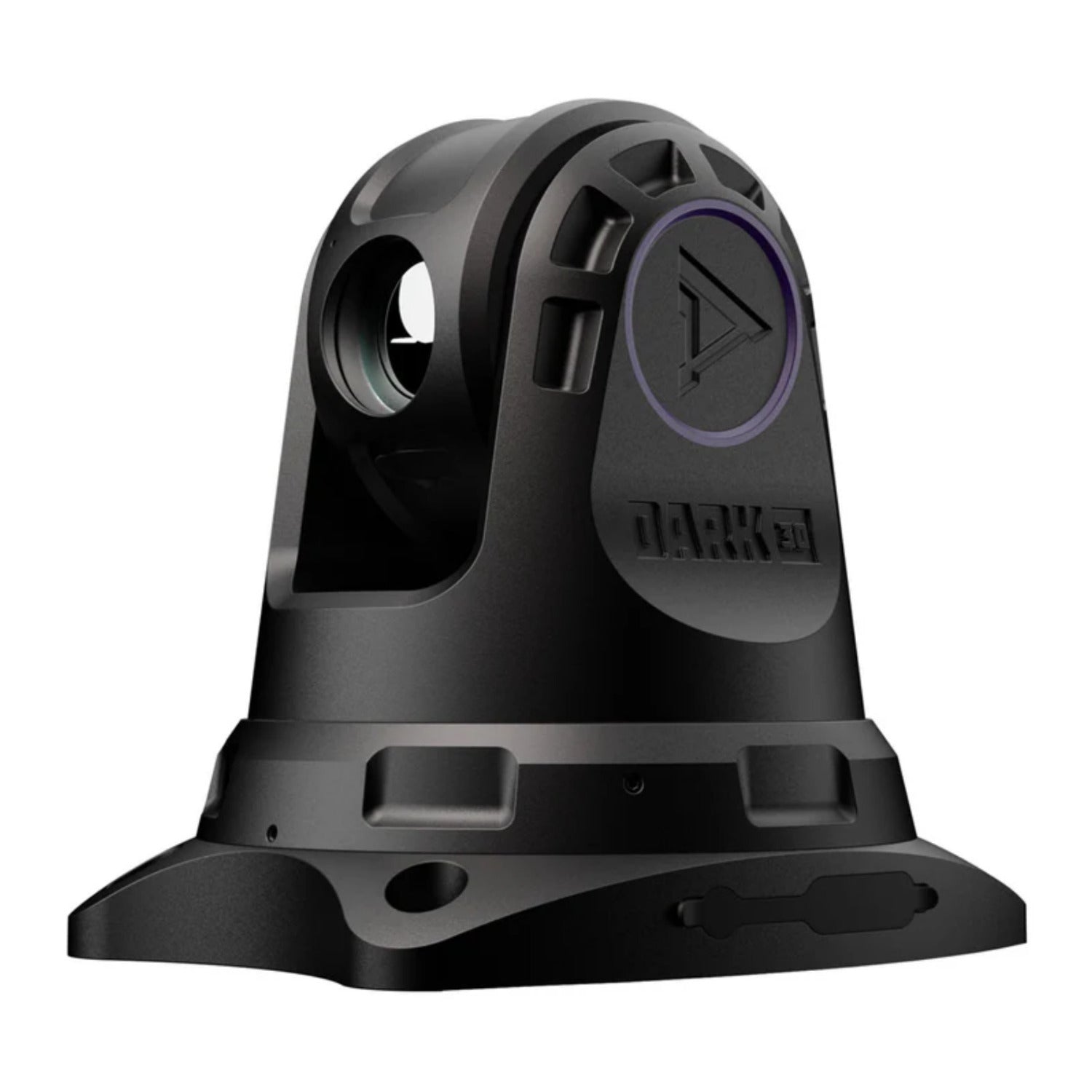

Dark30 Defiance 640 Thermal PTZ Camera with 360-Degree Coverage LCD Display and Accessories (Black)

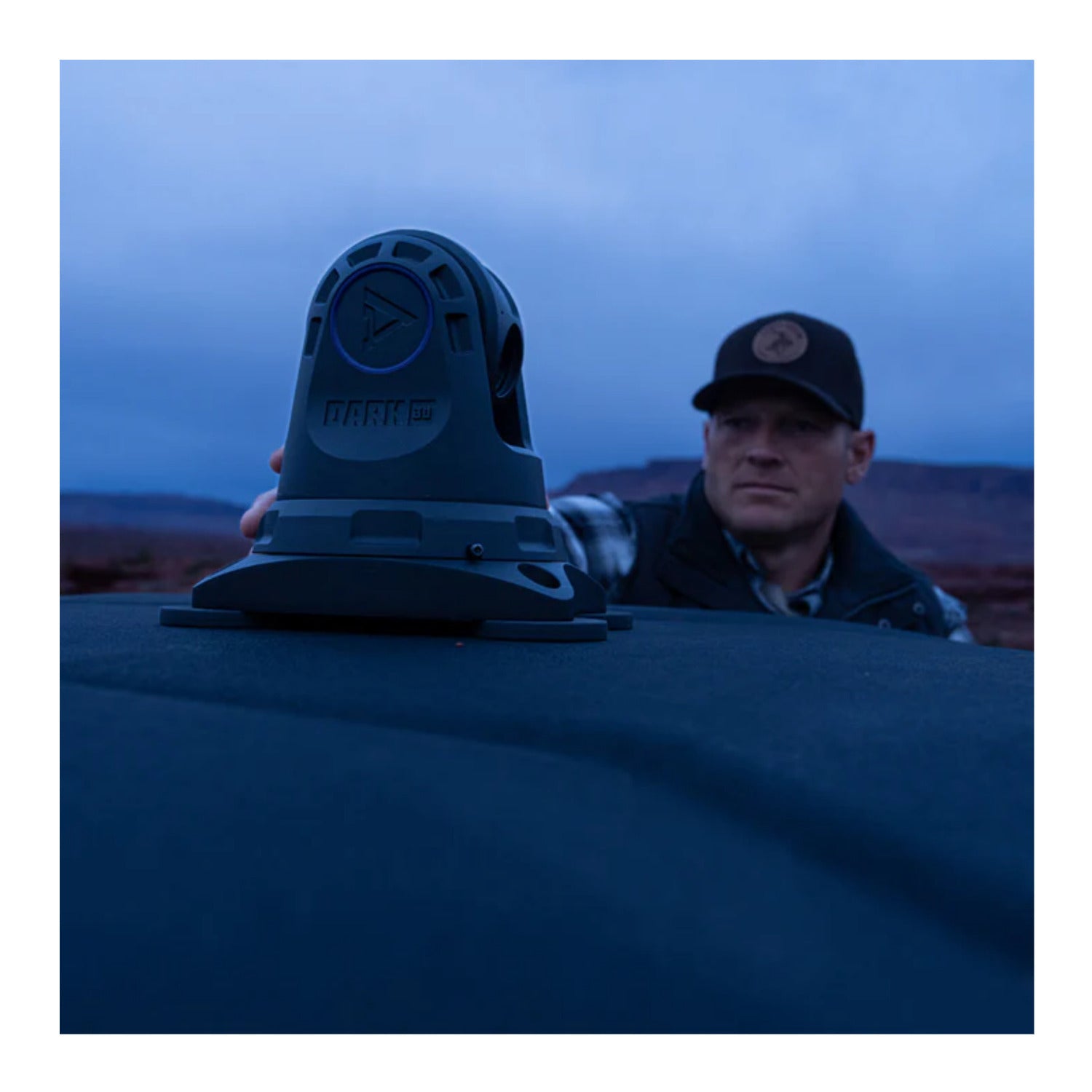

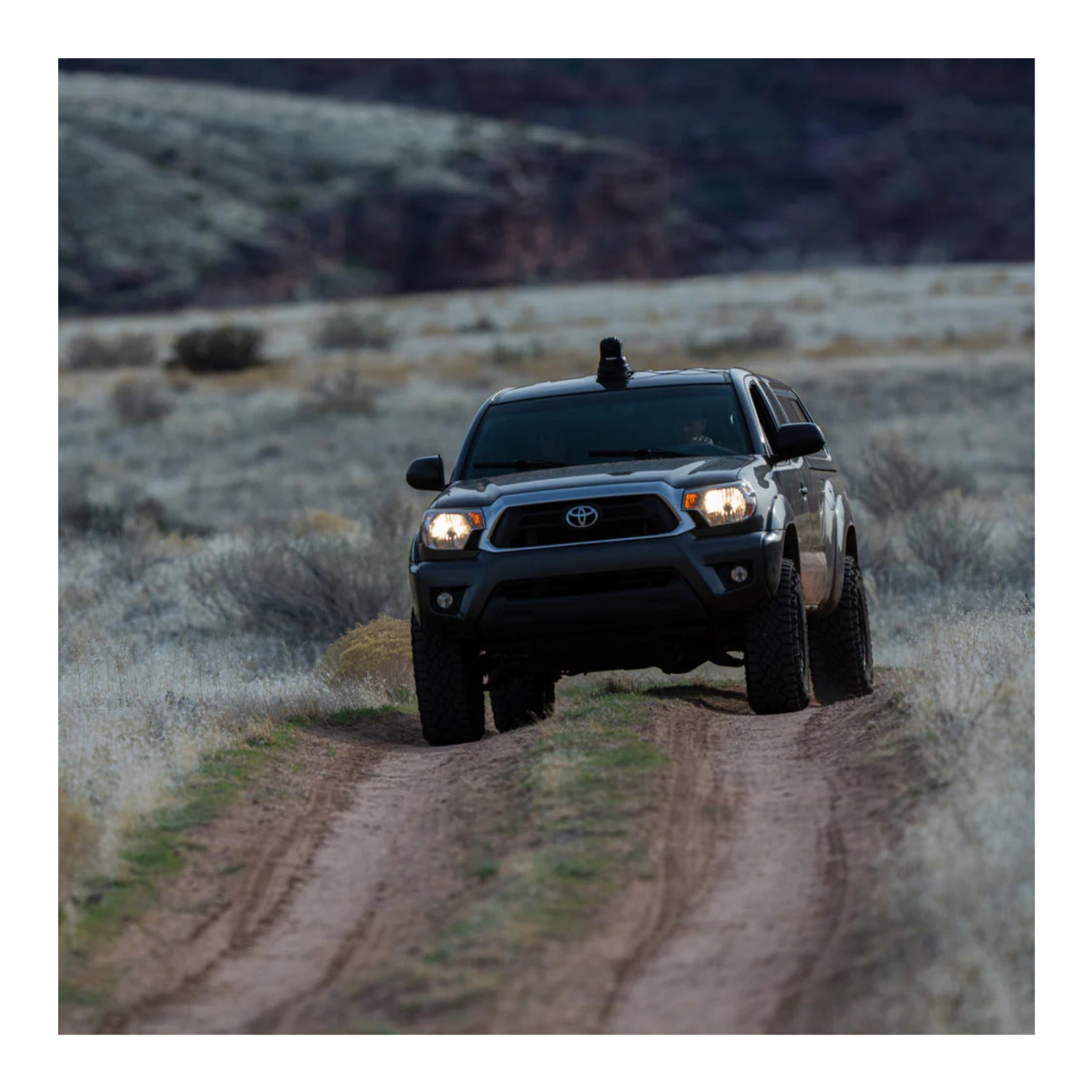

The D30 Defiance 640 PTZ revolutionizes nighttime surveillance and thermal detection for hunters and law enforcement professionals. Traditionally limited to handheld thermal imagers or devices used from within vehicles—often obscured by windows—the Defiance breaks through these barriers. Designed to mount on top of vehicles, it offers a commanding 360-degree field of view, enabling operators to detect and track targets without needing to stop or dismount. The elevated perspective brings unmatched clarity and precision to every mission.

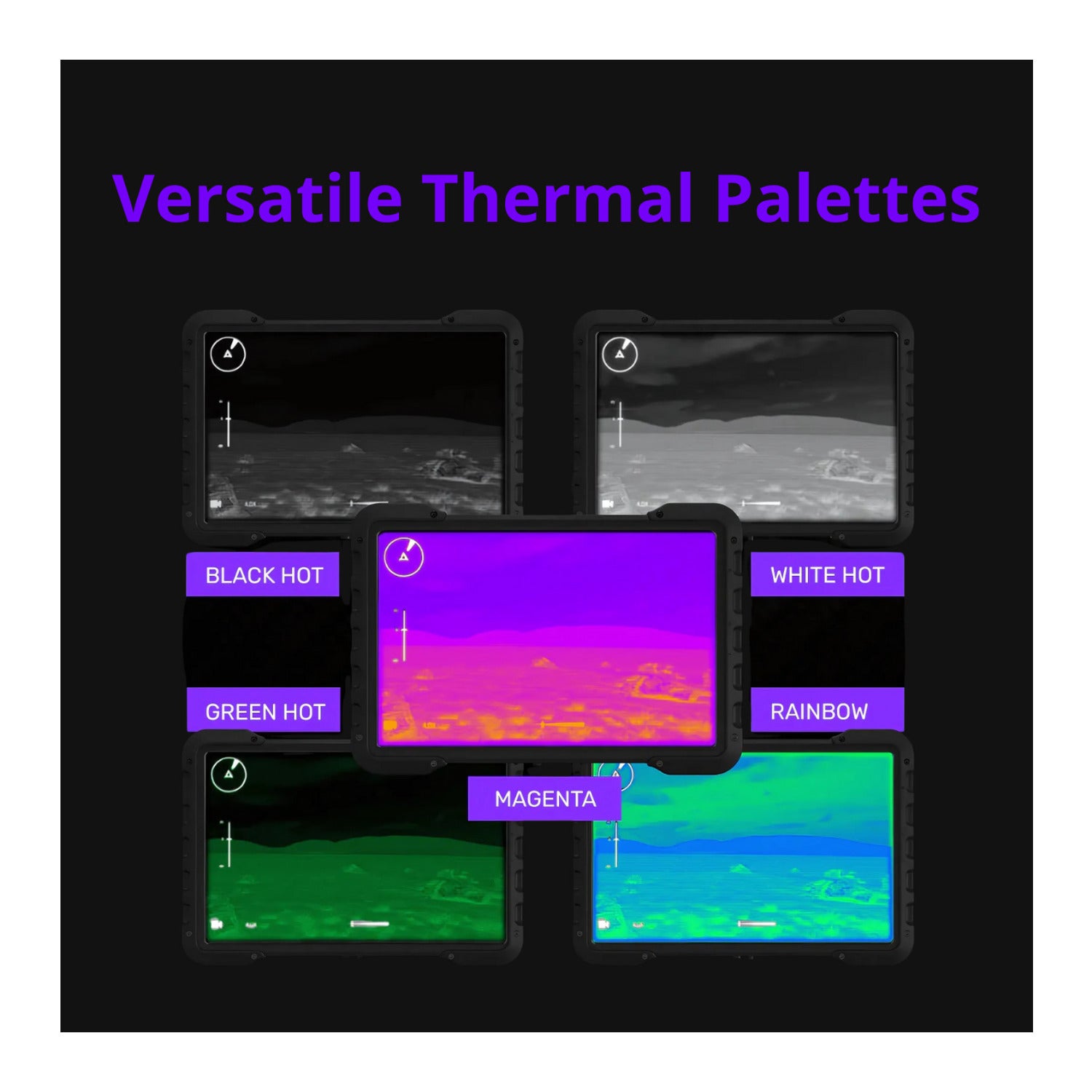

Thermal Imaging Versatility
Adapt to changing conditions with five thermal palette options. Choose white hot or black hot for rapid heat detection or shift to rainbow, magenta, or green hot for identifying subtle target details. Whether monitoring wide landscapes or tracking a subject in motion, the Defiance ensures you see with optimal clarity.
Complete Visual Control

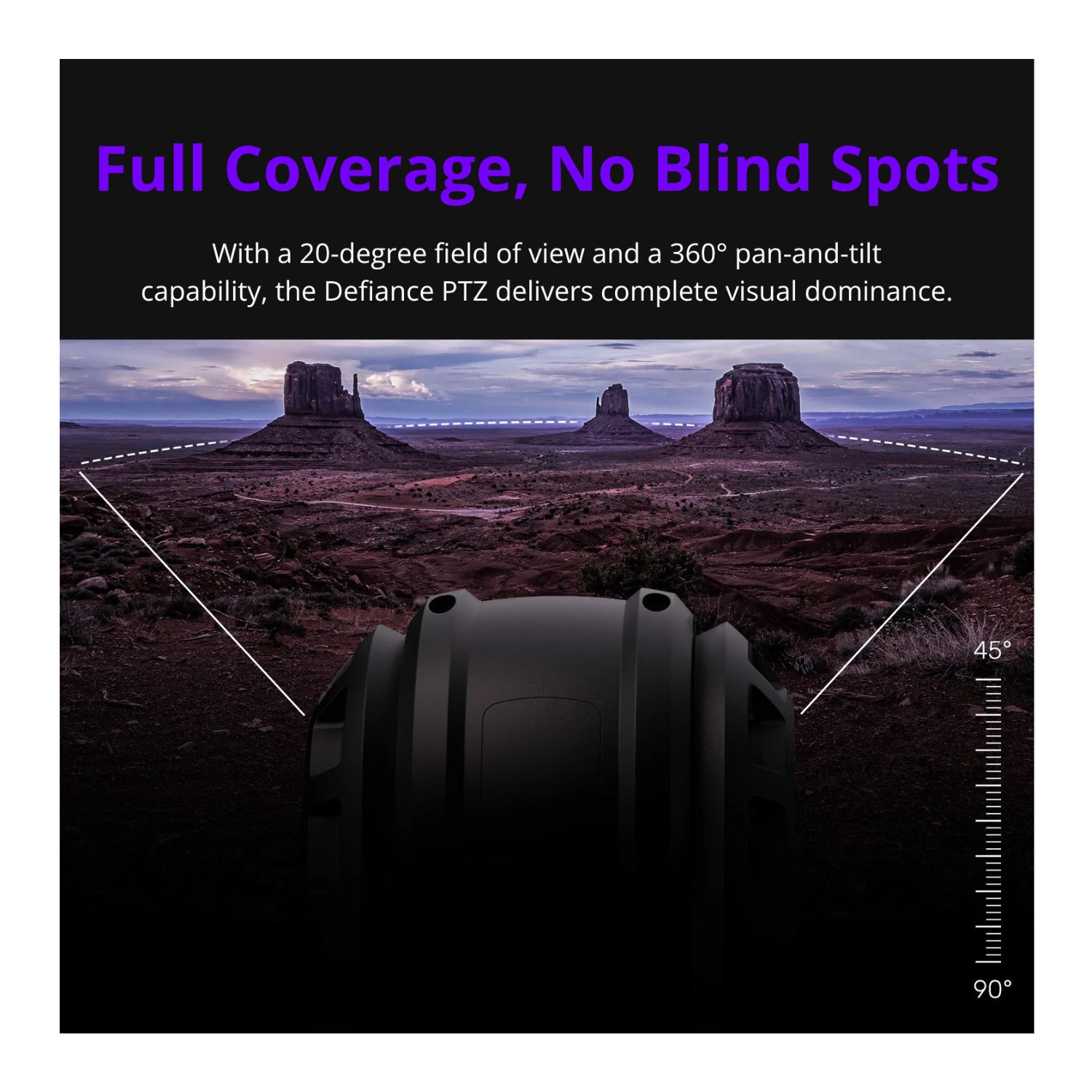

Engineered with a 20-degree field of view and continuous 360-degree pan-and-tilt capability, the Defiance PTZ eliminates blind spots. It’s a powerful asset for long-range observation and environmental scanning, giving users situational dominance in real time.

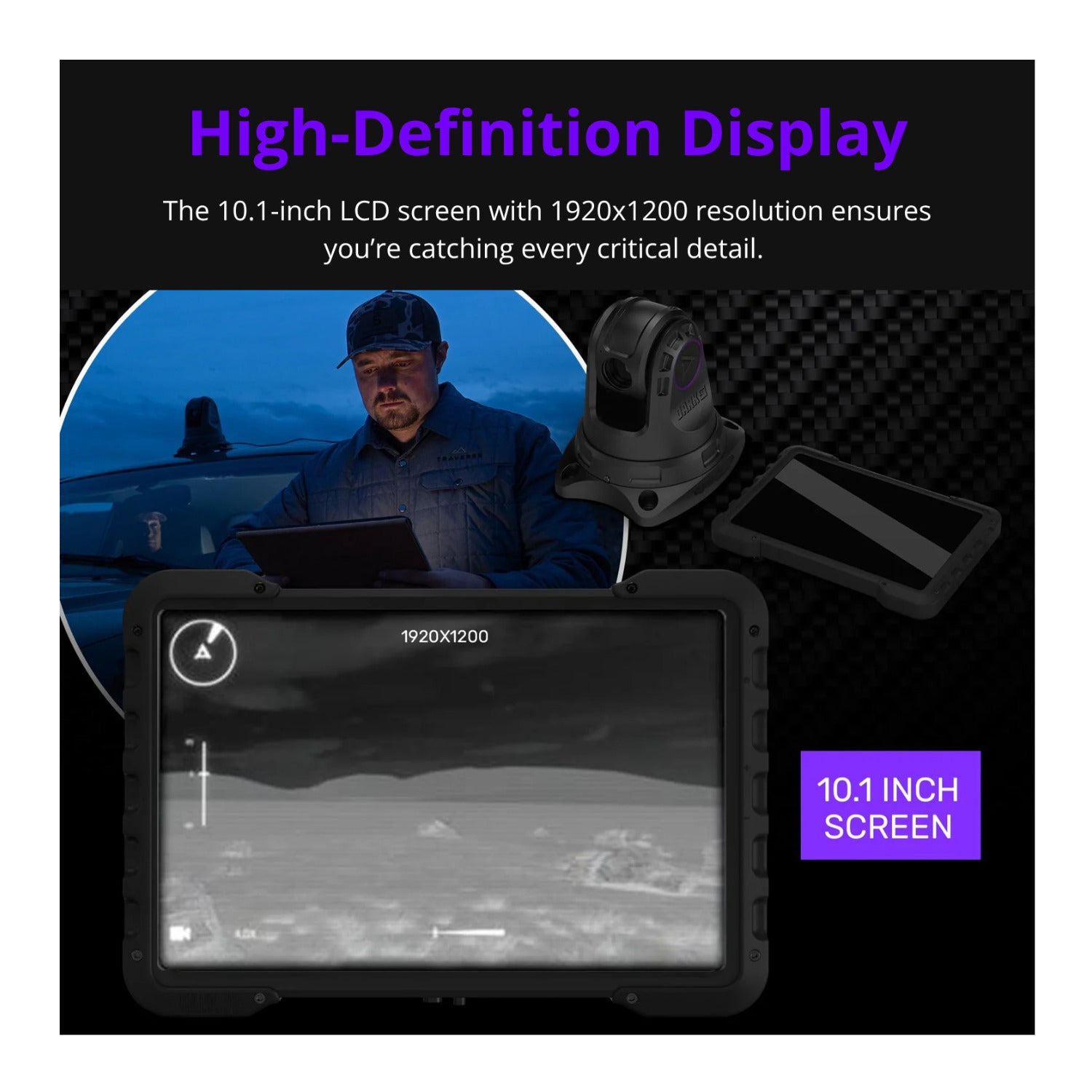

Ultra-Clear Display
The built-in 10.1-inch HD LCD screen, featuring a 1920x1200 resolution, delivers stunning image quality. Thanks to its direct camera-to-screen interface, this system offers near-real-time thermal imaging without loss of detail. Fast to set up and easy to tear down, the Defiance keeps you focused on what matters.

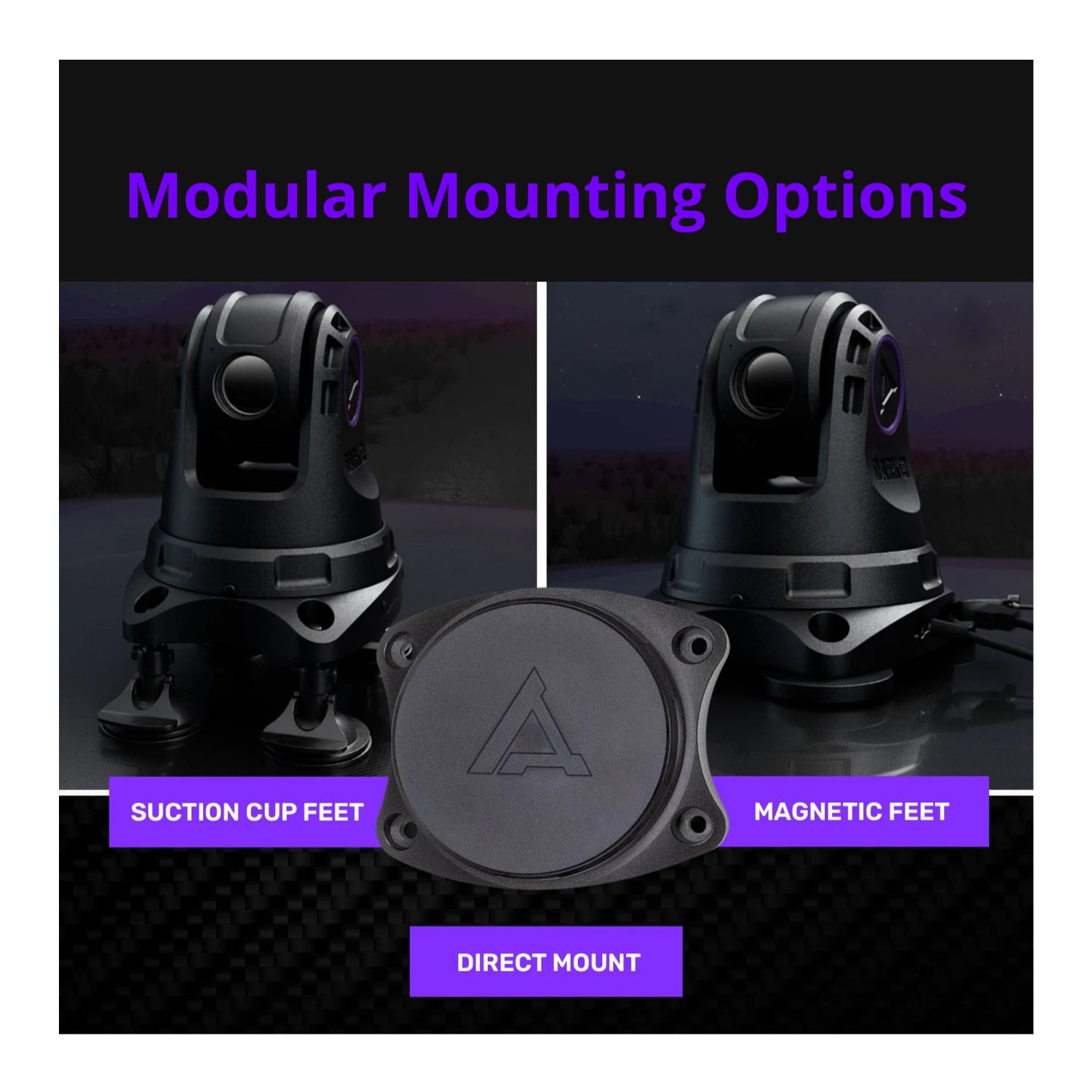

Mounting That Matches Your Needs
Whether you need a mobile, removable system or a permanent fixture, the Defiance adapts with suction cups, 100 pull-pound magnets, or secure bolt mounting. The kit includes all required hardware for quick, hassle-free installation, ensuring readiness for any operation.
Wireless Control from Anywhere

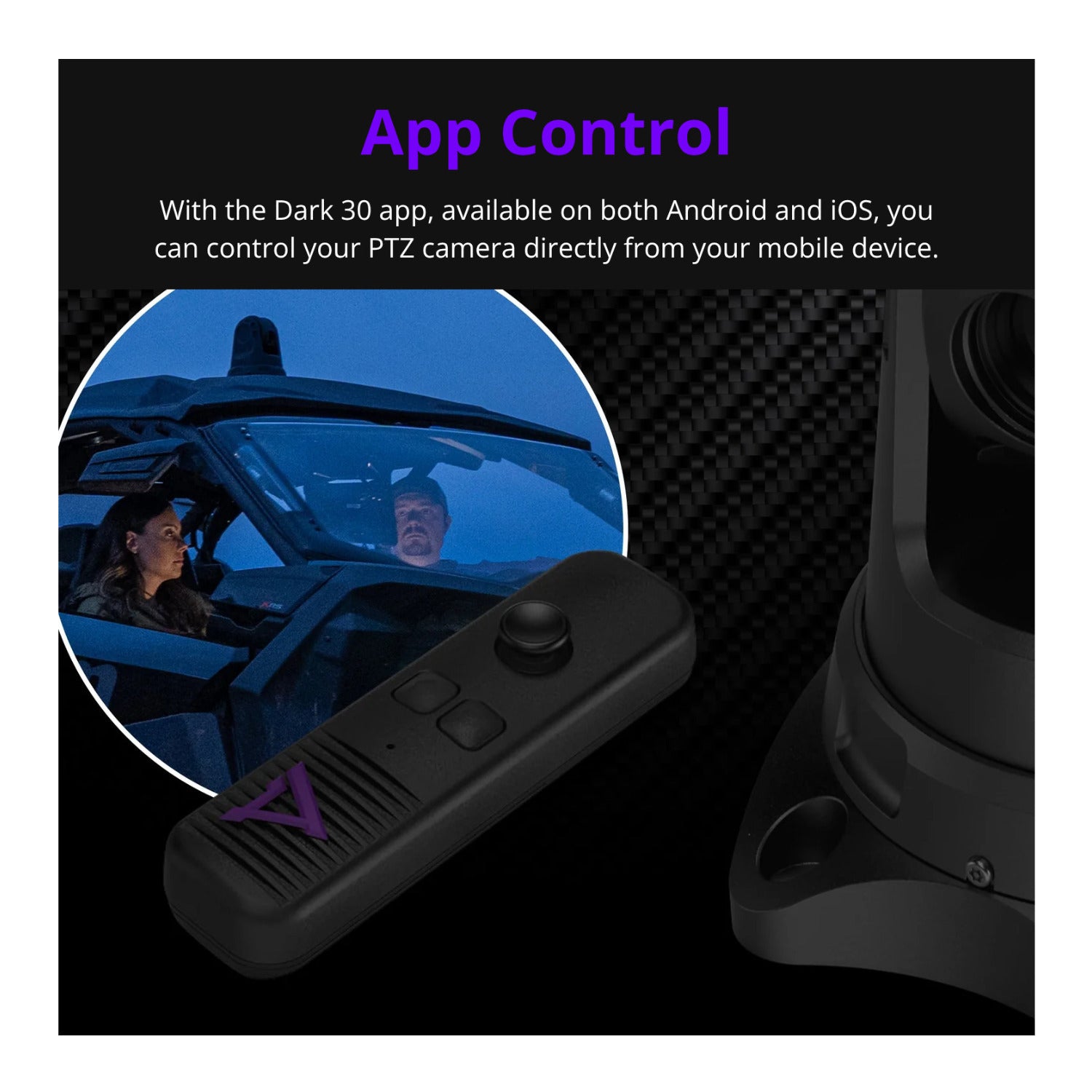

With the Dark 30 app for Android and iOS, users can control the camera remotely from their smartphone. Whether observing from a distance or recording critical footage while lining up a shot, the system keeps you fully in control.
Main
| Waterproof | Yes |
| Weather-Resistant | Yes |
| Configuration | Core |
| Zoom | 8x |
| Color | Black |
- 1TF card slot
- 2 HDMI ports
- 2 DC ports
- -4 degrees Fahrenheit to 158 degrees Fahrenheit
- -20 degrees Celsius to 70 degrees Celsius
- -22 degrees Fahrenheit to 176 degrees Fahrenheit
- -30 degrees Celsius to 80 degrees Celsius
- Adjustable Brightness Display
- Off button to prevent night blindness
- Direct unit connection via HDMI to minimize lag
- 7.5 in x 6.5 in x 2 in
- 191 mm x 165mm x 51 mm
- Rugged easy to use
- Stackable
- Included mounting hardware
- 7.5 in x 6.5 in
- 191 mm x 165mm
- Multiple Cable Management Configuration
- Protective Cover
- Wireless connection
- Ergonomic magnification toggle
Dark30 Defiance 640 Thermal PTZ Camera with 360-Degree Coverage LCD Display and Accessories (Black)
General
| Water Resistance | IP66 |
| Pan Angle | Continuous 360 degrees |
| Tilt Angle | Straight downward to 45 degrees above horizontal |
| Body Material | Aluminum |
| Width | 6.65 in / 169 mm |
| Depth | 7.68 in / 195 mm |
| Height | 7.8 in / 198 mm |
| Weight | 94.5 oz / 2680 g |
| Operating Temperature Range | -4 degrees Fahrenheit to 122 degrees Fahrenheit / -20 degrees Celsius to 50 degrees Celsius |
| Ports | |
| Display Type | LCD |
| Screen Size | 10.1 in |
Power
| Power Supply | 12V DC |
| Camera Amperage @12V DC | 750mA |
| Camera Amperage @12V DC | 320mA |
| Adaptor Connection with both Camera and Display | 1200 mA |
Sensor
| Device Technology | Thermal Imaging |
| Sensor resolution, pixels | 640 x 480 |
| Frame rate | 60 fps |
| Pixel Size | 17 micron |
| Spectral Range | 8 - 14µm |
| Detector NEDT | <30 mK |
| Color palettes | 5 |
| Detection range | 1250 yds |
Optics
| Lens Material | Germanium |
| F/# NUMBER (lens) | 1 |
| Lens Diameter | 32mm |
| Focal Length | 30mm |
| Digital Zoom | 1-8x |
| Magnification | N/A |
| Field of View Horizontal | 20 degrees |
| Field of View Vertical | 15 degrees |
| Field of View Diagonal | 25 degrees |
10.1 in Screen
| Video Output | 1920 x 1200 pix |
| Display Type | LCD |
| Screen Size | 10.1 in |
| Weight | 17 oz / 482 g |
| Brightness Setting | 0-100 |
| Power Supply 12V | |
| Operating Temperature | |
| Storage Temperature | |
| Connection | HDMI |
| Screen Features |
2 in Riser
| Weight | 1.11 lbs / 503 g |
| Dimensions | |
| Materials | Polycarbonate |
| Riser Features |
Base Kit
| Weight | 2 lbs / 0.9 kg |
| Dimensions | |
| Cable Length - HDMI | 4m |
| Cable Length - Power | 4m |
| Power 12V | |
| Materials | Aluminum and Plastic |
| Power Supply | 12V DC |
| External Power Supply | Car cigarette power, 12V DC |
| Base Kit Features |
Remote
| Connection | Wireless |
| Power | 2 AAA batteries |
| Remote Features |
