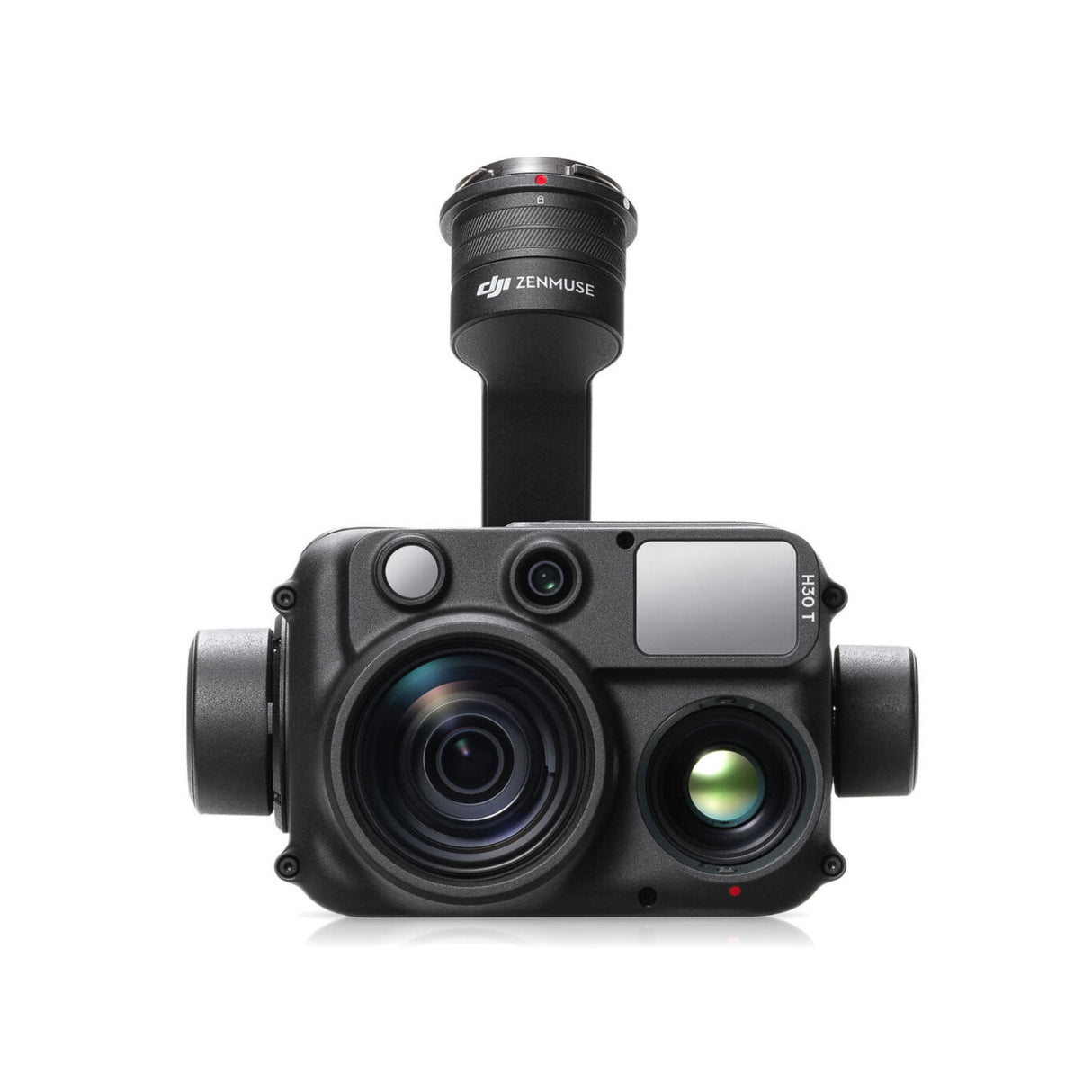

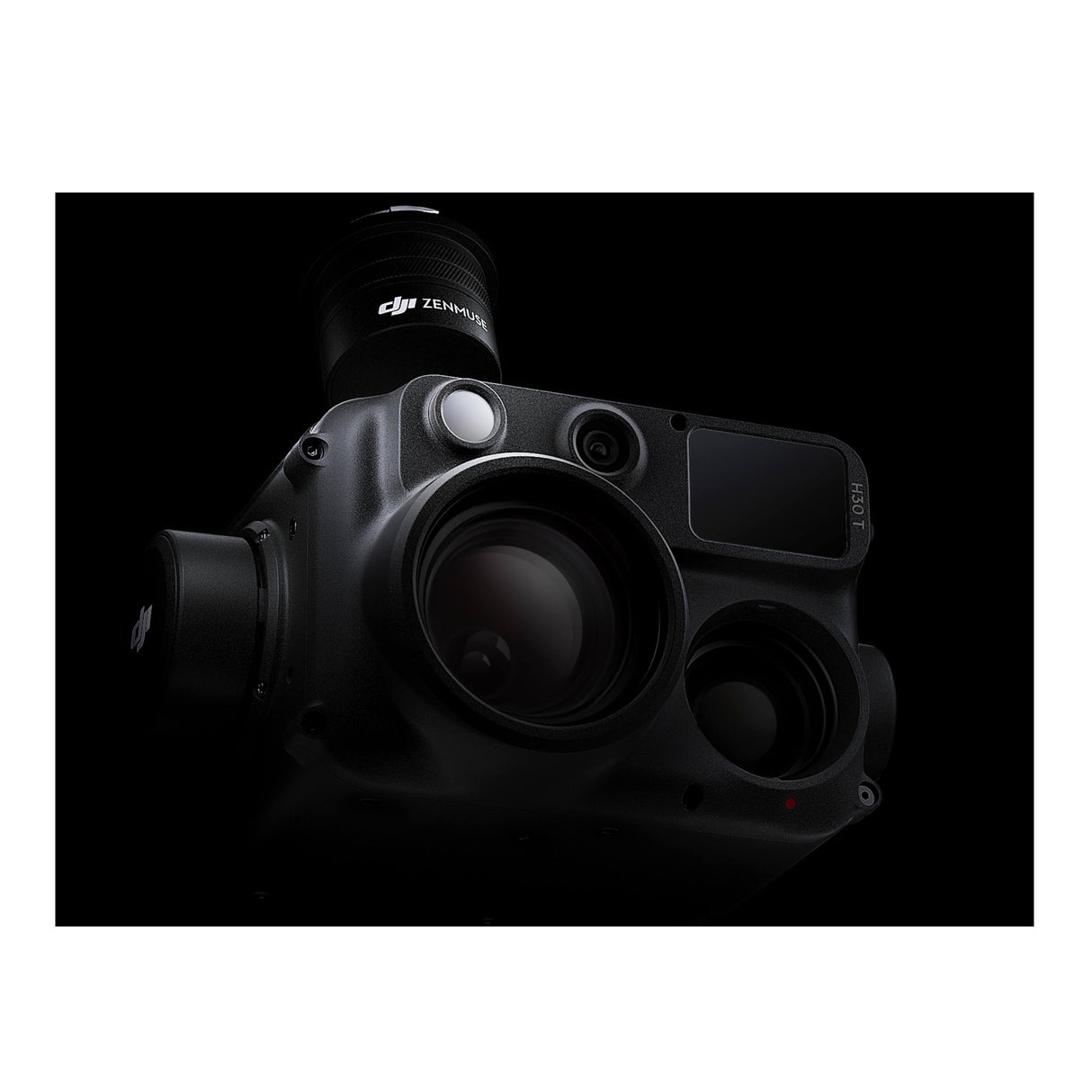

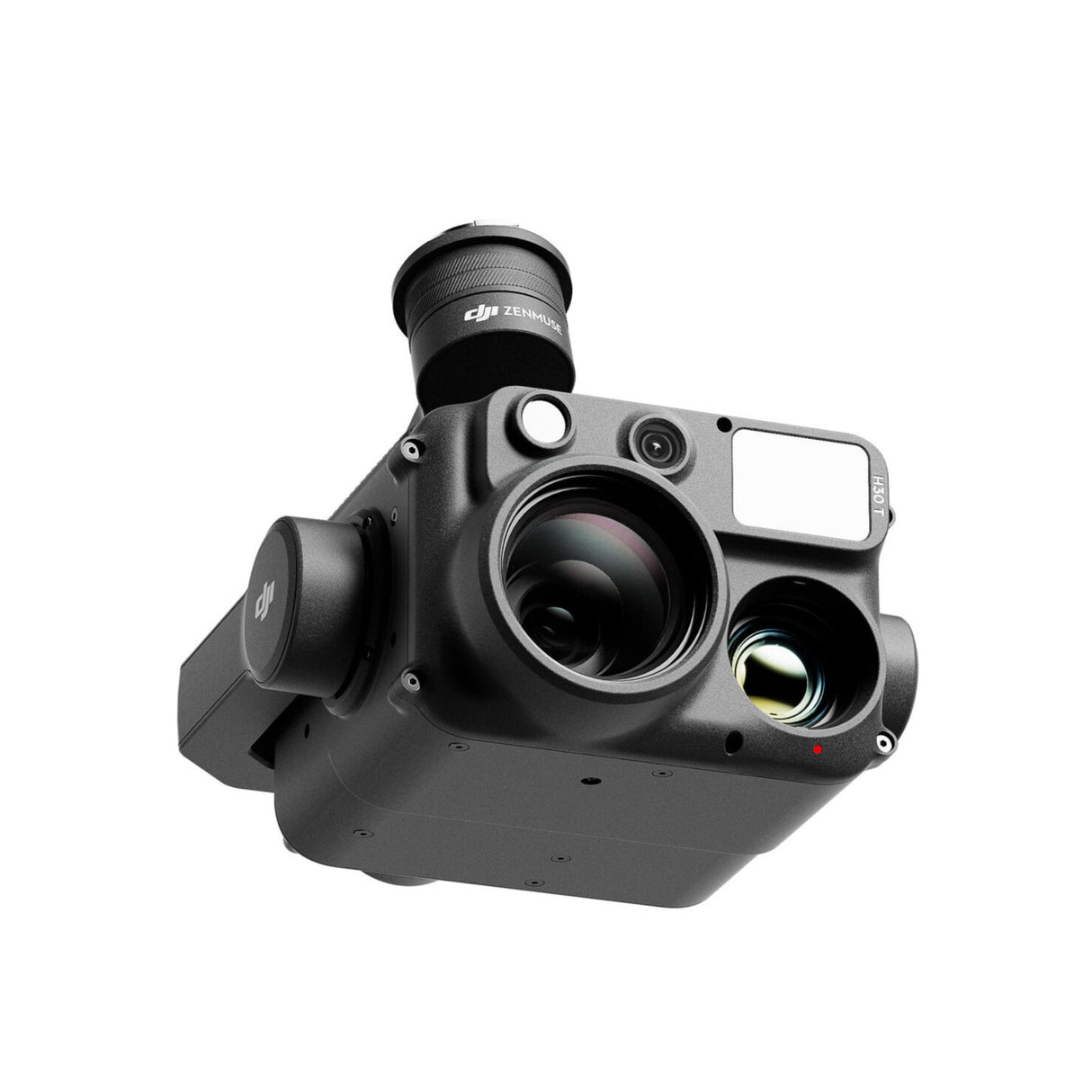

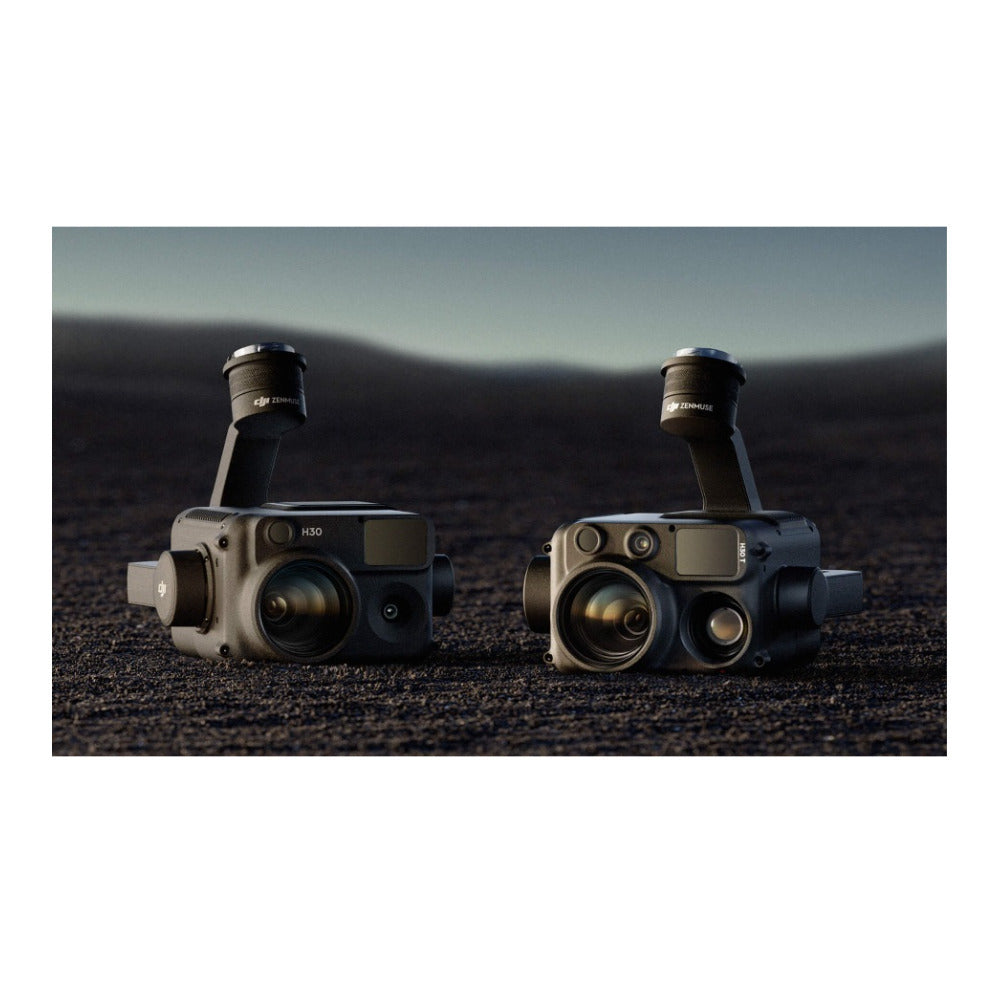

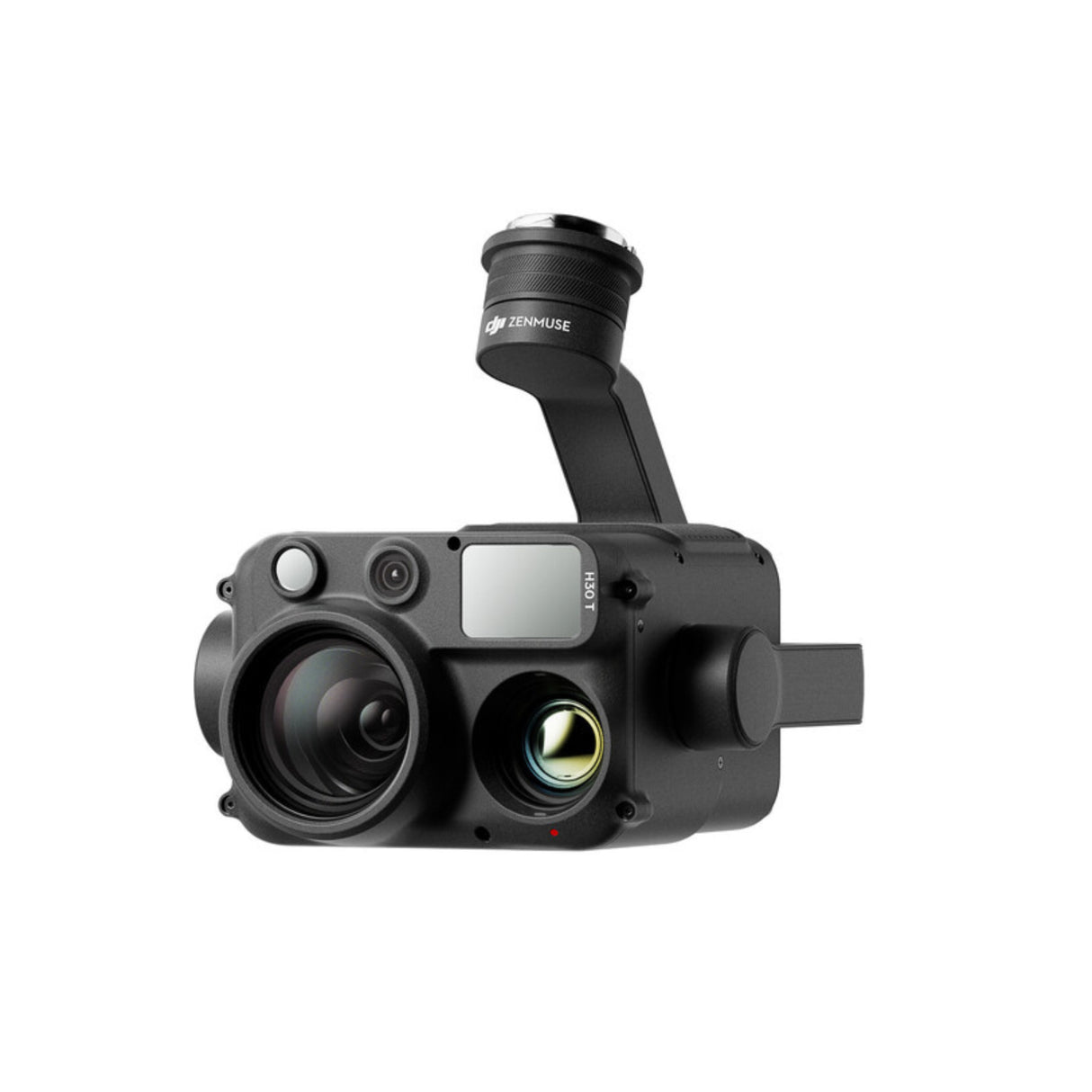

The DJI Zenmuse H30T is a multi-sensor gimbal camera built for professional operations. It integrates zoom, wide-angle, thermal, laser range finder, and NIR illumination to support tasks in public safety, inspection, and search-and-rescue.
High Zoom Capability
The 40MP zoom camera supports 34x optical zoom and up to 400x digital zoom. This allows operators to observe subjects from long distances while capturing detailed visuals.
Wide-Angle Clarity
A 48MP wide-angle camera with a 24mm focal length provides broad coverage and clear recording, making it suitable for situational awareness and large-area monitoring.
Infrared Thermal Imaging
The thermal camera delivers 1280x1024 resolution with up to 32x digital zoom. It measures temperatures between -20° to 1600° C, supporting firefighting, inspections, and search operations.
Laser Range Finder
The built-in range finder measures distances up to 3000m with high accuracy. This ensures precise location data for mapping, surveillance, and inspection tasks.
Night Vision Support
The system includes full-color night vision, black and white infrared mode, and NIR illumination. These features improve visibility in low-light environments and enhance nighttime operations.
Data Security
With AES-256 encryption and one-click log clearance, data transmission and storage remain secure during all missions.
Cloud Sync
Integration with DJI FlightHub 2 allows live cloud-based monitoring, enabling faster decision-making and collaborative operations.
Main
| Configuration | Core |
| Color | Black |
- H30: 26 W
- H30T: 28 W
- Under controlled laboratory conditions, it can achieve an IP54 protection rating by IEC60529 standards. The IP rating is not permanently effective and may decrease due to product wear and tear.
- Matrice 400
- Matrice 350 RTK
- Matrice 300 RTK (requires DJI RC Plus)
- Hover: ±0.002°
- Flight: ±0.004°
- Tilt: -132.5° to +73°
- Roll: ±60°
- Pan: ±328°
- (Structural limit, not controllable range)
- Tilt: -120° to +60°
- Pan: ±320°
- Actual Focal Length: 7.1-172 mm (Equivalent focal length: 33.4-809.3 mm)
- Aperture: f/1.6-f/5.2
- DFOV: 66.7°-2.9°
- Single Shot: 100-25600
- Night Scene: 100-819200
- Single Shot: 3840×2160@30fps, 1920×1080@30fps
- Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
- H.264, H.265
- CBR, VBR
- Actual Focal Length: 6.72 mm (Equivalent focal length: 24 mm)
- Aperture: f/1.7
- DFOV: 82.1°
- Single Shot: 100-25600
- Night Scene: 100-409600
- Single Shot: 3840×2160@30fps, 1920×1080@30fps
- Night Scene: 1920×1080@25fps, 1920×1080@15fps, 1920×1080@5fps
- H.264, H.265
- CBR, VBR
- Focal Length: 24 mm (equivalent focal length: 52 mm)
- Aperture: f/0.95
- DFOV: 45.2°
- H264, H265
- CBR, VBR
- High Gain: -20° to 150° C (-4° to 302° F), -20° to 450° C (-4° to 842° F) (With Infrared Density Filter)
- Low Gain: 0° to 600° C (32° to 1112° F), 0° to 1600° C (32° to 2912° F) (With Infrared Density Filter)
- Range for Common Objects: Grasslands 2000 m, woodlands 1900 m, road surfaces 1700 m*
- The measurement range may vary based on the material and shape of the tested object as well as the impact of gimbal angle, environmental light, and weather conditions such as rain or fog. If a laser pulse hits multiple targets, its energy is dispersed, which may reduce the measurable distance. *Test conditions: Flat surface subject, subject size exceeding the laser beam diameter, atmospheric visibility of 23 km (shorter range in clear conditions compared with overcast), laser impinges at an oblique angle (with an angle of incidence of approx. 0.2 radians).
- ≤ 500 m: ±(0.2 m+measurement distance×0.15%)
- > 500 m: ±1.0 m
- @100 m: approx. 50×450 mm
- @1000 m: approx. 450×4500 mm
- Lexar 1066x V30 A2 64GB/128GB/256GB/512GB microSDXC
- Kingston CANVAS GO! Plus V30 A2 64GB/128GB/256GB/512GB microSDXC
- Zenmuse H30 supports the Security Code function. Go to Data and Privacy in DJI Pilot 2 and set the code to encrypt the microSD card installed on the camera. Download the DJI Decrypt Tool from the DJI official website to decrypt the microSD card on a Windows computer and access the card content.
General
| Product Name | Zenmuse H30 Series |
| Dimensions | 170×145×165 mm (L×W×H) |
| Weight | 920±5 g |
| Power | |
| Ingress Protection Rating | IP54 |
| Supported Aircraft | |
Environment
| Operating Temperature | -20° to 50° C (-4° to 122° F) |
| Storage Temperature | -20° to 60° C (-4° to 140° F) |
Gimbal
| Stabilization System | 3-axis (tilt, roll, pan) |
| Angular Vibration Range | |
| Mounting | Detachable DJI SKYPORT |
| Mechanical Range | |
| Controllable Range | |
| Operation Mode | Follow/Free/Re-center |
Zoom Camera
| Sensor | 1/1.8-inch CMOS, Effective Pixels: 40 MP |
| Lens | |
| Focus Mode | MF, AFC, AFS |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/8000-2 s |
| ISO Range | |
| Video Resolution | |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | |
| Max Photo Size | 7328×5496, 3664×2748 |
| Photo Format | JPG |
Wide-Angle Camera
| Sensor | 1/1.3-inch CMOS, Effective Pixels: 48 MP |
| Lens | |
| Focus Mode | MF, AFC, AFS |
| Exposure Mode | Manual, Auto |
| Exposure Compensation | ±3.0 (1/3 increments) |
| Metering Mode | Spot Metering, Average Metering |
| AE Lock | Supported |
| Electronic Shutter Speed | 1/8000-2 s |
| ISO Range | |
| Video Resolution | |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | |
| Max Photo Size | 8064×6048, 4032×3024 |
| Photo Format | JPG |
Infrared Thermal Camera (H30T)
| Thermal Imager | Uncooled VOx Microbolometer |
| Lens | |
| Digital Zoom Equivalent | 32× |
| Video Resolution | 1280×1024@30fps |
| Video Format | MP4 |
| Video Subtitles | Supported |
| Video Codec and Bit Rate Strategy | |
| Photo Resolution | 1280×1024 |
| Photo Format | R-JPEG |
| Pixel Pitch | 12 μm |
| Spectral Band | 8-14 μm |
| Noise Equivalent Temperature Difference (NETD) | ≤ 50 mk@f/1.0 |
| Temperature Measurement Method | Spot Measurement, Area Measurement, Center Point Temperature Measurement |
| Temperature Measurement Range | |
| Temperature Alert | Supported |
| Sun Burn Protection | Supported |
| FFC | Auto, Manual |
| Palette | White Hot, Black Hot, Tint, Iron Red, Rainbow 1, Rainbow 2, Medical, Arctic, Fulgurite, Hot Iron |
Laser Range Finder
| Wavelength | 905 nm |
| Measurement Range | 3-3000 m |
| Measurement Accuracy | |
| Laser Spot Size | |
| Safety Regulation Level | Class 1 |
| Accessible Emission Limit (AEL) | 260 nJ |
| Reference Aperture | 18 mm |
| Max Laser Pulse Emission Power Within 5 Nanoseconds | 52 W |
NIR Auxiliary Light
| Wavelength | 850 nm |
| FOV | 4.6±0.6° (Round) |
| Safety Regulation Level | Class 1 |
| Illumination Range | @100 m: Approx. 8m diameter circle |
Special Features
| Hybrid Optical Zoom | 34× |
| Max Zoom | 400× |
| Link Zoom | Supported |
| Click to Aim | Supported |
| High-Res Grid Photo | Supported |
| Night Scene | Supported |
| Timestamp | Supported |
| Smart Capture | Supported |
| Video Pre-Recording | Supported |
| UHR Infrared Image | Supported |
Data Storage
| Supported microSD Cards | U3/Class10/V30 or above is required, or use a memory card from the recommended list. |
| Supported File System | exFAT |
| Recommended microSD Cards | |
