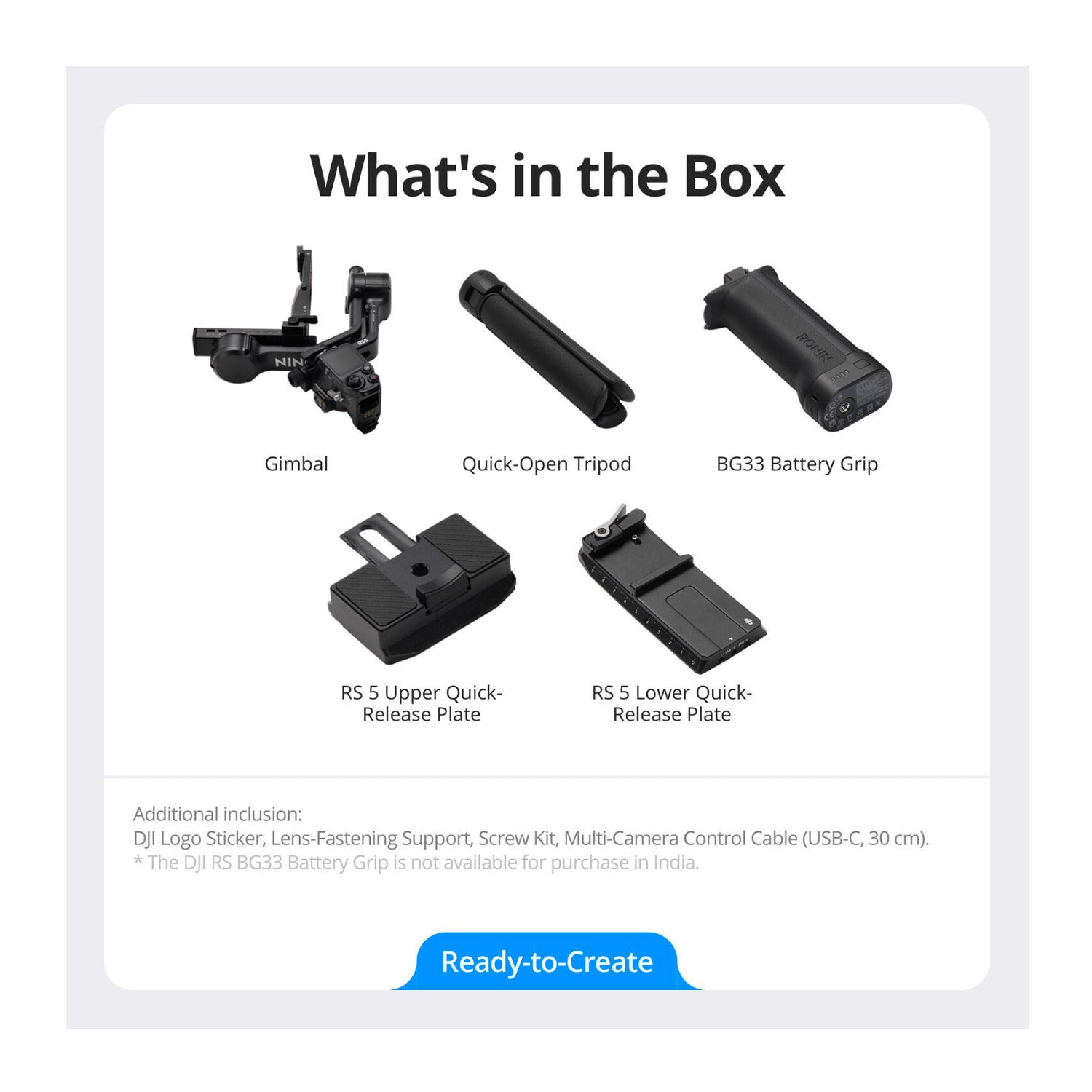

In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
DJI RS 5 Gimbal Stabilizer with Separate AI Tracking and Framing Mo...

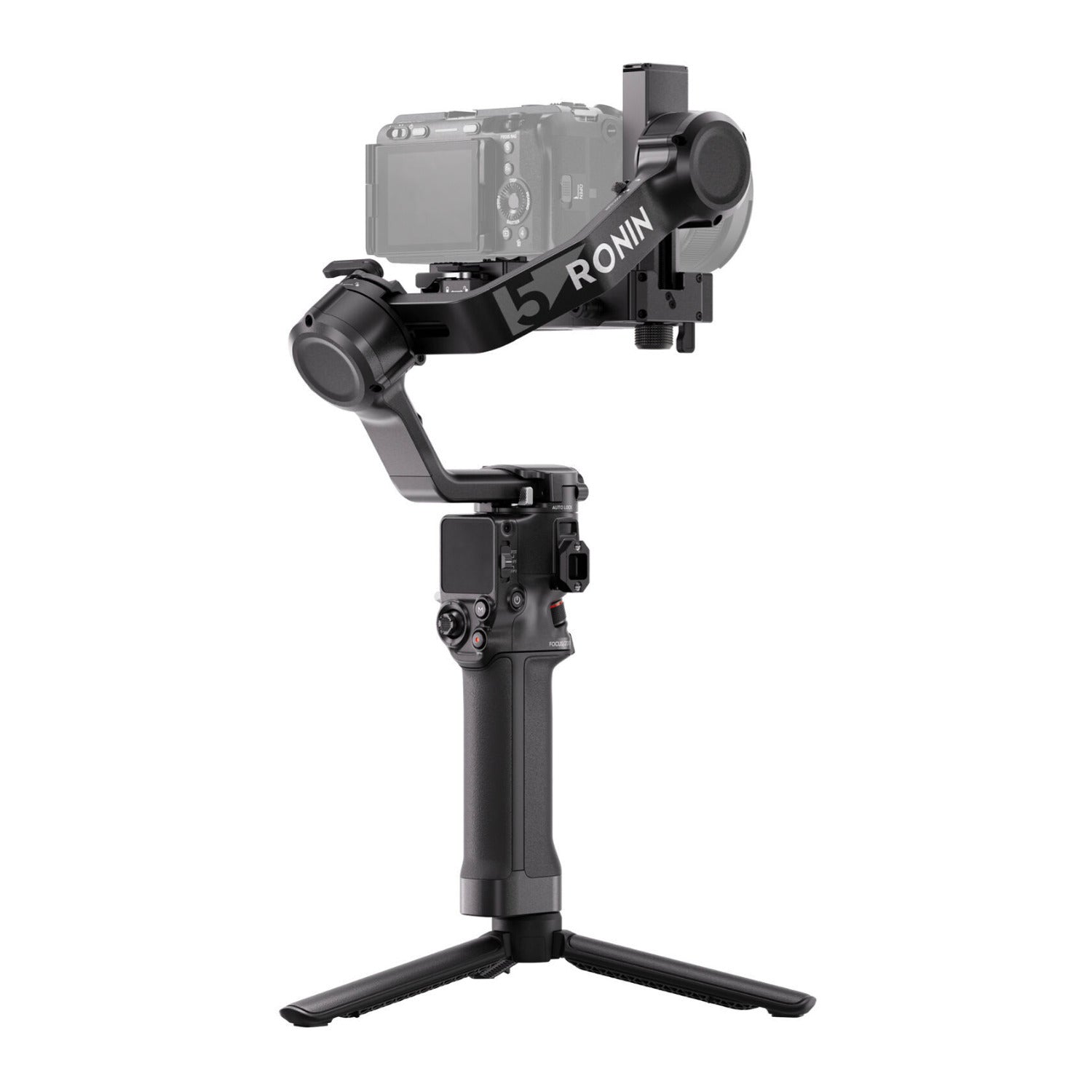

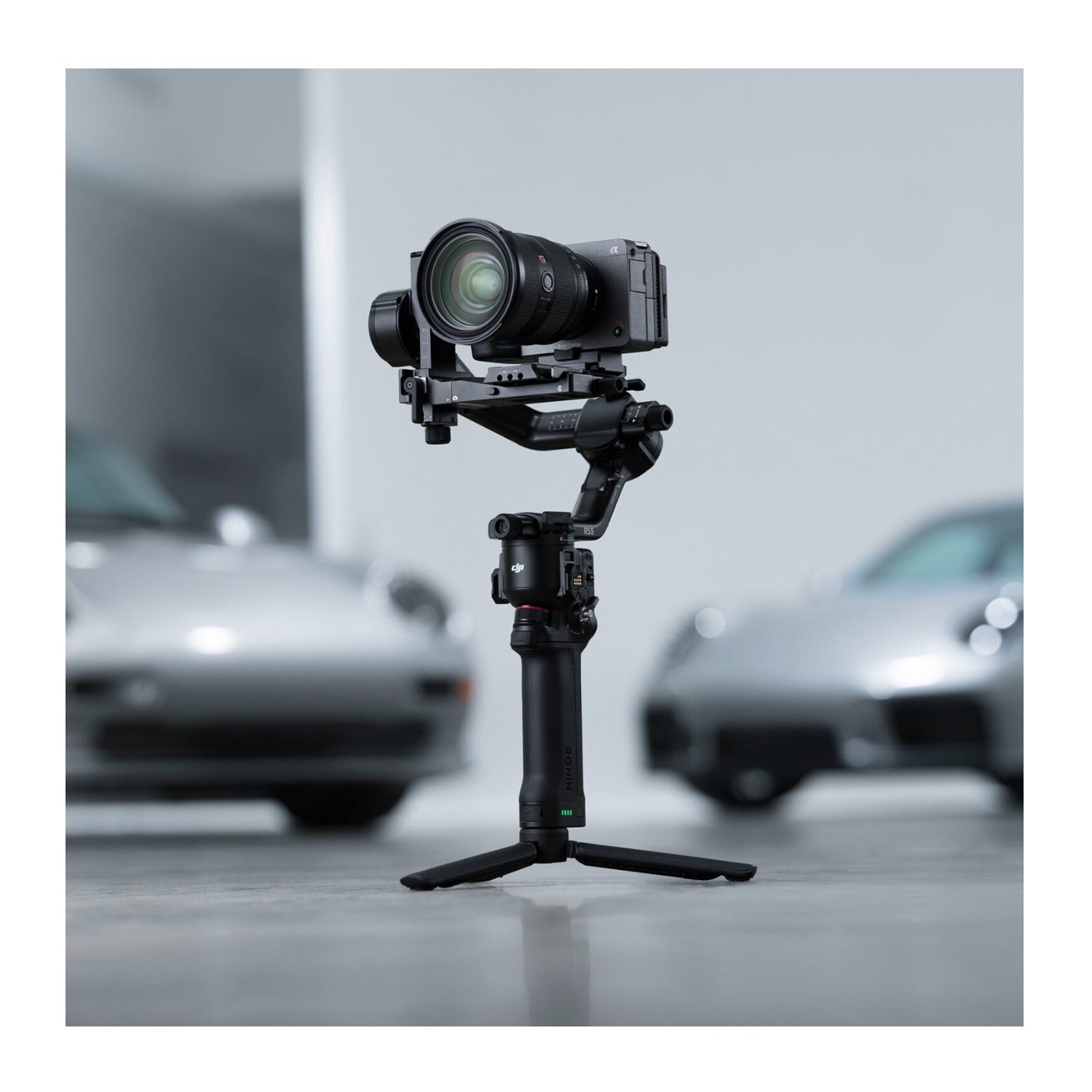

The DJI RS 5 is a gimbal stabilizer for smooth horizontal and vertical camera movements. It has a 3.2 lb body with a 6.6 lb payload and includes a Z-axis indicator, automated axis locks, and vertical shooting mode for quick setup. The OLED touchscreen provides easy control, and Teflon-coated axes improve balance. Optional AI tracking, electronic handles, Focus Pro motors, and SDR transmission add flexibility. The gimbal also supports wireless shutter control, customizable modes, and accessory integration through the RSA port, with fast charging and extended runtime for longer shoots.
Lightweight Body and Payload
The gimbal has a lightweight 3.2 lb body with a 6.6 lb payload, making it easy to carry and handle while supporting professional camera setups.

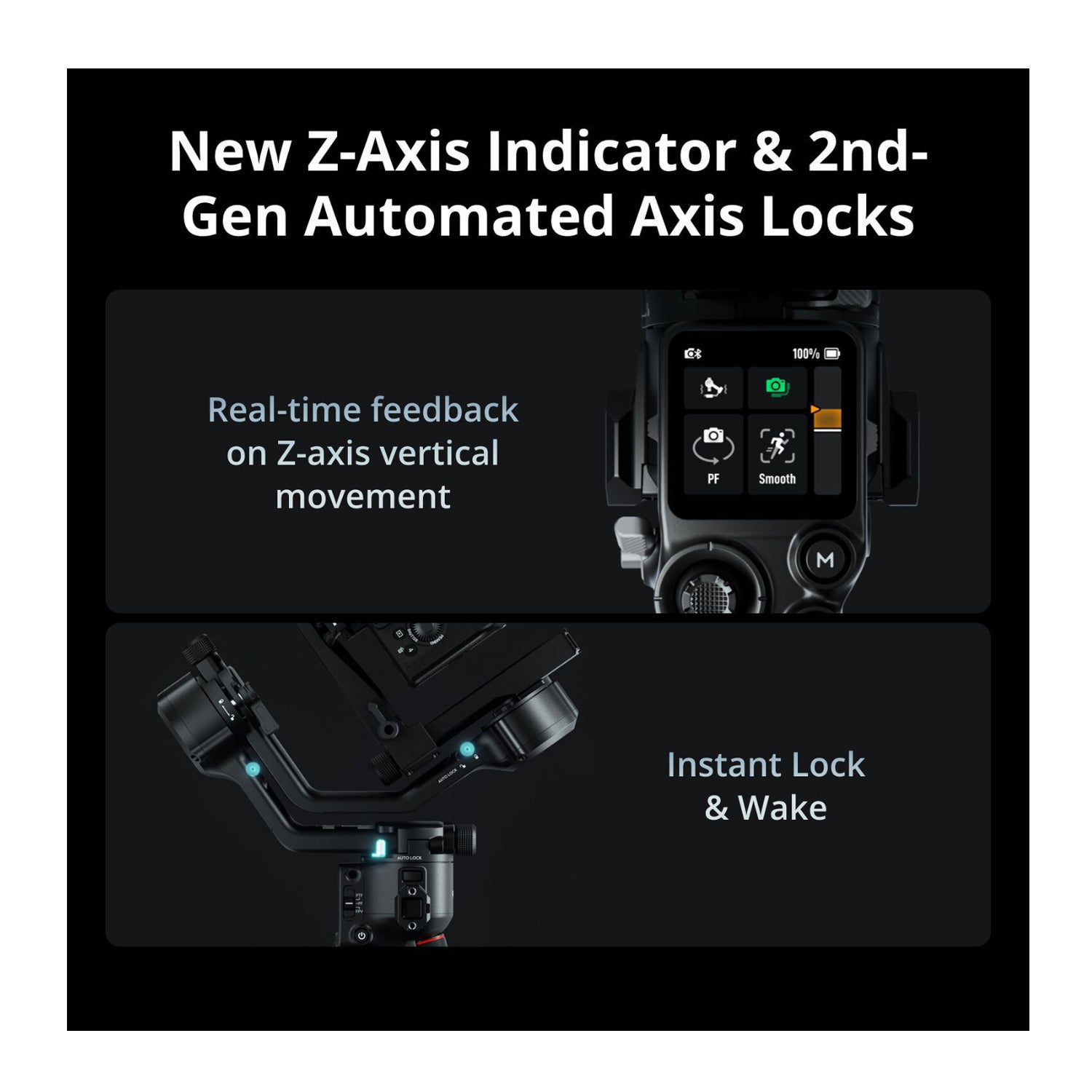

Z-Axis Indicator
It features a Z-axis indicator that displays vertical movement, helping you adjust your motions precisely, though it does not stabilize the Z-axis.

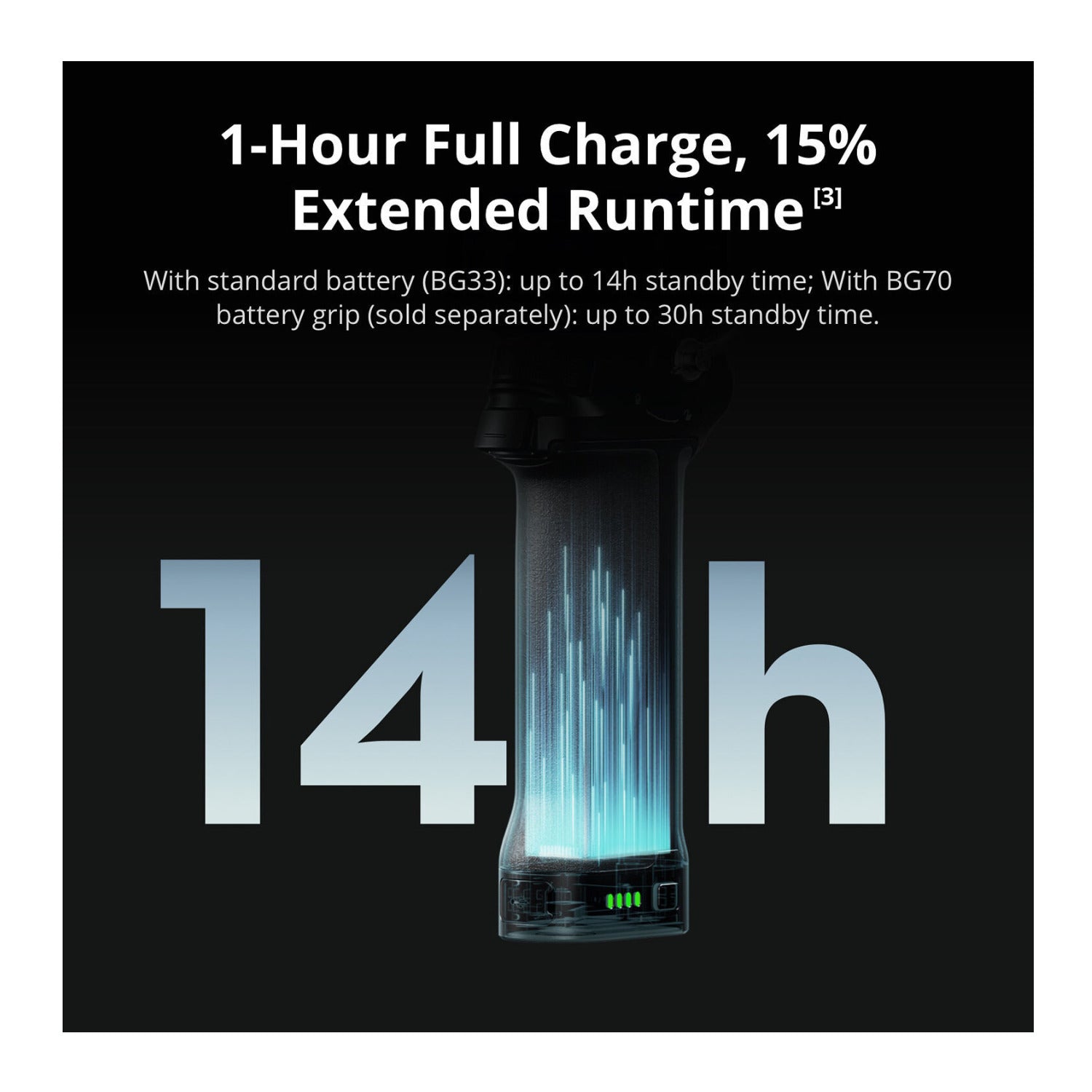

Fast Charging and Enhanced Battery
With a 65W PD charger, the RS 5 can be fully charged in just one hour, offering up to 14 hours of runtime, or up to 30 hours with the BG70 battery grip.
Second-Generation Automated Axis Locks
The gimbal includes second-generation automated axis locks, which unlock or lock the axes automatically for quick setup and storage, with smaller gaps to reduce shake.
Third-Generation Native Vertical Shooting
Its third-generation vertical shooting design allows users to switch to portrait mode in seconds by adjusting the horizontal plate.
OLED Touchscreen with Auto-Lock
The fixed OLED touchscreen features an auto-lock function that prevents accidental changes and displays gimbal movements at low brightness to save battery.
Optional AI Tracking and Framing Module
An optional AI module provides advanced tracking and framing for more professional shots.

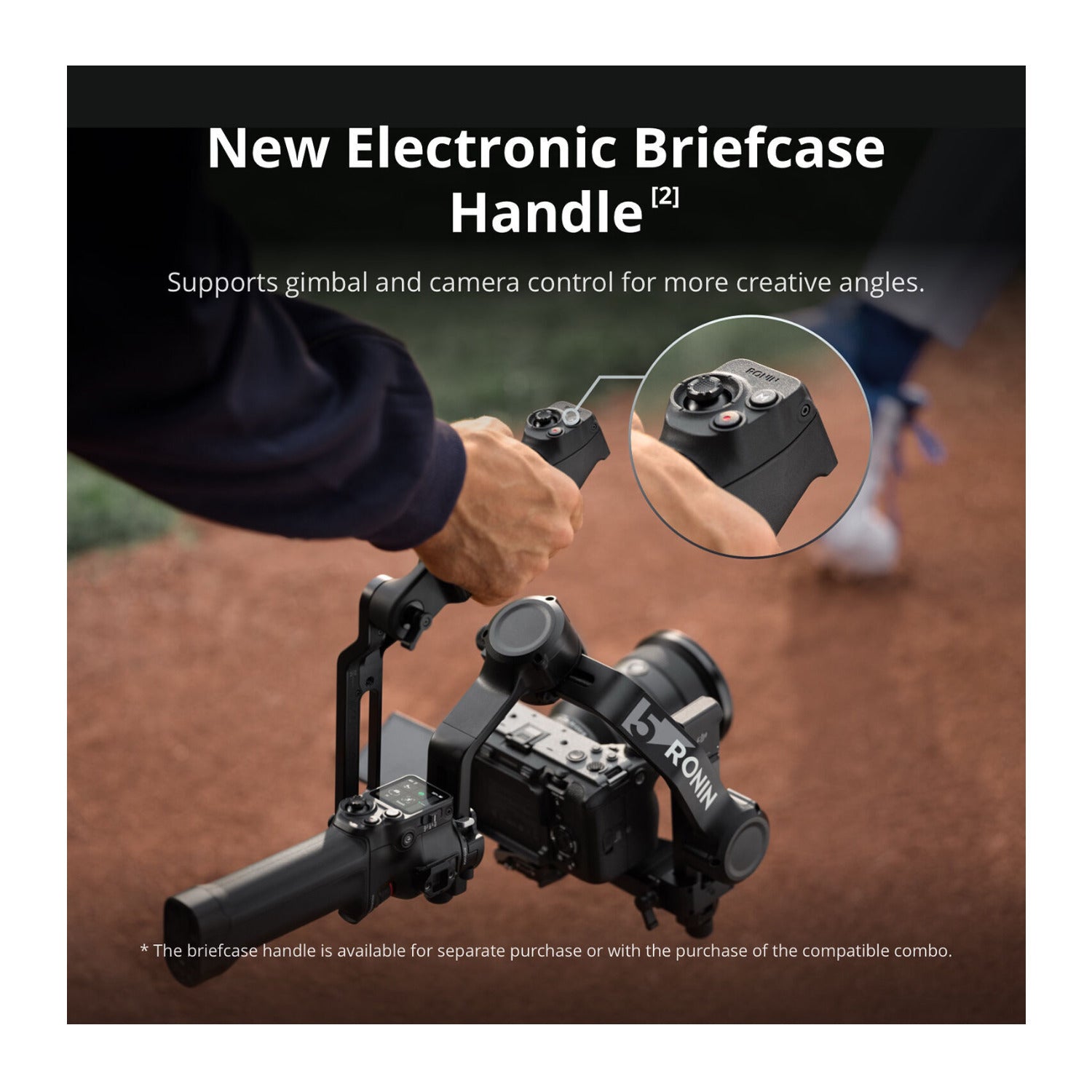

Optional Electronic Control Handle
An electronic control handle can be added to give flexible control over gimbal movements and settings.

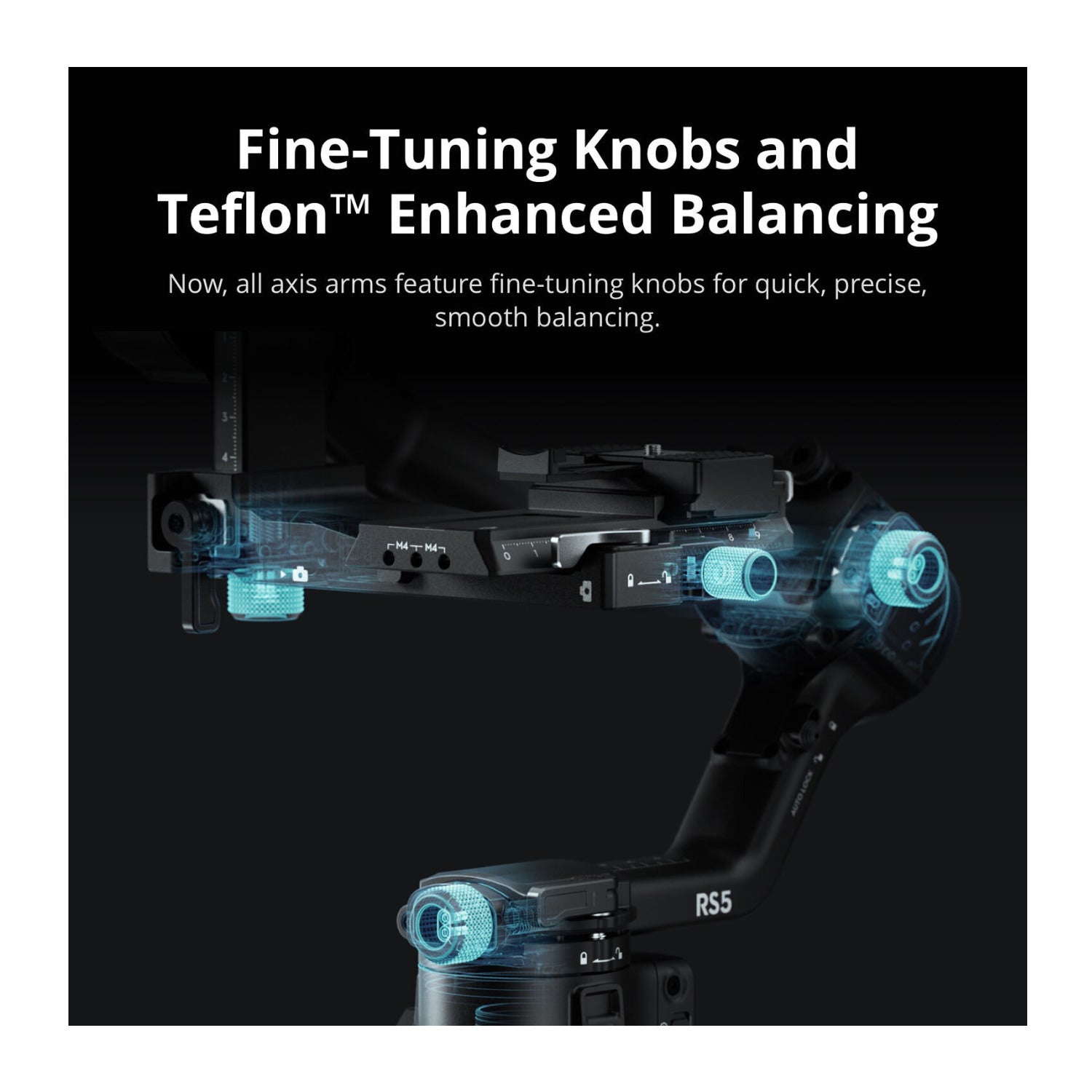

Enhanced Balancing with Teflon-Coated Axes
Teflon-coated axes improve balancing and reduce friction for smoother, more stable footage.
Integrated Controls and Modes
The gimbal allows mode switching between Pan follow, Tilt follow, FPV, and customizable modes, letting users adjust behavior to match shooting needs.

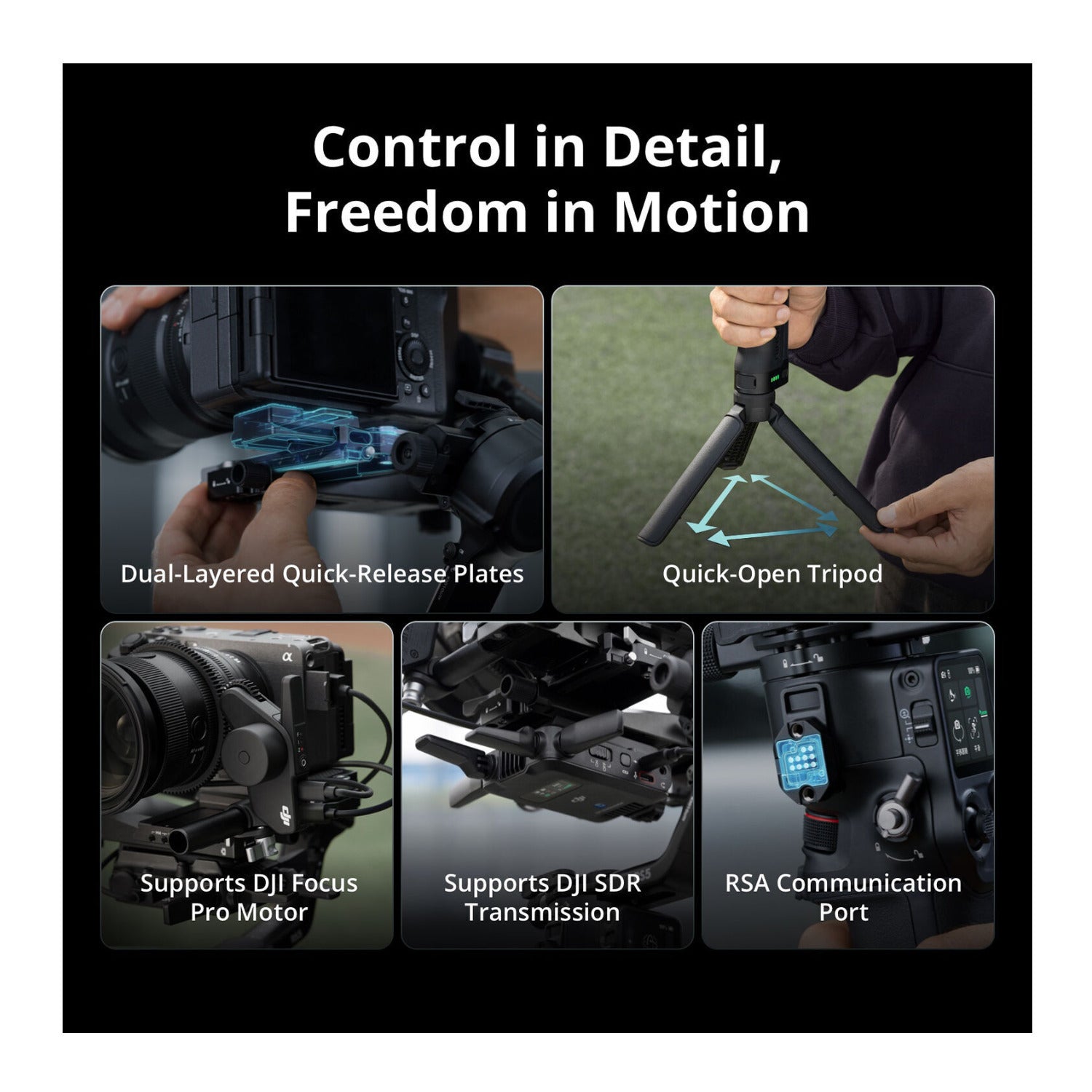

Focus Pro and DJI SDR Transmission Support
Optional Focus Pro motors and DJI SDR transmission allow remote focus and zoom adjustment, as well as live video feed and gimbal control.
Wireless Shutter Control
Dual-mode Bluetooth enables wireless video and photo shooting, with automatic reconnection for previously paired cameras.
RSA Communication Port
The RSA port allows integration with Ronin or third-party accessories and enables future customization via the DJI RS SDK.

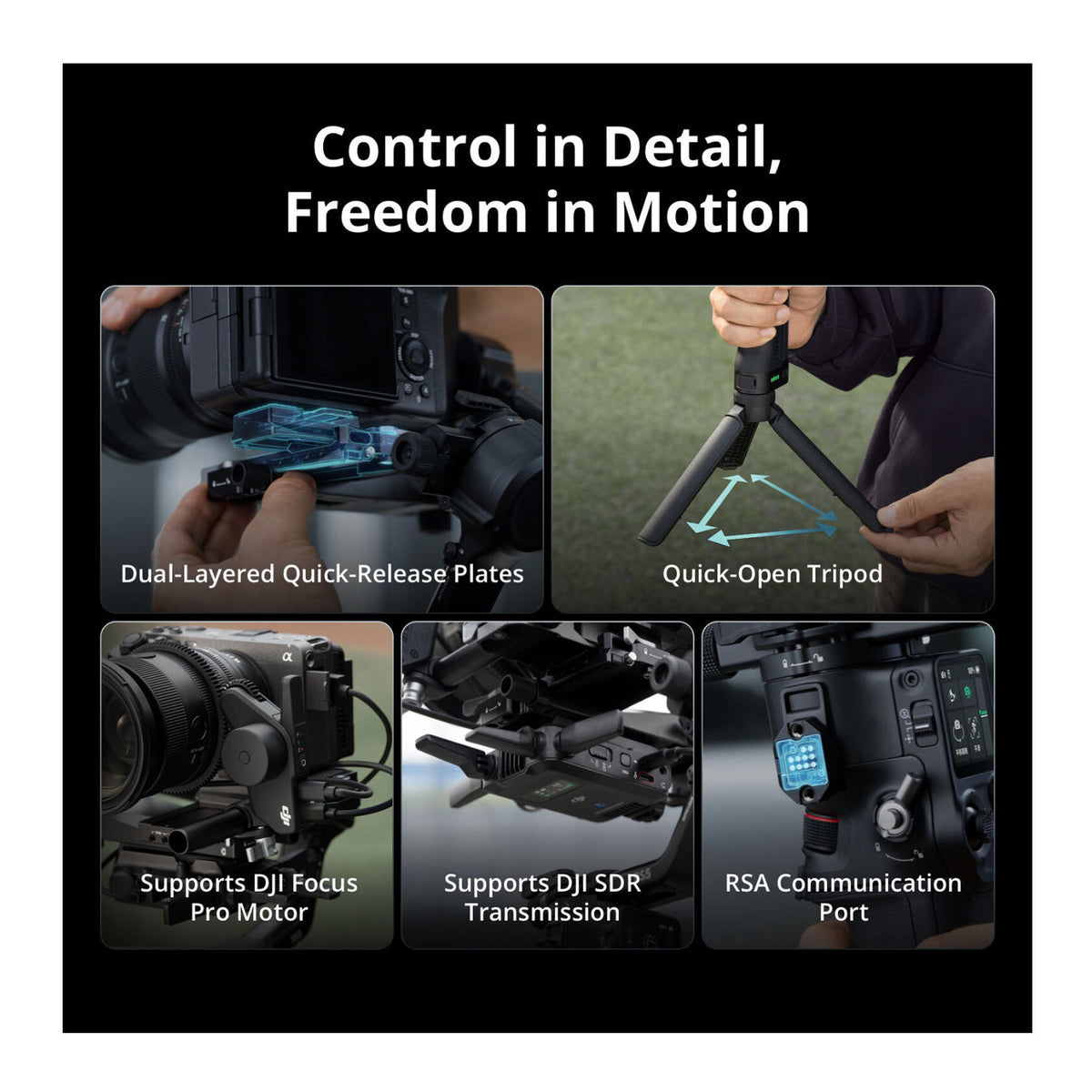

Enhanced Quick Release Plate Design
The second-generation dual-layered plates simplify camera mounting, balancing, and transitions to vertical shooting, with tilt adjustment and placement guides for stability.
- Pan: 360 degrees continuous
- Roll: 335 degrees (-95 degrees to 240 degrees)
- Tilt: 326 degrees (-112 degrees to 214 degrees)
- Extended: 16.5 x 8.8 x 7.6 inches / 418.8 x 223.2 x 192.2 mm
- Folded: 10.2 x 9.7 x 4.6 inches / 258.7 x 247.4 x 115.7 mm
Gimbal Design
| Type | Single Handgrip |
| Load Capacity | 6.6 lb / 3 kg |
| Number of Axes | 3 (Pitch/Tilt, Roll, Yaw/Pan) |
| Rotation Range | |
| Follow Speed | 360 degrees per second on all axes |
| Counterweight | Available, not included |
| Joystick Controller | No |
Camera Compatibility and Control
| Camera Control | On compatible models (see full compatibility list) |
| Camera Compatibility | Universal |
| Camera Mounting Screw | 1 x 1/4 inch Male |
Display and Controls
| Display Type | Fixed OLED touchscreen |
| Joystick / Mode Switching | Joystick not included; Bluetooth mode switching supported |
| Mobile App Compatible | Yes, Android & iOS via Ronin App |
Connectivity
| Inputs/Outputs | 1 x USB-C (Power) |
| Wireless | Bluetooth 5.1, 2.4 GHz Radio/RF |
Battery and Power
| Battery Type | Built-in |
| Battery Runtime | 14 hours |
| Charging Time | 1 hour |
| Operating Voltage | 7.2 VDC |
General Specifications
| Materials | Aluminum Alloy |
| Operating Conditions | -4 to 113 degrees Fahrenheit / -20 to 45 degrees Celsius |
| Accessory Mounting | 1 x 1/4 inch Female, 2 x NATO Rails |
| Dimensions | |
| Weight | 2.63 lb / 1.193 kg |
Transmitter
| Transmitter I/O | 2 x NATO, 2 x USB-C |
| Transmission System | Bluetooth 5.1, 2.4 GHz |
Packaging Information
| Package Weight | 4.59 lb |
| Box Dimensions | 11.7 x 10.2 x 3.7 inches |
