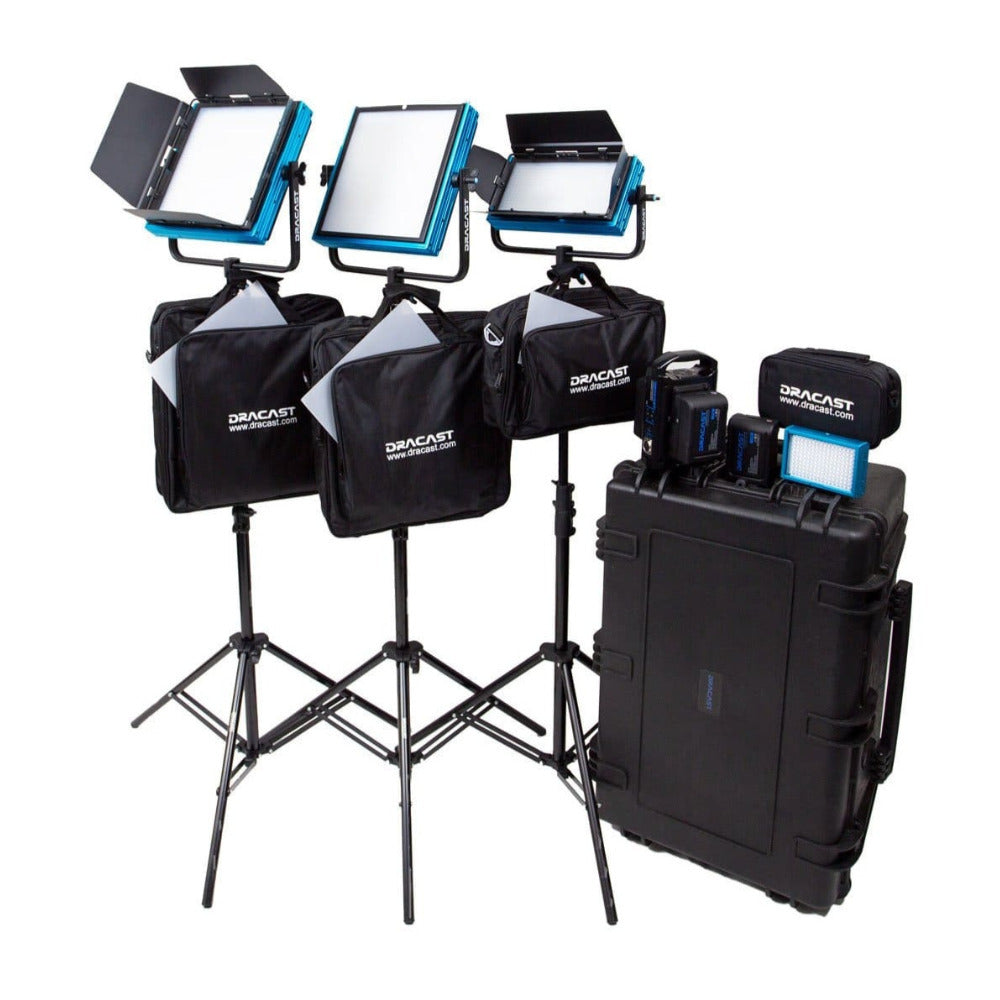

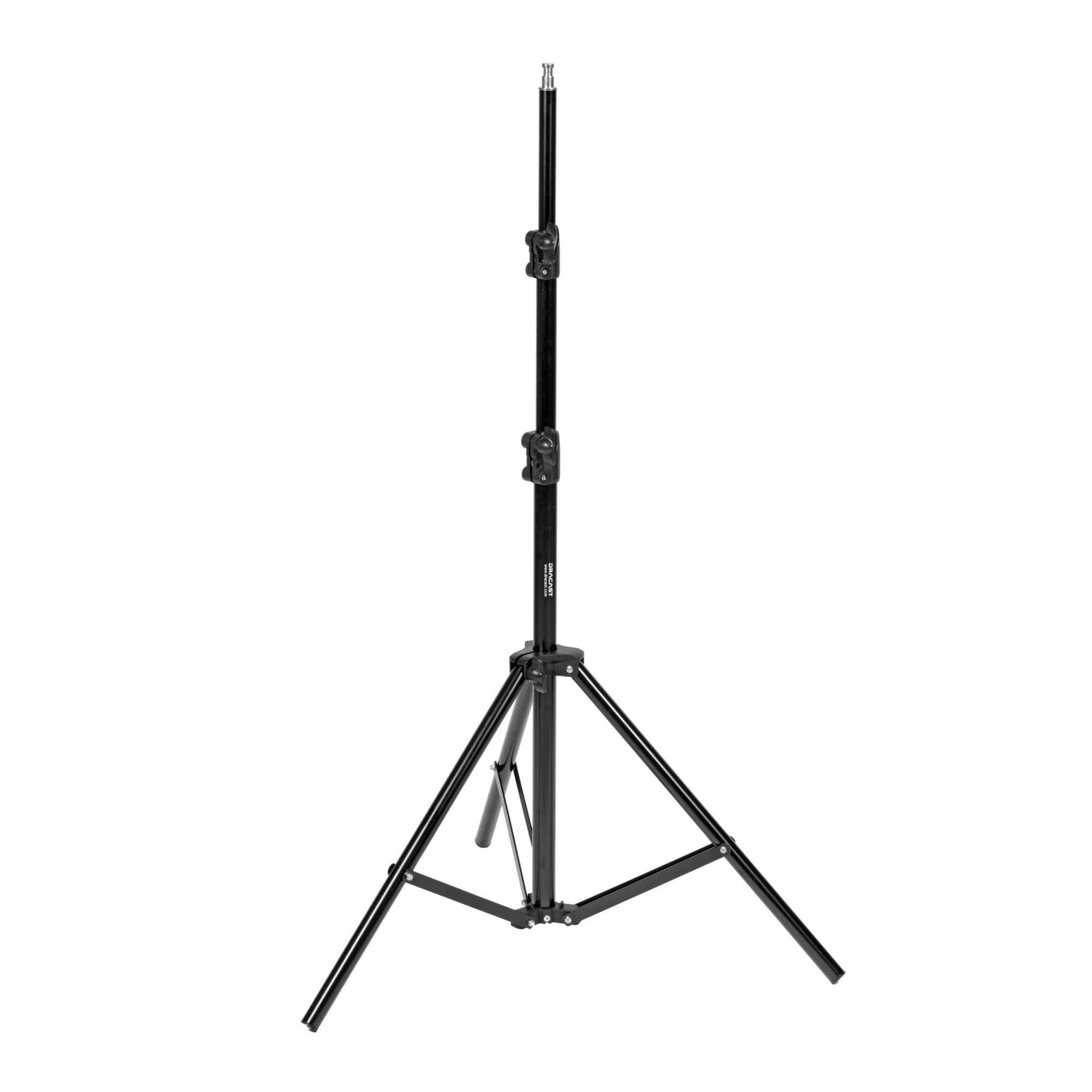

Designed as a powerful, yet portable lighting solution, the Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates includes a variety of different bi-color LED lights and accessories. This includes two LED1000 lights, an LED500 light, and an LED160 light, three different sizes with multiple power options for maximum versatility. It comes with three DR-90S batteries, a dual battery charger, and a Sony L-series battery with charger for portable power. Other accessories are included in this kit, such as three barndoors, three filter frames, three diffusion filter sets, and three light stands.

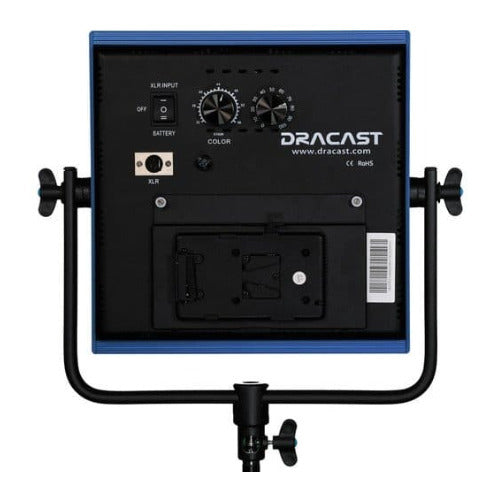

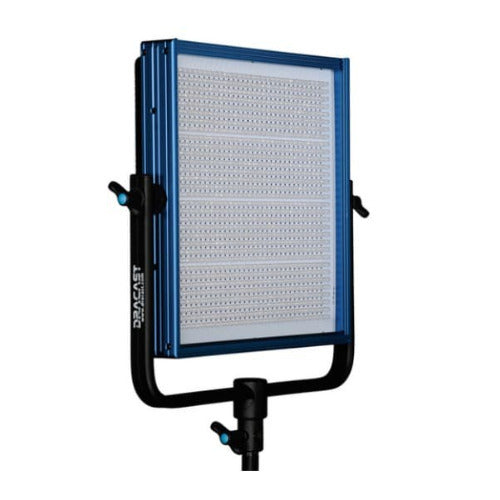

LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate
At 5.5 lb the LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 60W means a timely return on your investment.

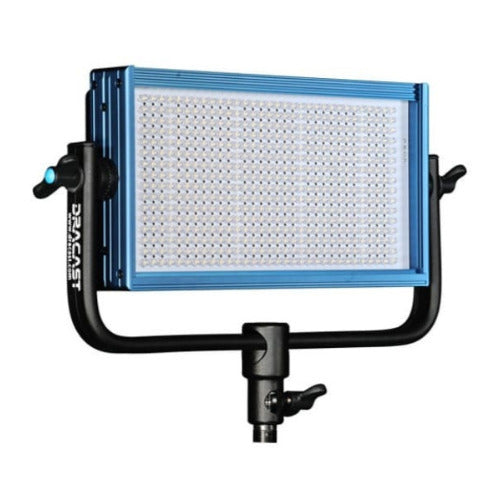

LED500 Pro Bi-Color LED Light with V-Mount Battery Plate
At just 4.0 lb the LED500 Pro Bi-Color LED Light from Dracast is an ideal choice for location work, interviews and small sets where color accuracy, control and flicker-free output are of major importance. Variable color temperature from 3200K-5600K or anywhere in between means that you can quickly match the prevailing ambient or artificial light balance with a simple twist of a knob while others are still applying filters. Dimming is equally convenient via another knob that adjusts the light intensity from 100-0% with negligible color shift. The low electrical draw of just 30W means a timely return on your investment. The durable anodized aluminum frame is supported by an oversized, U-shaped yoke with locking knobs on each side and a standard 5/8-inch receiver. The LED500 can be used worldwide, powered by the included 100-240 VAC adapter in the studio, or by V-Mount batteries in the field.

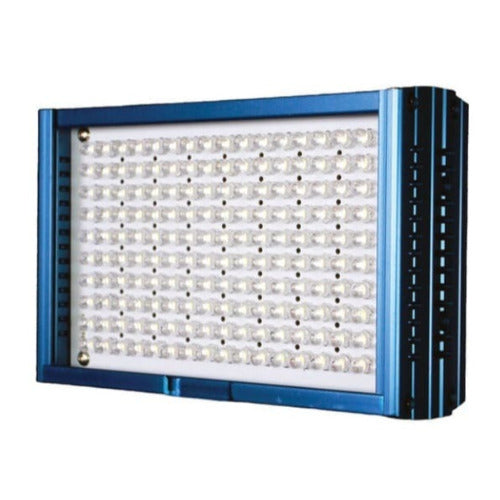

LED160 3200-5600K Variable Color On-Camera Light
This is a 3200-5600K variable-color Dracast LED160 On-Camera Light, housed in an aluminum, blue case and measures a compact 6 x 4-inch. It features a high, 160W equivalent light output with a 45 degrees flood beam angle. It’ll give you approximately 20 ft effective distance.

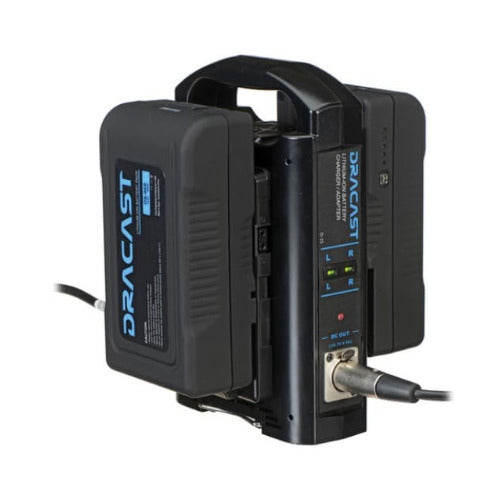

DR-CH2V Dual V-Mount Battery Charger
The portable DR-CH2V Dual V-Mount Battery Charger from Dracast allows you to simultaneously charge two V-Mount batteries (or a single battery) from 90 to 240 VAC sources. It features a top handle for easy transport and built-in capacity management system to ensure fast charging. The charger will automatically shutdown once the batteries reach their full charge. Additionally, the charger can function as a portable AC to DC power adapter, taking the AC power input and outputting 15 VDC at 4A via a 4-pin XLR connector. The output is only active when no batteries are attached.

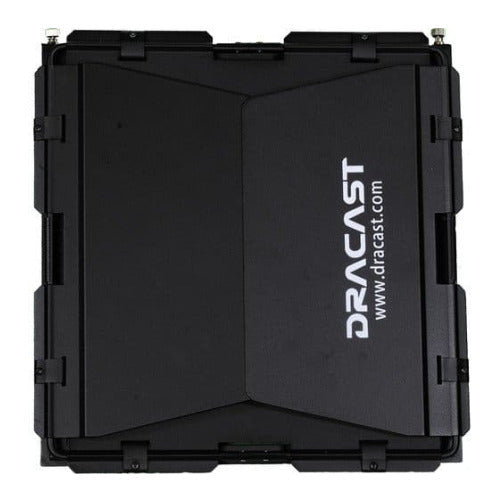

Barndoors for LED1000
These Barndoors from Dracast are made for the LED1000, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.
Barndoors for LED500
These Barndoors from Dracast are made for the LED500, and slide into a slot on the front of the LED light. They are used to control the spread of the light and prevent unwanted light spill and they feature a filter holder.
Dracast Pro Series Bi-Color 4-Light ENG Kit with V-Mount Battery Plates
LED1000 Pro Bi-Color LED Light with V-Mount Battery Plate
| Beam angle | 45 degrees |
| Color temperature | 3200 to 5600K |
| Color accuracy standard | CRI 95 |
| Cooling system | None |
| Dimming | Yes, 0 to 100% |
| Display | None |
| Housing material | Aluminum |
| Fixture dimensions | 12.0 x 12.0 x 2.0 inches / 305.0 x 305.0 x 51.0 mm |
| Fixture weight | 5.5 lb / 2.5 kg |
| Battery plate | 1 x V-Mount |
| Yoke mount | TVMP/ Hex Bolt |
| Fixture mount | 5/8 inch receiver |
| AC input power | 100 to 240 VAC, 50 / 60 Hz |
| DC input power | 12 to 14.8 VDC |
| Power source | AC Adapter, External Battery |
| Max power consumption | 60 W |
| IP rating | IP20 |
LED500 Pro Bi-Color LED Light with V-Mount Battery Plate
| Beam angle | 45 degrees |
| Color temperature | 3200 to 5600K |
| Color accuracy standard | CRI 95 |
| Cooling system | None |
| Dimming | Yes, 0 to 100% |
| Display | None |
| Housing material | Aluminum |
| Fixture dimensions | 12.0 x 6.0 x 2.0 inches / 305.0 x 152.0 x 51.0 mm |
| Fixture weight | 4 lb / 1.8 kg |
| Battery plate | 1 x V-Mount |
| Yoke mount | TVMP/ Hex Bolt |
| Fixture mount | 5/8 inch receiver |
| Accessory mount | None |
| AC input power | 100 to 240 VAC, 50 / 60 Hz |
| DC input power | 12 VDC |
| Power source | AC Adapter, External Battery |
| Max power consumption | 30 W |
| IP rating | IP20 |
LED160 3200-5600K Variable Color On-Camera Light (Aluminum, Blue)
| Beam angle | 45 degrees |
| Color temperature | 3200 to 5600K |
| Color accuracy standard | CRI 95 |
| Expected lamp life | 50000 Hours |
| Number of LEDs | 160 |
| Effective distance | 20.0-feet / 6.0 m |
| Battery plate | 1 x Sony L-Series |
| DC input power | 7.2 to 8.4 VDC |
| Max power consumption | 9.5 W |
| Mount type | 1/4-inch-20 female thread |
| Dimensions | 6 x 4 x 2 inches / 15 x 10 x 5 cm |
| Weight | 0.5 lb / 227 g |
DR-CH2V Dual V-Mount Battery Charger
| Power input | Input: 90 to 240 VAC, 47 to 63 Hz |
| Power output | 4-pin XLR, 15 VDC, 4 A |
| Power consumption | 50 W |
| Dimensions | 4.6 x 8.9 x 5.5 inches (11.7 x 22.6 x 14 cm) |
| Weight | 2.2 lb (1 kg) |
Barndoors for LED1000
| Material | Aluminum |
| Weight | 2 lb (0.9 kg) |
Barndoors for LED500
| Material | Aluminum |
| Weight | 1 lb (0.5 kg) |

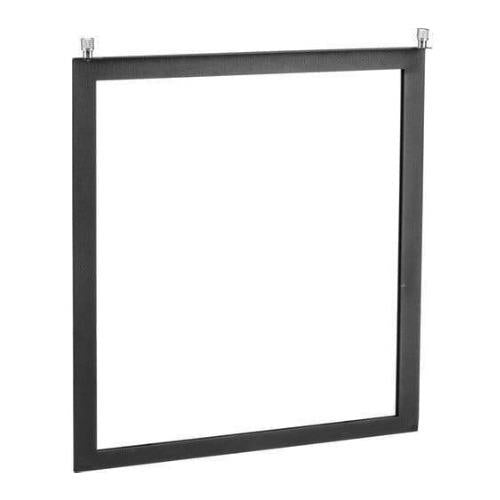

Filter Frame for LED1000 Light
| Material | Aluminum |
| Dimensions | Approximately 12 x 12 inches (30.5 x 30.5 cm) |
Filter Frame for LED500 Light
| Material | Aluminum |
| Dimensions | Approximately 12 x 6.0 inches (30.5 x 15.2 cm) |
Diffusion Filter Set for LED1000 Panel
| Dimensions | 12 x 12 inches (30.5 x 30.5 cm) |
Diffusion Filter Set for LED500 Panel
| Dimensions | 10.0 x 5.5 inches (25.4 x 14.0 cm) |
