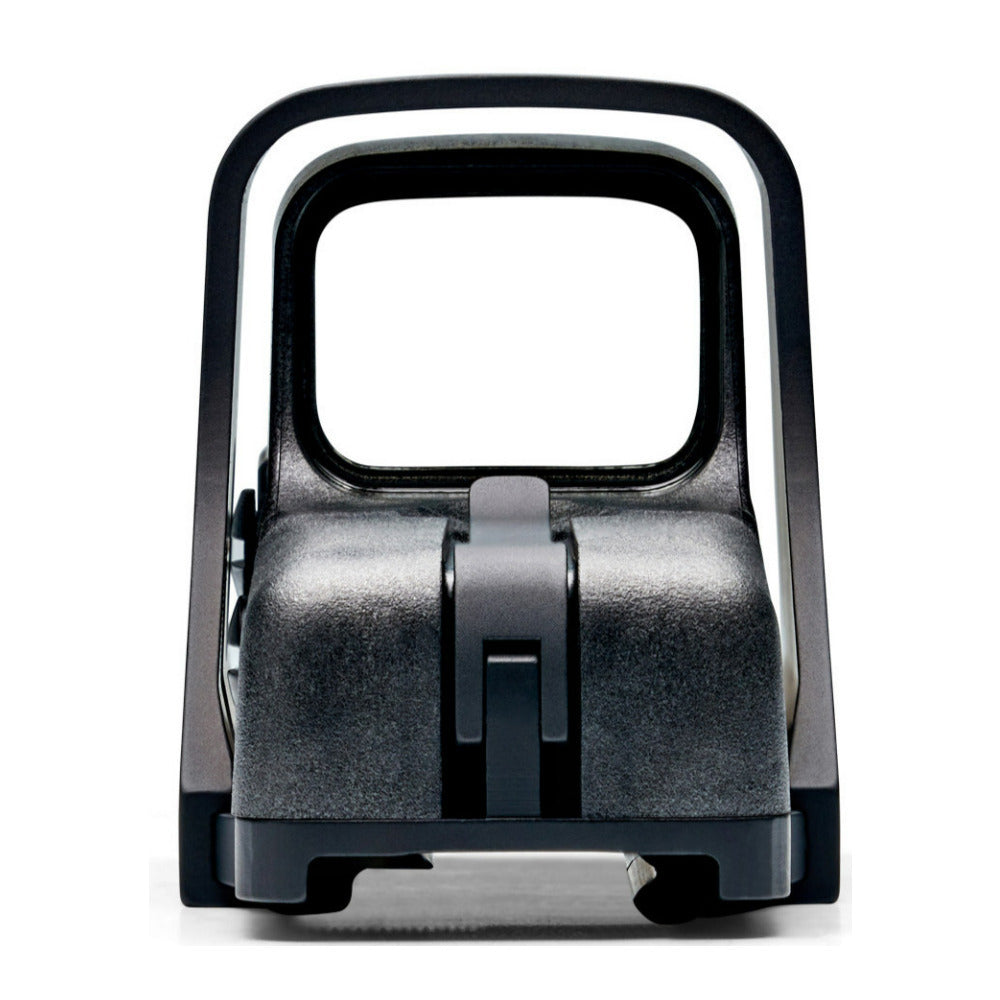

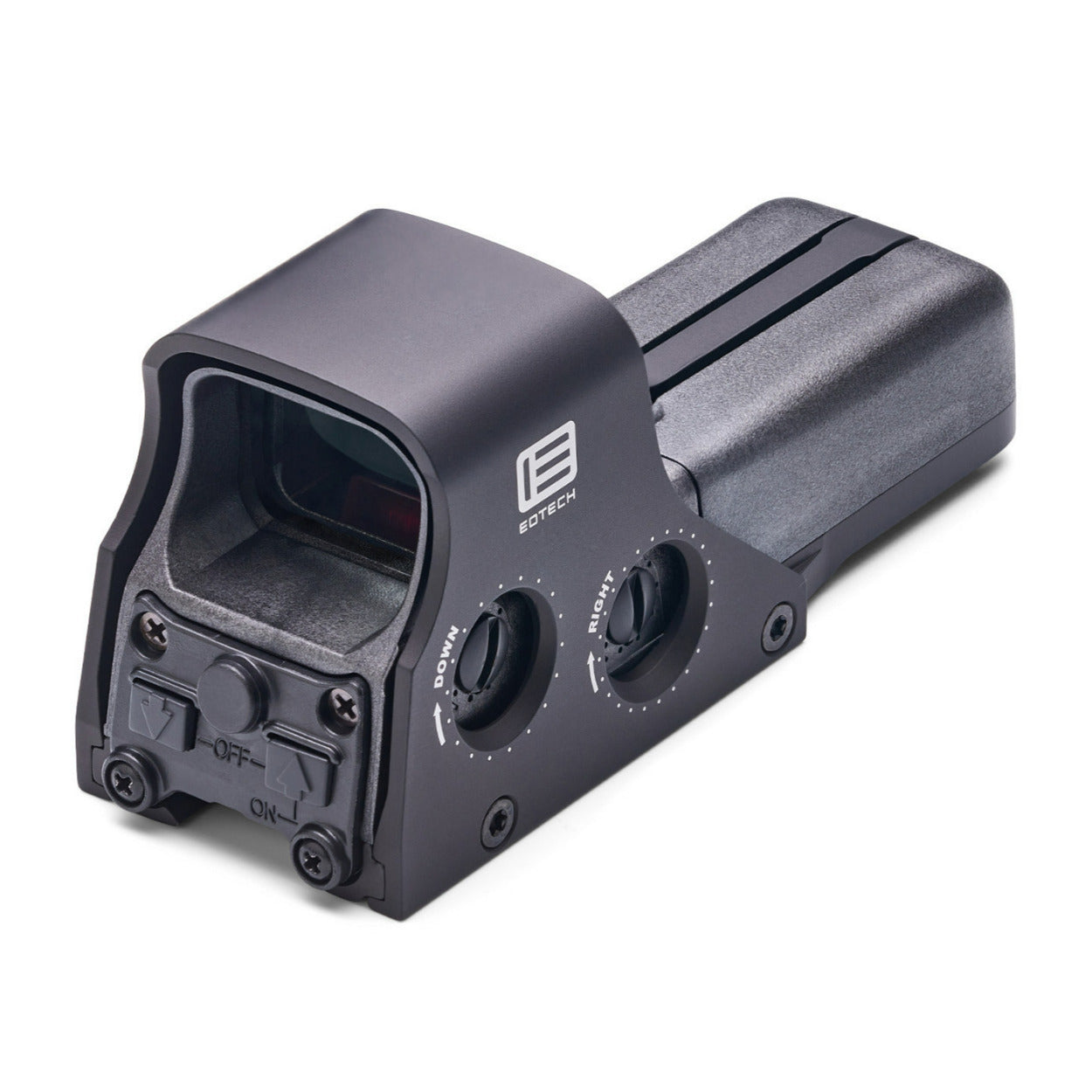

EOTech Holographic Weapon Sight 512 Reticle with 68 MOA Ring and 1 MOA Dot
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The EOTech Holographic Weapon Sight 512 is perfect for anyone who wants fast target acquisition, reliability, durability, and anyplace availability of AA batteries without the need for night-vision compatibility. The 512 is the most popular HWS in its lineup.
Operator Grade Holographic Weapon Sight
An operator-grade Holographic Weapon Sight built for close-quarter engagements with fast-moving targets.
Reticle Options
EOTech’s unique reticle patterns are critical to delivering fast target acquisition and MOA accuracy at any range. EOTech reticles feature a 68 MOA ring surrounding a 1 MOA center dot allowing the shooter to quickly pick up and lock on a target.
EOTech One Dot Reticle
The most popular reticle offered, the 68 MOA ring with 1 MOA dot provides three usable aiming points. The aiming points above are based on the following load: .223 cal. 62 gr. 2,900 vel. When using other loads and calibers, the operator will have to establish the ranges associated with the aiming points. When using a shotgun, the 68 MOA ring can be used to represent shot patterns but will vary based on choke and shell selection. For ordering this reticle, the model codes will end in -0.
Range Estimation with Unmagnified HWS
The standard ring found in most reticles equates to approximately 68 inches at 100 yards.
Brightness Options
The 512 HWS offers multiple brightness settings offering quick adjustability to accommodate any shooting situation.
EOTech Holographic Weapon Sight 512 Reticle with 68 MOA Ring 1 MOA Dot with 2 AA Batteries
Technical Specifications
| Optics | Transmission holography |
| Magnification | 1x |
| Eye relief | Unlimited |
| Dimensions L x W x H | 5.6 x 2 x 2.5 inch (142.2 x 50.8 x 63.5 mm) |
| Weight 11.5 oz (326 g) | |
| Water resistant | 10 feet (3m) depth |
| Sealing | Fog-resistant internal optics |
| Adjustment (per click) | Approx. 0.5 MOA (1/2 inch (12.7mm) at 100 yds. (91m)) when zeroing |
| Adjustment range | Range: +/- 40 MOA travel |
| Mount | 1-inch weaver or MIL-STD 1913 rail |
Display Window
| Optical surfaces | Anti-reflection coating on external surfaces |
| Window dimensions | 1.20 x 0.85 inch (30 x 23 mm) |
| Front window material | Glass 1/8 inch (3.17 mm) thick |
| Rear window material | Laminate 3/16 inch (4.76 mm) thick |
| FOV | 100 Yds (91m) 30 yds. (28m) at a 3-inch eye relief |
| Reticle option | 0- 68 MOA circle with quadrant ticks with 1 MOA aiming dot |
Electrical
| Power source | 2 x 1.5 V AA batteries (Supports lithium, alkaline, or rechargeable) |
| Battery life | Lithium: 2,500 continuous hours at nominal setting 12 at room temp. |
| Alkaline | 2,200 continuous hours at nominal setting 12 at room temp. |
| Brightness settings | 20 daylight settings |
| Auto battery | Check indicator flashing reticle upon start-up |
| Auto Shut-Down | At 8 hours, programmable to 4 hours |
| Operating temperature | -40 to 140-degree-F (-40 to 60-degree-C) |
General
| Color/finish | Black |
| Country of origin | USA |
