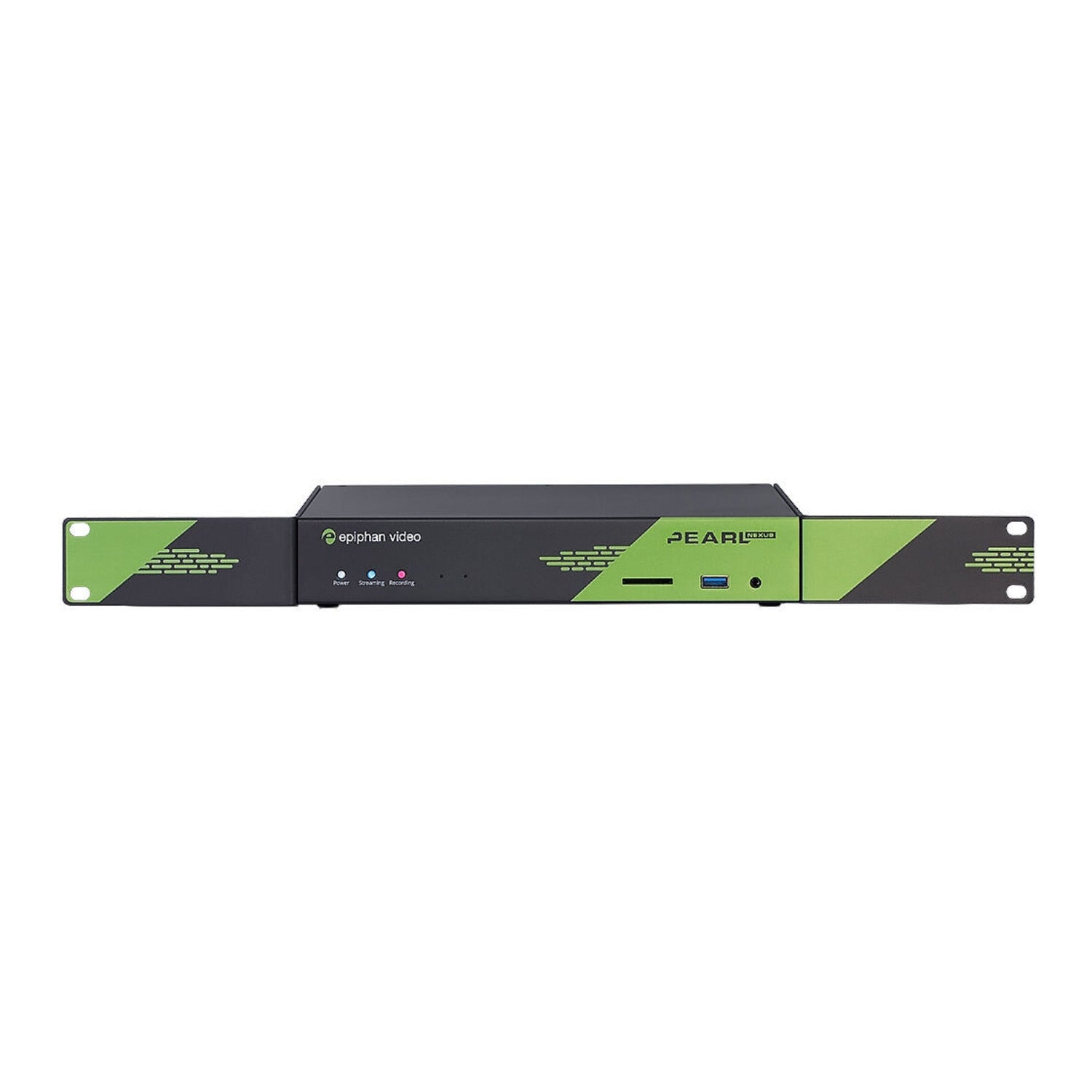

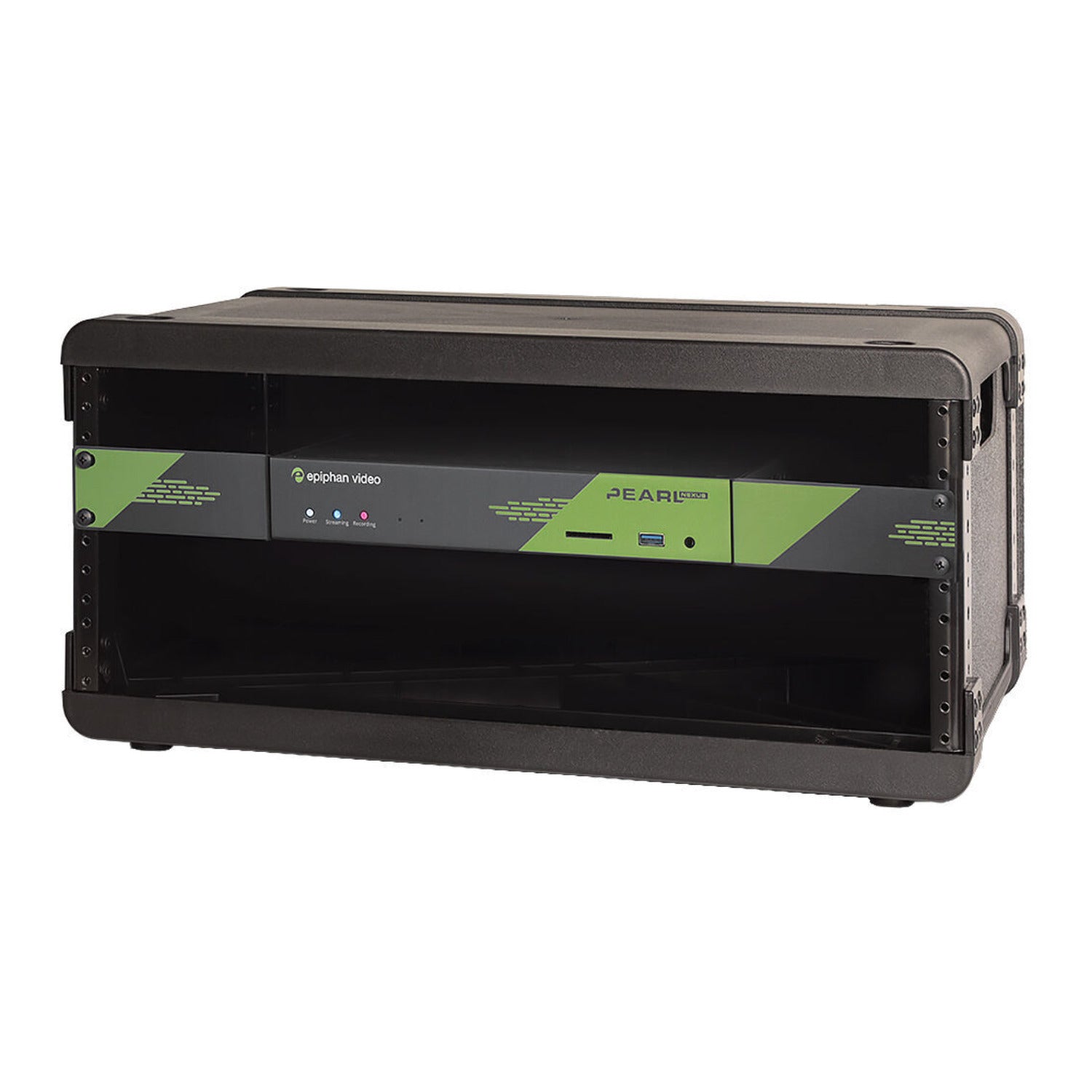

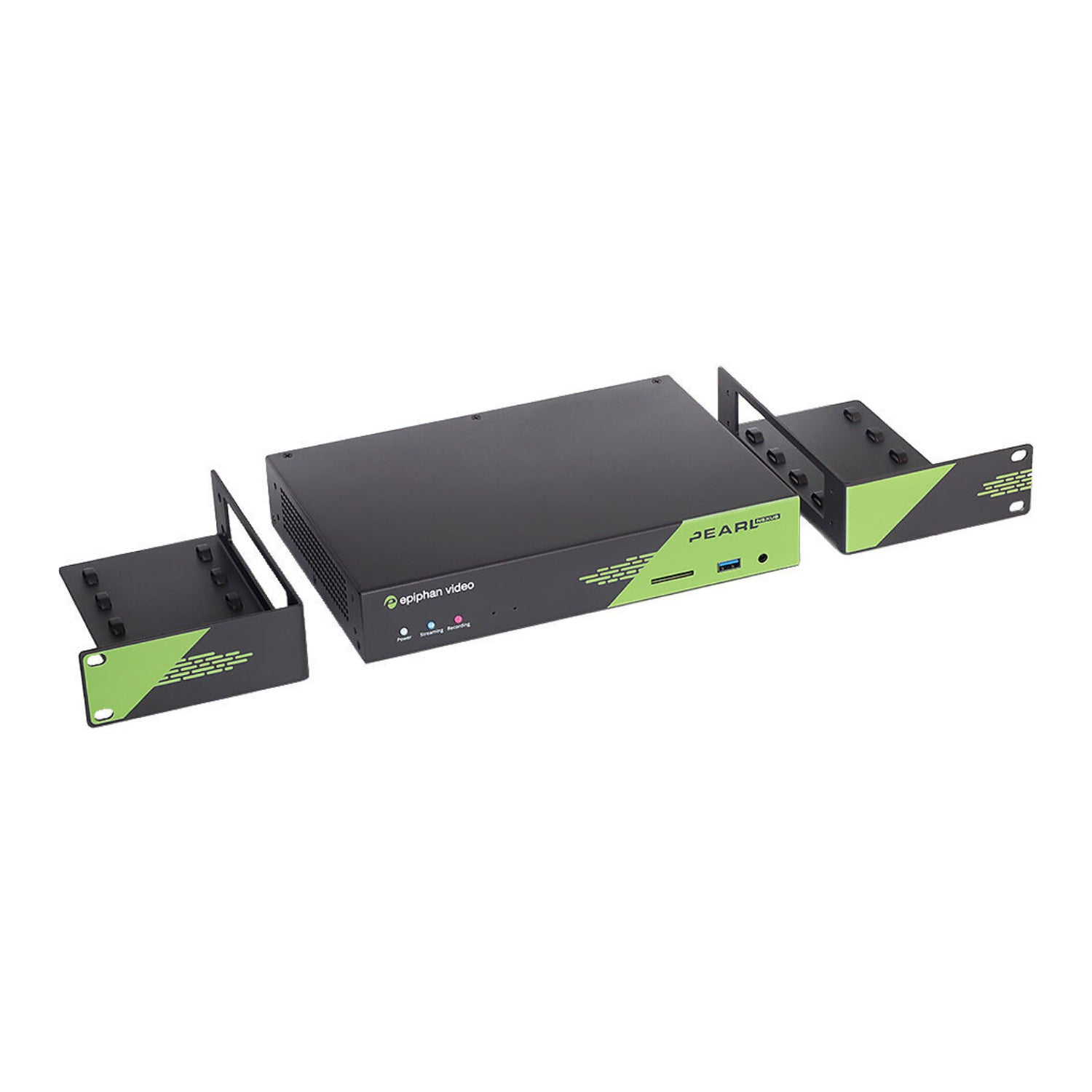

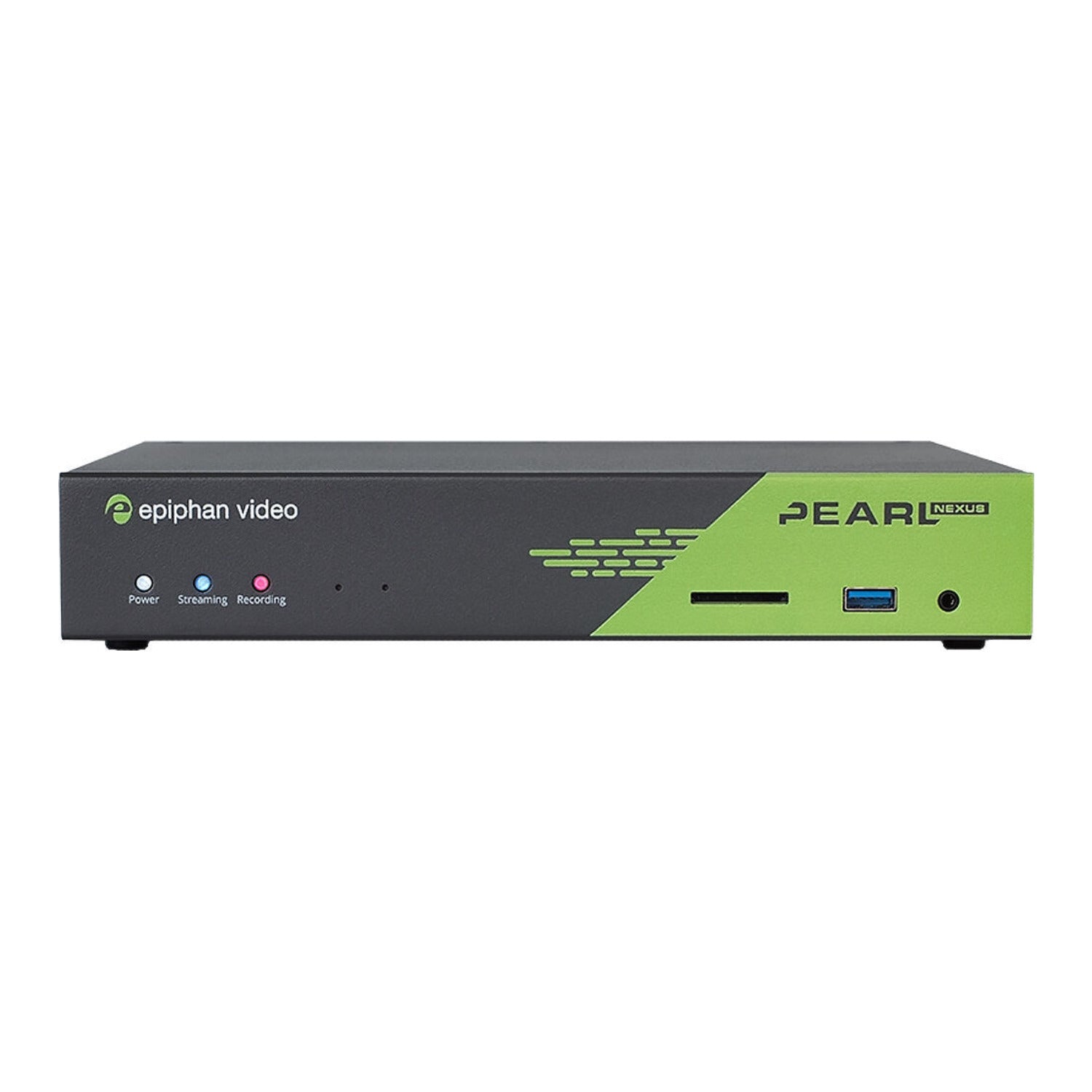

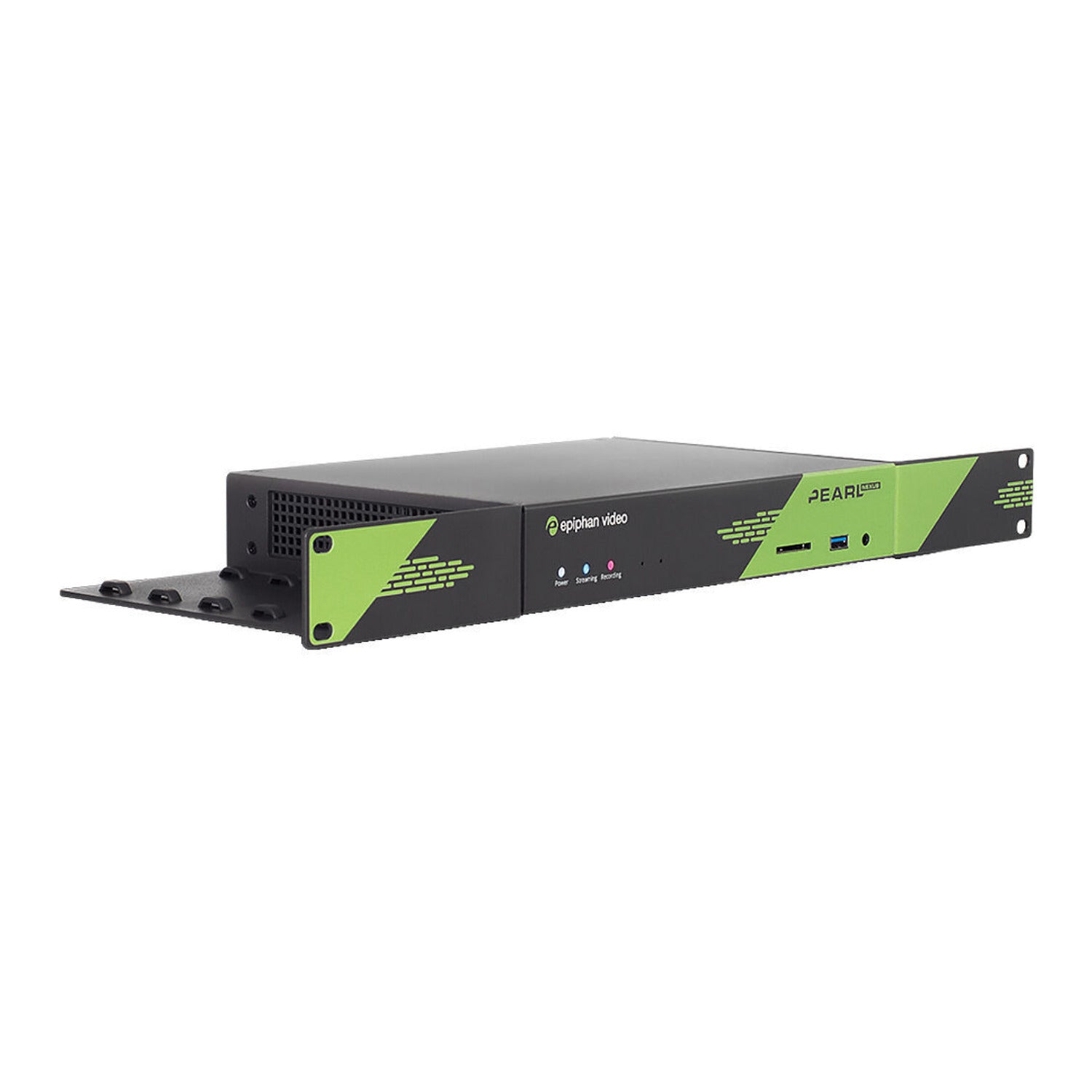

The Epiphan Pearl Nexus Live Video Production System lets you switch, record, and stream up to three 1920 x 1200 video inputs using its HDMI, 3G-SDI, USB-A, and NDI|HX interfaces. The device is designed for professional AV environments for seamless automated video integration with your preexisting ecosystem. First-party plugins integrate natively with Cestron, Q-SYS, or Extron environments. Detachable rackmount brackets allow you to secure the 1 RU device into your lectern or place it on a desktop.

Connectivity

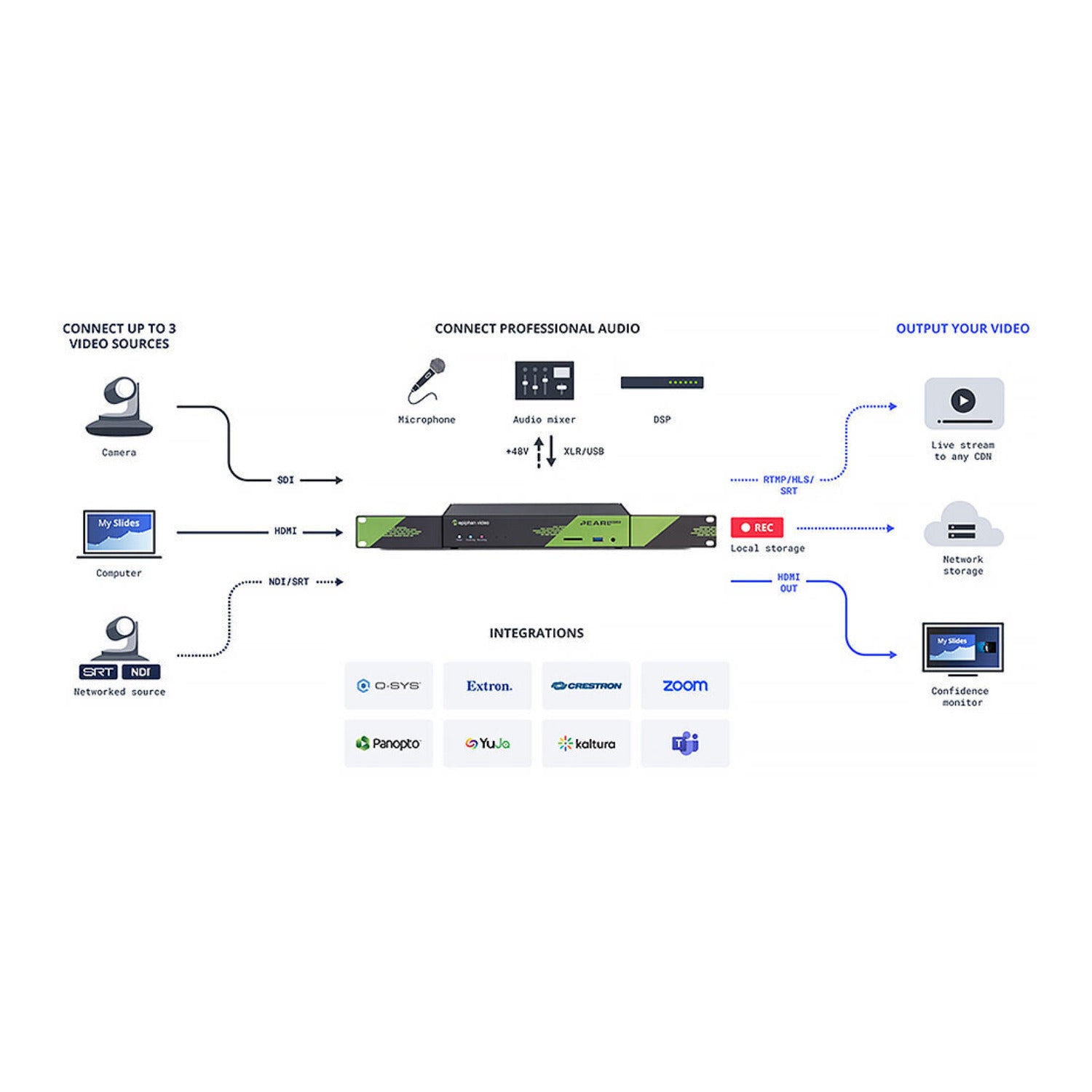

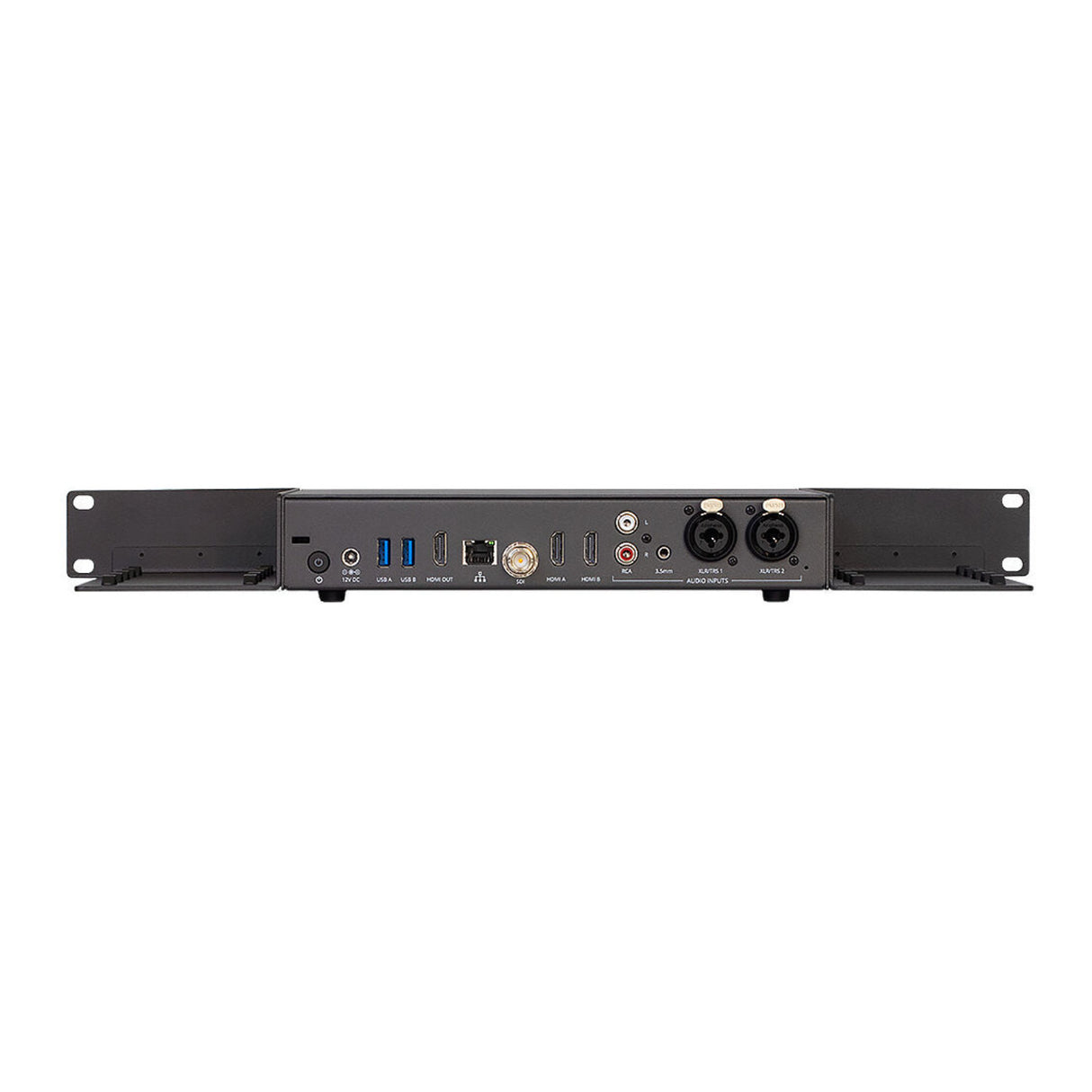

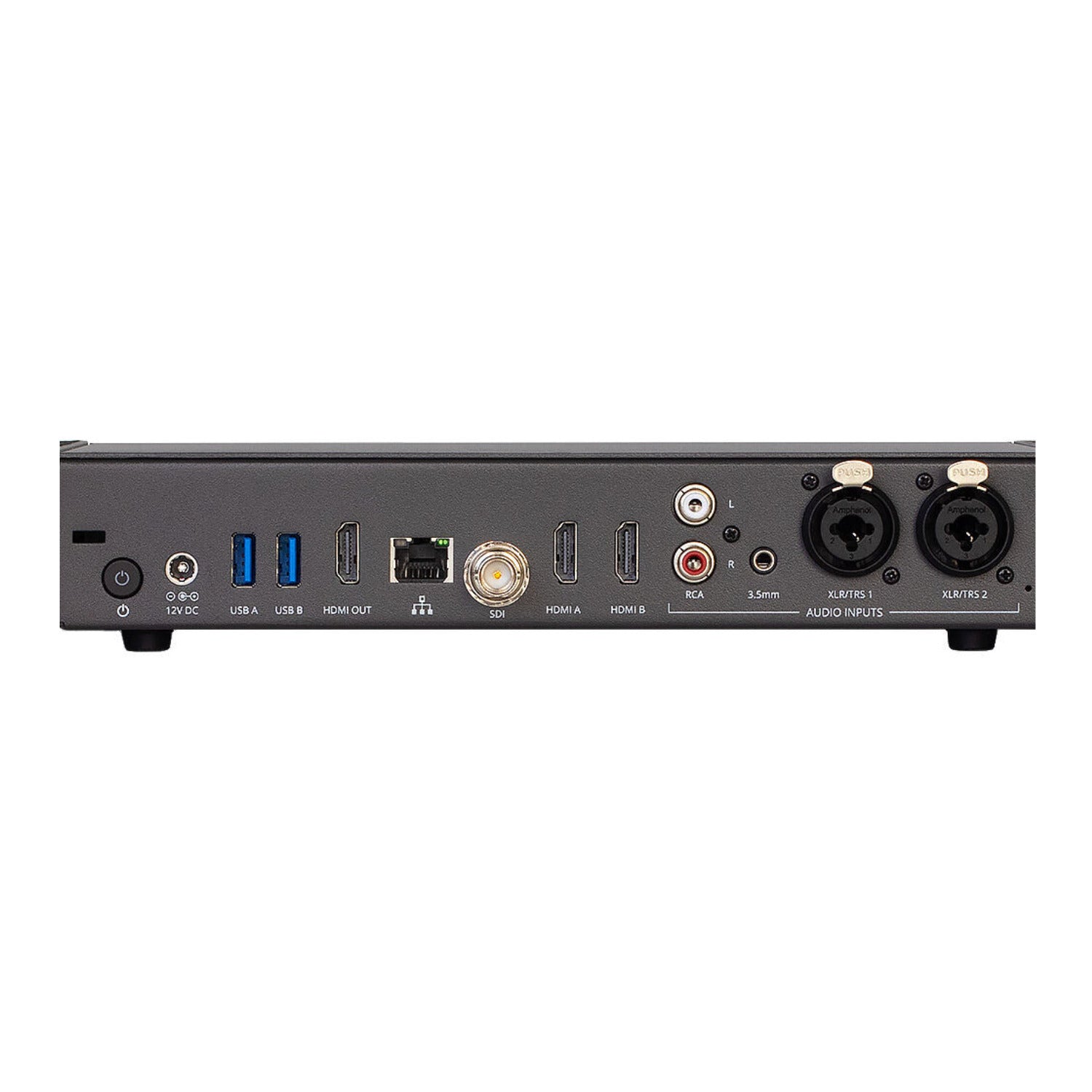

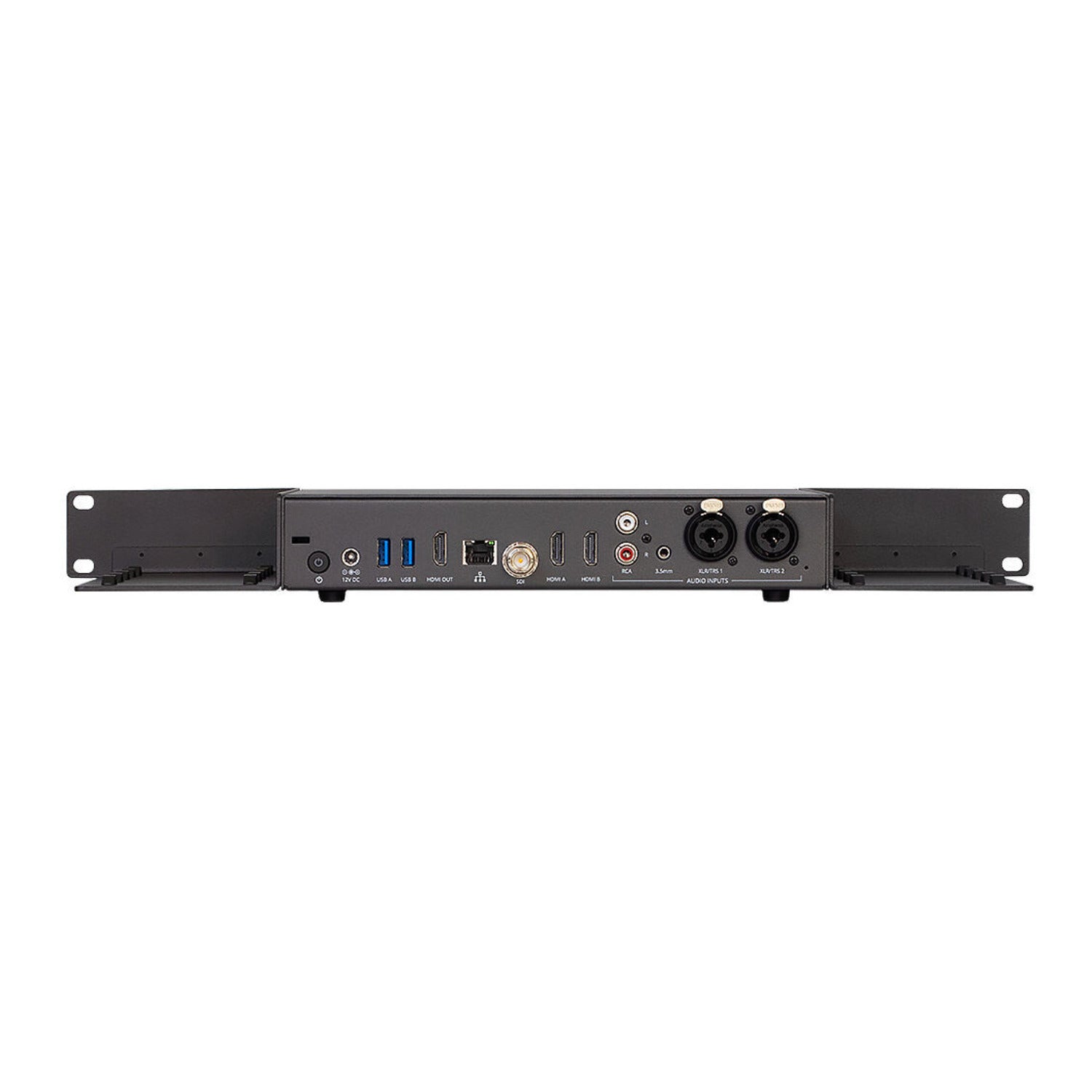

On the rear panel, the Nexus features HDMI, 3G-SDI (BNC), USB-A, and NDI|HX (RJ45) inputs for connectivity with cameras, playback devices, and computers. Audio inputs include combo jacks with support for XLR microphone and 1/4in TRS connections, 3.5mm microphone, and stereo RCA line inputs. An HDMI output can be used to monitor any video input or the switched program. The single Ethernet port supports RTSP, SRT, NDI|HX, and browser video. Record to the built-in 1TB internal SSD. Backup your recordings automatically to a USB stick, networked storage, or Content Management System (CMS).

Effortless Automation

Plug-and-play presets toggle between event types or transfer settings between Pearl units. Schedule your conferences, livestreams, or other events for automatic recording or streaming to a destination of your choice. Use Epiphan Edge to control the Nexus from anywhere and get real-time streams of inputs and channels in HD. Integration with platforms like Kaltura, Panopto, and YuJa enable you to easily schedule your events or stream directly from the Nexus.

Custom Layouts

Arrange your video inputs, graphics, text, and media into custom layouts and expand your creativity. Pearl supports the integration of Singular. Live, Uno, and Flowics for stunning graphics while also supporting dynamic text for timestamps, GPS, or other data. Add video content to the layouts with motion video backgrounds. The web-based switcher UI allows you to switch between different layouts. Bring in remote guests for a hybrid event through SRT, Zoom, or Teams platforms.

Secure Livestreaming and Control

• PEAP, EAP-TLS, and EAP-TTLS authentication access control methods are supported by the Pearl Nexus on 802.1x networks using passwords, usernames, and digital certificates. Upload and manage digital certificates via the Admin panel.
• Using SRT, the Nexus can get end-to-end secure streaming with up to 256-bit AES encryption. Encrypt content over TLS/SSL connections with RTMPS or use HLS for streaming over HTTPS.
• LDAP authentication support allows you to define domain name groups to assign users in bulk. They then log in with their LDAP credentials.
• Securely access the Admin panel and configure the Nexus over HTTPS connection. Send encrypted recordings from the system to off-site or on-site SFTP servers via Automatic File Upload.
