Epiphan Systems |SKU: ESP0705

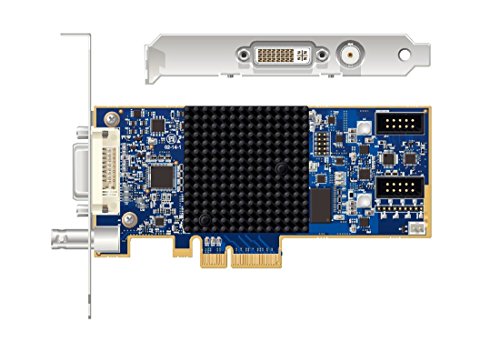

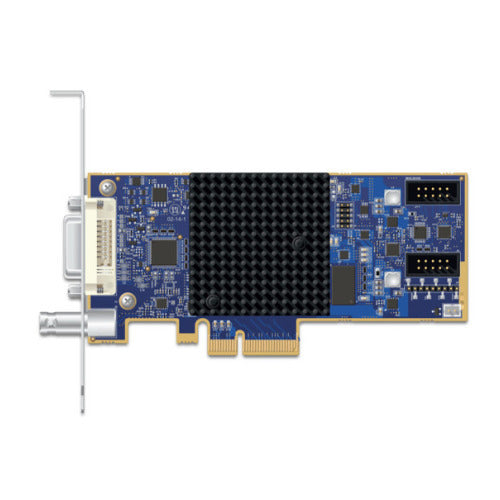

Epiphan DVI2PCIe Duo Internal PCIe Capture Card for DVI/HDMI/VGA and SDI Sources

$1,399.95

Product highlights

  • Captures lossless video from DVI, VGA/HDMI and SDI sources
  • Captures audio from SDI and unencrypted HDMI sources
  • Supports capture resolutions of up to 2048x2048
  • Supports Dual-link and single-link DVI signals
  • VGA/HDMI, 3G-SDI, HD-SDI, and SD-SDI audio/video sources
  • Record captured images and video to file formats like AVI
  • Easily fits into any PCIe expansion slot
  • Low-profile card is perfect for 2U cases

In the box

  • Epiphan DVI2PCIe Duo Internal PCIe Capture Card for DVI/HDMI/VGA and SDI Sources

Free standard shipping

*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy

Free Local Pickup

Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more

Questions? We’re Here to Help

Call or email one of our experts.

Call Email

The Epiphan DVI2PCIe Duo is an internal PCIe capture card capable of capturing lossless video from dual-link and single-link DVI video sources as well as VGA/HDMI and SDI video sources and audio from SDI and unencrypted HDMI sources. Supports capture resolutions of up to 2048 x 2048 and frame rates of up to 85 fps. This low-profile card is perfect for 2U cases. An alternative bracket is included for use in full-height cases. An optional AV Kit adds support for S-Video and audio from 3.5mm stereo or unbalanced 1/4-inch TRS audio inputs. Epiphan recommends DVI2PCIe Duo for AV professionals who capture and record production-quality video directly from SDI and DVI sources.

Dual-Link and Single-Link DVI Signal

Epiphan’s highest performance dual input PCIe capture card, capable of capturing dual-link and single-link DVI signals, VGA/HDMI, 3G-SDI, HD-SDI, and SD-SDI audio/video sources. DVI2PCIe Duo provides uncompressed dual channel video to third-party recording, streaming, conferencing and video analysis software applications running Windows or Linux platforms. The DVI2PCIe Duo PCIe Capture Card supports DVI resolutions up to 2048x2048 and captures digital audio from HDMI and SDI sources.

Multi-Source Video Inputs

The Epiphan DVI2PCIe Duo Capture Card is designed to capture digital and analog sources. The SDI input port is built to capture video signals from 3G-SDI, HD-SDI and SD-SDI and embedded audio from SDI sources. The DVI input port is built to capture video signals from DVI, VGA, HMDI, and embedded audio from HDMI sources.

Delivers High-Quality Output

The frame rate is independent of the captured content; slow moving video and fast moving video is captured at the same rate. No matter what content you capture you can depend on a consistent frame rate. With no compression, DVI2PCIe Duo captures and transfers every pixel of the frame.

Delivering Professional AV Quality to Every Production

The Epiphan DVI2PCIe Duo is a high-performance capture card designed for AV professionals who require a desktop solution. It captures high-quality video and images from any device with a SDI and DVI/VGA/HDMI signal. It also captures uncompressed video and audio from 3G-SDI, HD-SDI and SD-SDI signals at full HD resolution at 60 fps. The capture device supports 2048x2048 resolutions for DVI signals.

Customize Your Recording

You can add company-related information, corporate color and a time stamp to identify your video. You can also choose color, style and location on the screen where your information is displayed.

Flexible Recording Options

You can control how DVI2PCIe Duo records images and video. Record captured images and video as a series of consecutively saved graphic files or as one video file. The device saves captured images and video to the most widely used video file formats, like AVI.

Designed with Usability in Mind

The Epiphan DVI2PCIe Duo is designed for AV professionals who require an express card to fit into an existing desktop solution. It easily fits into any PCIe expansion slot.

Epiphan’s Capture Tool and Drivers

All Epiphan video grabbers come with a capture tool which provides a seamless interface to a wide range of industry standard encoding and streaming software. To maintain the highest standard of product performance we upgrade the video grabber firmware from time-to-time. Upgrades are free and your video grabber notifies you when a firmware upgrade is available.
