- FeelWorld FW1018SPV1 10.1-Inch 1920x1200 IPS 3G-SDI HDMI Monitor
- Mini HDMI Cable
- Sunshade
- Hot Shoe Mount
- F970 Battery Plate
- Tally Kit
- U Bracket
- Operation Manual
- Limited 1-Year Warranty
Trusted & Verified
FeelWorld FW1018SPV1 10.1-Inch 1920x1200 IPS 3G-SDI HDMI Monitor
- Wide view angle IPS screen
- Bright, colorful display with a resolution of 1920x1200
- 3G-SDI, HDMI, YPbPr, Video, Audio (L/R) inputs
- 3G-SDI, HDMI, YPbPr, Video loop-through outputs
- Peaking focus assist
- Color temperature adjustment
- Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)
- Marker color (Red,Green,Blue,White,Black)
- Check field (Red/Green/Blue/Mono)
- Image flip (H, V, H/V)
The FeelWorld FW1018SPV1 10.1-inch IPS HD LCD On-Camera monitor is one of the best monitors of its kind. Thanks to FeelWorld's good price-quality ratio, many professional photographers and videographers choose for FeelWorld. The monitor also features image measurement functions like Focus Assist, Brightness Histogram, False Color, Zebra Exposure, Center Marker, Safe Frame, Check Field, Camera Mode, Aspect Ratio, Image Flip, Pixel-to-Pixel, and Image Freeze you will be able to analyze the image. These functions are assignable across six function buttons on the front panel.
Large Display
The large size of 10.1-inch enables you to focus clearly on your shots and eliminate the guesswork from framing. It blows up your tiny built-in camera screen to a much larger display that enables easier viewing and won't strain your eyes. With brightness levels of 320cd/m², an 800:1 contrast ratio, and 170-degree vertical and horizontal viewing angles this monitor is a useful tool when shooting video or stills, providing you with a larger image than your camera's built-in viewfinder or LCD screen. FW1018SPV1 provides maximum versatility with multiple inputs: HDMI, 3G-SDI, YPbPr, Video, Audio(L/R), and HDMI, 3G-SDI, YPbPr, Video loop-through output, you can connect it directly to any DSLR or HD video.
1920x1200 IPS FHD Panel
Enjoy Consistent Images from Any Perspective. FW1018SPV1 uses an IPS panel, which provides a wide 170-degree/170-degree viewing angle and brightness output, up to 320cd/m². This means you'll be able to see accurate, consistent, and bright images from any viewing point.
Professional Peaking Focus Assist
The Peaking Filter is used to aid the camera operator in obtaining the sharpest possible picture. When activated, the internal processor will display a colored highlight on the screen where sharp edges appear. You can switch the outline color between red, green, blue according to different tones of the subject.
3-Color Tally Light
There are front TALLY lights with 3 colors display and controlled via DB-9 ports on the rear panel.
Flexible Battery System
The monitor is powered from a 4-pin XLR connector or 12V DC input with the included power adapter（optional), and FW1018SPV1 has a flexible battery system that supports F970, LP-E6, D28S, Anton, Sony V mount plates of your choice.
FeelWorld FW1018SPV1 10.1-Inch 1920x1200 IPS 3G-SDI HDMI Monitor
Display Spec
| Model | FW1018SPV1 |
| Screen size | 10.1-inch IPS |
| Resolution | 1920x1200 pixels |
| Dot pitch (H x W) | 0.113 x 0.113 mm |
| Aspect ratio | 16:10 |
| Brightness | 320 cd/m² |
| Contrast ratio | 800:1 |
| Backlight | LED |
| Viewing angle | 85-degree/85-degree(L/R) 85-degree/85-degree(U/D) |

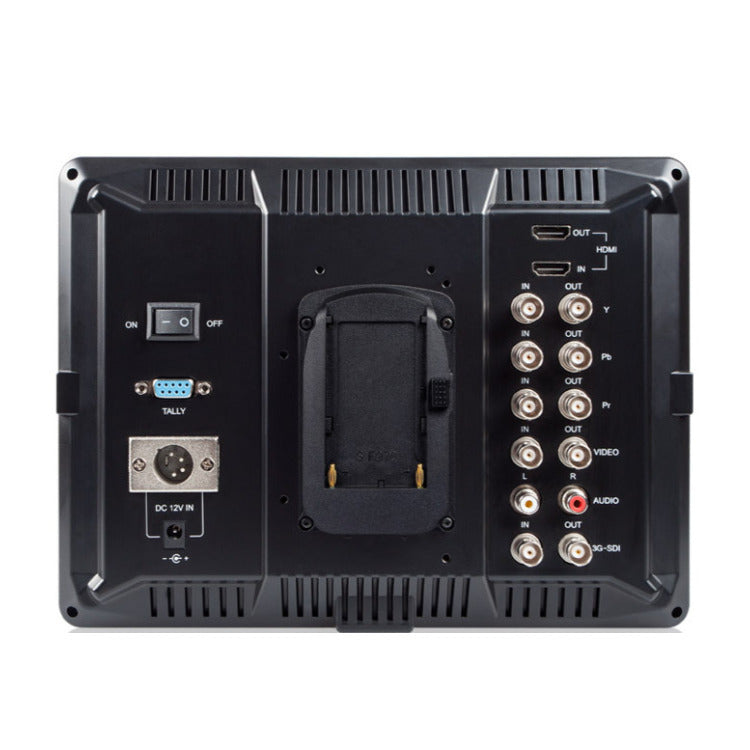

Input
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 1 x BNC | Y |
| 1 x BNC | Pb |
| 1 x BNC | Pr |
| 1 x BNC | Video |
| 2 x RCA | Audio(L/R) |
| 1 x DB-9 | Tally |
Output
| 1 x BNC | 3G-SDI |
| 1 x HDMI | HDMI |
| 1 x BNC | Y |
| 1 x BNC | Pb |
| 1 x BNC | Pr |
| 1 x BNC | Video |
Audio
| Audio | Stereo Headphone, Speaker |
SDI Support Format
| 480i/576i | |
| 720p(60/59.94/50/30/29/25/24/23.98) | |
| 1080i(60/59.94/50) | |
| 1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
HDMI Support Format
| 480i/576i/480p/576p | |
| 1080i (60/59.94/50) | |
| 720p (60/59.94/50/30/29/25/24/23.98) | |
| 1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) | |
| 4K UHD 3840×2160p (30/29.97/25/24/23.98 Hz), 4096×2160p (24Hz) |
General
| Input voltage | 7 to 24 VDC |
| Power consumption | ≤12 W |
| Power connector | DC/ 4-pin XLR |
| Battery plate | F970 (Standard); D28S, LP-E6, V-Mount, Anton Bauer (Optional) |
| Working temperature | -20~55 degree-C |
| Storage temperature | -30~65 degree-C |
| Install way | 1/4-inch-20 thread socket (3 sides left/right/bottom) |
| Unit size (L x H x D) | 258 x 192 x 39 mm |
| Unit weight | 810g |
Advanced Features
| Brightness histogram | |
| Embedded audio | |
| Peaking Focus Assist (Red, Green, Blue three colors optional highlight over parts of the image in focus) | |
| False colors | |
| Zebra exposure (1-100IRE adjustable) | |
| Check field (Red, Green, Blue, Mono) | |
| Camera mode | |
| Anamorphic mode (1.3x, 2.0x, 2.0x mag) | |
| Image flip (H, V, H/V) | |
| Image freeze | |
| Center marker | |
| Screen marker (80%,85%,90%,93%,96%, 2.35 | 1) |
| Ratio marker (4 | 3,13:9,14:9,15:9,16:9,1.85:1,2.35:1) |
| Color temperature adjustment | |
| Nine grid (Zoom one of the images to realize the full screen) (Not supported in 4K input) | |
| Zoom (4x, 9x, 16x) (Not supported in 4K input) | |
| Aspect ratio (Not supported in 4K input) | |
| Pixel to pixel (Not supported in 4K input) | |
| Zoom all (Not supported in 4K input) | |
| U/D zoom (Not supported in 4K input) | |
| L/R zoom (Not supported in 4K input) |
