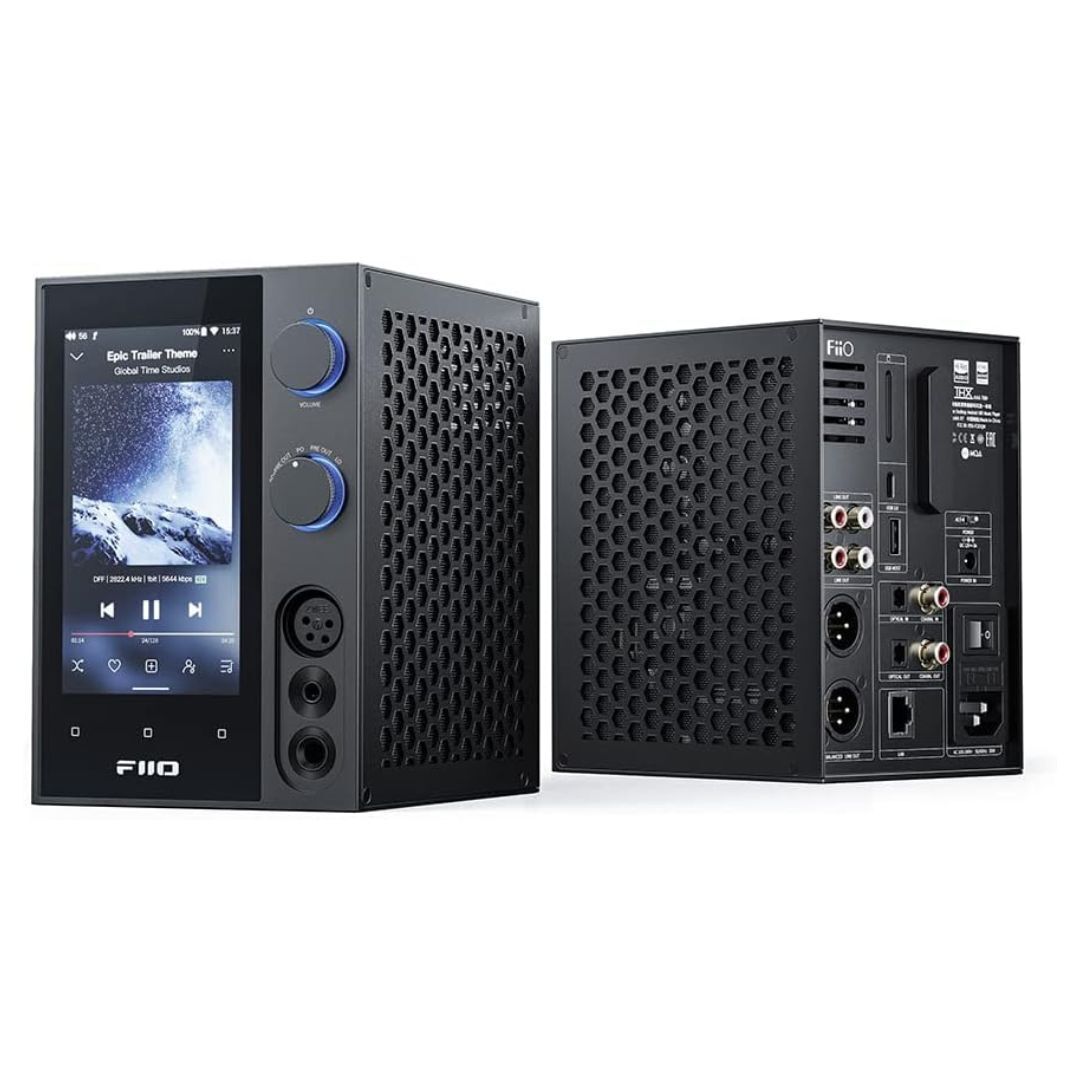

FiiO R7 Snapdragon 660, Android 10, HiFi Streaming Music Player with Bluetooth and Dual USB (Black)

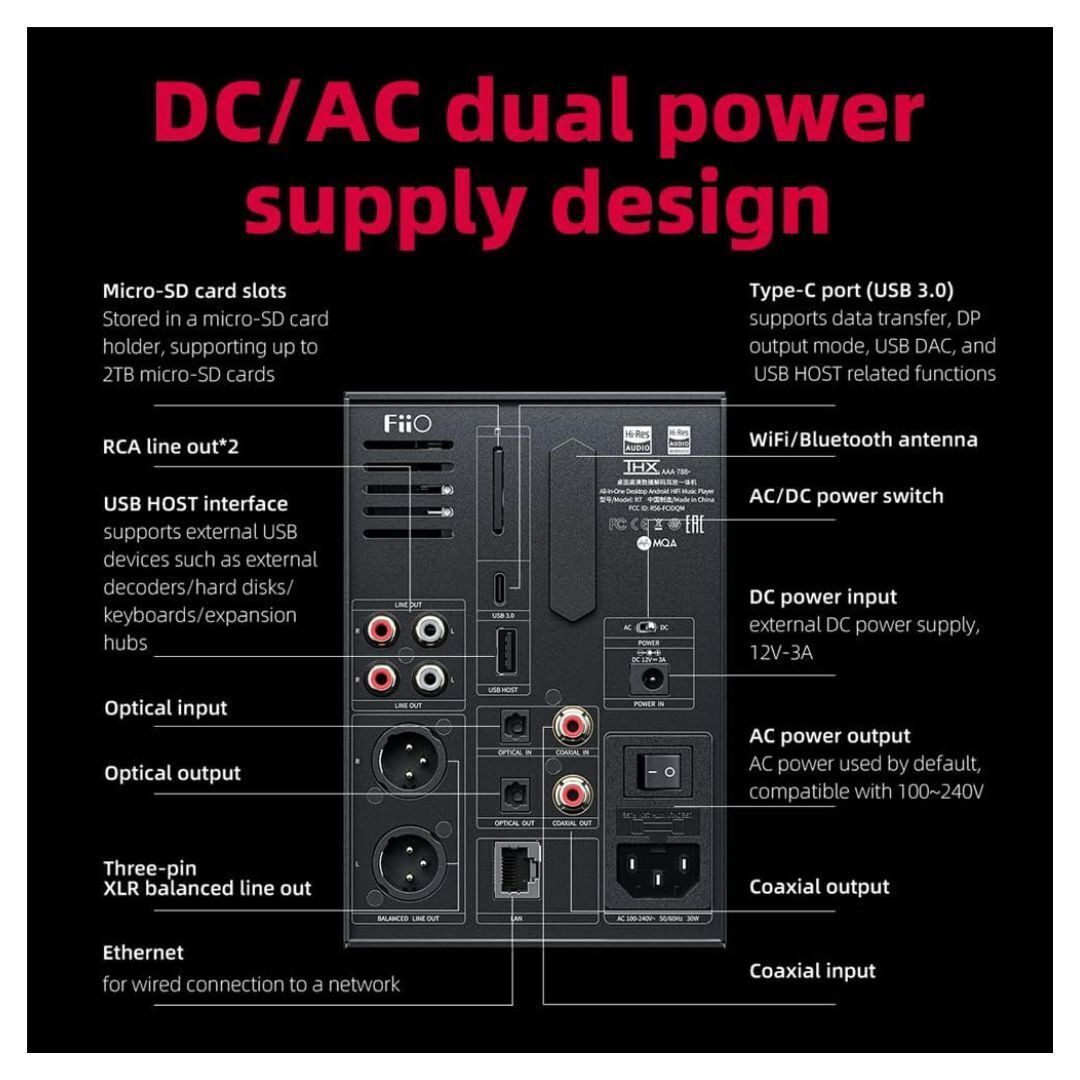

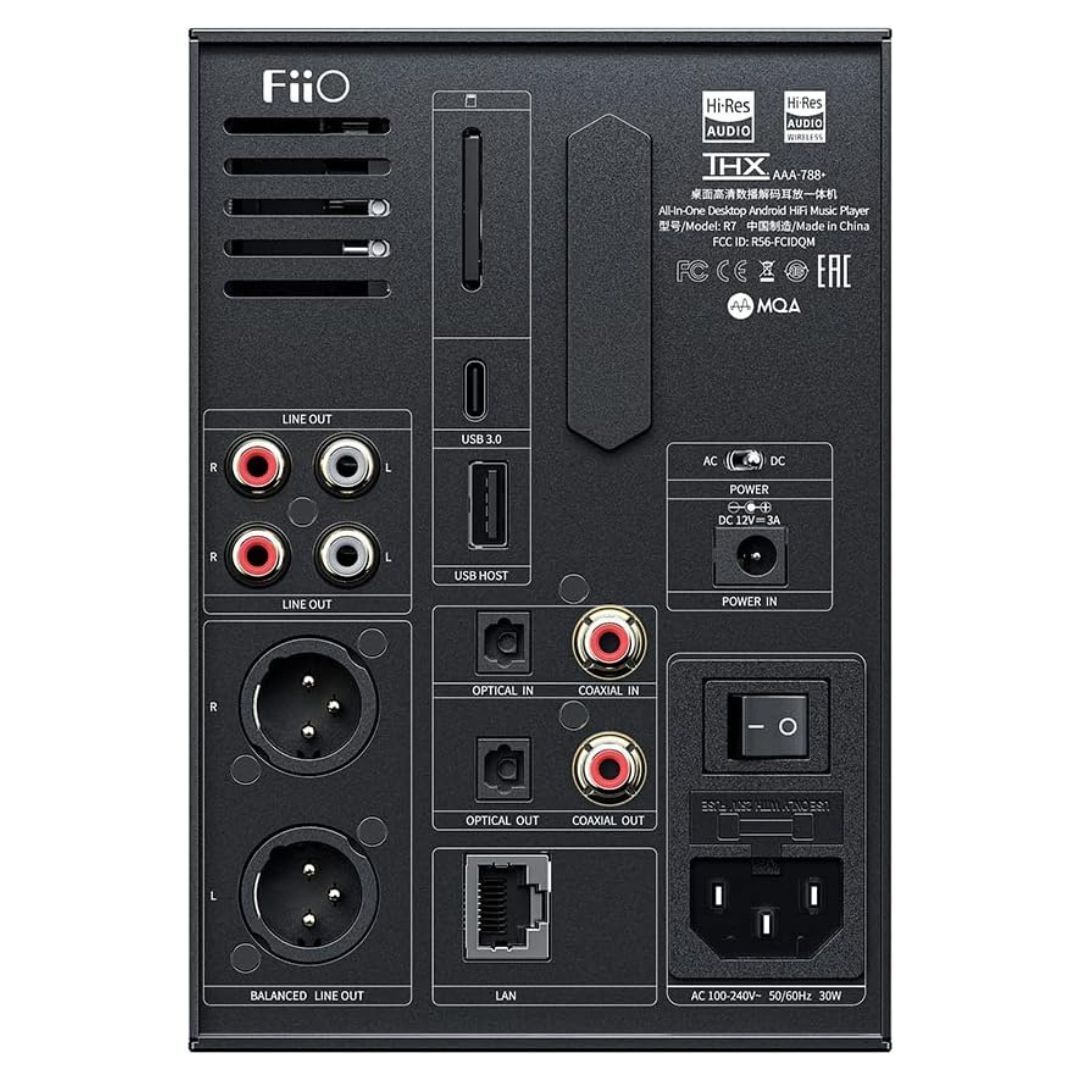

The FiiO R7 HiFi Streaming Music Player is a versatile audio powerhouse, featuring a 6.35mm headphone output, a 4.4mm balanced headphone output, and a four-pin XLR balanced headphone output. On the rear two RCA lines out, three-pin XLR balanced line out, coaxial output-input, and optical output-input. The inclusion of Ethernet ensures a stable wired network connection, while the USB HOST interface supports external devices like decoders, hard disks, keyboards, and expansion hubs. The Type-C port serves multiple functions, from data transfer to DP output mode, USB DAC, and USB HOST capabilities. Micro-SD card slots support up to 2TB cards, providing ample storage. With thoughtful additions such as AC-DC power switches, Wi-Fi, and Bluetooth antenna.

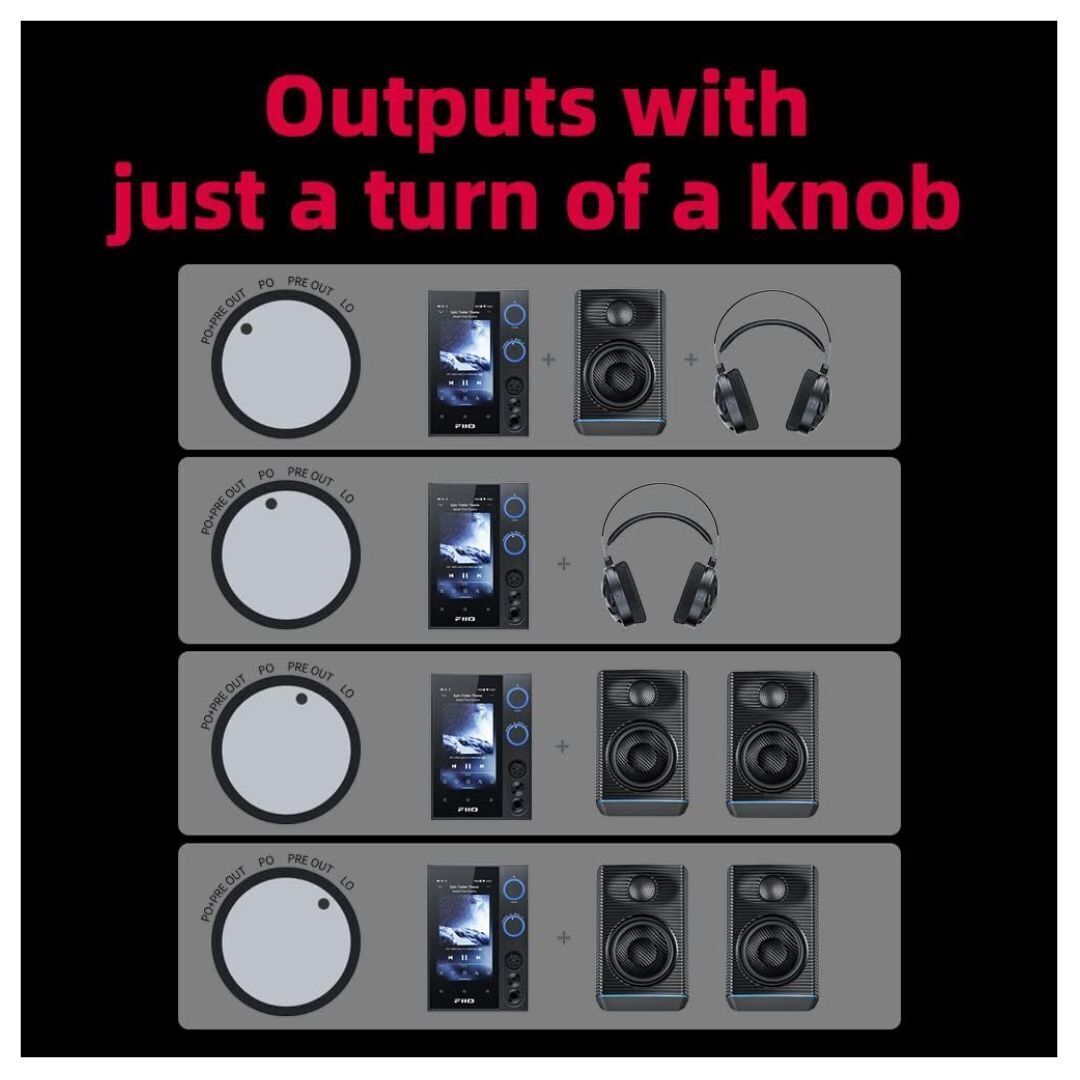

With Just a Turn of a Knob
The FiiO R7 audio system features distinct output modes - PO activates only the front audio outputs, LO exclusively engages the rear audio outputs at maximum output, PRE OUT utilizes the rear outputs with adjustable volume and the default PO and PRE OUT mode activates both front and rear outputs with adjustable volume.

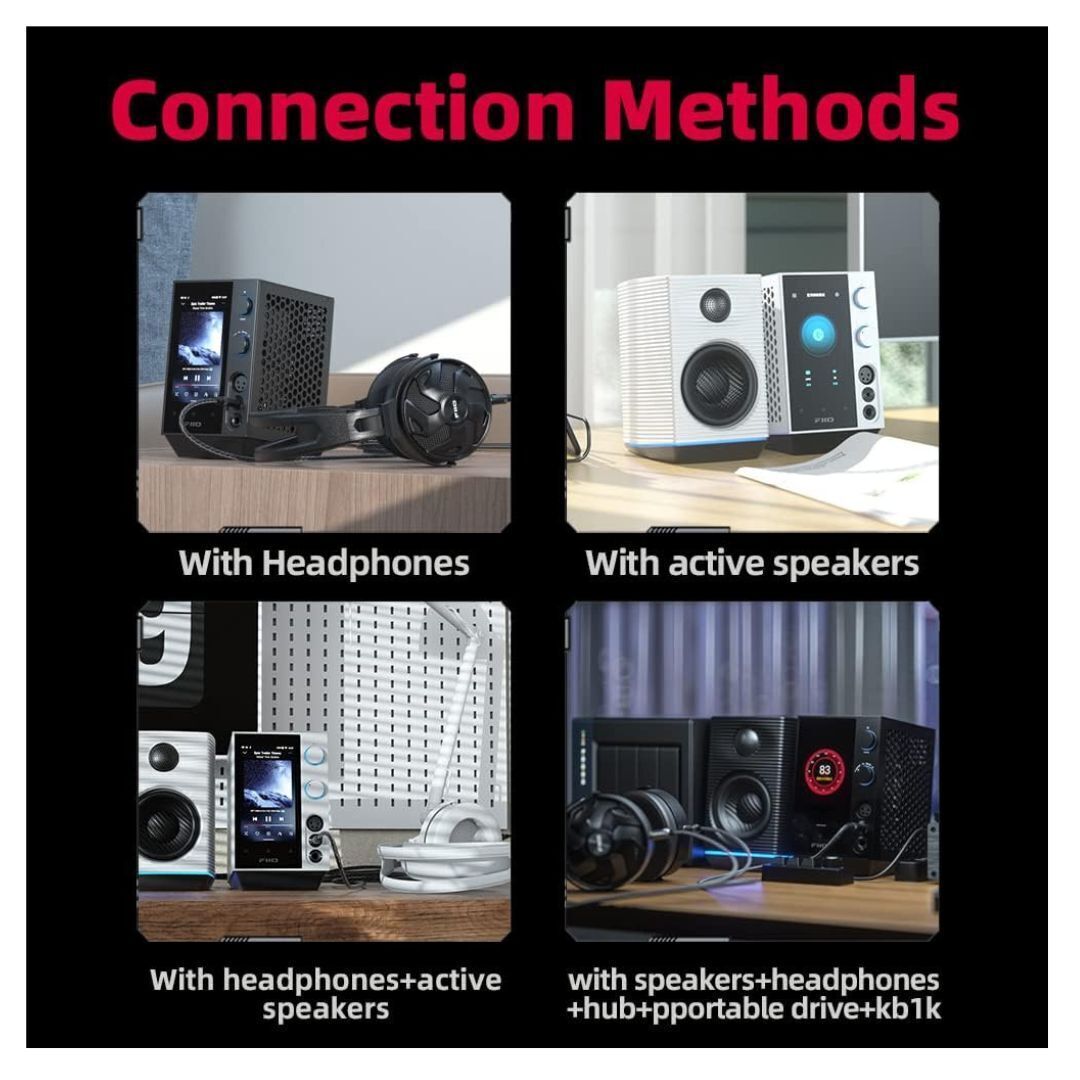

R7 and Headphones
Through both the XLR and 4.4mm balanced outputs or the 6.3mm single-ended output, connect the R7 to the FT3 or other headphones for faithfully reproduced music.
R7, Active Speakers
Connect the R7 to the SP3 or other speakers via the XLR, RCA single-ended, USB, coaxial, or optical ports and enjoy truly immersive three-dimensional sound in a grand soundstage.
R7, Headphones and Active Speakers
PO-headphones; PRE OUT-speakers; PO and PRE OUT - headphones and speakers (at the same time).
R7, Speakers, Headphones, Hub, Portable Drive, and KB1K
Use the portable drive to store a large amount of your favorite lossless music. Wield the KB1 to conveniently change tracks, adjust the volume, and switch output modes while listening to those tracks on the portable drive.
Specially-Optimized Audio Circuit Design
The R7 utilizes an ES9068AS DAC in conjunction with a pair of THX AAA 788 and more headphone amplifiers. In addition, inside the R7 are other premium components, such as four Panasonic PPS film capacitors. No expense was spared in using superior components to ensure the R7 faithfully reproduces your audio.
4th-Gen FPGA with Phase-Locked Loop Clock Tech and 2 Femtosecond Crystal Oscillators
Allowing for a high-precision, low-jitter unified clock source for cleaner and more stable audio.

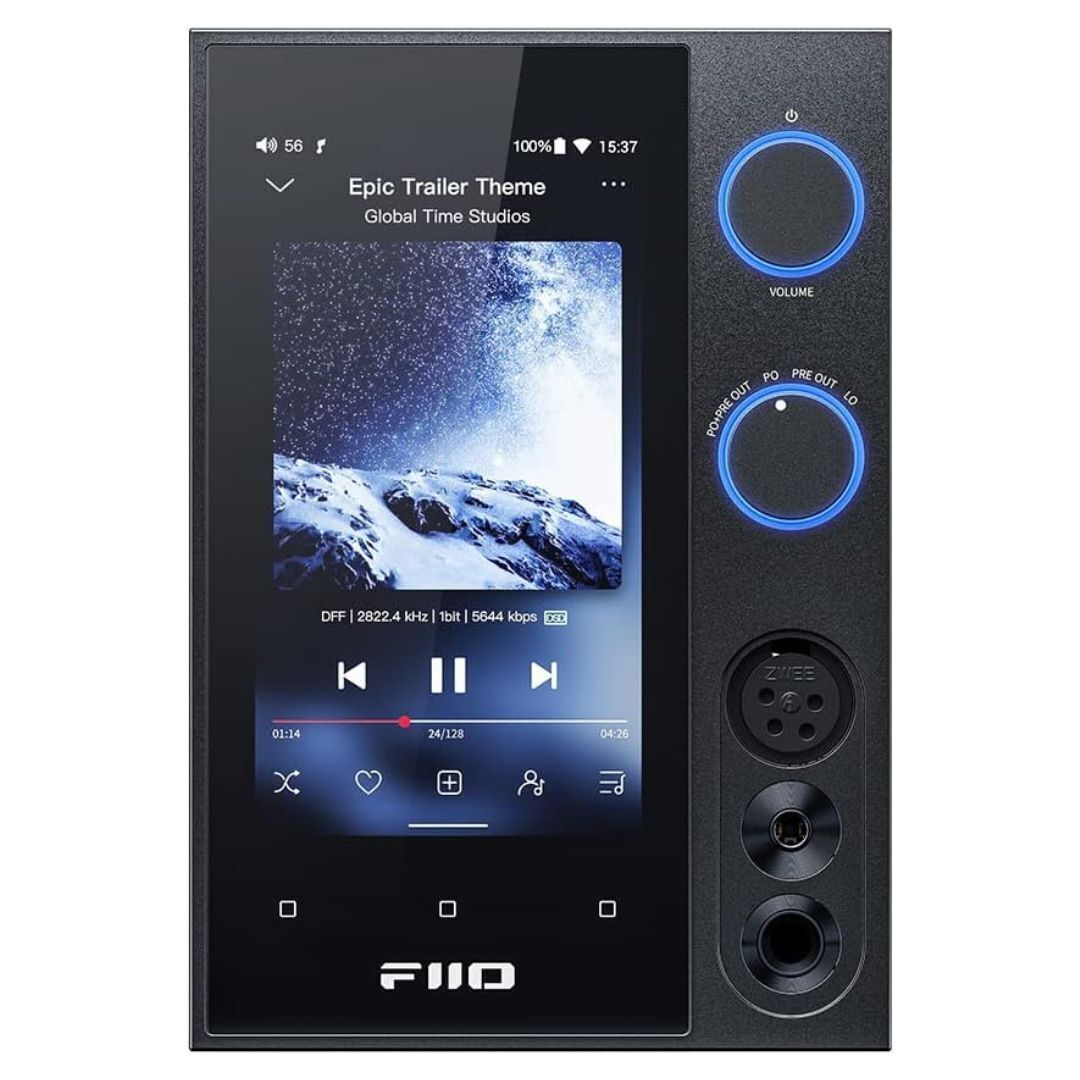

Portrait-Oriented Screen
Thanks to the 5.0-inch high-definition display and Android operating system, you can enjoyably experience major streaming and other third-party apps like never before on the R7. Satisfy your media consumption desires with the R7.

General

Buttons and Ports

Power Parameters

Features

Audio Format Support
