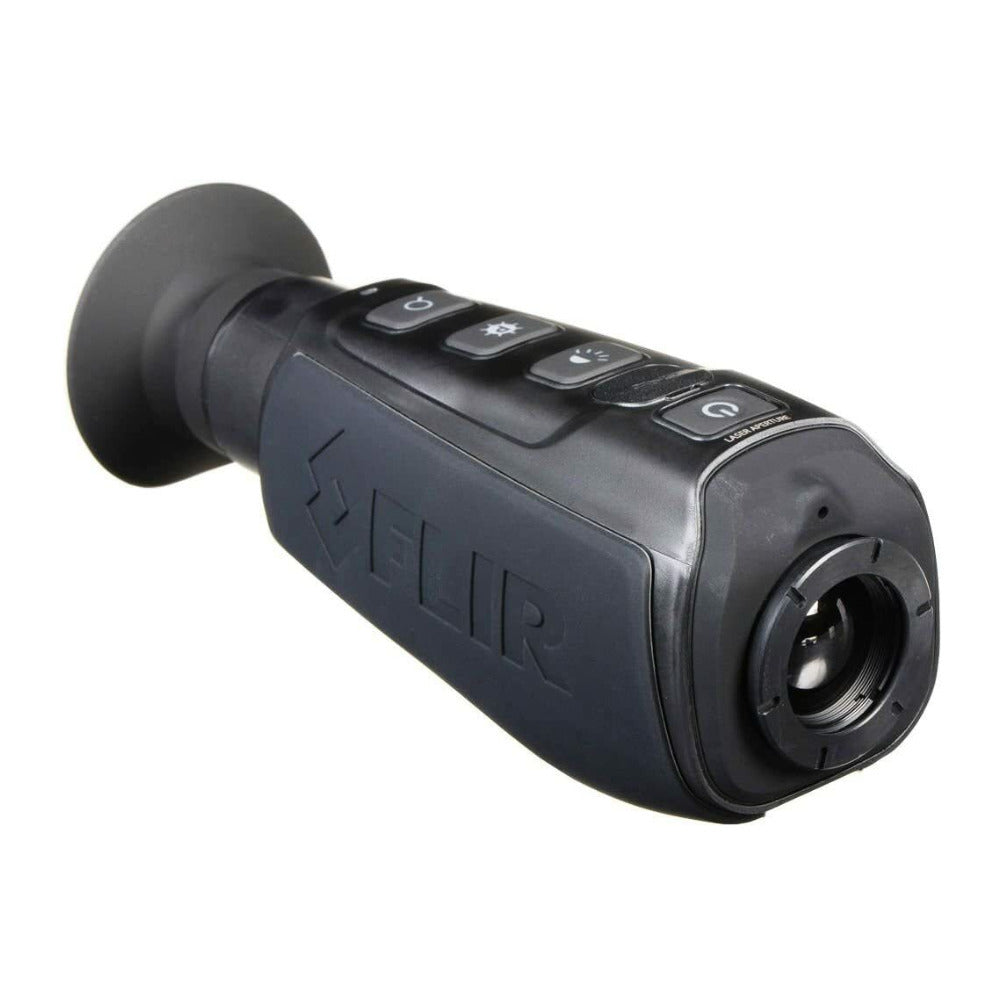

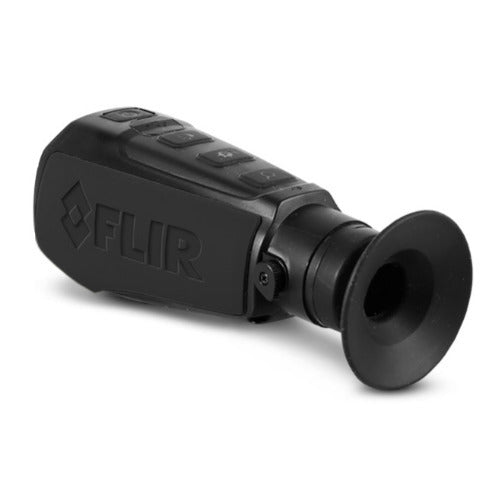

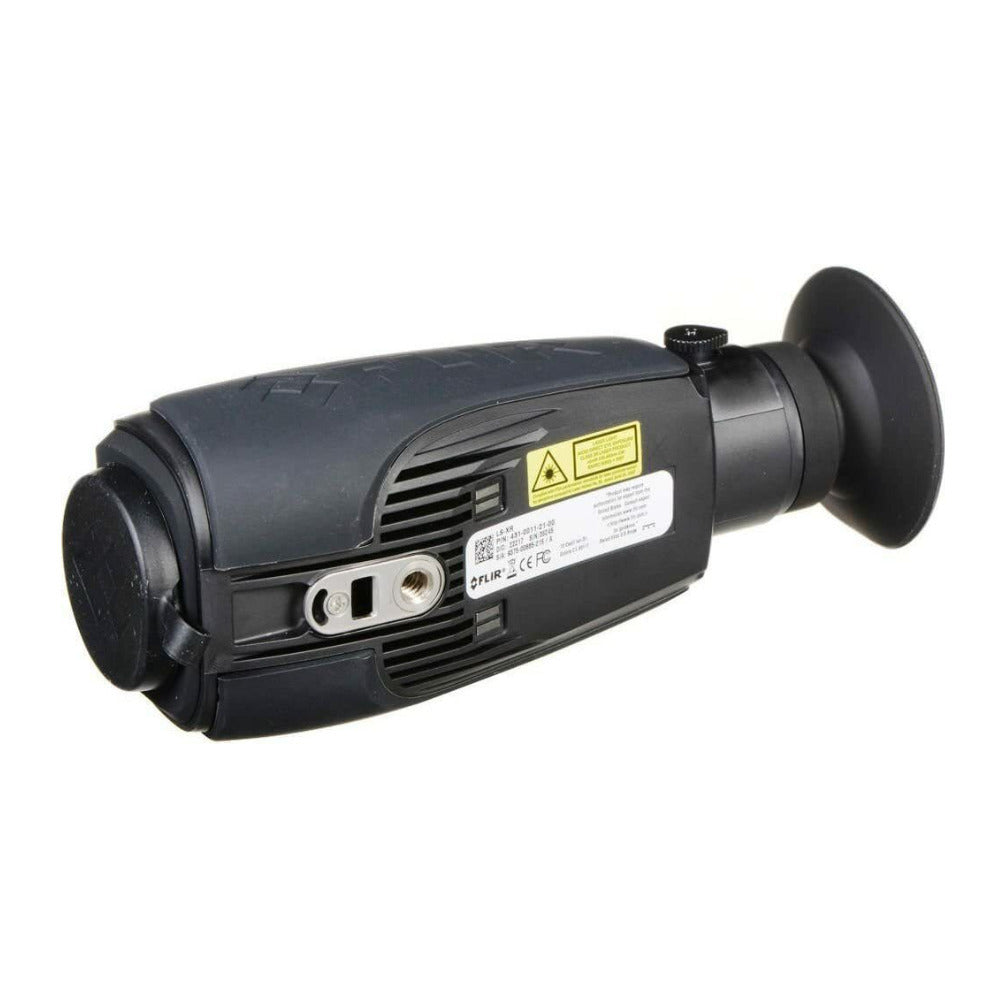

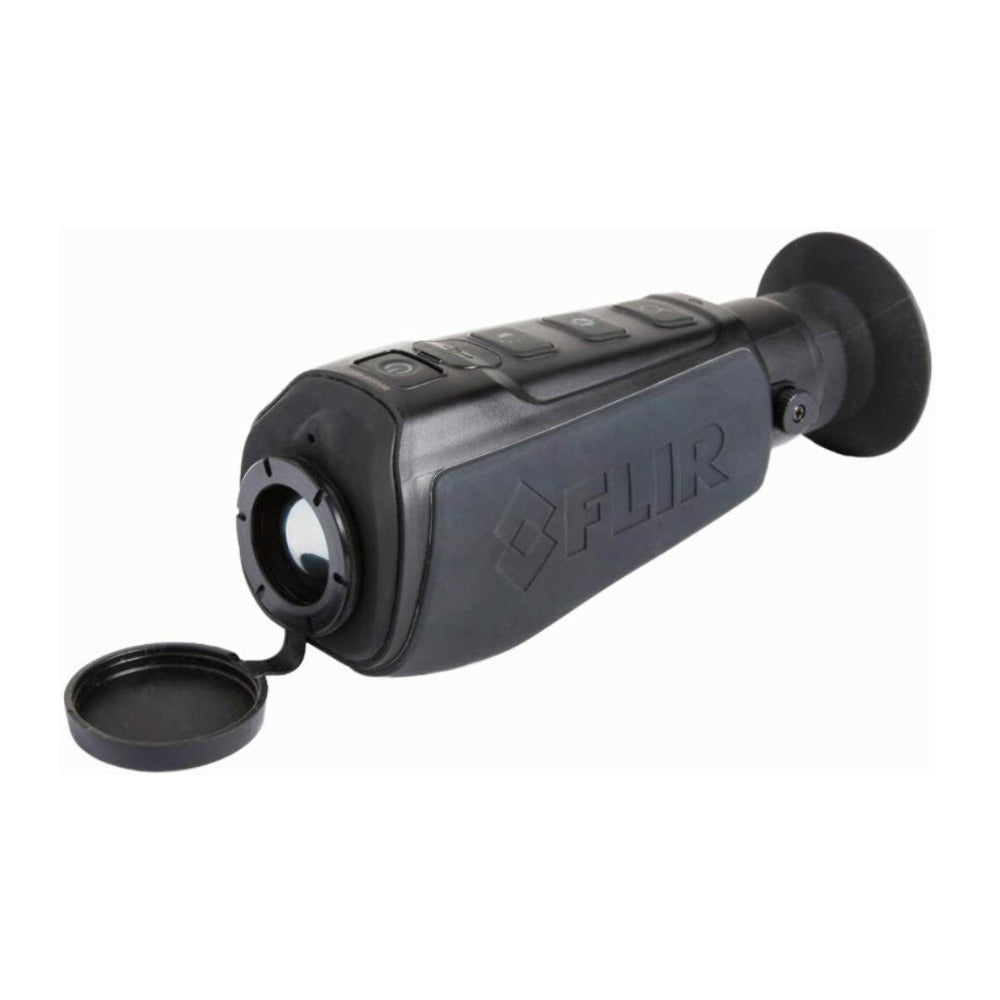

FLIR LS-XR 640x512 35mm 9Hz Tactical Handheld Thermal Monocular
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The FLIR LS-XR Handheld Thermal Monocular is designed for the men and women who serve and protect. This powerful, easy-to-use imager gives officers the tactical advantage when pursuing suspects, looking for evidence, or conducting search and rescue. The LS-XR Handheld Thermal Monocular features a 640x512 high resolution display, extended zooming capabilities, and video output. Whatever you need to see, find it with the FLIR LS-XR.
Superior Thermal Vision
An improved eyepiece display takes full advantage of the high resolution thermal core, 5x magnification, and InstAlert hot object highlighting.
Simple Operation
This thermal monocular has intuitive controls that make single-handed use a breeze, even with gloves on.
Portable and Rugged
The Handheld Monocular features a rugged design and easily fits into pockets, packs, or the included Molle pouch.
Main
| Configuration | Core |
| Refresh Rate | 7.5 Hz |
| Camera Format | 640 X 512 VOx / 7.5 Hz |
| Lens Configuration | 35mm |
| Color | Black |
FLIR LS-XR 640x512 35mm 9Hz Tactical Handheld Thermal Monocular
System Overview
| Field of view (FOV) | 18 degree x 14 degree NTSC |
| Built-in display | 640 x 480 LCD display |
| Detector type | 640 x 512 VOx microbolometer |
| Thermal sensitivity | <50 mK at f/1.0 |
| Rating | IP-67, submersible |
| Waveband | 7.5 to 13.5 µm |
| Drop test rating | 1 m |
| Size (L x W x H) | 6.70 x 2.31 x 2.44 inch |
| Weight | 12 oz (340 g) |
Connections and Communications
| Video output | NTSC composite video Thru USB port via Custom USB to RCA cable. Output switchable to PAL via user GUI |
Environmental and Approvals
| Operating temperature | -4 to 122 degree F (-20 to 50 degree C); Laser: 4 to 122 degree F (-10 to 50 degree C) |
| Storage temperature | -40 to 140 degree F (-40 to 60 degree C) |
Imaging and Optical
| Brightness | Adjusts display brightness setting |
| Image polarity | White Hot / Black Hot / InstAlert; selectable |
| Image processing | FLIR proprietary digital detail enhancement |
| On-screen symbology | Standard |
Power
| Battery life (operating) | >5 hours |
| Battery type | Internal lithium-ion cell |
| Start-up time | <1.5 seconds |
Presentation
| Black hot and white hot | Black Hot / White Hot / InstAlert |
| Laser pointer | Red Laser Pointer |
| Polarity | White Hot / Black Hot / InstAlert; Selectable |
| Power button | On / Off |
| Splash screen | Generic |
| Video refresh rate | 7.5 Hz |
| Zoom button | 2x, 4x, and 8x |
Range Performance
| Detect man (1.8m x 0.5m) | 1,140 m |
