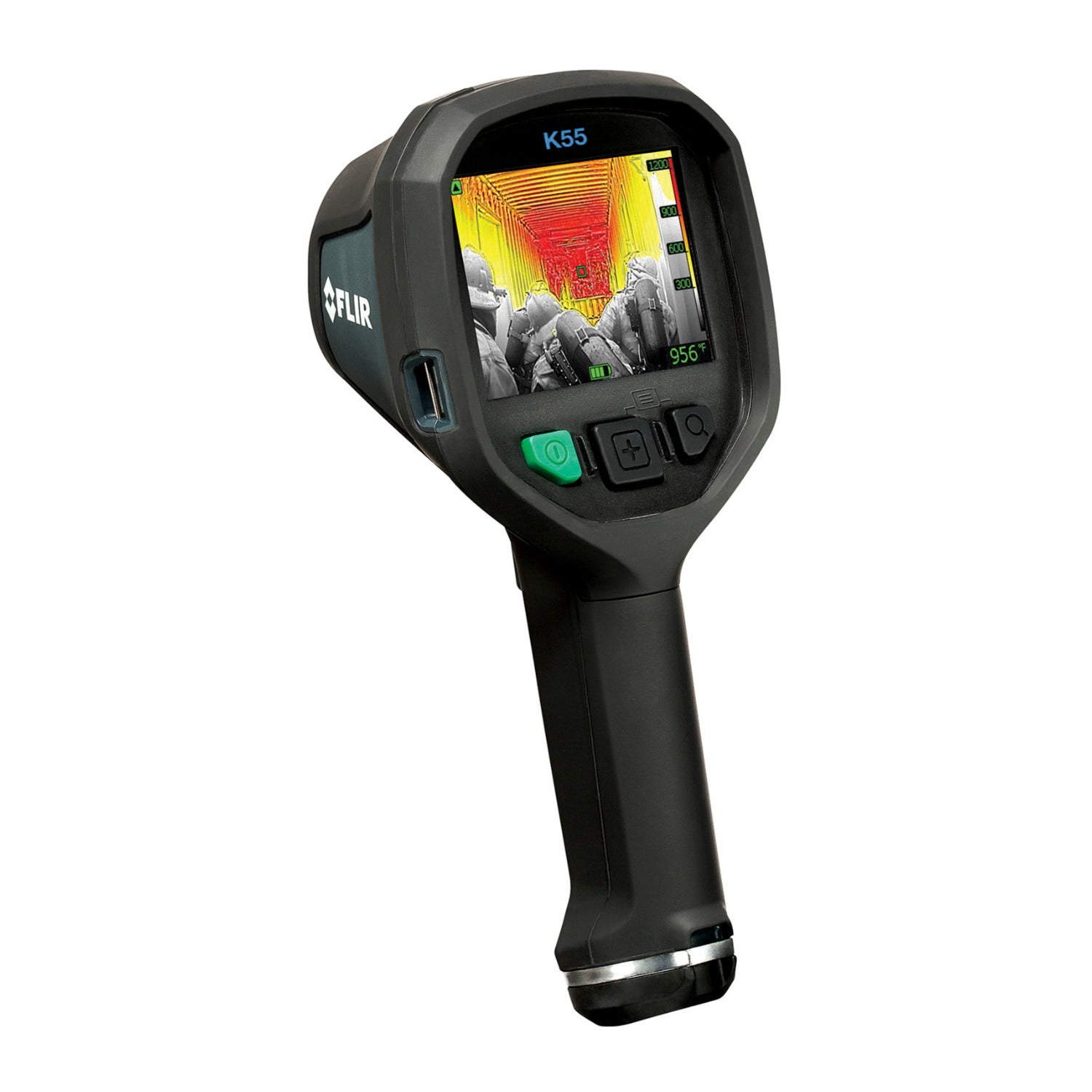

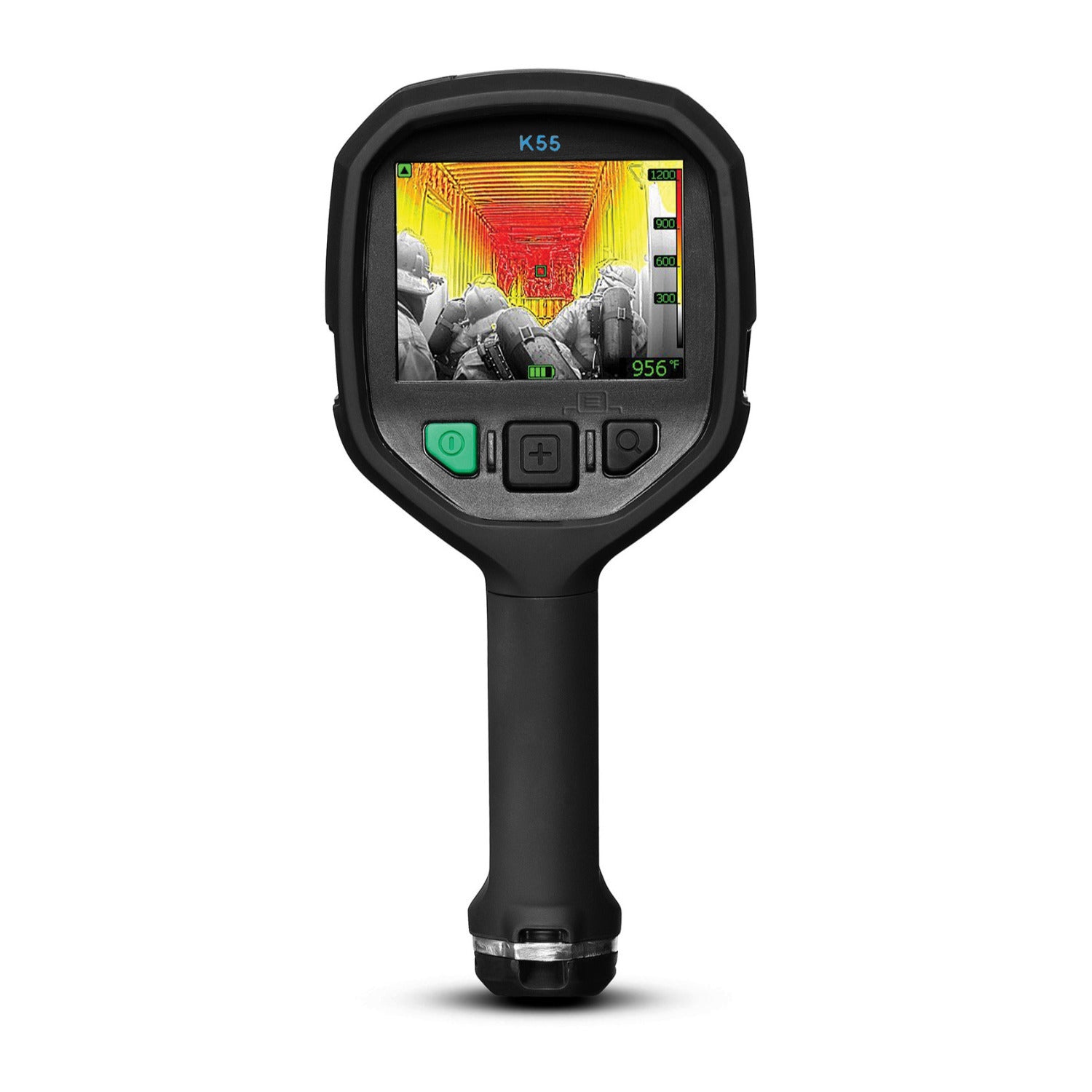

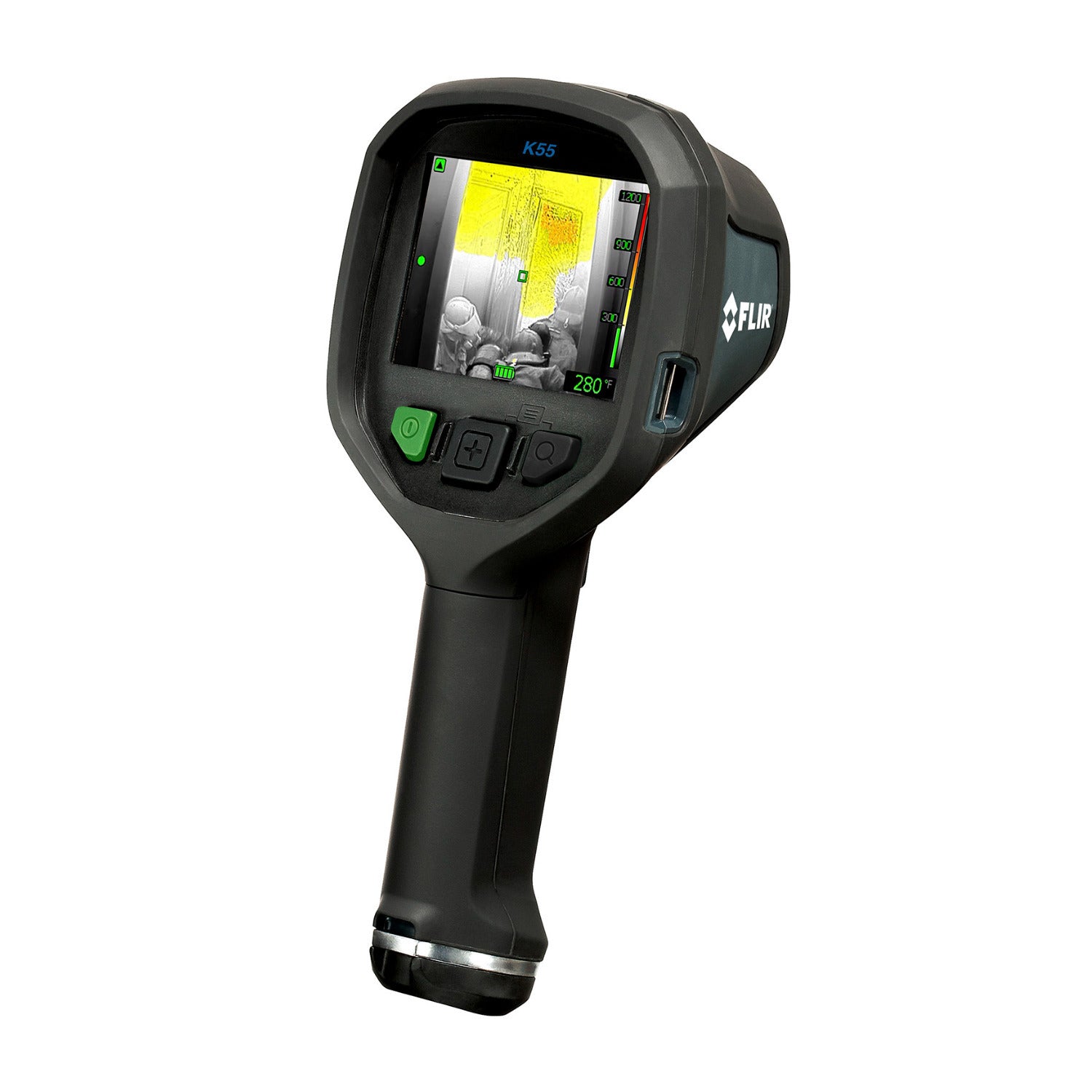

Flir K55 320 x 240 High-Performance Thermal Imaging Camera Kit
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
With a Flir K55 TIC in hand, you can attack fires more strategically, maneuver through smoke more easily, and save lives. The K55 displays crisp thermal images on a bright LCD, helping you navigate better and expedite critical decisions. The 320 x 240 pixel IR sensor and FSX Flexible Scene Enhancement produce detail-rich imagery at a 60 Hz frame rate that keeps up with the action.
Crisp, Clear Imagery
The maintenance-free sensor produces detail-rich 320 x 240 pixels thermal images to help you navigate easier in smokey conditions.
In-Camera Video Storage
Store up to 200 photos or video files that can be played-back in-camera or from a computer for later analysis.
Expanded Warranty
K55 cameras are protected by FLIR's 2-5-10 Warranty: 2 years for batteries, 5 for the camera, and 10 years for the detector.
Flir K55 320 x 240 High-Performance Thermal Imaging Camera Kit
Overview
| Camera size (L x W x H) | 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.) |
| Camera weight (including battery) | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| Compatible with FLIR software | FLIR Tools |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Display | 4-inch LCD, 320 × 240 pixels, backlit |
| Report generation | Separate software (FLIR Tools) |
| Zoom | 2x digital zoom |
| Connections and Communications | |
| Interface | Update from PC devices Data transfer to and from PC |
| Storage media | Internal flash memory |
| USB | USB Mini-B |
Environmental
| Directives | Designed to meet NFPA 1801:2018 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability |
| Drop | 2m (6.6 feet) on concrete floor (IEC 60068-2-31) |
| EMC | EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity 25 degree C to 40 degree C (77 degree F to 104 degree F) / 2 cycles |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating temperature range | –20 degree C to 85 degree C (–4 degree F to 185 degree F) 150 degree C (302 degree F): 15 min. 260 degree C (500 degree F): 5 min. |
| Relative humidity | 95% relative humidity 25 degree C to 40 degree C (77 degree F to 104 degree F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage temperature range | –40 degree C to +85 degree C (–40 degree F to +185 degree F) |
| Tripod mounting | UNC 1/4-inch-20 (adapter needed) |
| Vibration | 2 g (IEC 60068-2-6) |
Imaging and Optical
| Contrast optimization | Digital image enhancement using FSX |
| Depth of field | 0.84 m to infinity (33 in. to infinity) |
| Field of view (FOV) | 51 x 38 degree |
| f-number | 1.25 |
| Focal length | 9 mm (0.35 in.) |
| Focus | Fixed |
| Image frequency | 60 Hz |
| Image modes | IR image TI Basic fire-fighting mode Black-and-white fire-fighting mode Fire mode Search-and-rescue mode Heat detection mode Thumbnail gallery |
| IR resolution | 320 × 240 pixels |
| Non-radiometric IR video recording | MPEG-4 to internal flash memory |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB |
| Pitch | 25 µm |
| Spatial resolution (IFOV) | 2.8 mrad |
| Spectral range | 7.5–13 µm |
| Thermal sensitivity/NETD | <30 mK @ 30 degree C (86 degree F) |
Measurement and Analysis
| Accuracy | ±4 degree C (±7.2 degree F) or ±4% of reading, for ambient temperature 10 degree C to 35 degree C (50 degree F to 95 degree F) |
| Automatic hot detection | Heat detection mode (the hottest 20% of the of scene is colorized) |
| Isotherm | Yes |
| Languages | English |
| Object temperature range | –20 degree C to 150 degree C (–4 degree F to 302 degree F) 0 degree C to 650 degree C (32 degree F to 1202 degree F) |
| Set-up commands | Local adaptation of units, date and time formats |
| Spot meter | 1.0 |
Meter Data
| Auto range | Yes, selectable on/off using FLIR Tools |
Power
| Battery capacity | 4.4 Ah, at 20 degree C to 25 degree C (68 degree F to 77 degree F) |
| Battery operating time | Approx. 4 hours at 25 degree C (77 degree F) ambient temperature and typical use |
| Battery type | Li Ion |
| Battery voltage | 3.6 V |
| Battery weight | 0.152 kg (0.3 lb.) |
| Charging system | Battery is charged inside the camera 2-bay charger Optional In-truck charger |
| Charging temperature | 0 degree C to 45 degree C (32 degree F to 113 degree F) |
| Charging time | 2 h to 85% capacity, charging status indicated by LEDs |
| Power management | Automatic shutdown and sleep mode |
| Safety (power supply) | CE/EN/UL/CSA/PSE 60950-1 |
| Start-up time | <17 s. (IR image, no GUI) |
| Start-up time from sleep mode | <4 s. |
Storage Media
| File formats | Standard JPEG |
| Image storage | Standard JPEG; Image freeze: configurable |
| Image storage capacity | 200 files in total. The total number of files is co-dependent on the number of saved video clips. |
| Image storage mode | IR only |
| Storage capacity | 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images. |
