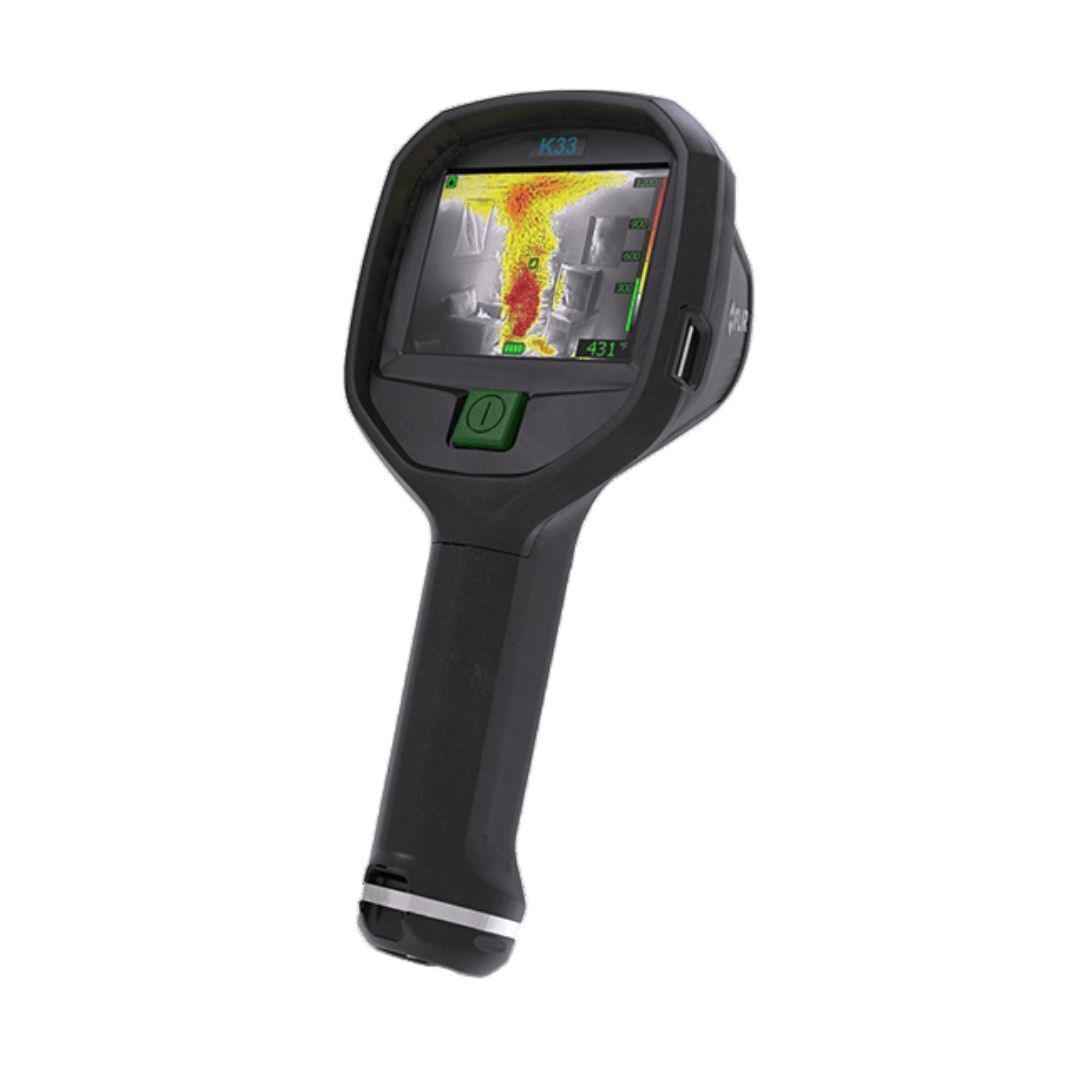

FLIR K33 240x180 Thermal Camera Kit
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
FLIR now gives you a low-cost, easy-to-use option that
doesn't sacrifice the reliable clarity and performance you need - the FLIR K33.
This TIC features FSX Flexible Scene Enhancement, which intensifies structural
and textural details in thermal images. The enhanced perspective and
orientation help improve situational awareness and give firefighters a greater
sense of confidence and safety.
Firepower Simplified
One glove-friendly button starts the K33 in TI-Basic mode while pulling and
holding the trigger freezes the image.
Uncompromising Visual Quality
240 x 180 resolution, a 60 Hz frame rate, and a bright 4-inch LCD all help you
see more in smokey conditions.
Affordability Redefined
The K33's affordable price helps fire and rescue departments get essential
tools into the hands of those who could use them most.
Enhanced Image Quality
FLIR Kxx-Series now have even better image quality and sharpness, significantly
noticed in low contrast scenes. This means firefighters can improve their
situational awareness and depth perception, and easily navigate through smoky
buildings for a more efficient search and rescue and location of the fire
scene.
General Information
| IR Resolution | 240 x 180 pixels |
| Display | 4-inch LCD, 320 x 240 pixels, backlit |
| Object Temperature Range | -20 to 150 Degrees C (-4 to 302 Degrees F), 0 to 650 Degrees C (32 to 1202 Degrees F) |
| Image Modes | TI Basic fire-fighting mode |
| Camera Weight with Battery | Approx. 1.1 kg (2.4 1 lbs.) |
| Camera Size (L x W x H) | 120 x 125 x 280 mm (4.7 x 4.9 x 11 inches) |
| Compatible with FLIR Software | FLIR Tools |
| Material | PPSU Silicon Rubber Aluminum, cast Flame-resistant magnesium alloy |
| Packaging Size | 500 x 190 x 370 mm (19.7 x 7.5 x 14.6 inches) |
Imaging and Optical
| Contrast optimization | Digital image enhancement using FSX |
| Depth of Field | 0.84 m to infinity (33 inches to infinity) |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| f number | 1.25 |
| Field of View (FOV) | 51 Degrees x 38 Degrees |
| Focal Length | 9 mm (0.35 inches) |
| Focus | Fixed |
| Image Frequency | 60 Hz |
| Image Modes | TI Basic fire-fighting mode |
| IR Resolution | 240 x 180 pixels |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB |
| Pitch | 25 micrometer |
| Spatial Resolution (IFOV) | 3.6 mrad |
| Spectral Range | 7.5-13 micrometers |
| Thermal Sensitivity NETD | Less than 40 mK at 30 Degrees C (86 Degrees F) |
Environmental and Certifications
| Drop | 2 m (6.6 ft.) on concrete floor (IEC 60068-2-31) |
| EMC | EN 61000-6-2:2005 (Immunity) / EN 61000-6-3: 2011 (Emission) / FCC 47 CFR Part 15 B (Emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity, +25 to +40 Degrees C (+77 to +104 Degrees F) / 2 cycles |
| Magnetic Fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment). |
| Operating Temperature Range (infinity) | -20 to 60 Degrees C (-4 to 140 Degrees F) |
| Operating Temperature Range (15 min) | 150 Degrees C (302 Degrees F) |
| Operating Temperature Range (5 min) | 260 Degrees C (500 Degrees F) |
| Relative Humidity | 95% relative humidity, +25 to 40 Degrees C (77 to 104 Degrees F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage Temperature Range | -40 to 85 Degrees C (-40 to 185 Degrees F) |
| Tripod Mounting | UNC 1/4in-20 (adapter needed) |
| Vibration | 2 g (IEC 60068-2-6) |
Power
| Battery Capacity | 6.2 Ah, at 20 to 25 Degrees C (68 to 77 Degrees F) |
| Battery Operating Time | More than 5 hours at 25 Degrees C (77 Degrees F) ambient temperature and typical use |
| Battery Type | Li-Ion |
| Battery Voltage | 3.6 V |
| Battery Weight | 0.152 kg (0.3 lbs.) |
| Charging System | Battery is charged inside the camera 2-bay charger Optional In-truck charger |
| Charging Temperature | 0 to 45 Degrees C (32 to 113 Degrees F) |
| Charging Time | 2 h to 85% capacity, charging status indicated by LEDs |
| Power Management | Automatic shutdown and sleep mode |
| Safety (Power Supply) | CE/EN/UL/CSA/PSE 60950-1 |
| Start Up Time | Less than 17 s. (IR image, no GUI) |
| Start Up Time from Sleep Mode | Less than 4 s. |
Measurement and Analysis
| Accuracy | +/- 4 Degrees C ( +/- 7.2 Degrees F) or +/- 4% of reading, for ambient temperature 10 to 35 Degrees C (50 to 95 Degrees F) |
| Auto Range | Yes, selectable on/off using FLIR Tools |
| Camera Size (L x W x H) | 120 x 125 x 280 mm (4.7 x 4.9 x 11 inches) |
| Camera Weight (Battery included) | 1.1 +/- 0.05 kg (2.4 +/- 0.1 lbs.) |
| Isotherm | Yes |
| Object Temperature Range | -20 to 150 Degrees C (-4 to 302 Degrees F), 0 to 650 Degrees C (32 to 1202 Degrees F) |
| Set-up Commands | Local adaptation of units, date and time formats |
| Spot Meter | 1.0 |
User Interface
| Display | 4-inch LCD, 320 x 240 pixels, backlit |
| Languages | English |
Communication and Data Storage
| Image Storage | No JPEG storage / Configurable Image freeze |
| Image Storage Capacity | Not Available |
| Interfaces | Update from PC devices Data transfer to and from PC |
| USB | USB Mini-B |
