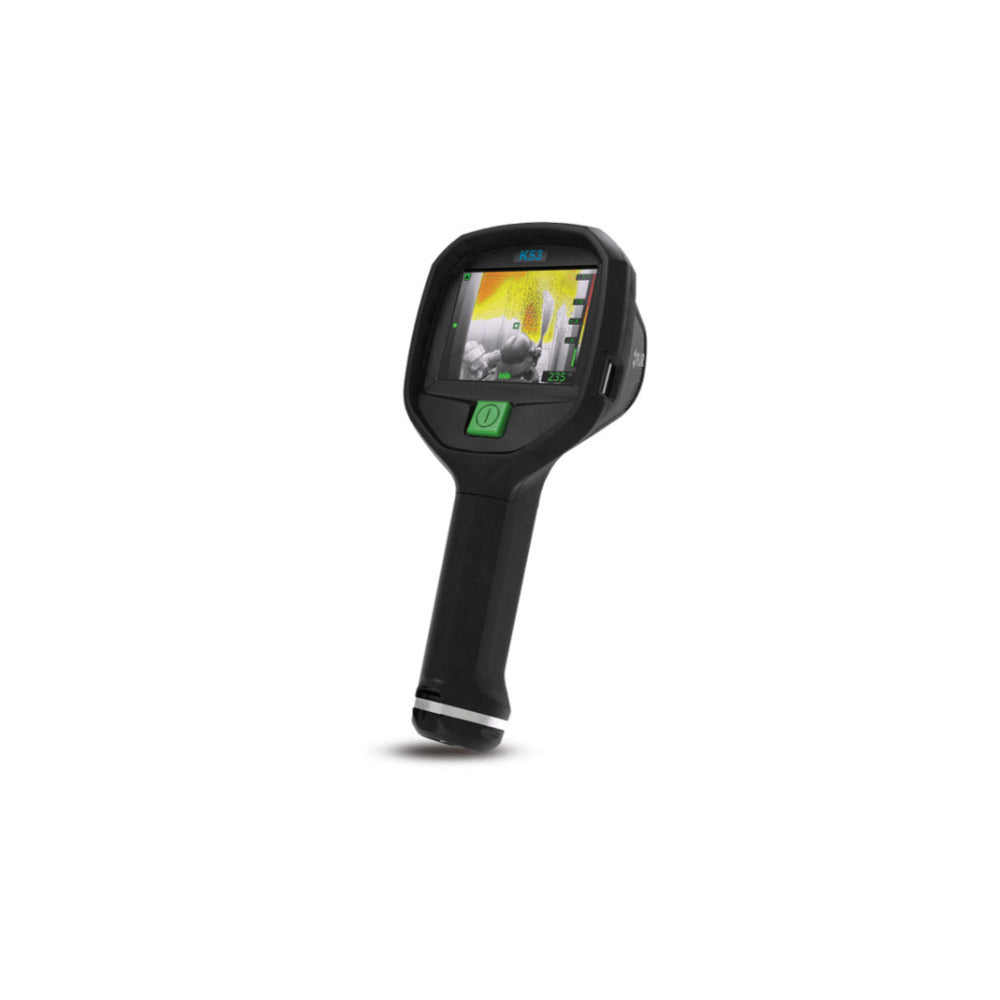

Flir K53 320 x 240 High-Performance Thermal Imaging Camera Kit
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Flir K53 offers the reliable clarity and performance firefighters need to work quickly and safely in the smokiest environments. This TIC features FSX Flexible Scene Enhancement, which intensifies structural and textural details in thermal images. Thanks to the K53's enhanced perspective and orientation, firefighters gain better situational awareness as well as a greater sense of confidence and safety.
Firepower Simplified
One glove-friendly button starts the K53 in TI-Basic mode, while one trigger-pull captures stills or records video.
Uncompromising Visual Quality
The 320 x 240 resolution, a 60 Hz frame rate, and a bright 4-inch LCD all help you see more in smokey conditions.
Affordability Redefined
The K53's affordable price helps fire and rescue departments get essential tools into the hands of those who could use them most.
Flir K53 320 x 240 High-Performance Thermal Imaging Camera Kit
Overview
| Camera size (L x W x H) | 120 x 125 x 280 mm (4.7 x 4.9 x 11 in.) |
| Camera weight (including battery) | 1.1 ±0.05 kg (2.4 ±0.1 lb.) |
| Compatible with FLIR software | FLIR Tools |
| Detector type | Focal plane array (FPA), uncooled microbolometer |
| Display | 4-inch LCD, 320 × 240 pixels, backlit |
| Report generation | Separate software (FLIR Tools) |
| Connections and Communications | |
| Interface | Update from PC devices Data transfer to and from PC |
| Storage media | Internal flash memory |
| USB | USB Mini-B |
Environmental
| Directives | Designed to meet NFPA 1801:2013 specification: Vibration Impact acceleration resistance Corrosion Viewing surface abrasion Heat resistance Heat and flame Product label durability |
| Drop | 2m (6.6 feet) on concrete floor (IEC 60068-2-31) |
| EMC | EN 61000-6-2:2005 (Immunity) EN 61000-6-3: 2011 (Emission) FCC 47 CFR Part 15 B (Emission) |
| Encapsulation | IP 67 (IEC 60529) |
| Humidity (Operating and Storage) | IEC 60068-2-30/24 h 95% relative humidity 25 degree C to 40 degree C (77 degree F to 104 degree F) / 2 cycles |
| Magnetic fields | EN 61 000-4-8, Test level 5 for continuous field (severe industrial environment) |
| Operating temperature range | –20 degree C to 85 degree C (–4 degree F to 185 degree F) 150 degree C (302 degree F): 15 min. 260 degree C (500 degree F): 5 min. |
| Relative humidity | 95% relative humidity 25°C to 40°C (77°F to 104°F) non-condensing |
| Shock | 25 g (IEC 60068-2-27) |
| Storage temperature range | –40 degree C to 85 degree C (–40 degree F to 185 degree F) |
| Tripod mounting | UNC 1/4-inch-20 (adapter needed) |
| Vibration | 2 g (IEC 60068-2-6) |
Imaging and Optical
| Contrast optimization | Digital image enhancement using FSX |
| Depth of field | 0.84 m to infinity (33 in. to infinity) |
| Field of view (FOV) | 51 x 38 degree |
| f-number | 1.25 |
| Focal length | 9 mm (0.35 in.) |
| Focus | Fixed |
| Image frequency | 60 Hz |
| IR resolution | 320 X 240 pixels |
| Non-radiometric IR video recording | MPEG-4 to internal flash memory |
| Non-radiometric IR video streaming | Uncompressed colorized video using USB |
| Pitch | 25 µm |
| Spatial resolution (IFOV) | 2.8 mrad |
| Spectral range | 7.5–13 µm |
| Thermal sensitivity/NETD | <30 mK @ 30 degree C (86 degree F) |
Measurement and Analysis
| Accuracy | ±4 degree C (±7.2 degree F) or ±4% of reading, for ambient temperature 10 degree C to 35 degree C (50 degree F to 95 degree F) |
| Isotherm | Yes |
| Languages | English |
| Object temperature range | –20 degree C to 150 degree C (–4 degree F to 302 degree F) 0 degree C to 650 degree C (32 degree F to 1202 degree F) |
| Set-up commands | Local adaptation of units, date and time formats |
| Spot meter | 1.0 |
Meter Data
| Auto range | Yes, selectable on/off using FLIR Tools |
Power
| Battery capacity | 4.4 Ah, at 20 degree C to 25 degree C (68 degree F to 77 degree F) |
| Battery operating time | Approx. 4 hours at 25 degree C (77 degree F) ambient temperature and typical use |
| Battery type | Li Ion |
| Battery voltage | 3.6 V |
| Battery weight | 0.152 kg (0.3 lb.) |
| Charging system | Battery is charged inside the camera 2-bay charger Optional In-truck charger |
| Charging temperature | 0 degree C to 45 degree C (32 degree F to 113 degree F) |
| Charging time | 2 h to 85% capacity, charging status indicated by LEDs |
| Power management | Automatic shutdown and sleep mode |
| Safety (power supply) | CE/EN/UL/CSA/PSE 60950-1 |
| Start-up time | <17 s. (IR image, no GUI) |
| Start-up time from sleep mode | <4 s. |
Storage Media
| File formats | Standard JPEG |
| Image storage | Standard JPEG; Image freeze: configurable |
| Image storage capacity | 200 files in total the total number of files is co-dependent on the number of saved video clips. |
| Image storage mode | IR only |
| Storage capacity | 200 files in total, with a maximum duration of 30 minutes. The total number of files is co-dependent on the number of saved images. |
