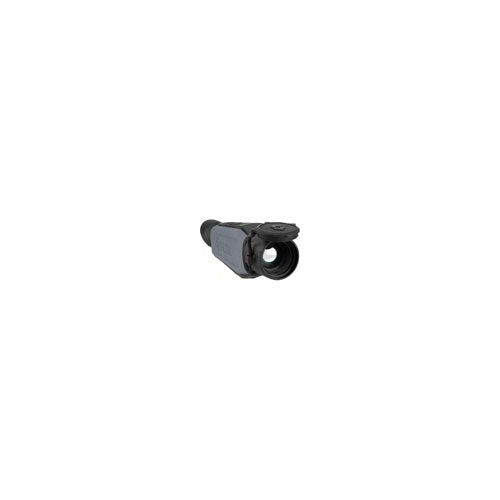

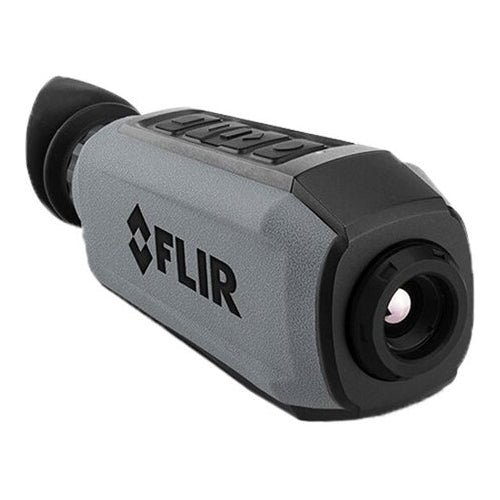

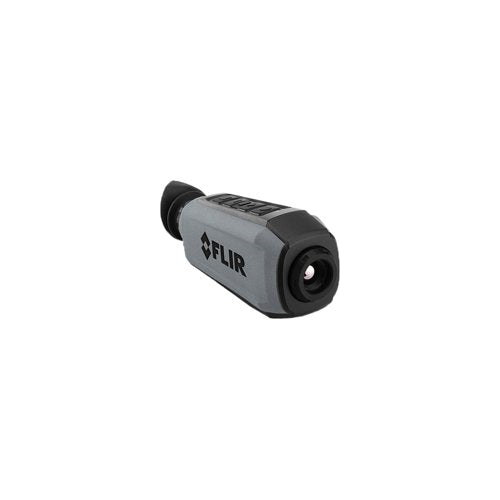

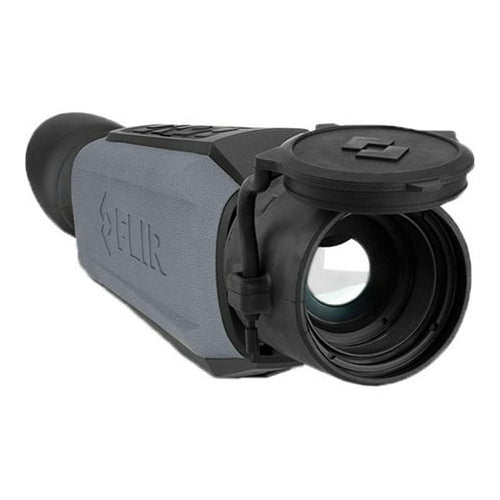

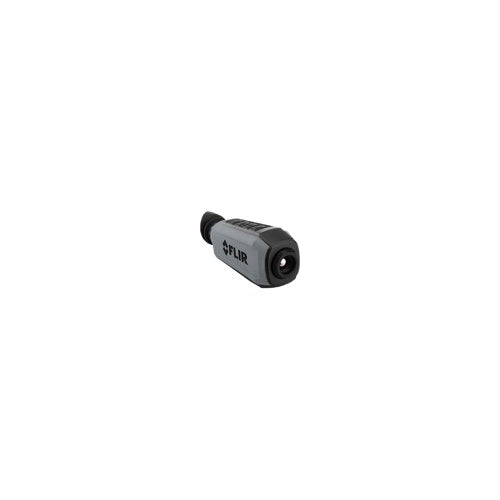

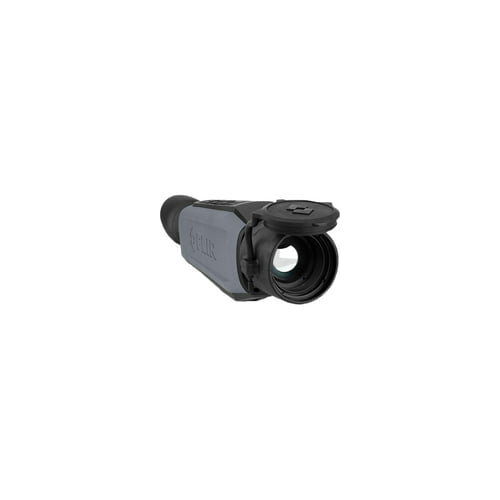

FLIR Scion OTM430 320x256 12um 36mm Thermal Monocular (9Hz)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The FLIR Scion OTM430 320x256 12um 36mm Thermal Monocular captures clear thermal imaging and leverages a refined user interface to quickly detect objects of interest in complete darkness and through glaring light or haze. Built around FLIR’s powerful Boson core, the Scion OTM230 produces 9 Hz thermal imaging and records geotagged video and still images for playback long after the day is done. Featuring a rugged, IP67-rated housing and intuitive controls allow single-hand operation in harsh weather conditions, maintaining reliable thermal imaging in the most demanding outdoor environments. The vivid OLED display offer superb, unwavering vision in challenging environments.
Onboard Video and Image Recording
Revisit every wildlife encounter in sharp, smooth thermal imaging. The Scion OTM is ready to capture any wildlife encounter with onboard video and image recording. Smooth 9Hz thermal imaging preserves details on moving objects while internal storage and a built-in microSD card slot provide enough memory for the most demanding trips. Additionally, the Bluetooth and Wi-Fi capabilities allow simple file transfer between devices.
Redesigned User Interface
The Scion OTM230’s polished user interface packs functionality into a rugged handheld optic. Intuitive controls and revamped internal menus allow quick thermal palette adjustments and provide easy access to new features such as picture-in-picture zoom, video recording, and GPS functionality. A rugged IP67-rated housing stands up to the elements and protects key hardware components.
Trusted Thermal Detection
Powered by FLIR’s breakthrough Boson thermal core, this Thermal Monocular is able to perform at any time of day. Thermal imaging pierces complete darkness, glaring light, and lingering haze to provide superior awareness in difficult conditions. The advanced image processing of FLIR’s Boson thermal core paired with a 9Hz image refresh rate provide smooth, unwavering vision in challenging environments.
Camera
| Internal Storage | 2 GB |
General
| Bluetooth | Yes |
| WiFi | Yes |
| Water-Resistant | Yes |
| Weight | Without batteries: 452 g, With batteries: 572 g |
Performance
| Lens Configuration | 36mm |
| Maximum Magnification | 1.5x |
| Angle of view | Not Available |
| Field of View | 6 x 4.5 Degree |
| Refresh Rate | 9 Hz |
FLIR Scion OTM430 320x256 12um 36mm Thermal Monocular
System Overview
| Detector type | 320 x 256 |
| Eye relief | 16mm |
| Internal memory | 2 GB Internal Storage / Optional microSD Card (up to 128 GB) |
| Size | 278 x 77 x 73 mm (10.9 x 3.03 x 2.87 in) |
| Color (housing) | Gray / Black |
| Lens system | 36 mm |
| Optical magnification | 1.5x |
| Display focus | Manual |
| Core technology | BOSON 12 µm Vox Microbolometer |
Connections and Communications
| Bluetooth | BLE 4.1+ |
| USB | USB-C; Power In; Video Out; Video and Image File Transfer |
| Geo Positioning [GPS] | Yes |
| Video recording | Yes |
| Wi-Fi | Video Streaming (ONVIF Discoverable) |
Imaging and Optical
| Digital zoom | 1X | 2X | 4X |
| Field of view | 6 x 4.5 degrees |
| Focus | Manual |
| Refresh rate | <9 Hz |
Physical
| Mounting | 1/4-20 Tripod Mount |
Power
| Auto power off | Yes |
| Battery life | Up to 4.5 hours at 20 degree Celsius |
| Battery type | 6x CR123A 3V Lithium Battery |
Presentation
| Display | Quad-VGA (1280x960) High definition display |
| Image capture | Yes |
| Temperature imaging modes | White Hot; Black Hot; Iron Bow; Rainbow; Graded Fire; Lava |
| Viewing modes | Scouting, Picture-in-Picture |
| Picture while recording | Yes |
| Real time clock | Yes |
| DateTime stamp | Yes |
| Magnetic compass | Yes |
| Accelerometer | Yes |
Weight
| Without batteries | 452 g |
| With batteries | 572 g |
