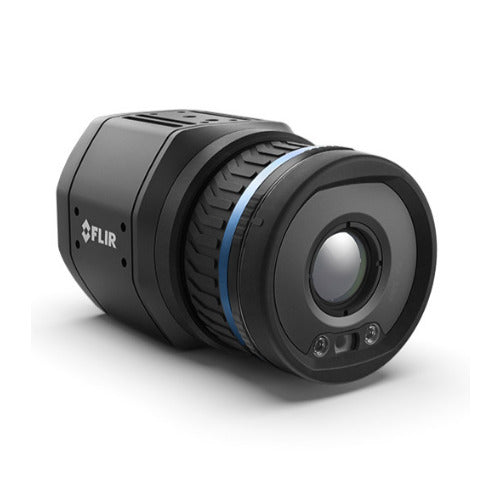

FLIR A700-EST Fixed Mount 640x480 Thermal Screening Camera with 42-Degree Lens
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The FLIR A700-EST is a non-contact screening tool that can serve as the first line of defense against potential health risks. This FLIR EST thermal screening solution detects and visualizes heat to quickly identify individuals with an elevated skin temperature. The 640x480 pixel detector offers the highest thermal resolution in this line of fixed mount FLIR EST cameras, for superior measurement accuracy. Compatibility with industry standards such as Modbus TCP, MQTT, RESTful API for data transfer, and RTSP for video makes third-party integration easy. With on-camera FLIR Screen-EST Mode and compatibility with FLIR Screen-EST Desktop software, the A700-EST can be easily deployed as a single, standalone screening station or in a network.
Easy Set-Up and Operation
This thermal camera integrates into web services with RESTful API over XML or JSON, while ONVIF compliance accommodates standard security VMS and NVR solutions.
Fast, Accurate Screening
It offers optimal screening accuracy with automatic ambient drift compensation; support for external black body compensation if desired.
Maintain Safety and Privacy
On-camera FLIR Screen-EST Mode does not store images or personal information and allows for social distancing in screening setups.
FLIR A700-EST Fixed Mount 640x480 Thermal Screening Camera with 42-Degree Lens
Overview
| Alarm functions | On any selected measurement function, digital in, internal camera temperature |
| Alarm output | Digital out, email (SMTP) (push), EtherNet/IP (pull), file transfer (FTP) (push), Modbus TCP master write (push), Modbus TCP slave (pull), MQTT (push), Query over RESTful API (pull), store image or video |
| Base mounting | Four M4 on 4 sides |
| FLIR Screen-EST mode | Yes |
| Housing material | Aluminum |
| Multi-streaming | Yes |
| Size (L x W x H) | 123 x 77 x 77 mm (4.84 x 3.03 x 3.03 inch) |
| Web interface | Yes |
| Weight | 0.82 kg (1.8 lb), camera only |
Connections and Communications
| Digital I/O connector type | M12 12-pin A-coded, Male (shared with external power) |
| Digital I/O isolation voltage | 500 VRMS |
| Digital input purpose | NUC, NUC disable, alarm, update screening reference sample |
| Digital inputs | 2x opto-isolated, Vin(low) 0 to 1.5 V, Vin(high) 3 to 25 V |
| Digital output purpose | As a function of alarm, output to external device (e.g. when screening alarm is triggered); fault (NC) |
| Digital outputs | 3x opto-isolated, 0 to 48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as fault output (NC) |
| Ethernet | For control, result, image, and power |
| Ethernet communication | TCP/IP socket-based FLIR proprietary |
| Ethernet connector type | M12 8-pin X-coded, female; RP-SMA, female |
| Ethernet interface | Wired, Wi-Fi |
| Ethernet power | Power over Ethernet, PoE IEEE 802.3af class 3 |
| Ethernet protocols | EtherNet/IP, IEEE 1588, Modbus TCP Master, Modbus TCP Slave, MQTT, SNMP; TCP, UDP, SNTP, RTSP, RTP, HTTP, HTTPS, ICMP, IGMP, sftp (server), FTP (client), SMTP, DHCP, MDNS (Bonjour), uPnP |
| Ethernet standard | IEEE 802.3 |
| Ethernet type | 1000 Mbps |
| Multicast | Yes |
| Unicast | Yes |
| Wi-Fi | Yes. RP-SMA, female connector |
Environmental
| Atmospheric transmission correction | Based on inputs of distance, atmospheric temperature, and relative humidity |
| EMC | ETSI EN 301 489-1 (radio), ETSI EN 301 489-17 (radio), EN 61000-4-8 (magnetic field), FCC 47 CFR Part 15 Class B (emission US), ISO 13766-1 (EMC - Earth-moving and building construction machinery), EN ISO 14982 (EMC - Agricultural and forestry machinery) |
| Emissivity correction | Variable from 0.01 to 1.0 |
| Encapsulation | IEC 60529, IP 54, IP66 with accessory |
| Humidity (operating and storage) | IEC 60068-2-30/24 hours, 95% relative humidity, 25 to 40-degree-C (77 to 104-degree-F)/2 cycles |
| Lens transmission correction | Automatic, based on signals from internal sensors |
| Measurement frequency | Up to 10 Hz |
| Operating temperature range | -20 to 50-degree-C (-4 to 122-degree-F); cooling plate needed for temperatures above 40-degree-C (104-degree-F) |
| Radio spectrum | FCC 47 CFR Part 15 Class C (2.4 GHz band US), FCC 47 CFR Part 15 Class E (5 GHz band US), RSS-247 (2.4 GHz and 5 GHz band Canada), ETSI EN 300 328 V2.1.1 (2.4 GHz band EU), ETSI EN 301 893 V2.1.1 (5 GHz band EU) |
| Schedule response | sftp (image), SMTP (image and/or measurement data/result) |
| Shock | IEC 60068-2-27, 25 g |
| Tripod mounting | UNC 1/4-inch-20 on 2 sides |
| Vibration | IEC 60068-2-6, 0.15 mm at 10 to 58 Hz and 2 g at 58 to 500 Hz, sinusoidal; IEC 61373 Cat 1 (Railway) |
File Storage and Communication
| Video storage | Up to 10 H.264 videos stored as a function of alarm; 5 sec before or after alarm |
Imaging and Optical
| Camera f-number | 1.1 |
| Contrast enhancement | FSX / Histogram equalization (IR only) |
| Detector type and pitch | Uncooled microbolometer, 12 µm |
| Field of view (FOV) | 42 x 32 degree |
| Focal length | 10 mm (0.39 inch) |
| Focus | One-shot contrast, motorized, and manual |
| Image frequency | 30 Hz |
| IR resolution | 640 x 480 |
| Lens | 42 degree |
| Lens identification | Automatic |
| Overlay | With / without |
| Radiometric IR video streaming | RTSP protocol |
| Readout | For measurement results: EtherNet/IP (pull); Modbus TCP master (push); Modbus TCP slave (pull); MQTT (push); Query over REST API (pull): measurements and still image (radiometric JPEG, visual 640 x 480, visual 1280 x 960) read access only; web interface |
| Spatial resolution (IFOV) | 1.2 mrad/pixel |
| Spectral range | 7.5 to 14 µm |
| Streaming resolution | RTSP video streaming (source 0) - 640 x 480 pixels; RTSP video streaming (source 1) - 1280 x 960; radiometric streaming: 640 x 480 pixels |
| Video streaming | RTSP protocol |
| Visible camera | Included |
Measurement and Analysis
| Accuracy (drift) in Screen-EST mode | ±0.3-degree-C (±0.5-degree-F) |
| Automatic hot and cold detection | Max/min temperature value and position shown within box |
| External optics and windows correction | Based on input of optics/window transmission and temperature |
| Measurement corrections | Global object parameters, local parameters per analyze function, external blackbody correction |
| Measurement presets | Yes |
| Object temperature range | 15 to 45-degree-C (59 to 113-degree-F); camera provides contrast from -20 to 120-degree-C (-4 to 248-degree-F) but will not provide temperature information |
| Reflected apparent temperature correction | Based on input of reflected temperature |
Other
| Thermal Sensitivity_NETD (typical) | Less than 30 mK at 30-degree-C (86-degree-F) |
Power
| External power operation | 24/48 VDC 8 W max |
| External voltage | Allowed range 18 to 56 VDC |
| Power connection | M12 12-pin A-coded, male (shared with digital I/O) |
| Power consumption | 7.5 W at 24 VDC typical/7.8 W at 48 VDC typical/8.1 W at 48 V PoE typical |
Radiometry
| Image source | Visual / IR / MSX |
Storage Media
| Image storage | Up to 100 FLIR radiometric JPEGs, stored as a function of alarm, scheduling, or user interaction (camera web) |
