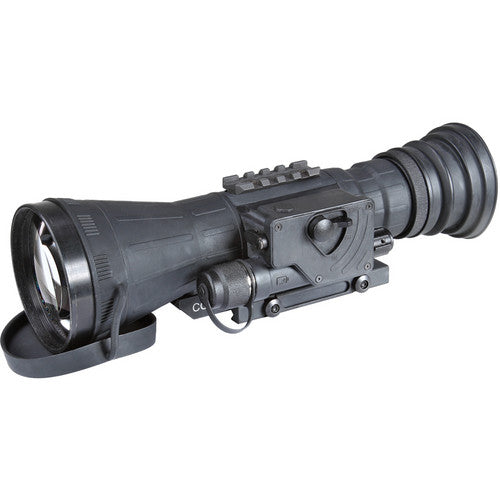

Armasight CO-LR GEN 2+ QS MG Day/Night Vision Clip-On System
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Armasight CO-LR-QS is a long range clip on system, designed to be easy to mount in front of your existing day scope in order to give you incredible night vision imaging in very little time. If you are looking for a night vision device that can easily be set up on the fly to give you the night vision imaging that you need, and you don’t want to invest in a full replacement scope that would require you to dismount your existing day scope - then this is the right night vision device for you.
Thanks to the Armasight CO-LR-QS’s easy to use design, this device can be mounted in front of your existing day scope without any need to re zero the scope. This makes the Armasight CO-LR-QS a smart choice for any kind of active field agent who needs night vision imaging that can be mounted and dismounted quickly and effectively in the field.
The night vision clip on system that you are looking at is the Armasight CO-LR-QS with a Quick Silver White Phosphor image intensifier tube. Thanks to this particular ITT design it offers a quality resolution of 51/72 lp/mm. This model, when clipped on to an existing day scope, can follow the magnification up to 12x even though the Armasight CO-LR-QS offers a standard magnification of 1x. The Armasight CO-LR-QS also offers a 9 degree Field of View.
This model also offers a Quick Release Mount: having a Quick Release Mount means that you will be able to easily mount and lock this night vision clip on scope in front of your existing day time scope and then quickly release it when you need to return to day scoping. This functionality makes the process of switching between night vision and day vision quick and streamlined and will prove its effectiveness in the field.
Main
| Configuration | Core |
| Application | Rifles |
| Resolution (Max) | 64-72 Ip/mm |
| NV Technology | IIT Gen II |
| Color | Black |
| Intensifier Tube | GEN 2+ 47 to 57 lp/mm |
| Resolution | 64-72 lp/mm |
| Magnification | 1X (recommended for use with up to 10X day time optics) |
| Field of View | 9° |
| Lens System | F1:1.51, 112 mm |
| Range of Focus | 15 to infinity |
| Controls | Direct |
| Environmental Rating | Waterproof |
| Power Supply | 1 x 1.5 V AA type battery or 1 x 3 V CR123A type battery |
| Runtime | 50 hr (CR123) or 46 hr (AA) |
| Operating Temperature | -59.8 to 120.2°F (-51 to 49°C) |
| Dimensions (L x W x H) | 9.25 x 3.8 x 3.14" (235.0 x 97.0 x 80.0 mm) |
| Item Weight | 2.00 lb / 0.91 kg |
