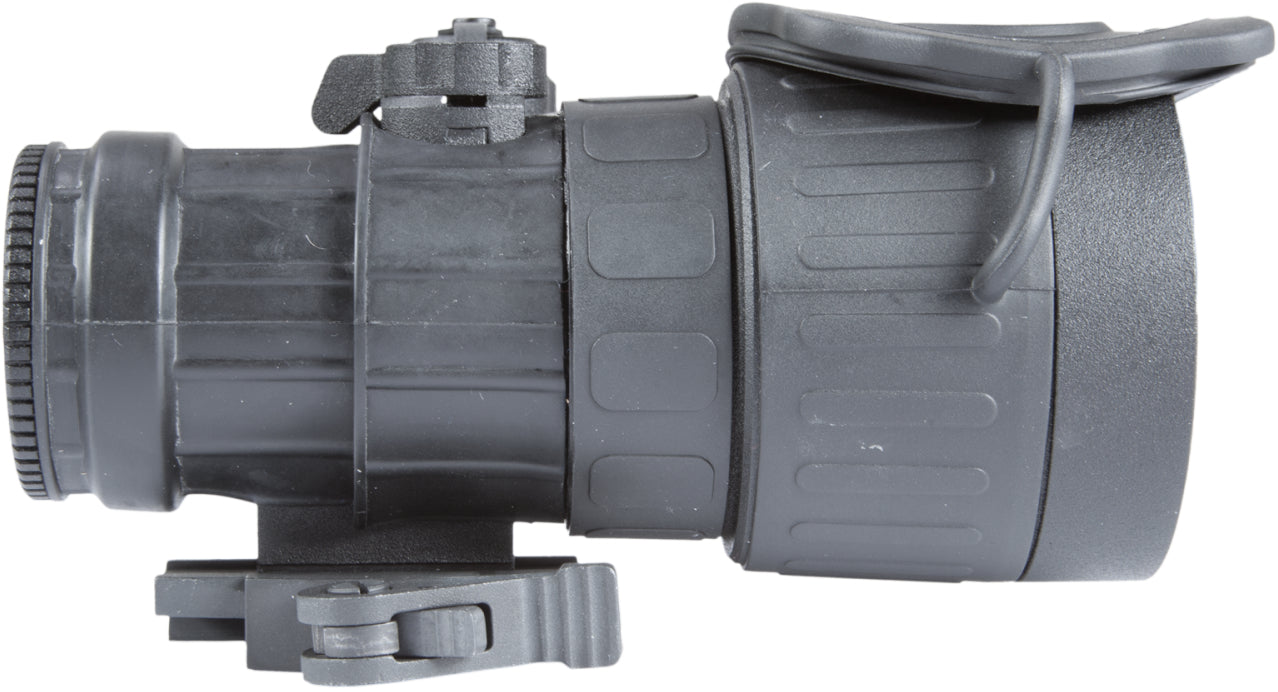

The Armasight by FLIR CO-X Night Vision Clip-On System is one of the most advanced Night Vision Clip-On systems for mid-range night shooting and stands out from the competition when it comes to clarity, versatility, reliability, function and value. The CO-X Night Vision Clip-On System converts your existing day scope into a night vision device and provides excellent target acquisition and aiming capabilities for the demanding sports shooter, hunter, military, law enforcement, and security personnel. Engineered using the latest advancements in Night Vision technology, the CO-X Clip-On System eliminates the traditional requirement of removing your existing day scope from your rifle to replace it with a dedicated night vision sight (which would also involve re-zeroing). The CO-X simply mounts in front of your existing day scope.
Because the CO-X Clip-On System is factory bore-sighted to tolerances of less than 1 MOA, with no re-zeroing required. The Clip-On System allows the user to maintain consistent positioning and shooting accuracy, all while maintaining the use of a fully familiar day scope. A wireless remote control unit can be placed anywhere on the user’s weapon, allowing quick and easy activation of the CO-X Clip-On System.
Recommended for use with day scopes of up to 6X-7X magnification, the CO-X is equipped with a locking quick-disconnect mounting system that provides the user with a simple and fast way to attach or detach the CO-X on any standard Weaver or Picatinny rail. The CO-X Night Vision Clip-On System can be equipped with high-performance Gen 2+ image intensifier tubes using Green phosphor or "Quick Silver" and "Ghost" image intensifier tubes which provide users with natural black-and-white night vision displays.
Integration with Day Scope
The CO-X is designed to mount in front of an existing day scope and extends the useful period of operation from daylight into nighttime. Feature of the CO-X include:
- Quick conversion of daytime scope to night vision with no set-up changes
- Recommended for use with day scopes of up to 6x magnification
- IR850-XLR detachable long-range infrared illuminator included
Compact, Powerful
Light and compact device with perfect balance of size and performance. The Night Vision Clip-on System has:
- Fast catadioptric front lens system
- Manual gain control for the best possible image contrast in both high and low light conditions
- Wireless remote control
- Powered by a single CR123A Lithium or AA battery
Flexible Mounting Options
The CO-X can be mounted in seconds without tools. It can be attached in front of a day riflescope using its quick-release mount or directly onto the day scope objective lens with the optional adapter.
- Quick-release Picatinny mount that allows for highly accurate rail positioning
- Mounts on the lenses of specified day scopes with the optional adapters
Key Features
- Converts your day scope, sight, or binoculars into night vision device
- Mounts in front of any day scope with no re-zeroing required
- High performing Gen 2+ image intensifier tube
- Wireless remote control
- Manual gain control for the best possible image contrast in both high and low light conditions
- Powered by a single AA or CR123A battery
- Bright light cut-off system
- Battery condition indications
- Filled with dry nitrogen to prevent internal fogging
- Mounts on Picatinny/ Weaver rail with a quick release mount
- Mounts on the lenses of specified day scopes with the optional adapters
- Long-range XLR-IR850 illuminator
- Boresight characteristics
- Accuracy: Factory aligned to 1/2 MOA or better
- Retention: Permanent to within 1 MOA or better
- Repeatability: Within 1/2 MOA
- Battery life (operating)
- 60 hrs (3V)
- 30 hrs (1.5V)
- ANAM000009 - Mounting System #1
- for Daytime Optics with 25.4-30 mm Objective Diameter
- ANAM000010 - Mounting System #2
- for Daytime Optics with 38-42 mm Objective Diameter
- ANAM000011 - Mounting System #3
- for Daytime Optics with 46.7-50 mm Objective Diameter
- ANAM000012 - Mounting System #4
- for Daytime Optics with 56-58.7 mm Objective Diameter
- ANAM000013 - Mounting System #6
- for Daytime Optics with 62 mm Objective Diameter
- ANAM000045 - Extended Rail Adapter #85 - Dovetail Weaver Picatinny Rail Adapter
- (extends scope base)
- ANHC000004 - Hard Shipping/Storage Case #102
- ANAF18XXLR - IR850XLR Afocal Doubler - Enhances performance of IR850-XLR
General CO-X
| Image intensifier tube | GEN 2+ QS ("Quick Silver" White Phosphor) MG |
| Resolution | 47-54 lp/mm |
| Magnification | Unity (1x) |
| Photocathode type | Multi-Alkali |
| Lens system | 80mm, F/1.44 |
| Field of view (FOV) | 12° |
| Focus range | 10m to infinity |
| Exit pupil diameter | 21 mm |
| Operation switch | On/ Off/ Standby Mode |
| Remote control button | Activates/deactivates the clip-on in standby mode |
| Focus knob | Focuses the objective lens |
| Battery indicator | Indicates low battery in the FOV |
| Manual gain control | Yes |
| Bright light cut-off | Yes |
| Automatic shut-off system | Yes |
| Low battery indicator | Yes |
| Infrared illuminator | IR850-XLR Detachable Extra Long Range IR Illuminator |
| Remote control | Wireless |
| Battery type | CR123 Lithium 3V (1), or AA Alkaline 1.5V (1), or any AA or CR123 type rechargeable batteries with voltage from 1.2V to 3.7V (1) |
| Up to 60 hrs at 20°C | |
| Operating temperature range | -40°C to +50°C (-40°F to +122°F) |
| Storage temperature range | -50°C to +50°C (-58°F to +122°F) |
| Weight | 0.76 kg (1.7 lbs) |
| Overall dimensions | 150 x 100 x 83 mm (5.9 x 3.9 x 3.3 in) |
| Dimensions without lens caps | 143 x 100 x 83 mm (5.6 x 3.9 x 3.3 in) |
| Weapon mount type | Picatinny, MIL-STD-1913, or Weaver rails |
| Height of the scope axis above rail | 37.8 mm (1.5 in) |
| Color (housing) | Black |
| Night Vision Clip-On System | |
| Lens Cap | |
| Light Suppressor | |
| Special Wrench | |
| Battery Adapter | |
| IR850-XLR Long Range IR Illuminator | |
| Wireless Remote Control with Picatinny Adapter | |
| Weaver Mount #60 | |
| Operation and Maintenance Manual | |
| Soft Carrying Case | |
| Lens Cloth | |
| ANAM000031 - Weaver Mount #60 replaces QRM to weaver base for IR Illuminator | |
| Warranty | 2 Years |
| * All data subject to change without notice. |
