- Fosi Audio ZD3 DAC
- 12V Power Adapter
- Infrared Remote Control
- USB-A to USB-B Cable
- 3.5mm Trigger Cable
- User Manual
Trusted & Verified

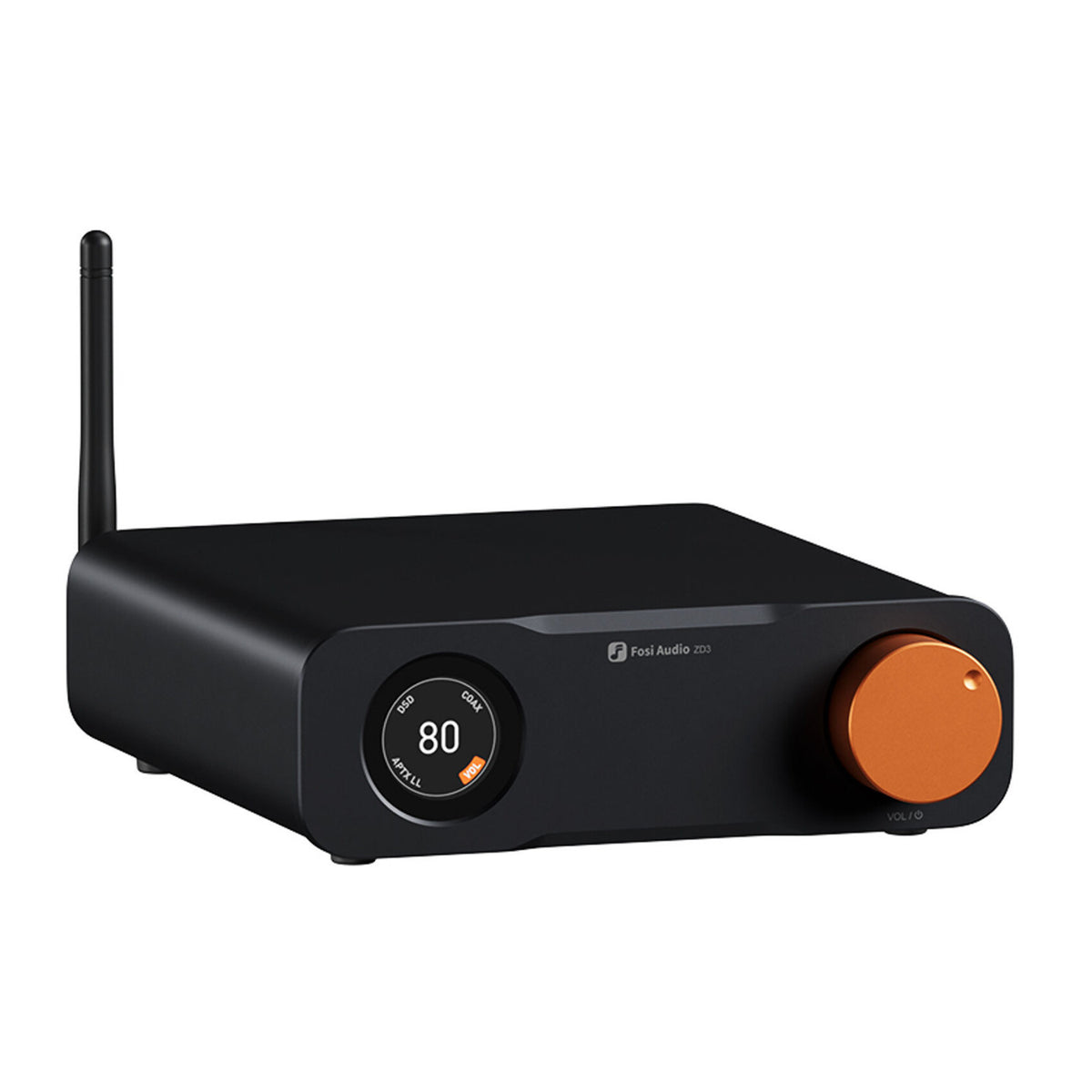

Fosi Audio ZD3 Fully Balanced Digital Desktop DAC Preamplifier
- Fully balanced desktop DAC preamp for compact hi-fi and audio systems
- ES9039Q2M DAC chip with XMOS XU316, QCC3031, and LME49720 chipset
- USB playback supports PCM 32bit/768kHz and DSD512
- Inputs include USB, HDMI ARC, optical, coaxial, and Bluetooth
- Outputs include balanced XLR and RCA analog connections
- Bluetooth 5.0 supports aptX HD, aptX, AAC, and SBC formats
- 1.5-inch OLED display provides clear operating feedback
- 12V trigger in and out supports coordinated system power control
The Fosi Audio ZD3 brings digital audio sources into a clean desktop or home stereo setup with the control of a DAC preamp and the output flexibility of balanced and single-ended connections. Use USB for a computer, HDMI ARC for a TV, optical or coaxial for digital components, or Bluetooth for wireless playback. XLR and RCA outputs make it easy to connect the ZD3 to compatible power amplifiers, powered speakers, or downstream audio gear.

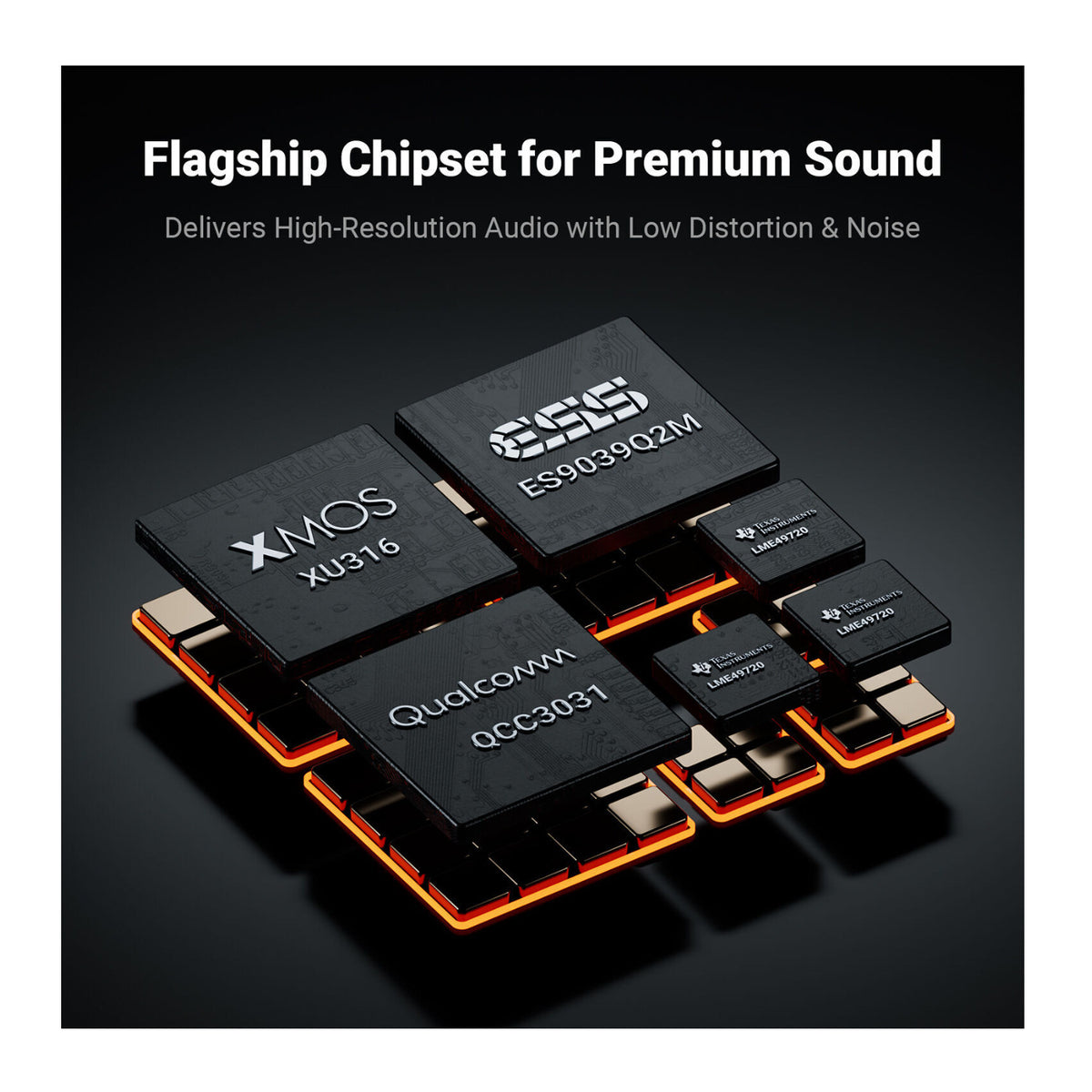

High Resolution DAC Performance
The ZD3 uses a chipset built around XMOS XU316, ESS 9039Q2M, QCC3031, and LME49720 components. USB playback supports PCM 32bit/768kHz and DSD512, while optical and coaxial inputs support PCM 24bit/192kHz. For listeners building a compact hi-fi chain, the ZD3 helps keep source selection, conversion, and volume control in one focused desktop component.

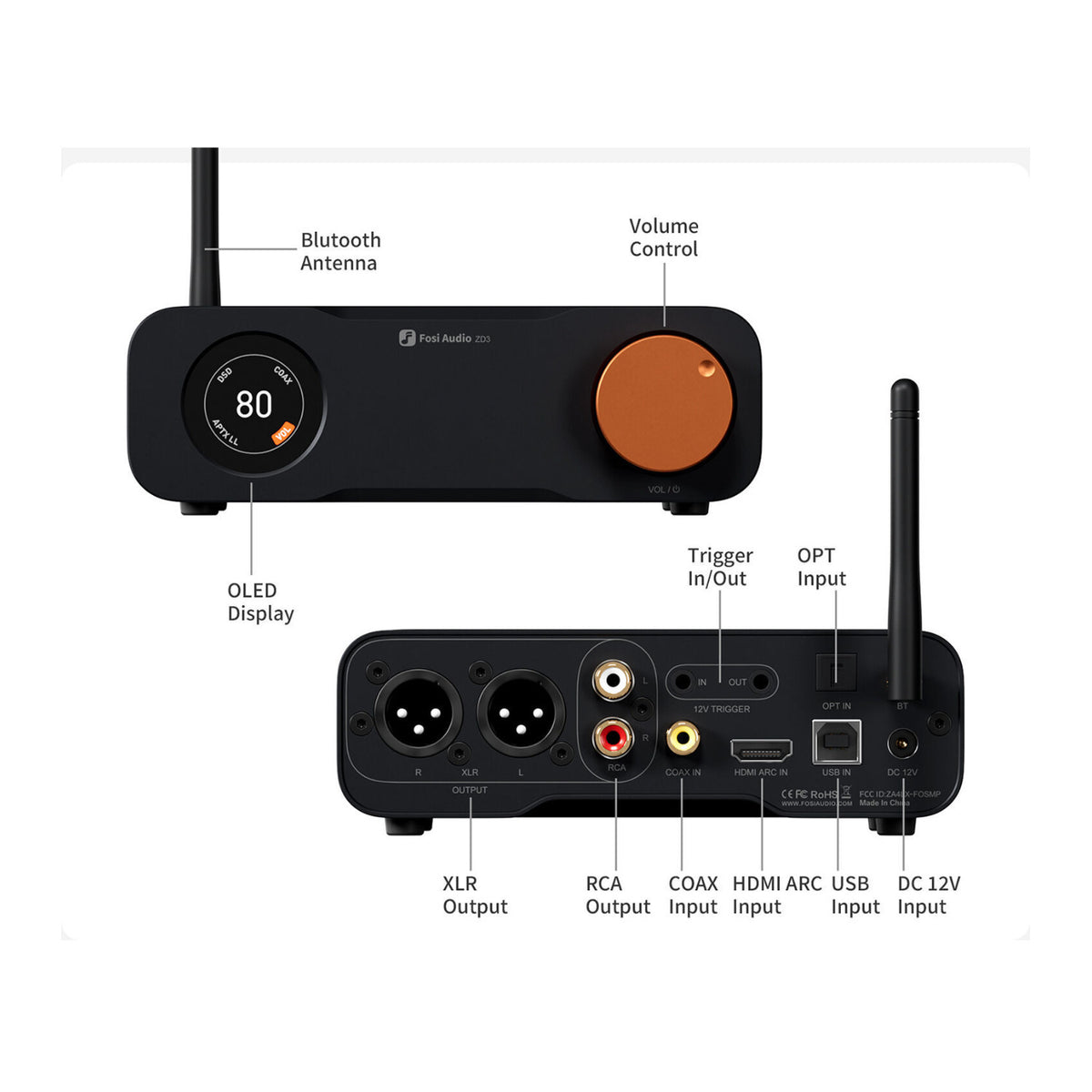

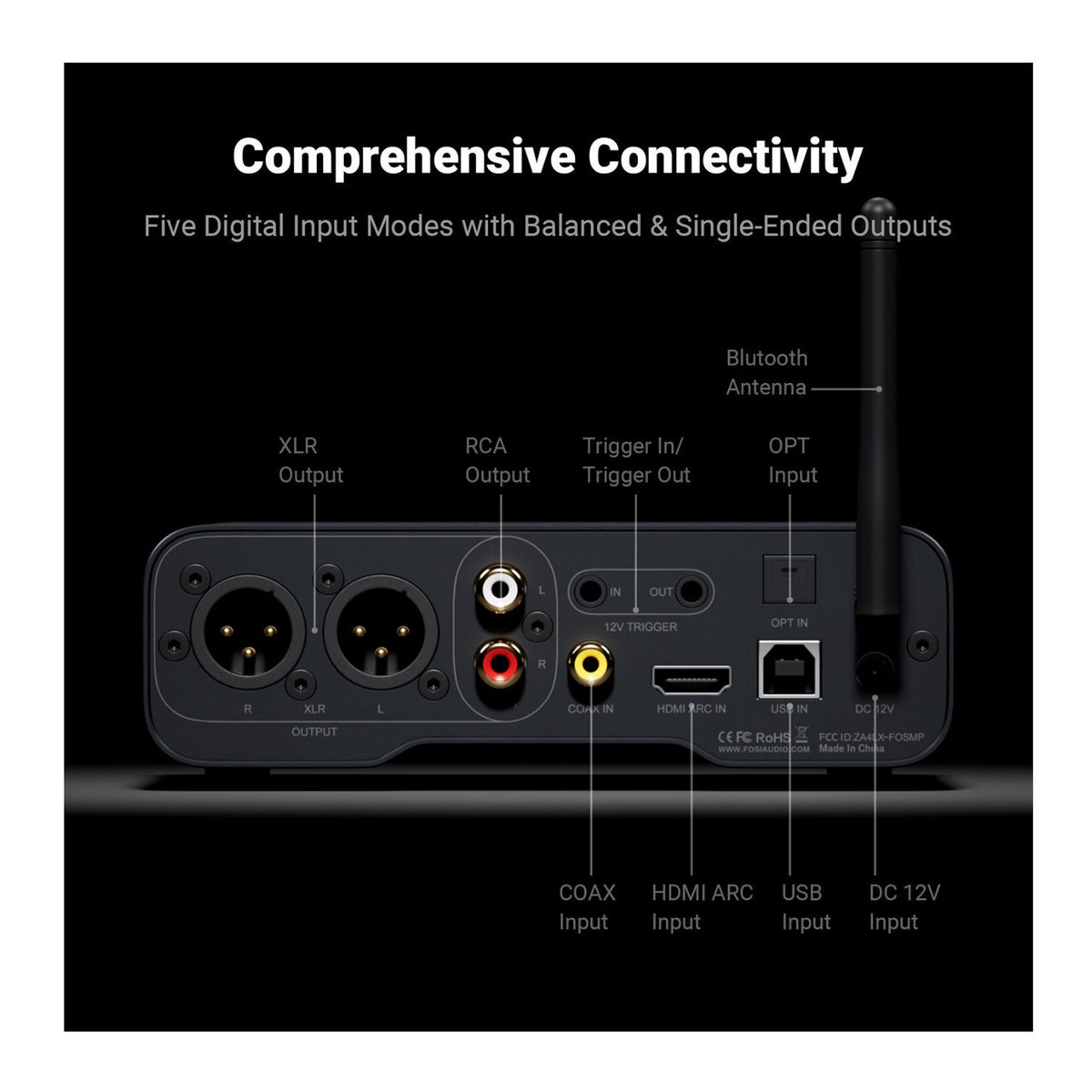

Flexible Inputs And Outputs
Multiple inputs support common audio sources across desk, TV, and stereo systems. HDMI ARC helps route TV audio into a two-channel system, while Bluetooth 5.0 supports aptX HD, aptX, AAC, and SBC audio formats for wireless listening. Balanced XLR outputs deliver 5Vrms, and RCA outputs deliver 2.5Vrms for connection to compatible amplifiers and audio systems.

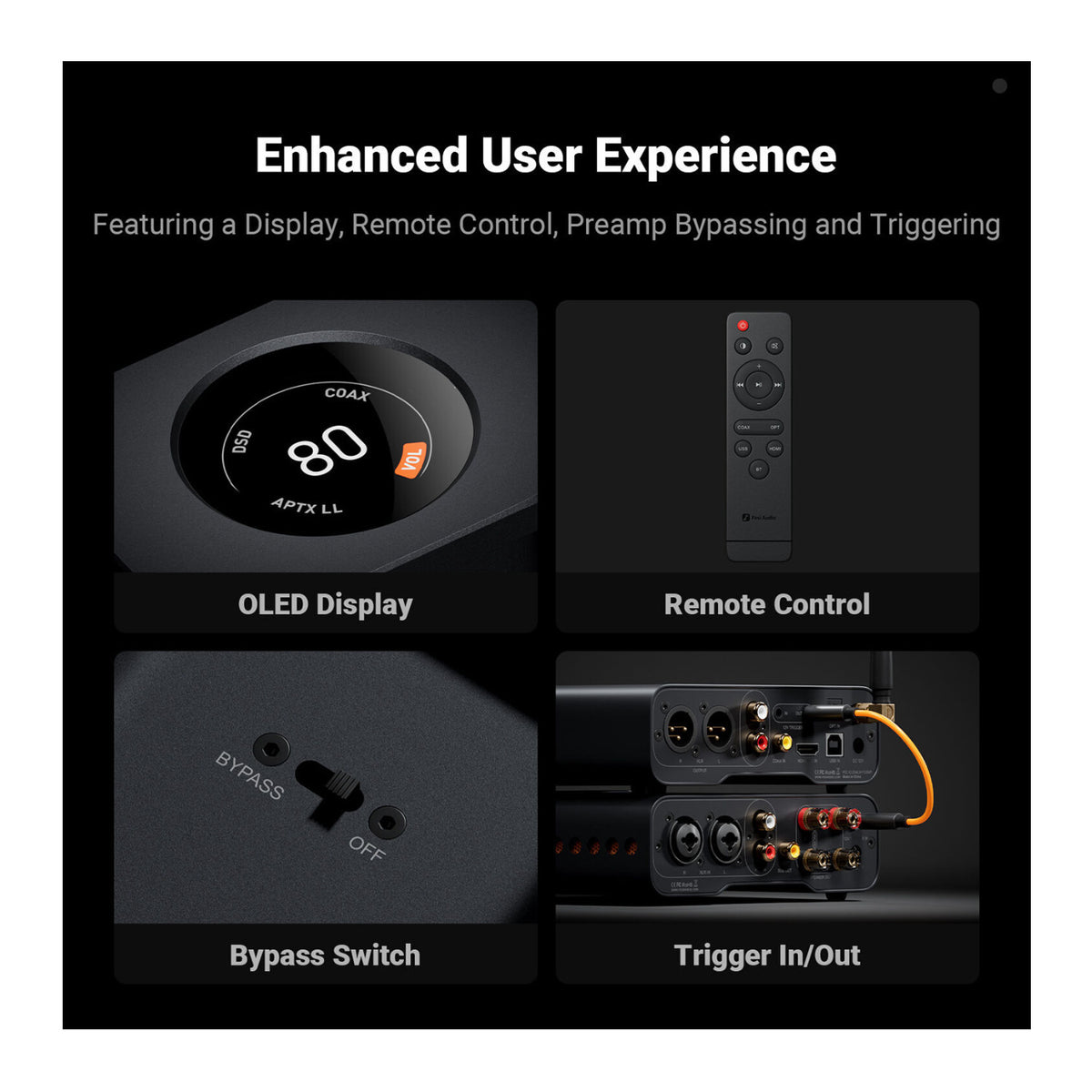

Designed For System Control
A 1.5-inch OLED display gives clear feedback while the infrared remote control supports convenient operation from a listening position. The 12V trigger in and out connections help coordinate power control with compatible audio equipment. A preamp bypass mode provides fixed-level output when the setup calls for direct signal transmission, and the swappable op amp design supports users who want to tune their audio chain with compatible DIP8 dual op amps.
Product Type
| Type | DAC Preamp |
| Model | ZD3 |
| Brand | Fosi Audio |
Chipset
| Chip Set | XMOS XU316 + ESS 9039Q2M + QCC3031 + LME49720 |
Input And Output
| Input Mode | USB, HDMI ARC, coaxial, optical, Bluetooth |
| Output Mode | XLR, RCA |
| Output Level | XLR 5Vrms, RCA 2.5Vrms |
Audio Support
| USB Maximum Sampling Rate | PCM 32bit/768kHz, DSD512 |
| Optical And Coaxial Maximum Sampling Rate | PCM 24bit/192kHz |
| Bluetooth Maximum Sampling Rate | PCM 24bit/48kHz |
| SINAD | 126dB |
| THD | ≥120dB |
| THD+N | <0.00008% |
| Dynamic Range | ≥123dB |
| Noise Floor | ≤2μV |
Bluetooth
| Bluetooth Version | 5.0 |
| Bluetooth Connection Distance | ≥13m |
| Bluetooth Transmission Audio Format | aptX HD, aptX, AAC, SBC |
Power
| Power Supply | DC 12V 1.5A |
USB Compatibility
| Windows Compatibility | Windows 7, 8, 8.1, 10, 11 |
| Mac Compatibility | Mac OS X |
| Linux Compatibility | Linux |
Physical
| Display | 1.5-inch OLED display |
| Color | Black |
