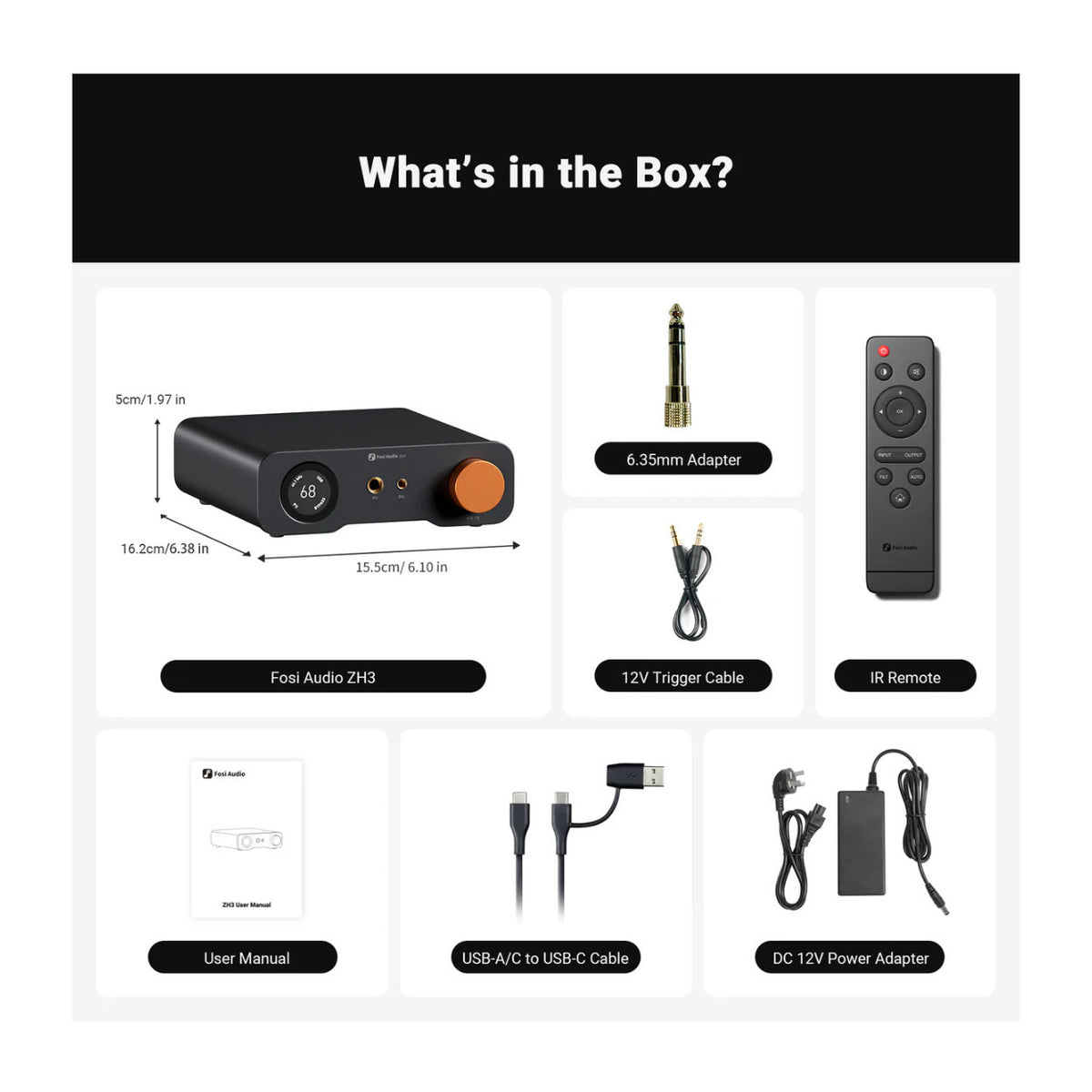

- 1 x Fosi Audio ZH3 Fully Balanced Preamp DAC and Headphone Amplifier
- 1 x 6.35 mm Headphone Adapter
- 1 x 12 Volt Trigger Cable
- 1 x Infrared Remote Control
- 1 x USB Type-A and Type-C to USB Type-C Cable
- 1 x DC 12 Volt Power Adapter
- 1 x User Manual
Trusted & Verified
Fosi Audio ZH3 Fully Balanced Preamp DAC and Headphone Amplifier with 6 Selectable Digital Filters
- Fully Balanced DAC, Headphone Amplifier, and Pre-amplifier
- PCM Support up to 32 bit and 768 kHz through USB
- DSD Support up to DSD512 through USB
- Balanced 4.4mm Headphone Output
- Single ended 6.35mm Headphone Output
- Balanced XLR and unbalanced RCA Preamp Outputs
- Coaxial, Optical, USB, and RCA Inputs
- 3-Gain levels for 16 to 300 ohm headphones
- Bass and Treble adjustment with Bypass Mode
- 6 Selectable Digital Filters
- Two replaceable operational amplifier sockets
- Infrared Remote Control
- Auto Power Off Feature

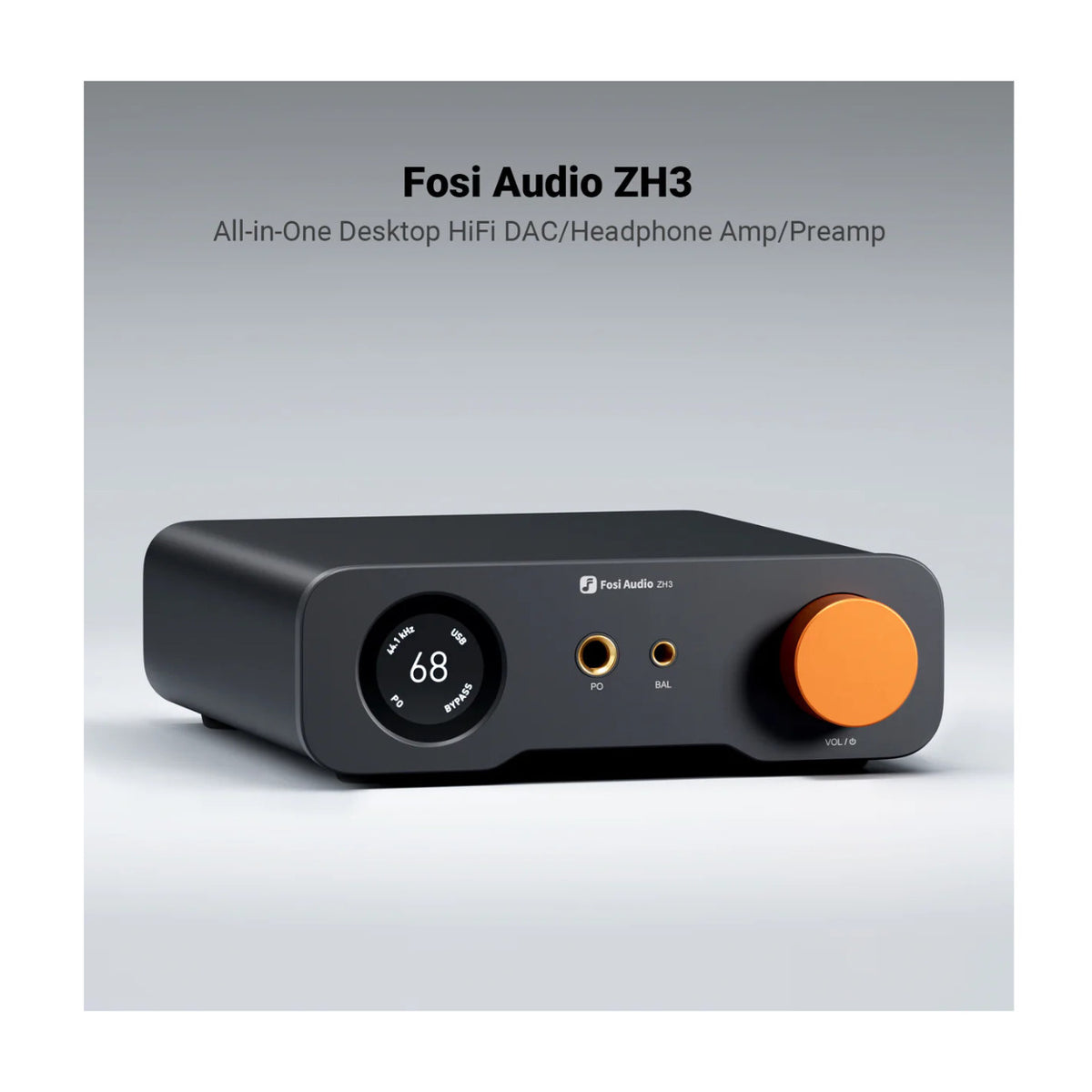

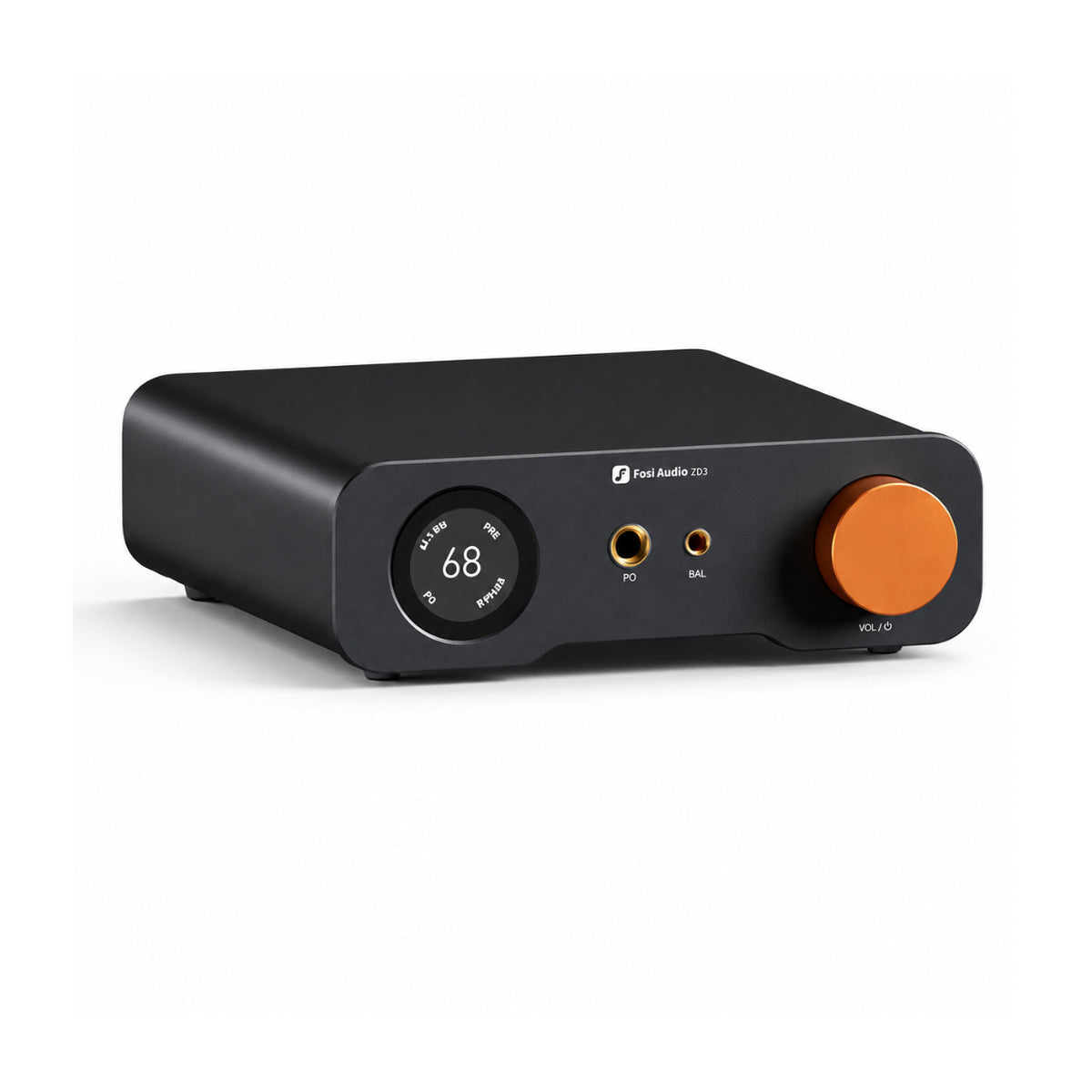

Control headphones, active speakers, and compatible amplifiers from one desktop audio component with the Fosi Audio ZH3. This fully balanced DAC, headphone amplifier, and preamplifier combines digital conversion, source selection, headphone power, tone adjustment, and output switching in a compact chassis with an integrated display.
High Resolution AKM Conversion
The ZH3 uses an XMOS XU316 USB processor, AKM AK4493SEQ DAC, and four OPA1612 operational amplifiers. USB playback supports PCM audio up to 32 bit and 768 kHz along with DSD512. Optical and coaxial inputs support PCM up to 24 bit and 192 kHz. Its balanced circuit is engineered for low noise and low distortion, with a specified signal to noise ratio reaching 121 dB and noise floor as low as 1.9 μV.
Balanced Headphone Power
Connect compatible headphones through the 4.4 mm balanced output or the 6.35 mm single ended output. The balanced connection supplies up to 2570 mW per channel into 32 ohms, while the single ended connection supplies up to 640 mW per channel into 32 ohms. Three selectable gain levels support sensitive in ear monitors and over ear headphones from 16 to 300 ohms.

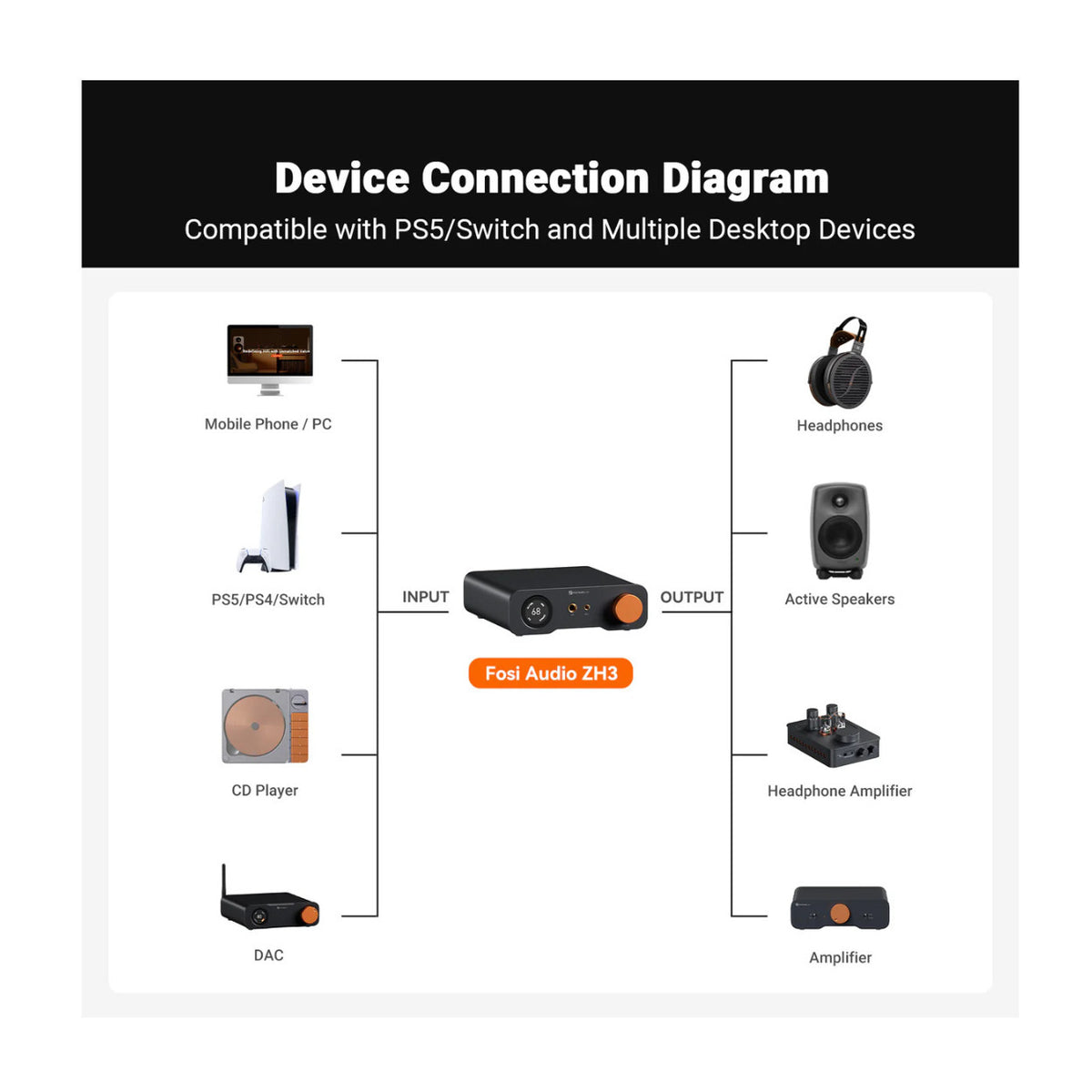

Flexible Desktop System Control

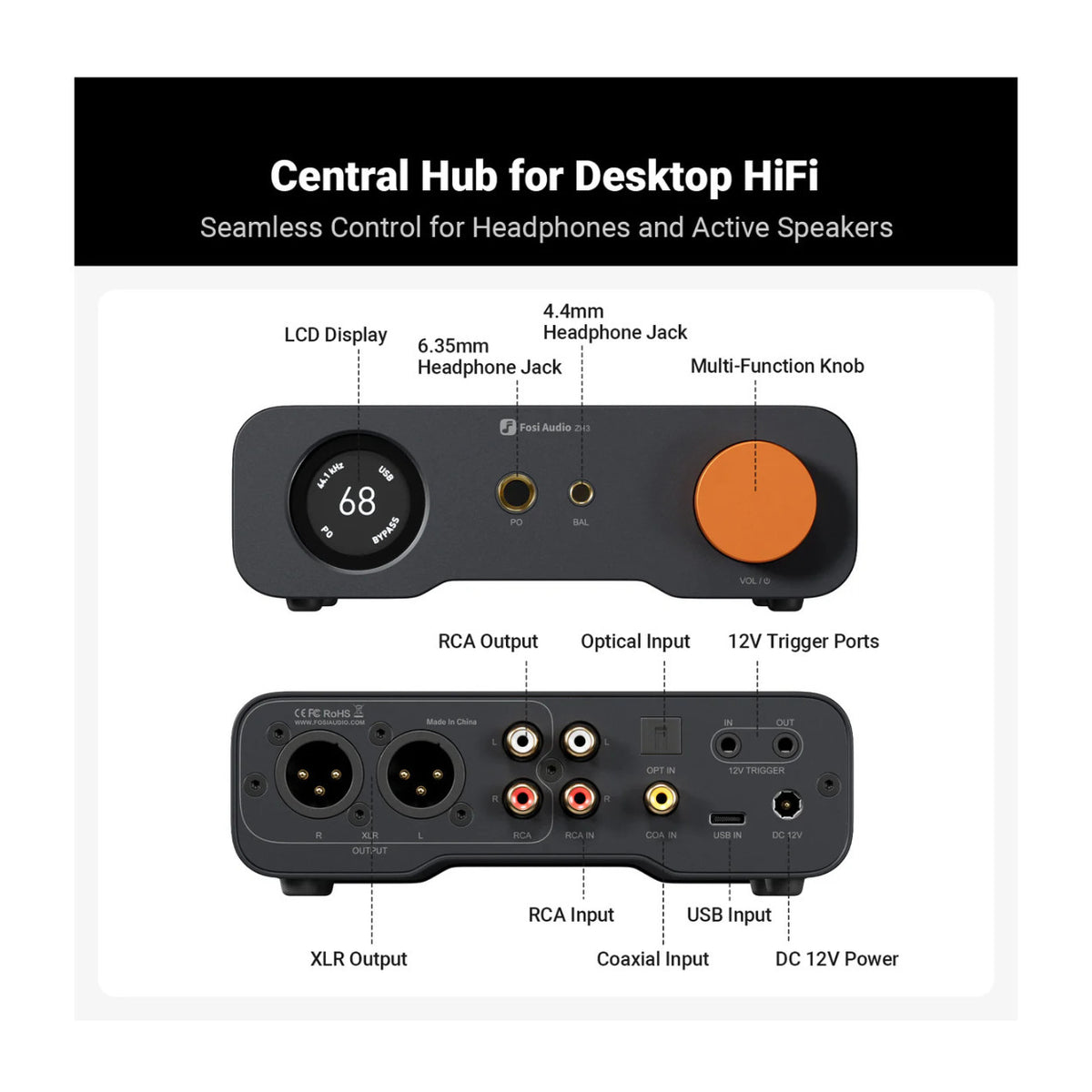

Coaxial, optical, USB, and RCA inputs accommodate digital and analog sources. Balanced XLR and unbalanced RCA outputs connect active speakers or compatible power amplifiers. Bass and treble controls, six digital filters, and a bypass mode provide sound adjustment. The infrared remote, output specific volume memory, 30 minute automatic power off option, and 12 volt trigger simplify daily system operation.
UAC 1.0 and UAC 2.0 modes extend USB compatibility to computers and compatible game consoles. Two replaceable operational amplifier sockets also allow experienced users to explore supported component alternatives.
General
| Brand | Fosi Audio |
| Model | ZH3 |
| Product Type | DAC, Headphone Amplifier, and Preamplifier |
| Circuit Design | Fully Balanced |
Audio Platform
| USB Processor | XMOS XU316 |
| DAC | AKM AK4493SEQ |
| Operational Amplifiers | 4 x OPA1612 |
| Replaceable Operational Amplifier Sockets | 2 |
| SINAD | At Least 115 dB |
| Signal to Noise Ratio | Up to at Least 121 dB |
| Total Harmonic Distortion Plus Noise | As Low As 0.00018 Percent |
| Minimum Specified Noise Floor | 1.9 μV |
| Specified Crosstalk | 117 dB |
Digital Audio Support
| USB PCM Support | Up to 32 Bit and 768 kHz |
| USB DSD Support | Up to DSD512 |
| Optical PCM Support | Up to 24 Bit and 192 kHz |
| Coaxial PCM Support | Up to 24 Bit and 192 kHz |
| USB Audio Modes | UAC 1.0 and UAC 2.0 |
Inputs
| USB Input | Yes |
| Optical Digital Input | Yes |
| Coaxial Digital Input | Yes |
| RCA Analog Input | Yes |
Outputs
| Balanced Headphone Output | 4.4 mm |
| Single Ended Headphone Output | 6.35 mm |
| Balanced Preamplifier Output | XLR |
| Unbalanced Preamplifier Output | RCA |
Balanced Headphone Output
| Connector | 4.4 mm |
| Maximum Output Power | 4.4mm balanced (2 x 2570mW at 32 ohm) |
| Signal to Noise Ratio | At Least 119 dB |
| Dynamic Range | At Least 119 dB |
| Total Harmonic Distortion | Up to 0.00018 Percent |
| Noise Floor | Up to 4.9 μV |
Single Ended Headphone Output
| Connector | 6.35 mm |
| Maximum Output Power | 2 x 640 mW at 32 Ohms and Less Than 1 Percent Total Harmonic Distortion Plus Noise |
| Signal to Noise Ratio | At Least 121 dB |
| Dynamic Range | At Least 121 dB |
| Total Harmonic Distortion | Up to 0.00024 Percent |
| Noise Floor | Up to 1.9 μV |
Headphone Support
| Supported Headphone Impedance | 16 to 300 Ohms |
| Gain Levels | 3 |
| Compatible Headphone Types | In Ear Monitors and Over Ear Headphones |
Sound Controls
| Bass Adjustment | +/- 12 dB |
| Treble Adjustment | +/- 10 dB |
| Digital Filters | 6 |
| Bypass Mode | Yes |
Control and System Features
| Display | Integrated LCD |
| Remote Control | Infrared |
| Output Switching | Front Control and Remote |
| Output Volume Memory | Headphone and Preamplifier Outputs |
| Automatic Power Off | After 30 Minutes Without a Signal, User Selectable |
| Trigger Connection | 12 Volt |
Compatibility
| Computer Compatibility | USB Audio Devices Supporting UAC 2.0 |
| Compatible Console Mode | UAC 1.0 |
| Active Speaker Support | Yes |
| Power Amplifier Support | Yes |
Power
| Power Input | DC 12 Volt |
| Power Adapter Included | Yes |
