- Garmin Catalyst R1
- Indicator lights with 10 ft (3 m) cable
- Bare wire power cable
- Surface plate mount bracket with screws
- Adhesive mounts
- Zip ties
- Documentation
Trusted & Verified
Garmin Catalyst R1 Racing Radar with 197 Foot Detection and Rear Vehicle Alerts
- Detects approaching vehicles up to 197 feet behind the race vehicle
- Tracks up to 8 moving vehicles across a 170-degree horizontal field
- Shows left, right, and directly behind activity through indicator lights
- Operates independently without requiring a phone or separate display
- Connects through Bluetooth to the Garmin Catalyst Radar app
- Uses wired 12 V vehicle power with no battery charging required
- IP67-rated sensor and indicator hardware withstand track conditions
- Automatically shuts down after the vehicle remains parked for 10 minutes

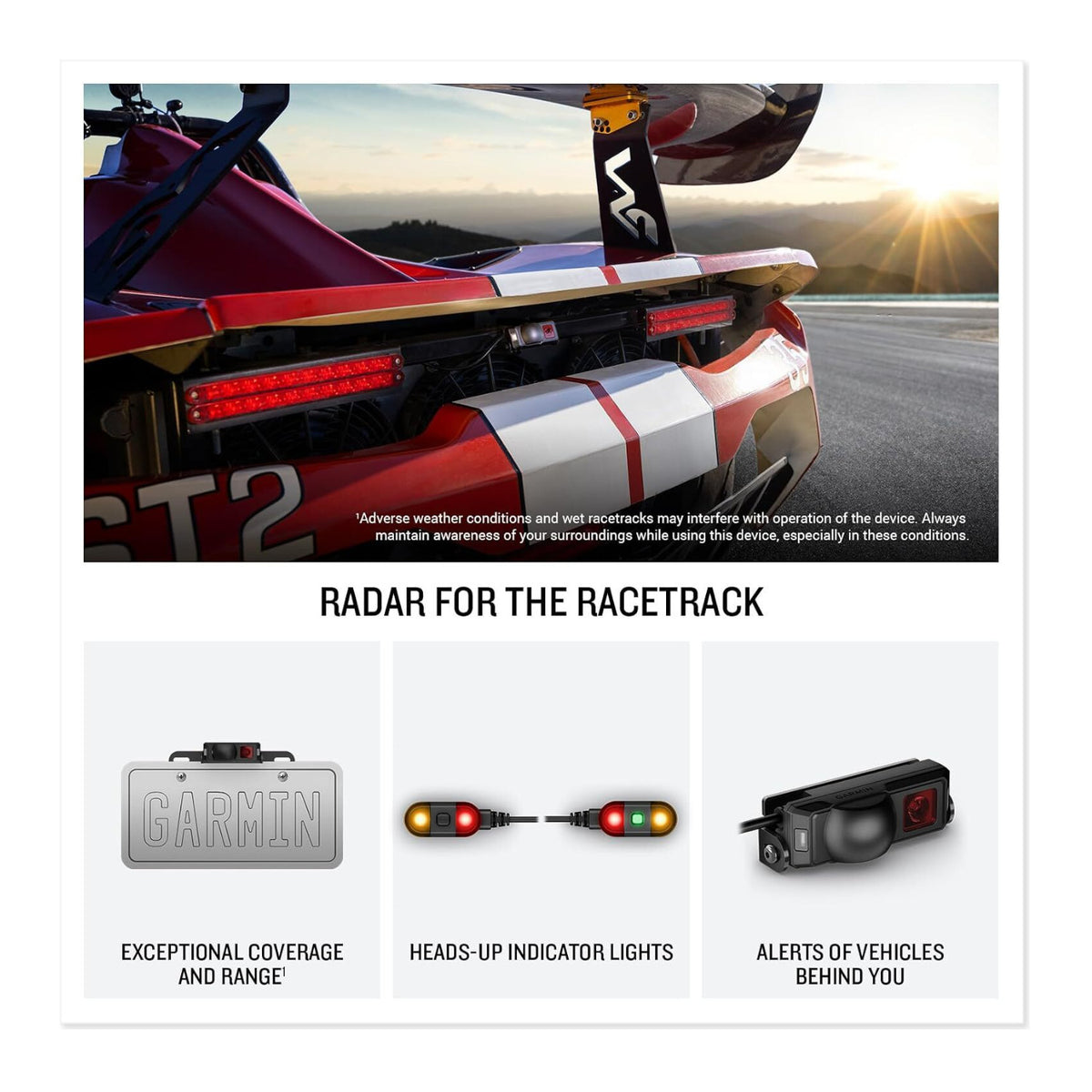

Keep greater awareness of activity behind your race vehicle with the Garmin Catalyst R1 Racing Radar. The rear-facing sensor detects approaching vehicles up to 197 feet away and communicates their position through dedicated indicator lights. Drivers can recognize vehicles approaching from the left, right, or directly behind while keeping their attention on the racetrack.
Wide Rear Detection Coverage
The radar uses a 170-degree horizontal detection field and can track up to 8 moving vehicles. It detects relative approaching speeds from 0 to 43 mph while the race vehicle is traveling between 15 mph and 177 mph. The visual alert system helps support overtaking, defending, and positioning decisions during recreational track sessions.
Standalone Operation and App Control
Use the Catalyst R1 as a standalone system without a screen, or connect it to the Garmin Catalyst Radar app through Bluetooth. The app displays approaching vehicles, supports alert sensitivity adjustments, provides indicator light testing, and delivers firmware updates. Automatic light dimming adjusts indicator brightness as conditions change.
Permanent Track Vehicle Installation

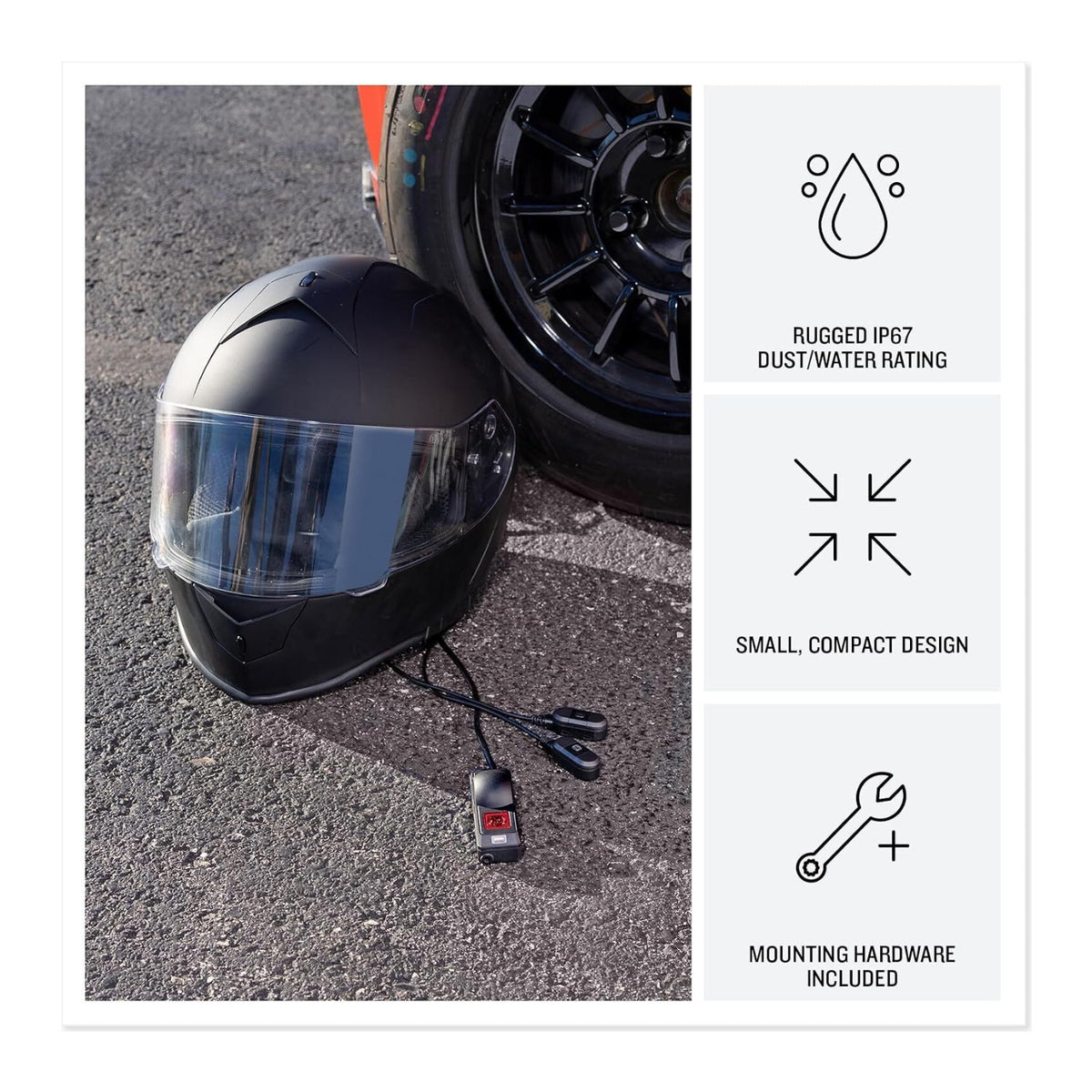

The compact sensor and indicator lights use wired 12 V vehicle power, so there are no batteries to charge. IP67-rated hardware provides protection from dust and water exposure. Multiple mounting options, a 10-foot indicator cable, installation hardware, and cable management accessories support a clean race vehicle installation. The system is intended only for recreational racetrack use and must not be used on public roads.
Radar Detection
| Maximum Detection Distance | 197 feet, 60 meters |
| Horizontal Detection Angle | 170 degrees |
| Maximum Tracked Moving Vehicles | 8 |
| Relative Approaching Vehicle Speed | 0 to 43 mph, 0 to 70 km/h |
| Minimum Operational Vehicle Speed | 15 mph |
| Maximum Operational Vehicle Speed | 177 mph, 285 km/h |
Alerts
| Alert Type | Visual indicator lights |
| Blind Spot Vehicle Alerts While Moving | Yes |
| Approaching Vehicle Alerts While Moving | Yes |
| Automatic Brightness Dimming | Yes |
| Status Indicator | Yes |
Connectivity and Controls
| Wireless Connectivity | Bluetooth |
| Compatible App | Garmin Catalyst Radar App |
| Standalone Operation | Yes |
| Power and Mode Button | Yes |
| Automatic Shutoff | After 10 minutes parked |
Power
| Power Source | Wired 12 V vehicle power |
| Installation | Permanent wired installation required |
Construction
| Water Rating | IP67 |
| Radar Mount Type | Versatile panel mount |
| Hardware Finish | Black powder coating |
Dimensions and Weight
| Sensor Dimensions | 78.75 x 26.95 x 30.00 mm |
| Sensor Weight with Cable and Without Mounts | 348.7 g |
| Indicator Light Dimensions | 42.56 x 17.31 x 14.00 mm |
| Indicator Light Weight with Cable and Without Mounts | 97.4 g |
| Indicator Cable Length | 10 feet, 3 meters |
Mobile Device Requirements
| Android Requirement | Android 9 or later with Wi-Fi and cellular capability |
| Apple Requirement | iOS 16.5 or later with Wi-Fi and cellular capability |
