Bundle Includes:
- Garmin GPSMAP 943XSV 9-Inch Chartplotter
- MicroSD Card Preinstalled
- Power Cable
- NMEA 2000 T-Connector
- NMEA 2000 Drop Cable (2-Meter)
- 8-Pin Transducer to 12-Pin Sounder Adapter Cable
- Bail Mount Kit with Knobs
- Flush Mount Kit with Gasket
- Protective Cover
- Trim Piece Snap Covers
- Documentation
- Garmin GPSMAP 9x3 Series 9-Inch Protective Cover
Trusted & Verified

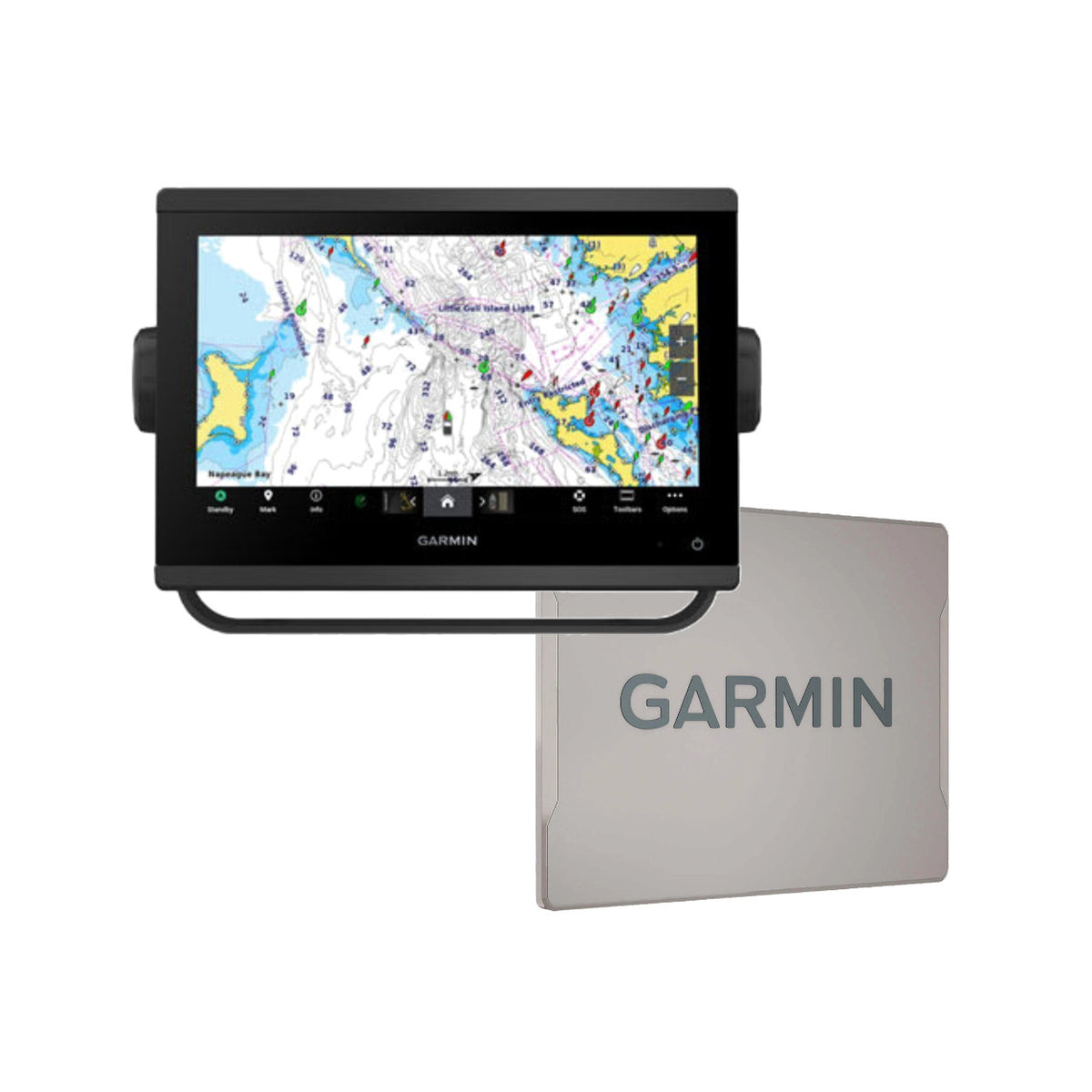

Garmin GPSMAP943XSV 9-Inch Combo Touchscreen Fish Finder/Chartplotter Bundle with Protective Cover
- 9-inch chartplotter with SideVu and ClearVu scanning sonars
- Slim design with edge-to-edge glass for wider dash fit
- High-resolution IPS display for improved sunlight readability
- Preloaded Garmin Navionics Plus coastal and inland mapping
- Garmin Navionics Vision Plus chart subscription upgrade
- Integration with Power-Pole for advanced boat control features
- Force trolling motor support for complete fishing control
- CHARGE Marine Power Manager for battery management and charge
- Built-in Wi-Fi for mobile app access and smart notifications
Garmin GPSMAP943XSV 9-Inch Combo Touchscreen Fish Finder/Chartplotter

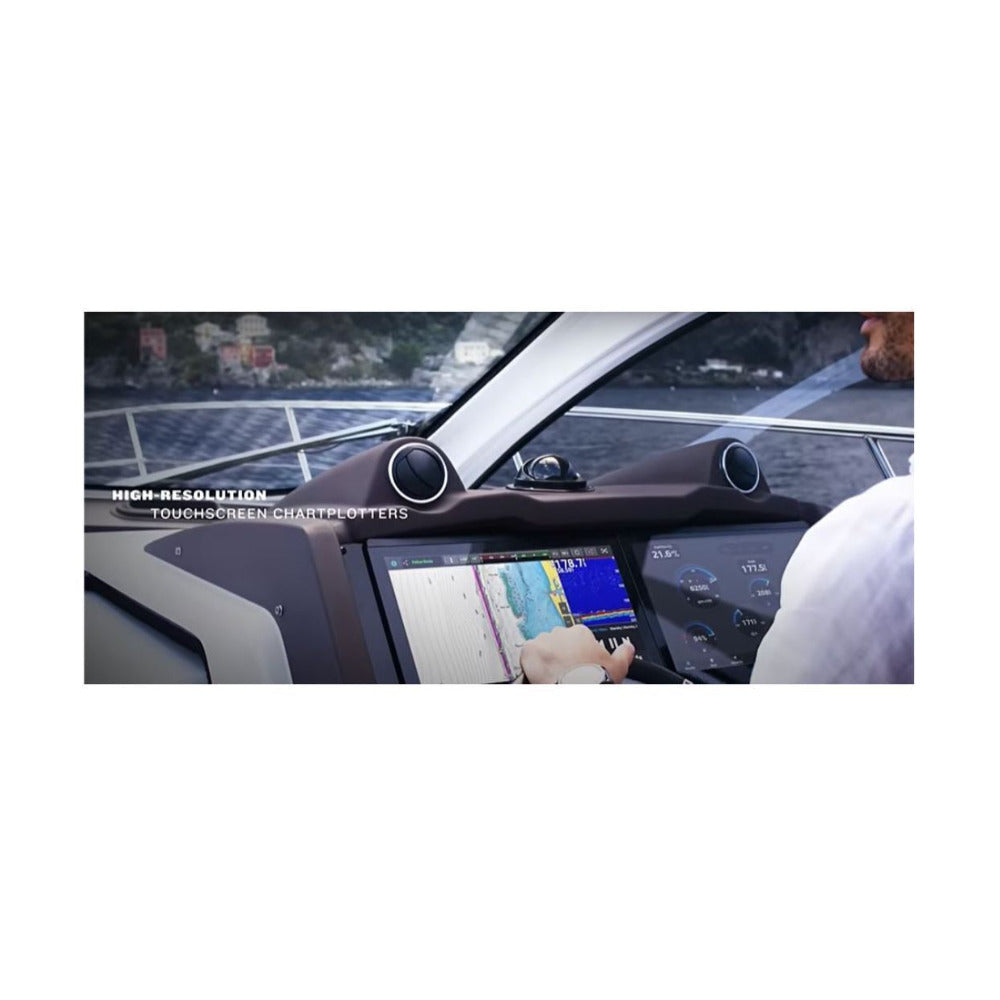

With its sleek design, powerful processing, and upgraded IPS display, this advanced Garmin GPSMAP 943XSV 9-Inch Chartplotter integrates seamlessly into your Garmin marine system.

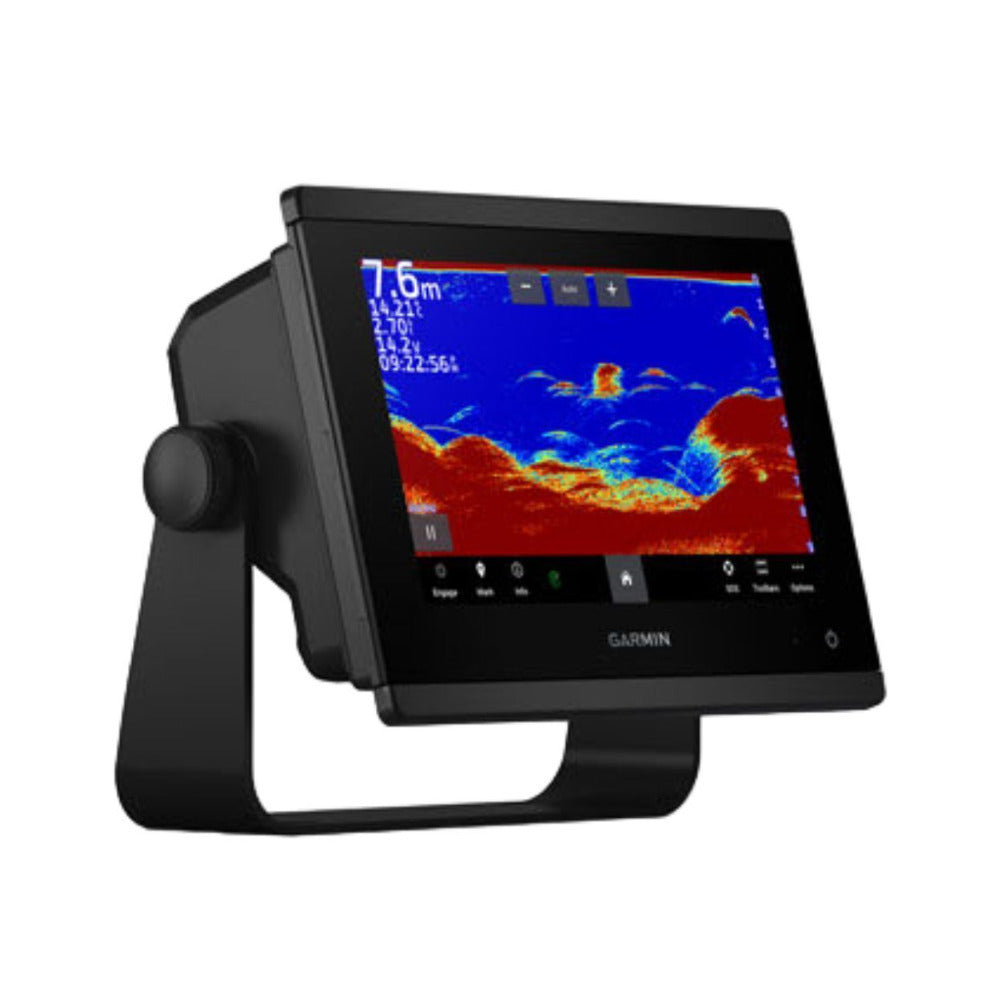

Its IPS panel improves sunlight readability and wide angle visibility. Built in Ultra High Definition SideVu and ClearVu scanning sonar uses vivid, high contrast palettes to separate fish from structure. It also supports 1 kW traditional CHIRP sonar and compatible Panoptix or LiveScope live sonar for real time views around the boat with a transducer sold separately.
Mapping, Sonar and Boat Control

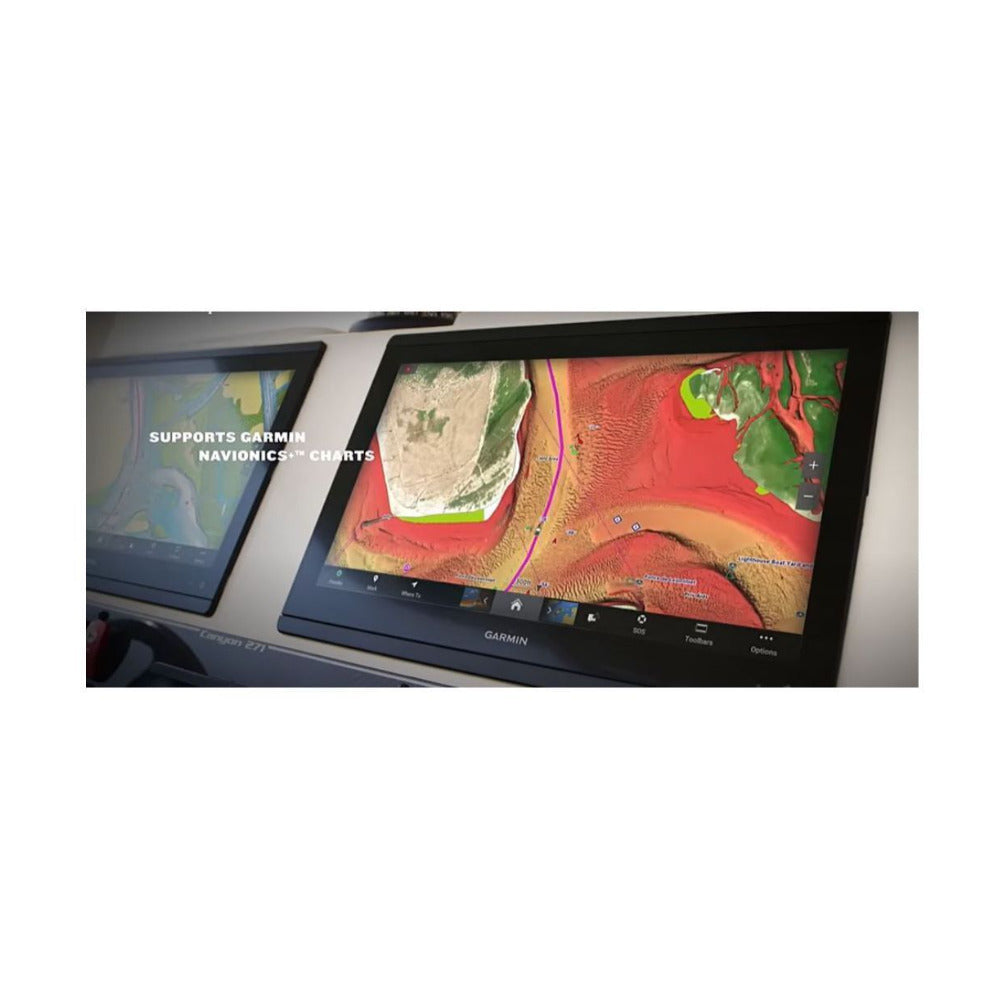

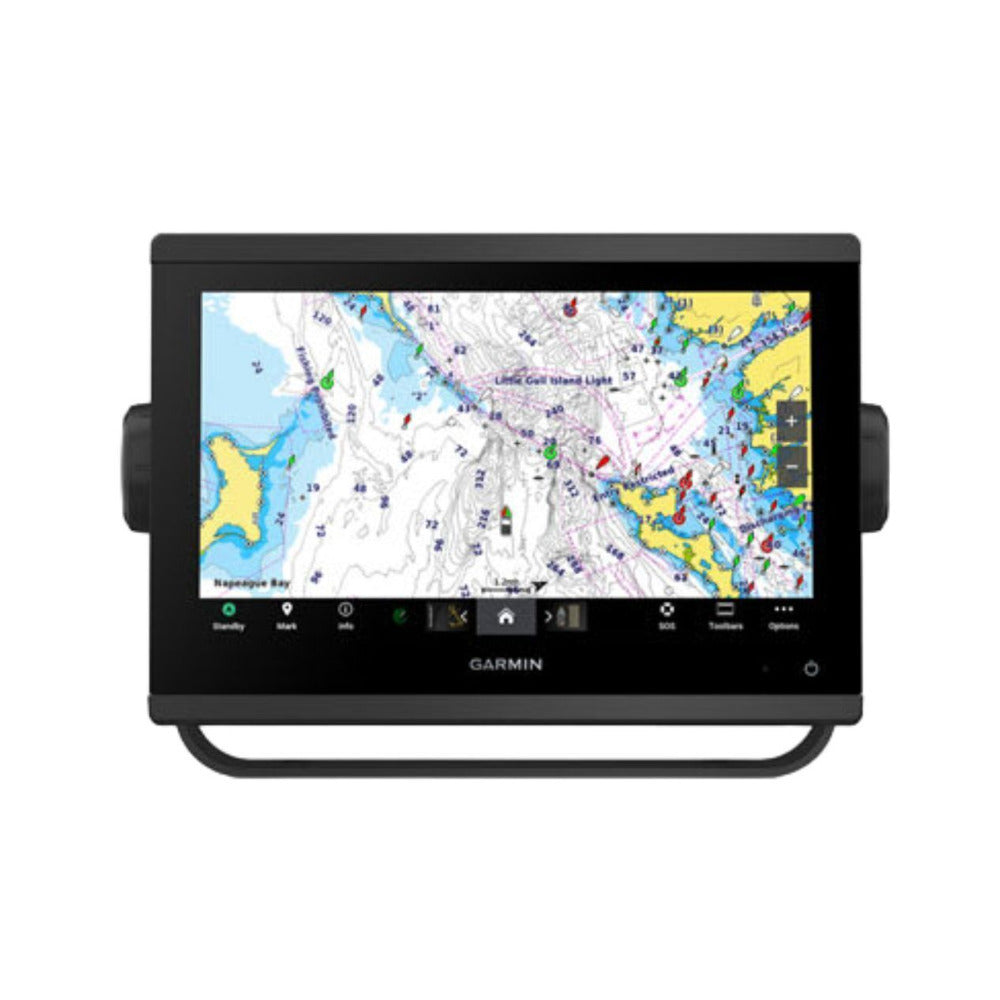

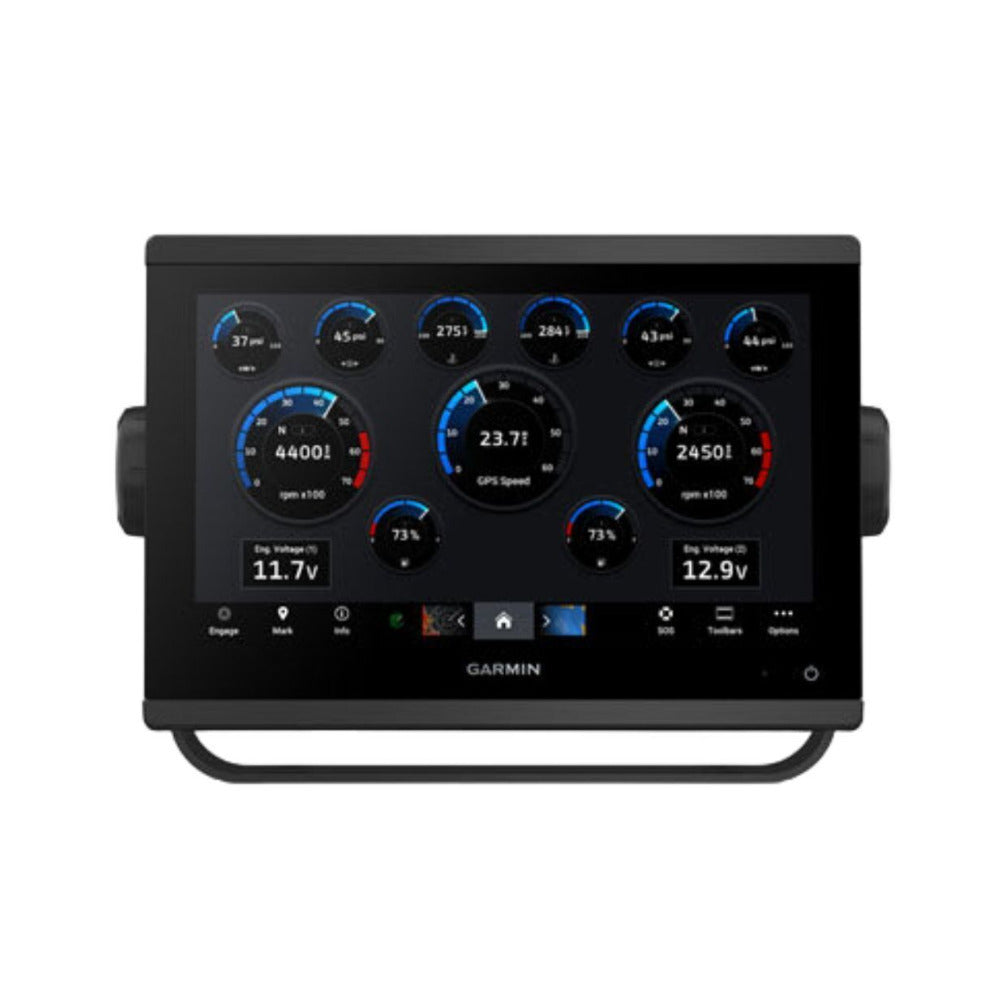

Built in Garmin Navionics Plus provides coastal and inland mapping with Auto Guidance Plus and a 1 year subscription for downloadable daily updates on select chartplotters. Optional Garmin Navionics Vision Plus premium subscription adds high resolution relief shading, satellite imagery, sonar imagery, and more. Control a compatible Force trolling motor, sold separately. When networked with a compatible Force motor and Power-Pole shallow water anchor, the display supports smart anchor auto deployment, jog, auto stow, anchor drag detection, and end of route anchoring. Compatible Power-Pole CHARGE integration adds battery charging while running, power monitoring and allocation, emergency start control, and power transfer between battery banks. Select engines, including select Yamaha models, can also connect.
Sailing, Networking and Connected Features
Garmin SailAssist provides lay lines, race start line guidance, an enhanced wind rose, heading and course over ground lines, true wind data, tide, current or time sliders, wind angle, set and drift, wind speed, and more. Sailing polars show target speed for a given wind angle and speed to help guide sail trim. Garmin Marine Network shares maps, user data, radar, and IP camera video across compatible devices. NMEA 2000 and NMEA 0183 connect compatible autopilots, digital switching, weather, Fusion audio, media, VHF, AIS, and more. OneHelm brings supported third party systems such as EmpirBus digital switching to one screen.
Built in Wi-Fi pairs with ActiveCaptain for OneChart, smart notifications, software updates, Helm, Garmin Quickdraw Community data, and more. Integrated ANT connects compatible quatix marine watches, gWind Wireless 2 transducers, GNX Wind instruments, and wireless remotes. Pair a compatible inReach satellite communicator to type custom messages with the on screen keyboard, use saved contacts or enter an email, inReach address, or phone number, and group messages by conversation.

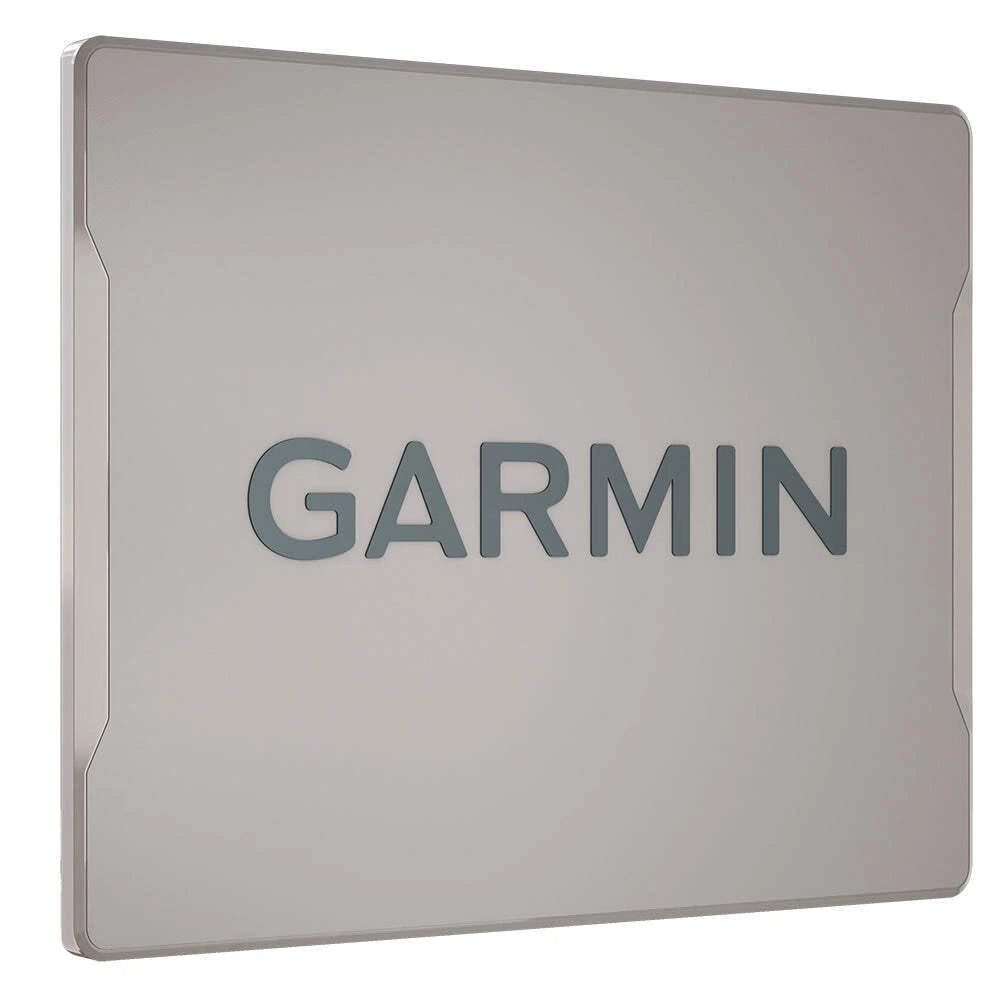

Garmin GPSMAP 9x3 Series 9-Inch Protective Cover
Keep a compatible GPSMAP 9x3 Series display covered when it is not in use. The Garmin Protective Cover fits over the front of the marine device to help limit scratches and sun exposure. Its close fitting shape gives the display practical coverage without adding a bulky storage case.
Protection Between Uses
The durable plastic construction supports heavy duty protection for the display surface. It is useful at the helm, during storage, or whenever the device is left inactive. The cover helps reduce direct exposure to the sun and shields the screen from contact that may cause scratches.
Made for 9 Inch GPSMAP 9x3 Models
This cover is made for compatible 9 inch models in the GPSMAP 9x3 Series. Official compatibility includes GPSMAP 923, GPSMAP 923 Sailing Bundle, GPSMAP 923xsv, GPSMAP 943, GPSMAP 943 Sailing Bundle, and GPSMAP 943xsv devices.
Garmin GPSMAP943XSV 9-Inch Combo Touchscreen Fish Finder/Chartplotter
Physical
| Dimensions | 9.2 inch x 6.4 inch x 3 inch (23.3 cm x 16.2 cm x 7.6 cm) |
| Weight | 3.6 pounds (1.6 kg) |
| Water Rating | IPX7 |
| Display Type | WXGA |
| Display Size | 7.8 inch x 4.4 inch; 9.0 inch diagonal (19.9 cm x 11.2 cm; 22.9 cm diagonal) |
| Display Resolution | 1280 x 720 pixels |
| Mounting Options | Bail, flush, or flat. Garmin does not offer hardware or accessories for flat mount installation. Professional tools and knowledge are required |
| Input | Touchscreen |
Maps and Memory
| Data Card Support | 2 microSD cards, back of unit |
| Waypoints | 5,000 |
| Track Points | 50,000 |
| Saved Tracks | 50 |
| Navigation Routes | 100 |
Sensors
| Receiver | 10 Hz |
| NMEA 2000 Compatible | Yes |
| NMEA 0183 Compatible | Yes |
Built In Maps
| Auto Guidance Plus | Yes |
| Garmin Navionics Plus Inland and Coastal Mapping | Yes |
Optional Map Support
| Garmin Navionics Vision Plus | Yes |
Chartplotter Features
| AIS Connectivity | Yes |
| ActiveCaptain Compatible | Yes |
| Wireless Remote Compatibility | Yes |
| Sailing Features | Yes |
| OneHelm Support | Yes |
Electrical Features
| Power Input | 10 Vdc to 32 Vdc |
| Typical Current Draw at 12 Vdc | 1.37 A |
| Maximum Current Draw at 12 Vdc | 3.20 A |
| Maximum Power Usage at 10 Vdc | 40.2 W |
Sonar Features
| Sonar Display | Yes |
| Power Output | 1 kW |
| Traditional Sonar | Built In Single Channel CHIRP, 50, 70, 83, and 200 kHz, L, M, and H CHIRP |
| ClearVü | Built In 260, 455, 800, 1000, and 1200 kHz |
| SideVü | Built In 260, 455, 800, 1000, and 1200 kHz |
| Panoptix Sonar Support | Yes |
| LiveScope Support | Yes |

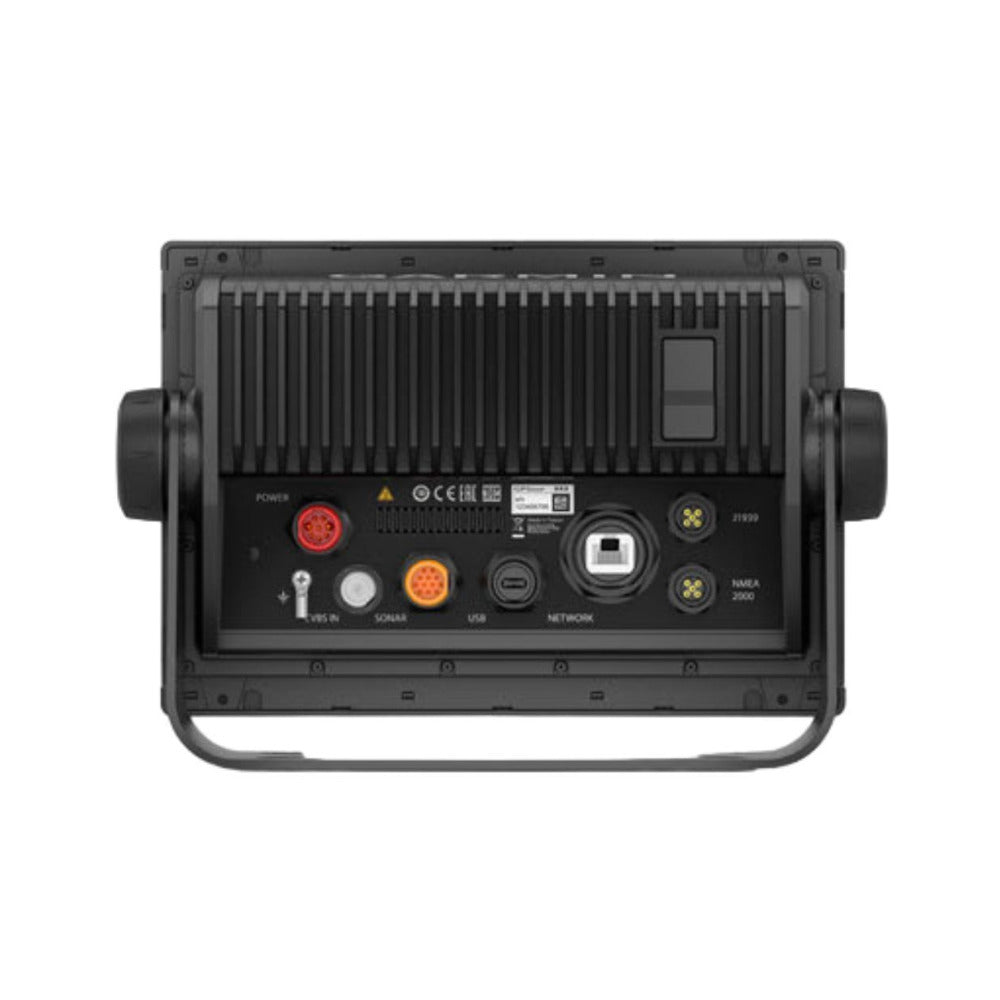

Networking and Connections
| NMEA 2000 Ports | 1 |
| NMEA 0183 Input Ports | 1 |
| NMEA 0183 Output Ports | 1 |
| Video Input Ports | 1 BNC Composite |
| J1939 Ports | 1 |
| Garmin Marine Network Ports | 1 |
| 12 Pin Transducer Ports | 1 |
| ANT Connectivity | Yes |
| Garmin Wi-Fi Network | Yes |
Garmin GPSMAP 9x3 Series 9-Inch Protective Cover
General
| Product Type | Protective Cover |
| Size | 9 inch |
| Material | Plastic |
| Weight | 90 grams |
| Fit | Snug fit over the display |
| Protection | Helps limit scratches and sun exposure when not in use |
Compatibility:
| Series | GPSMAP 9x3 Series |
| Compatible Models | GPSMAP 923, GPSMAP 923 Sailing Bundle, GPSMAP 923xsv, GPSMAP 943, GPSMAP 943 Sailing Bundle, GPSMAP 943xsv |
