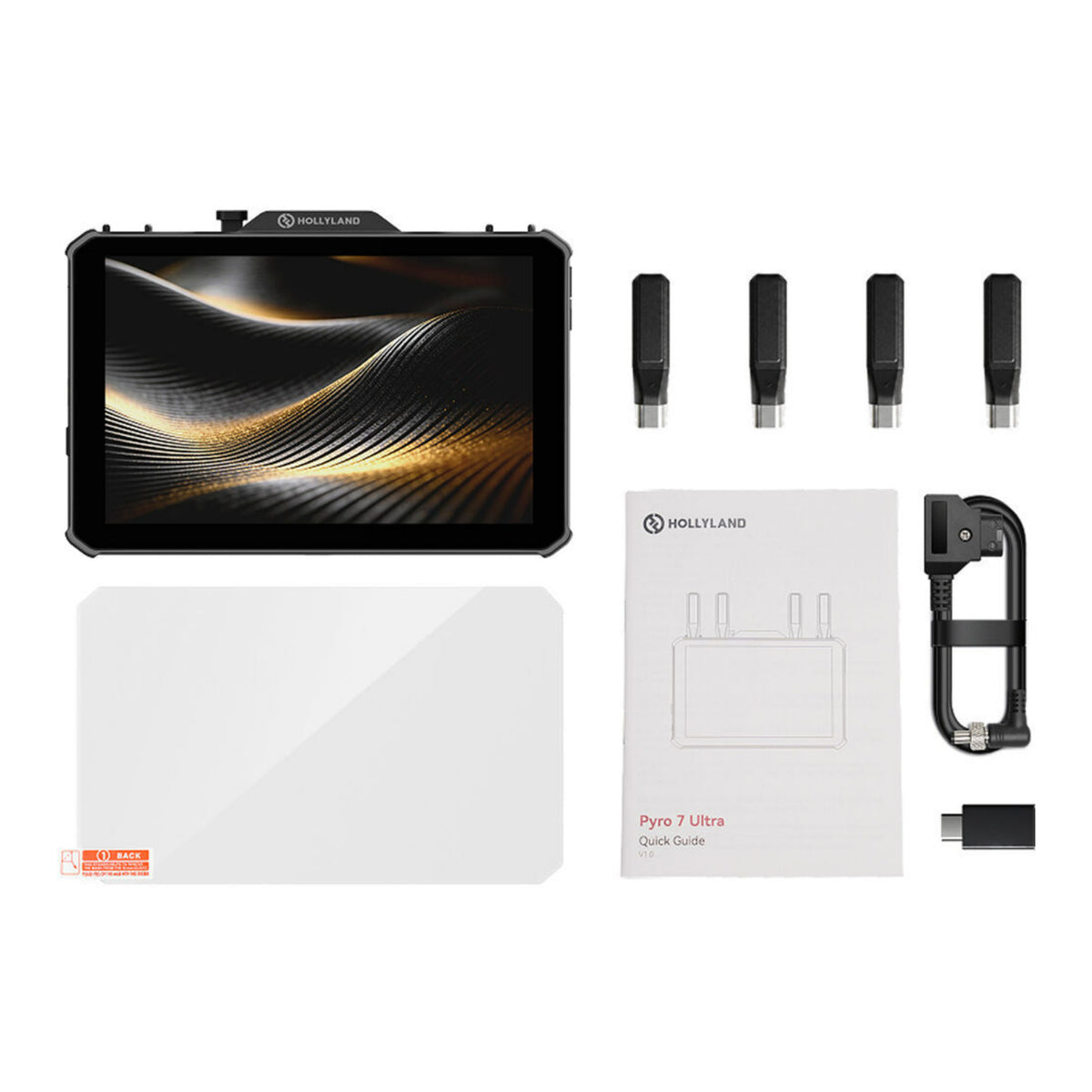

- 1 x Hollyland Pyro 7 Wireless Transceiver Monitor
Trusted & Verified

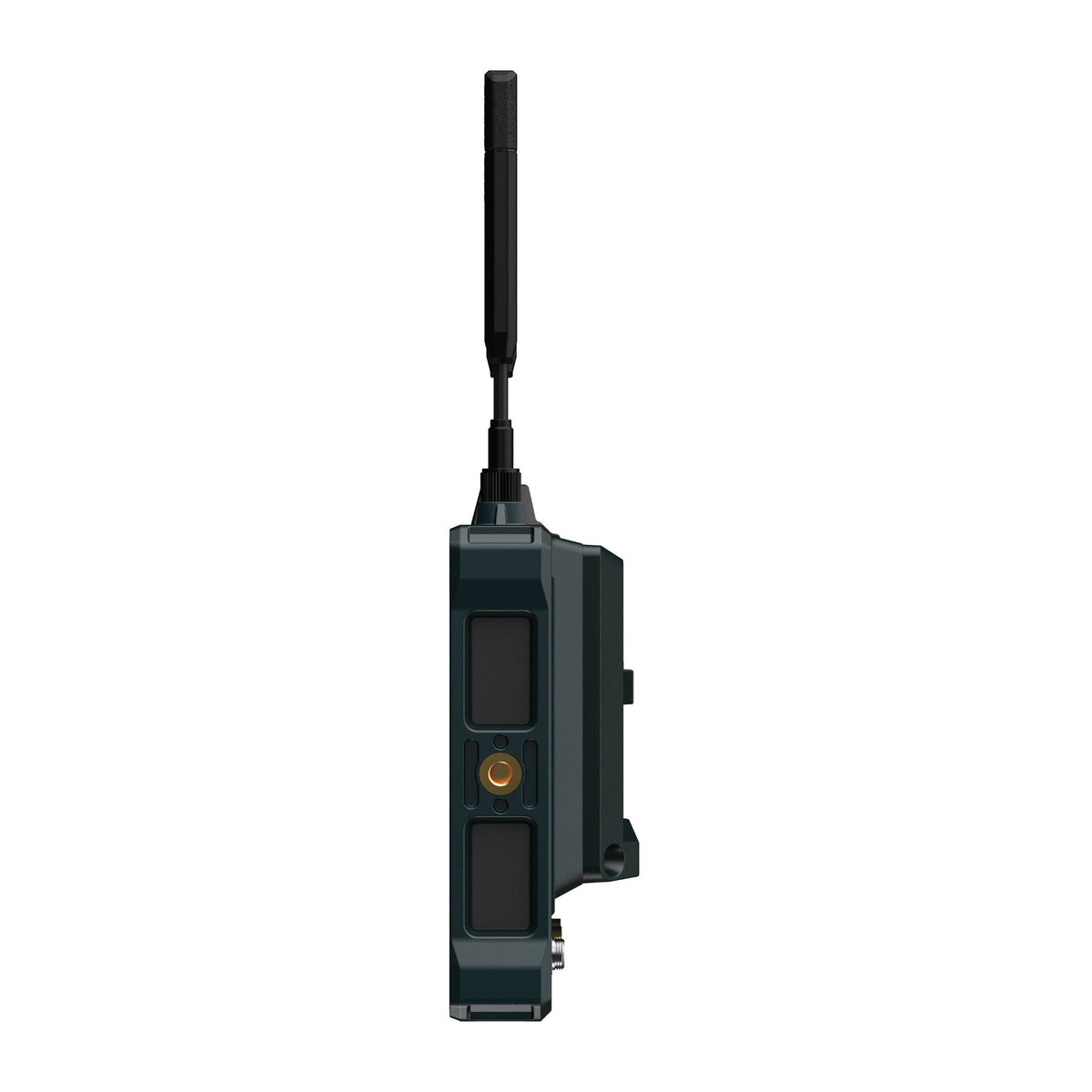

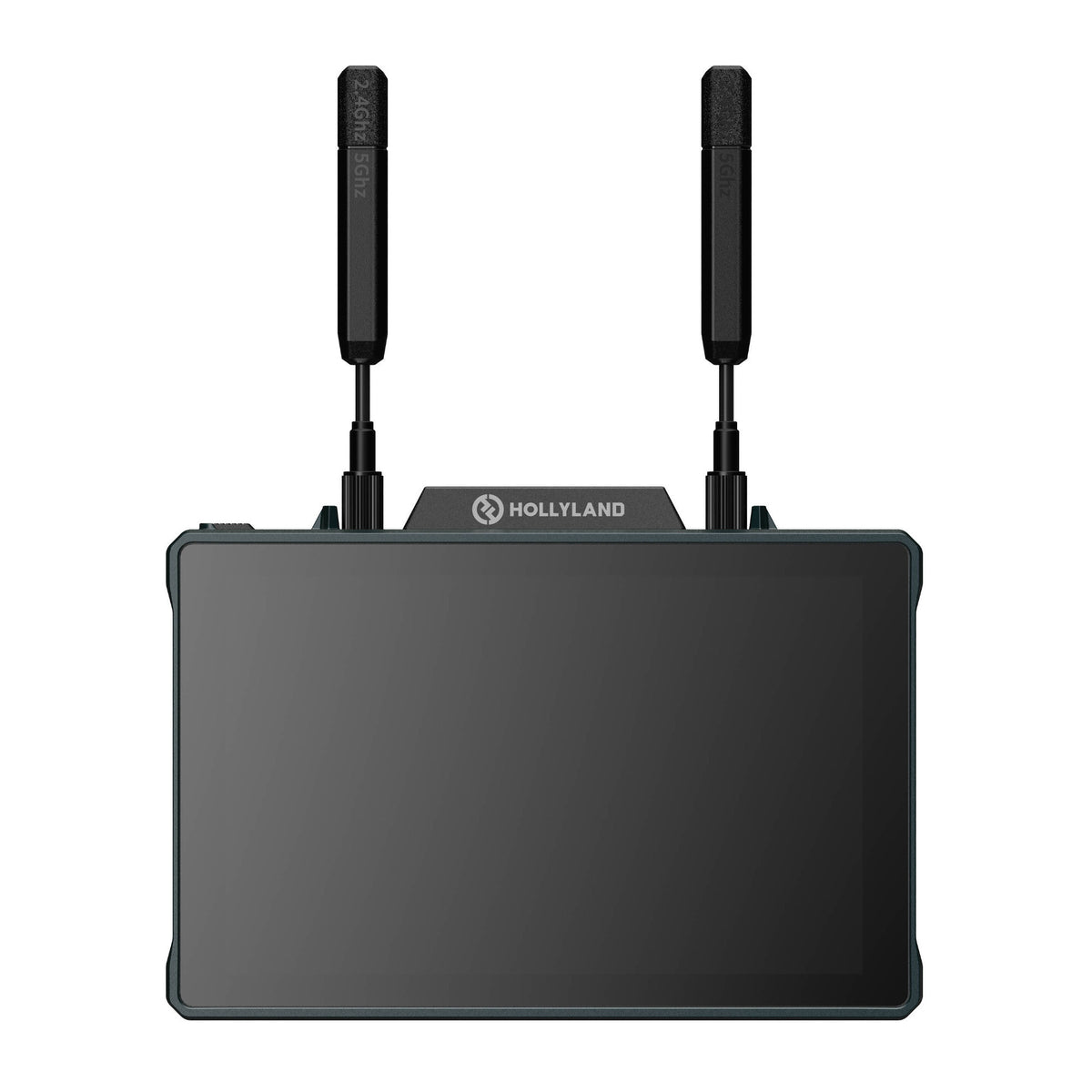

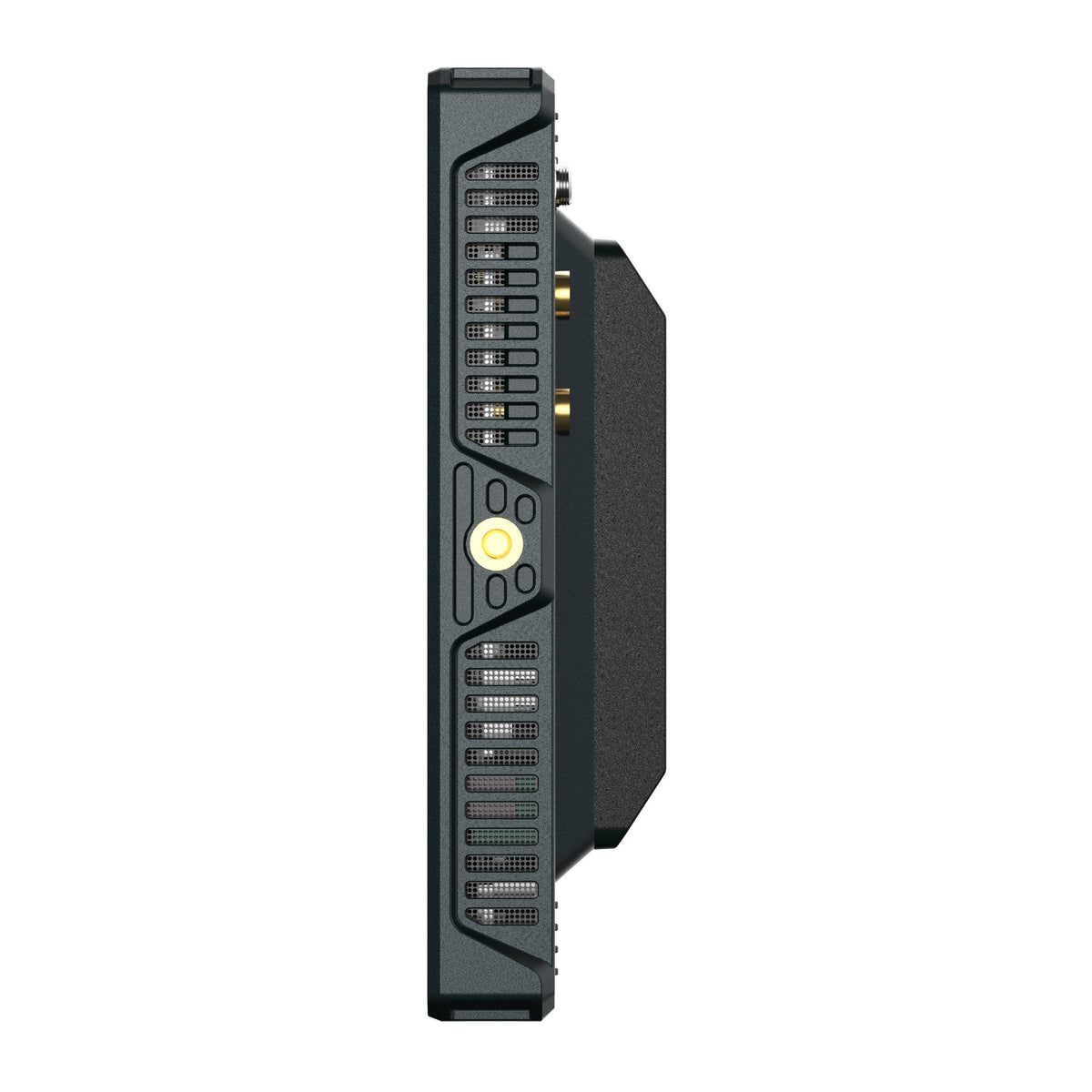

Hollyland Pyro 7 Wireless Transceiver Monitor with 7 Inch Touchscreen and RTMP
- Combines wireless transmitting, receiving, and 7 inch touchscreen monitoring in one device
- Supports line of sight transmission up to 1,300 feet with approximately 60 ms latency
- Broadcast mode can send one transmitter feed to as many as 4 receivers
- Uses 2.4 and 5 GHz dual band operation with automatic frequency hopping
- Provides waveform, focus assist, recording, and other image analysis tools
- Records MP4 video to an SD card for up to 40 minutes per session
- Supports RTMP streaming for compatible live broadcast and conferencing workflows

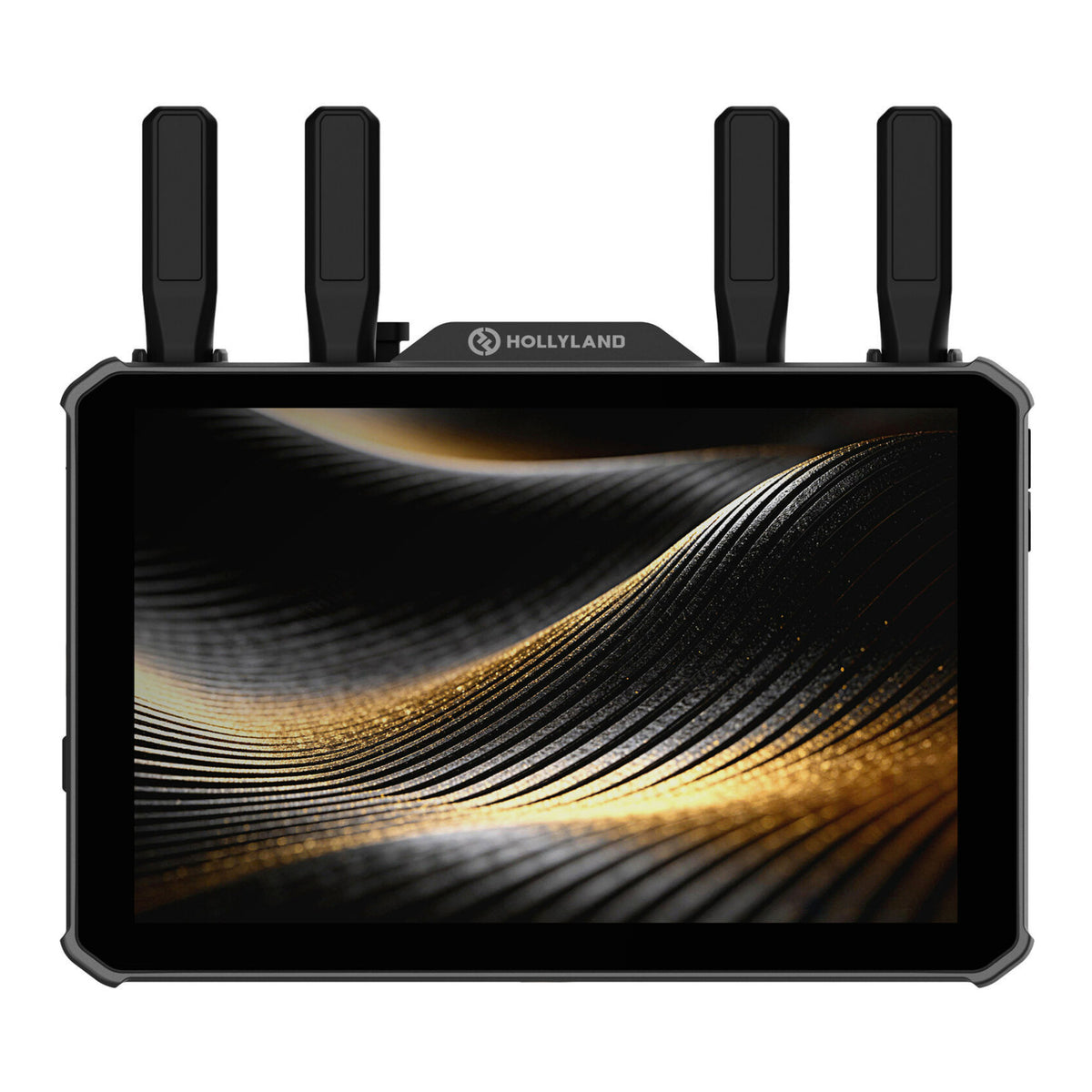

The Hollyland Pyro 7 combines wireless video transmission, reception, and monitoring in one 7-inch touchscreen device. It supports line of sight transmission up to 1,300 feet with approximately 60 ms transmission latency, giving production teams a flexible way to move video across a set while keeping a clear local view.
Flexible Multi-Receiver Monitoring

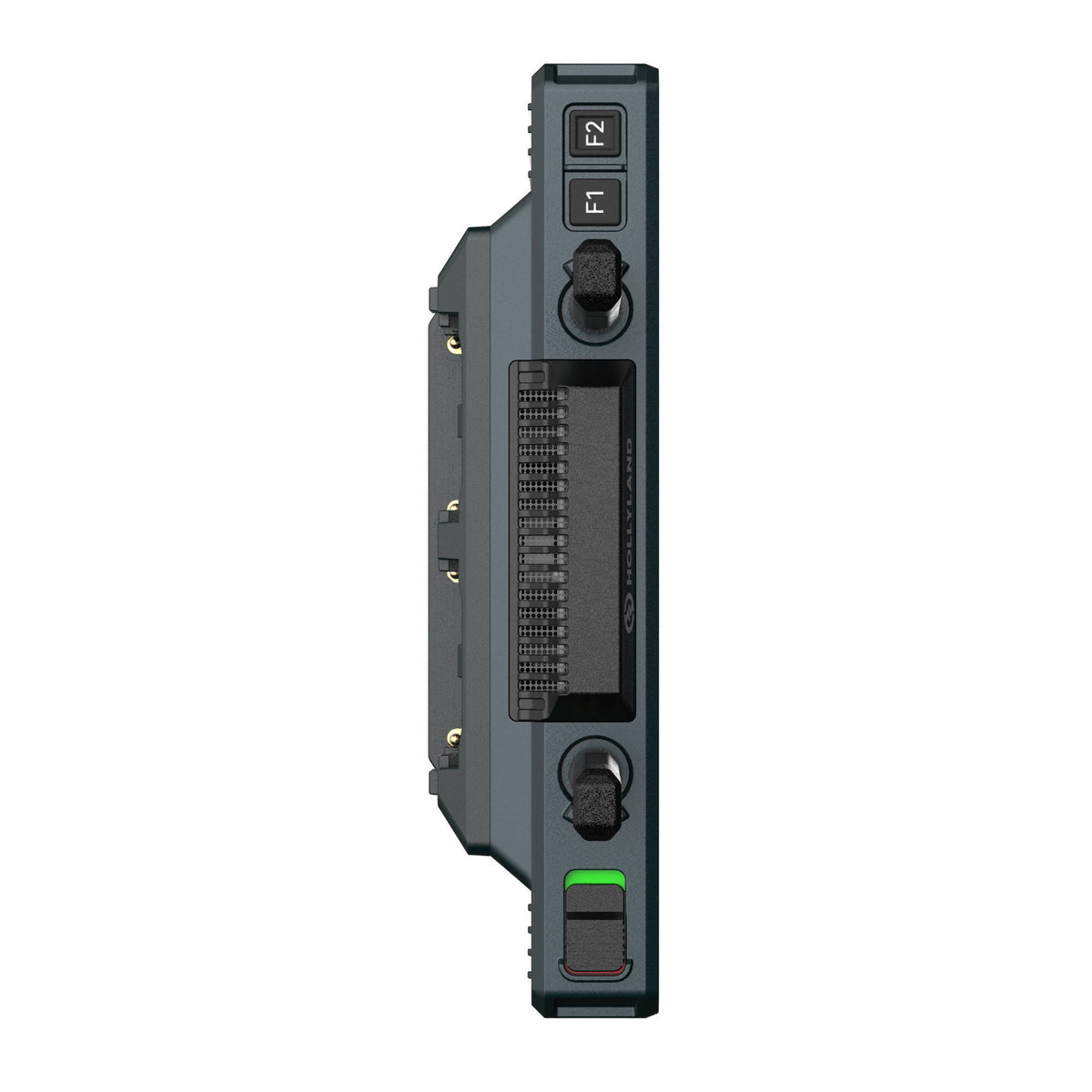

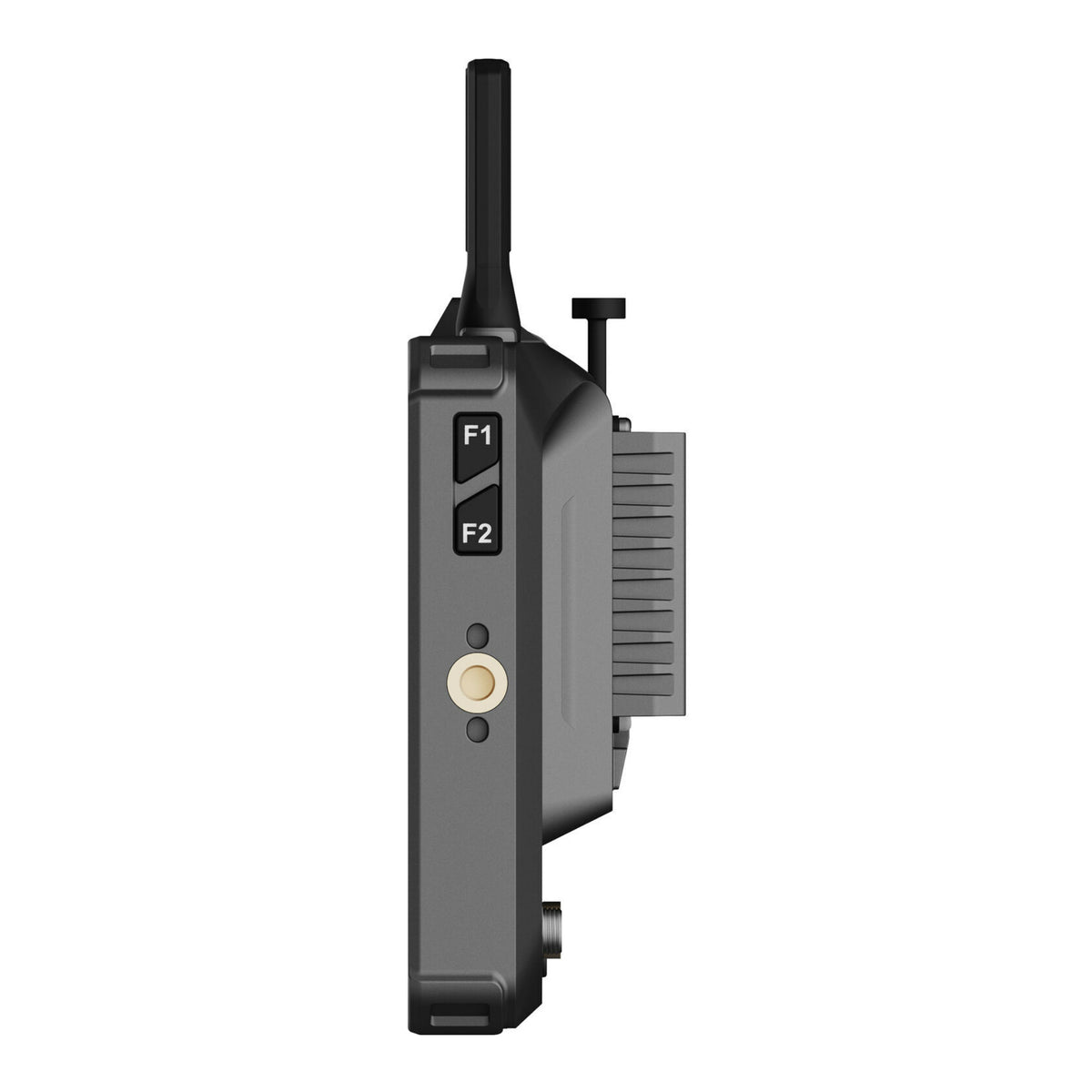

Broadcast mode lets one Pyro 7 transmitter send to as many as 4 receivers. With Broadcast mode off, it can send to up to 2 receivers and 2 mobile devices. Preset grouping and 2 customizable buttons help operators switch between 2 camera views quickly, which is useful for multi-camera shoots, live production, and collaborative monitoring.
Bright Touchscreen and Image Tools

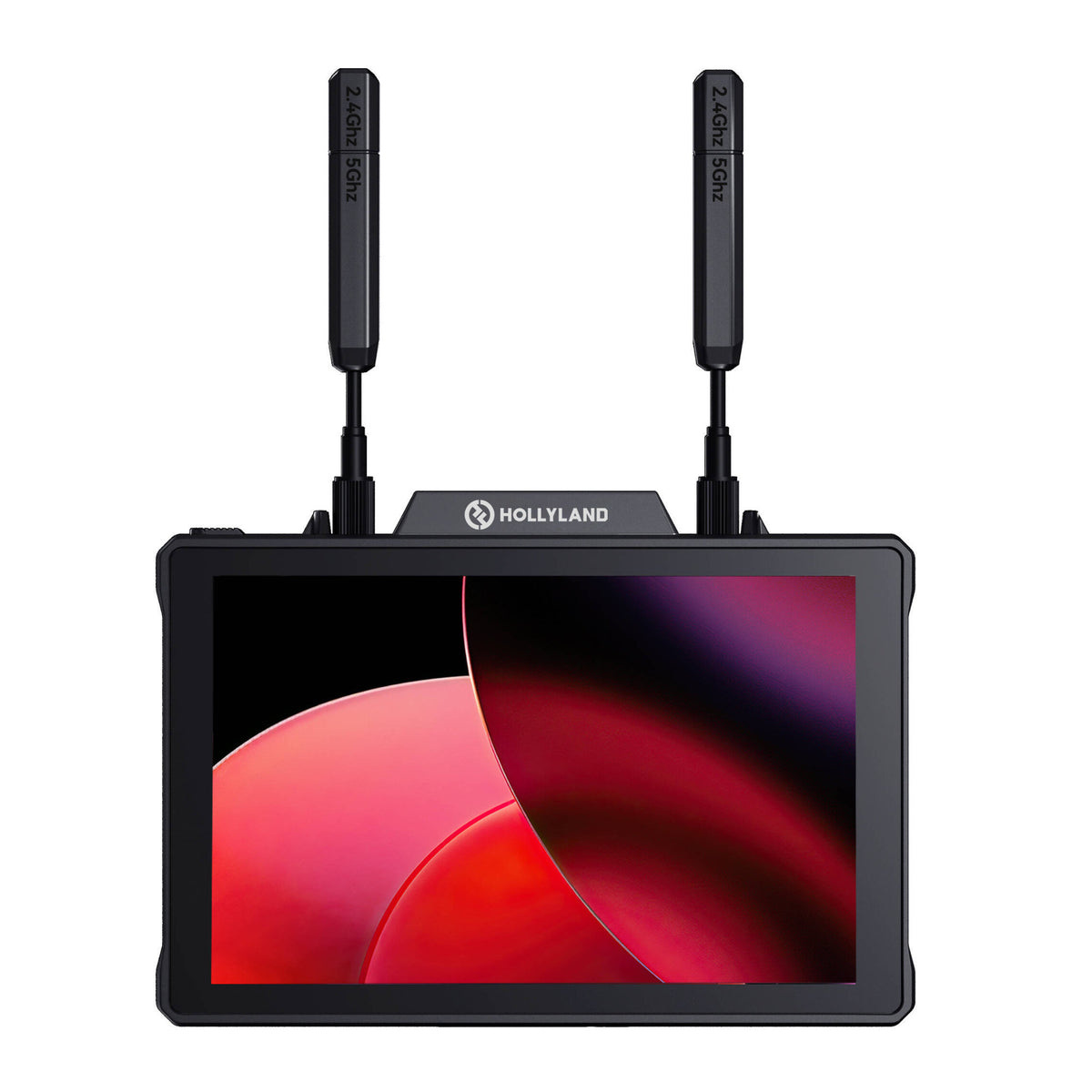

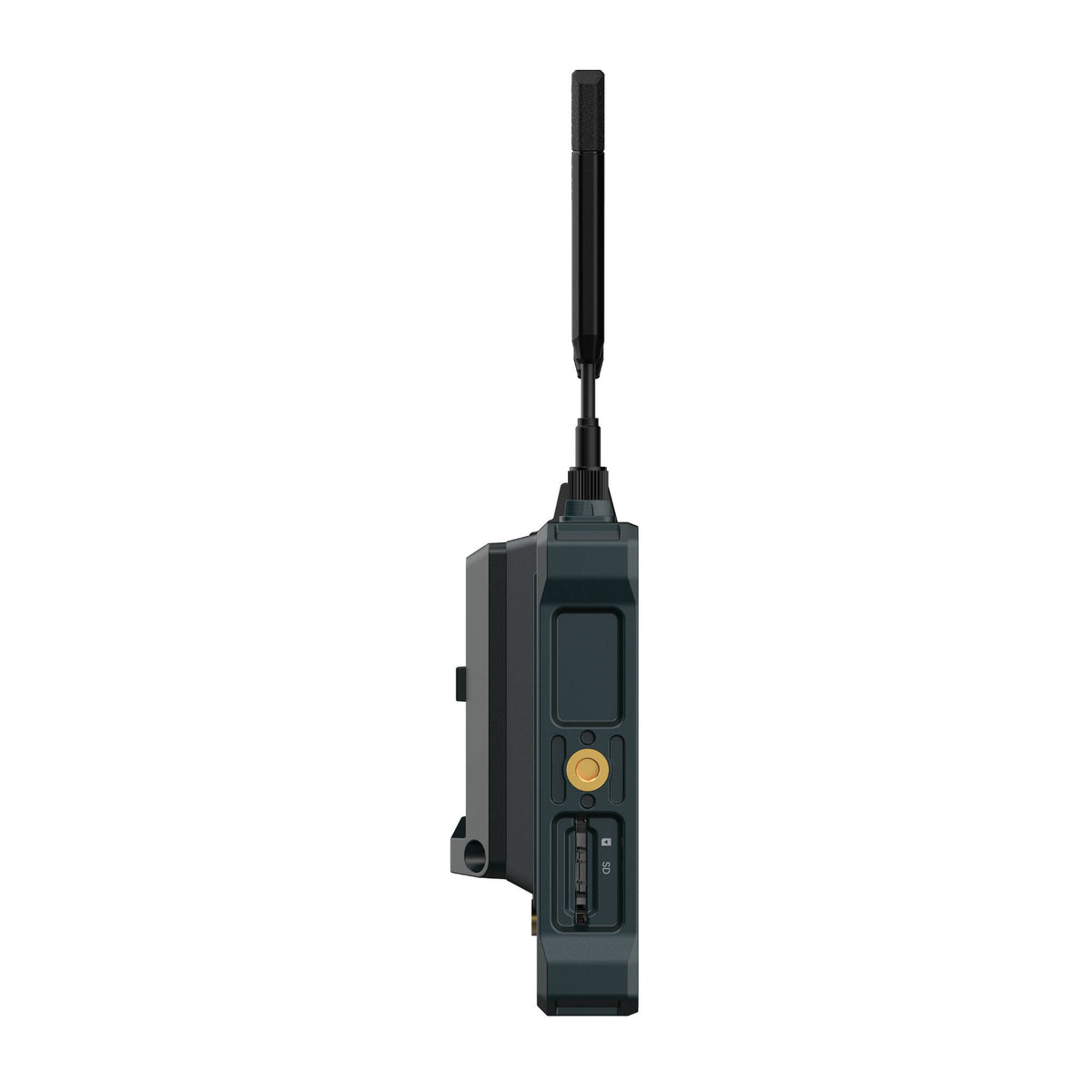

The 7 inch touchscreen reaches 1200 cd/m² and supports adjustable brightness for indoor and outdoor viewing. HollyOS provides image analysis tools including waveform, focus assist, recording, and other monitoring functions. An SD card slot supports MP4 recording up to 40 minutes per session, custom LUT workflows, screenshots, and image overlays for scene matching.
Dual Band Wireless and Flexible Connections

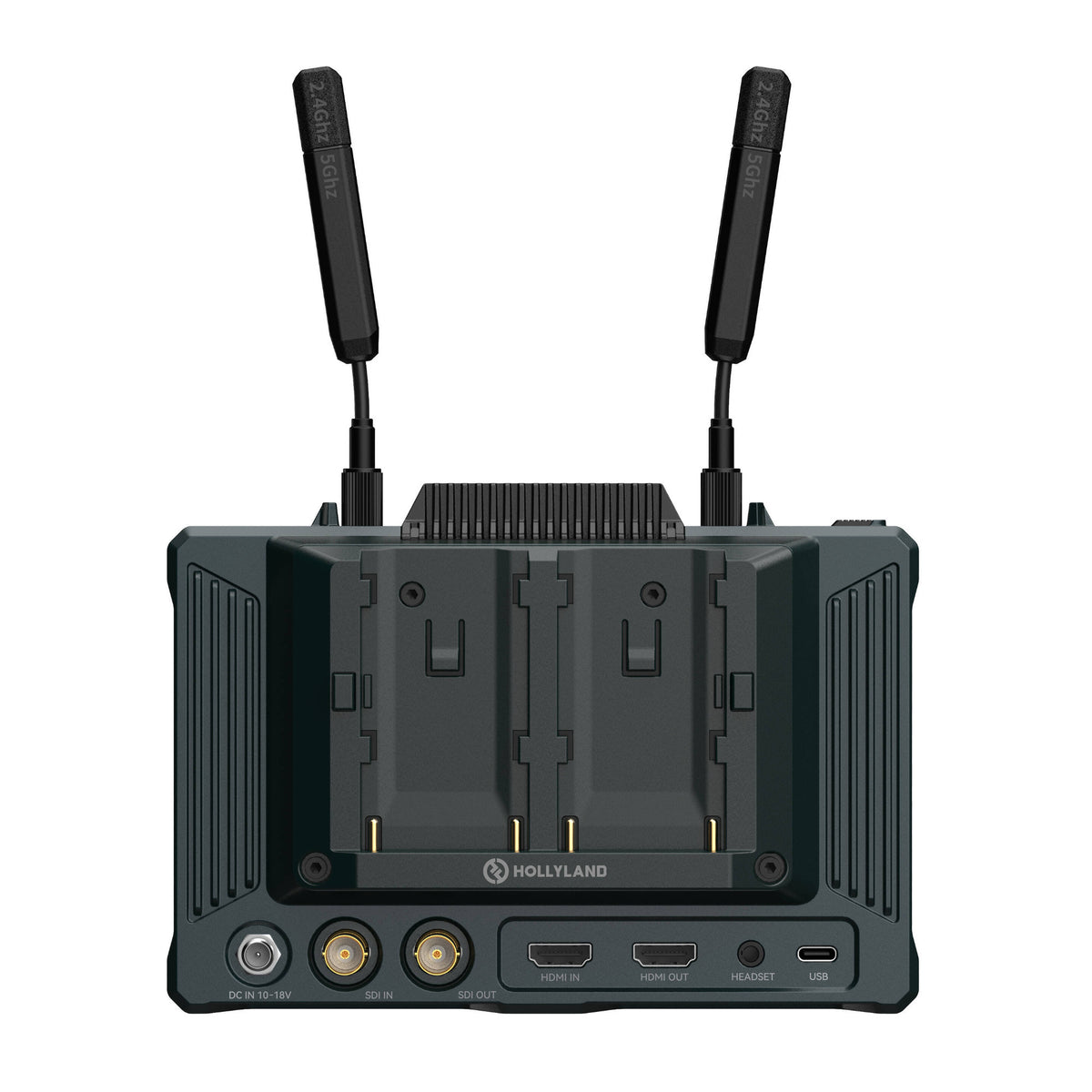

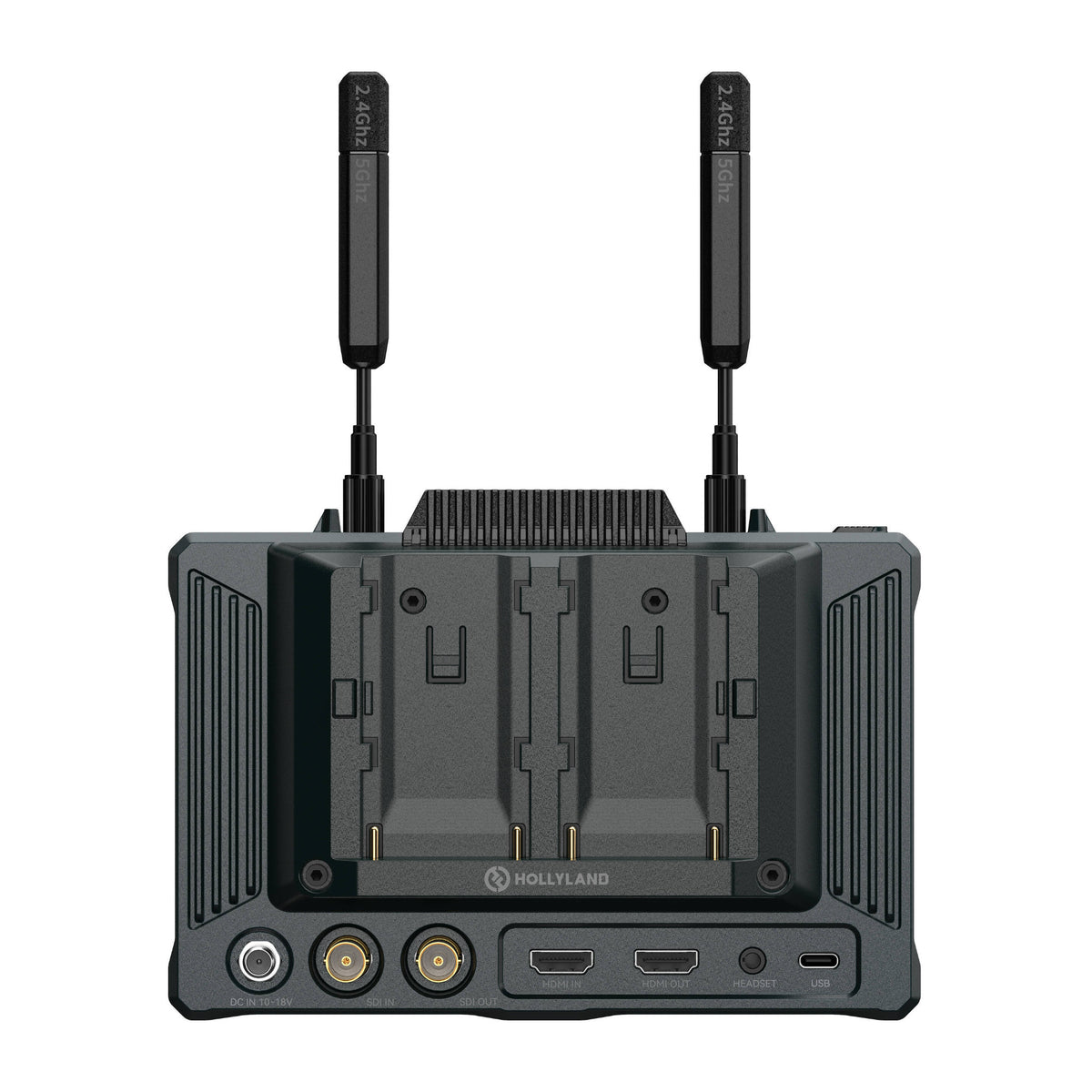

Auto Dual Band Hopping and Auto Frequency Hopping operate across 2.4 and 5 GHz bands to select a clearer wireless channel. The Pyro 7 can operate as a transmitter or receiver and provides SDI plus High Definition Multimedia Interface compatible connections for production gear. RTMP streaming expands the workflow to supported live broadcast and conferencing platforms, while the dual L series battery plate supports flexible field power.
General
Display:
| Screen Size | 7 inch Touchscreen |
| Screen Resolution | 1920 x 1200 Pixels |
| Pixel Density | 323 PPI |
| Aspect Ratio | 16:9 |
| Screen Brightness | 1200 cd/m² |
| Contrast Ratio | 1000:1 |
Wireless Transmission:
| Operating Frequency | 5.1 GHz to 5.8 GHz and 2.412 GHz to 2.484 GHz |
| Transmit Power | 23 dBm or Less |
| Receiver Sensitivity | Minus 80 dBm |
| Display Latency | Less than 50 ms |
| Transmission Latency | Approximately 60 ms at 1080p60 in Laboratory Testing |
| Line of Sight Range | Up to 1,300 feet |
| Broadcast Mode Range | Up to 650 feet |
| Bandwidth | 20 MHz, 40 MHz in Broadcast Mode |
| Broadcast Capacity | Up to 4 Receivers |

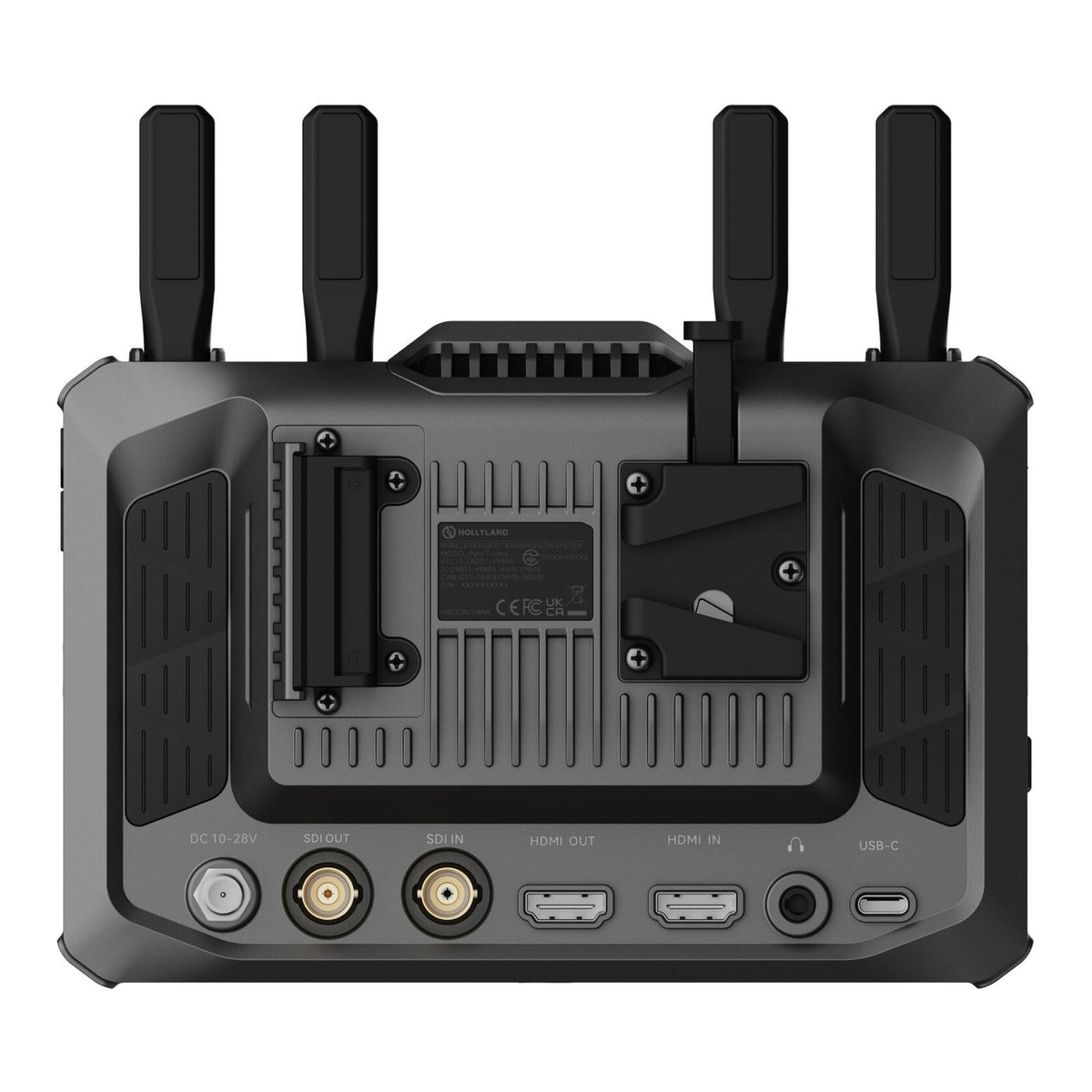

Connections:
| Input Port | High Definition Multimedia Interface Compatible 1.4b and 3G SDI |
| Output Port | High Definition Multimedia Interface Compatible 1.4b and 3G SDI |
| Antenna | 2 x RP SMA Male |
| Power Input | DC Input, 2.0 mm Core Socket |
| Headphone Jack | 3.5 mm |
| Upgrade Port | USB C, USB 2.0 OTG |
| Storage | SD Card Slot |
| Audio Format | High Definition Multimedia Interface Compatible 1.4b, 8 Channel |
Power:
| DC Input Voltage | 10 V to 18 V, 2.5 A, Nominal 12 V |
| Power Consumption | Less than 22 W |
| Battery Plate | Dual L Series |
Physical:
| Material | Aerospace Grade Magnesium Aluminum Alloy |
| Dimensions | 180 mm x 127 mm x 31.8 mm |
| Net Weight | Approximately 545 g with Battery Plate Included and External Antennas Excluded |
| Operating Temperature | Minus 10 Degrees C to 45 Degrees C |
| Storage Temperature | Minus 40 Degrees C to 60 Degrees C |
High Definition Multimedia Interface Compatible Input Formats:
| 720p50, 720p59.94, 720p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 | |
| 1080p50, 1080p59.94, 1080p60 | |
| 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p |
High Definition Multimedia Interface Compatible Loop Output Formats:
| 720p50, 720p59.94, 720p60 | |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 | |
| 1080p50, 1080p59.94, 1080p60 | |
| 3840 x 2160 at 23.98p, 24p, 25p, 29.97p, 30p |
SDI Loop Output Formats:
| 720p50, 720p60 | |
| 1080i50, 1080i60 | |
| 1080p24, 1080p25, 1080p30 | |
| 1080p50, 1080p60 | |
| 1920 x 1080 at 24p, 25p, 30p |
Combined Video Output Formats:
| 720p50, 720p60 | |
| 1080i50, 1080i60 | |
| 1080p24, 1080p25, 1080p30 | |
| 1080p50, 1080p60 | |
| 1920 x 1080 at 24p, 25p, 30p |
SDI Input Formats:
| 1080p50, 1080p59.94, 1080p60 Level A | |
| 1080p50, 1080p59.94, 1080p60 Level B | |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 | |
| 1080psf23.98, 1080psf24 | |
| 1080psf25, 1080psf29.97, 1080psf30 | |
| 720p50, 720p59.94, 720p60 |
Combined Video Loop Output Formats:
| 1080p50, 1080p59.94, 1080p60 Level A | |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 | |
| 1080p23.98, 1080p24 | |
| 720p50, 720p59.94, 720p60 |
Combined Video Receiver Output Formats:
| 1080p50, 1080p59.94, 1080p60 Level A | |
| 1080i50, 1080i59.94, 1080i60 | |
| 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30 | |
| 1080p23.98, 1080p24 | |
| 720p50, 720p59.94, 720p60 |
