Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching
- Pyro 5 Wireless Transceiving Monitor
- Tempered Glass Screen Protector
- 2 x Easy-Install Short Antenna
- USB-C OTG Adapter
- Quick Guide
- Packing List Card
- Warranty Card
Sony MDR7506 Folding Professional Closed Ear Headphones
- UniMatch 1/4-Inch Adapter Plug
- Soft Carrying Case
Wasabi Power 2600mAh Battery (2-Pack) and Dual USB Charger Kit for High-Capacity Charging (Black)
- Cable
- Limited 3-Year Warranty
Trusted & Verified

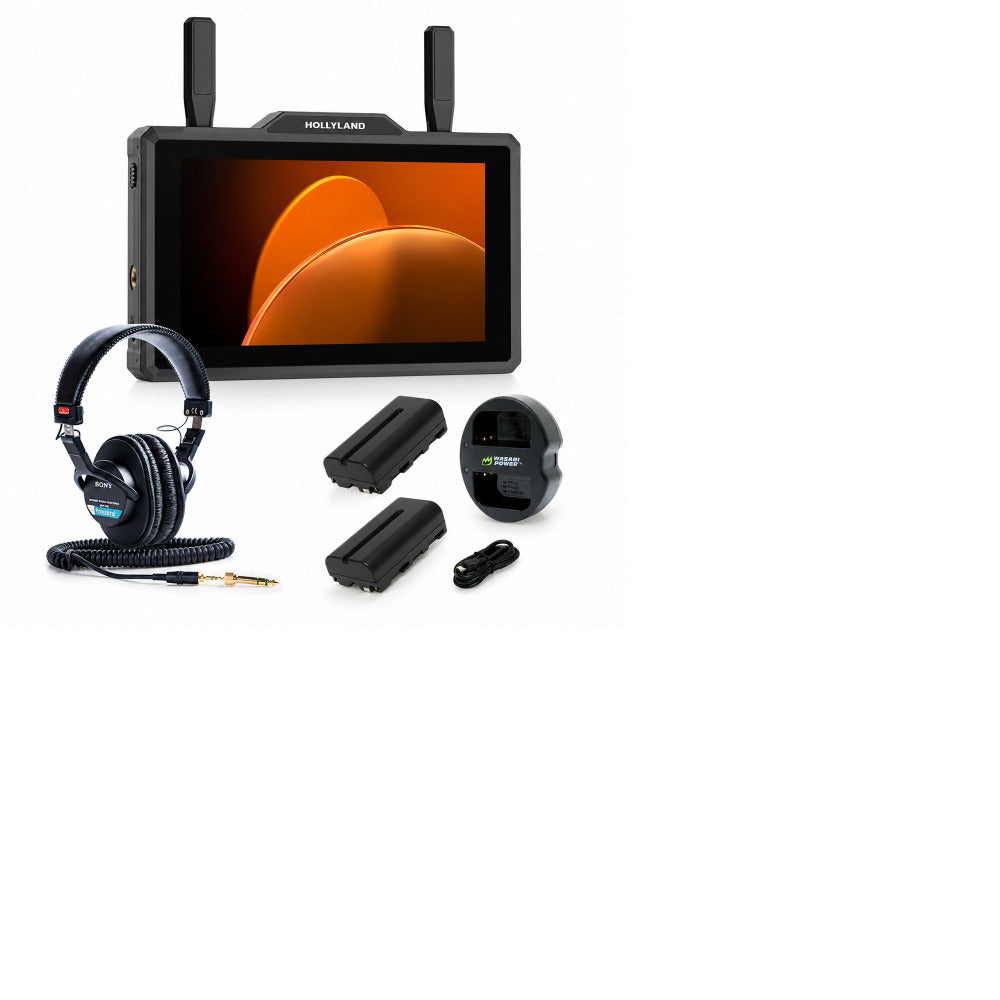

Hollyland Pyro 5 Wireless Transceiver Monitor with MDR-7506 Headphone Bundle
- Dual-band transmission
- Broadcast Mode
- Direct camera control
- Proxy recording
- Multi-cam switching
- Lock Pairing
- Auto Frequency Hopping
- Smart channel selection
- 3D LUT support
- HDMI and SDI loopout
- Rugged design
- RTMP streaming

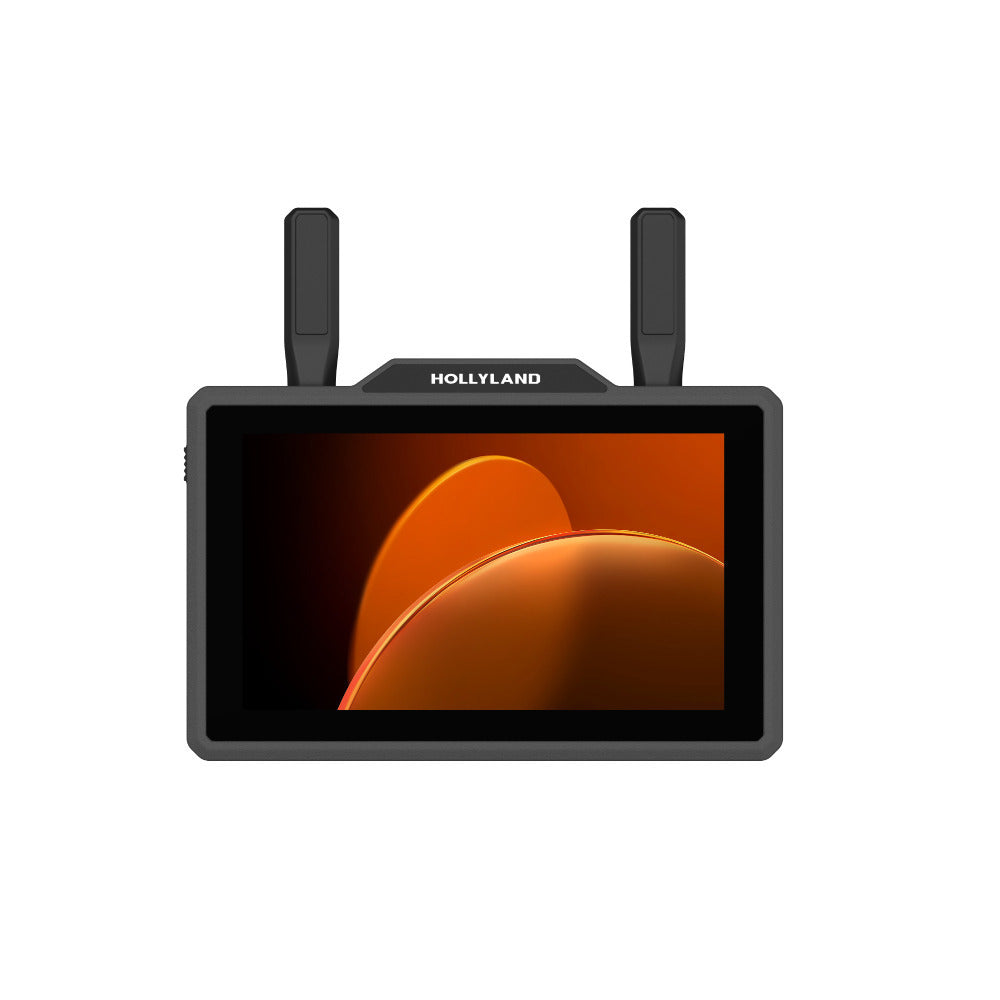

Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching
Pyro 5 is a compact 5.5-inch wireless monitor with dual-band transmission, 4-way monitoring, camera control, a 1500 nit display, proxy recording, overlays, and RTMP live streaming.
Shoot.Sync.Share.
Pyro 5 is a 5.5-inch wireless monitor designed for flexible on-set collaboration. Powered by cutting-edge Wi-Fi-Broadcast technology, it allows one transmitter to connect with up to four receivers while maintaining stable, real-time video transmission.
Broadcast Mode
In Broadcast Mode, one transmitter connects to up to four receivers with camera views switching and auto frequency hopping. Ideal for multi-cam setups, it delivers stable performance at up to 200m line-of-sight or 100m back-to-back. Pyro 5 still supports one-to-four transmission even when Broadcast Mode is off. At the same time, it offers a more extended range, up to 400m line-of-sight and 150m back-to-back.
Dual-Band Stronger Signal. Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5 automatically adapts to changing environments, delivering robust, interference-resistant video even in signal-heavy locations.
Direct Camera Control. Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, and ISO, offering dynamic control over your camera's settings. It enables direct adjustments to shutter speed, aperture, focus, and focus mode. white balance, and ISO, offering dynamic control over your camera's settings.
More Than a Monitor. Efficient Proxy Recording.
Proxy files can be recorded directly to an SD card or USB drive while monitoring in real-time. Automatically organized into folders, proxy files are ready to review or cut. The Proxy files now include timecode, perfectly synced with your camera for easier, more accurate editing.
Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.
Lock Pairing
When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter-no signal mix-ups.
Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

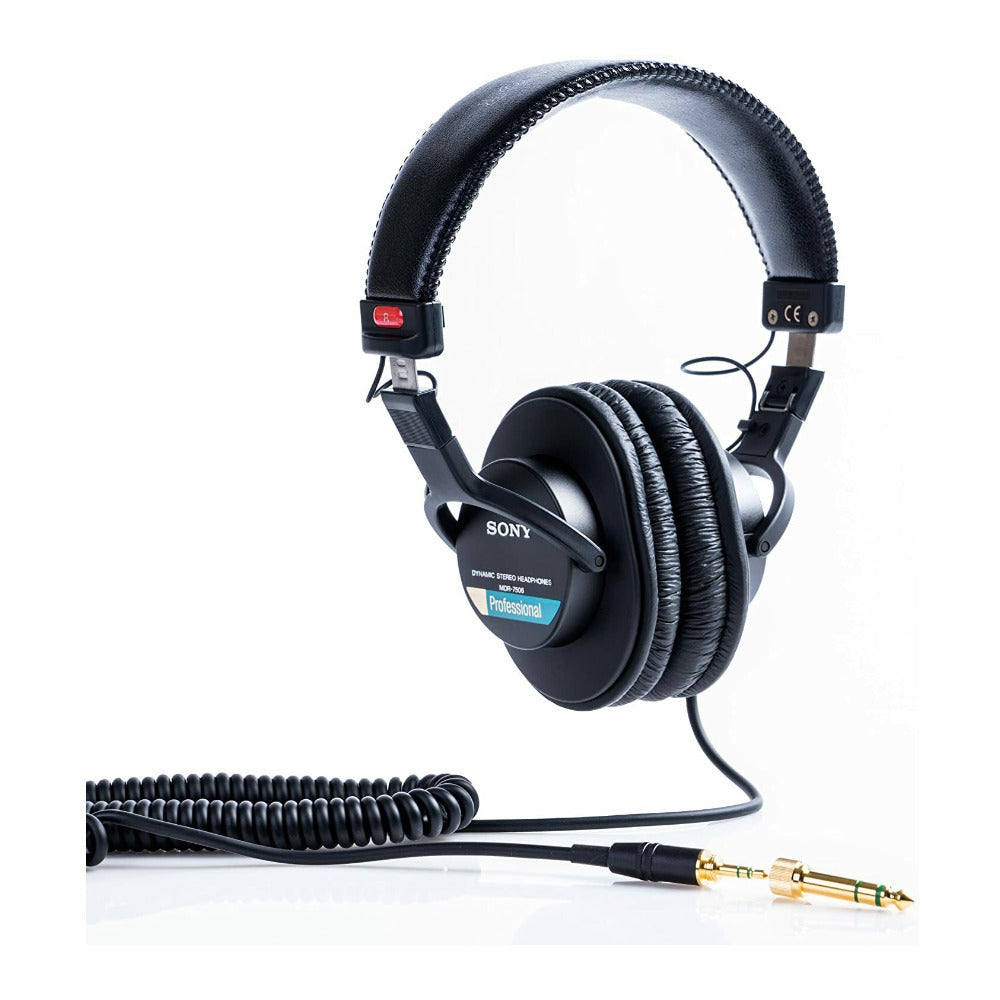

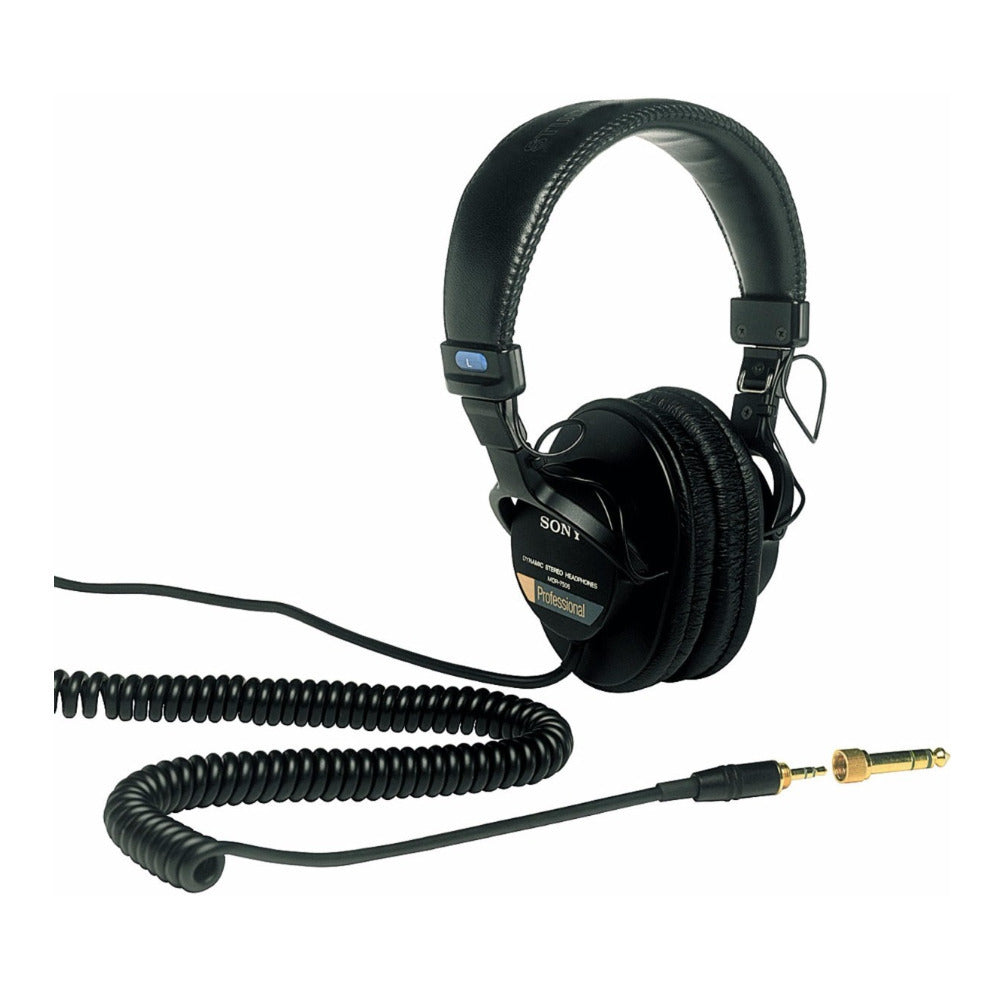

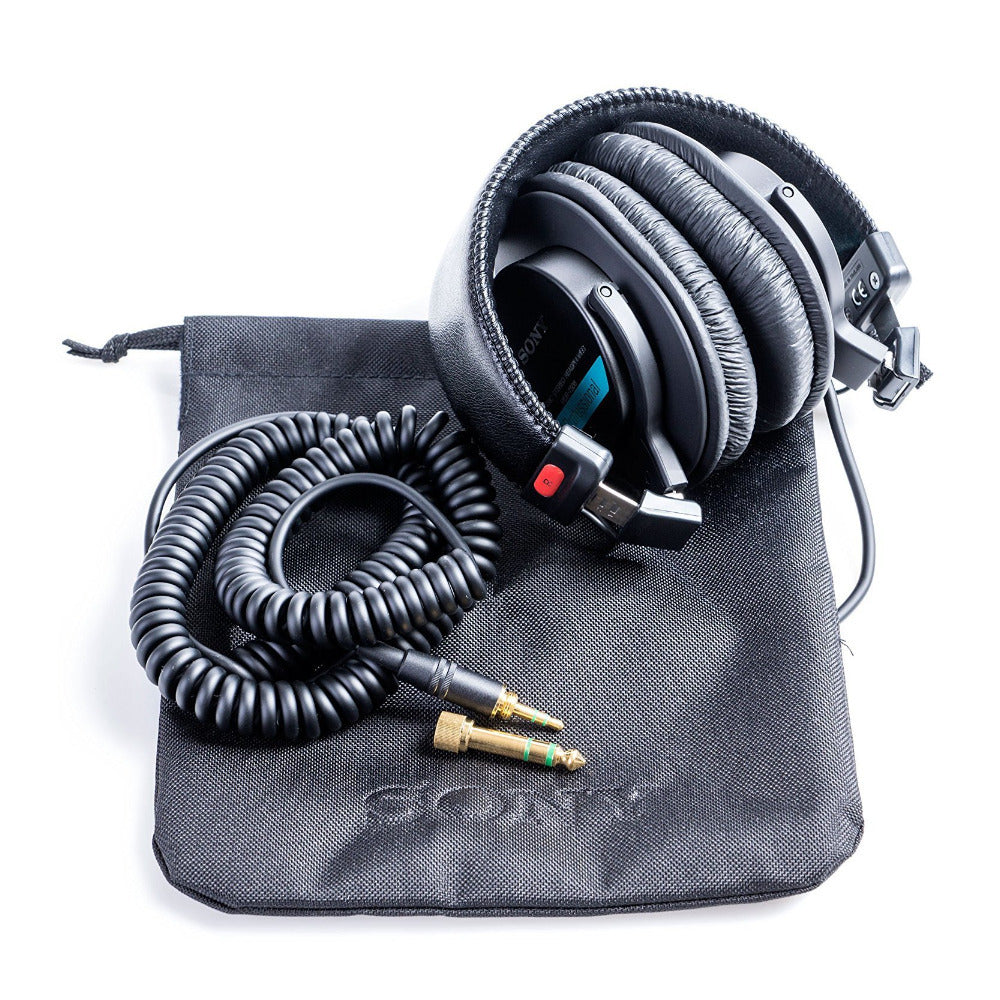

Sony MDR7506 Folding Professional Closed Ear Headphones
The Sony MDR-7506 Professional Stereo Headphones feature a closed ear design, 40 mm drivers, neodymium magnets, a 10 Hz to 20 kHz frequency response, padded comfort, a folding build, and an included stereo adapter for professional monitoring.

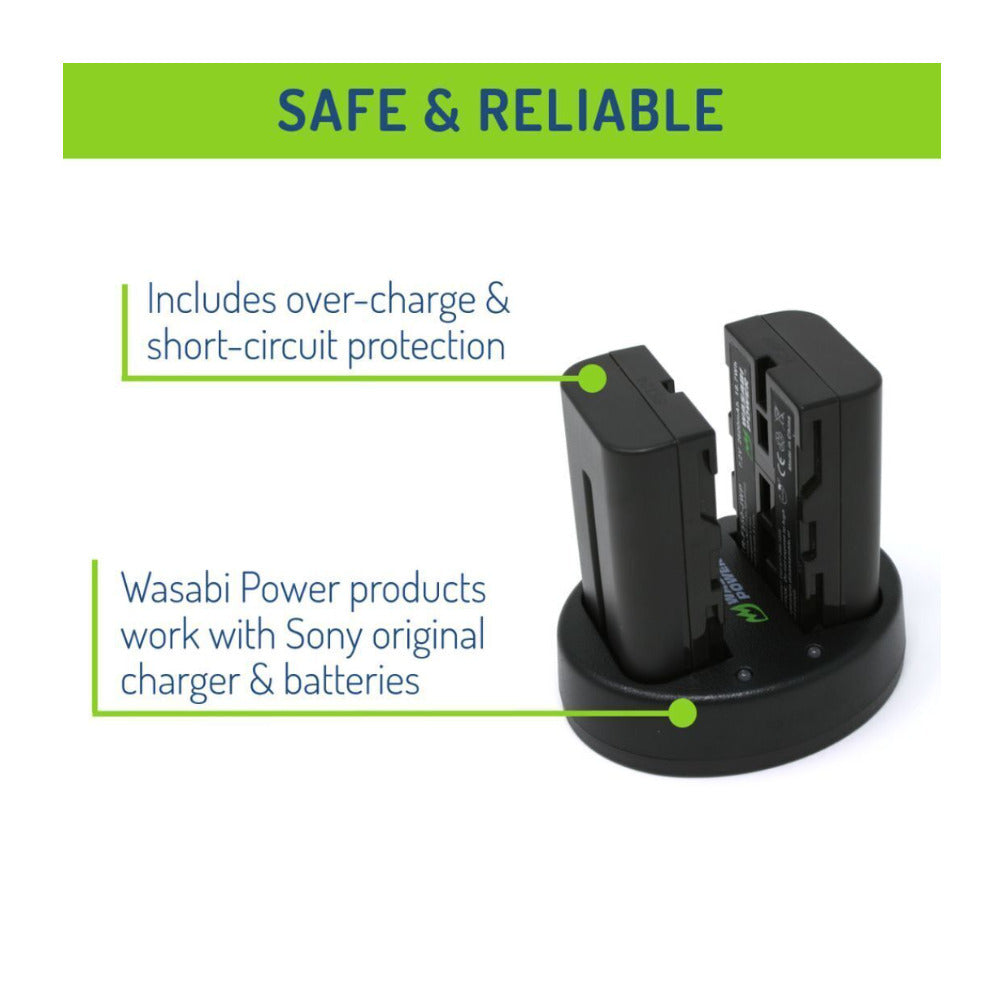

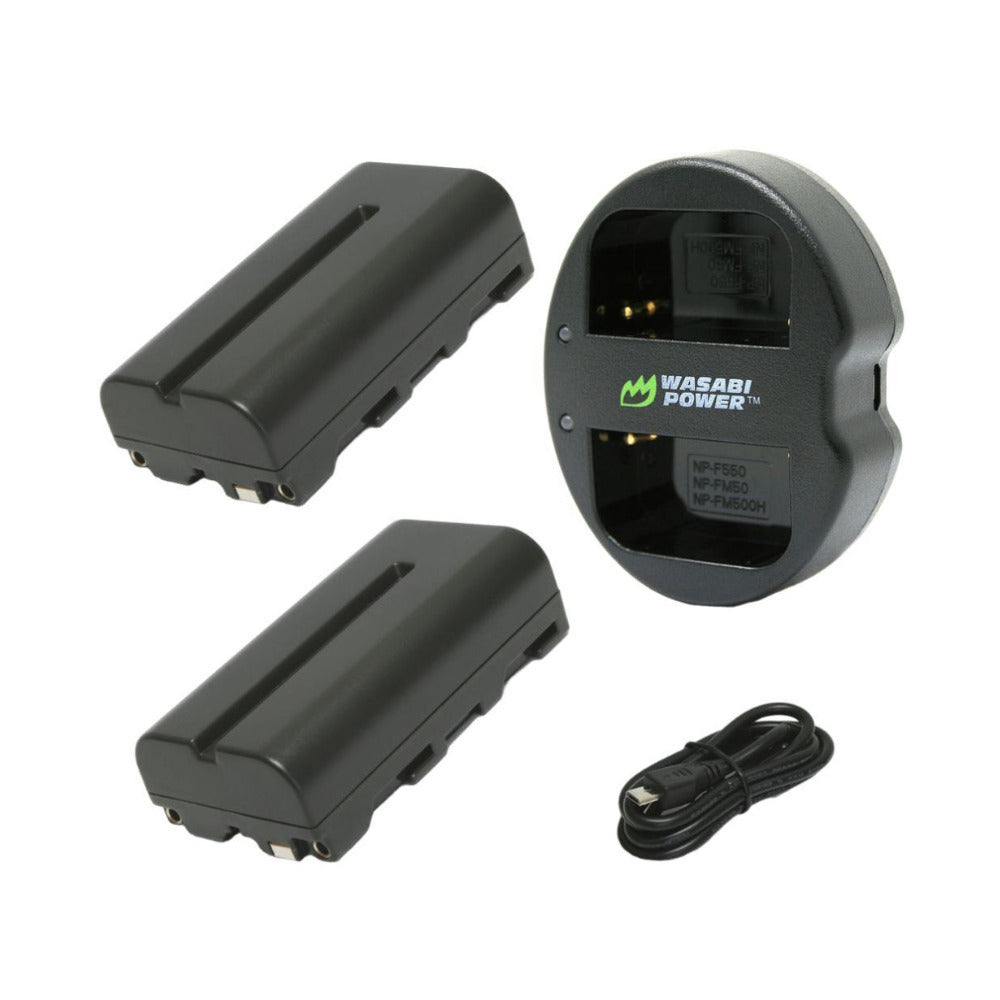

Wasabi Power 2600mAh Battery (2-Pack) and Dual USB Charger Kit for High Charging Capacity (Black)
The Wasabi Power Battery and Charger Kit includes two high-capacity batteries and a dual USB charger with overcharge and short circuit protection, supporting Sony NP-F330, NP-F530, NP-F550, NP-F570, and L Series compatible devices with charging from computers, car adapters, wall adapters, or power banks.
Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching

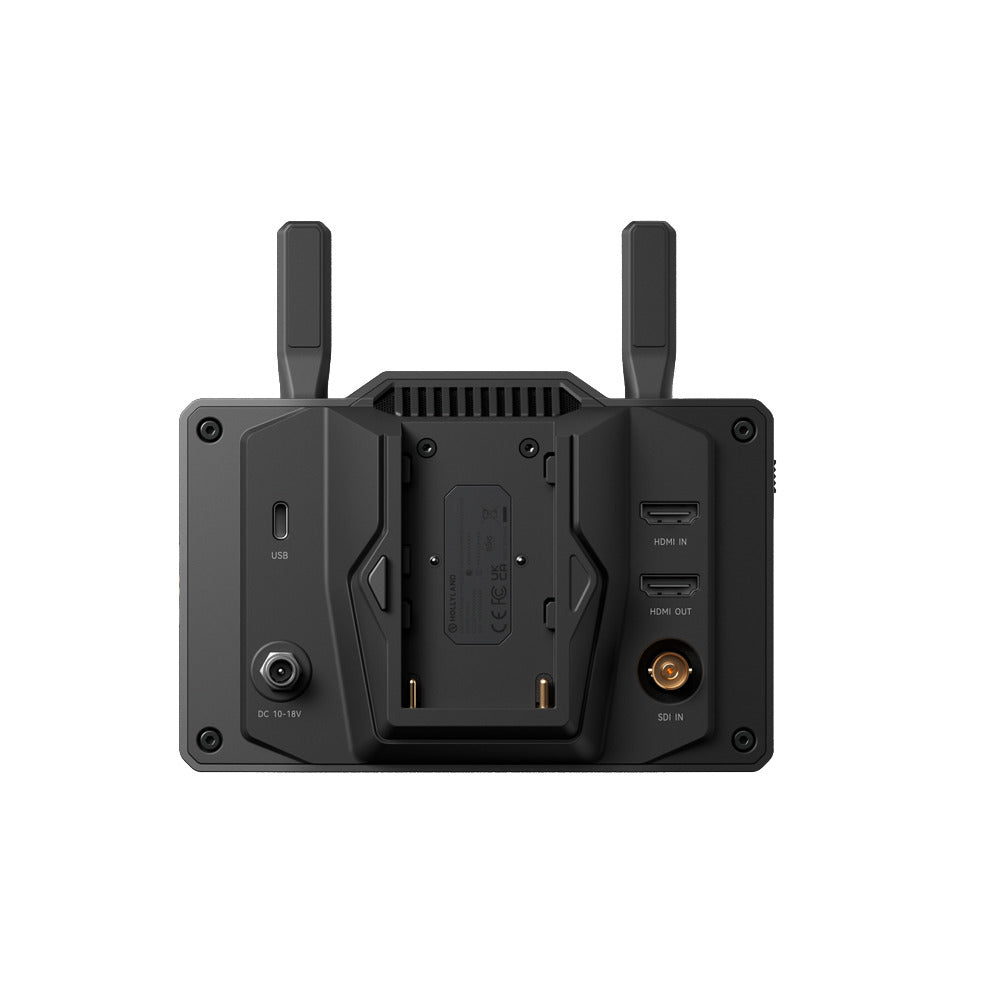

Input Port
| Transmitter Mode | HDMI 1.4b + 3G SDI |
| Receiver Mode | / |
Output Port
| Transmitter Mode | Loop-Out HDMI 1.4b |
| Receiver Mode | HDMI 1.4b |
Audio-Video Parameters
| Transmitter Mode | Color Depth Capability |
| Transmitter Mode | Input Audio Format |
| Transmitter Mode | Output Audio Format |
| Receiver Mode | HDMI Input: YUV422/YUV444 8BIT |
| Receiver Mode | HDMI 1.4b 8-Channel |
Antenna
| SMA Male |
Power Input
| DC Input (2.0mm coro socket) |
Headphone Jack
| 3.5mm |
Upgrade Port
| USB-C (USB 2.0 CTG) / SD Card Slot |
Screen Size
| 5.5in Touchscreen |
Screen Resolution
| 1920x1080 Pixels |
Color Gamut
| Rec.709 |
Aspect Ratio
| 16 | 9 |
Screen Brightness
| 1,500 nits |
Contrast Ratio
| 1000-1 |
Power Input Voltage
| NPF | 6V-16V |
| DC-in | 10-18V DC |
Video Processing Technology
| Transmitter Mode | Video Bitrate |
| Transmitter Mode | Video Encoding Format |
| Receiver Mode | Maximum 12 Mbps |
| Receiver Mode | H.264 |
Power Consumption
| Transmitter <14W | |
| Receiver Mode | <16.5W |
Net Weigh
| 538g (1902) |
Dimensions
| (LxWx) | 180x127x45.8mm |
Operating Frequency
| 5.150-5.250GHz | |
| 2412-2.484GH2 | |
| 5.250-5.350GHz | |
| 5.470-5.600GHz | |
| 5.600-5.725GHz | |
| 5.725-5.850GHz |
Transmit Power
| Transmitter Mode | < 23dBm |
Receiver Sensitivity
| Receiver Mode | Unicast: -85dBm; Broadcast: -80dBm |
Transmission Latency
| =60ms (Tested in a laboratory environment with 1080P60 signal transmission) |
Bandwidth
| Unicast | 20 MHz Broadcast: 40 MHz |
Operating Temperature
| -10°C - 45°C |
Storage Temperature
| -40°C - 60°C |
Sony MDR7506 Folding Professional Closed Ear Headphones
| Headphone type | Dynamic, closed |
| Magnet type | Neodymium |
| Driver size | 40mm |
| Frequency response | 10Hz - 20 kHz |
| Impedance | 63 Ohms |
| Sensitivity | 106dB |
| Power handling capacity | 1000mW |
| Plug type | Gold, Stereo Unimatch plug 1/4-inch and 1/8-inch |
| Cord length | 9.8 feet |
| Weight | 8.1 oz |
Wasabi Power 2600mAh Battery (2-Pack) and Dual USB Charger Kit for High-Capacity Charging (Black)
| Batteries | 2 x Lithium-Ion batteries included |
| Battery Capacity | 2600 mAh (per battery) |
| Battery Power | 7.2V / 18.7 Wh (per battery) |
| Charger | 1 x Dual USB Charger |
| Charger Input | USB Input of 5V |
| Charger Output Power | Output of 8.4V / 600 mA per battery |
| Key Features | All items meet or exceed OEM standards, and the charger will display the remaining battery life and usage time |
| Recommended for | These batteries are recommended as a replacement for the Sony NP-F330, NP-F530, NP-F550, and NP-F570 Battery Packs |
| Compatible with | Atomos Ninja V, Atomos Shinobi, Atomos Shogun 7, Blackmagic Design BMPCC 4K, Blackmagic Design BMPCC 6K, Lectrosonics BATTSLED, CN-160, CN-216, CN-126 Series, CCD-RV100, RV200, CCD-SC5, CCD-SC6, CCD-SC7, CCD-SC8, CCD-SC9, CCD-SC55, CCD-SC65, CCD-TR1, CCD-TR2, CCD-TR3, CCD-TR11, CCD-TR12, CCD-TR18, CCD-TR57, CCD-TR67, CCD-TR76, CCD-TR87, CCD-TR97, CCD-TR200, CCD-TR300, CCD-TR400, CCD-TR500, CCD-TR600, CCD-TR700, CCD-TR800, CCD-TR900, CCD-TR1100, CCD-TR2200, CCD-TR2300, CCD-TR3000, CCD-TR3100, CCD-TR3200, CCD-TR3300, CCD-TRV Series, DCR-SC100, DCR-TR7, DCR-TR7000, DCR-TR7100, DCR-TR8000, DCR-TRV5, DCR-TRV7, DCR-TRV9, DCR-TRV49, DCR-TRV58, DCR-TRV103, DCR-TRV110, DCR-TRV120, DCR-TRV130, DCR-TRV203, DCR-TRV210, DCR-TRV220, DCR-TRV310, DCR-TRV315, DCR-TRV320, DCR-TRV420, DCR-TRV510, DCR-TRV520, DCR-TRV525, DCR-TRV620, DCR-TRV720, TRV735, DCR-TRV820, DCR-TRV900, DCR-TRV935, DCR-VX9, DCR-VX2000, DCR-VX2100, DCR-VX9000, DSC-CD250, CD400, DSC-D700, DSC-D770, DJI Focus Pro, Edelkrone HeadPLUS, Edelkrone HeadPLUS v2, Edelkrone DollyPLUS, Edelkrone Motor Module for SliderPLUS, Edelkrone JibONE, Edelkrone JibONE v2, HDR-AX2000, HDR-FX1, Zeapon PONS PT Motorized Pan Head |
