Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching
- Pyro 5 Wireless Transceiving Monitor
- Tempered Glass Screen Protector
- 2 x Easy-Install Short Antenna
- USB-C OTG Adapter
- Quick Guide
- Packing List Card
- Warranty Card
Wasabi Power 2600mAh Battery (2-Pack) and Dual USB Charger Kit for High-Capacity Charging (Black)
- Cable
- Limited 3-Year Warranty
Koah Photography Cleaning Kit
- Compact Mini Tripod
- Microfiber Lens Cloth
- Fine Bristle Cleaning Brush
- Lens Cleaning Wipes
- Lens Cleaning Spray Bottle
- Rubber Bulb Air Blower
- Straps
Trusted & Verified

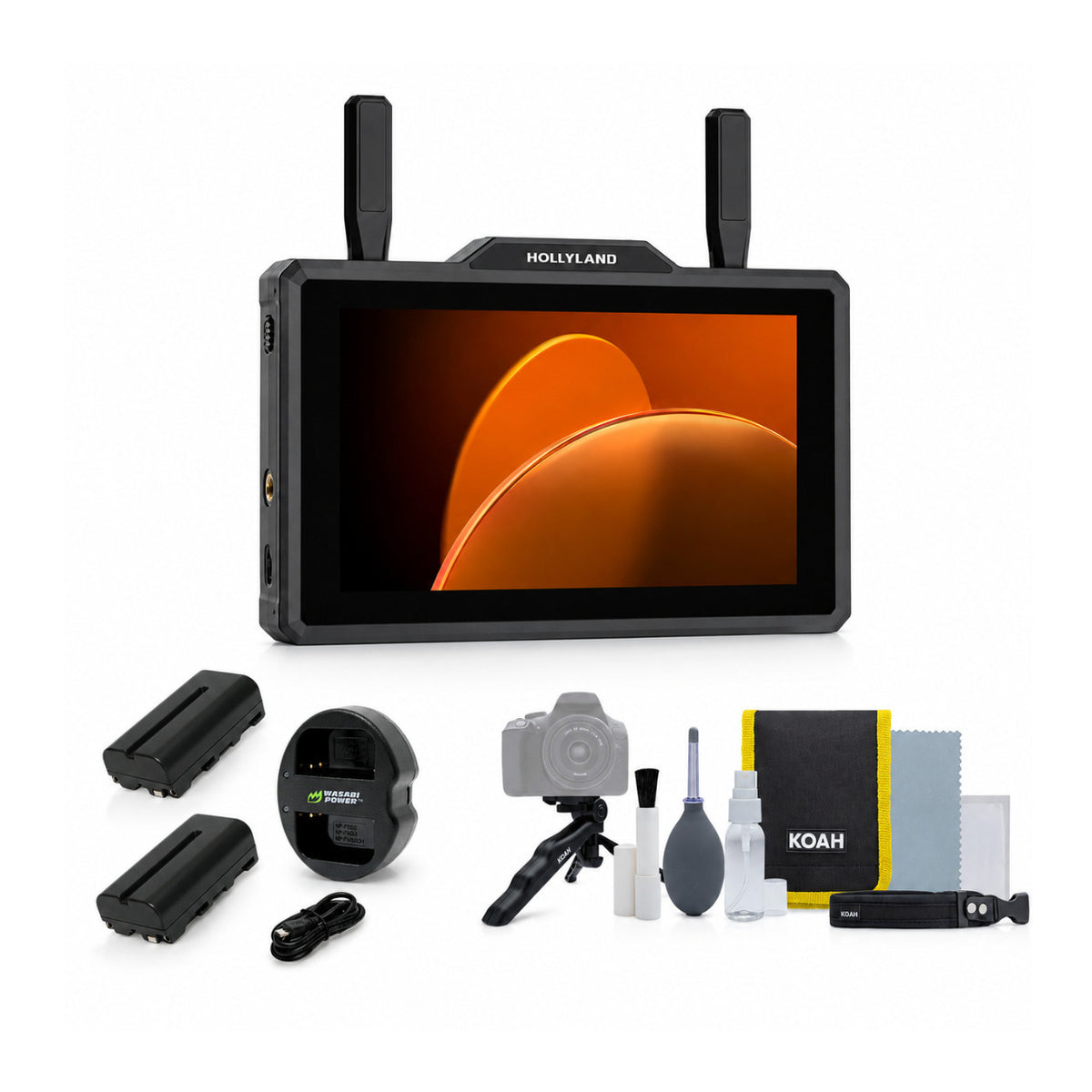

Hollyland Pyro 5 Wireless Transceiver Monitor with Accessories Bundle
- Dual-band transmission
- Broadcast Mode
- Direct camera control
- Proxy recording
- Multi-cam switching
- Lock Pairing
- Auto Frequency Hopping
- Smart channel selection
- 3D LUT support
- HDMI and SDI loopout
- Rugged design
- RTMP streaming
Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching

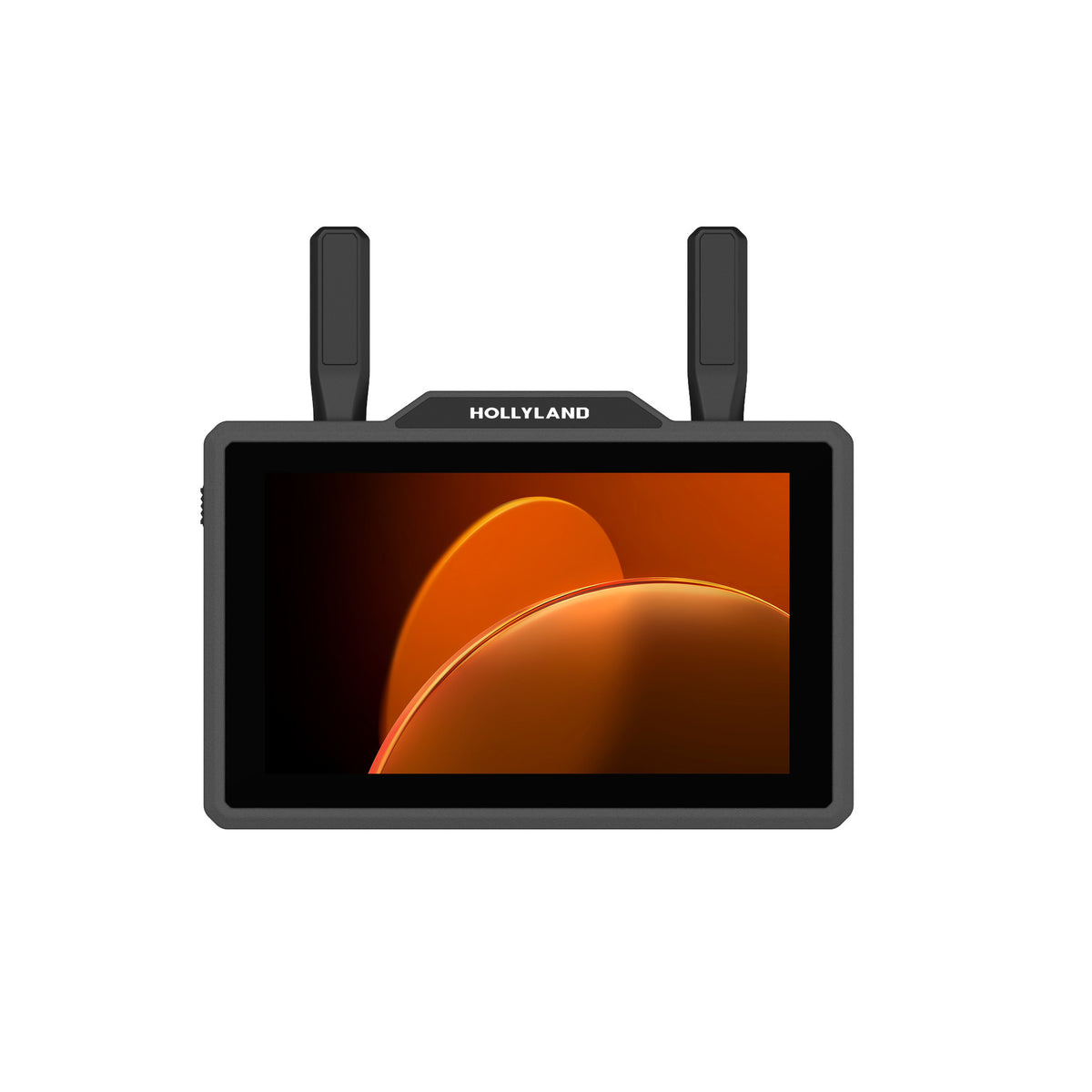

Pyro 5 is a 5.5-inch wireless monitor designed for do-it-all performance. With dual-band transmission, 4-way monitoring via Broadcast Mode, direct camera control, smart channel selection, and a 1500-nit daylight-viewable screen, it combines multiple functions into one compact tool. Proxy recording, real-time overlays, and RTMP live streaming make Pyro 5 more than just a monitor-it's your multitasking hub on set, built to simplify and speed up every step of production.
Shoot.Sync.Share.
Pyro 5 is a 5.5-inch wireless monitor designed for flexible on-set collaboration. Powered by cutting-edge Wi-Fi-Broadcast technology, it allows one transmitter to connect with up to four receivers while maintaining stable, real-time video transmission.
Broadcast Mode
Broadcast Mode connects one transmitter to up to four receivers, with ranges up to 200 meters line of sight or 100 meters back to back. With Broadcast Mode off, range extends up to 400 meters line of sight or 150 meters back to back.
Dual-Band Stronger Signal. Smoother Feeds.
Built with a dual-band 2.4G/5G transmission system, Pyro 5 automatically adapts to changing environments, delivering robust, interference-resistant video even in signal-heavy locations.
Direct Camera Control. Just a Tap Away.
With the 5.5-inch touchscreen, Pyro 5 enables direct adjustments to shutter speed, aperture, focus, focus mode, white balance, and ISO, offering dynamic control over your camera's settings. It enables direct adjustments to shutter speed, aperture, focus, and focus mode. white balance, and ISO, offering dynamic control over your camera's settings.
Multi-Cam Switching.
Pyro 5 supports switching between camera groups, keeping up with fast-paced live productions.
Lock Pairing
When multiple Pyro systems are in use, Lock Pairing ensures each receiver stays securely connected to its original transmitter-no signal mix-ups.
Auto Frequency Hopping
Pyro 5 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors the strength of the signal and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.
Smart Channel Selection
At startup, the system automatically scans and locks onto the optimal frequency channel.
Channels can also be manually scanned and switched via the receiver, with visual signal strength indicators for each frequency.

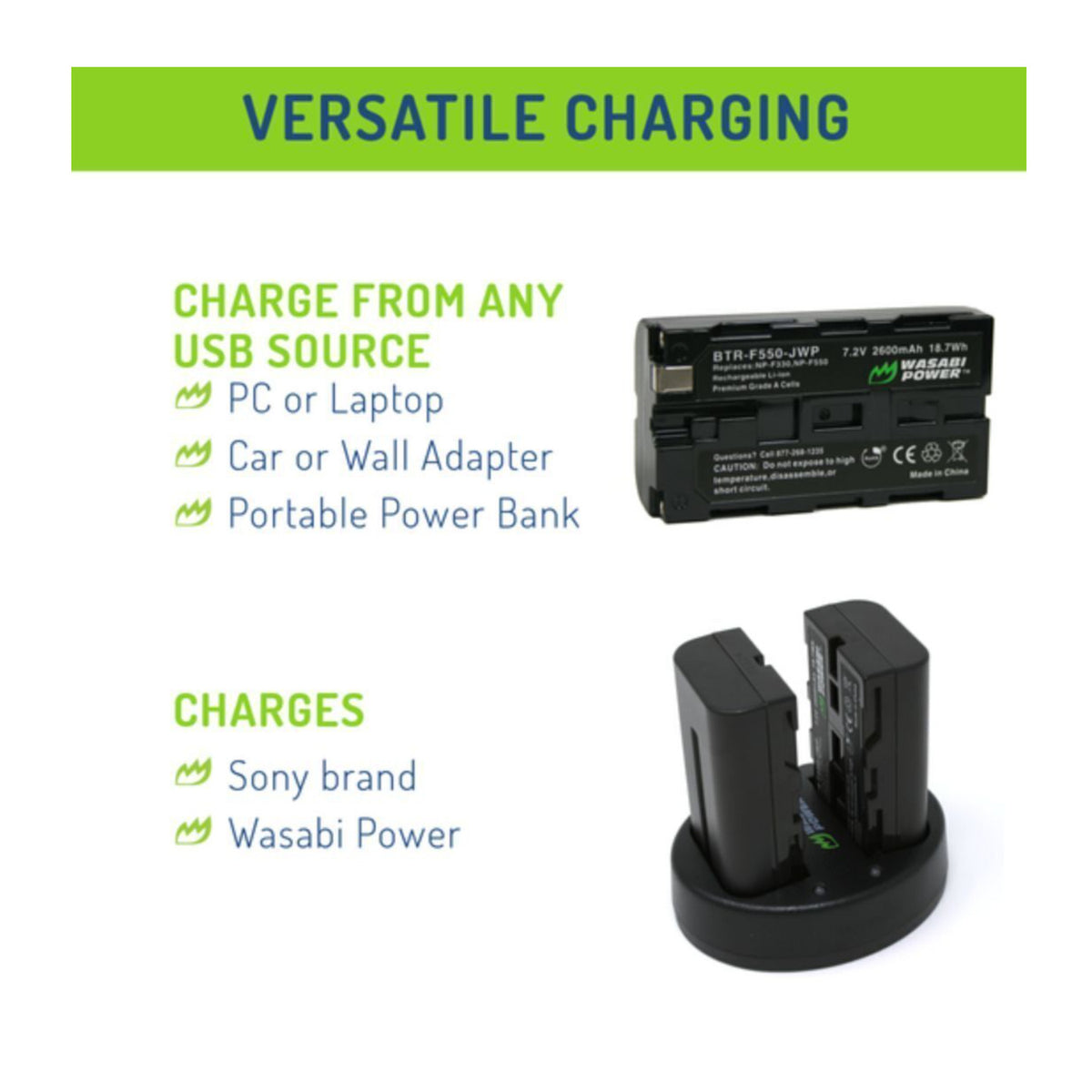

Wasabi Power 2600mAh Battery (2-Pack) and Dual USB Charger Kit for High Charging Capacity (Black)

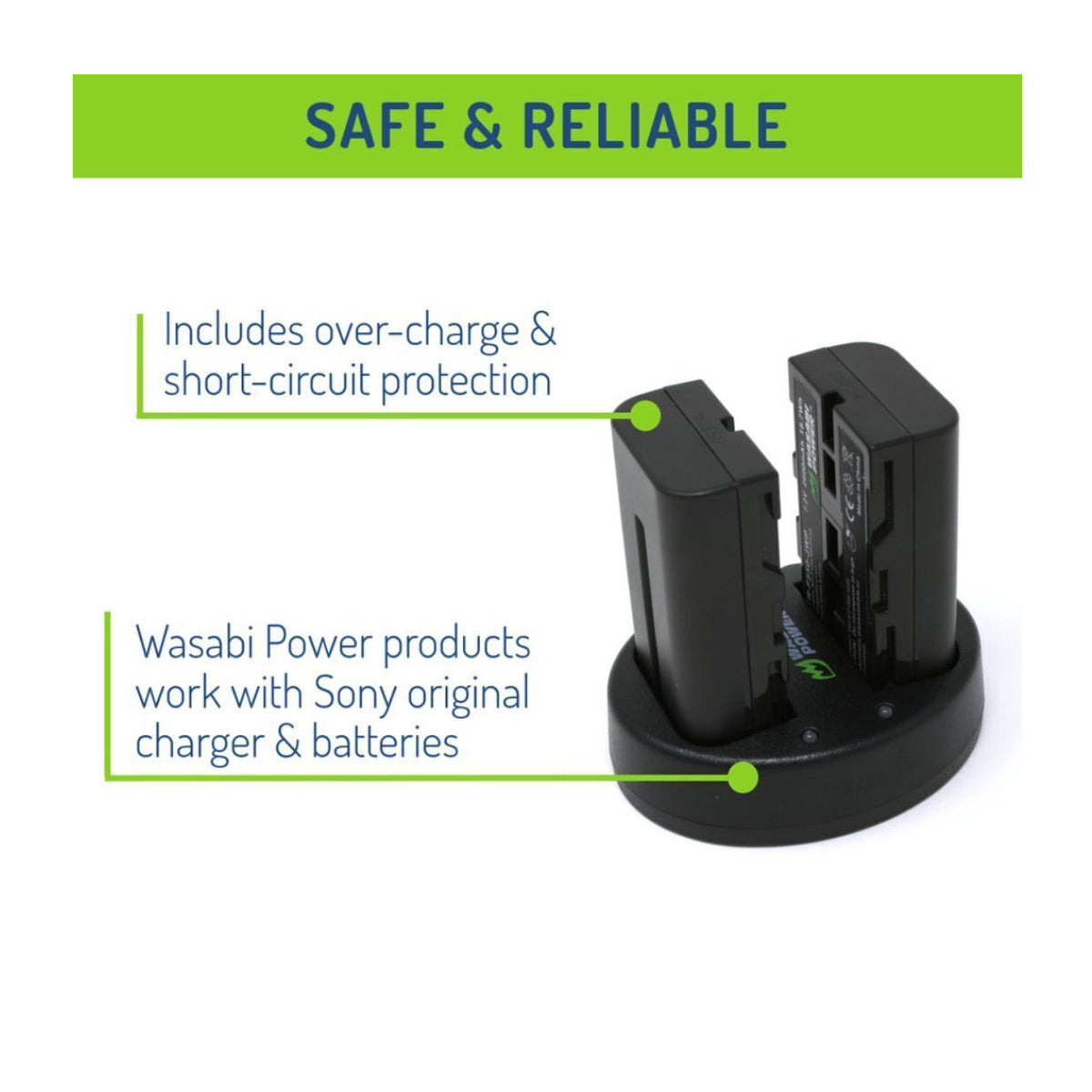

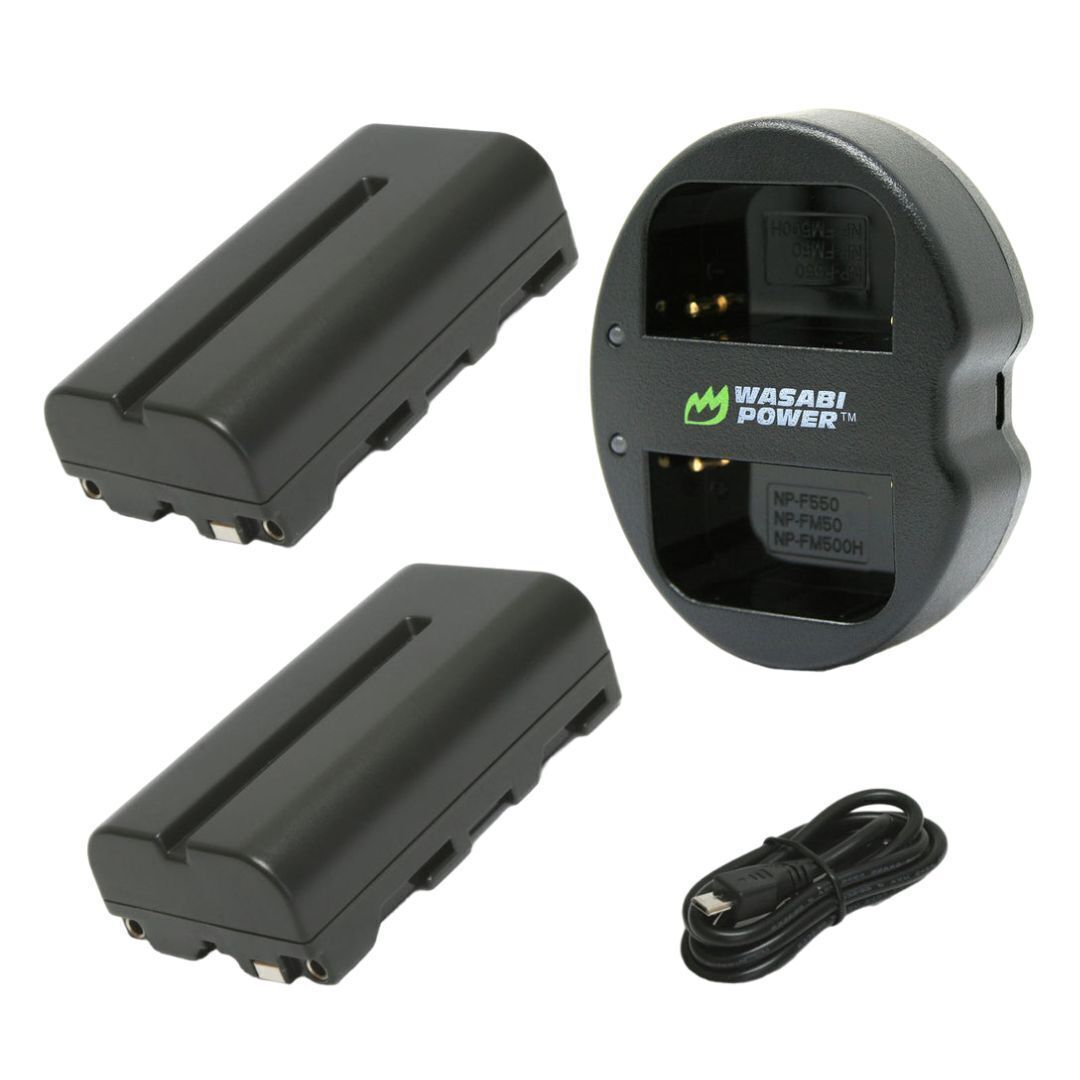

The Wasabi Power Battery and Charger Kit in Black includes two 2600mAh batteries and a dual USB charger compatible with devices that use Sony NP-F330, NP-F530, NP-F550, NP-F570, and L Series batteries, including the Atomos Ninja V, Atomos Shinobi, and Blackmagic Design BMPCC 4K, while offering overcharge and short circuit protection, meeting or exceeding OEM standards, and supporting charging from a computer, car adapter, wall adapter, or portable power bank for extended photography and video shoots.
Koah Photography Cleaning Kit

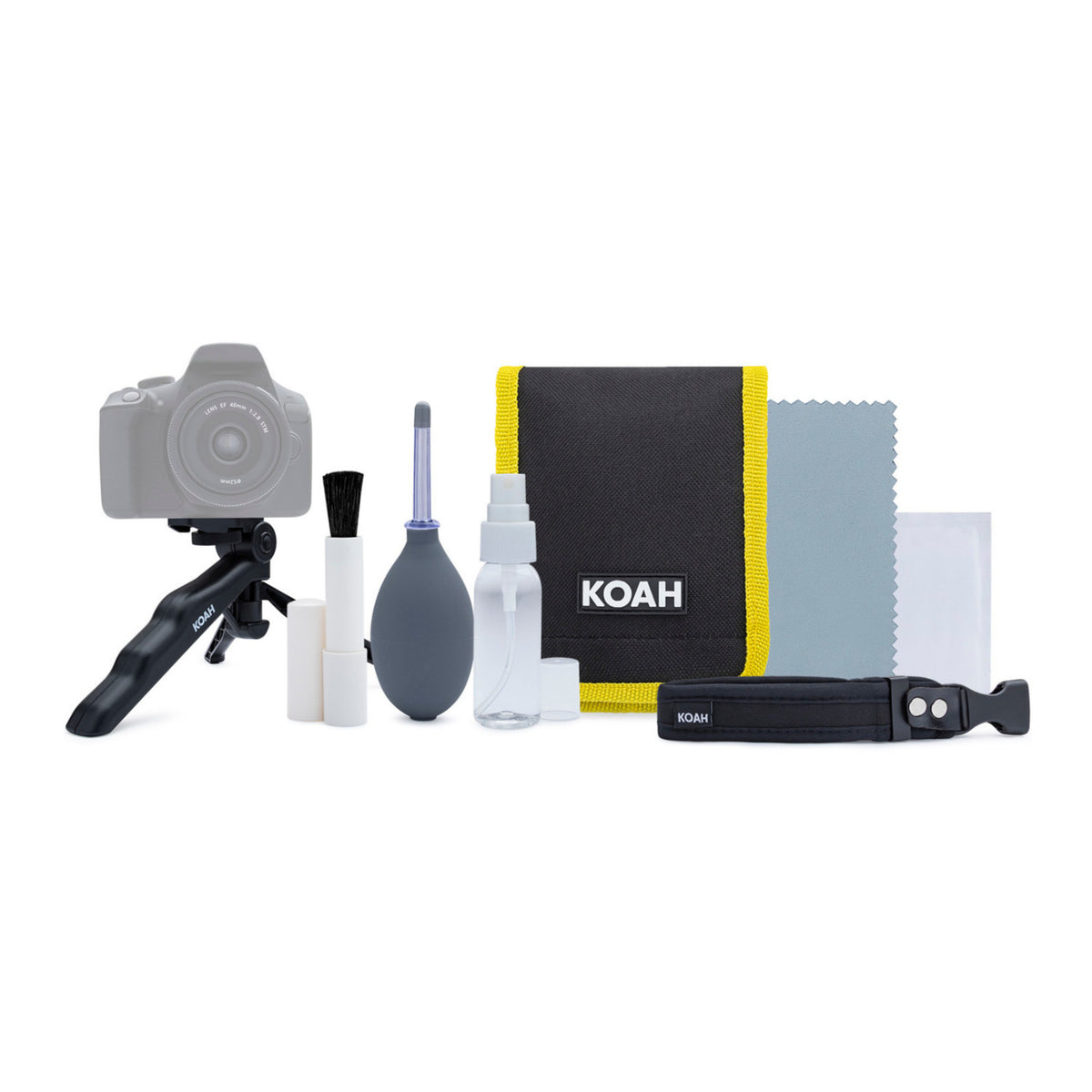

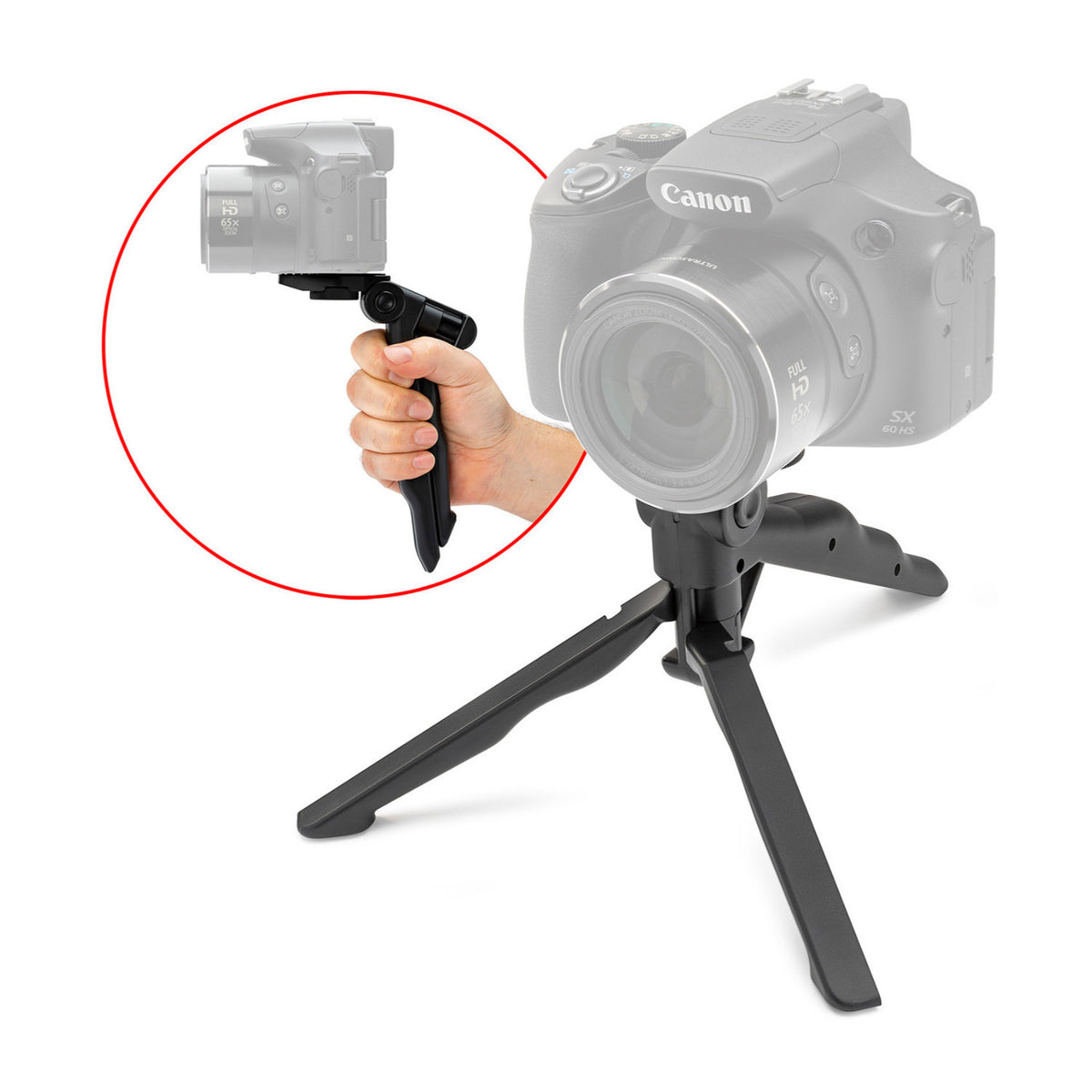

The Koah Photography Cleaning Kit includes a compact mini tripod that doubles as a hand grip, reusable microfiber lens cloth, fine bristle brush, premoistened lens wipes, lens cleaning spray, rubber bulb air blower, wrist straps, and a nylon carrying pouch with hook and loop closure, providing practical tools for cleaning and maintaining camera and video optics, binoculars, spotting scopes, filters, display screens, and other glass elements.
Hollyland Pyro 5 Wireless Transceiving Monitor with Dual Band Transmission and Multi Cam Switching

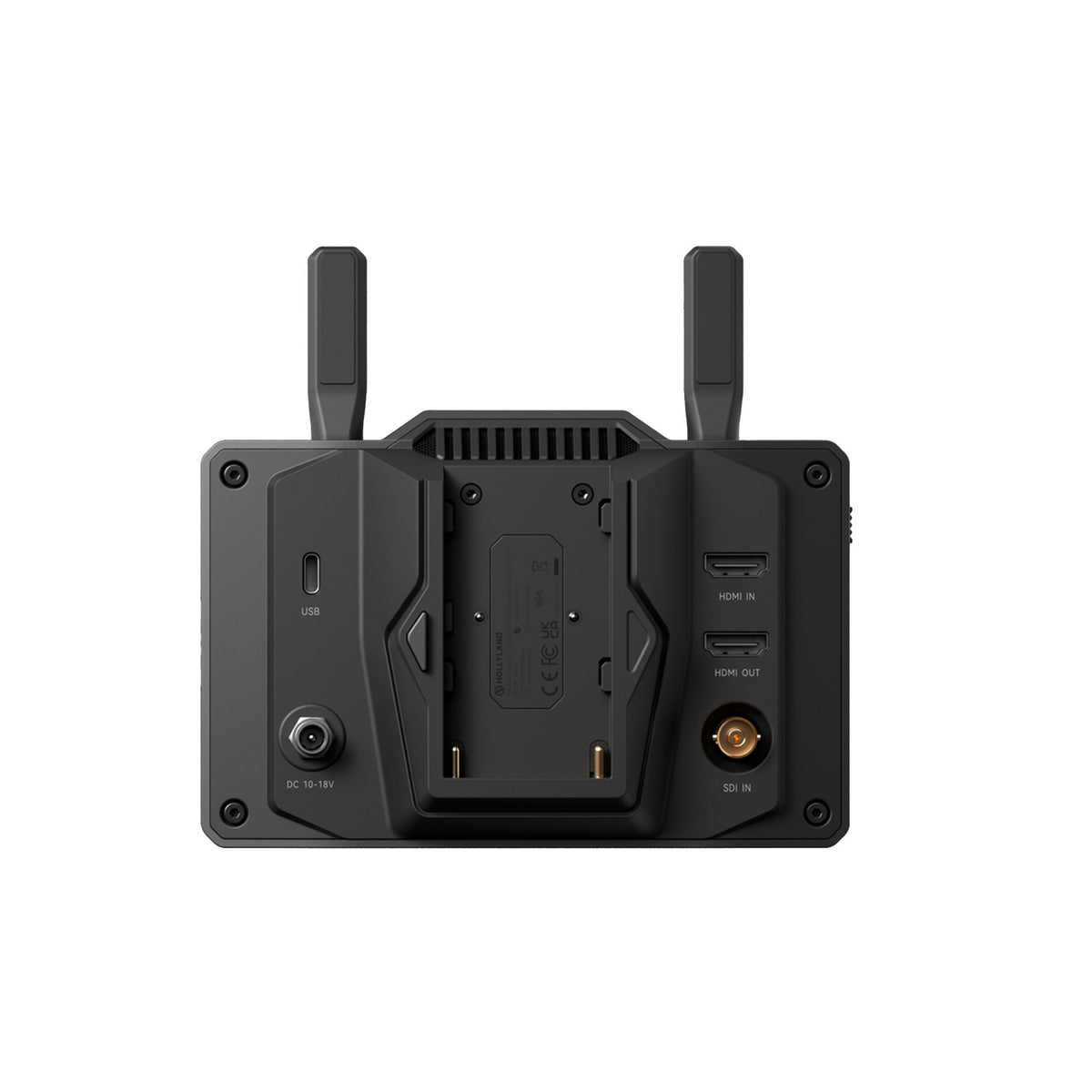

Input Port
| Transmitter Mode | HDMI 1.4b + 3G SDI |
| Receiver Mode | / |
Output Port
| Transmitter Mode | Loop-Out HDMI 1.4b |
| Receiver Mode | HDMI 1.4b |
Audio-Video Parameters
| Transmitter Mode | Color Depth Capability |
| Transmitter Mode | Input Audio Format |
| Transmitter Mode | Output Audio Format |
| Receiver Mode | HDMI Input: YUV422/YUV444 8BIT |
| Receiver Mode | HDMI 1.4b 8-Channel |
Antenna
| SMA Male |
Power Input
| DC Input (2.0mm coro socket) |
Headphone Jack
| 3.5mm |
Upgrade Port
| USB-C (USB 2.0 CTG) / SD Card Slot |
Screen Size
| 5.5in Touchscreen |
Screen Resolution
| 1920x1080 Pixels |
Color Gamut
| Rec.709 |
Aspect Ratio
| 16 | 9 |
Screen Brightness
| 1,500 nits |
Contrast Ratio
| 1000-1 |
Power Input Voltage
| NPF | 6V-16V |
| DC-in | 10-18V DC |
Video Processing Technology
| Transmitter Mode | Vidco Bitrate |
| Transmitter Mode | Video Encoding Format |
| Receiver Mode | Maximum 12 Mbps |
| Receiver Mode | H.264 |
Power Consumption
| Transmitter <14W | |
| Receiver Mode | <16.5W |
Net Weigh
| 538g (1902) |
Dimensions
| (LxWx) | 180x127x45.8mm |
Operating Frequency
| 5.150-5.250GHz | |
| 2412-2.484GH2 | |
| 5.250-5.350GHz | |
| 5.470-5.600GHz | |
| 5.600-5.725GHz | |
| 5.725-5.850GHz |
Transmit Power
| Transmitter Mode | < 23dBm |
Receiver Sensitivity
| Receiver Mode | Unicast: -85dBm; Broadcast: -80dBm |
Transmission Latency
| =60ms (Tested in a laboratory environment with 1080P60 signal transmission) |
Bandwidth
| Unicast | 20 MHz Broadcast: 40 MHz |
Operating Temperature
| -10°C - 45°C |
Storage Temperature
| -40°C - 60°C |
Wasabi Power 2600mAh Battery (2-Pack) and Dual USB Charger Kit for High-Capacity Charging (Black)
| Batteries | 2 x Lithium-Ion batteries included |
| Battery Capacity | 2600 mAh (per battery) |
| Battery Power | 7.2V / 18.7 Wh (per battery) |
| Charger | 1 x Dual USB Charger |
| Charger Input | USB Input of 5V |
| Charger Output Power | Output of 8.4V / 600 mA per battery |
| Key Features | All items meet or exceed OEM standards, and the charger will display the remaining battery life and usage time |
| Recommended for | These batteries are recommended as a replacement for the Sony NP-F330, NP-F530, NP-F550, and NP-F570 Battery Packs |
| Compatible with | Atomos Ninja V, Atomos Shinobi, Atomos Shogun 7, Blackmagic Design BMPCC 4K, Blackmagic Design BMPCC 6K, Lectrosonics BATTSLED, CN-160, CN-216, CN-126 Series, CCD-RV100, RV200, CCD-SC5, CCD-SC6, CCD-SC7, CCD-SC8, CCD-SC9, CCD-SC55, CCD-SC65, CCD-TR1, CCD-TR2, CCD-TR3, CCD-TR11, CCD-TR12, CCD-TR18, CCD-TR57, CCD-TR67, CCD-TR76, CCD-TR87, CCD-TR97, CCD-TR200, CCD-TR300, CCD-TR400, CCD-TR500, CCD-TR600, CCD-TR700, CCD-TR800, CCD-TR900, CCD-TR1100, CCD-TR2200, CCD-TR2300, CCD-TR3000, CCD-TR3100, CCD-TR3200, CCD-TR3300, CCD-TRV Series, DCR-SC100, DCR-TR7, DCR-TR7000, DCR-TR7100, DCR-TR8000, DCR-TRV5, DCR-TRV7, DCR-TRV9, DCR-TRV49, DCR-TRV58, DCR-TRV103, DCR-TRV110, DCR-TRV120, DCR-TRV130, DCR-TRV203, DCR-TRV210, DCR-TRV220, DCR-TRV310, DCR-TRV315, DCR-TRV320, DCR-TRV420, DCR-TRV510, DCR-TRV520, DCR-TRV525, DCR-TRV620, DCR-TRV720, TRV735, DCR-TRV820, DCR-TRV900, DCR-TRV935, DCR-VX9, DCR-VX2000, DCR-VX2100, DCR-VX9000, DSC-CD250, CD400, DSC-D700, DSC-D770, DJI Focus Pro, Edelkrone HeadPLUS, Edelkrone HeadPLUS v2, Edelkrone DollyPLUS, Edelkrone Motor Module for SliderPLUS, Edelkrone JibONE, Edelkrone JibONE v2, HDR-AX2000, HDR-FX1, Zeapon PONS PT Motorized Pan Head |
Koah Photography Cleaning Kit
| Includes |
|
| Application | Photo-optics, display screens and eyeglasses |
