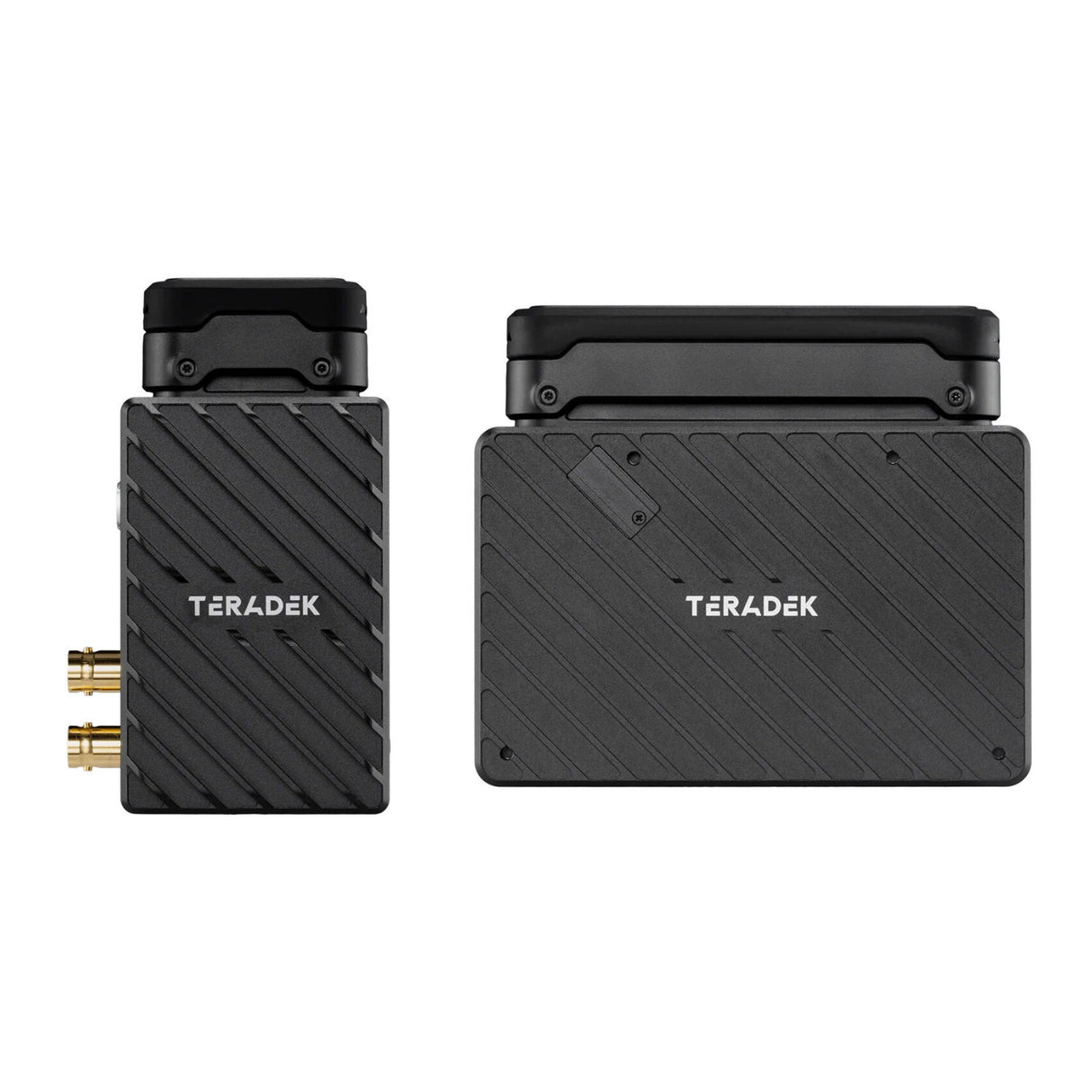

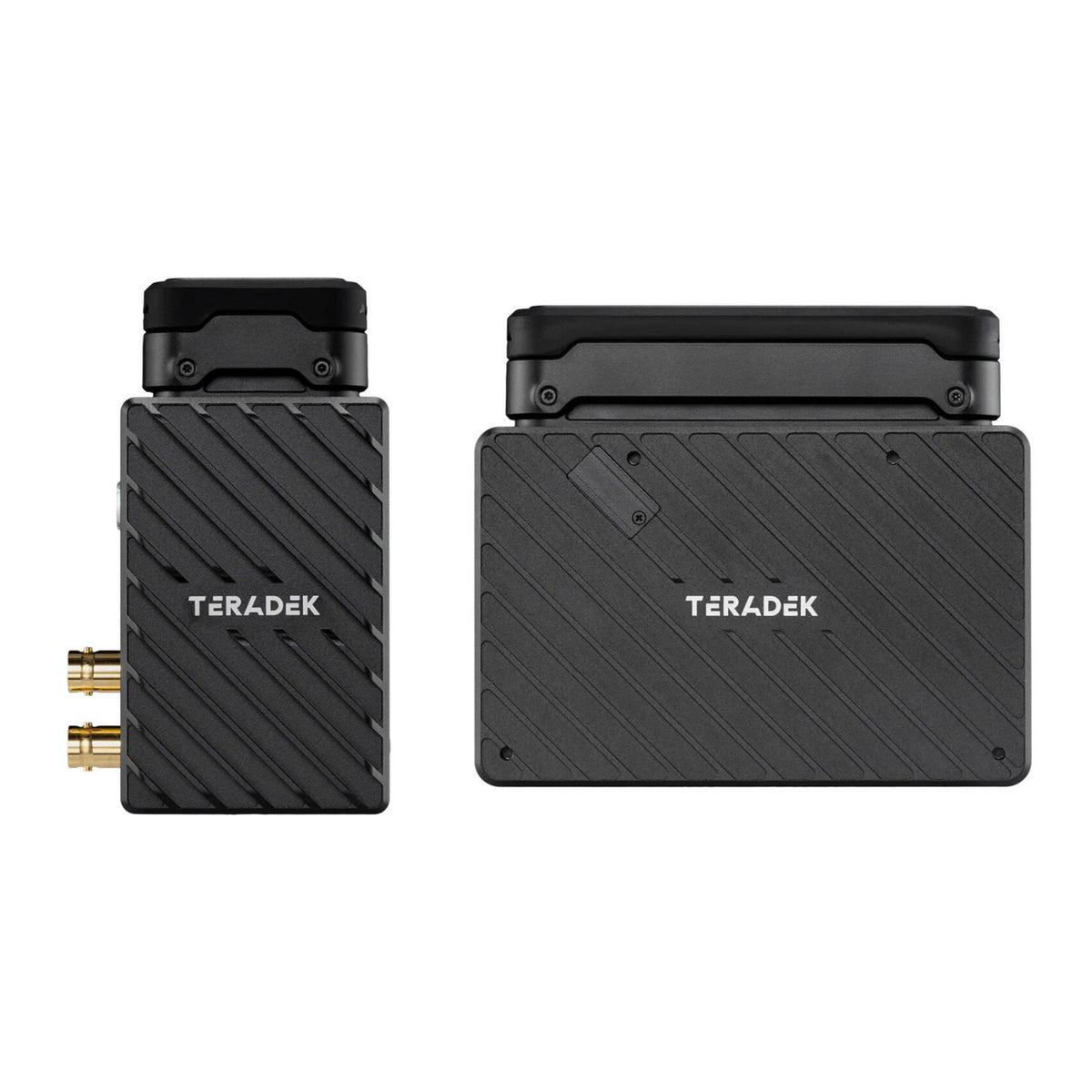

Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit with Internal Antenna
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Teradek Bolt 6 LT 750 3G-SDI/HDMI Transmitter/Receiver Kit allows professionals to transmit and receive lossless HD video wirelessly at ranges up to 750 feet. Designed for reliable performance, this kit supports UHD 4K30 video with 10-bit 4:2:2 HDR and works with both 3G-SDI and HDMI connections. Its internal antennas and compact design make it easy to integrate into various production setups.
Wireless Transmission up to 750 Feet
The Bolt 6 LT 750 supports long-range wireless video transmission up to 750 feet line of sight. This ensures stable and clean video delivery, even in demanding environments, minimizing interruptions during production.
Internal Antennas and Compact Design
Both the transmitter and receiver feature internal antennas, providing a sleek, compact form factor. Multiple mounting options, including 1/4in-20 and M3 threads, allow easy attachment to cameras, rigs, or cages.
Supports UHD 4K30 and HDR
Transmit and receive video up to UHD 4K30 via HDMI and up to 1080p60 via SDI. The system supports Rec. 2020 HDR with 10-bit 4:2:2 color gamut, maintaining accurate and consistent color for professional workflows.
Cross-Compatibility
The Bolt 6 LT is compatible with all Bolt 4K devices over the 5 GHz band and works with Bolt 6 devices on the 6 GHz band. Users can access spectrum analysis, channel selection, and remote configuration through the Bolt app or desktop Bolt Manager.
Multiple Receivers and Security
The transmitter can send video to up to six receivers simultaneously. Built-in AES-256 encryption secures your video feed, and improved noise rejection ensures clean signals even in crowded wireless environments.
Integrated Monitoring Tools
The system features a bright OLED display on both units, allowing users to monitor signal strength, channel settings, and other key metrics. SDI eye pattern tools help verify cable integrity for reliable SDI connections.
- 1x HDMI 1.4b Input
- 1x BNC (3G-SDI) Input
- 1x BNC (3G-SDI) Loop Output
- HDMI: 2-Channel
- SDI
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
- HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
- UHD 4K: 30/29.97/25/24/23.98
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 480p: 60/59.94
- 576i:
- 480i: 59.94
- SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 576i: 50
- 480p: 60/59.94
- 480i: 59.94
- Bottom
- 1x 1/4in-20 Female
- 1x HDMI 1.4b Output
- 1x BNC (3G-SDI) Output
- HDMI: 2-Channel
- SDI: 2-Channel
- Non-DFS Frequencies: US: 5.94 to 6.42 GHz
- US: 5.19 to 5.23 GHz
- US: 5.75 to 5.79 GHz
- DFS Frequencies: US: 5.27 to 5.67 GHz
- HDMI (10-Bit 4:4:4/4:2:2 RGB, YCC)
- UHD 4K: 30/29.97/25/24/23.98
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080PsF: 30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 480p: 60/59.94
- 576i: 60
- 480i: 59.94
- SDI (10-Bit 4:4:4/4:2:2 RGB, YCC)
- 1080p: 60/59.94/50/30/29.97/25/24/23.98
- 1080i: 60/59.94/50
- 720p: 60/59.94/50
- 576p: 50
- 576i: 50
- 480p: 60/59.94
- 480i: 59.94
- Bottom
- 1x 1/4in-20 Female
Teradek Bolt 6 LT 750 3G-SDI/HDMI Wireless Transmitter with Internal Antennas
Inputs/Outputs
| Antenna I/O | No |
| Video I/O | |
| Embedded Audio | |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x Micro-USB Input |
| Encryption | Yes: 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | |
| Latency | 0 ms |
| RF Power | 23 dBm |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS |
| App Name | Bolt App |
| Cellular Support | No |
Format Support
| Video Format | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
Power
| Input Power | 6 to 28 VDC |
| Battery | Interchangeable Mount (No Plate Included) |
| Power Consumption | 9 W |
Mounting
| Tripod/Accessory Mounting | |
General
| Status Display | Yes |
| Environmental Resistance | No |
| Operating Conditions | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum |
| Dimensions | 4.1 x 2.4 x 1.3 in / 103 x 60 x 33 mm |
| Weight | 7.27 oz / 206.00 g |
Packaging Info
| Package Weight | 2.75 lb |
| Box Dimensions (LxWxH) | 16.3 x 9 x 3.7 in |
Teradek Bolt 6 LT 750 3G-SDI/HDMI Receiver with Internal Antennas
Inputs/Outputs
| Antenna I/O | 5x RP-SMA Female |
| Video I/O | |
| Embedded Audio | |
| Audio I/O | No |
| Power I/O | 1x LEMO 2-Pin (28 VDC) Input |
| Other I/O | 1x Micro-USB Input |
| Encryption | Yes: 256-Bit AES |
Wireless
| Wireless Range | 750' / 228.6 m (Line-of-Sight) |
| Channel Bandwidth | 40 MHz, 20 MHz |
| Frequency Range | |
| Latency | 0 ms |
| RF Power | 21 dBm |
| Wi-Fi | Wi-Fi 6 (802.11ax) |
| Bluetooth | Yes |
| Mobile App Compatible | Yes: Android & iOS |
| App Name | Bolt App |
| Cellular Support | No |
Format Support
| Video Format | |
| Audio Format | 2-Channel 24-Bit 48 kHz |
| Wireless Video Compression | Uncompressed |
| Timecode Support | Yes |
Power
| Input Power | 6 to 28 VDC |
| Battery | Interchangeable Mount (No Plate Included) |
| Power Consumption | 11 W |
Mounting
| Tripod/Accessory Mounting | |
General
| Status Display | Yes |
| Environmental Resistance | No |
| Operating Conditions | 32 to 72°F / 0 to 40°C |
| Material of Construction | Aluminum, Polycarbonate |
| Dimensions | 4.8 x 3.7 x 0.9 in / 122 x 94 x 22 mm |
| Weight | 10.30 oz / 292.00 g |
Packaging Info
| Package Weight | 3.43 lb |
| Box Dimensions (LxWxH) | 16.6 x 8.4 x 3.7 in |
