- LBX16-POE (White)
- 2 x LBX8-POE (White)
- PoE++ Switch
- Light Deck DMX Software
- 3 x Yoke (Installed)
- 3 x Combo Pin
- 3 x Safety Wire
- Manual
Trusted & Verified

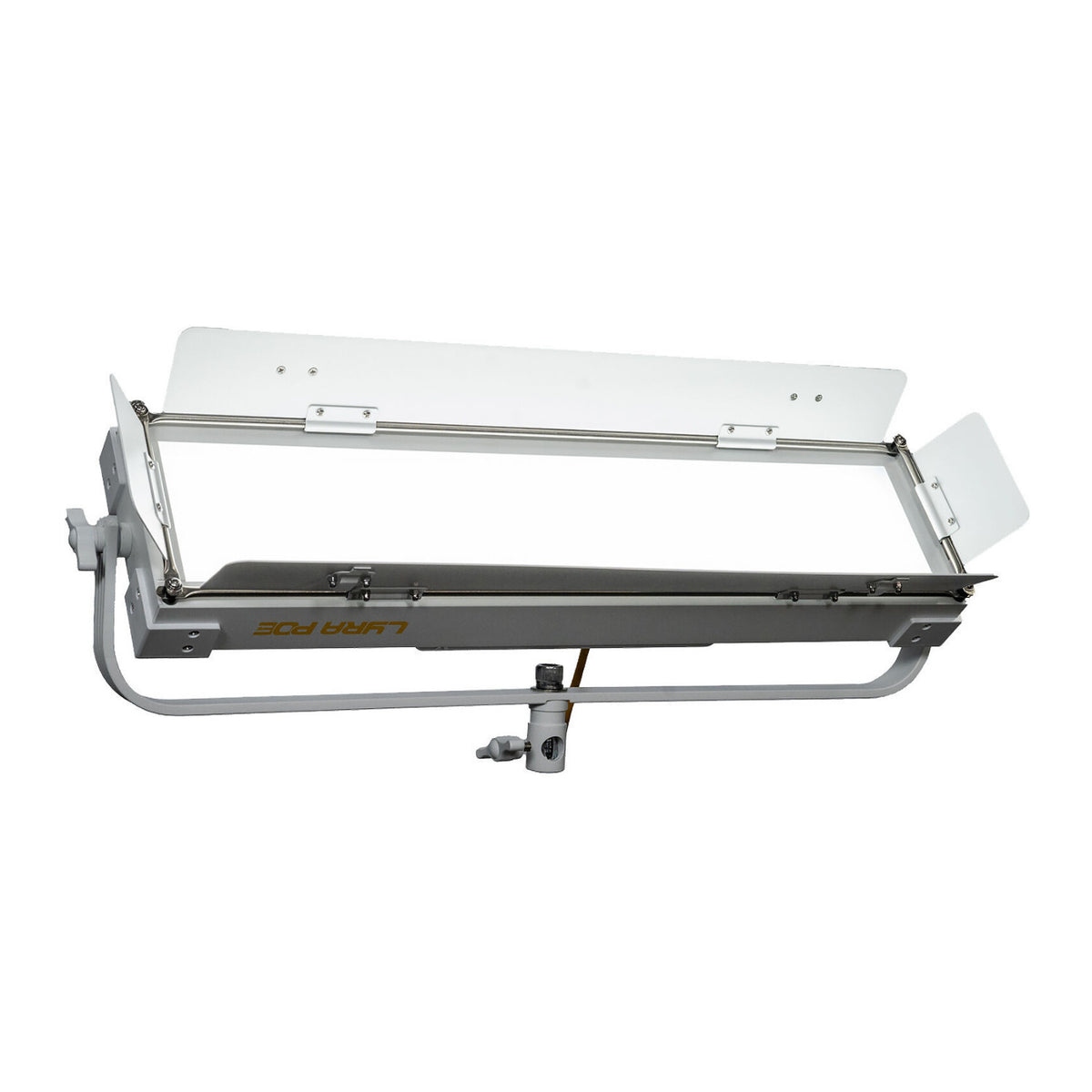

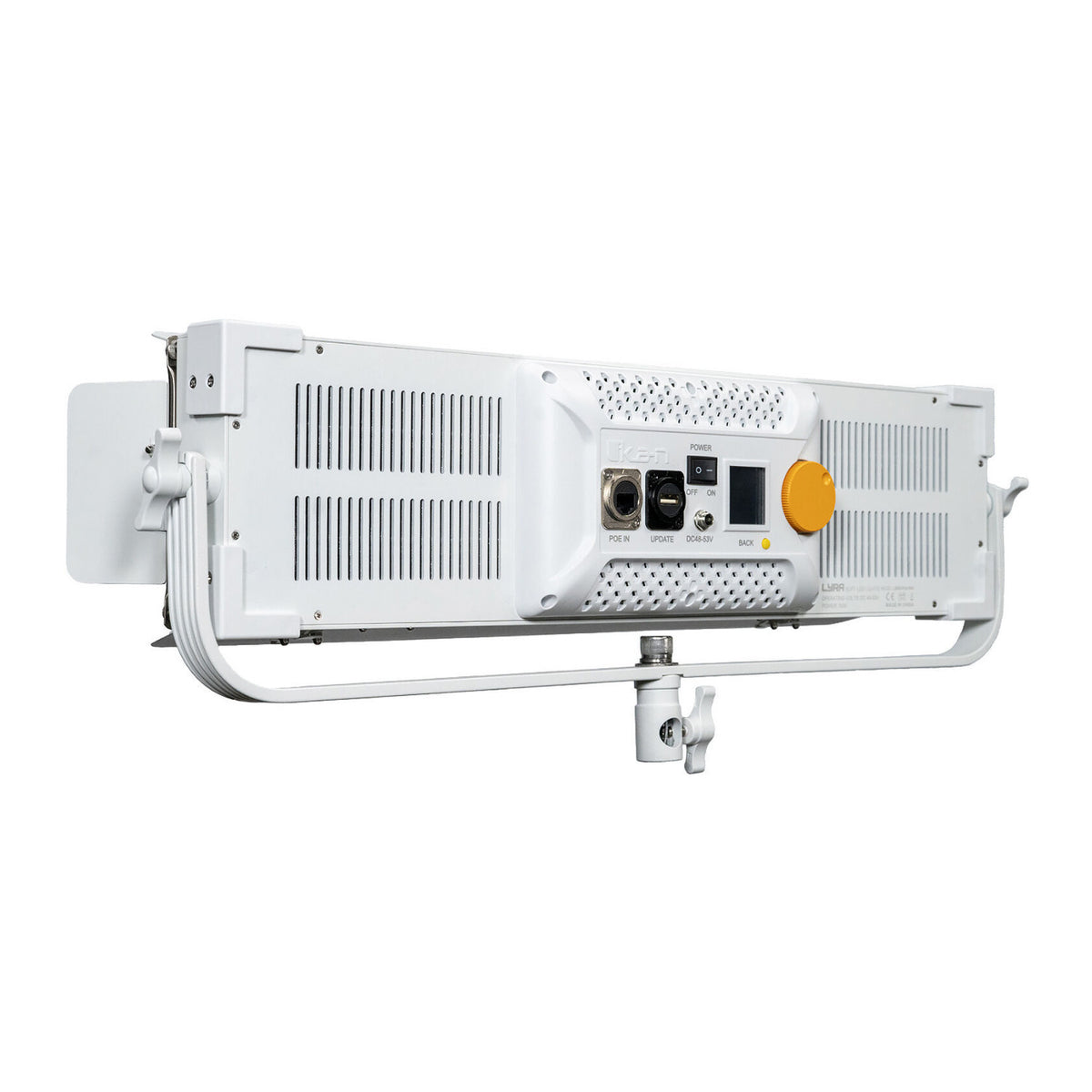

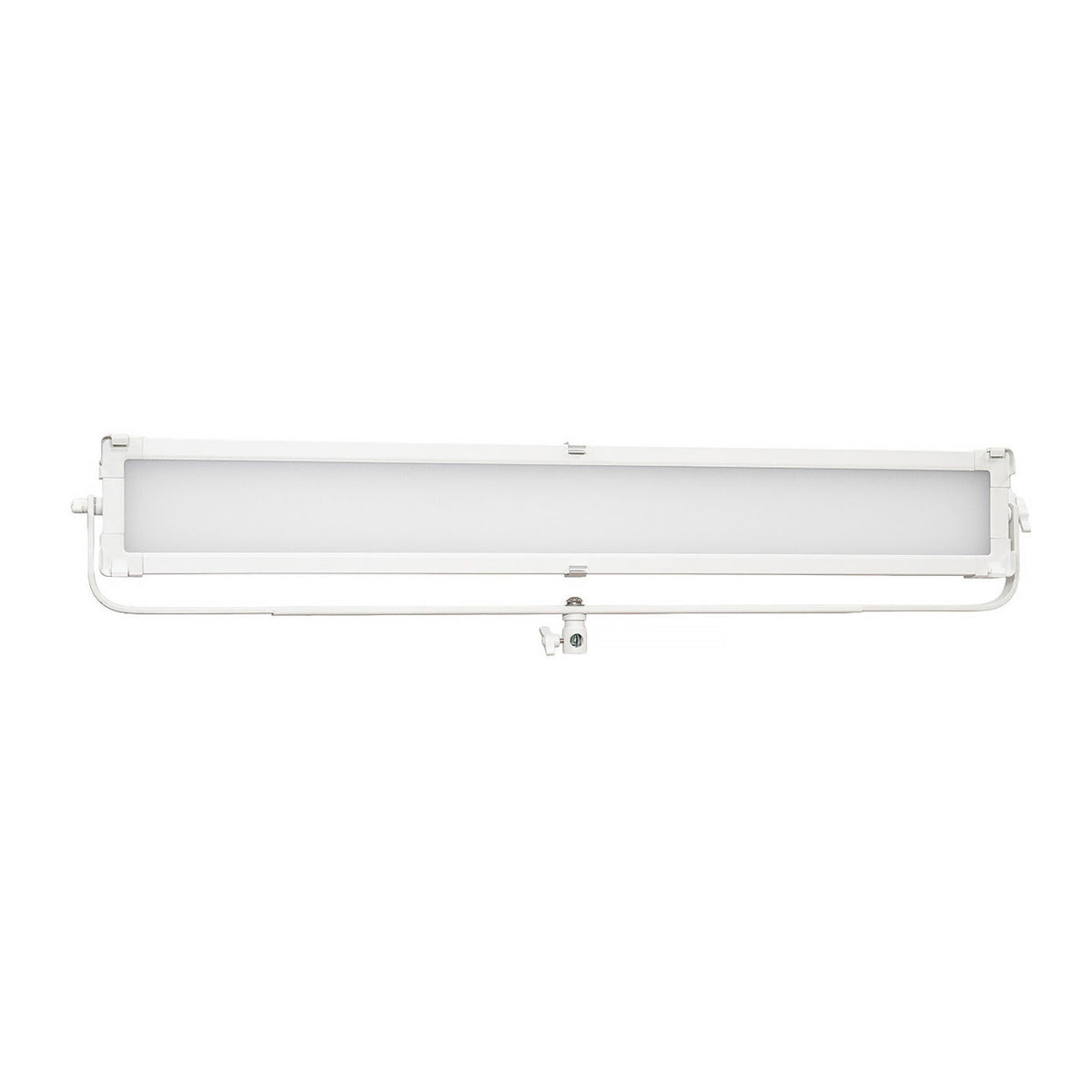

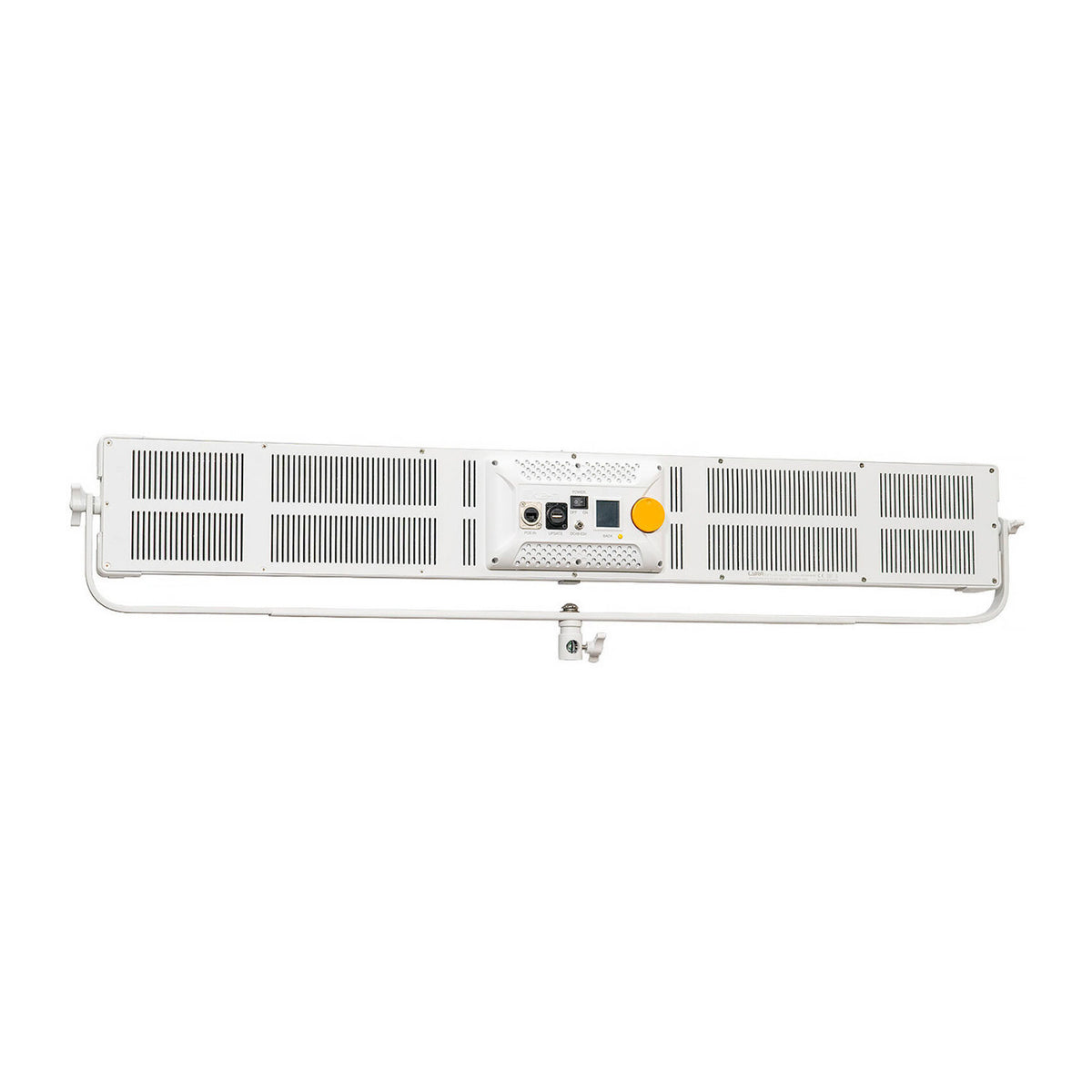

ikan Lyra LBX16-PoE & LBX8-PoE Bi-Color LED Light Panels (White, Switch 3-Light Kit)
- 1x LBX16-POE (White)
- 2x LBX8-POE (White)
- Included Netgear PoE++ 802.3bt 720W Switch
- Includes Light Deck Control Software
- 85W PoE++ Light
- Art-Net & sACN DMX-Over-IP
- Q-SYS Control Compatible
- Low Profile for Low Clearance Areas
- 98 CRI COB LEDs With 1/2 Stop Soft Diffusion Panel
- Silent Fanless Fixture
- Bi-Color Adjustable 2700K-6500K
- Consistent Light Across All Color Temperatures
- Beam Angle 110 Degrees
- Artifact Free Clean Shadow
- Combo Pin
- LBX8-POE Built-in Barn Doors
- Patent No.: 12,477,643

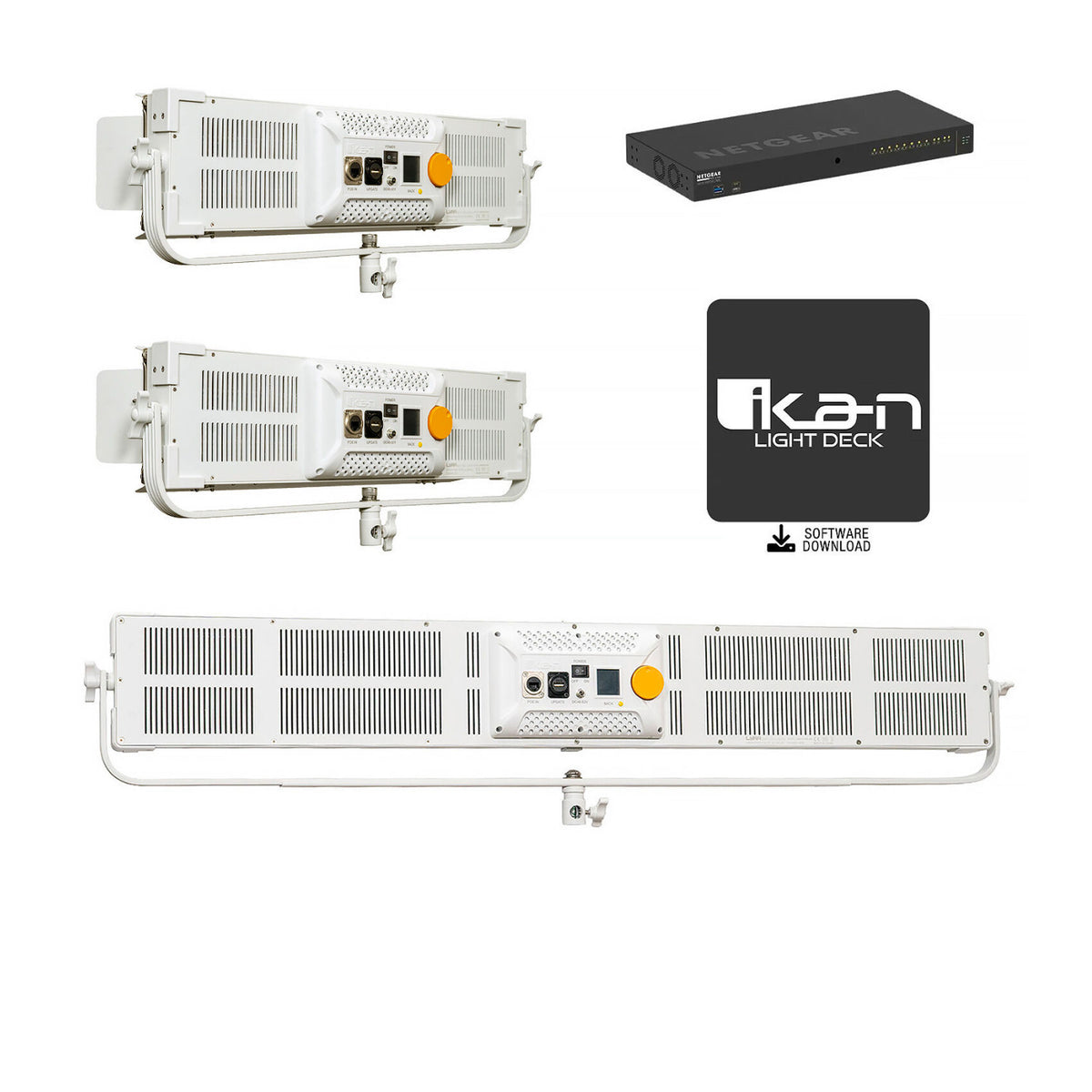

The Ikan Lyra PoE studio light bundle provides broad, soft illumination and network based control for broadcast studios, podcast rooms, classrooms, conference spaces, and other permanent production environments. The system combines one panoramic LBX16-POE fixture, two compact LBX8-POE fixtures, a Netgear 802.3bt 720W PoE++ switch, and Light Deck control software.
Power and DMX Through Ethernet

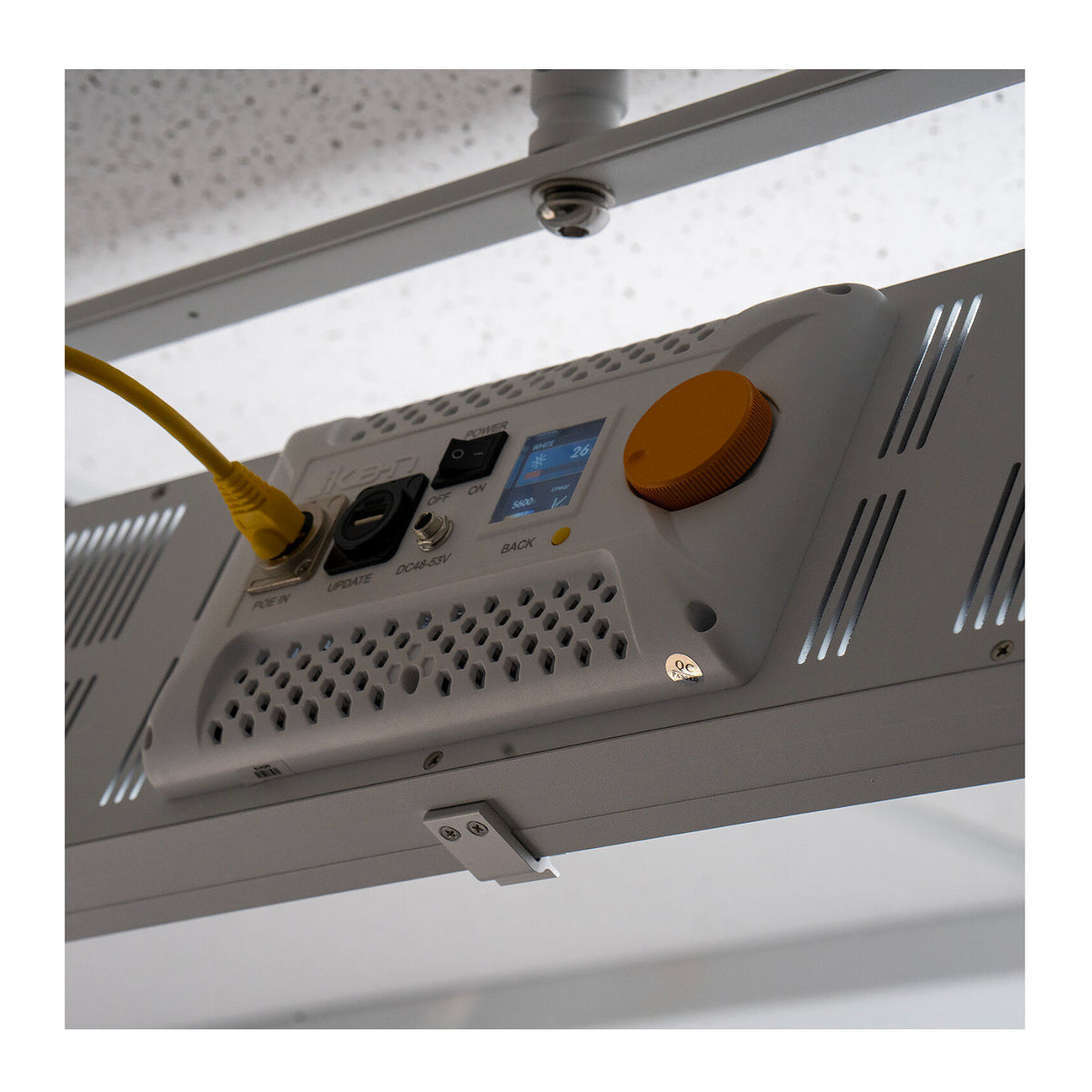

Each fixture receives power and lighting control through an Ethernet connection, helping reduce separate electrical and DMX cable runs. The lights support ArtNet and sACN DMX over IP protocols and integrate with Q-SYS control systems. A web GUI provides access to network settings, DMX addresses, universes, and configured IP information.
Soft, Consistent Studio Illumination
The 85W LBX16-POE uses 98 CRI COB LEDs, a permanent one half stop diffusion panel, and a wide 110 degree beam to spread soft illumination across a large area. Its adjustable 2700K to 6500K color temperature range supports warm interior scenes, daylight balanced production, and mixed lighting environments. The two LBX8-POE fixtures provide additional coverage with compact low profile housings and built in barn doors.
Flexible Installation and Control

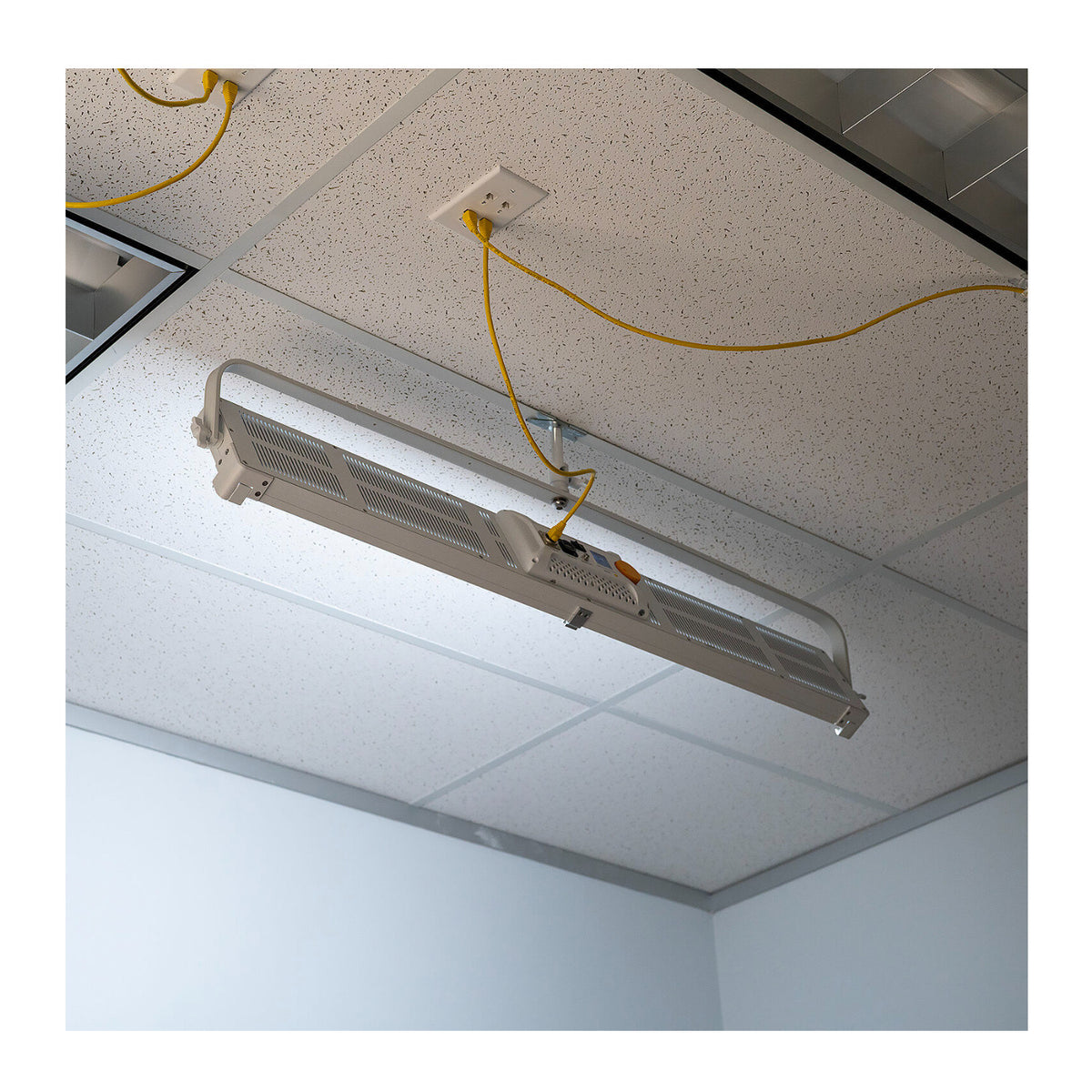

Fanless passive cooling supports quiet recording environments. Combo pin mounting allows use with compatible grids, clamps, and light stands. Light Deck software adds fixture control and preset management, while the included PoE++ switch supplies the required network power infrastructure. Professional installation is required.
Shipping
| Shipping Weight | 45 Pounds |
| Shipping Dimensions | 48 x 12 x 6 Inches |
Physical Data
| Beam Angle | 110 Degrees |
| Fixture Dimensions | 44 x 7 x 3 Inches / 111.76 x 17.8 x 7.6 Centimeters |
| Fixture Weight | 10 Pounds / 4.5 Kilograms |
| Illumination Dimensions | 40.5 x 4 Inches / 102 x 4.5 Centimeters |
| Patent Number | 12,477,643 |
Mechanical Data
| Build Material | Heavy Duty Resin Plastic and Metal |
| Lens | Permanent 1/2 Stop Soft Diffusion Panel |
| Mounting | Yoke |
| Stage Clamp Support | Supports Standard Stage Clamps |
| Stand Mount | Baby 5/8 Inch and Junior 1 1/8 Inch Combo Pin with 90 Degree Offset |
| Barn Doors | Optional |
Electrical Data
| Power Input | 110 to 220VAC |
| Operating Voltage | 48VDC |
| Frequency | 50 to 60 Hz |
| Maximum Power Consumption | 85W |
| Color Temperature | Bi Color 2700K to 6500K |
| Power Loss Behavior | Last Scene Hold |
| LED Type | COB |
| Color Rendering Index | 98 CRI |
| Television Lighting Consistency Index | 99 TLCI |
| Power Supply Input | 110 to 220VAC |
| Power Supply Output | 48VDC at 3.12A |
| Power Supply Included | No |
Functionality
| Input and Output Ports | RJ45 and USB Type A |
| DMX Protocols | ArtNet and sACN through RJ45 |
| Dimming Range | 0 to 100 Percent in 1 Percent Increments |
| Cooling | Passive |
| LED Lifetime | 70,000 Hours |
| Display | LCD Screen |
Environmental Data
| Operating Temperature | 10 to 110 Degrees Fahrenheit |
