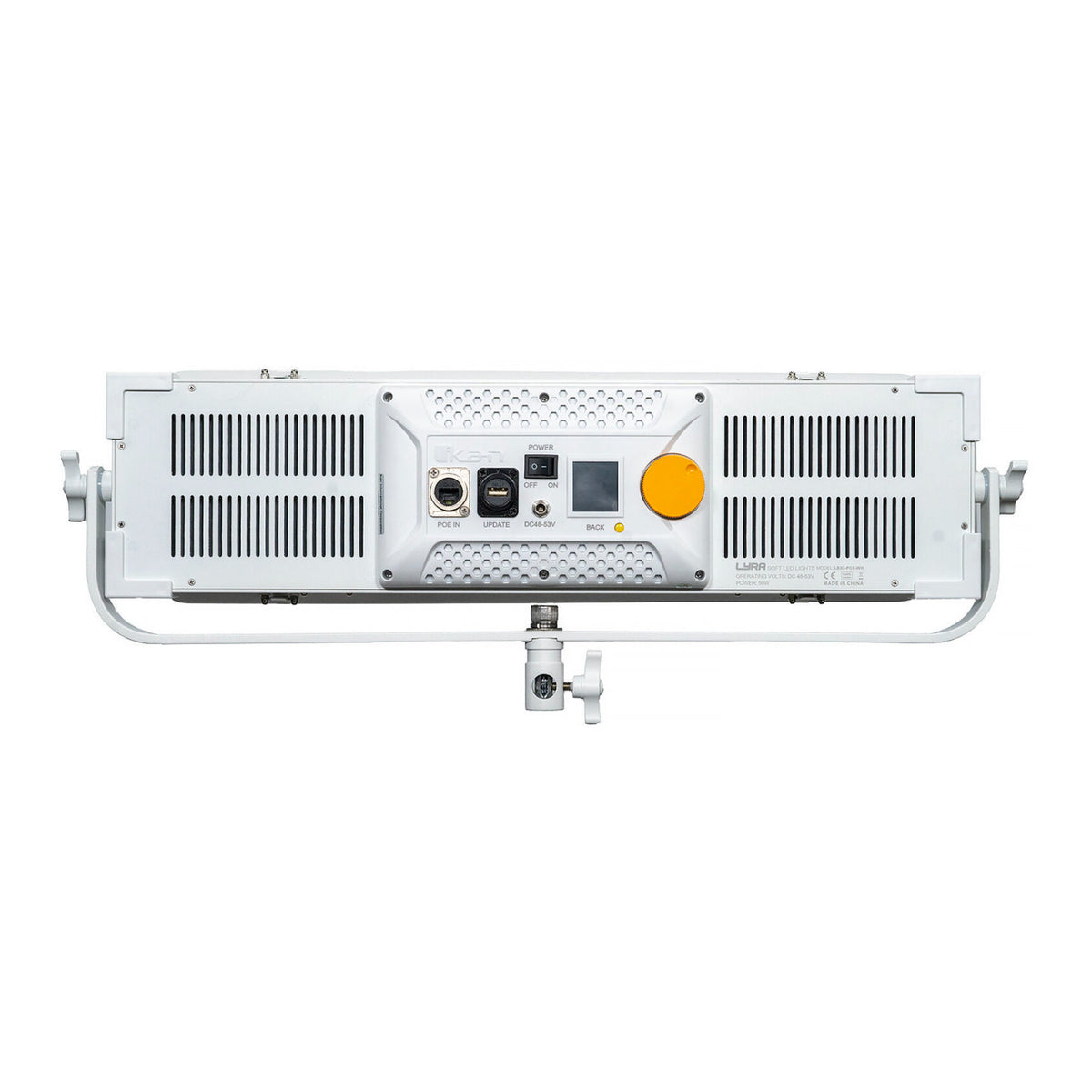

ikan Lyra LBX8-PoE Bi-Color LED Light Panel (White Unmanaged Switch 5-Light Kit)
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
The Lyra LBX8-PoE Bi-Color LED Light Panel 5-Light Kit delivers up to 1566 lux at 3.3 feet with a 3200K–5600K range, high color accuracy, PoE++ power and data via Ethernet, onboard and DMX control, silent fanless operation, and flexible mounting for broadcast, studio, and commercial installations with limited ceiling space.
Professional Bi-Color Lighting Output
Delivers up to 1566 lux at 3.3 feet (5600K) with a bi-color range of 3200K to 5600K, allowing precise adjustment to match ambient lighting conditions while maintaining consistent output across the full CCT range.
High Color Accuracy for Broadcast
Features a CRI of 97 and TLCI of 99 to ensure accurate color reproduction and natural-looking skin tones, making it suitable for broadcast, television production, and professional video applications.

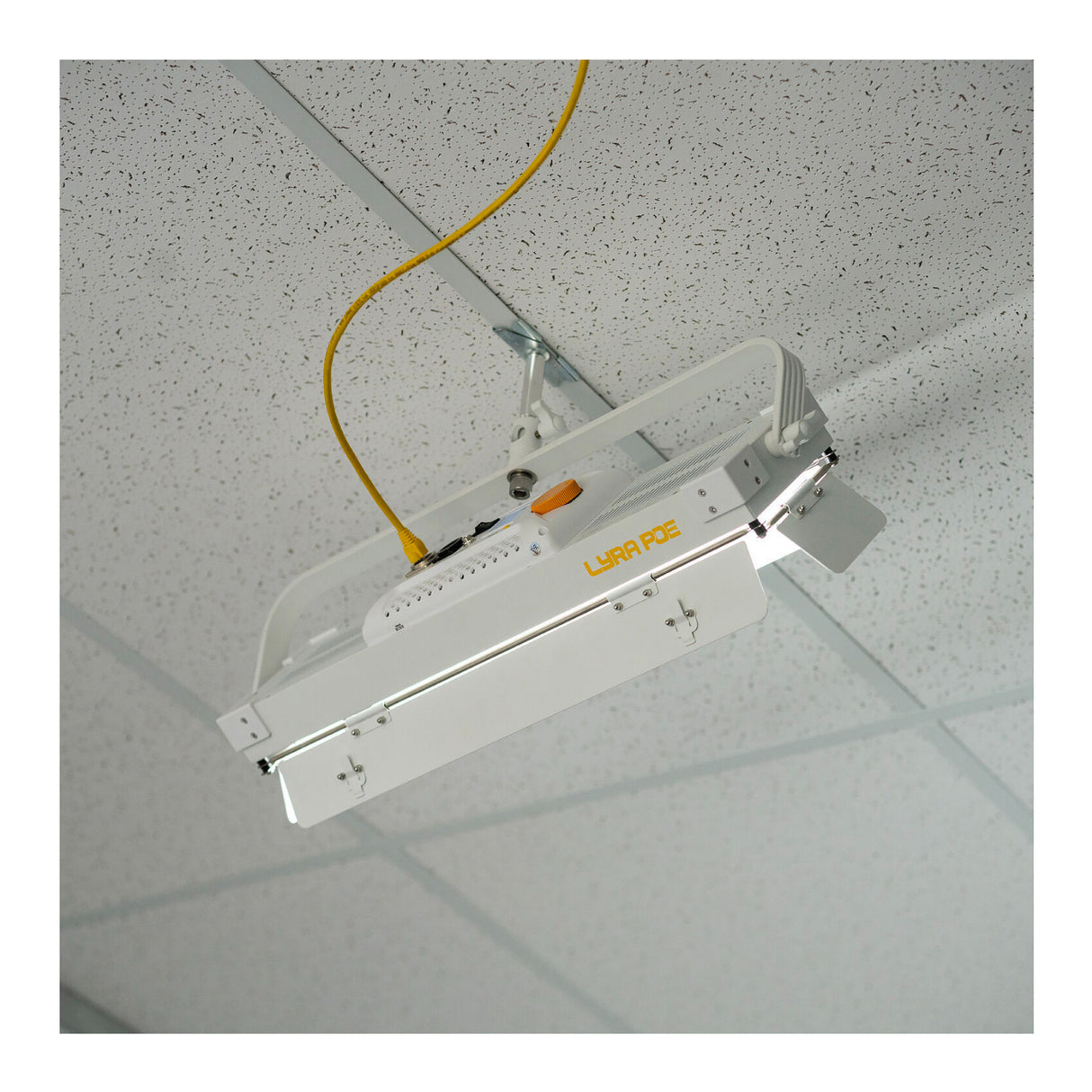

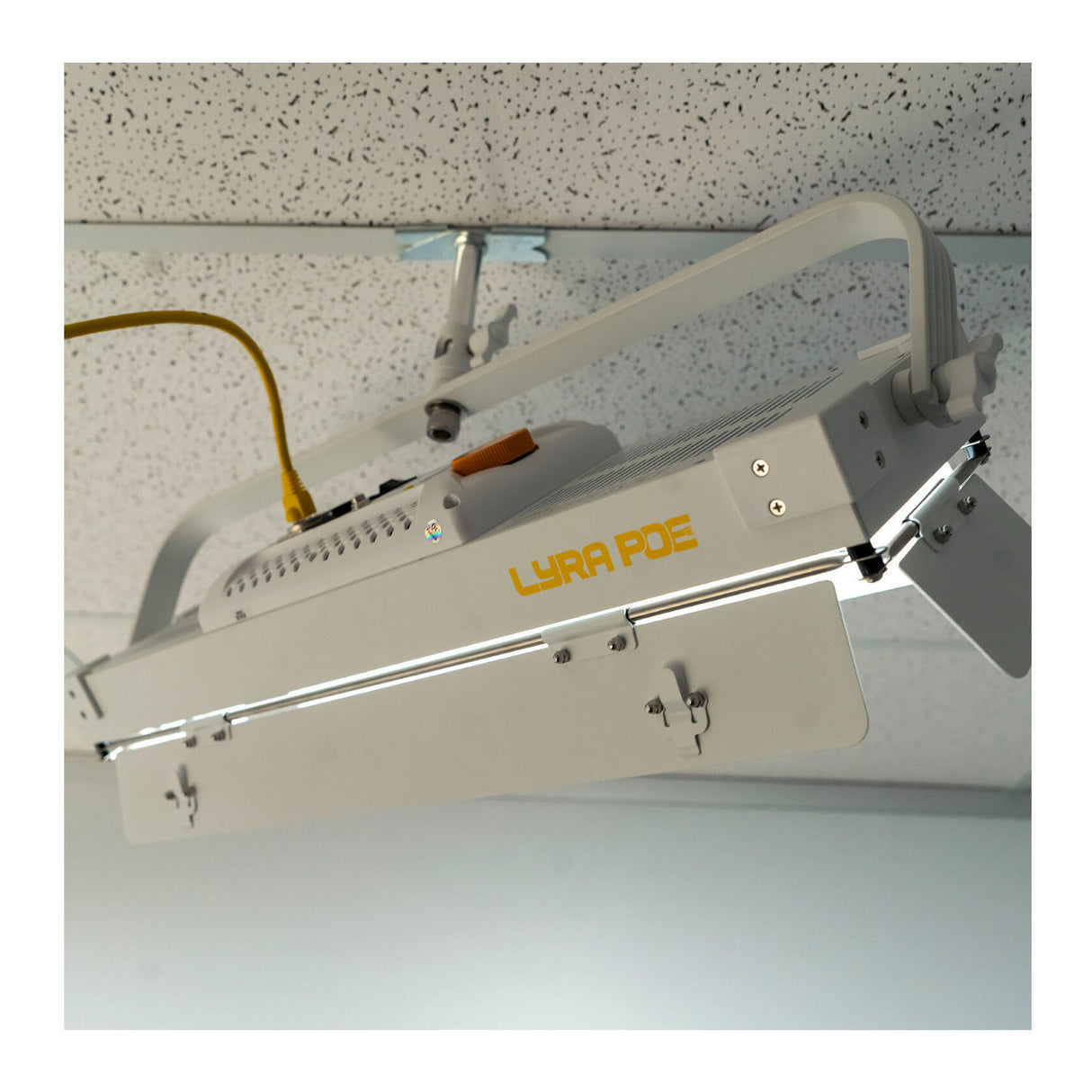

Slim Panel Design for Low-Ceiling Spaces
Each 24 x 7-inch low-profile panel is designed for environments with limited ceiling clearance, such as studios, conference rooms, and classrooms, without compromising light output or coverage.
Soft, Wraparound Illumination

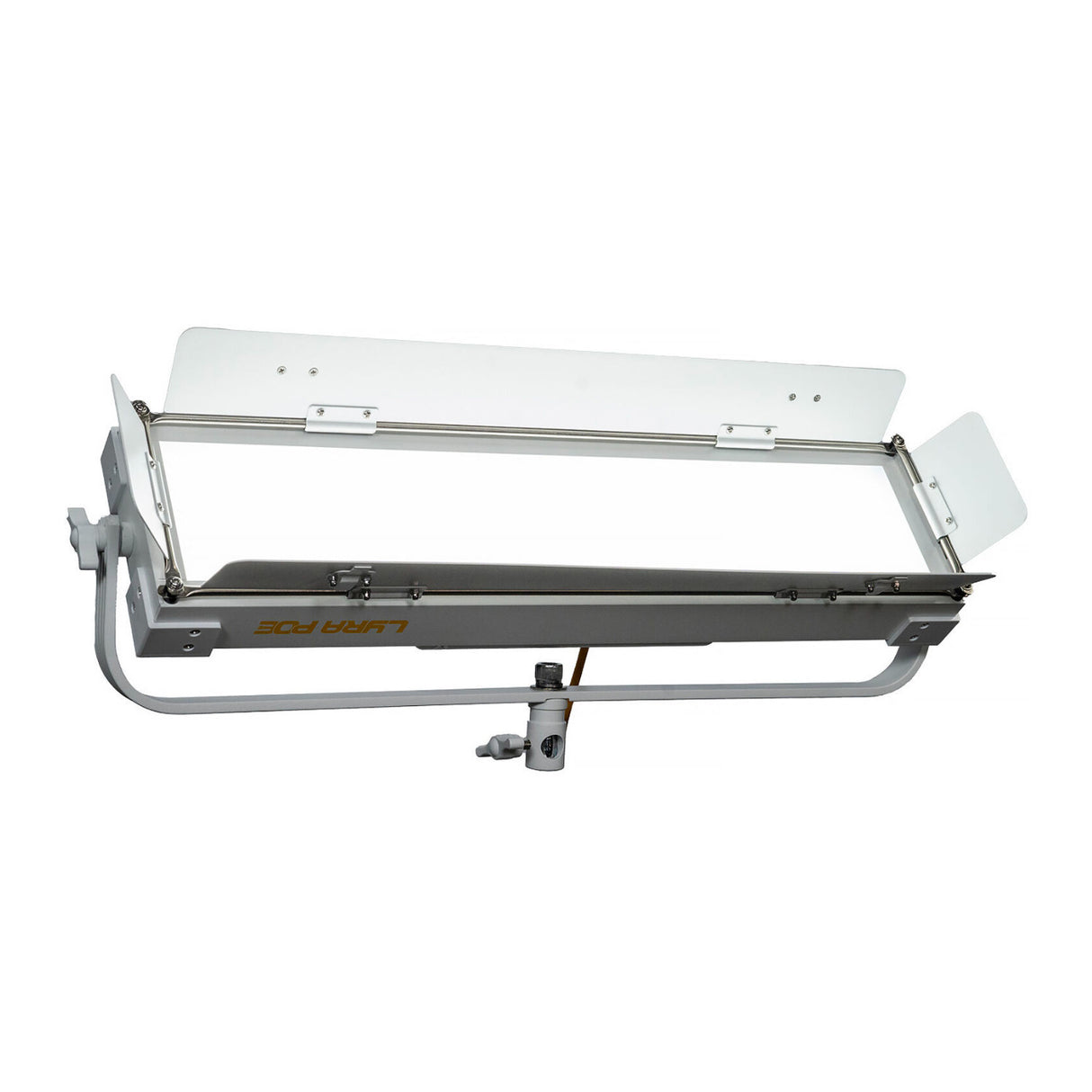

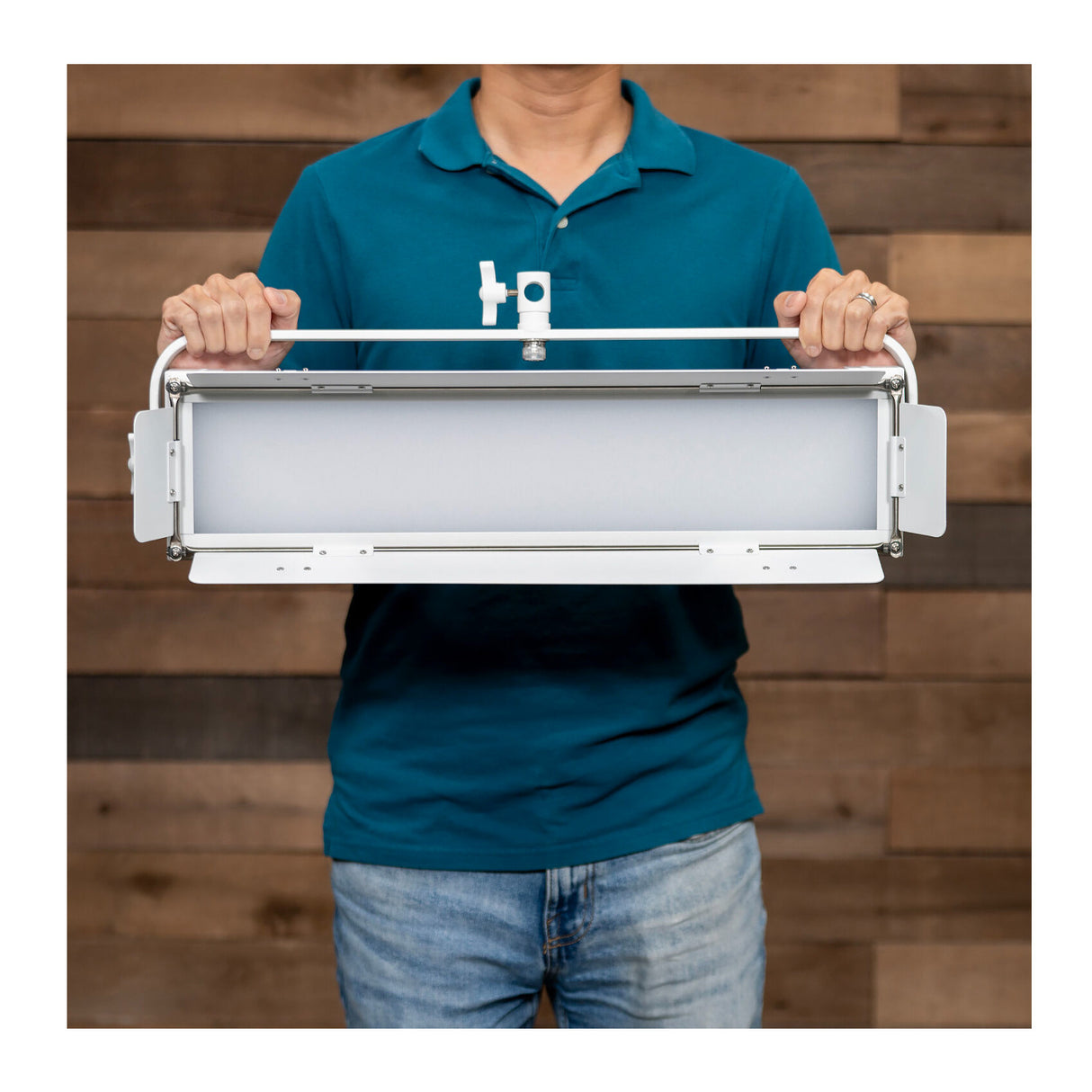

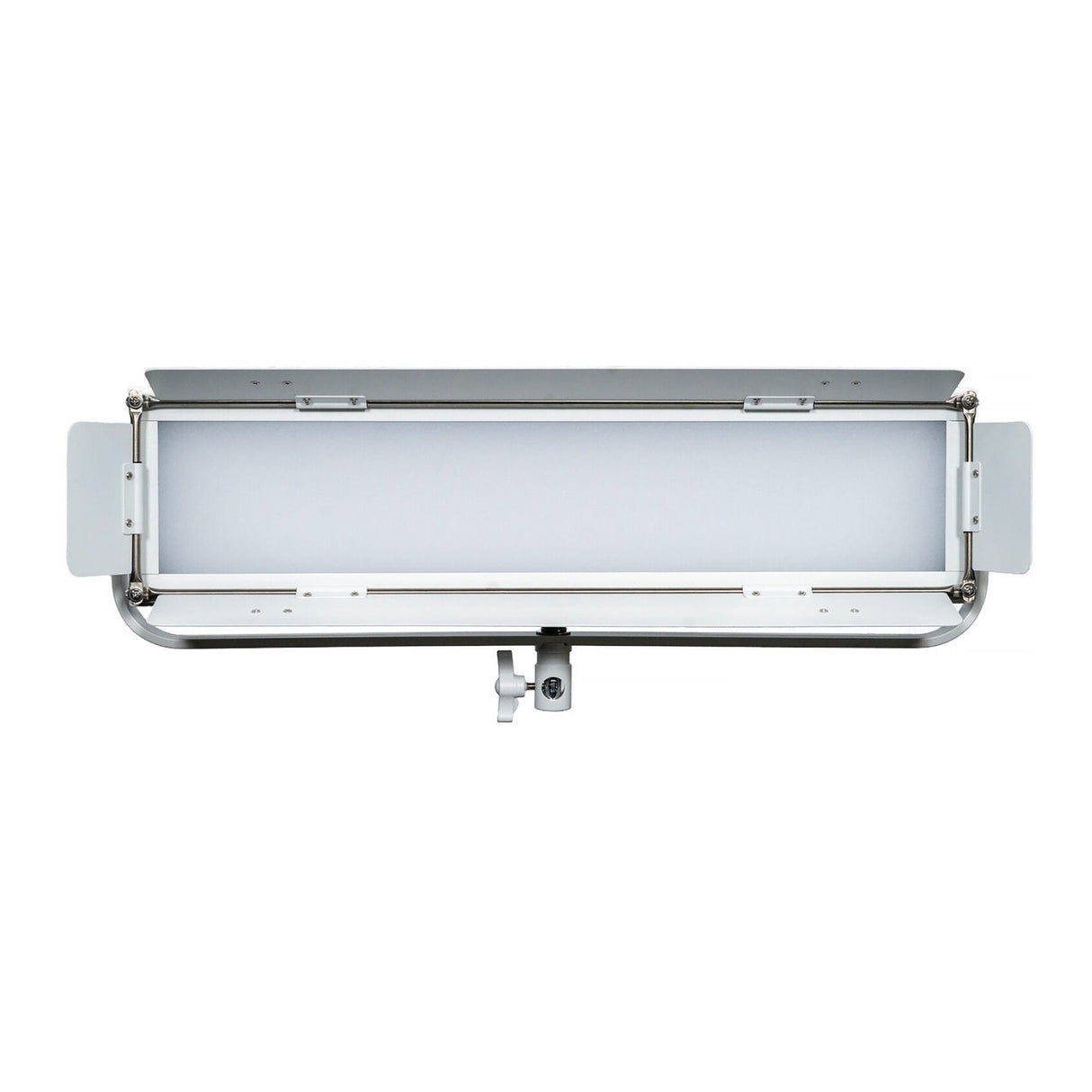

Produces a wide 110-degree beam spread with integrated diffusion for smooth, even lighting. Built-in four-leaf barndoors provide precise control over light spill and direction.

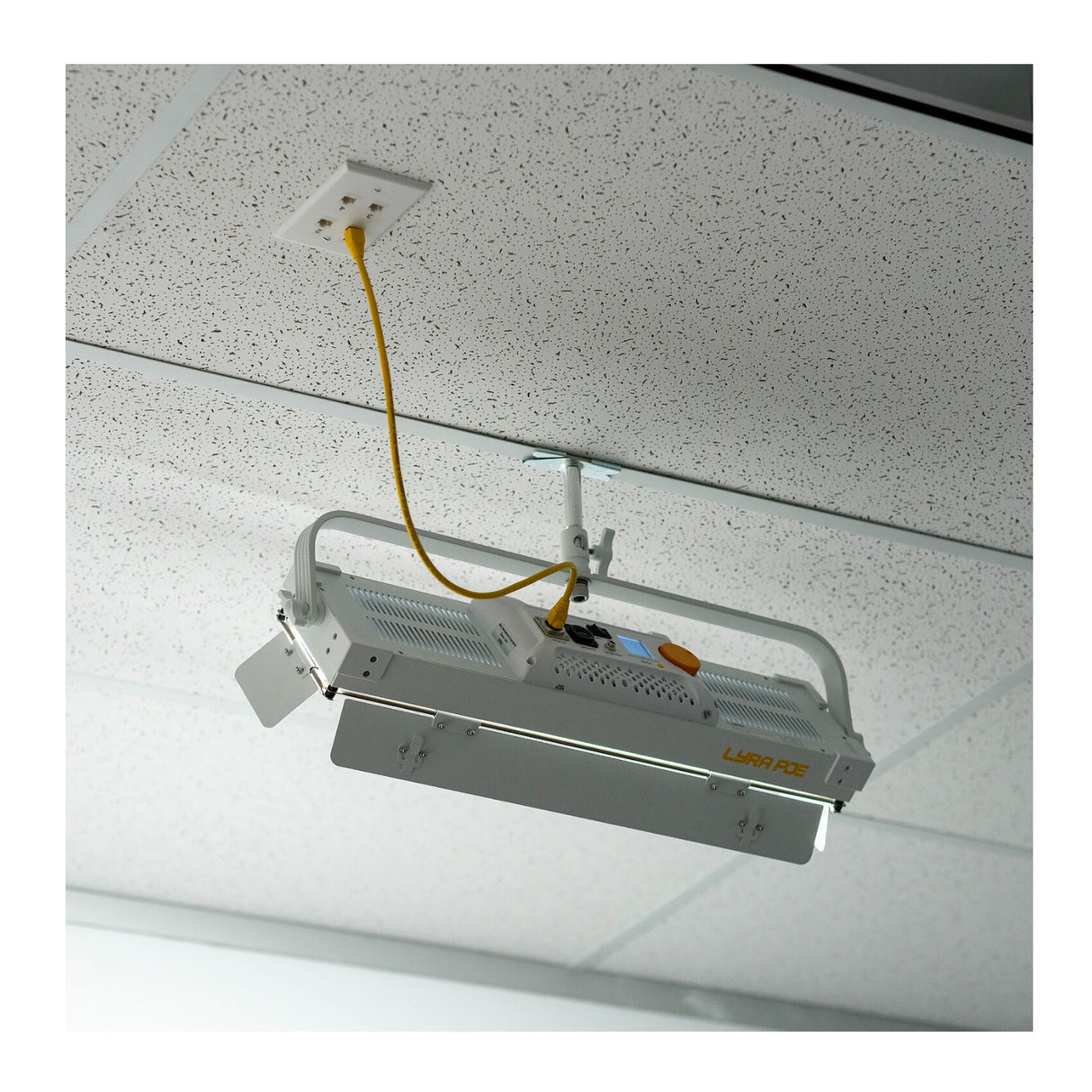

Power over Ethernet Operation

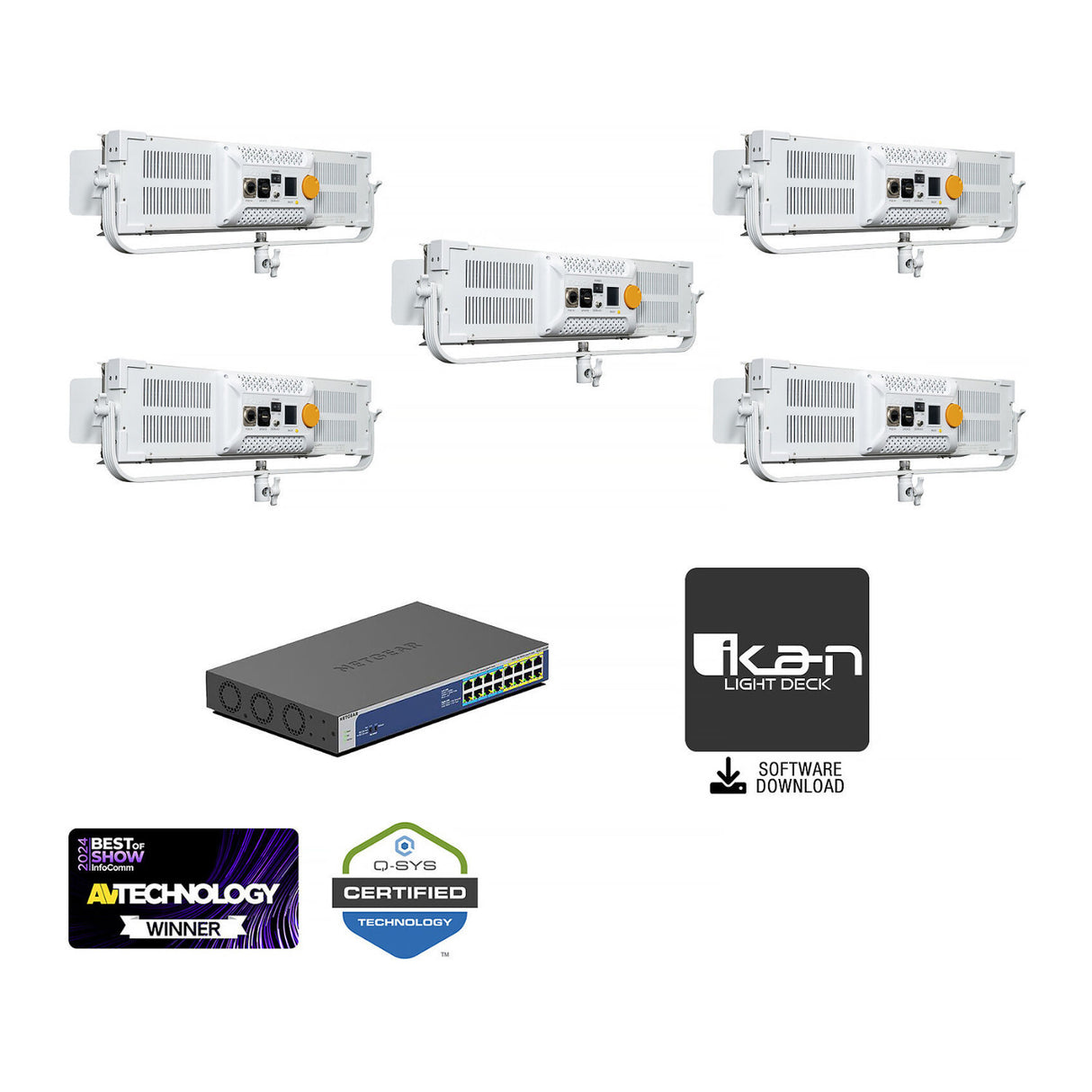

Uses PoE++ technology to deliver power and data through a single Ethernet cable, reducing installation time and eliminating the need for multiple power outlets. The included unmanaged 380W PoE++ switch ensures reliable power distribution.
Advanced Control Options
Supports onboard control via an LCD screen and rotary knob, as well as DMX control through Art-Net and sACN protocols. A web-based interface allows easy management of IP settings, DMX addresses, and universes.
Silent Fanless Cooling
Passively cooled design ensures completely silent operation, making it ideal for sound-sensitive environments such as studios and live broadcast settings.
Flexible Mounting Solutions
Includes a yoke with a Baby receiver and Junior pin for mounting on light stands or grids. An included adapter enables vertical mounting for full-body lighting setups in a variety of production scenarios.
- 127 fc / 1370 lux at 3.3 ft (1 m)
- 16 fc / 178 lux at 9.8 ft (3 m)
- 8 fc / 88 lux at 14.8 ft (4.5 m)
- 145 fc / 1566 lux at 3.3 ft (1 m)
- 18 fc / 204 lux at 9.8 ft (3 m)
- 9 fc / 104 lux at 14.8 ft (4.5 m)

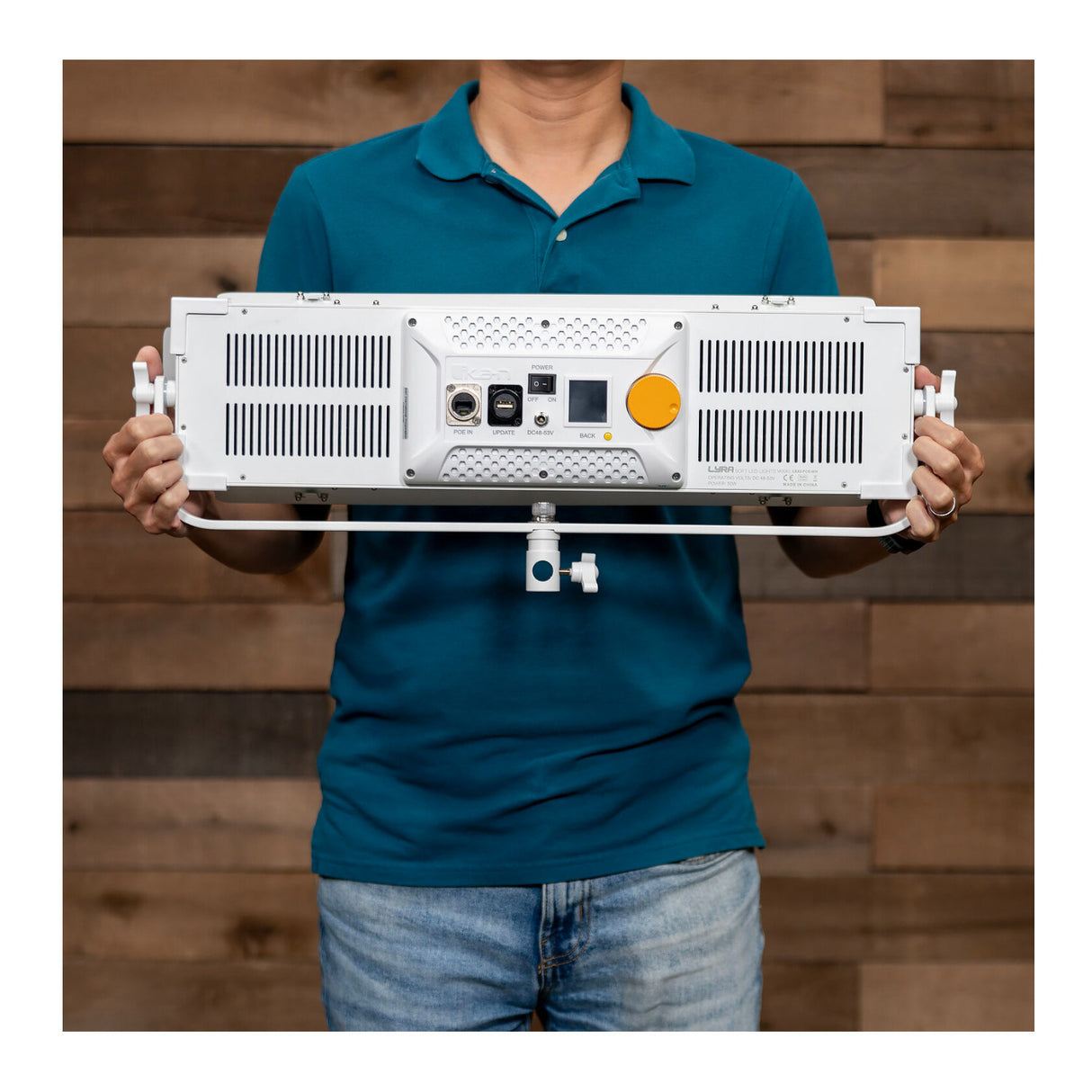

- 1x RJ45 Network/PoE input
- 1x USB-A firmware input
- 1x Barrel/Coax power input
| Item Type | 5x LED Light Panel |
| Included Light Modifier | 5x Built-in Barndoors |
| Included Filters | Built-in Diffusion |
| Color Temperature | 3200 to 5600K |
| Color Modes | Daylight, Tungsten |
| Color Accuracy | CRI 97, TLCI 99 |
| Photometrics (3200K) | |
| Photometrics (5600K) | |
| Beam Angle | 110° |
| Dimming | 0–100%, built-in dimmer and DMX |
| Cooling System | Passive |
| Expected Lamp Life | 70,000 hours |
| Power Source | Power over Ethernet (PoE), AC to DC adapter not included |
| Input Power | 48 VDC |
| Power Consumption | 50 W |
| Inputs/Outputs | |
| Display | LCD |
| Mounting | Manually operated yoke with 1-1/8 inch stud and 5/8 inch receiver |
| Materials | Metal, Plastic |
| Certifications | CE, UKCA |
| Operating Temperature | 10 to 110°F (-12 to 43°C) |
| Dimensions | 24.5 x 7 x 1.9 inches (62.2 x 17.8 x 4.8 cm) |
| Weight | 4.9 lb (2.2 kg) |
