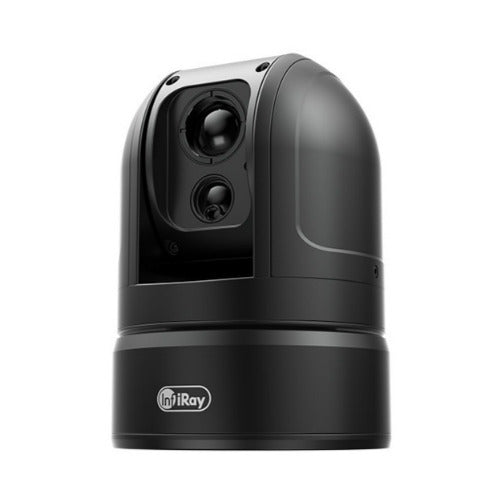

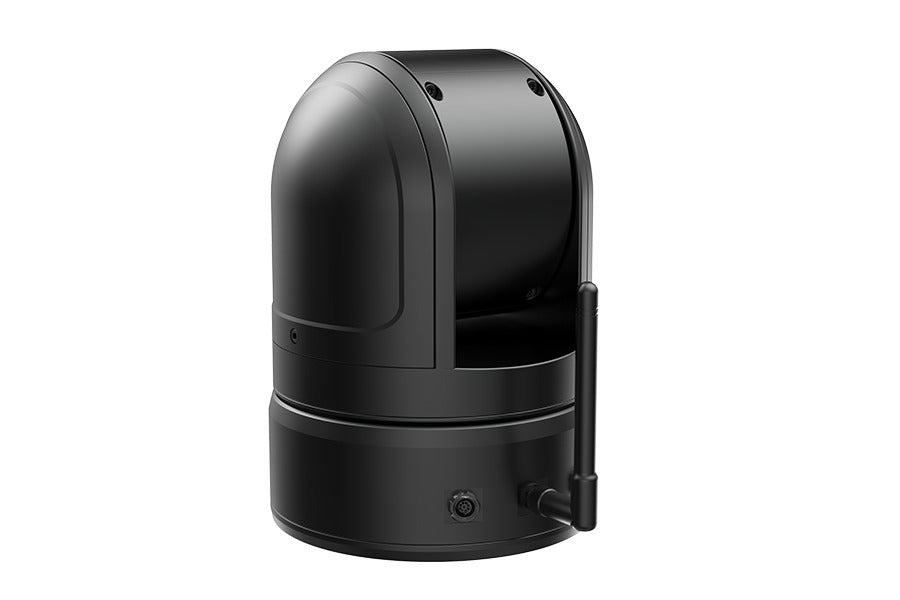

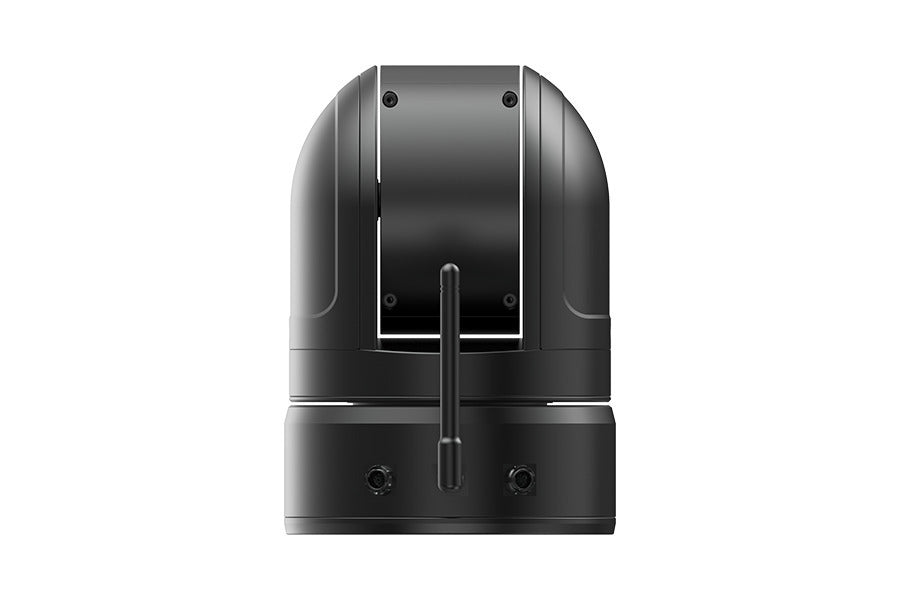

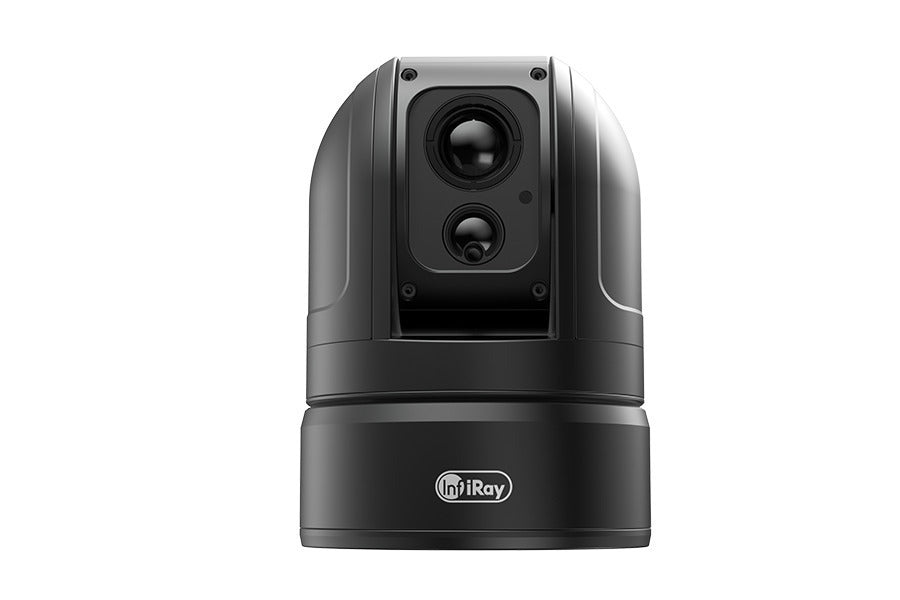

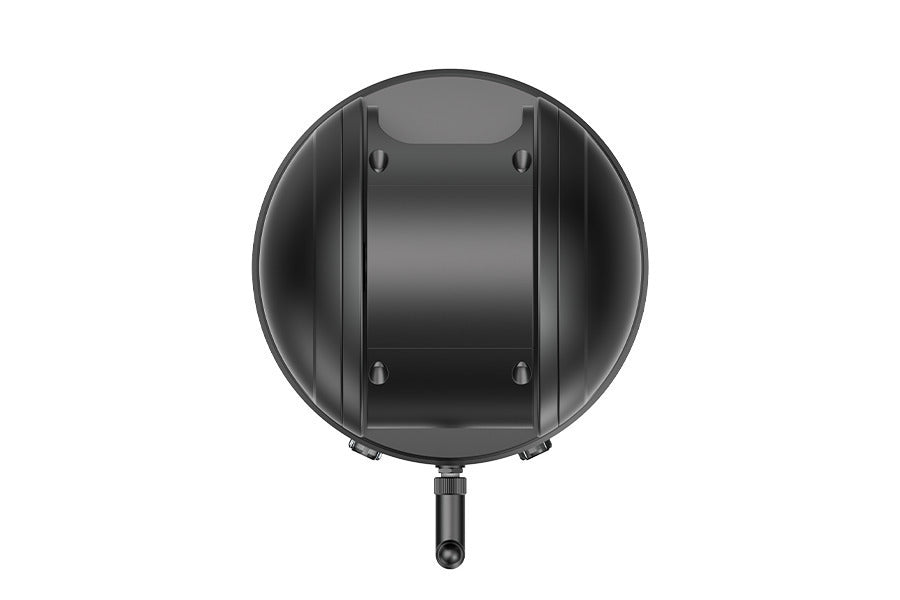

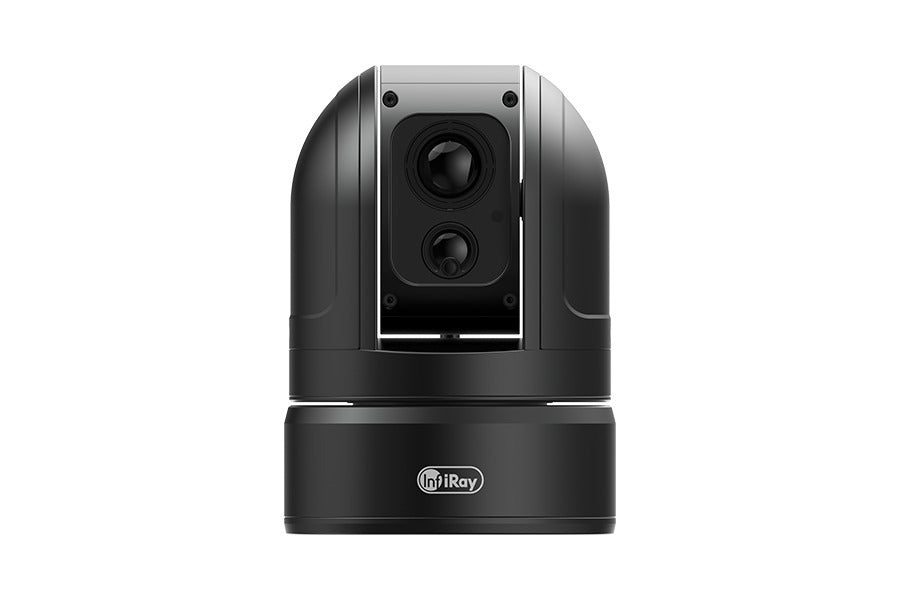

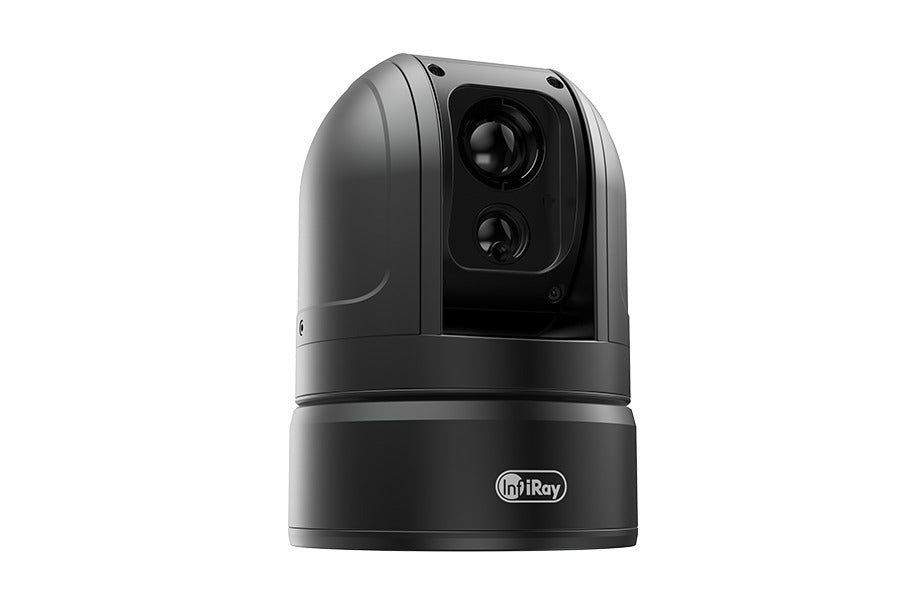

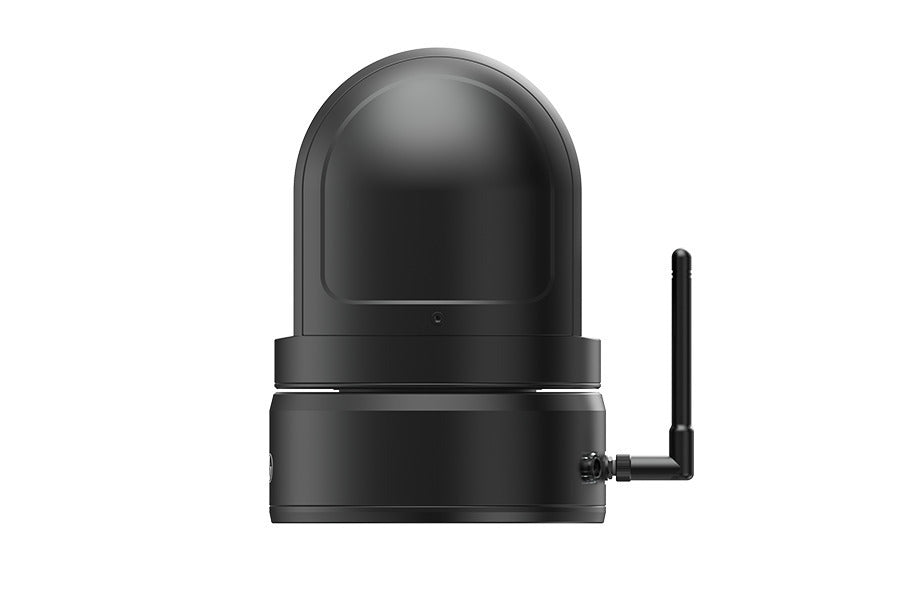

The InfiRay M6 Series Dome Thermal Camera is a vehicle-mounted PTZ thermal camera system developed for outdoor hunting, search, and rescue. It can rapidly be installed on the vehicle roof by a pressurized suction cup or securely mounted on a rack.
Higher Image Quality
With the 640 x 512 high resolution, the M6 Series gives you greater detail and clearer pictures in all weather conditions. The camera is gyrostabilized for that enhanced user experience when on the move, especially traveling off-road.
Multiple Output Interface
Adopt standard monitoring input and output interface, support analog video output, H.264 network output, and PELCO-D control protocol. It can be easily connected to a home or land monitoring system.
Easy Installation
It can rapidly be installed on the roof by a pressurized suction cup or securely mounted on a bracket.
Extreme Temperature Resistance
The IP56 rating makes it suitable for extreme weather. It has a wide operating temperature range (between -20 to 60-degree-C) that can suit any conditions. It is also equipped with an IP69K Rating Waterproof design to protect against dust and rain.
Full Coverage
The 360-degree continuous rotation is horizontal and 90 to 90 degrees in pitch. Directly driven by a brushless motor, with low noise and stable performance.
4 Color Palettes
The M6 comes in four color palettes for true colorized temperature mapping, including ‘white hot’, ‘black hot’ ‘red hot’, and ‘pseudo color’. It will help users to find the target easily through the high contrast between the background and the target.
InfiRay M6 Series Dome Thermal Camera with 360-Degree Rotation and Extreme Temperature Resistance
Detector Specifications
| Type | Vox |
| Resolution | 640 x 512 pixels |
| Pixel size | 12 |
| Spectrum range | 8 to 14μ |
| NETD | ≤50 mk |
| Frame rate | 50 Hz |
Optical Specifications
| Objective Lens | 25 mm |
| Field of view (H x V) | 17.5 x 14.0 degrees |
| Imaging range | ≥3 |
| Digital zoom | 1x/2x/4x |
| Image processing | Digital filter noise reduction/digital detail enhancement |
Camera
| Azimuth range | 360-degree continuous rotation |
| Pitch range | 90 to 90 degree |
Physical Specification
| Wi-Fi/APP support | InfiRay outdoor |
| IP rating | IP56 |
| Operating temperature | -20 to 60-degree-C |
| Weight | 2000 g |
| Dimensions | φ133 mm, 188 mm high |
Functions
| Laser pointer | Yes |
| Laser rangefinder | Yes |
