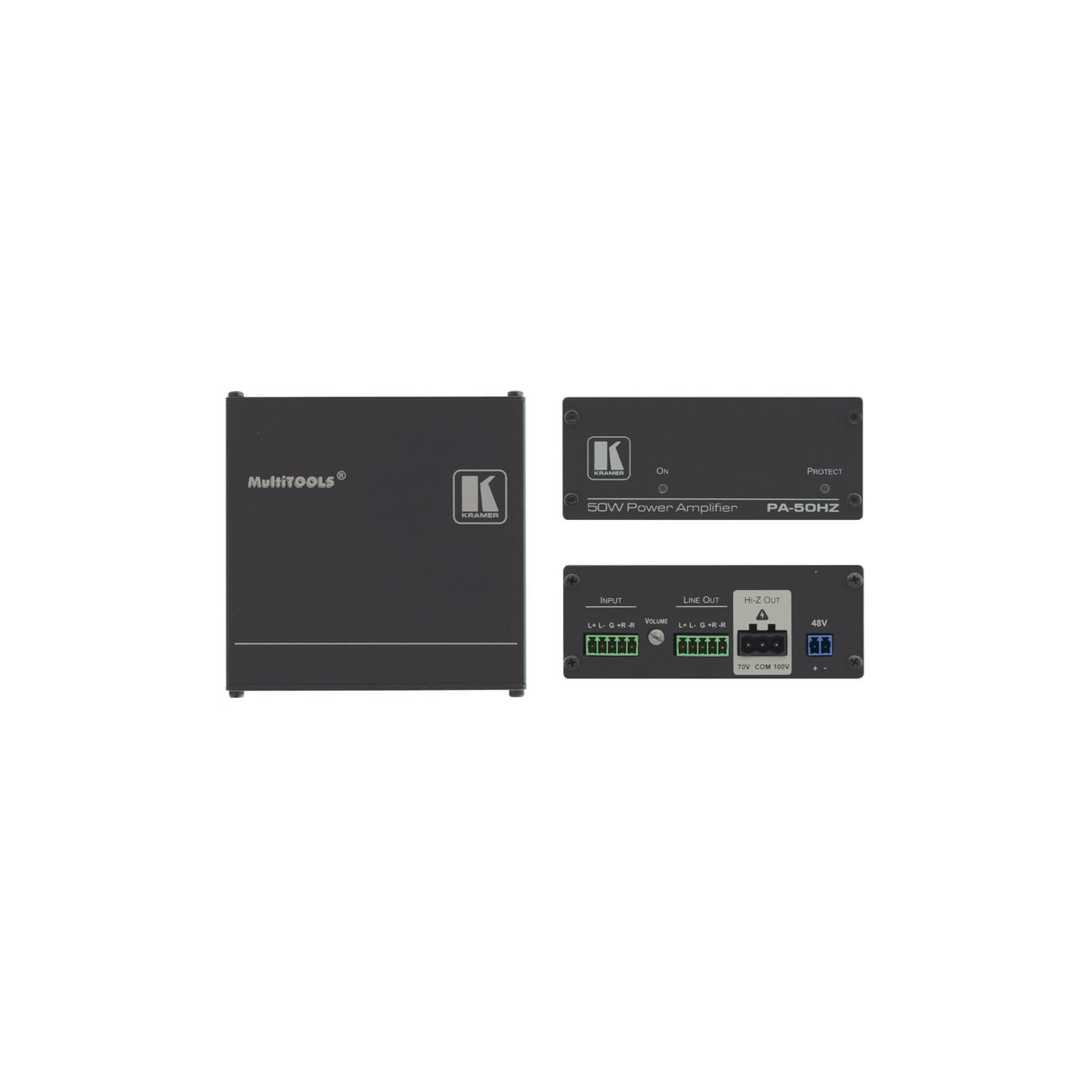

Kramer PA-50HZ Power Amplifier (50W at 70/100V)
- 50W Power Output
- Balanced Stereo I/O
- Input Level Adjustment
- Cascadable Line-Level Output
- Compact & Fanless Design
Powerful 70V or 100V Amplification
The PA−50HZ (PA−50Z) is a compact Class D power amplifier designed for Hi-Z (70V/100V) line systems, delivering a robust 50W output. Perfectly suited for small to medium-sized meeting rooms and classrooms, it ensures clear and consistent audio coverage over long cable runs without loss of signal quality.

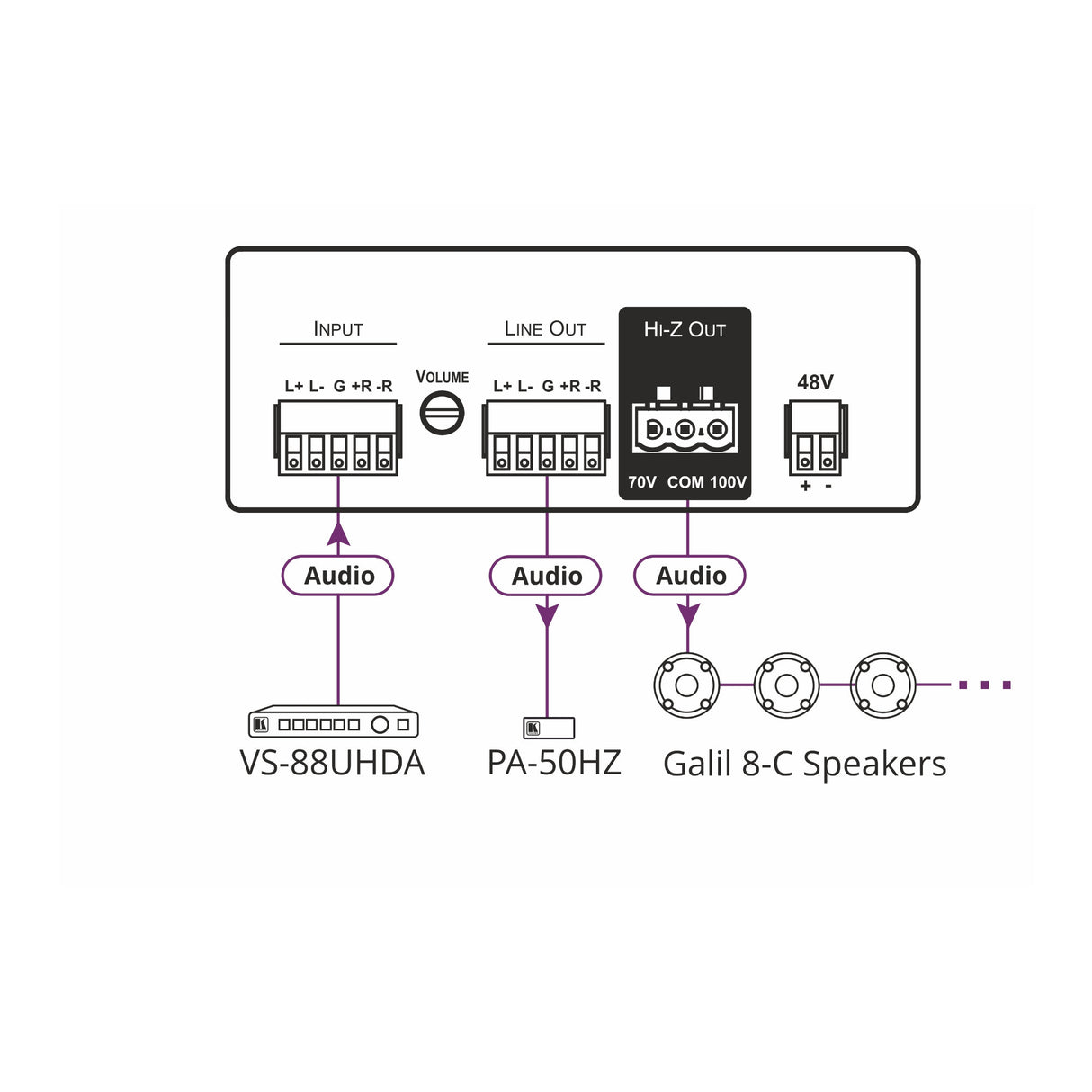

Balanced Stereo Input and Output with Input Level Adjustment
Equipped with balanced stereo inputs and outputs, this amplifier allows precise control over input levels for optimal sound balance. This flexibility makes it easy to integrate with various audio sources while maintaining pristine audio fidelity and minimal noise interference.

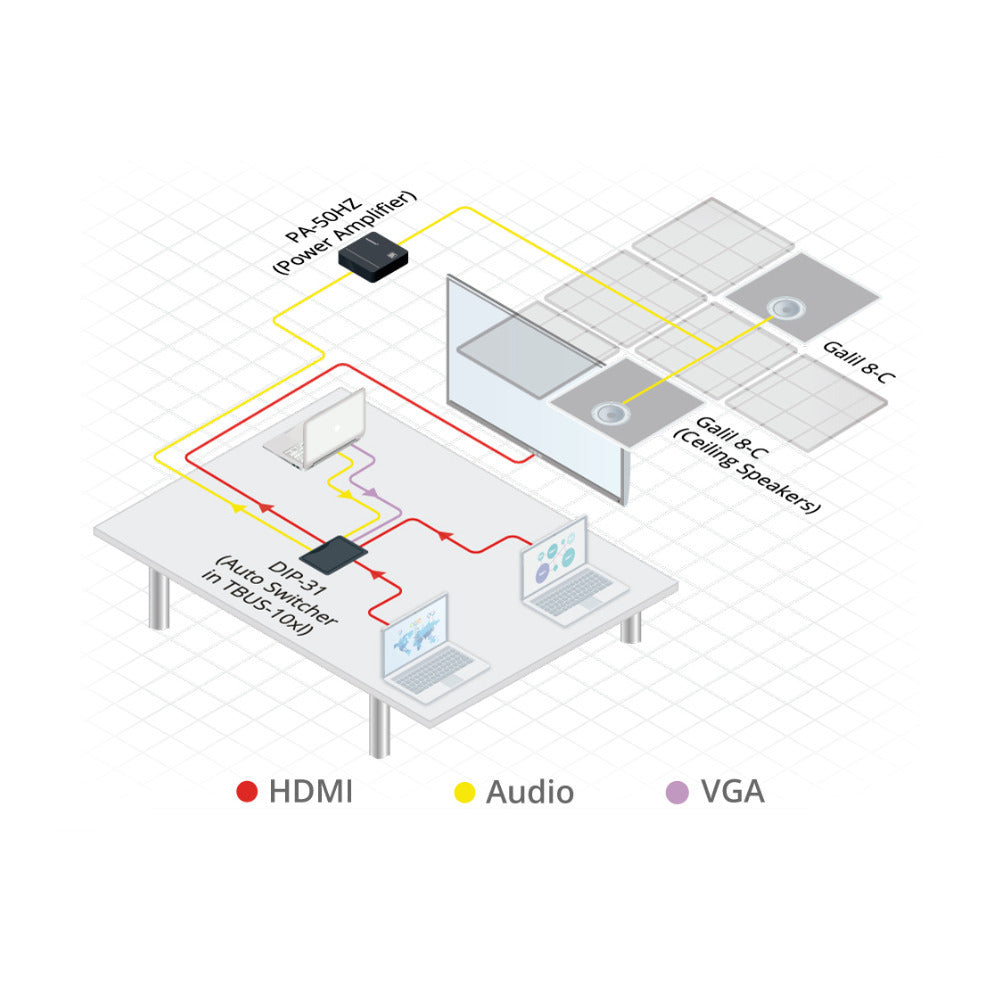

Cascadable Line-Level Output for Flexible System Expansion
The PA−50HZ features a line-level output, enabling seamless cascading to additional amplifiers. This capability is ideal for expanding audio coverage, recording sessions, or conferencing setups, providing a versatile solution for growing audio system demands.
Compact Design with Efficient Cooling
Designed with a small form factor and convection cooling, the PA−50HZ offers simple installation without the need for additional cooling fans or complex mounting arrangements. Its quiet operation and space-saving design make it a perfect fit for discreet placement in any professional environment.
Reliable 50W Power Output for Clear Audio
With a consistent 50W power output into either a 70V or 100V line, this amplifier delivers clear and reliable sound performance. Whether for public address announcements, background music, or multimedia presentations, the PA−50HZ provides a dependable audio solution tailored to your space.
Kramer PA-50HZ Power Amplifier (50W at 70/100V)
Inputs
| 1 Stereo Balanced Audio | On a 5–pin terminal block (up to +4dBu/10kΩ) |
Outputs
| 1 Stereo Balanced Line Level | On a 5–pin terminal block connector (up to +4dBu/600Ω) |
| 1 Mono Speaker | On a 3–pin large terminal block |
Input Sensitivity
| Full power @1.5V (+5dBV) |
Amplifier
| Class | D |
| Output Power | 1 x 50W @ 70V or 100V |
| Maximum Voltage Gain | 37dB BTL |
| Dynamic Range | >120dB |
| Frequency Response | Speaker output 50Hz to 20kHz @ +/–3dB |
| Frequency Response | Line level output 20Hz to 20kHz @ +/–0.3dB |
| S/N Ratio | 90dB, 20 Hz — 20 kHz |
| Audio THD + Noise | Speaker output THD+N (1kHz @ 1W) 0.01 % |
| Audio 2nd Harmonic | 0.00006% |
| Controls | Screw trimmer input volume attenuator |
Power
| Consumption | 48V DC, 1.2A |
| Source | 48V DC, 1.36A |
Environmental Conditions
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non-condensing |
Regulatory Compliance (Standards Compliance)
| Safety | CE, UL |
| Environmental | RoHs, WEEE |
Product Dimensions
| 10.68cm x 10.35cm x 4.36cm (4.20in x 4.07in x 1.72in ) W, D, H |
