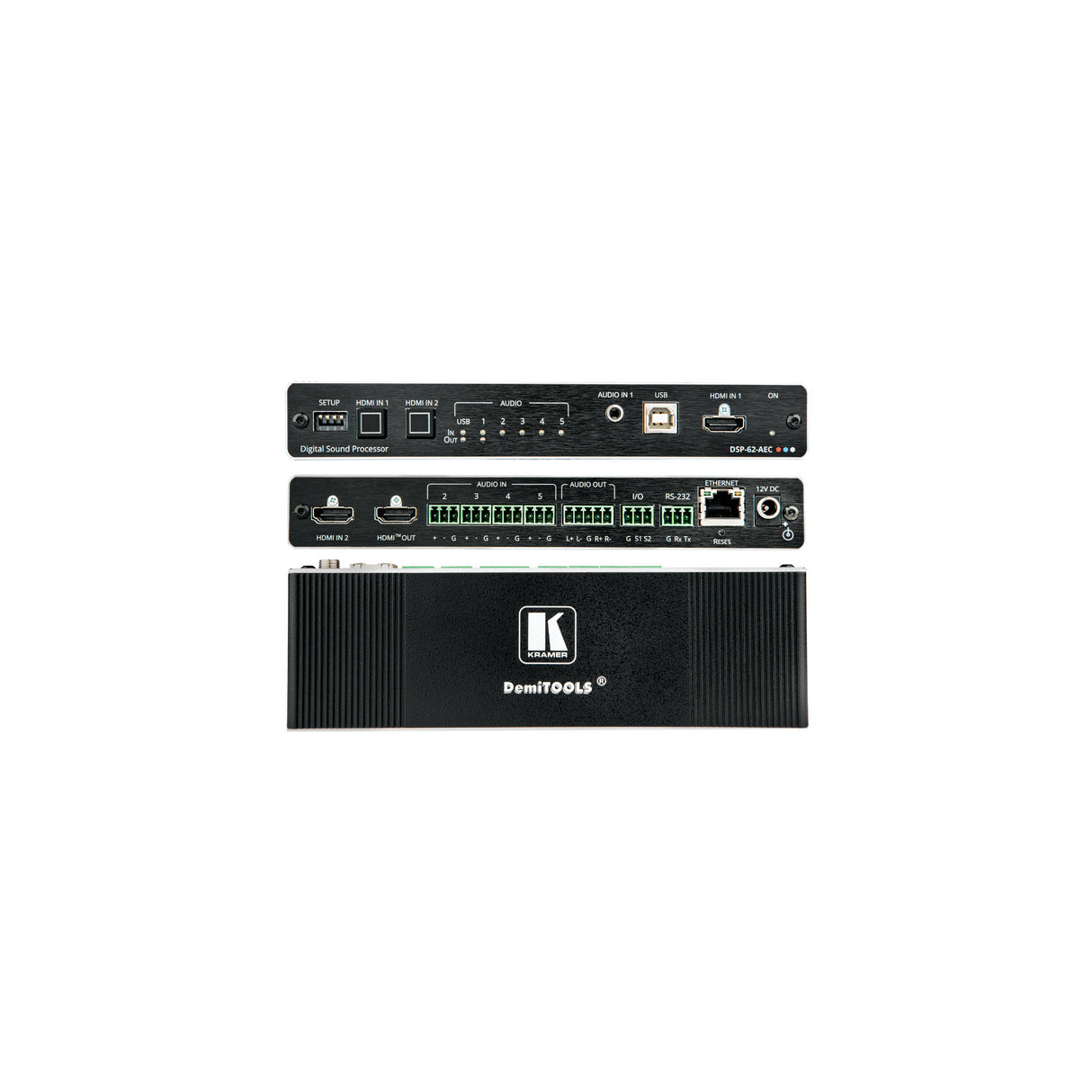

Kramer DSP-62-AEC 6x2 PoE Audio Matrix with DSP and AEC HDMI De-Embedding
Couldn't load pickup availability
Product highlights
Product highlights
In the box
In the box
Free standard shipping
Free standard shipping
*Orders placed before 1 PM EST Mon - Thur will ship the same day. Orders placed beyond these hours will be shipped the next business day. Exclusions apply. See shipping policy
Free Local Pickup
Free Local Pickup
Please call for store stock availability. Requests made before 2:30 PM EST can be available for next-day pickup. Learn more
Kramer DSP-62-AEC 6x2 PoE Audio Matrix with DSP and AEC HDMI De-Emb...
The 6x2 PoE Audio Matrix Switcher with DSP and AEC is designed for professional audio setups that require reliable connectivity and clear sound processing. It combines multiple input and output formats, DSP control, HDMI audio de-embedding, and teleconference optimization in a compact unit.
Advanced Audio Processing
Equipped with 32-bit digital to analog conversion and selectable sampling rates up to 96 kHz, the unit delivers accurate audio signal management. This ensures stable performance with low distortion and excellent signal-to-noise ratio, maintaining audio quality across different applications.
Flexible Input and Output Options
The device supports 2 HDMI inputs, 4 balanced and 1 unbalanced audio inputs, 2 balanced outputs, and 1 USB bidirectional port. These connections allow integration with various systems and devices, providing versatility for both small and large setups.
PoE Powering
The switcher operates using Power over Ethernet, reducing the need for multiple power supplies. Optional mains powering is also supported for flexible installation in different environments.
Teleconference Optimization
Acoustic Echo Cancellation prevents far-end speech from looping back through microphones. This improves clarity during calls, making the unit effective for conference rooms and remote meetings.
HDMI De-Embedding
Audio can be separated from HDMI input signals and routed to analog outputs or USB, increasing flexibility in system design and integration.
Control and Configuration
A user-friendly graphic interface allows adjustment of input and output levels, DSP settings, routing, and phantom power selection. RS–232 API commands provide further control options through external devices.
Reliable Installation and Maintenance
LED indicators assist in local monitoring and troubleshooting. The compact fanless enclosure supports surface or rack mounting, and firmware upgrades via USB ensure the device stays up to date.
Inputs
| 2 HDMI | On female HDMI connectors |
| 4 Balanced Mono Audio | On 3–pin terminal blocks |
| 1 Unbalanced Stereo Audio | On a 3.5mm mini jack |
Outputs
| 1 Balanced Stereo Audio | On a 5–pin terminal block connector |
| 1 HDMI | On a female HDMI connector |
Ports
| 1 USB Audio | On a female mini USB–B connector |
| 1 RS-232 | On a 3–pin terminal block |
| 1 Ethernet | On an RJ–45 female connector |
Line/Mic Level Input
| Impedance Unbalanced | 7.6kΩ |
| Impedance Balanced | 3.8kΩ |
| Impedance Microphone | 3.8kΩ |
| Nominal level Unbalanced | 0dBV (0.77Vrms) |
| Nominal level Balanced | +6.8dBu (1.54Vrms) |
| Maximum level (Balanced) | +8dBu (2Vrms) |
| Sensitivity Unbalanced | Full power @ 0dBV (0.77Vrms) |
| Sensitivity Balanced | Full power @ +6dBu (1.54Vrms) |
| Phantom Power | 48 VDC on/off per input |
Line Level Output
| Impedance Unbalanced / Balanced | 500Ω |
| Frequency Response | 20Hz — 20kHz @ +/–1dB |
| S/N Ratio | >85dB, 20Hz — 20kHz, at unity gain (unweighted) |
| Audio THD + Noise | <0.01%, 20 Hz — 20kHz, at unity gain |
| Crosstalk | <–85dB, 20Hz to 20kHz |
Video
| Max Bandwidth | 18Gbps (6Gbps per graphic channel) |
| Max Resolution | 4K@60Hz (4:4:4) |
| Compliance | HDMI and HDCP 2.2 |
User Interface
| Indicators | Power and audio port status LEDs |
| Controls | Input selection buttons |
Control RS-232
| Baud Rate | 115200 |
Supported PC Web Browsers
| Windows | Chrome |
Power
| Source | PoE or 12V DC 5A adapter |
| Consumption | 630mA |
Environmental Conditions
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
Regulatory Compliance (Standards Compliance)
| Safety | CE, FCC |
Enclosure
| Size | DemiTOOLS |
| Type | Aluminum |
| Cooling | Convection |
Product Dimensions
| 19.05cm x 5.96cm x 2.74cm (7.50 in x 2.35 in x 1.08 in) W, D, H |
Product Weight
| 0.2kg (0.3lbs) approx. |
Shipping Dimensions
| 34.50cm x 16.50cm x 5.20cm (13.58 in x 6.50 in x 2.05 in) W, D, H |
Shipping Weight
| 0.6kg (1.3lbs) approx. |
