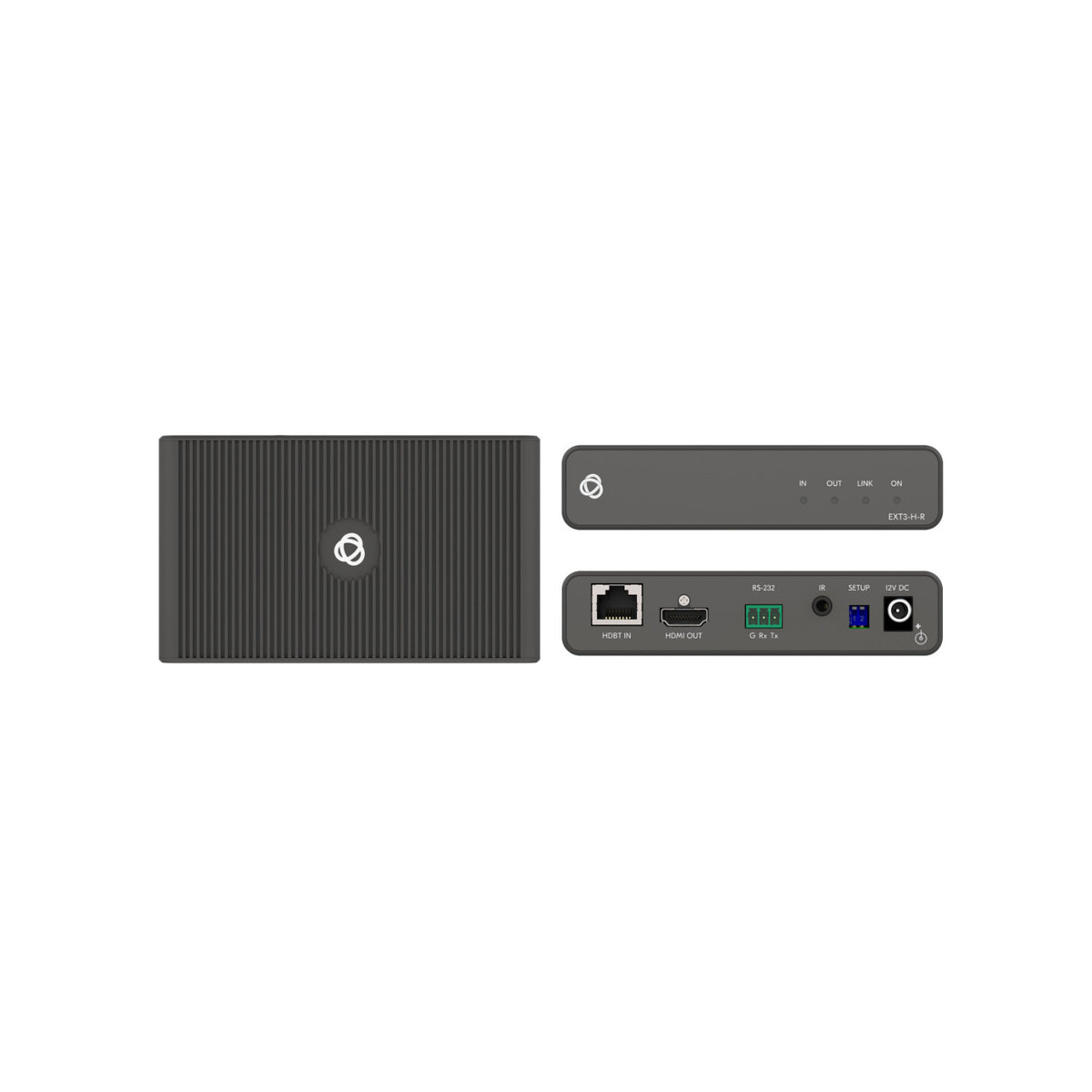

Kramer 4K60 4:4:4 HDR HDMI Receiver with RS-232 & 3.0 HDBaseT
EXT3−H−R is a high−performance, HDBaseT 3.0 receiver for 4K60 4:4:4 HDR HDMI, RS−232 and IR signals over twisted pair. EXT3−H−R converts the HDBaseT 3.0 signal and outputs it to its HDMI and control ports. It enables extending video signals to up to 40m (130ft) over Kramer copper CAT cables at up to 4K at 60Hz (4:4:4) video resolutions. It is compatible with standard HDBaseT−compliant extenders at up to 4K at 60Hz 4:4:4 video resolutions.
High Performance Standard Extender
Professional HDBaseT extender for providing signals over twisted–pair copper infrastructures. Video signals are received uncompressed with near–zero latency.
Future-Proof, Standard Extender
EXT3–H–R is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signals
Intelligent Compression Handling
HDR HDCP 2.3 compliant. Supports deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0b. EDID and CEC signals are passed through from the source to the display.
Multi-Channel Audio Extension
Up to 32 channels of digital stereo uncompressed signals for supporting studio–grade surround sound.
Bidirectional RS–232 Extension
Serial interface data flows in both directions, allowing data transmission and device control at baud rates up to 115200 bps with no need for pre configuration.
Bidirectional Infrared Extension
Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.
Cost-Effective Maintenance
Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS–232 connection ensures lasting, field–proven deployment.
Easy Installation
Compact DigiTOOLS fan–less enclosure for dropped–ceiling mounting, or side–by–side mounting of 3 units in a 1U rack space with the recommended rack adapter.
Kramer 4K60 4:4:4 HDR HDMI Receiver
Outputs
| 1 HDMI | On a female HDMI connector |
Ports
| HDBaseT 3.0 | Input port |
| 1 RS-232 | On a 3–pin terminal block connector for serial link extension |
| 1 IR | On a 3.5mm mini jack connector |
Extension Line
| Standard Compression | Up to 40m (130ft) at 4K@60Hz (4:4:4) |
| Up to 70m (230ft) at 4K@30Hz (4 | 4:4) or full HD (1080p @60Hz 36bpp) |
| High Compression | Up to 70m (230ft) at 4K@60Hz (4:4:4), 4K@60Hz (4:2:0), or full HD (1080p @60Hz 36bpp) |
| Standards Compliance | Up to 40m (130ft) at 4K@60Hz (4:2:0) |
| Up to 70m (230ft) at full HD (1080p @60Hz 36bpp) | |
| Standards Compliance | HDBaseT 3.0 |
| Note | When using recommended Kramer cables |
Video
| Max Data Rate | Up to 18Gbps (6Gbps per graphic channel) |
| Compliance | HDCP 2.3, HDR 10 |
| HDMI Support | Deep color, x.v.Color, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS–HD, 2K, 4K, and 3D as specified in HDMI 2.0b |
Extended Bidirectional RS-232
| 300 to 115200 baud rate |
Extended Bidirectional IR
| 20kHz to 100kHz frequency |
User Interface
| Indicators | IN, OUT, LINK and ON LEDs |
| Controls | DIP–switches |
Power
| Source | 12V DC, 2A |
| Consumption | 480mA |
Environmental Conditions
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
Regulatory Compliance (Standards Compliance)
| Safety | CE, UL |
| Environmental | RoHs, WEEE |
Enclosure
| Size | DigiTOOLS |
| Type | Aluminum |
| Cooling | Convection ventilation |
General
| Product Dimensions | 12.00cm x 7.15cm x 2.44cm (4.72 x 2.81 x 0.96 inches) W, D, H |
| Product Weight | 0.3kg (0.6lbs) approx |
| Shipping Dimensions | 49.00cm x 18.60cm x 58.80cm (19.29 x 7.32 x 23.15 inches) W, D, H |
| Shipping Weight | 0.7kg (1.5lbs) approx |
Product Dimensions
| 12.00cm x 7.15cm x 2.44cm (4.72 x 2.8 x 0.96 inches) W, D, H |
Product Weight
| 0.2kg (0.5lbs) approx |
Shipping Dimensions
| 15.70cm x 12.00cm x 8.70cm (6.18 x 4.72 x 3.43 inches) W, D, H |
Shipping Weight
| 0.7kg (1.5lbs) approx. |
