Kramer 4K60 4:4:4 HDR HDMI 3.0 Transmitter with RS232 IR over LongR...

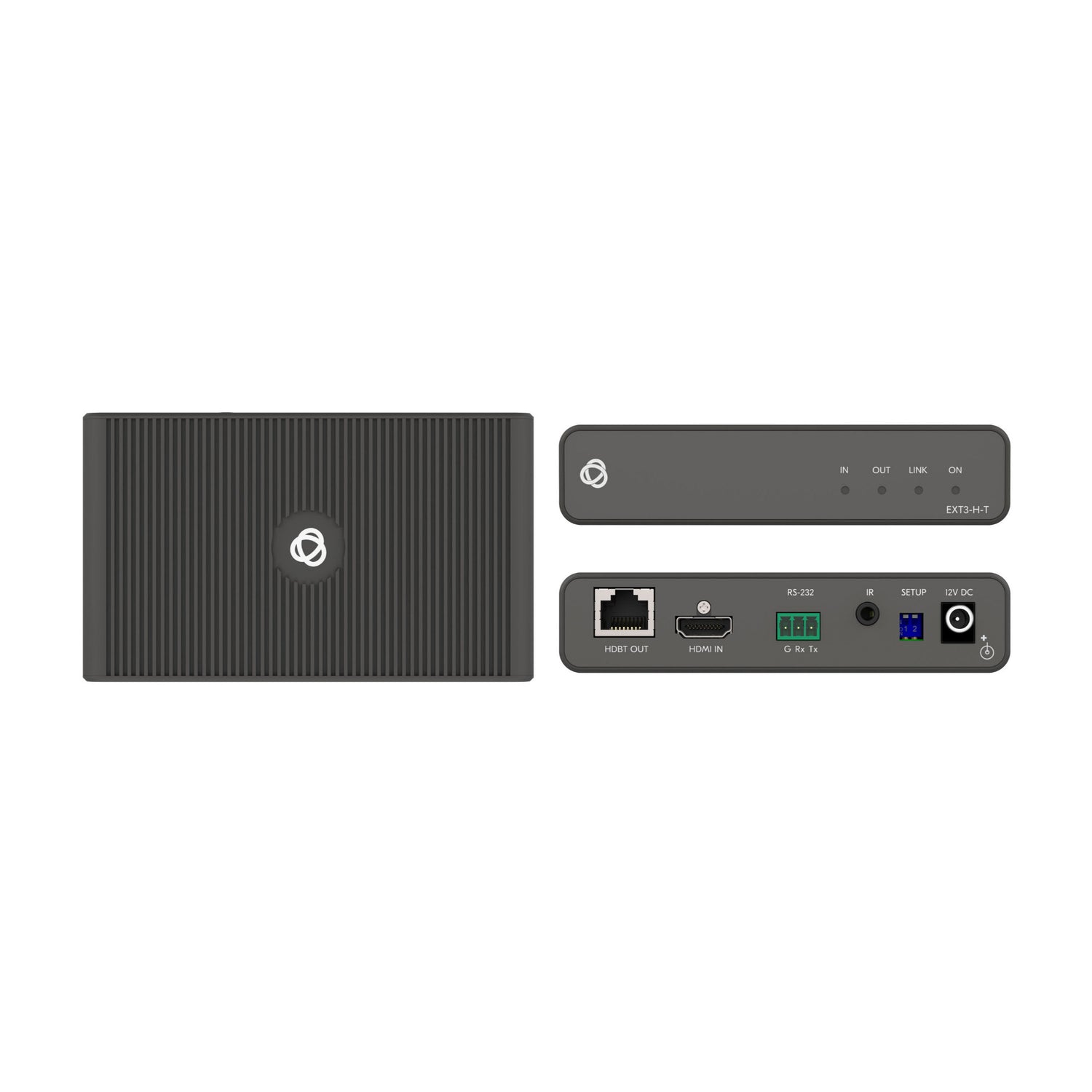

The EXT3−H−T is a high-performance HDBaseT 3.0 transmitter designed for extending 4K60 4:4:4 HDR HDMI signals, RS−232, and IR control over twisted-pair copper cabling. It converts HDMI input signals and outputs them via its HDBaseT and control ports, allowing video extension up to 40m (130ft) at full 4K60 4:4:4 resolution. Fully compatible with standard HDBaseT extenders, it ensures uncompressed, low-latency transmission for professional AV applications.
High-Performance Video Extension:
Transmits uncompressed 4K60 4:4:4 HDMI with HDR, supporting deep color, x.v.Color, lip sync, HDMI audio channels, Dolby TrueHD, DTS-HD, and 3D formats per HDMI 2.0b standards.
Multi-Channel Audio Support:
Extends up to 32 channels of uncompressed digital audio for studio-grade surround sound.
Bidirectional RS-232 and IR Control:
Allows serial and infrared control in both directions with no pre-configuration needed.
Future-Proof and Compatible:
Backwards compatible with standard HDBaseT extenders, supporting high-quality video over copper infrastructures.
Easy Installation and Maintenance:
Compact, fanless DigiTOOLS aluminum enclosure fits dropped ceilings or 1U rack mounting. Status LEDs and RS-232 firmware upgrades ensure simple troubleshooting.
Flexible Extension Options:
Supports 40m (130ft) at 4K60 4:4:4, or 70m (230ft) at 4K30 4:4:4 or full HD 1080p 36bpp using Kramer-recommended CAT cables.
Kramer 4K60 4:4:4 HDR HDMI 3.0 Transmitter with RS–232 and IR over Long–Reach HDBaseT
| Inputs | 1× HDMI |
| Outputs/Ports | 1× HDBaseT 3.0, 1× RS-232 (3-pin), 1× IR (3.5mm mini-jack) |
| Extension Line | Up to 40m (130ft) at 4K60 4:4:4, up to 70m (230ft) at 4K30 or 1080p @60Hz |
| Video Bandwidth | Up to 18Gbps |
| HDMI Support | Deep color, lip sync, Dolby TrueHD, DTS-HD, 2K, 4K, 3D, HDR10, HDCP 2.3 |
| RS-232 | 300–115200 baud, bidirectional |
| IR Frequency | 20–100kHz, bidirectional |
| User Interface | IN, OUT, LINK, ON LEDs; DIP switches |
| Power | 12V DC, 2A; 450mA consumption |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10 percent to 90 percent, non-condensing |
| Compliance | CE, UL, RoHS, WEEE |
| Enclosure | Aluminum DigiTOOLS, fan-less |
| Dimensions | 12.00 × 7.15 × 2.44 cm (4.72inch × 2.81inch × 0.96inch) |
| Weight | 0.3 kg (0.6lbs) |
