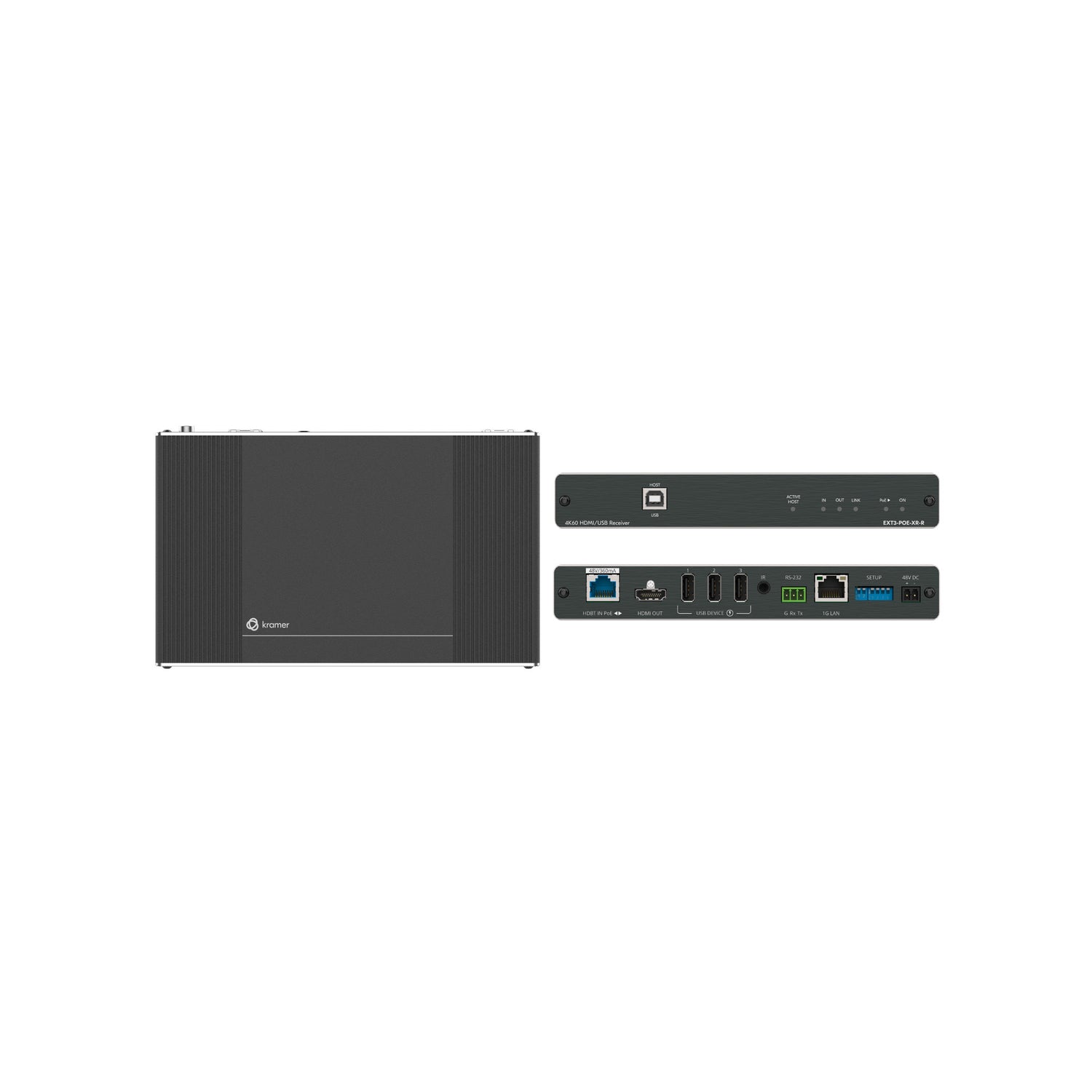

Kramer EXT3-POE-XR-R4K60 4:4:4 Receiver with Bidirectional PoE 100m...
The EXT3 POE XR R4K60 is a high performance HDBaseT 3.0 receiver designed for extended reach transmission of HDMI, USB, Ethernet, RS232, and IR signals with bidirectional PoE support. It enables reliable signal delivery and power management over CAT copper cables.
Extended 4K HDMI Transmission
Delivers 4K60Hz (4:4:4) video signals up to 100 meters over CAT copper cables, ensuring stable signal delivery for displays and AV systems.
Bidirectional PoE Support
Automatically senses the extension line PoE status to either supply power to remote devices or receive power from a PoE source, reducing the need for separate power adapters.
USB 2.0 Extension
Extends USB 2.0 signals between transmitter and receiver, supporting cameras, audio devices, and input devices for flexible system integration.
Ethernet Connectivity
Provides bidirectional data transfer with up to 1 Gbps Ethernet extension, allowing reliable LAN communication and device control.
RS232 and IR Extension
Extends control signals in both directions, enabling remote management of connected devices and systems.
Audio and HDMI Features
Supports HDR10, deep color, uncompressed audio, Dolby TrueHD, DTS-HD, and multi-channel audio transmission for complete signal compatibility.
Easy Installation and Maintenance
Features status LED indicators for signal and power monitoring, with a fanless enclosure suitable for rack or ceiling mounting.
Inputs
| 1 HDBT | On an RJ–45 female connector |
Outputs
| 1 HDMI | On an HDMI female connector |
Ports
| 1 USB 2.0 Host | On a USB–B female connector |
| 3 USB 2.0 Device | On USB type–A female connectors |
| 1 1000BaseT Ethernet | On an RJ–45 female connector for LAN extension |
| 1 IR | On a 3.5mm mini jack for IR extension |
| 1 RS–232 | On a 3–pin terminal block for serial extension |
USB Features
| Integrated USB Hubs | 1 |
Extension Line
| Reach | Up to 100m (330ft) |
| Note | When using Kramer HDBaseT cables |
| Standards Compliance | HDBaseT 3.0 |
Video
| Max Data Rate | 18Gbps bandwidth (6Gbps per graphic channel) |
| Max Resolution | 4K@60Hz (4:4:4) 24bpp resolution |
| Content Protection | HDCP 2.3 |
| HDMI Support | 4K as specified in HDMI 2.0b |
Extended USB
| Data Rate | Up to 480Mbps |
| Transmitted Data Bandwidth | Up to 300Mbps |
| Standards Compliance | 1.1 and 2.0 USB |
Extended Ethernet
| Max Data Rate | 1 Gbps |
Extended RS-232
| Baud Rate | 300 to 115200 |
Power
| Power Adapter | |
| Source | 48V DC, 1.36A |
| Consumption | 48V DC, 1.2A |
| Max. Power | 53W |
| USB Device Charging | |
| Max. Total Current | 2A |
Enclosure
| Size | Mega Tools |
| Material | Aluminum |
| Cooling | Convection ventilation |
Environmental Conditions
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, RHL non–condensing |
Regulatory Compliance (Standards Compliance)
| Safety | CE |
| Environmental | RoHs and WEEE |
Product Dimensions
| 19.00cm x 11.60cm x 2.70cm (7.48 in x 4.57 in x 1.06 in) W, D, H |
Product Weight
| 0.6kg (1.2lbs) approx. |
Shipping Dimensions
| 34.50cm x 16.50cm x 5.20cm (13.58 in x 6.50 in x 2.05 in) W, D, H |
Shipping Weight
| 1.2kg (2.7lbs) approx. |
