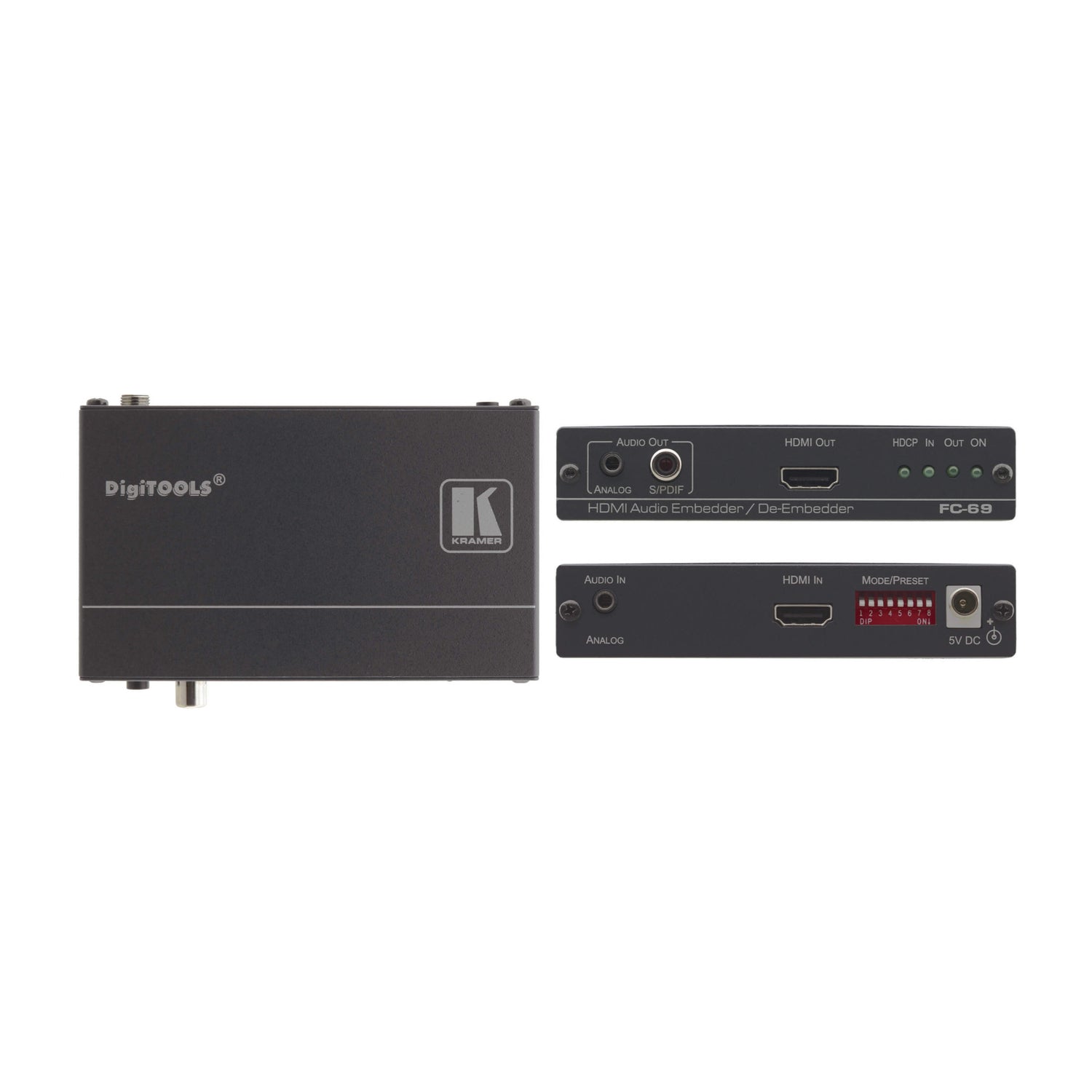

Kramer FC-69 4K60 4:2:0 HDMI Audio Embedder and De-Embedder (Black)
The FC-69 is a high-performance HDMI audio embedder and de-embedder that supports up to 4K at 60Hz (4:2:0), 4Kx2K resolution with a maximum data rate of 8.91Gbps. It embeds analog audio into the HDMI output or de-embeds audio from the HDMI input or Audio Return Channel to S/PDIF and unbalanced stereo outputs simultaneously. The unit is HDTV compatible, HDCP compliant, and supports ARC, 7.1 PCM audio, and deep color. It features equalization and re-clocking technology for long-distance signal reliability, sleep mode for energy saving, and DIP-switch controls for EDID, HDCP, embedding/de-embedding, and sleep mode settings. Built with a durable aluminum enclosure, it offers HDMI, analog stereo, and S/PDIF connections, operates on 5V DC power, and meets CE, RoHS, and WEEE compliance.
High-Resolution Support
Handles video resolutions up to 4K at 60Hz (4:2:0) and 4Kx2K, ensuring sharp, detailed picture quality.
High Data Rate
Supports a maximum data rate of 8.91Gbps (2.97Gbps per data channel) for smooth video and audio performance.
Audio Embedding
Allows embedding of analog stereo audio directly into the HDMI output, even without an HDMI source.
Audio De-Embedding
Extracts audio from HDMI input or ARC and outputs simultaneously to S/PDIF digital and unbalanced analog stereo.
HDTV and HDCP Compliance
Fully compatible with HDTV standards and compliant with HDCP to ensure protected content playback.
Advanced Signal Technology
Features equalization and re-clocking to restore and maintain strong digital signals over longer distances.
ARC and PCM Audio Support
Supports HDMI Audio Return Channel (ARC), 7.1 PCM audio, and deep color formats for versatile AV setups.
Sleep Mode Functionality
5V output follows the input, allowing connected displays to power down automatically when no video is transmitted.
Easy Control Options
DIP-switches provide quick access to EDID settings, HDCP control, audio embedding/de-embedding, and sleep mode.
Compact and Durable Design
Built with a rugged aluminum enclosure, designed for both rack mounting (optional) and furniture mounting (included feet).
Comprehensive Connectivity
Includes HDMI input/output, analog stereo mini jack, and S/PDIF RCA connectors for flexible integration.
Reliable Power and Compliance
Operates on 5V DC power, convection-cooled, CE certified, and meets RoHS and WEEE environmental standards.
Professional Warranty
Backed by a 7-year parts and labor warranty for long-term reliability.
Kramer FC-69 4K60 4:2:0 HDMI Audio Embedder and De-Embedder (Black)
| Max. Resolution | 4K at 60Hz (4:2:0), 4Kx2K |
| Max. Data Rate | 8.91Gbps (2.97Gbps per data channel) |
| HDTV Compatible | Yes |
| HDCP Compliance | Yes |
| HDMI Support | ARC, 7.1 PCM, deep color |
| Audio Embedding | Yes, even without an HDMI source |
| Audio De-Embedding | To S/PDIF digital and unbalanced stereo outputs, selectable from input or ARC |
| Controls | 8-way DIP-switch |
| Indicator LEDs | ON, IN, OUT, HDCP |
| Inputs | 1 HDMI, 1 analog stereo audio (3.5mm mini jack) |
| Outputs | 1 HDMI, 1 S/PDIF digital (RCA), 1 analog stereo (3.5mm) |
| Audio THD+N | –75dB |
| Power Source | 5V DC, 500mA |
| Operating Temperature | 0° to +40°C (32° to 104°F) |
| Storage Temperature | –40° to +70°C (–40° to 158°F) |
| Humidity | 10% to 90%, non-condensing |
| Cooling | Convection |
| Enclosure Type | Aluminum |
| Rack Mount | Optional adapter |
| Furniture Mount | Included rubber feet |
| Vibration | ISTA 1A in carton |
| Regulatory Compliance | CE |
| Environmental Compliance | RoHS, WEEE |
| Included Accessories | Power supply |
| Warranty | 7 years parts and labor |
| Product Dimensions | 4.72 inch × 2.81 inch × 0.96 inch (W × D × H) |
| Product Weight | 0.2 kg (0.4 lbs) approx. |
| Shipping Dimensions | 6.18 inch × 4.72 inch × 3.43 inch (W × D × H) |
| Shipping Weight | 0.5 kg (1.0 lbs) approx. |
