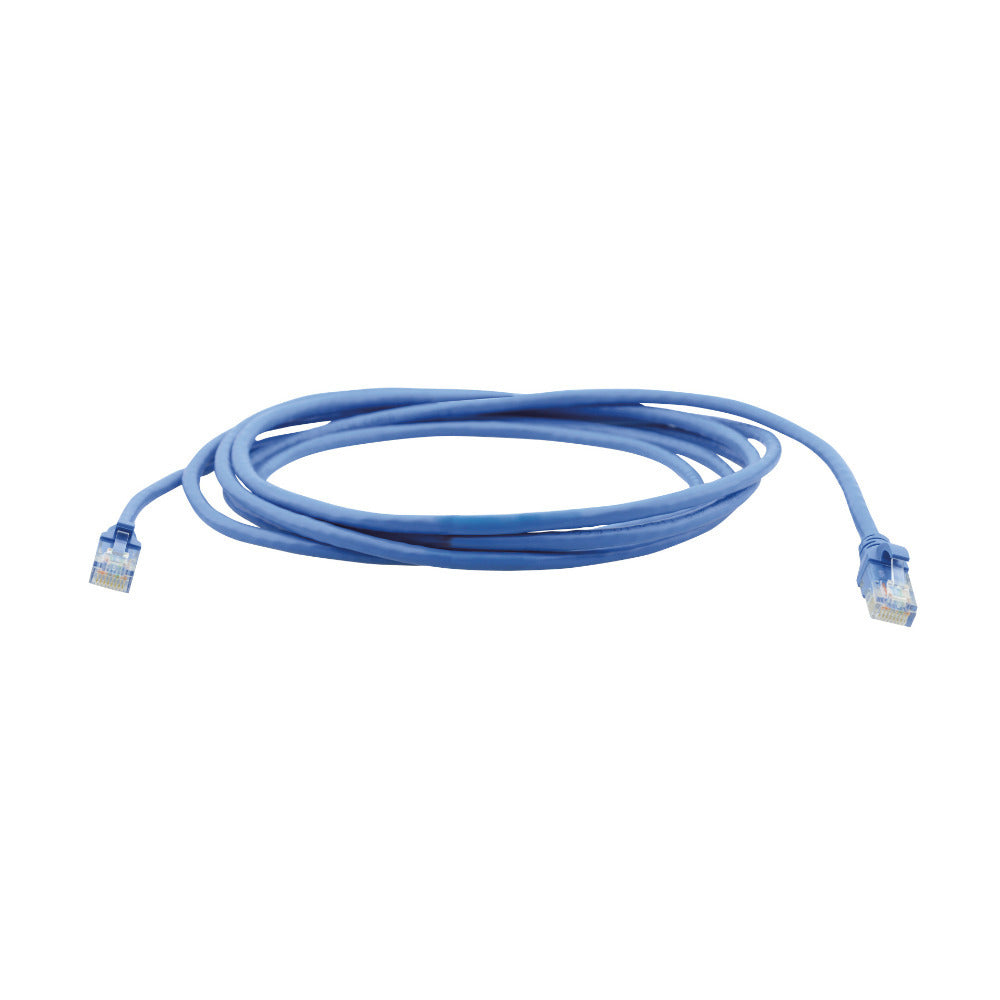

Kramer CAT6A S/FTP 500MHz 4x2x26AWG Patch Cord Low Smoke (Blue, 3.3...
The Kramer PC6A-LS508 CAT6A S/FTP Patch Cord is designed to provide stable and consistent network connections for various LAN setups. It delivers dependable performance and is built to meet demanding data transmission needs.
Quality Construction
Built with 4 twisted pairs of 26AWG annealed bare copper, each individually screened and overall braided (S/FTP). This structure minimizes signal interference and ensures stable data transmission.
Shielded RJ-45 Connector
Equipped with a slim snagless shielded RJ-45 connector with 50μ gold-plated contacts. This ensures secure connections, reduced wear over time, and reliable data transfer.
Low Smoke and Halogen-Free
The cable is rated Low Smoke and Halogen-Free (LSHF), making it safer to use in enclosed or public environments by reducing toxic emissions during combustion.
Multiple Length Options
Available in a range of lengths from 0.15m to 30m (0.45ft to 98ft), allowing you to choose the right size for different network installation needs.
Electrical
| Wire Gauge | 26 AWG |
Environmental
| Storage Temperature | 0°C to 50°C (32°F to 122°F) |
| Operating Temperature | –15–60°C |
General
| Cable Length | 1 meter |
| Conductor Material | Bare copper |
| Jacket Type | Polyvinyl Chloride (PVC) |
Construction
| Conductor Material | Annealed bare copper |
| Conductor Diameter | 7/0.16±0.01mm |
| Cable Size | 26AWG |
| Insulation Material | Skin/Foam/Skin PE |
| Insulation Diameter | 1.07±0.05mm |
| Color Code | Blue/white blue, brown/white brown, orange/white orange, green/white green |
| Sheath Material | LSHF |
| Sheath Color | Blue RAL 5015 |
| Sheath Diameter | 6.0±0.5mm |
Screening
| Type | Aluminum poly laminate per pair |
Conductors
| Material | Tinned copper |
Electrical
| Impedance | 1–100MHz 100±15Ω |
| Impedance | 100–250MHz 100±22Ω |
| Impedance | 250–500MHz 100±25Ω |
| Max. Conductor DC Resistance | <128Ω/km |
| Propagation Velocity | 76% |
Physical
| Mechanical Characteristics | Maximum pulling tension 100N, minimum bending radius 48mm |
| Connector Type | Snagless shielded RJ–45 CAT6A |
| Wiring | EIA/TIA 568B |
| Contact Material | Bronze |
| Contact Plating | Gold 50µm |
| Over Molding | Blue, PVC |
| Environmental Conditions | |
| Operating Tempature | –15–60°C |
| Storage Temperature | Storage/Transport/Installation 0–50°C |
Regulatory
| Compliant Standards - Electrical | UL Subject 444/CSA C22 No.214, CE, ISO/IEC 11801 |
| Flammability | IEC 60332–1, IEC 60332–3, ICE 62321–1 |
| Environmental | ANSI/TIA—568–C.2 Category 6A by Intertek Labs REACH, RoHS 2011/65/EU |
